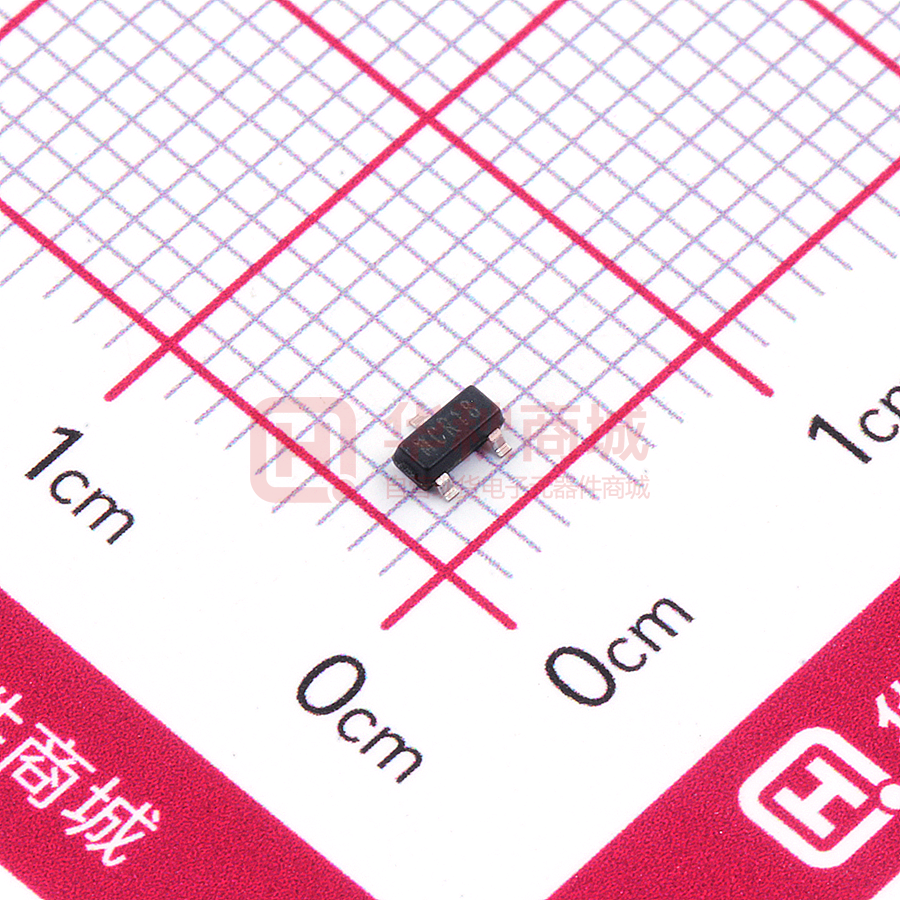

MCR18

Jiangsu Weida Semiconductor Co., Ltd. MCR100-8 Series 0.8A Sensitive SCRs DESCRIPTION: The MCR100-8 SCR series provide high dv/dt rate with strong resistance to electromagnetic interface. They are especially recommended for use on residual current circuit breaker, straight hair, igniter etc. TO-92 SOT-23 SOT-23-3L SOT-89 SOT-223-3L MAIN FEATURES: symbol value unit IT(RMS) 1 A VDRM/VRRM 600/800 V VTM ≤1.5 V ABSOLUTE MAXIMUM RATINGS: Parameter Symbol Value Unit Tstg -40~150 ℃ Tj -40~110 ℃ Repetitive peak off-state voltage (Tj=25℃) VDRM 600/800 V Repetitive peak reverse voltage (Tj=25℃) VRRM 600/800 V RMS on-state current IT(RMS) 0.8 A ITSM 8 A I2t 0.32 A2s dI/dt 50 A/μs IGM 0.2 A PG(AV) 0.1 W PGM 0.5 W Storage junction temperature range Operating junction temperature range Non repetitive surge peak on-state current (full cycle, F=50Hz) I2t value for fusing (tp=10ms) Critical rate of rise of on-state current (IG=2×IGT) Peak gate current Average gate power dissipation Peak gate power PRODUCT DATA SHEET 1 Rev.22.0 2020 Jiangsu Weida Semiconductor Co., Ltd. MCR100-8 Series 0.8A Sensitive SCRs ELECTRICAL CHARACTERISTICS (Tj=25℃ unless otherwise specified) Symbol Value Test Condition IGT VD=12V, RL=33Ω VGT VD=VDRM Tj=110℃ VGD RL=3.3kΩ Unit MIN TYPE MAX - 20 200 µA - 0.6 0.8 V 0.2 - - V IH IT=50mA - - 5 mA IL IG=1.2IGT - - 6 mA 10 - - V/µs VD=0.66×VDRM Tj=110℃ dV/dt G 极开路 RGK=1KΩ STATIC CHARACTERISTICS Symbol VTM Test Condition Tj=25℃ ITM=1A tp=380μs IDRM IRRM Tj=25℃ VDRM= VRRM RGK=1KΩ Tj=110℃ MAX MAX Value Unit 1.5 V 5 µA 100 µA Value Unit THERMAL RESISTANCES Symbol Test Condition SOT-223 31 TO-92 Rth(j-c) PRODUCT DATA SHEET 结到外壳(AC) 2 SOT-23 SOT-23-3L 75 SOT-89 45 ℃/W Rev.22.0 2020 Jiangsu Weida Semiconductor Co., Ltd. MCR100-8 Series 0.8A Sensitive SCRs ORDERING INFORMATION MCR SCR 100–8 IT(RMS):0.8A VDRM、VRRM: 600V PACKAGE MECHANICAL DATA Dimensions Ref. A A1 B B1 C D E F F1 G H J K SOT-223-3L Ref. A b b1 c D D1 E E1 e e1 L SOT-89-3L PRODUCT DATA SHEET 3 Min. 1.5 0.01 2.9 0.6 0.22 6.3 3.3 0.7 1.5 6.7 0.8 Millimeters Typ. Max. 1.6 1.8 0.06 0.10 3.0 3.1 0.7 0.8 0.25 0.32 6.5 6.7 3.5 3.7 4.6 6.8 2.3 0.9 1.1 1.75 2.0 7.0 7.3 0.9 1.0 Min. 0.059 0.001 0.114 0.024 0.009 0.248 0.130 0.252 0.028 0.059 0.264 0.031 Inches Typ. 0.063 0.002 0.118 0.028 0.010 0.256 0.138 0.181 0.091 0.035 0.069 0.276 0.035 Max. 0.071 0.004 0.122 0.031 0.013 0.264 0.146 0.043 0.079 0.287 0.039 Dimensions Millimeters Min. Typ. Max. 1.4 1.6 0.35 0.52 0.4 0.58 0.35 0.44 4.4 4.6 1.55 2.35 2.55 3.94 4.25 1.500 3.000 0.9 1.1 Min. 0.055 0.013 0.016 0.014 0.173 Inches Typ. Max. 0.063 0.197 0.023 0.017 0.181 0.061 0.091 0.155 0.102 0.167 0.060 0.118 0.035 0.047 Rev.22.0 2020 Jiangsu Weida Semiconductor Co., Ltd. MCR100-8 Series 0.8A Sensitive SCRs Dimensions Millimeters Min. Typ. Max. Min. 4.45 4.6 5.2 0.175 4.32 4.6 5.33 0.17 3.18 3.55 4.19 0.125 0.407 0.533 0.016 0.6 0.8 0.024 1.1 1.27 2.3 0.36 0.38 0.5 0.014 12.7 15 0.5 2.04 2.3 2.66 0.08 1.86 2.06 0.073 4.3 - Ref. A B C D E F G H J K N P V Inches Typ. 0.181 0.181 0.14 0 0.043 0.05 0.091 0.015 0.091 Max. 0.205 0.21 0.165 0.021 0.031 0.02 0.591 0.105 0.081 0.169 Dimensions Millimeters Ref. PRODUCT DATA SHEET 4 Inches Min. Typ. Max. Min. Typ. Max. A 2.65 2.8 2.95 0.104 0.11 0.116 B 2.82 2.92 3.02 0.111 0.115 0.119 C 1.8 1.9 2 0.071 0.075 0.079 D 0.3 0.35 0.5 0.012 0.014 0.02 E 1.5 1.6 1.7 0.059 0.063 0.067 F 1.07 1.17 1.27 0.042 0.046 0.05 G 0.05 0.15 0.25 0.002 0.006 0.01 H 0.25 0.4 0.55 0.01 0.016 0.022 Rev.22.0 2020 Jiangsu Weida Semiconductor Co., Ltd. MCR100-8 Series 0.8A Sensitive SCRs SOT-23 FIG.1: Maximum power dissipation versus RMS on-state current FIG.2: RMS on-state current versus case temperature IT(RMS)(A) P(w) PRODUCT DATA SHEET 5 Rev.22.0 2020 Jiangsu Weida Semiconductor Co., Ltd. MCR100-8 Series 0.8A Sensitive SCRs FIG.3: Surge peak on-state current versus number of cycles FIG.4:On-state characteristics (maximum values) ITSM(A) ITM(A) FIG.5: Non-repetitive surge peak on-state current for a sinusoidal pulse with width tp
