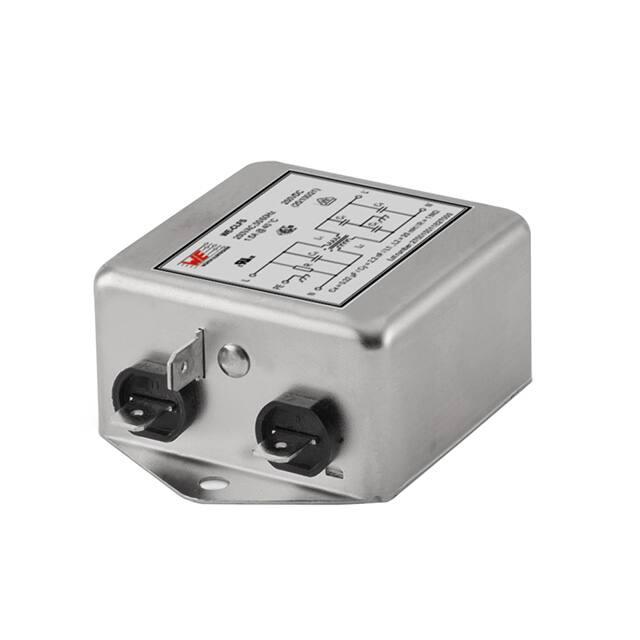

810911010

Dimensions: [mm] Recommended Screw Thread: [mm] 2x 5,3 ±0,2 8,0 min. detail A Properties 5x 0,8 u0,03 2x 6,15 ±0,5 Electrical Properties: Rated Voltage M4 Rated Current Leakage Current 54,0 ±1,0 54,0 21,0 ±1,0 Scale - 1:2 9,0 min. 29,0 ±1,0 Schematic: 15,0 ±1,0 9,3 ±1,0 A 64,0 ±1,0 1) IR @ 40 °C/ ΔT< 60 K 250 V (AC)/ 50 Hz RDC @ 20 °C Unit Tol. 250 V max. max. 10 A 0.534 mA typ. 15 mΩ max. Inductance L 10 kHz/ 0.1 mA 1 mH +50%/-30% X2-Capacitance CX 1 kHz/ 1 V 0.68 µF ±10% Y2-Capacitance CY 1 kHz/ 1 V 6.8 nF ±20% Discharge Resistance R @ 20 °C 680 kΩ ±10% Insulation Test Voltage L->PE VT AC 50 Hz/ 2 s/ 10 mA 2000 V (AC) max. Insulation Test Voltage L->N VT DC 2 s/ 10 mA 1075 V (DC) max. Leakage current is calculated according to IEC 60939-3. If the neutral line is interrupted, worst case leakage current could reach twice this level. There is no leakage current for DC applications. L' General Information: Operating Temperature CY L1 -25 up to +100 °C Climatic Category CX Rated Temperature R CY N 25/100/21 | TR 40 °C Storage Conditions (in original packaging) L2 35,0 ±1,0 250 V (AC), 50/60 Hz 250 V (DC) Value 1) L PE VR ILeak DC Resistance 5x 6,3 ±0,1 43,5 ±1,0 Test conditions N' < 40 °C ; < 75 % RH Flammability Rating according to UL94 V-0 Moisture Sensitivity Level (MSL) 1 Altitude
