RoHS
BAS70 THRU BAS70-06
COMPLIANT
Schottky Barrier Diode
Features
●Epoxy meets UL-94 V-0 flammability rating
●Meets MSL level 1, per J-STD-020C, LF max peak of 260 °C
●Molding compound meets UL 94 V-0 flammability
rating, RoHS-compliant, halogen-free
● Component in accordance to RoHS 2002/95/ECand WEEE
2002/96/EC
Mechanical Data

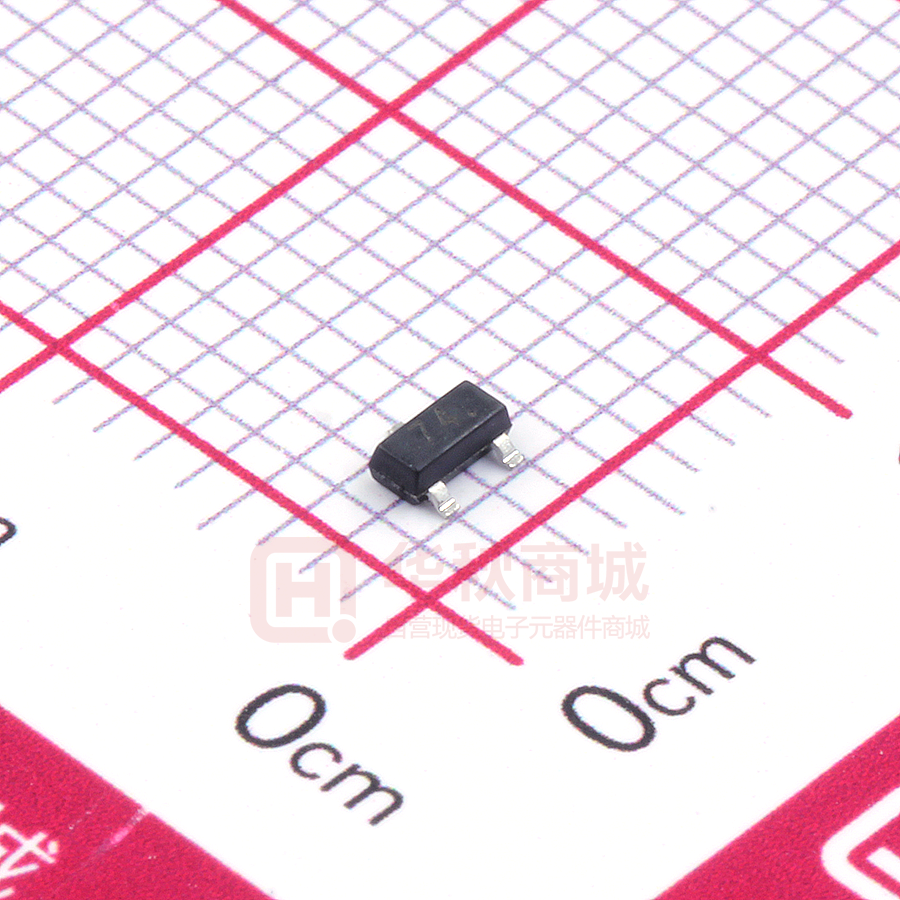

● Package: SOT-23
Molding compound meets UL 94 V-0 flammability rating,
RoHS-compliant, halogen-free
● Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
Marking:
BAS70
BAS70-04
BAS70-05
BAS70-06
73
74
75
76
■Maximum Rating, (Ta=25℃ Unless otherwise specified)
Item
Symbol
Unit
Value
Continuous Reverse Voltage
VR
V
70
Forward Continuous Current
IF
mA
70
Non-Repetitive Peak Forward Surge
Current @ t = 8.3ms
IFSM
A
0.1
Total Power Dissipation @ TA=25℃
PD
mW
200
RthJA
℃/W
500
TJ
℃
-55 to +125
TSTG
℃
-55 to +125
Thermal Resistance, Junction to Ambient
Operation Junction Temperature
Storage Temperature
■Ordering Information (Example)
PREFERED P/N
PACKING
CODE
UNIT WEIGHT(g)
MINIMUM
PACKAGE(pcs)
BAS70
F2
Approximate 0.008
3000
30000
120000
7” reel
BAS70-04
F2
Approximate 0.008
3000
30000
120000
7” reel
BAS70-05
F2
Approximate 0.008
3000
30000
120000
7” reel
BAS70-06
F2
Approximate 0.008
3000
30000
120000
7” reel
INNER BOX
OUTER CARTON
DELIVERY MODE
QUANTITY(pcs) QUANTITY(pcs)
1/4
S-S1790
Rev.1.1,24-Jan-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
BAS70 THRU BAS70-06
■Electrical Characteristics(Ta=25℃ Unless otherwise specified)
Item
Symbol
Maximum Instantaneous Forward Voltage
VF
Unit
Conditions
Value
IFM=1mA
0.41
IFM=15mA
1
V
Continuous Reverse Voltage
VR
V
IR=10uA
70
Maximum DC Reverse Current
IR
uA
VR=50V
0.2
Maximum Junction Capacitance
CJ
pF
f=1.0MHz, VR=1.0V
2
Maximum Reverse Recovery Time
Trr
ns
IF=IR=10mA,I(REC)=1mA
5
■ Typical Characteristics
2/4
S-S1790
Rev.1.1,24-Jan-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
BAS70 THRU BAS70-06
■SOT-23 Package Outline Dimensions
■SOT-23Suggested Pad Layout
3/4
S-S1790
Rev.1.1,24-Jan-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
BAS70 THRU BAS70-06
Disclaimer
The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the
right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design
or otherwise.
The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with
equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as
medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety
devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use
of sale.
This publication supersedes & replaces all information previously supplied. For additional information, please visit our website
http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance.
4/4
S-S1790
Rev.1.1,24-Jan-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
