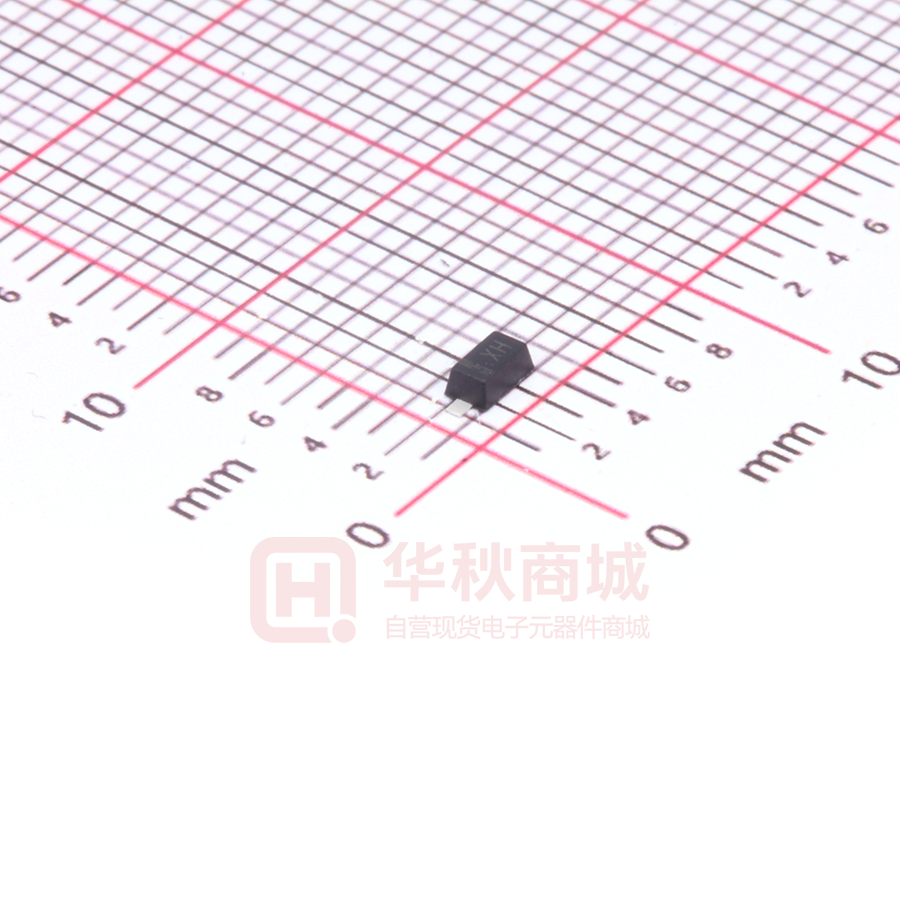

BAT46W

BAT46W RoHS   COMPLIANT   Small Signal Schottky Diode Features ● VR 100V ● IFAV 150mA Mechanical Data ● Package: SOD-123 ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Polarity: Cathode line denotes the cathode end ● Marking: S9 ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL Conditions UNIT VALUE Repetitive peak reverse voltage VRRM V Non-Repetitive Peak Forward Surge Current IFSM mA Average forward current IFAV mA 150 Power dissipation PD mW 200 RθJA ℃/W 500 Tj ℃ 125 Tstg ℃ -55 to +150 Thermal Resistance From Junction To Ambient Junction temperature Storage temperature range 100 tp=8.3ms 750 ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） PARAMETER Maximum Forward voltage Maximum Reverse current SYMBOL VF UNIT Conditions VALUE V IF=0.1mA 0.25 V IF=10mA 0.45 V IF=250mA 1 uA VR=1.5V 0.3 uA VR=10V 0.5 uA VR=50V 1 uA VR=75V 2 IR=100μA 100 VR=0V, f =1MHZ 20 VR=1V, f =1MHZ 12 IR Minimum Breakdown voltage VR V Maximum Diode capacitance CD pF 1/4 S-S2699 Rev.1.0,25-Nov-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com BAT46W     ■Ordering Information (Example) PREFERED P/N PACKING CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE BAT46W F2 Approximate 0.009 3000 30000 120000 7” reel ■ Characteristics (Typical) 2/4 S-S2699 Rev.1.0,25-Nov-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com BAT46W     ■ SOD-123 Package Outline Dimensions ■ SOD-123 Soldering Footprint Unit: inches 3/4 S-S2699 Rev.1.0,25-Nov-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com BAT46W     Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 4/4 S-S2699 Rev.1.0,25-Nov-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
