RoHS
COMPLIANT
BAV19W THRU BAV21W
Small-Signal Switching Diodes
Features
● VR 100V/150V/200V
● IFAV 200mA
Typical Applications
● Extreme fast switches
Mechanical Data

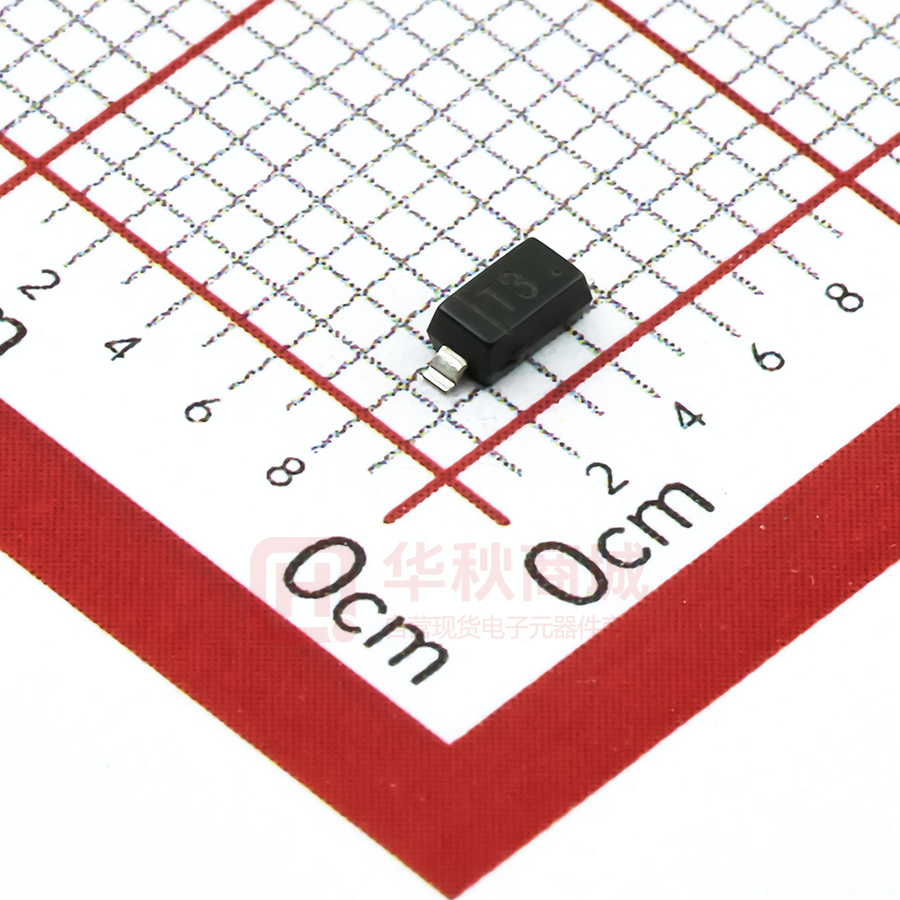

● Package: SOD123
● Terminals: Tin plated leads, solderable per
J -STD-002 and JESD22-B102
● Polarity: Cathode line denotes the cathode end
Marking
A8
T2
T3
BAV19W
BAV20W
BAV21W
■Maximum Ratings (Ta=25℃ Unless otherwise specified)
PARAMETER
Repetitive peak reverse voltage
SYMBOL
VRRM
Conditions
UNIT
VALUE
V
BAV19W
120
BAV20W
200
BAV21W
250
Average forward current
IFAV
mA
200
Power dissipation
Ptot
mW
400
Tj
℃
-65 to +150
Tstg
℃
-65 to +150
Maximum junction temperature
Storage temperature range
■Electrical Characteristics(Ta=25℃ Unless otherwise specified)
PARAMETER
Maximum Forward voltage
Maximum Reverse current
Minimum Breakdown voltage
SYMBOL
UNIT
VF
V
IR
V(BR)
nA
V
Conditions
VALUE
IF=100mA
1.0
IF=200mA
1.25
BAV19W
VR=100V
BAV20W
VR=150V
BAV21W
VR=200V
BAV19W
IR=10uA
100
BAV20W
IR=10uA
150
BAV21W
IR=10uA
200
100
Maximum Diode capacitance
CD
pF
VR=0V, f =1MHZ
5
Maximum Reverse recovery time
trr
ns
IF=IR=30 mA,RL=100Ω,IRR=3mA
50
1/4
S-S1583
Rev.1.2,17-July-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
BAV19W THRU BAV21W
■Ordering Information (Example)
PREFERED P/N
PACKING
CODE
UNIT WEIGHT(g)
MINIMUM
PACKAGE(pcs)
INNER BOX
QUANTITY(pcs)
BAV19W Thru
BAV21W
F2
Approximate 0.011
3000
30000
OUTER CARTON
DELIVERY MODE
QUANTITY(pcs)
120000
7” reel
■Characteristics(Typical)
Fig.1 Total Capacitance
Fig.2 Forward Voltage vs Ambient Temperature
Fig.3 Reverse Current vs Reverse Voltage
2/4
S-S1583
Rev.1.2,17-July-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
BAV19W THRU BAV21W
■ Outline Dimensions
■ Soldering Footprint
Unit: inch
3/4
S-S1583
Rev.1.2,17-July-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
BAV19W THRU BAV21W
Disclaimer
The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the
right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design
or otherwise.
The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with
equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as
medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety
devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use
of sale.
This publication supersedes & replaces all information previously supplied. For additional information, please visit our website
http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance.
4/4
S-S1583
Rev.1.2,17-July-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
