RoHS
BZT52B2V4 THRU BZT52B47
COMPLIANT
Zener Diodes
Features
● High reliability
● Very sharp reverse characteristic
● Low reverse current level
● Zener Voltage 2.4V~47V
Mechanical Data

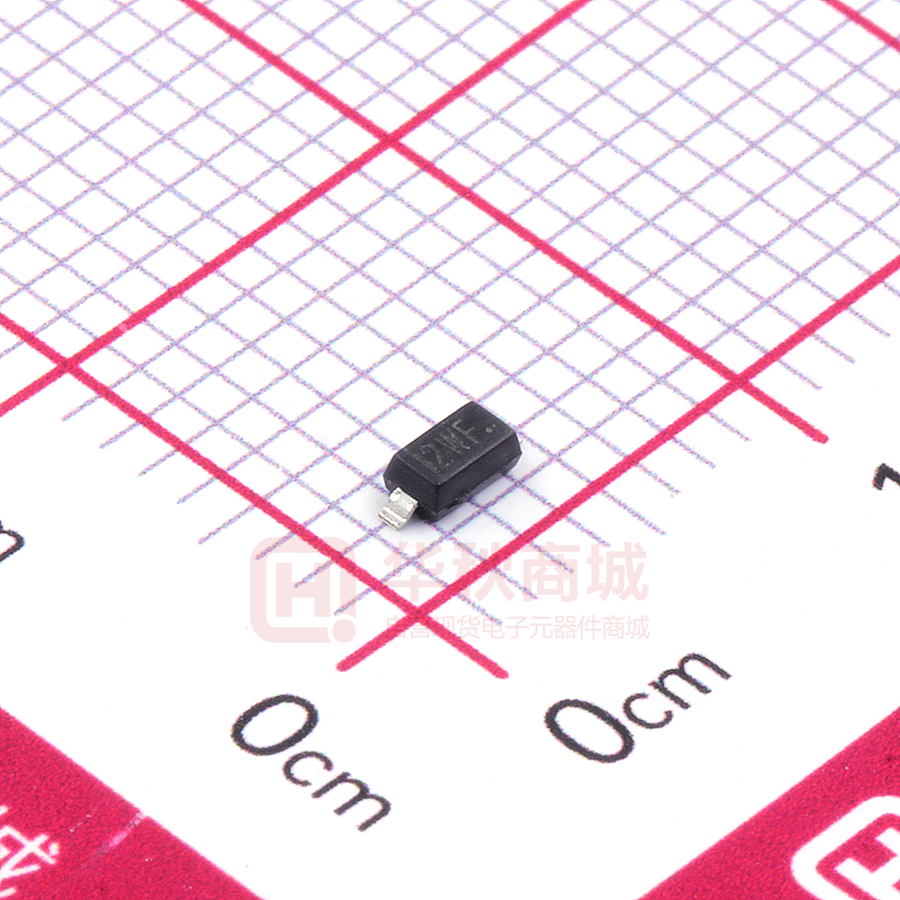

● Package: SOD123
● Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
● Polarity: Cathode line denotes the cathode end
■ Maximum Ratings (Ta=25℃ Unless otherwise specified)
SYMBOL
UNIT
VALUE
PD
mW
500
Storage Temperature Range
Tstg
°C
-55~+150
Maximum Junction Temperature
TJ
°C
-55~+150
Maximum Regulator Current
IZM
mA
P D/ V z
Forward Voltage(@IF=10mA)
VF
V
1.0
RθJA
°C /W
250
PARAMETER
Power Dissipation
Thermal Resistance Junction to Ambient Air*
■ Ordering Information (Example)
PREFERED P/N
PACKING
CODE
UNIT WEIGHT(g)
BZT52B2V4 THRU BZT52B47
F2
Approximate 0.009
MINIMUM
INNER BOX
PACKAGE(pcs) QUANTITY(pcs)
3000
30000
OUTER CARTON
QUANTITY(pcs)
DELIVERY
MODE
120000
7” reel
1/5
S-S1348
Rev. 1.8, 15-May-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
BZT52B2V4 THRU BZT52B47
■ Electrical Characteristics (Ta=25℃ Unless otherwise specified)
Vz at IzT (V)
Type Number Device Marking
Zzt(Ω)
Zzk(Ω)
IR(μA)@VR
min.
typ.
max.
IZT(mA)
max.
Izk(mA)
max.
max
VR(V)
Typical Temperature
Coefficient@ IZTC
mV/℃
Test
Current
IZTC
Min
Max
mA
BZT52B2V4
2WX
2.34
2.4
2.46
5
100
1.0
600
45
1.0
-3.5
0
5
BZT52B2V7
2W1
2.63
2.7
2.77
5
100
1.0
600
20
1.0
-3.5
0
5
BZT52B3V0
2W2
2.92
3.0
3.08
5
100
1.0
600
10
1.0
-3.5
0
5
BZT52B3V3
2W3
3.21
3.3
3.39
5
95
1.0
600
15
1.0
-3.5
0
5
BZT52B3V6
2W4
3.52
3.6
3.67
5
95
1.0
600
15
1.0
-3.5
0
5
BZT52B3V9
2W5
3.82
3.9
3.98
5
95
1.0
600
10
1.0
-3.5
0
5
BZT52B4V3
2W6
4.21
4.3
4.39
5
95
1.0
600
5
1.0
-3.5
0
5
BZT52B4V7
2W7
4.61
4.7
4.79
5
78
1.0
500
5
2.0
-3.5
0
5
BZT52B5V1
2W8
5.0
5.1
5.2
5
60
1.0
480
0.1
0.8
-2.7
1.2
5
BZT52B5V6
2W9
5.49
5.6
5.71
5
40
1.0
400
0.1
1.0
-2
2.5
5
BZT52B6V2
2WA
6.08
6.2
6.32
5
10
1.0
150
0.1
2.0
0.4
3.7
5
BZT52B6V8
2WB
6.66
6.8
6.94
5
8
1.0
80
0.1
3.0
1.2
4.5
5
BZT52B7V5
2WC
7.35
7.5
7.65
5
7
1.0
80
0.1
5.0
2.5
5.3
5
BZT52B8V2
2WD
8.04
8.2
8.36
5
7
1.0
80
0.1
6.0
3.2
6.2
5
BZT52B9V1
2WE
8.92
9.1
9.28
5
10
1.0
100
0.1
7.0
3.8
7.0
5
BZT52B10
2WF
9.8
10
10.2
5
15
1.0
150
0.1
7.5
4.5
8.0
5
BZT52B11
2WG
10.78
11
11.22
5
20
1.0
150
0.1
8.5
5.4
9.0
5
BZT52B12
2WH
11.76
12
12.24
5
20
1.0
150
0.1
9.0
6.0
10.0
5
BZT52B13
2WI
12.74
13
13.3
5
25
1.0
170
0.1
10.0
7.0
11.0
5
BZT52B15
2WJ
14.7
15
15.3
5
30
1.0
200
0.1
11.0
9.2
13.0
5
BZT52B16
2WK
15.68
16
16.3
5
40
1.0
200
0.1
12
10.4
14.0
5
BZT52B18
2WL
17.6
18
18.4
5
50
1.0
225
0.1
14.0
12.4
16.0
5
BZT52B20
2WM
19.6
20
20.4
5
55
1.0
225
01.
15.0
14.4
18.0
5
BZT52B22
2WN
21.56
22
22.44
5
55
1.0
250
0.1
17.0
16.4
20.0
5
BZT52B24
2WO
23.52
24
24.5
5
70
1.0
250
0.1
18.0
18.4
22.0
5
BZT52B27
2WP
26.46
27
27.54
5
80
1.0
300
0.1
20.0
21.4
25.3
2
BZT52B30
2WQ
29.4
30
30.6
5
80
1.0
300
0.1
22.5
24.4
29.4
2
BZT52B33
2WR
32.34
33
33.7
5
80
1.0
325
0.1
25.0
27.4
33.4
2
BZT52B36
2WS
35.28
36
36.72
5
90
1.0
350
0.1
27.0
30.4
37.4
2
BZT52B39
2WT
38.22
39
39.8
5
90
1.0
350
0.1
29.0
33.4
41.2
2
BZT52B43
2WU
42.14
43
43.86
5
100
1
375
0.1
32.0
10.0
12.0
5
BZT52B47
2WV
46.06
47
47.94
5
110
1
375
0.1
35.0
10.0
12.0
5
2/5
S-S1348
Rev. 1.8, 15-May-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
BZT52B2V4 THRU BZT52B47
■ Characteristics (Typical)
3/5
S-S1348
Rev. 1.8, 15-May-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
BZT52B2V4 THRU BZT52B47
■ Outline Dimensions
■ Soldering Footprint
Unit: inches
4/5
S-S1348
Rev. 1.8, 15-May-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
BZT52B2V4 THRU BZT52B47
Disclaimer
The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the
right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design
or otherwise.
The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with
equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as
medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety
devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use
of sale.
This publication supersedes & replaces all information previously supplied. For additional information, please visit our website
http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance.
5/5
S-S1348
Rev. 1.8, 15-May-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
