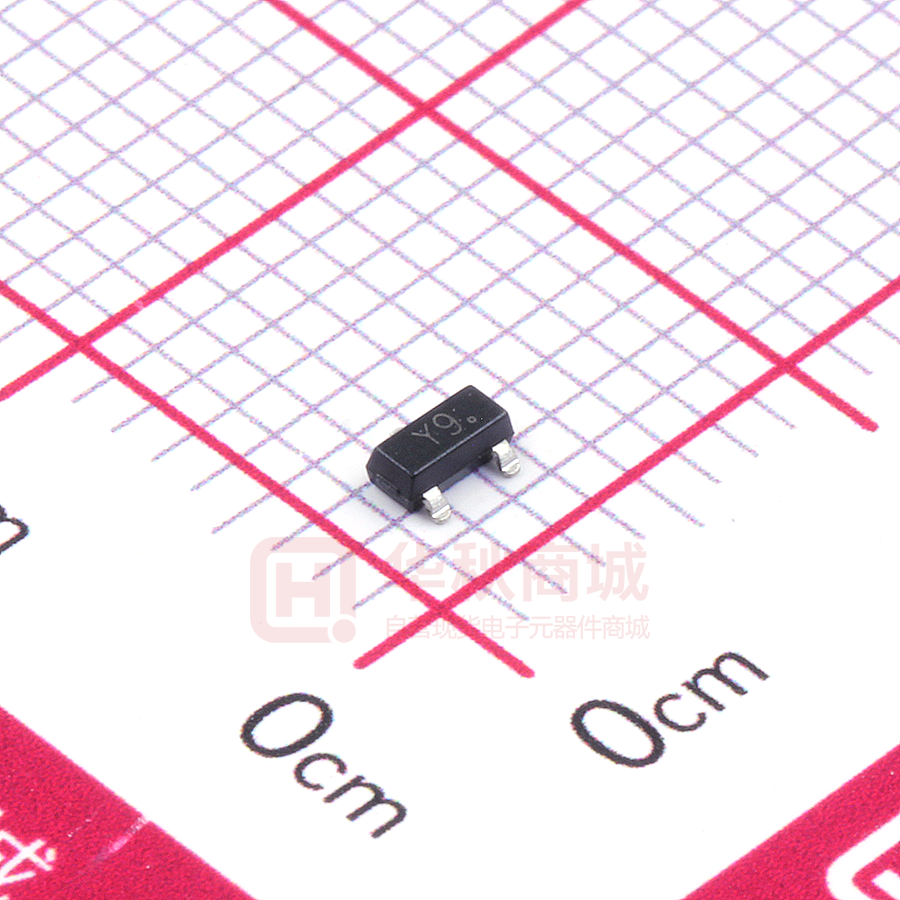

BZX84C24

RoHS BZX84C2V4 THRU BZX84C47   COMPLIANT   Zener Diodes Features ● High reliability ● Very sharp reverse characteristic ● Low reverse current level ● Zener Voltage 2.4V~47V Mechanical Data ● Package: SOT-23 Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ■Limiting Values (Absolute Maximum Rating, Ta=25℃ Unless otherwise specified) Characteristic Symbol Value Units Maximum Forward Voltage@IF=10mA VF 0.9 V Power Dissipation PD 350 mW Peak Forward Surge Current* IFSM 2.0 A Thermal Resistance RthJA 357 ℃ /W TJ -55~+150 ℃ TSTG -55~+150 ℃ Operation Temperature Storage Temperature Range *Measured on 8.3ms, single half sine-wave ■Ordering Information (Example) PREFERED P/N PACKING CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) BZX84C2V4 THRU BZX84C47 F2 Approximate 0.008 3000 INNER BOX OUTER CARTON DELIVERY MODE QUANTITY(pcs) QUANTITY(pcs) 30000 120000 7” reel 1/5 S-S1499 Rev.1.4, 15-May-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com BZX84C2V4 THRU BZX84C47     ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） Nominal Zener Voltage Type Number Marking Code Max Reverse Leakage Current Maximum Zener Impedance Vz at IZT (V) ZZT@IZT ZZk@IZk IR (uA)@ VR Min. Typ. Max. ZZT (Ω) IZT(mA) ZZk (Ω) IZk (mA) Max VR(V) BZX84C2V4 Z11 2.28 2.4 2.52 100 5 600 1 50 1 BZX84C2V7 Z12 2.5 2.7 2.9 100 5 600 1 20 1 BZX84C3V0 Z13 2.8 3.0 3.2 95 5 600 1 10 1 BZX84C3V3 Z14 3.1 3.3 3.5 95 5 600 1 5 1 BZX84C3V6 Z15 3.4 3.6 3.8 90 5 600 1 5 1 BZX84C3V9 Z16 3.7 3.9 4.1 90 5 600 1 3 1 BZX84C4V3 Z17 4.0 4.3 4.6 90 5 600 1 3 1 BZX84C4V7 Z1 4.4 4.7 5.0 80 5 500 1 3 2 BZX84C5V1 Z2 4.8 5.1 5.4 60 5 480 1 2 2 BZX84C5V6 Z3 5.2 5.6 6.0 40 5 400 1 1 2 BZX84C6V2 Z4 5.8 6.2 6.6 10 5 150 1 3 4 BZX84C6V8 Z5 6.4 6.8 7.2 15 5 80 1 2 4 BZX84C7V5 Z6 7.0 7.5 7.9 15 5 80 1 1 5 BZX84C8V2 Z7 7.7 8.2 8.7 15 5 80 1 0.7 5 BZX84C9V1 Z8 8.5 9.1 9.6 15 5 100 1 0.5 6 BZX84C10 Z9 9.4 10 10.6 20 5 150 1 0.2 7 BZX84C11 Y1 · 10.4 11 11.6 20 5 150 1 0.1 8 BZX84C12 Y2 · 11.4 12 12.7 25 5 150 1 0.1 8 BZX84C13 Y3 12.4 13 14.1 30 5 170 1 0.1 8 BZX84C15 Y4 14.25 15 15.75 30 5 200 1 0.1 10.5 BZX84C16 Y5 15.3 16 17.1 40 5 200 1 0.1 11.2 BZX84C18 Y6 · 16.8 18 19.1 45 5 225 1 0.1 12.6 BZX84C20 Y7 18.8 20 21.2 55 5 225 1 0.1 14 BZX84C22 Y8 20.8 22 23.3 55 5 250 1 0.1 15.4 BZX84C24 Y9 22.8 24 25.6 70 5 250 1 0.1 16.8 BZX84C27 Y10 25.1 27 28.9 80 2 300 1 0.1 18.9 BZX84C30 Y11 · 28 30 32 80 2 300 1 0.1 21.0 BZX84C33 Y12 31 33 35 80 2 325 1 0.1 23.1 BZX84C36 Y13 34 36 38 90 2 350 1 0.1 25.2 BZX84C39 Y14 37 39 41 130 2 350 1 0.1 27.3 BZX84C43 Y15 40.85 43 45.15 150 5 375 1 0.1 30.1 BZX84C47 Y16 44.65 47 49.35 170 5 375 1 0.1 32.9 2/5 S-S1499 Rev.1.4, 15-May-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com BZX84C2V4 THRU BZX84C47     ■ Characteristics (Typical) 3/5 S-S1499 Rev.1.4, 15-May-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com BZX84C2V4 THRU BZX84C47     ■SOT-23 Package Outline Dimensions ■SOT-23Suggested Pad Layout 4/5 S-S1499 Rev.1.4, 15-May-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com BZX84C2V4 THRU BZX84C47     Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 5/5 S-S1499 Rev.1.4, 15-May-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
