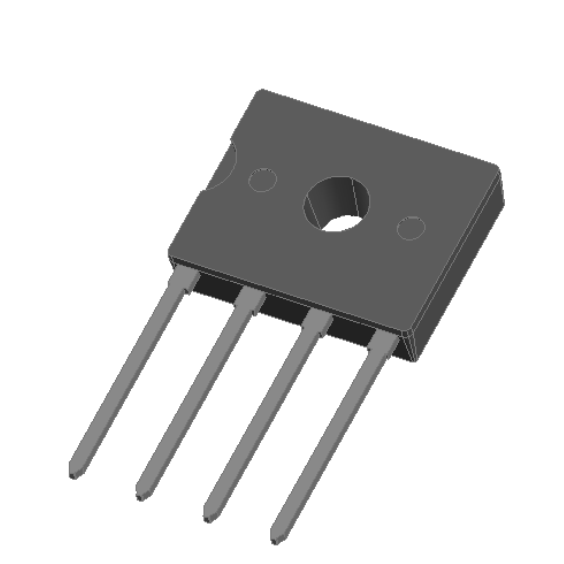

D4UB100

RoHS D4UB05 THRU D4UB100  COMPLIANT   Bridge Rectifiers Features ● UL recognition, file #E230084 ● Ideal for printed circuit boards ● High surge current capability ● Solder dip 275 °C max. 7 s, per JESD 22-B106 Typical Applications General purpose use in AC/DC bridge full wave rectification for monitor, TV, printer, power supply, switching mode power supply, adapter, audio equipment, and home appliances applications. Mechanical Data + ~ ~ ● Package: D3K Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Polarity: As marked on body - ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Device marking code Repetitive peak reverse voltage VRRM V IO A With heatsink Average rectified output Tc =140℃ current @60Hz sine wave, Without heatsink R-load Ta =29℃ Surge(non-repetitive)forward current @60Hz half sine wave, 1 cycle, Tj=25℃ Current squared time @1ms≤t≤8.3ms Tj=25℃, Rating of per diode D4UB05 D4UB10 D4UB20 D4UB40 D4UB60 D4UB80 D4UB100 D4UB05 D4UB10 D4UB20 D4UB40 D4UB60 D4UB80 D4UB100 50 100 200 400 600 800 1000 4.0 1.3 IFSM A 135 I2t A2s 75 Storage temperature Tstg ℃ -55 ~+150 Junction temperature Tj ℃ -55 ~+150 Dielectric strength @ Terminals to case, AC 1 minute Vdis KV 2 Mounting torque @Recommend torque：5kgꞏcm Tor kgꞏcm 8 ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） PARAMETER Maximum instantaneous forward voltage drop per diode Maximum DC reverse current at rated DC blocking voltage per diode SYMBOL UNIT TEST CONDITIONS VF V IFM=2.0A IRRM μA VRM=VRRM D4UB05 D4UB10 D4UB20 D4UB40  D4UB60  D4UB80 D4UB100 1.00 5 1/4 S-B008 Rev. 2.3, 28-Apr-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com D4UB05 THRU D4UB100    ■Thermal Characteristics （Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL Between junction and ambient, Without heatsink Between junction and case, With heatsink Thermal resistance D4UB05 UNIT D4UB10 D4UB20 RθJ-A D4UB40 D4UB60 D4UB80 D4UB100 55.0 ℃/W RθJ-C 1.5 ■Ordering Information (Example) PREFERED P/N PACKING CODE UNIT WEIGHT(g) MINIIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE D4UB05- D4UB100 B1 Approximate 1.266 25 1500 6000 TUBE ■ Characteristics (Typical) FIG2:Surge Forward Current Capability FIG1:Io-Tc Curve 140 120 4.0 3.0 2.0 heatsink sine wave R-load with heatsink Tc-sensing point 1.0 0 half sine wave 0 100 non-repetitive Tj=25℃ 80 60 40 20 0 40 80 0 160 120 FIG3:Instantaneous Forward Voltage 1 2 5 10 20 Number of Cycles 50 100 FIG4:Typical Reverse Characteristics 100 60 Tj=150 ℃ Instantaneous Reverse Current (uA) 40 Instantaneous Forward Current(A) 8.3ms 8.3ms 1cycle Case Temperature (℃) ` IFSM 5.0 Peak Forward surge Current Average Forward Output Current (A) 6.0 Ta=25℃ 20 10 5.0 1.0 0.5 10 1.0 Tj=25℃ 0.1 0.2 0.1 0.4 0.6 0.8 1.0 1.2 0.01 1.4 0 Instantaneous Forward Voltage (V) 20 40 60 80 100 Percent of Rated Peak Reverse Voltage (%) 2/4 S-B008 Rev. 2.3, 28-Apr-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com D4UB05 THRU D4UB100    ■ Outline Dimensions D3K D3K I A C D J B E M K H F Dim Min Max A 13.30 14.30 B 10.30 11.30 C 6.40 7.40 D 4.50 5.50 E 1.05 1.45 F 0.60 0.85 G 3.70 3.90 H 13.10 13.50 I 2.60 3.60 J 3.10 3.40 K 2.00 2.20 L 0.40 0.60 M 0.90 1.50 L G G G Dimensions in millimeters 3/4 S-B008 Rev. 2.3, 28-Apr-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com D4UB05 THRU D4UB100    Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 4/4 S-B008 Rev. 2.3, 28-Apr-20 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
