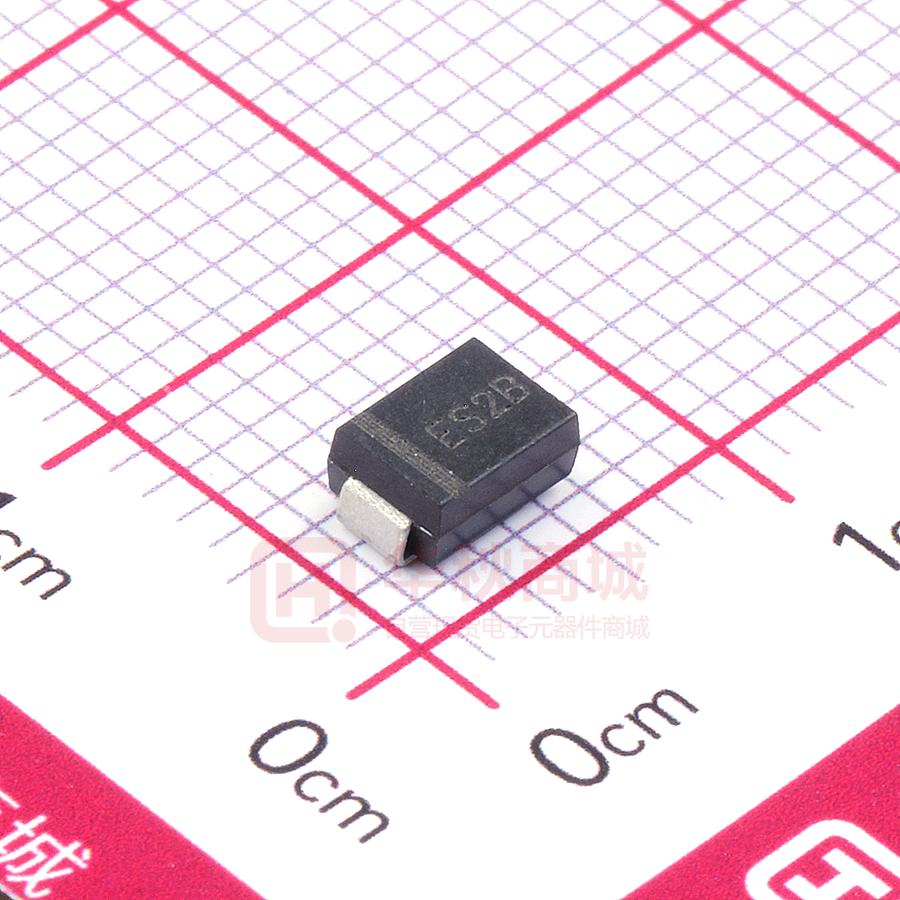

ES2B

RoHS ES2A THRU ES2K  COMPLIANT   Surface Mount Super Fast Recovery Rectifier Features ● Low profile package ● Ideal for automated placement ● Glass passivated chip junction ● High forward surge capability ● Super Fast reverse recovery time ● Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C Typical Applications For use in high frequency rectification of power supplies, inverters, converters, and freewheeling diodes for consumer and telecommunication. Mechanical Data ● Package: DO-214AA (SMB) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Polarity: Cathode line denotes the cathode end ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Device marking code ES2A ES2B ES2C ES2D ES2F ES2G ES2H ES2J ES2K ES2A ES2B ES2C ES2D ES2F ES2G ES2H ES2J ES2K Maximum Repetitive Peak Reverse Voltage VRRM V 50 100 150 200 300 400 500 600 800 Maximum RMS Voltage VRMS V 35 70 105 140 210 280 350 420 560 Maximum DC blocking Voltage VDC V 50 100 150 200 300 400 500 600 800 ES2G ES2H ES2J ES2K Average rectified output current @60Hz sine wave, resistance load, TL (Fig.1) Forward Surge Current (Non-repetitive) @60Hz Half-sine wave,1 cycle, Tj=25℃ Forward Surge Current (Non-repetitive) @1ms, square wave, 1 cycle, Tj=25℃ Current squared time @1ms≤t≤8.3ms Tj=25℃ IO A IFSM A It 2 As 2 10.375 Storage temperature Tstg ℃ -55 ~ +150 Junction temperature Tj ℃ -55 ~ +150 2.0 50 100 ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT TEST CONDITIONS ES2A ES2B ES2C ES2D ES2F Maximum instantaneous forward voltage VF V IFM=2.0A Maximum reverse recovery time trr ns IF=0.5A,IR=1.0A, Irr=0.25A 35 Maximum DC reverse current at rated DC blocking voltage IR μA Tj =25℃ 5.0 Tj =125℃ 100 Cj Measured at 1MHz pF and Applied Reverse Voltage of 4.0 V.D.C Typical junction capacitance 0.95 31 1.3 1.7 1.85 17 12 12 1/5 S-S025 Rev. 2.8, 25-Nov-21 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com ES2A THRU ES2K    ■Thermal Characteristics （Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT ES2A ES2B ES2C ES2D (1) RθJ-A RθJ-L RθJ-C ES2G ES2H ES2J ES2K 60 (1) Typical Thermal Resistance ES2F 22 ℃/W (1) 16 Note: (1) Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with 0.3" x 0.3" (8.0 mm x 8.0 mm) copper pad areas ■ Characteristics (Typical) FIG1：Io‐TL Curve FIG2：Surge Forward Current Capability 50 2.0 Peak Forward Surge Current(A) Average Forward Output Current(A) 2.4 1.6 1.2 0.8 0.4 0 40 60 80 8.3ms Single Half Sine Wave 30 20 10 Resistive or Inductive Load P.C.B. Mounted on 0.3"×0.3" (8.0mm×8.0mm)Copper Pad Areas 20 40 100 120 140 160 0 Lead Temperature(℃) 1 FIG3: Typical Forward Voltage ES2A~ES2D Instantaneous Reverse Current(uA) Instantaneous Forward Current(A) 100 2 1 0.5 ES2F~ES2G ES2H-ES2J ES2K 0.1 0.05 0.02 0.01 100 FIG4:Typical Reverse Characteristics 6 4 10 Number of Cycles 0.4 0.8 1.2 1.6 2.0 2.4 Tj=125 ℃ 10 1.0 0.1 0.01 Instantaneous Forward Voltage(V) Tj=25 ℃ 0 20 40 60 80 Percent of Rated Peak Reverse Voltage(%) 100 2/5 S-S025 Rev. 2.8, 25-Nov-21 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com ES2A THRU ES2K    FIG.5: Diagram of circuit and Testing wave form of reverse recovery time 10 Ω NONINDUCTIVE 50 Ω NONINDUCTIVE trr +0.5A (-) (+) DUT 0 PULSE GENERATOR (NOTE2) (-) 1Ω NONINDUCTIVE OSCILLOSCOPE (NOTE1) -0.25A (+) -1.0A NOTES: 1.Rise Time=7ns max .Inpot Impedance=1M Ω 22pf 2.Rise Time=10ns max.Sourse Impedance=50 Ω 1cm SET TIME BASE FOR 5/10ns/cm ■Ordering Information (Example) PREFERED P/N PACKING CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE ES2A-ES2K F1 Approximate 0.096 3000 / 48000 13” reel ES2A-ES2K F2 Approximate 0.096 750 6000 24000 7” reel ES2A-ES2K F3 Approximate 0.096 500 4000 16000 7” reel ■ Outline Dimensions DO-214AA(SMB) Dim Min A 1.85 Max 2.15 B 3.30 3.94 C 4.05 4.75 D 1.99 2.61 E 5.21 5.59 F 0.90 1.41 G 0.10 0.20 H 0.15 0.31 3/5 S-S025 Rev. 2.8, 25-Nov-21 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com ES2A THRU ES2K    ■ Suggested pad layout DO-214AA(SMB) P2 Q2 P3 Q1 P1 Dim Millimeters P1 6.8 P2 4.3 P3 1.8 Q1  2.5 Q2  2.3 Dimensions in millimeters 4/5 S-S025 Rev. 2.8, 25-Nov-21 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com ES2A THRU ES2K    Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 5/5 S-S025 Rev. 2.8, 25-Nov-21 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
