GBPC25005(W) THRU GBPC2510(W)
COMPLIANT
Bridge Rectifiers
Features
●Universal 3-way terminals: snap-on, wire
wrap-around, or PCB mounting
● High surge current capability
● Low thermal resistance
● Solder dip 275 °C max. 7 s, per JESD 22-B106
Typical Applications
General purpose use in AC/DC bridge full wave rectification for
power supply, home appliances, office equipment, industrial
automation applications.
Mechanical Data

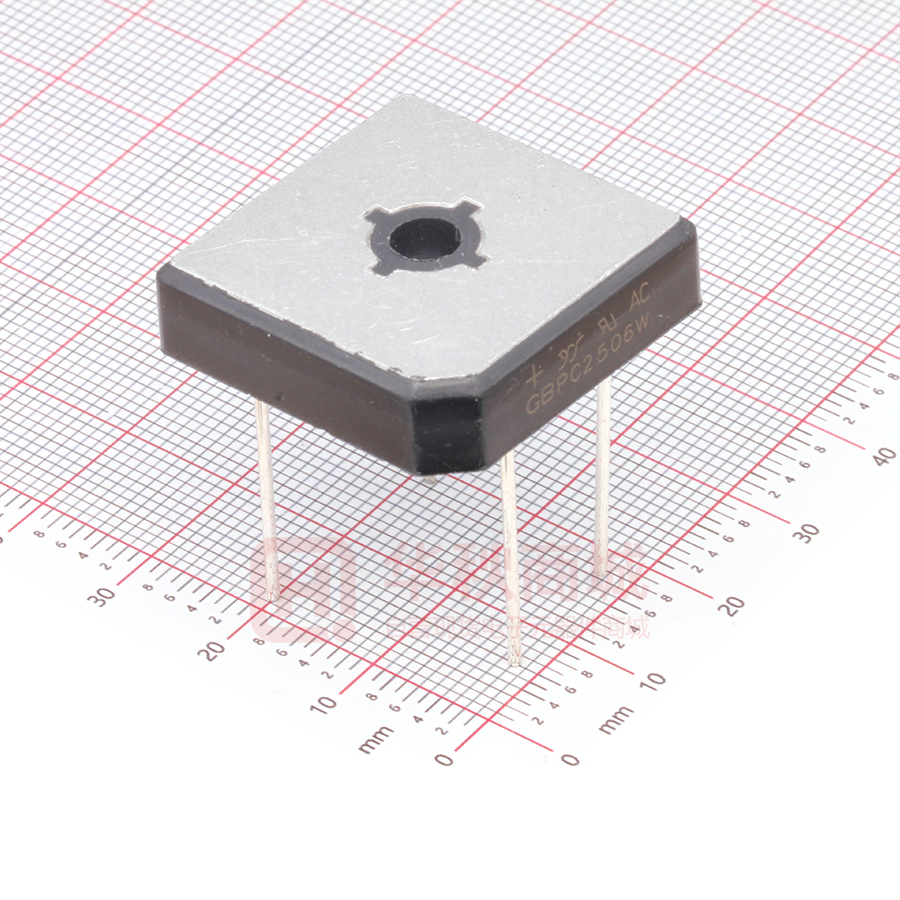

● Package: GBPC,GBPC-W
Molding compound meets UL 94 V-0 flammability
rating, RoHS-compliant
● Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
Suffix letter “W” added to indicate wire leads(e.g.
GBPC2510W).
■ Maximum Ratings (Ta=25℃ Unless otherwise specified)
PARAMETER
SYMBOL UNIT
Device marking code
GBPC25
005
GBPC25005
GBPC25
01
GBPC25
02
GBPC25
04
V
IO
A
25
IFSM
A
400
I2t
AS
Storage Temperature
Tstg
℃
-55 ~+150
Junction Temperature
Tj
℃
-55 ~+150
Dielectric Strength, Terminals to case,
AC 1 minute
Vdis
KV
2.5
Mounting Torque
TOR
kg·cm
10
Average Rectified Output Current
@60Hz sine wave, R-load, With heatsink,
Tc=55℃
Surge(Non-repetitive)Forward Current
@60HZ Half- sine Wave, 1 cycle,
Ta=25℃
Current Squared Time @1ms≤t≤8.3ms
Tj=25℃, Rating of per diode
GBPC25
08
GBPC25
10
GBPC2501 GBPC2502 GBPC2504 GBPC2506 GBPC2508 GBPC2510
VRRM
Repetitive Peak Reverse Voltage
GBPC25
06
50
100
200
400
2
600
800
1000
660
■ Electrical Characteristics (Ta=25℃ Unless otherwise specified)
PARAMETER
SYMBOL UNIT
GBPC25 GBPC25
01
005
TEST
CONDITIONS
Maximum instantaneous forward
voltage drop per diode
VFM
V
Maximum DC reverse current at
rated DC blocking voltage per diode
IRRM
μA VRM=VRRM
GBPC25 GBPC25 GBPC25 GBPC25 GBPC25
02
04
06
08
10
1.1
IFM=12.5A
10
■ Thermal Characteristics (Ta=25℃ Unless otherwise specified)
PARAMETER
Thermal
Resistance
Between junction and
case, With heatsink
SYMBOL
UNIT
RθJ-C
℃/W
GBPC25
005
GBPC25
01
GBPC25
02
GBPC25
04
GBPC25
06
GBPC25
08
GBPC25
10
1.9
1/4
S-C029
Rev. 2.1, 28-Apr-15
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
GBPC25005(W) THRU GBPC2510(W)
■ Ordering Information (Example)
PREFERED
P/N
PACKAGE
UNIT WEIGHT(g)
CODE
MINIMUM
PACKAGE(pcs)
INNER BOX
QUANTITY(pcs)
OUTER CARTON
QUANTITY(pcs)
DELIVERY MODE
GBPC25005~GBPC2510
A1
Approximate 13.8
50
50
500
Paper Box
GBPC25005W~GBPC2510W
A1
Approximate 13
50
50
500
Paper Box
■ Characteristics (Typical)
FIG1:Io-Tc Curve
FIG2:Surge Forward Current Capability
450
Half-sine Wave
Peak Forward Surge Current (A)
Average Rectified Output Current (A)
30
20
10
0
0
50
100
non-repetitive
Ta=25℃
150
0
150
Case Temperature(°C)
300
1
2
5
10
20
50
100
Number of Cycles
FIG4:Typical Reverse Characteristics
FIG3:Instantaneous Forward Voltage
1000
60
Instantaneous Reverse Current (uA)
Instantaneous Forward Current (A)
Tj=125 ℃
Ta=25℃
20
10
5.0
1.0
0.5
100
10
Tj=25 ℃
1
0.2
0.1
0.4
0.1
0.6
0.8
1.0
1.2
Instantaneous Forward Voltage (V)
0
1.4
20
40
60
80
100
Percent Rated Peak Reverse Voltage(%)
2/4
S-C029
Rev. 2.1, 28-Apr-15
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
GBPC25005(W) THRU GBPC2510(W)
■ Outline Dimensions
GBPC-W
GBPC
GBPC-W
Hole for
No.10 Screw
.193"(4.9)diam.
D
B
B
D
F
I
H
E
Max
28.2
28.8
B
17.1
19.1
C
10.4
12.4
D
0.95
1.05
E
7.6
8.2
F
30
GBPC
Min
Max
A
28.2
28.8
B
15.3
17.3
C
17.1
19.1
D
13.2
15.2
E
0.75
0.85
F
6.2
6.4
G
2.2
2.6
H
7.6
8.2
I
19
/
Dim
F
G
Min
A
E
B
C
Hole for
No.10 Screw
.193"(4.9)diam.
A
B
C
A
Dim
Dimensions in millimeters
3/4
S-C029
Rev. 2.1, 28-Apr-15
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
GBPC25005(W) THRU GBPC2510(W)
Disclaimer
The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the
right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design
or otherwise.
The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with
equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as
medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety
devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use
of sale.
This publication supersedes & replaces all information previously supplied. For additional information, please visit our website
http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance.
4/4
S-C029
Rev. 2.1, 28-Apr-15
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
