RoHS

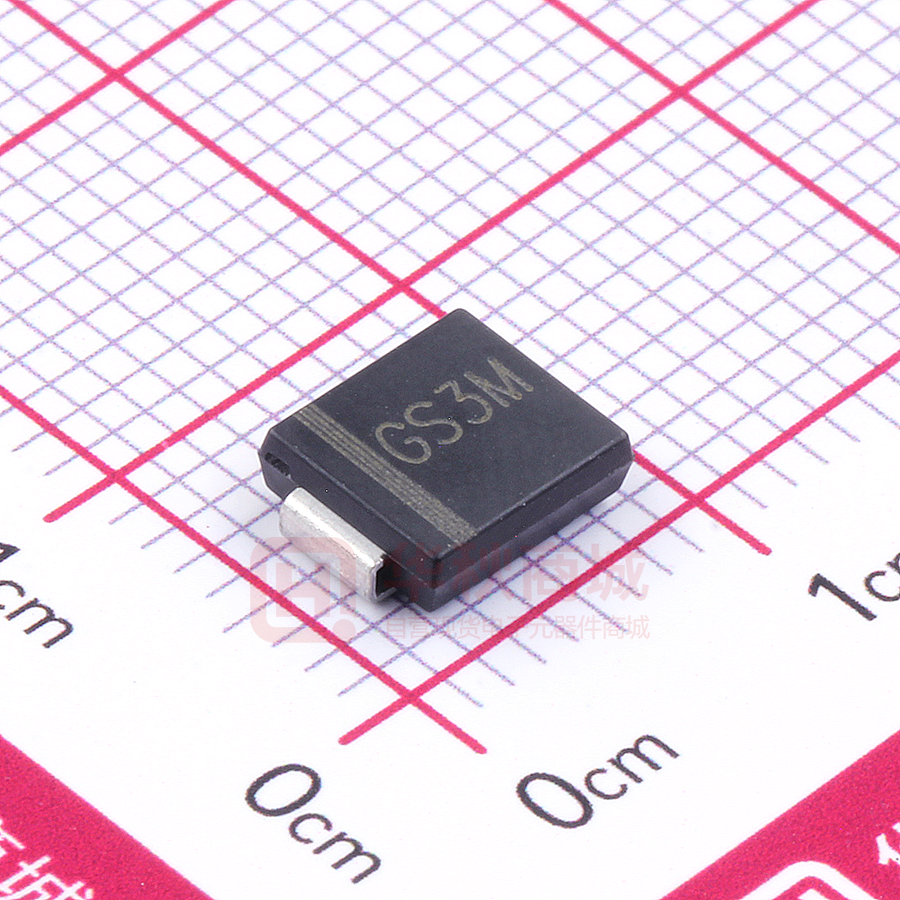

GS3A THRU GS3M
COMPLIANT
Surface Mount General Purpose Rectifier
Features
● High efficiency
● High current capability
● High reliability
● High surge current capability
● Low power loss
● Solder dip 260 °C max. 10 s, per JESD 22-B106
Mechanical Data
● Package: DO-214AB (SMC)
Molding compound meets UL 94 V-0 flammability rating,
RoHS-compliant
● Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B102
● Polarity:Color band denotes cathode end
■Maximum Ratings (Ta=25℃ Unless otherwise specified)
PARAMETER
SYMBOL
UNIT
GS3A
GS3B
GS3D
GS3G
GS3J
GS3K
GS3M
GS3A
GS3B
GS3D
GS3G
GS3J
GS3K
GS3M
50
100
200
400
600
800
1000
GS3K
GS3M
Device marking code
VRRM
V
IO
A
3.0
IFSM
A
100
Storage Temperature
Tstg
℃
-55 ~+150
Junction Temperature
Tj
℃
-55 ~+150
Repetitive Peak Reverse Voltage
Average Rectified Output Current
@60Hz sine wave, Resistance load, TL (FIG.1)
Forward Surge Current (Non-repetitive)
@60Hz Half-sine wave,1 cycle, Ta=25℃
■Electrical Characteristics(Ta=25℃ Unless otherwise specified)
PARAMETER
GS3A
GS3B
GS3D
GS3G
SYMBOL
UNIT
TEST CONDITIONS
Maximum instantaneous
forward voltage drop per diode
VF
V
IFM=3.0A
1.1
Maximum DC reverse current
at rated DC blocking voltage
per diode
Ta=25℃
5
IR
μA
Ta=125℃
100
Typical junction capacitance
Cj
Measured at 1MHZ
and Applied Reverse
Voltage of 4.0 V.D.C.
25
pF
GS3J
■Thermal Characteristics (Ta=25℃ Unless otherwise specified)
PARAMETER
Thermal
Resistance
Junction to ambient
SYMBOL
UNIT
GS3A
RθJ-A
GS3B
GS3D
GS3G
GS3J
GS3K
GS3M
481)
℃/W
Junction to lead
RθJ-L
131)
Note(1)
Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with 0.6" x 0.6" (16 mm x 16 mm) copper pad areas
1/4
S-S056
Rev. 2.4, 20-Dec-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
GS3A THRU GS3M
■Ordering Information (Example)
PREFERED P/N
PACKAGE
CODE
UNIT WEIGHT(g)
MINIMUM
PACKAGE(pcs)
INNER BOX
QUANTITY(pcs)
OUTER CARTON
QUANTITY(pcs)
DELIVERY
MODE
GS3A~GS3M
F1
Approximate 0.248
3000
6000
42000
13” reel
■ Characteristics(Typical)
FIG.2: Forward Surge Current Capability
FIG.1: Io-TL Curve
120
3.0
Peak Forward Surge Current (A)
Average Forward Output Current (A)
3.5
2.5
2.0
1.5
1.0
Resistive or Inductive Load
P.C.B. Mounted on 0.6"×0.6"
(16mm×16mm)Copper Pad Areas
0.5
0
0
25
50
100
8.3ms Single Half Sine Wave
JEDEC Method
80
60
40
20
75
100
125
0
150
1
10
Lead Temperature (℃)
FIG.3: Typical Forward Voltage
FIG.4: Typical Reverse Characteristics
100
Instantaneous Reverse Current (uA)
Instantaneous Forward Current (uA)
100
10
3.0
1.0
0.1
0.01
0.5
100
Number of Cycles
Ta=125℃
10
1.0
0.01
0.001
0.6
0.7
0.8
0.9
1.0
1.1
Ta=25℃
0.1
1.2
0
20
40
60
80
100
Percent of Rated Peak Reverse Voltage (%)
Instantaneous Forward Voltage(V)
2/4
S-S056
Rev. 2.4, 20-Dec-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
GS3A THRU GS3M
■ Outline Dimensions
DO-214AB(SMC)
DO-214AB (SMC)
Dim
Min
Max
A
6.60
7.11
B
2.85
3.27
C
5.59
6.22
D
7.75
8.13
E
1.99
2.61
F
0.15
0.31
G
0.76
1.52
H
0.10
0.20
Dimensions in millimeters
■ Suggested pad layout
P2
Q1
Dim
Typ
P1
9.9
P2
3.84
Q1
3.03
Q2
3.82
Q2
P1
Dimensions in millimeters
3/4
S-S056
Rev. 2.4, 20-Dec-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
GS3A THRU GS3M
Disclaimer
The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the
right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design
or otherwise.
The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with
equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as
medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety
devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use
of sale.
This publication supersedes & replaces all information previously supplied. For additional information, please visit our website
http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance.
4/4
S-S056
Rev. 2.4, 20-Dec-19
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
