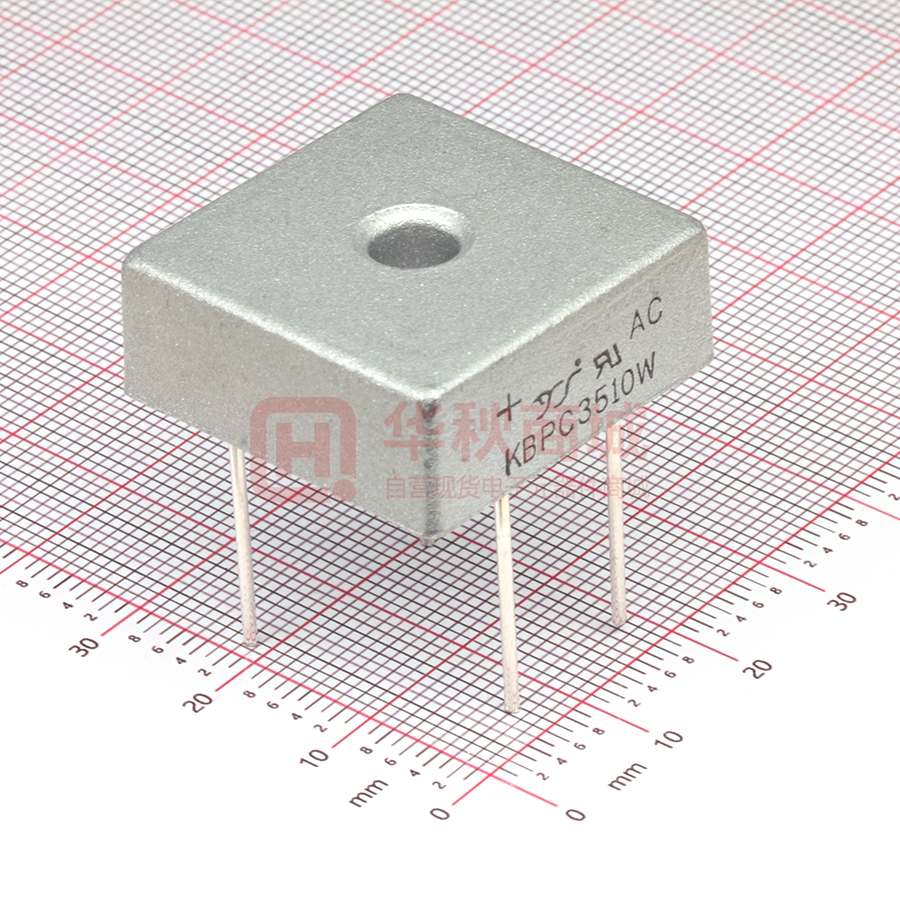

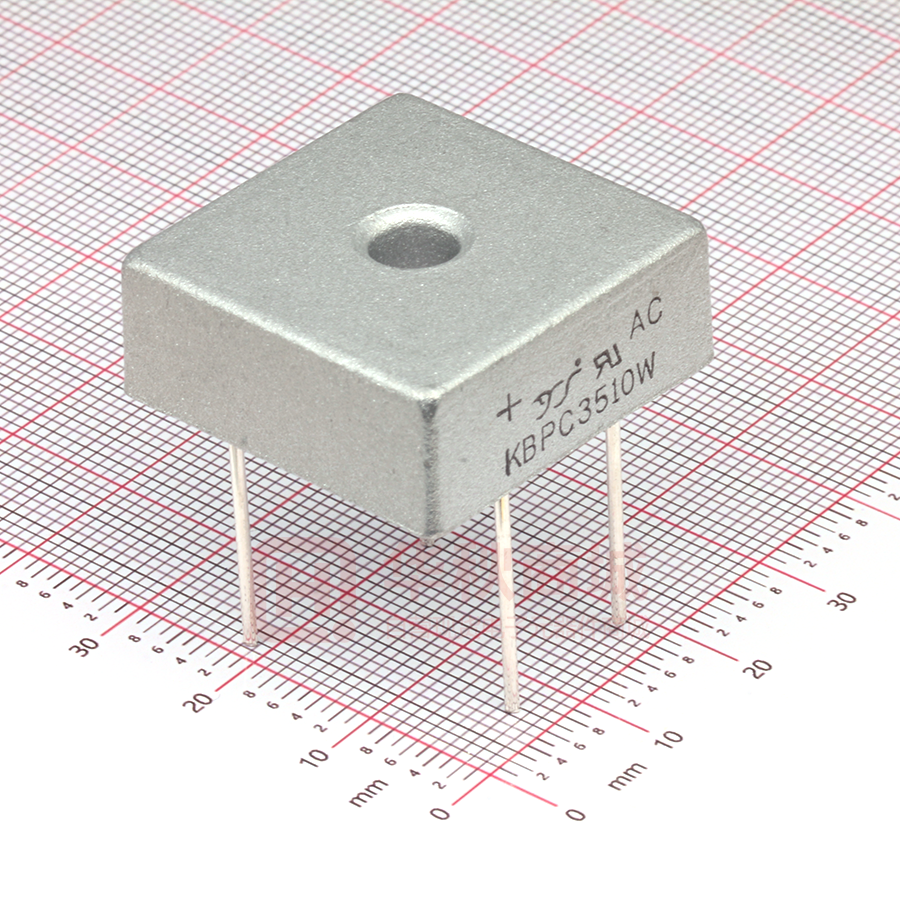

KBPC3510W

RoHS KBPC35005(W) THRU KBPC3510(W)  COMPLIANT   Bridge Rectifiers Features ~ +  ~ ‐  ‐ ● UL recognition file number E230084 ● Universal 3-way terminals: snap-on, wire wrap-around, or PCB mounting ● High surge current capability ● Low thermal resistance ● Solder dip 275 °C max. 7 s, per JESD 22-B106 + Typical Applications ~ General purpose use in AC/DC bridge full wave rectification for power supply, home appliances, office equipment, industrial automation applications. -~ ~ Mechanical Data ●Package: KBPC, KBPC-W Molding compound meets UL 94 V-0 flammability rating,RoHS- compliant ●Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 Suffix letter “W” added to indicate wire leads(e.g. KBPC3510W) ~ + ■ Maximum Ratings (Ta=25℃ Unless otherwise specified) PARAMETER SYMBOL UNIT KBPC35 005 KBPC35 01 KBPC35 02 KBPC35 04  KBPC35 06  KBPC35 08  KBPC35 10  KBPC35005 KBPC3501 KBPC3502 KBPC3504  KBPC3506  KBPC3508 KBPC3510 Device marking code VRRM V IO A 35 IFSM A 400 I2t AS Storage Temperature Tstg ℃ -55 ~+150 Junction Temperature Tj ℃ -55 ~+150 Dielectric Strength, Terminals to case, AC 1 minute Vdis KV 2.5 Mounting Torque TOR kg·cm 10 Repetitive Peak Reverse Voltage Average Rectified Output Current @60Hz sine wave, R-load, With heatsink, Tc=55℃ Surge(Non-repetitive)Forward Current @60Hz Half- sine Wave, 1 cycle, Ta=25℃ Current Squared Time @1ms≤t≤8.3ms Tj=25℃, Rating of per diode 50 100 200 2 400 600 800 1000 660 ■ Electrical Characteristics (Ta=25℃ Unless otherwise specified) PARAMETER SYMBOL UNIT TEST CONDITIONS Maximum instantaneous forward voltage drop per diode VFM V Maximum DC reverse current at rated DC blocking voltage per diode IRRM μA VRM=VRRM KBPC35 005 KBPC35 KBPC35 KBPC35 KBPC35 KBPC35 KBPC35 01  02  04  06  08  10  1.1 IFM=17.5A 10 ■ Thermal Characteristics (Ta=25℃ Unless otherwise specified) PARAMETER Thermal Resistance Between junction and case, With heatsink SYMBOL UNIT RθJ-C ℃/W KBPC35 005 KBPC35 01  KBPC35 02  KBPC35 04  KBPC35 06  KBPC35 08  KBPC35 10  1.6 1/4 S-C059 Rev. 2.1, 28-Apr-15 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com KBPC35005(W) THRU KBPC3510(W)    ■ Ordering Information (Example) PREFERED P/N PACKAGE UNIT WEIGHT(g) CODE MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE KBPC35005~KBPC3510 A1 Approximate 24.5 50 50 500 Paper Box KBPC35005W~KBPC3510W A1 Approximate 22.5 50 50 500 Paper Box ■ Characteristics (Typical)     FIG2:Surge Forward Current Capability FIG1:Io-Tc Curve 450 40 Peak Forward Surge Current (A) Average Rectified Output Current (A) Half-sine Wave 30 20 10 0 0 50 100 non-repetitive Ta=25℃ 150 0 150 Case Temperature （℃） 300 1 2 5 20 50 100 Number of Cycles           10 FIG3:Instantaneous Forward Voltage   FIG4:Typical Reverse Characteristics 60 1000 Instantaneous Reverse Current (uA) Instantaneous Forward Current (A) Tj=125 ℃ Ta=25℃ 20 10 5.0 1.0 0.5 100 10 Tj=25 ℃ 1 0.2 0.1 0.4 0.1 0.6 0.8 1.0 1.2 Instantaneous Forward Voltage (V) 0 1.4           20 40 60 80 100 Percent Rated Peak Reverse Voltage(%) 2/4 S-C059 Rev. 2.1, 28-Apr-15 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com KBPC35005(W) THRU KBPC3510(W)    ■ Outline Dimensions       KBPC-W KBPC-W Dim Min Max A 28.2 28.8 B 17.1 19.1 A C 10.4 12.4 B D 0.95 1.05 E 10.8 11.2 F 30 G 5 KBPC A C J G B A C B Max A 28.2 28.8 B 15.3 17.3 C 17.1 19.1 D 13.2 15.2 E 0.75 0.85 F 6.2 6.4 Dim D G F F I E H Dimensions in millimeters      5.5 KBPC Min E D B A G 2.3 2.5 H 10.8 11.2 I 19 J 5 5.5 3/4 S-C059 Rev. 2.1, 28-Apr-15 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com KBPC35005(W) THRU KBPC3510(W)    Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 4/4 S-C059 Rev. 2.1, 28-Apr-15 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
