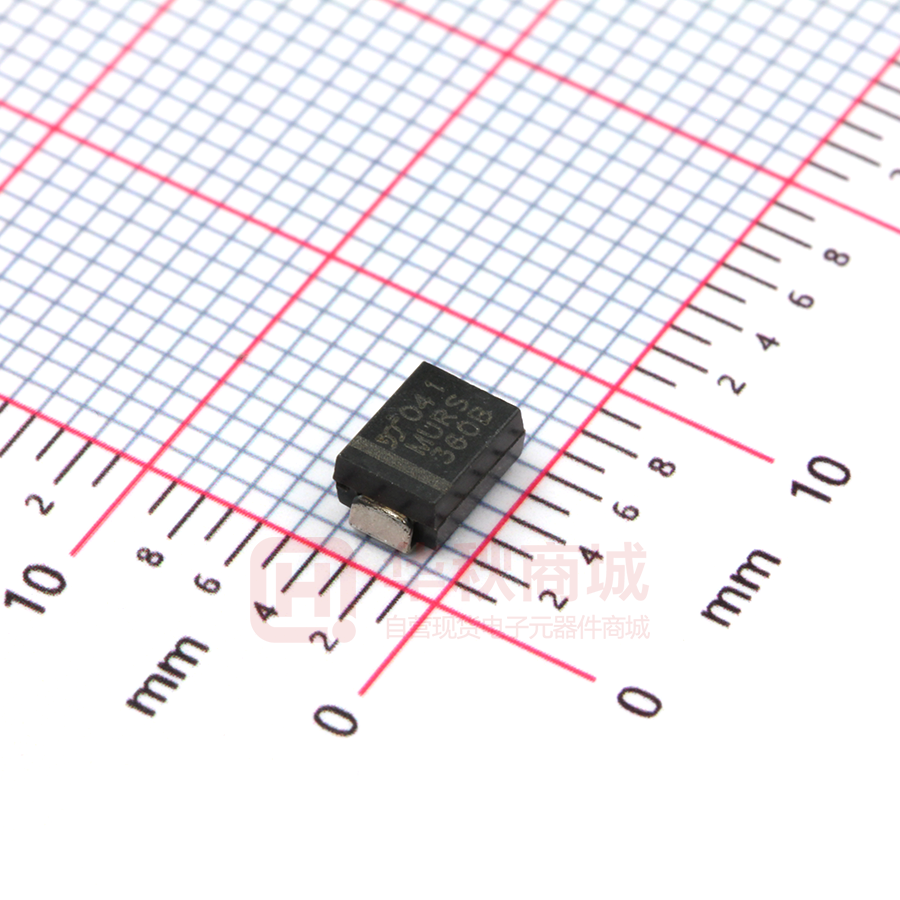

MURS360B

RoHS MURS320B THRU MURS360B  COMPLIANT   Surface Mount Super Fast Recovery Rectifier Features ● Low profile package ● Ideal for automated placement ● Glass passivated chip junction ● High forward surge capability ● Super Fast reverse recovery time ● Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C Typical Applications For use in high frequency rectification of power supplies, inverters, converters, and freewheeling diodes for consumer, and telecommunication. Mechanical Data ● Package: DO-214AA (SMB) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Polarity: Cathode line denotes the cathode end ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Device marking code MURS320B MURS340B MURS360B MURS320B MURS340B MURS360B Maximum Repetitive Peak Reverse Voltage VRRM V 200 400 600 Maximum RMS Voltage VRMS V 140 280 420 Maximum DC blocking Voltage VDC V 200 400 600 IO A IFSM A Average rectified output current @60Hz sine wave, resistance load, TL (Fig.1) Forward Surge Current (Non-repetitive) @60Hz Half-sine wave,1 cycle, Tj=25℃ 3.0 100 Forward Surge Current (Non-repetitive) @1ms, square wave, 1 cycle, Tj=25℃ 200 Current squared time @1ms≤t≤8.3ms Tj=25℃，Rating of per diode Typical junction capacitance @Measured at 1MHz and Applied Reverse Voltage of 4.0 V.D.C 2 It 2 As Cj pF Storage temperature Tstg ℃ -55 ~ +150 Junction temperature Tj ℃ -55 ~ +150 41.5 63 55 50 1/6 S-S756 Rev. 2.6,13-Apr-21 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MURS320B THRU MURS360B    ■Electrical Characteristics（Ta=25℃ Unless otherwise specified） PARAMETER TEST CONDITIONS MURS320B V IFM=3.0A 0.92 1.25 IF=0.5A,IR=1.0A, Irr=0.25A 35 50 SYMBOL UNIT VF Maximum instantaneous forward voltage drop per diode Maximum reverse recovery time trr ns Maximum DC reverse current at rated DC blocking voltage per diode IR μA MURS340B Tj =25℃ 5 Tj =125℃ 50 MURS360B ■Dynamic Characteristics  MURS320B PARAMETER SYMBOL Min Typ Max - 30 - Tj=25℃ - 29 - Tj=125℃ - 35 - - 3.8 - - 6.5 - Tj=25℃ - 39.9 - Tj=125℃ - 113.2 - 116.6 - - Min Typ Max - 40 - - 32 - - 52 - - 4.8 - - 7.5 - Tj=25℃ - 76.5 - Tj=125℃ - 196.6 - 4.8 - - Min Typ Max - 48 - Tj=25℃ - 47 - Tj=125℃ - 71 - - 5.9 - - 9.0 - Tj=25℃ - 138.1 - Tj=125℃ - 319.6 - 4.8 - - UNIT TEST CONDITIONS IF=1A，di/dt=-50A/us VRM=30V Tj=25℃ Reverse Recovery Time Peak recovery current Reverse recovery charge Non-repetitive avalanche energy  TRR ns IF=3A di/dt=-200A/us VRM=100V Tj=25℃ IRRM A Qrr nC EAS mJ SYMBOL UNIT Tj=125℃ Tj=25℃ IR=3.6 A，L=15 mH MURS340B PARAMETER TEST CONDITIONS IF=1A，di/dt=-50A/us VRM=30V Tj=25℃ Reverse Recovery Time TRR ns Tj=25℃ Tj=125℃ Peak recovery current Reverse recovery charge Non-repetitive avalanche energy  IF=3A di/dt=-200A/us VRM=200V Tj=25℃ IRRM A Qrr nC EAS mJ SYMBOL UNIT Tj=125℃ Tj=25℃ IR=0.8 A，L=15 mH MURS360B PARAMETER TEST CONDITIONS IF=1A，di/dt=-50A/us VRM=30V Tj=25℃ Reverse Recovery Time Peak recovery current Reverse recovery charge Non-repetitive avalanche energy TRR ns Tj=25℃ IRRM A Qrr nC EAS mJ Tj=125℃ Tj=25℃ IF=3A di/dt=-200A/us VRM=400V IR=0.8 A，L=15 mH 2/6 S-S756 Rev. 2.6,13-Apr-21 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MURS320B THRU MURS360B    ■Thermal Characteristics （Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL MURS320B UNIT MURS340B RθJ-A(1) 60 RθJ-L(1) Typical Thermal resistance MURS360B ℃/W 20 RθJ-C(1) 18 Note: (1) Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with 0.3" x 0.3" (8.0 mm x 8.0 mm) copper pad areas ■ Characteristics (Typical) FIG.1: Io-TL Curve FIG.2: Forward Surge Current Capadility 120 3.0 Peak Forward Surge Current (A) Average Forward Output Current (A) 3.5 2.5 2.0 1.5 1.0 0 0 25 50 8.3ms Single Half Sine Wave 80 60 40 20 Resistive or Inductive Load P.C.B. Mounted on 0.3"×0.3" (8.0mm×8.0mm)Copper Pad Areas 0.5 100 75 100 125 0 150 1 10 100 Number of Cycles Lead Temperature (℃) FIG.4: Typical Reverse Characteristics FIG.3: Typical Forward Voltage 100 MURS320B 10 MURS340B MURS360B 3.0 1.0 0.1 0.01 0.4 0.6 0.8 1.0 1.2 1.4 Instantaneous Forward Voltage(V) 1.6 1.8                                 Instantaneous Reverse Current (uA) Instantaneous Forward Current(A) 100 Tj=125℃ 10 1.0 Tj=25℃ 0.1 0.01 0.001 0 20 40 60 80 100 Percent of Rated Peak Reverse Voltage (%)       3/6 S-S756 Rev. 2.6,13-Apr-21 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MURS320B THRU MURS360B      FIG.5: Diagram of circuit and Testing  wave form of reverse recovery time 10 Ω NONINDUCTIVE 50 Ω NONINDUCTIVE (-) DUT (+) PULSE GENERATOR (NOTE2) (-) OSCILLOSCOPE (NOTE1) 1Ω NONINDUCTIV (+) NOTES: 1.Rise Time=7ns max .Inpot Impedance=1M Ω 22pf 2.Rise Time=10ns max.Sourse Impedance=50Ω                               trr +0.5A 0 -0.25A -1.0A 1cm SET TIME BASE FOR 5/10ns/cm ■Ordering Information (Example) PREFERED P/N PACKING CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE MURS320B-MURS360B F1 Approximate 0.096 3000 6000 48000 13” reel MURS320B-MURS360B F2 Approximate 0.096 750 6000 24000 7” reel MURS320B-MURS360B F3 Approximate 0.096 500 4000 16000 7” reel ■ Outline Dimensions DO-214AA(SMB) A DO-214AA(SMB) B C D F G H Dim Min A 1.85 Max 2.15 B 3.30 3.94 C 4.05 4.75 D 1.99 2.61 E 5.21 5.59 F 0.90 1.41 G 0.10 0.20 H 0.15 0.31 E Dimensions in millimeters 4/6 S-S756 Rev. 2.6,13-Apr-21 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MURS320B THRU MURS360B    ■ Suggested pad layout DO-214AA(SMB) P2 Q2 Q1 P3 P1 Dim Millimeters P1 6.8 P2 4.3 P3 1.8 Q1  2.5 Q2  2.3 Dimensions in millimeters 5/6 S-S756 Rev. 2.6,13-Apr-21 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com MURS320B THRU MURS360B    Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance.   6/6 S-S756 Rev. 2.6,13-Apr-21 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
