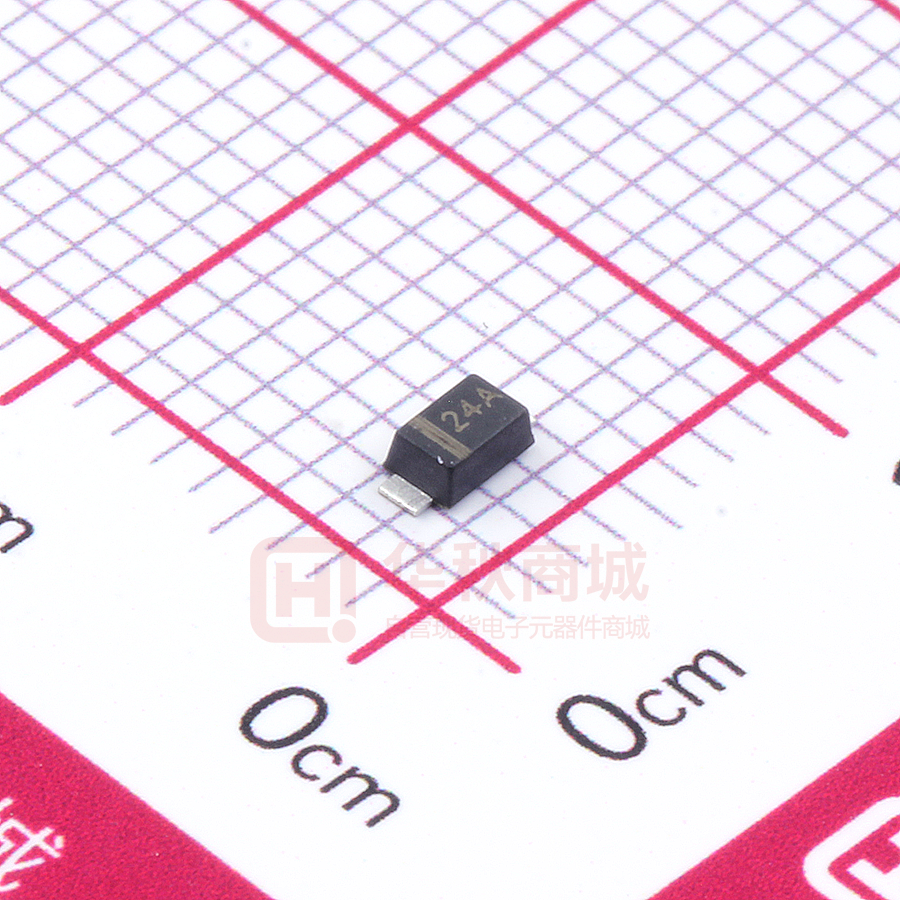

SMF24A

RoHS SMF SERIES  COMPLIANT   Surface Mount Transient Voltage Suppressor Uni-directional Features ● For surface mounted applications ● Low-profile package ● Ideal for automated placement ● Available in Unidirectional and Bidirectional ● 200 W peak pulse power capability with a 10/1000 μs waveform ● Low incremental surge resistance, excellent clamping capability ● Very fast response time ● High temperature soldering guaranteed: 260 °C/10 s at terminals ● Meets MSL level 1 ● Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC Bi-directional Typical Applications Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, telecommunication. Mechanical Date ● Package: SOD-123FL Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free ● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 ● Polarity: For uni-directional types the band denotes cathode end, no marking on bi-directional types 　 ■Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Conditions Max Peak power dissipation(1) (2) (Fig.1) PPPM W with a 10/1000us waveform 200 Peak pulse current(1) IPPM A with a 10/1000us waveform (See Next Table) Power dissipation, on infinite heat sink PD W TL=75℃ 0.4 Peak forward surge current, 8.3 ms single half sine-wave unidirectional only (3) IFSM A 20 TJ,TSTG ℃ -55 to +150 Operating junction and storage temperature range RθJL Thermal resistance RθJA ℃/W Between junction and lead 26 Between junction and Ambient 300 Between junction and Curve 40 RθJC 1/5 S-S112 Rev. 2.5, 17-Apr-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com SMF SERIES    Notes: (1). Non-repetitive current pulse at TA=25℃，per waveform of Figure 2. (2). TL=30℃ unless otherwise noted , VF ≤1.25V@200mA. (3). Measured on 8.3 ms single half sine-wave or equivalent square wave, duty cycle = 4 pulses per minute maximum ■Ordering Information (Example) PREFERED P/N PACKING CODE UNIT WEIGHT(g) MINIMUM PACKAGE(pcs) INNER BOX QUANTITY(pcs) OUTER CARTON QUANTITY(pcs) DELIVERY MODE SMF SERIES F1 0.0167 3000 15000 120000 7” reel SMF SERIES F2 0.0167 10000 20000 160000 13” reel ■ Electrical Characteristics (TA=25℃ unless otherwise noted) Part Number Marking Breakdown Voltage VBR@IT (1) Maximum Reverse Leakage (3) IR @ VRWM (μA) Working Peak Reverse Voltage VRWM (V) Maximum Reverse Surge Current (2) IPP (A) Maximum Clamping Voltage Vc @ IPP (V) （Uni） （Bi） （Uni） （Bi） Min(V) Max (V) IT (mA) SMF5.0A SMF5.0CA 5.0A 5.0CA 6.40 7.07 10 400.0 5.0 21.74 9.2 SMF6.0A SMF6.0CA 6.0A 6.0CA 6.67 7.37 10 400.0 6.0 19.42 10.3 SMF6.5A SMF6.5CA 6.5A 6.5CA 7.22 7.98 10 250.0 6.5 17.86 11.2 SMF7.0A SMF7.0CA 7.0A 7.0CA 7.78 8.60 10 100.0 7.0 16.67 12.0 SMF7.5A SMF7.5CA 7.5A 7.5CA 8.33 9.21 1 50.0 7.5 15.50 12.9 SMF8.0A SMF8.0CA 8.0A 8.0CA 8.89 9.83 1 25.0 8.0 14.71 13.6 SMF8.5A SMF8.5CA 8.5A 8.5CA 9.44 10.40 1 10.0 8.5 13.89 14.4 SMF9.0A SMF9.0CA 9.0A 9.0CA 10.00 11.10 1 5.0 9.0 12.99 15.4 SMF10A SMF10CA 10A 10CA 11.10 12.30 1 2.5 10.0 11.76 17.0 SMF11A SMF11CA 11A 11CA 12.20 13.50 1 2.5 11.0 10.99 18.2 SMF12A SMF12CA 12A 12CA 13.30 14.70 1 2.5 12.0 10.05 19.9 SMF13A SMF13CA 13A 13CA 14.40 15.90 1 1.0 13.0 9.30 21.5 SMF14A SMF14CA 14A 14CA 15.60 17.20 1 1.0 14.0 8.62 23.2 SMF15A SMF15CA 15A 15CA 16.70 18.50 1 1.0 15.0 8.20 24.4 SMF16A SMF16CA 16A 16CA 17.80 19.70 1 1.0 16.0 7.69 26.0 SMF17A SMF17CA 17A 17CA 18.90 20.90 1 1.0 17.0 7.25 27.6 SMF18A SMF18CA 18A 18CA 20.00 22.10 1 1.0 18.0 6.85 29.2 SMF19A SMF19CA 19A 19CA 21.10 23.30 1 1.0 19.0 6.54 30.6 SMF20A SMF20CA 20A 20CA 22.20 24.50 1 1.0 20.0 6.17 32.4 SMF22A SMF22CA 22A 22CA 24.40 26.90 1 1.0 22.0 5.63 35.5 SMF24A SMF24CA 24A 24CA 26.70 29.50 1 1.0 24.0 5.14 38.9 SMF26A SMF26CA 26A 26CA 28.90 31.90 1 1.0 26.0 4.75 42.1 SMF28A SMF28CA 28A 28CA 31.10 34.40 1 1.0 28.0 4.41 45.4 SMF30A SMF30CA 30A 30CA 33.30 36.80 1 1.0 30.0 4.13 48.4 SMF33A SMF33CA 33A 33CA 36.70 40.60 1 1.0 33.0 3.75 53.3 SMF36A SMF36CA 36A 36CA 40.00 44.20 1 1.0 36.0 3.44 58.1 SMF40A SMF40CA 40A 40CA 44.40 49.10 1 1.0 40.0 3.10 64.5 SMF43A SMF43CA 43A 43CA 47.80 52.80 1 1.0 43.0 2.88 69.4 SMF45A SMF45CA 45A 45CA 50.00 55.30 1 1.0 45.0 2.75 72.7 SMF48A SMF48CA 48A 48CA 53.30 58.90 1 1.0 48.0 2.58 77.4 SMF51A SMF51CA 51A 51CA 56.70 62.70 1 1.0 51.0 2.43 82.4 SMF54A SMF54CA 54A 54CA 60.00 66.30 1 1.0 54.0 2.30 87.1 SMF58A SMF58CA 58A 58CA 64.40 71.20 1 1.0 58.0 2.14 93.6 2/5 S-S112 Rev. 2.5, 17-Apr-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com SMF SERIES    Part Number Marking Breakdown Voltage VBR@IT (1) Maximum Reverse Leakage (3) IR @ VRWM (μA) Working Peak Reverse Voltage VRWM (V) Maximum Reverse Surge Current (2) IPP (A) Maximum Clamping Voltage Vc @ IPP (V) （Uni） （Bi） （Uni） （Bi） Min(V) Max (V) IT (mA) SMF60A SMF60CA 60A 60CA 66.70 73.70 1 1.0 60.0 2.07 96.8 SMF64A SMF64CA 64A 64CA 71.10 78.60 1 1.0 64.0 1.94 103.0 SMF70A SMF70CA 70A 70CA 77.80 86.00 1 1.0 70.0 1.77 113.0 SMF75A SMF75CA 75A 75CA 83.30 92.10 1 1.0 75.0 1.65 121.0 SMF78A SMF78CA 78A 78CA 86.70 95.80 1 1.0 78.0 1.59 126.0 SMF80A SMF80CA 80A 80CA 88.80 97.60 1 1.0 80.0 1.55 129.0 SMF85A SMF85CA 85A 85CA 94.40 104.00 1 1.0 85.0 1.46 137.0 SMF90A SMF90CA 90A 90CA 100.00 111.00 1 1.0 90.0 1.37 146.0 SMF100A SMF100CA 100A 100CA 111.00 123.00 1 1.0 100.0 1.23 162.0 SMF110A SMF110CA 110A 110CA 122.00 135.00 1 1.0 110.0 1.13 177.0 SMF120A SMF120CA 120A 120CA 133.00 147.00 1 1.0 120.0 1.04 193.0 SMF130A SMF130CA 130A 130CA 144.00 159.00 1 1.0 130.0 0.96 209.0 SMF140A SMF140CA 140A 140CA 155.00 171.00 1 1.0 140.0 0.89 224.0 SMF150A SMF150CA 150A 150CA 167.00 185.00 1 1.0 150.0 0.82 243.0 SMF160A SMF160CA 160A 160CA 178.00 197.00 1 1.0 160.0 0.77 259.0 SMF170A SMF170CA 170A 170CA 189.00 209.00 1 1.0 170.0 0.73 275.0 SMF180A SMF180CA 180A 180CA 200.00 220.00 1 1.0 180.0 0.68 292.0 SMF190A SMF190CA 190A 190CA 211.00 232.00 1 1.0 190.0 0.65 308.0 SMF200A SMF200CA 200A 200CA 224.00 247.00 1 1.0 200.0 0.62 324.0 SMF220A SMF220CA 220A 220CA 246.00 272.00 1 1.0 220.0 0.56 356.0 Notes: (1) tp≤50ms Pulse test: tp≤50ms. (2) Surge current waveform per Fig. 2 and derated per Fig.3. (3) For bi-directional types having VRWM of 10 V and less, the IR limit is doubled. FIG2: Pulse Waveform 10,000 IPPM(%) PPPM(W) ■ Characteristics(Typical)   FIG1:Peak Pulse Power Rating Curve   1,000 tr=10μs Peak Value IPPM TJ=25℃ Pulse Width(td) is defined as the Point where the Peak Current Decays to 50% of IPPM 100 Half Value -IPPM/2 100 50 10 0 10/1000μs Waveform as Defined by R.E.A. td 0.1 1 10 100 1,000 10,000 0 1.0 td(μs) 2.0 3.0 4.0 t（ms） 3/5 S-S112 Rev. 2.5, 17-Apr-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com SMF SERIES    FIG4: Forward Voltage Curve VF(V) PPP or IPP(%) FIG3: Pulse Power or Current vs. Initial Junction Temperature 100 1.2 1.0 75 0.8 0.6 50 0.4 25 0.2 0 0 0 25 50 75 100 125 150 175 200 -55 25 85 150 Temp（℃） TJ（℃） ■ Outline Dimensions SOD-123FL SOD-123FL A B D E F C H Dim Min Max A 1.60 1.90 B 0.90 1.10 C 2.55 2.85 D 3.60 3.90 E 1.00 1.20 F 0.40 0.90 G 0.10 0.25 H 0.02 0.05 G Dimensions in millimeters ■ Suggested pad layout SOD-123FL P2 Q1 Q2 Dim Millimeters P1 3.90 P2 1.90 Q1  1.00 Q2  1.50 P1 Dimensions in millimeters 4/5 S-S112 Rev. 2.5, 17-Apr-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com SMF SERIES    Disclaimer The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design or otherwise. The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use of sale. This publication supersedes & replaces all information previously supplied. For additional information, please visit our website http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance. 5/5 S-S112 Rev. 2.5, 17-Apr-19 Yangzhou Yangjie Electronic Technology Co., Ltd. www.21yangjie.com
