RoHS
SR320 THRU SR3200
COMPLIANT
Schottky Barrier Rectifier
Features
● Guardring for overvoltage protection
● Low power loss
● Extremely fast switching
● High forward surge capability
● High frequency operation
● Solder dip 275 °C max. 7 s, per JESD 22-B106
Typical Applications
For use in low voltage high frequency inverters,
freewheeling, DC/DC converters, and polarity protection
applications.
Mechanical Data

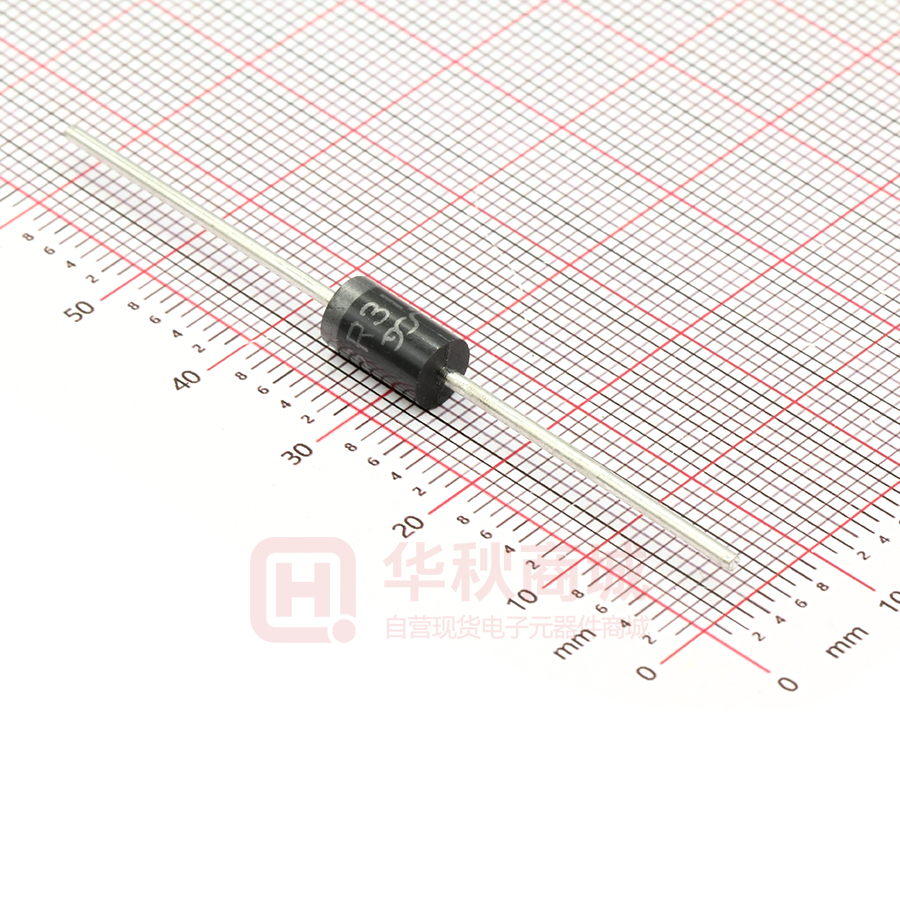

● Package: DO-201AD(DO-27)
Molding compound meets UL 94 V-0 flammability
rating, RoHS-compliant
● Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B102
● Polarity: Color band denotes the cathode end
■ Maximum Ratings (Ta=25℃ Unless otherwise specified)
PARAMETER
SYMBOL
UNIT
Device marking code
SR320
SR340
SR360
SR3100
SR3150
SR3200
SR320
SR340
SR360
SR3100
SR3150
SR3200
20
40
60
100
150
200
VRRM
V
IO
A
3.0
Forward Surge Current (Non-repetitive)
@60Hz Half-sine wave,1 cycle, Ta=25℃
IFSM
A
80
Storage Temperature
Tstg
℃
-55 ~+150
Junction Temperature
Tj
℃
Repetitive Peak Reverse Voltage
Average Rectified Output Current
@60Hz sine wave, Resistance load, Ta (FIG.1)
-55 ~+125
-55 ~+150
■ Electrical Characteristics (Ta=25℃ Unless otherwise specified)
PARAMETER
SYMBOL
UNIT
TEST CONDITIONS
Maximum instantaneous
forward voltage drop per diode
VF
V
IFM =3.0A
Maximum DC reverse current
at rated DC blocking voltage
per diode
IR
mA
Typical junction capacitance
Cj
pF
SR320
SR340
0.55
SR360
SR3100
0.7
SR3150
0.85
Ta=25℃
0.2
0.1
Ta=100℃
20
5
Measured at 1MHZ
and Applied Reverse
Voltage of 4.0 V.D.C.
180
150
SR3200
130
80
1/4
S-A176
Rev.2.2,24-Oct-14
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
SR320 THRU SR3200
■ Thermal Characteristics (Ta=25℃ Unless otherwise specified)
PARAMETER
SYMBOL
UNIT
Thermal Resistance
RθJ -A
℃/W
SR340
SR320
SR360
SR3100
SR3150
SR3200
30
■ Ordering Information (Example)
PREFERED P/N
PACKAGE CODE
UNIT WEIGHT(g)
MINIMUM
PACKAGE(pcs)
INNER BOX
QUANTITY(pcs)
OUTER CARTON
QUANTITY(pcs)
DELIVERY MODE
SR320~SR3200
D1
Approximate 1.05
1250
1250
12500
Tape
SR320~SR3200
C1
Approximate 1.05
250
250
12500
Bulk
■ Characteristics (Typical)
FIG.2: Forward Surge Current Capability
FIG.1: Io-Ta Curve
80
SR
R3
R3
0
20
0-S
32
40
2.0
Peak Forward Surge Current (A)
0 -S
36
2.5
SR
Average Forward Output Current (A)
3.0
1.5
1.0
Single Phase
Half Wave 60HZ
Resistive or
Inductive Load
0.375''(9.5mm)
Lead Length
0.5
0
0
8.3ms Single Half Sine Wave
JEDEC Method
40
20
0
100
100
50
60
150
1
2
4
Ambient Temperature (℃)
20
40
60 80 100
100
Instantaneous Reverse Current (mA)
-S
R3
1.0
31
SR
SR
31
50
00
0
36
SR
SR
32
0
-SR
4.0
20
34
0
0
10
Instantaneous Forward Current (A)
8 10
FIG.4: Typical Reverse Characteristics
FIG.3: Forward Voltage
20
2.0
6
Number of Cycles
0.4
0.2
0.1
TJ=25℃
Pulse width=300us
1% Duty Cycle
SR3100-SR3200
SR360
SR320-SR340
10
Tj=100℃
1.0
0.1
Tj=25℃
0.01
0.02
0.01
0.2
0.4
0.6
0.8
1.0
1.2
1.4
0.001
1.6
0
Instantaneous Forward Voltage (V)
20
40
60
80
100
Percent of Rated Peak Reverse Voltage (%)
2/4
S-A176
Rev.2.2,24-Oct-14
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
SR320 THRU SR3200
■ Outline Dimensions
DO-201AD(DO-27)
DO-201AD(DO-27)
Dim
Min
Max
A
8.50
9.50
B
C
5.00
5.60
25.4
/
D
1.20
1.30
Dimensions in millimeters
3/4
S-A176
Rev.2.2,24-Oct-14
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
SR320 THRU SR3200
Disclaimer
The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the
right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design
or otherwise.
The product listed herein is designed to be used with ordinary electronic equipment or devices, and not designed to be used with
equipment or devices which require high level of reliability and the malfunction of with would directly endanger human life (such as
medical instruments, transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety
devices), Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improper use
of sale.
This publication supersedes & replaces all information previously supplied. For additional information, please visit our website
http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance.
4/4
S-A176
Rev.2.2,24-Oct-14
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
