RoHS
SS32AQ THRU SS320AQ
COMPLIANT
Surface Mount Schottky Rectifier
Features
● Low profile package
● Ideal for automated placement
● Guardring for overvoltage protection
● Low power losses, high efficiency
● High forward surge capability
● Meets MSL level 1, per J-STD-020, LF maximum peak
of 260 °C
● Part no. with suffix “Q” means AEC-Q101 qualified
Typical Applications
For use in low voltage high frequency inverters,
freewheeling, DC/DC converters and polarity protection
applications.
Mechanical Data

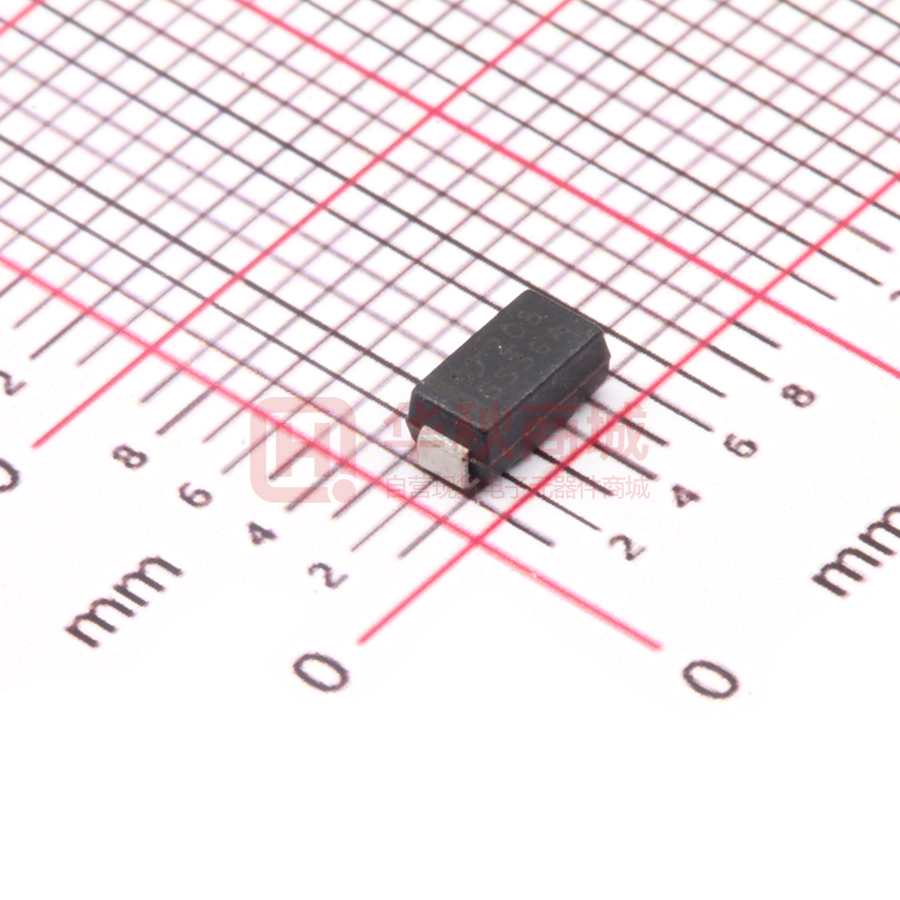

● Package: DO-214AC (SMA)
Molding compound meets UL 94 V-0 flammability
rating, RoHS-compliant, halogen-free
● Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
● Polarity: Cathode line denotes the cathode end
■ Maximum Ratings (Ta=25℃ Unless otherwise specified)
SS
PARAMETER
SYMBOL
UNIT
32AQ
33AQ
34AQ
35AQ
36AQ
38AQ
310AQ 315AQ 320AQ
SS
Device marking code
32A
33A
34A
35A
36A
38A
310A
315A
320A
20
30
40
50
60
80
100
150
200
VRRM
V
IO
A
3.0
IFSM
A
70
Storage temperature
TSTG
℃
-55 ~+150
Junction temperature
TJ
℃
Repetitive peak reverse voltage
Average rectified output current
@60Hz sine wave, resistance load,
TL (Fig.1)
Surge(non-repetitive)forward current
@60Hz half-sine wave,1 cycle, Ta=25℃
-55~+125
-55 ~+150
■ Electrical Characteristics (Ta=25℃ Unless otherwise specified)
PARAMETER
SYMBOL
UNIT
Maximum instantaneous
forward voltage drop per diode
VF
V
Maximum DC reverse current
at rated DC blocking voltage
per diode@ VRM=VRRM
IRRM
mA
TEST
CONDITIONS
SS
32AQ 33AQ
IF=3.0A
34AQ
0.50
35AQ
36AQ
0.70
38AQ
310AQ 315AQ 320AQ
0.85
0.90
TJ=25℃
0.50
0.10
TJ =100℃
10
5.0
1/4
S-S2219
Rev.1.1,28-Apr-20
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
SS32AQ THRU SS320AQ
■ Thermal Characteristics (Ta=25℃ Unless otherwise specified)
SS
PARAMETER
SYMBOL
UNIT
32AQ
33AQ
34AQ
35AQ
36AQ
RθJ-A
38AQ
310AQ 315AQ 320AQ
551)
℃/W
Thermal resistance
RθJ-L
171)
Note
(1) Thermal resistance from junction to ambient and from junction to lead mounted on P.C.B. with 0.2" x 0.2" (5.0 mm x 5.0 mm) copper pad areas
■ Characteristics (Typical)
Fig.1:IO-TL Curve
3.5
Fig.2:Surge Forward Current Capability
80
3.0
2.5
2.0
1.5
1.0
0.5
0.025
Peak Forward Surge Current(A)
Average Forward Current(A)
SS35AQ-SS320AQ
SS32AQ-SS34AQ
50
75
100
125
10
100
Number of Cycles
Fig.4:Typical Reverse Characteristics
Fig.3:Forward Voltage
10000
SS35AQ-SS36AQ
Instantaneous Reverse Current(uA)
Instantaneous Forward Current(A)
1
Lead Temperature(℃ )
TJ=25℃
Pulse width=300us
1% duty cycle
10
SS32AQ
SS34AQ
SS38AQ-SS310AQ
0.1
SS315AQ-SS320AQ
0.01
60
40
150
100
1
8.3ms Single Half Sin-Wave
0.2
0.4
0.6
0.8
1.0
1000
100
Instantaneous Forward Voltage(V)
TJ=125℃
10
1
0.1
TJ=25℃
0.01
0.001
1.2
SS32AQ-SS36AQ
SS38AQ-SS320AQ
20
40
60
80
100
Percent of Rated Reverse Voltage(%)
2/4
S-S2219
Rev.1.1,28-Apr-20
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
SS32AQ THRU SS320AQ
■ Ordering Information (Example)
PREFERED
P/N
PACKAGE
CODE
UNIT WEIGHT(g)
MINIMUM
PACKAGE(pcs)
INNER BOX
QUANTITY(pcs)
OUTER CARTON
QUANTITY(pcs)
DELIVERY
MODE
SS32AQ-SS320AQ
F2
Approximate 0.067
7500
15000
120000
13” reel
■ Outline Dimensions
DO-214AC(SMA)
DO-214AC(SMA)
A
B
C
D
G
F
H
E
Dim
Min
Max
A
1.25
1.58
B
2.40
2.83
C
4.25
4.75
D
1.90
2.30
E
4.93
5.28
F
0.76
1.41
G
0.08
0.20
H
0.15
0.31
Dimensions in millimeters
■Suggested Pad Layout
P3
P2
DO-214AC(SMA)
Q2
Q1
Dim
Millimeters
P1
4.00
P2
1.50
P3
6.50
Q1
2.50
Q2
1.70
P1
Dimensions in millimeters
3/4
S-S2219
Rev.1.1,28-Apr-20
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
SS32AQ THRU SS320AQ
Disclaimer
The information presented in this document is for reference only. Yangzhou Yangjie Electronic Technology Co., Ltd. reserves the
right to make changes without notice for the specification of the products displayed herein to improve reliability, function or design
or otherwise.
The product listed herein is designed to be used with automotive electronics,are not designed for use in medical, lifesaving, lifesust
aining,or military,Yangjie or anyone on its behalf, assumes no responsibility or liability for any damages resulting from such improp
er use of sale.
This publication supersedes & replaces all information previously supplied. For additional information, please visit our website
http:// www.21yangjie.com , or consult your nearest Yangjie’s sales office for further assistance.
4/4
S-S2219
Rev.1.1,28-Apr-20
Yangzhou Yangjie Electronic Technology Co., Ltd.
www.21yangjie.com
