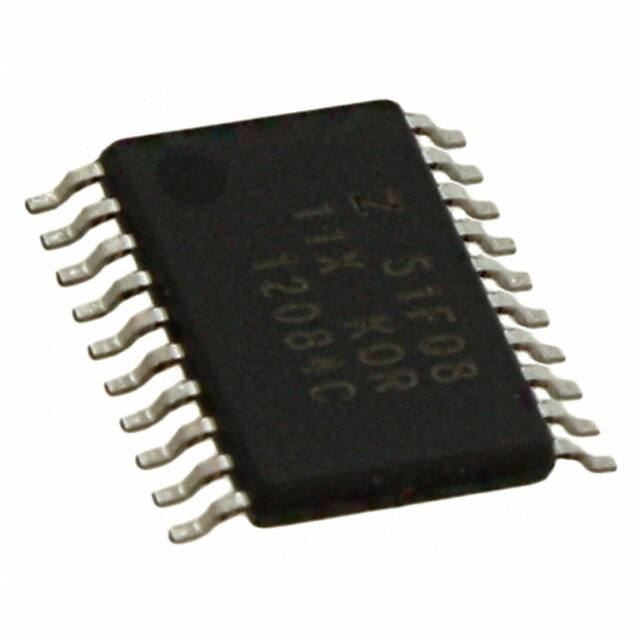

Z8051 Series 8-Bit Microcontrollers
Z51F0811
Product Specification
PS029602-0212
PRELIMINARY
Copyright ©2012 Zilog®, Inc. All rights reserved.
www.zilog.com
Z51F0811
Product Specification
ii
Warning: DO NOT USE THIS PRODUCT IN LIFE SUPPORT SYSTEMS.
LIFE SUPPORT POLICY
ZILOG’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE
SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS PRIOR WRITTEN APPROVAL OF
THE PRESIDENT AND GENERAL COUNSEL OF ZILOG CORPORATION.
As used herein
Life support devices or systems are devices which (a) are intended for surgical implant into the body, or (b)
support or sustain life and whose failure to perform when properly used in accordance with instructions for
use provided in the labeling can be reasonably expected to result in a significant injury to the user. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system or to affect its safety or effectiveness.
Document Disclaimer
©2012 Zilog, Inc. All rights reserved. Information in this publication concerning the devices, applications,
or technology described is intended to suggest possible uses and may be superseded. ZILOG, INC. DOES
NOT ASSUME LIABILITY FOR OR PROVIDE A REPRESENTATION OF ACCURACY OF THE
INFORMATION, DEVICES, OR TECHNOLOGY DESCRIBED IN THIS DOCUMENT. ZILOG ALSO
DOES NOT ASSUME LIABILITY FOR INTELLECTUAL PROPERTY INFRINGEMENT RELATED
IN ANY MANNER TO USE OF INFORMATION, DEVICES, OR TECHNOLOGY DESCRIBED
HEREIN OR OTHERWISE. The information contained within this document has been verified according
to the general principles of electrical and mechanical engineering.
Z8051 is a trademark or registered trademark of Zilog, Inc. All other product or service names are the
property of their respective owners.
PS029602-0212
PRELIMINARY
Z51F0811
Product Specification
iii
Revision History
Each instance in this document’s revision history reflects a change from its previous edition. For more details, refer to the corresponding page(s) or appropriate links furnished in
the table below.
Revision
Level
Description
Page
Feb
2012
02
Removed references to SOP, LQFP packages.
All
Jan
2012
01
Original Zilog issue.
All
Date
PS029602-0212
PRELIMINARY
Revision History
Z51F0811
Product Specification
Table of Contents
Z51F0811 ........................................................................................................................................... 12
1. Overview ........................................................................................................................................ 12
1.1 Description ............................................................................................................................... 12
1.2 Features ................................................................................................................................... 13
1.3 Ordering Information ................................................................................................................ 14
1.3.1 Part Number Suffix Designation ........................................................................................ 14
1.4 Development Tools .................................................................................................................. 15
1.4.1 Compiler ........................................................................................................................... 15
1.4.2 OCD emulator and debugger ............................................................................................ 15
1.4.3 Programmer ...................................................................................................................... 15
2. Block Diagram ................................................................................................................................ 16
3. Pin Assignment .............................................................................................................................. 17
4. Package Diagram ........................................................................................................................... 21
5. Pin Description ............................................................................................................................... 25
6. Port Structures ............................................................................................................................... 26
6.1 General Purpose I/O Port ......................................................................................................... 26
6.2 External Interrupt I/O Port ........................................................................................................ 27
7. Electrical Characteristics ................................................................................................................ 28
7.1 Absolute Maximum Ratings ...................................................................................................... 28
7.2 Recommended Operating Conditions ...................................................................................... 28
7.3 A/D Converter Characteristics .................................................................................................. 29
7.4 Analog Comparator Characteristics.......................................................................................... 29
7.5 Voltage Dropout Converter Characteristics .............................................................................. 30
7.6 Power-On Reset Characteristics .............................................................................................. 31
7.7 Brown Out Detector Characteristics ......................................................................................... 31
7.8 Internal RC Oscillator Characteristics ....................................................................................... 32
7.9 Ring-Oscillator Characteristics ................................................................................................. 32
7.10 PLL Characteristics ................................................................................................................ 32
7.11 DC Characteristics ................................................................................................................. 33
7.12 AC Characteristics ................................................................................................................. 34
7.13 SPI Characteristics ................................................................................................................. 35
7.14 Typical Characteristics ........................................................................................................... 36
8. Memory .......................................................................................................................................... 37
8.1 Program Memory ..................................................................................................................... 37
8.2 Data Memory............................................................................................................................ 39
8.3 EEPROM Data Memory ........................................................................................................... 41
8.4 SFR Map .................................................................................................................................. 42
8.4.1 SFR Map Summary .......................................................................................................... 42
8.4.2 Compiler Compatible SFR ................................................................................................ 42
9. I/O Ports ......................................................................................................................................... 45
9.1 I/O Ports ................................................................................................................................... 45
9.2 Port Register ............................................................................................................................ 45
9.2.1 Data Register (Px) ............................................................................................................ 45
9.2.2 Direction Register (PxIO) .................................................................................................. 45
PS029602-0212
PRELIMINARY
1
Z51F0811
Product Specification
9.2.3 Pull-up Resistor Selection Register (PxPU) ...................................................................... 45
9.2.4 Open-drain Selection Register (PxOD) ............................................................................. 45
9.2.5 Debounce Enable Register (PxDB) ................................................................................... 45
9.2.6 Pin Change Interrupt Enable Register (PCI0) ................................................................... 45
9.2.7 Port Selection Register (PSRx) ......................................................................................... 46
9.2.8 Register Map..................................................................................................................... 46
9.3 Px Port ..................................................................................................................................... 46
9.3.1 Px Port Description ........................................................................................................... 46
9.3.2 Register description for Px ................................................................................................ 46
9.4 Port RESET Noise Canceller ................................................................................................... 48
10. Interrupt Controller........................................................................................................................ 49
10.1 Overview ................................................................................................................................ 49
10.2 External Interrupt .................................................................................................................... 49
10.3 Block Diagram ........................................................................................................................ 51
10.4 Interrupt Vector Table............................................................................................................. 52
10.5 Interrupt Sequence ................................................................................................................. 52
10.6 Effective Timing after Controlling Interrupt bit ......................................................................... 54
10.7 Multi Interrupt ......................................................................................................................... 55
10.8 Interrupt Enable Accept Timing .............................................................................................. 56
10.9 Interrupt Service Routine Address .......................................................................................... 56
10.10 Saving/Restore General-Purpose Registers ......................................................................... 56
10.11 Interrupt Timing .................................................................................................................... 57
10.12 Interrupt Register Overview .................................................................................................. 58
10.12.1 Interrupt Enable Register (IE, IE1, IE2, IE3, IE4, IE5) ................................................... 58
10.12.2 Interrupt Priority Register (IP, IP1) ................................................................................ 58
10.12.3 External Interrupt Flag Register (EIFLAG) .................................................................... 58
10.12.4 External Interrupt Edge Register (EIEDGE) .................................................................. 58
10.12.5 External Interrupt Polarity Register (EIPOLA) ............................................................... 58
10.12.6 External Interrupt Enable Register (EIENAB) ................................................................ 58
10.12.7 External Interrupt Both Edge Enable Register (EIBOTH) .............................................. 58
10.12.8 Register Map................................................................................................................. 59
10.13 Interrupt Register Description ............................................................................................... 59
10.13.1 Register description for Interrupt ................................................................................... 59
11. Peripheral Hardware..................................................................................................................... 65
11.1 Clock Generator ..................................................................................................................... 65
11.1.1 Overview ......................................................................................................................... 65
11.1.2 Block Diagram................................................................................................................. 65
11.1.3 Register Map................................................................................................................... 66
11.1.4 Clock Generator Register description ............................................................................. 66
11.1.5 Register description for Clock Generator ........................................................................ 66
11.2 BIT ......................................................................................................................................... 68
11.2.1 Overview ......................................................................................................................... 68
11.2.2 Block Diagram................................................................................................................. 68
11.2.3 Register Map................................................................................................................... 68
11.2.4 Bit Interval Timer Register description............................................................................. 69
11.2.5 Register description for Bit Interval Timer ....................................................................... 69
11.3 WDT ....................................................................................................................................... 70
11.3.1 Overview ......................................................................................................................... 70
PS029602-0212
PRELIMINARY
2
Z51F0811
Product Specification
11.3.2 Block Diagram................................................................................................................. 70
11.3.3 Register Map................................................................................................................... 70
11.3.4 Watch Dog Timer Register description ............................................................................ 71
11.3.5 Register description for Watch Dog Timer....................................................................... 71
11.3.6 WDT Interrupt Timing Waveform..................................................................................... 72
11.4 WT ......................................................................................................................................... 73
11.4.1 Overview ......................................................................................................................... 73
11.4.2 Block Diagram................................................................................................................. 73
11.4.3 Register Map................................................................................................................... 73
11.4.4 Watch Timer Register description ................................................................................... 74
11.4.5 Register description for Watch Timer .............................................................................. 74
11.5 Timer/PWM ............................................................................................................................ 76
11.5.1 8-bit Timer/Event Counter 0, 1 ........................................................................................ 76
11.5.2 8-bit Timer/Event Counter 2, 3 ...................................................................................... 103
11.5.3 16-Bit Timer 4 ............................................................................................................... 117
11.5.4 Timer Interrupt Status Register (TMISR) ....................................................................... 121
11.6 Buzzer Driver ....................................................................................................................... 122
11.6.1 Overview ....................................................................................................................... 122
11.6.2 Block Diagram............................................................................................................... 122
11.6.3 Register Map................................................................................................................. 123
11.6.4 Buzzer Driver Register description ................................................................................ 123
11.6.5 Register description for Buzzer Driver ........................................................................... 123
11.7 USART ................................................................................................................................. 124
11.7.1 Overview ....................................................................................................................... 124
11.7.2 Block Diagram............................................................................................................... 125
11.7.3 Clock Generation .......................................................................................................... 126
11.7.4 External Clock (XCK) .................................................................................................... 127
11.7.5 Synchronous mode Operation....................................................................................... 127
11.7.6 Data format ................................................................................................................... 128
11.7.7 Parity bit ........................................................................................................................ 129
11.7.8 USART Transmitter ....................................................................................................... 129
11.7.9 USART Receiver ........................................................................................................... 130
11.7.10 SPI Mode .................................................................................................................... 133
11.7.11 Register Map............................................................................................................... 136
11.7.12 USART Register description ....................................................................................... 136
11.7.13 Register description for USART .................................................................................. 137
11.7.14 Baud Rate setting (example) ....................................................................................... 141
11.8 SPI ....................................................................................................................................... 142
11.8.1 Overview ....................................................................................................................... 142
11.8.2 Block Diagram............................................................................................................... 142
11.8.3 Data Transmit / Receive Operation ............................................................................... 143
11.8.4 SS pin function .............................................................................................................. 143
11.8.5 Timing Waveform .......................................................................................................... 144
11.8.6 Register Map................................................................................................................. 144
11.8.7 SPI Register description................................................................................................ 144
11.8.8 Register description for SPI .......................................................................................... 145
2
11.9 I C ........................................................................................................................................ 147
11.9.1 Overview ....................................................................................................................... 147
PS029602-0212
PRELIMINARY
3
Z51F0811
Product Specification
11.9.2 Block Diagram............................................................................................................... 147
11.9.3 I2C Bit Transfer ............................................................................................................. 148
11.9.4 Start / Repeated Start / Stop ......................................................................................... 148
11.9.5 Data Transfer ................................................................................................................ 148
11.9.6 Acknowledge................................................................................................................. 149
11.9.7 Synchronization / Arbitration ......................................................................................... 150
11.9.8 Operation ...................................................................................................................... 151
11.9.9 Register Map................................................................................................................. 159
11.9.10 I2C Register description............................................................................................... 160
11.9.11 Register description for I2C ......................................................................................... 160
11.10 12-Bit A/D Converter .......................................................................................................... 164
11.10.1 Overview ..................................................................................................................... 164
11.10.2 Block Diagram............................................................................................................. 164
11.10.3 ADC Operation............................................................................................................ 165
11.10.4 Register Map............................................................................................................... 166
11.10.5 ADC Register description ............................................................................................ 166
11.10.6 Register description for ADC ....................................................................................... 167
11.11 Analog Comparator ............................................................................................................ 170
11.11.1 Overview ..................................................................................................................... 170
11.11.2 Block Diagram............................................................................................................. 170
11.11.3 IN/OUT signal description ........................................................................................... 170
11.11.4 Register Map............................................................................................................... 171
11.11.5 Analog Comparator Register description ..................................................................... 171
11.11.6 Register description for Analog Comparator ............................................................... 172
12. Power Down Operation .............................................................................................................. 173
12.1 Overview .............................................................................................................................. 173
12.2 Peripheral Operation in IDLE/STOP Mode ........................................................................... 173
12.3 IDLE mode ........................................................................................................................... 174
12.4 STOP mode ......................................................................................................................... 174
12.5 Release Operation of STOP1, 2 Mode ................................................................................. 175
12.5.1 Register Map................................................................................................................. 177
12.5.2 Power Down Operation Register description ................................................................. 177
12.5.3 Register description for Power Down Operation............................................................ 177
13. RESET ....................................................................................................................................... 178
13.1 Overview .............................................................................................................................. 178
13.2 Reset source ........................................................................................................................ 178
13.3 Block Diagram ...................................................................................................................... 178
13.4 RESET Noise Canceller ....................................................................................................... 179
13.5 Power ON RESET ................................................................................................................ 179
13.6 External RESETB Input ........................................................................................................ 182
13.7 Brown Out Detector Processor ............................................................................................. 183
13.7.1 Register Map................................................................................................................. 184
13.7.2 Reset Operation Register description ........................................................................... 184
13.7.3 Register description for Reset Operation ...................................................................... 184
14. On-chip Debug System .............................................................................................................. 186
14.1 Overview .............................................................................................................................. 186
14.1.1 Description .................................................................................................................... 186
14.1.2 Feature ......................................................................................................................... 186
PS029602-0212
PRELIMINARY
4
Z51F0811
Product Specification
14.2 Two-pin external interface .................................................................................................... 187
14.2.1 Basic transmission packet ............................................................................................. 187
14.2.2 Packet transmission timing ........................................................................................... 188
14.2.3 Connection of transmission ........................................................................................... 190
15. Memory Programming ................................................................................................................ 191
15.1 Overview .............................................................................................................................. 191
15.1.1 Description .................................................................................................................... 191
15.1.2 Features ........................................................................................................................ 191
15.2 Flash and EEPROM Control and status register .................................................................. 191
15.2.1 Register Map................................................................................................................. 191
15.2.2 Register description for Flash and EEPROM ................................................................ 192
15.3 Memory map ........................................................................................................................ 196
15.3.1 Flash Memory Map ....................................................................................................... 196
15.3.2 Data EEPROM Memory Map ........................................................................................ 197
15.4 Serial In-System Program Mode .......................................................................................... 198
15.4.1 Flash operation ............................................................................................................. 198
15.4.2 Data EEPROM operation .............................................................................................. 202
15.4.3 Summary of Flash and Data EEPROM Program/Erase Mode ...................................... 205
15.5 Parallel Mode ....................................................................................................................... 206
15.5.1 Overview ....................................................................................................................... 206
15.5.2 Parallel Mode instruction format .................................................................................... 207
15.5.3 Parallel Mode timing diagram ........................................................................................ 208
15.6 Mode entrance method of ISP and byte-parallel mode ......................................................... 208
15.6.1 Mode entrance method for ISP ..................................................................................... 208
15.6.2 Mode entrance of Byte-parallel ..................................................................................... 209
15.7 Security ................................................................................................................................ 210
16. Configure option ......................................................................................................................... 211
16.1 Configure option Control Register ........................................................................................ 211
17. APPENDIX ................................................................................................................................. 212
PS029602-0212
PRELIMINARY
5
Z51F0811
Product Specification
List of Figures
Figure 1-1 OCD Debugger and Pin description ....................... Error! Bookmark not defined.
Figure 1-2 Single Programmer ............................................................................................. 15
Figure 1-3 Gang Programmer ................................................. Error! Bookmark not defined.
Figure 2-1 Z51F0811 block diagram .................................................................................... 16
Figure 3-2 Z51F0811 32 QFN Pin assignment ..................................................................... 17
Figure 3-4 Z51F0811 28 TSSOP Pin assignment ................................................................ 18
Figure 3-5 Z51F0811 20 TSSOP Pin assignment ................................................................ 19
Figure 3-6 Z51F0811 16 TSSOP Pin assignment ................................................................ 20
Figure 4-2 32 pin QFN package ........................................................................................... 21
Figure 4-5 28 pin TSSOP package....................................................................................... 22
Figure 4-7 20 pin TSSOP package....................................................................................... 23
Figure 4-9 16 pin TSSOP package....................................................................................... 24
Figure 6-1 General Purpose I/O Port .................................................................................... 26
Figure 6-2 External Interrupt I/O Port ................................................................................... 27
Figure 7-1 AC Timing ........................................................................................................... 34
Figure 7-2 SPI Timing .......................................................................................................... 35
Figure 7-3 8MHz Internal OSC Freq.(OSC_HOT: 85℃) ....................................................... 36
Figure 8-1 Program memory ................................................................................................ 38
Figure 8-2 Data memory map .............................................................................................. 39
Figure 8-3 Lower 128 bytes RAM ......................................................................................... 40
Figure 8-4 XDATA memory area .......................................................................................... 41
Figure 9-1 Port Reset noise canceller time diagram ............................................................. 48
Figure 10-1 External Interrupt Description ............................................................................ 50
Figure 10-2 Block Diagram of Interrupt ................................................................................ 51
Figure 10-3 Interrupt Vector Address Table ......................................................................... 53
Figure 10-4 Interrupt Enable Register effective Timing ........................................................ 54
Figure 10-5 Execution of Multi Interrupt ............................................................................... 55
Figure 10-6 Interrupt Response Timing Diagram ................................................................. 56
Figure 10-7 Correspondence between vector Table address and the entry address of ISP . 56
Figure 10-8 Saving/Restore Process Diagram & Sample Source ......................................... 56
Figure 10-9 Timing chart of Interrupt Acceptance and Interrupt Return Instruction .............. 57
Figure 11-1 Clock Generator Block Diagram ........................................................................ 65
Figure 11-2 BIT Block Diagram ............................................................................................ 68
Figure 11-3 WDT Block Diagram.......................................................................................... 70
Figure 11-4 WDT Interrupt Timing Waveform ....................................................................... 72
Figure 11-5 Watch Timer Block Diagram.............................................................................. 73
Figure 11-6 8 Bit Timer/Event Counter 0, 1 Block Diagram .................................................. 77
Figure 11-7 Timer/Event Counter 0, 1 Example ................................................................... 78
Figure 11-8 Timer/Event Counter0, 1 Count Operation ........................................................ 78
Figure 11-9 16-bit Timer/Counter for Time 0, 1 .................................................................... 79
Figure 11-10 8-bit Capture Mode for Timer 0, 1 ................................................................... 80
PS029602-0212
PRELIMINARY
6
Z51F0811
Product Specification
Figure 11-11 Input Capture Mode Operation of Timer 0, 1 ................................................... 81
Figure 11-12 Express Timer Overflow in Capture Mode ....................................................... 81
Figure 11-13 16-bit Capture Mode of Timer 0, 1................................................................... 82
Figure 11-14 PWM Mode (Force 6-ch) ................................................................................. 84
Figure 11-15 PWM Mode (Force All-Ch) .............................................................................. 85
Figure 11-16 Example of PWM at 4MHz .............................................................................. 86
Figure 11-17 Example of Changing the Period in Absolute Duty Cycle at 4Mhz .................. 86
Figure 11-18 Example of PWM Output Waveform................................................................ 87
Figure 11-19 Example of PWM waveform in Back-to-Back mode at 4Mhz ........................... 87
Figure 11-20 Example of Phase Correction and Frequency correction of PWM ................... 88
Figure 11-21 Example of PWM External Synchronization with BLNKB Input ....................... 89
Figure 11-22 Example of Force Drive All-ch with A-ch ......................................................... 89
Figure 11-23 Example of Force Drive 6-ch Mode ................................................................. 90
Figure 11-24 PWM Port control ............................................................................................ 91
Figure 11-25 Example of PWM Delay .................................................................................. 92
Figure 11-26 8 Bit Timer/Event Counter2, 3 Block Diagram ............................................... 104
Figure 11-27 Timer/Event Counter2, 3 Example ................................................................ 105
Figure 11-28 Operation Example of Timer/Event Counter2, 3 ............................................ 105
Figure 11-29 16 Bit Timer/Event Counter2, 3 Block Diagram ............................................. 106
Figure 11-30 8-bit Capture Mode for Timer2, 3 .................................................................. 107
Figure 11-31 Input Capture Mode Operation of Timer 2, 3 ................................................. 108
Figure 11-32 Express Timer Overflow in Capture Mode ..................................................... 108
Figure 11-33 16-bit Capture Mode of Timer 2, 3................................................................. 109
Figure 11-34 PWM Mode ................................................................................................... 110
Figure 11-35 Example of PWM at 4MHz ............................................................................ 111
Figure 11-36 Example of Changing the Period in Absolute Duty Cycle at 4Mhz ................ 111
Figure 11-37 Timer4 16-bit Mode Block Diagram ............................................................... 117
Figure 11-38 Buzzer Driver Block Diagram ........................................................................ 122
Figure 11-39 USART Block Diagram .................................................................................. 125
Figure 11-40 Clock Generation Block Diagram .................................................................. 126
Figure 11-41 Synchronous Mode XCKn Timing ................................................................. 127
Figure 11-42 frame format .................................................................................................. 128
Figure 11-43 Start Bit Sampling ......................................................................................... 132
Figure 11-44 Sampling of Data and Parity Bit .................................................................... 132
Figure 11-45 Stop Bit Sampling and Next Start Bit Sampling ............................................. 132
Figure 11-46 SPI Clock Formats when UCPHA=0 ............................................................. 134
Figure 11-47 SPI Clock Formats when UCPHA=1 ............................................................. 135
Figure 11-48 SPI Block Diagram ........................................................................................ 142
Figure 11-49 SPI Transmit/Receive Timing Diagram at CPHA = 0..................................... 144
Figure 11-50 SPI Transmit/Receive Timing Diagram at CPHA = 1..................................... 144
Figure 11-51 I2C Block Diagram ......................................................................................... 147
Figure 11-52 Bit Transfer on the I2C-Bus ........................................................................... 148
Figure 11-53 START and STOP Condition......................................................................... 148
Figure 11-54 STOP or Repeated START Condition ........................................................... 149
Figure 11-55 Acknowledge on the I2C-Bus ......................................................................... 149
PS029602-0212
PRELIMINARY
7
Z51F0811
Product Specification
Figure 11-56 Clock Synchronization during Arbitration Procedure ..................................... 150
Figure 11-57 Arbitration Procedure of Two Masters ........................................................... 150
Figure 11-58 Formats and States in the Master Transmitter Mode .................................... 153
Figure 11-59 Formats and States in the Master Receiver Mode ........................................ 155
Figure 11-60 Formats and States in the Slave Transmitter Mode ...................................... 157
Figure 11-61 Formats and States in the Slave Receiver Mode .......................................... 159
Figure 11-62 ADC Block Diagram ...................................................................................... 164
Figure 11-63 A/D Analog Input Pin Connecting Capacitor .................................................. 164
Figure 11-64 A/D Power(AVDD) Pin Connecting Capacitor ............................................... 165
Figure 11-65 ADC Operation for Align bit ........................................................................... 165
Figure 11-66 Converter Operation Flow ............................................................................. 166
Figure 11-67 Analog Comparator Block Diagram ............................................................... 170
Figure 12-1 IDLE Mode Release Timing by External Interrupt ........................................... 174
Figure 12-2 IDLE Mode Release Timing by /RESET .......................................................... 174
Figure 12-3 STOP Mode Release Timing by External Interrupt .......................................... 175
Figure 12-4 STOP Mode Release Timing by /RESET ........................................................ 175
Figure 12-5 STOP1, 2 Mode Release Flow ........................................................................ 176
Figure 13-1 RESET Block Diagram .................................................................................... 178
Figure 13-2 Reset noise canceller time diagram ................................................................ 179
Figure 13-3 Fast VDD rising time ....................................................................................... 179
Figure 13-4 Internal RESET Release Timing On Power-Up ............................................... 180
Figure 13-5 Configuration timing when Power-on............................................................... 180
Figure 13-6 Boot Process Waveform ................................................................................. 181
Figure 13-7 Timing Diagram after RESET .......................................................................... 182
Figure 13-8 Oscillator generating waveform example ........................................................ 182
Figure 13-9 Block Diagram of BOD .................................................................................... 183
Figure 13-10 Internal Reset at the power fail situation ....................................................... 183
Figure 13-11 Configuration timing when BOD RESET ....................................................... 184
Figure 14-1 Block Diagram of On-chip Debug System ....................................................... 187
Figure 14-2 10-bit transmission packet .............................................................................. 188
Figure 14-3 Data transfer on the twin bus .......................................................................... 188
Figure 14-4 Bit transfer on the serial bus............................................................................ 189
Figure 14-5 Start and stop condition .................................................................................. 189
Figure 14-6 Acknowledge on the serial bus........................................................................ 189
Figure 14-7 Clock synchronization during wait procedure .................................................. 190
Figure 14-8 Connection of transmission ............................................................................. 190
Figure 15-1 Flash Memory Map ......................................................................................... 196
Figure 15-2 Address configuration of Flash memory .......................................................... 196
Figure 15-3 Data EEPROM memory map .......................................................................... 197
Figure 15-4 Address configuration of data EEPROM ......................................................... 197
Figure 15-5 The sequence of page program and erase of Flash memory .......................... 198
Figure 15-6 The sequence of bulk erase of Flash memory................................................. 199
Figure 15-7 Pin diagram for parallel programming ............................................................. 206
Figure 15-8 Parallel Byte Read Timing of Program Memory .............................................. 208
Figure 15-9 Parallel Byte Write Timing of Program Memory............................................... 208
PS029602-0212
PRELIMINARY
8
Z51F0811
Product Specification
Figure 15-10 ISP mode ...................................................................................................... 209
Figure 15-11 Byte-parallel mode ........................................................................................ 209
PS029602-0212
PRELIMINARY
9
Z51F0811
Product Specification
List of Tables
Table 1-1 Ordering Information for Z51F0811 parts ............................................................. 14
Table 5-1 Normal pin description.......................................................................................... 25
Table 7-1 Absolute Maximum Rationgs ................................................................................ 28
Table 7-2 Recommended Operation Conditions................................................................... 28
Table 7-3 A/D Converter Characteristics .............................................................................. 29
Table 7-4 Analog Comparator Characteristics ...................................................................... 29
Table 7-5 Voltage Dropout Converter Characteristics .......................................................... 30
Table 7-6 Power-On Reset Characteristics .......................................................................... 31
Table 7-7 Brown Out Detector Characteristics ..................................................................... 31
Table 7-8 Internal RC Oscillator Characteristics ................................................................... 32
Table 7-9 Ring-Oscillator Characteristics ............................................................................. 32
Table 7-10 PLL Characteristics ............................................................................................ 32
Table 7-11 DC Characteristics ............................................................................................. 33
Table 7-12 AC Characteristics ............................................................................................. 34
Table 7-13 SPI Characteristics ............................................................................................. 35
Table 8-1 SFR Map Summary .............................................................................................. 42
Table 9-1 Register Map ........................................................................................................ 46
Table 10-1 Interrupt Group Priority Level ............................................................................. 49
Table 10-2 Interrupt Vector Address Table........................................................................... 52
Table 10-3 Register Map ...................................................................................................... 59
Table 11-1 Register Map ...................................................................................................... 66
Table 11-2 Register Map ...................................................................................................... 68
Table 11-3 Register Map ...................................................................................................... 70
Table 11-4 Register Map ...................................................................................................... 73
Table 11-5 Timer 0,1 operating modes ................................................................................ 76
Table 11-6 PWM Frequency vs. Resolution at 8 Mhz ........................................................... 83
Table 11-7 Register Map ...................................................................................................... 93
Table 11-8 Operating Modes of Timer ................................................................................ 103
Table 11-9 PWM Frequency vs. Resolution at 8 Mhz ......................................................... 109
Table 11-10 Register Map .................................................................................................. 112
Table 11-11 Register Map .................................................................................................. 118
Table 11-12 Buzzer Frequency at 8MHz ............................................................................ 122
Table 11-13 Register Map .................................................................................................. 123
Table 11-14 Equations for Calculating Baud Rate Register Setting ................................... 126
Table 11-15 CPOL Funtionality .......................................................................................... 134
Table 11-16 Register Map .................................................................................................. 136
Table 11-17 Examples of UBAUD Settings for Commonly Used Oscillator Frequencies.... 141
Table 11-18 Register Map .................................................................................................. 144
Table 11-19 Register Map .................................................................................................. 171
Table 12-1 Peripheral Operation during Power Down Mode. ............................................. 173
Table 12-2 Register Map .................................................................................................... 177
Table 13-1 Reset state ....................................................................................................... 178
Table 13-2 Boot Process Description ................................................................................. 181
PS029602-0212
PRELIMINARY
10
Z51F0811
Product Specification
Table 13-3 Register Map .................................................................................................... 184
Table 15-1 Register Map .................................................................................................... 191
Table 15-2 Program/erase Time......................................................................................... 195
Table 15-3 Operation Mode ............................................................................................... 205
Table 15-4 The selection of memory type by ADDRH[7:4] ................................................. 206
Table 15-5 Parallel mode instruction format ....................................................................... 207
Table 15-6 Security policy using lock-bits........................................................................... 210
PS029602-0212
PRELIMINARY
11
Z51F0811
Product Specification
Z51F0811
CMOS SINGLE-CHIP 8-BIT MICROCONTROLLER
WITH 12-BIT A/D CONVERTER
1. Overview
1.1 Description
The Z51F0811 is advanced CMOS 8-bit microcontroller with 8K bytes of Flash. This is powerful
microcontroller which provides a highly flexible and cost effective solution to many embedded control
applications. This provides the following features: 8K bytes of Flash, 256 bytes of internal SRAM, 256
bytes of external SRAM, 512 bytes of Data EEPROM, general purpose I/O, 8/16-bit timer/counter,
watchdog timer, watch timer, SPI, USART, I2C, on-chip POR, BOD, 12-bit A/D converter, analog
comparator, buzzer driving port, 10-bit high speed PWM output, on-chip oscillator and clock circuitry.
The Z51F0811 also supports power saving modes to reduce power consumption.
Device Name
Z51F0811
PS029602-0212
Flash
8K bytes
EEPROM
512 bytes
RAM
ADC
I/O Port
Package
15ch
30
32-pin QFN
12ch
26
28-pin TSSOP
9ch
18
20-pin TSSOP
8ch
14
16-pin TSSOP
256 bytes
PRELIMINARY
12
Z51F0811
Product Specification
1.2 Features
• CPU
- External (8)
- 8 Bit CISC Core (8051 Compatible,2 clock
per cycle)
• 8K Bytes On-chip Flash
- Pin Change Interrupt(P0) (1)
- USART0,1 (4)
- SPI (1)
- Optional boot code section with protection
- Timer (5)
- Endurance : 10,000 times at room temp
- I2C (1)
- Retention : 10 years
- Data EEPROM (1)
• 256 Bytes SRAM
- ADC (1)
• 256 Bytes XRAM
- Analog Comparator(1)
• 512 Bytes Data EEPROM
- WDT (1)
- Endurance : 300,000 times at room temp
- WT (1)
- Retention : 10 years
- BIT (1)
• General Purpose I/O
• On-Chip RC-Oscillator
- 30 Ports (P0[7:0], P1[6:0], P2[6:0], P3[7:0]):
32 Pin
- 26 Ports (P0[7:0], P1[6:0], P2[2:0], P3[7:0]):
28 Pin
- 18 Ports (P0[7:0], P1[6:0], P2[2:0]): 20 Pin
- 14 Ports (P0[7:0], P1[2:0], P2[2:0]): 16 Pin
• One Basic Interval Timer
• SPI
• Minimum Instruction Execution Time
- 200ns (@10MHz, NOP Instruction)
• Sub-Active mode
• 3 High Frequency 10-bit PWM (Using
Timer1)
• Watch Timer
• Programmable Brown-Out Detector
- IDLE, STOP1, STOP2 mode
- 8Bit×4ch(16Bit×2ch) + 16Bitx1ch
• Watch Dog Timer
• Power On Reset
• Power down mode
• Timer/ Counter
• 10-bit PWM (Using Timer3)
- 8MHz(±3%)
- System used external 32.768KHz crystal or
system used internal 125KHz Ring oscillator
• Operating Frequency
- 1MHz ~ 12MHz
• Operating Voltage
- 1.8V ~ 5.5V
• USART (2ch)
• Operating Temperature : -40 ~ +85℃
• I2C
• Package Type
• Buzzer Driving Port
- 32-pin QFN
• 12 Bit A/D Converter
- 28-pin TSSOP
- 15 Input channels
• Analog Comparator
- On Chip Analog Comparator
- 20-pin TSSOP
- 16-pin TSSOP
- Pb free package
• Interrupt Sources
PS029602-0212
PRELIMINARY
13
Z51F0811
Product Specification
1.3 Ordering Information
Table 1-1 Ordering Information for Z51F0811 parts
Device name
ROM size
RAM size
EEPROM size
Z51F0811QUX
Package
32 QFN
Z51F0811RJX
28 TSSOP
8K bytes Flash
256 bytes
512 bytes
Z51F0811RHX
20 TSSOP
Z51F0811RFX
16 TSSOP
1.3.1
Part Number Suffix Designation
Zilog part numbers consist of a number of components, as indicated in the following example.
Example: Part number Z51F0811RFX is an 8-bit MCU with 8 KB of Flash memory and 512 bytes of RAM in a
16-pin TSSOP package and operating within a –40°C to +85°C temperature range. In accordance with RoHS
standards, this device has been built using lead-free solder.
Z51
F
08
11
J
K
X
Temperature Range
X = –40°C to +85°C
Pin Count
F = 16 pins
H = 20 pins
J = 28 pins
U = 32 pins
Package
Q = QFN
R = TSSOP
Device Type
Flash Memory Size
08 = 8 KB Flash
Flash Memory
F = General-Purpose Flash
Device Family
Z51 = Z8051 8-Bit Core MCU
PS029602-0212
PRELIMINARY
14
Z51F0811
Product Specification
1.4 Development Tools
1.4.1 Compiler
We do not provide the compiler. Please contact third parties.
The Z51F0811 core is Mentor 8051. Anyway, device ROM size is smaller than 64KB. Developer can
use all kinds of third party’s standard 8051 compiler.
1.4.2 OCD emulator and debugger
The OCD (On Chip Debug) emulator supports Zilogs 8051 series MCU emulation.
The OCD interface uses two wires interfacing between PC and MCU which is attached to user’s
system. The OCD can read or change the value of MCU internal memory and I/O peripherals. And
also the OCD controls MCU internal debugging logic, it means OCD controls emulation, step run,
monitoring, etc.
The OCD Debugger program works on Microsoft-Windows NT, 2000, XP, Vista (32bit) operating
system.
If you want to see more details, please refer OCD debugger manual. You can download debugger
S/W and manual from our web-site.
Connection:
-
SCLK (Z51F0811 P06 port)
-
SDATA (Z51F0811 P07 port)
1.4.3 Programmer
Single programmer:
PGMplus USB: It programs MCU device directly.
Figure 1-1 Single Programmer
OCD emulator: It can write code in MCU device too.
Because of, OCD debugging supports ISP (In System Programming).
It does not require additional H/W, except developer’s target system.
Note) If you produce semiconductor and measure the stop current, use OCD ISP
Gang programmer:
It programs 8 MCU devices at once. So, it is mainly used in mass production line.
Gang programmer is standalone type, it means it does not require host PC.
PS029602-0212
PRELIMINARY
15
Z51F0811
Product Specification
2. Block Diagram
DSCL/P06 DSDA/P07
P25/AN14
P24/AN13
P23/AN12
P37/AN11
P36/AN10
P16/AN9
P15/AN8
P07/AN7
P06/AN6
P05/AN5
P04/AN4
On-Chip
Debug
12-BIT
ADC
M8051
CORE
P03/AN3
P02/AN2
P01/AN1
EEPROM
(512B)
P00/AN0
RAM
(256B)
P06/T0O
P07/EC0
P10/T1O/PWM1AA
P11/PWM1AB
P12/PWM1BA
P13/PWM1BB
P15/PWM1CA
P15/PWM1CB
P02/T2O
P03/EC2
TIMER
&
PWM
Power on
Reset
P16/T3O
P10/INT0
P11/INT1
P12/INT2
P13/INT3
P30/INT4
Brown Out
Detector
Interrupt
Controller
P31/INT5
P32/INT6
P33/INT7
P00/SS0
P01/SCK0
P02/MOSI0
P03/ MISO0
FLASH
(8K byte)
SPI
INT-RC OSC
8MHz
P34/SS1
P35/ACK1
P36/TxD1
P37/RxD1
P07(P26)/SDA
P06(P25)/SCL
P06~P00
P1
PORT
P16~P10
P2
PORT
P26~P20
P3
PORT
P37~P30
BIT
WDT
WT
BUZZER
Analogue
Comparator
P12/BUZ
ACOUT/P06
AC+/P05
AC-/P04
INT-WDT OSC
125KHz
SUBXIN/P04
P00/SS0
P01/ACK0
P02/TxD0
P03/RxD0
P0
PORT
USART0
Voltage
Down
Convertor
CLOCK
SYSTEM
CON
SUBXOUT/P05
XIN /P20
XOUT/P21
RESETB/P22
USART1
I2C
VDD
VSS
Figure 2-1 Z51F0811 block diagram
PS029602-0212
PRELIMINARY
16
Z51F0811
Product Specification
P05 / SXOUT / AC+ /AN5
P04/ SXIN / AC- / AN4
P33 / INT7
P32 / INT6
P31 / INT5
P30 / INT4
P03 / RxD0 / MISO0 / EC2 / AN3
P02 / TxD0 / MOSI0 / T2O / AN2
3. Pin Assignment
32
31
30
29
28
27
26
25
(DSCL)/ ACOUT/AN6/T0O/SCL/P06
1
24
P01 / ACK0 / SCK0 / AN1
(DSDA) / AN7 / EC0 / SDA / P07
2
23
P00 / SS0 / AN0 / AVref
AN14 / (SCL) / P25
3
22
P24 / AN13
(SDA) / P26
4
21
P23 / AN12
20
VSS
MC95FG308U
n
VDD
5
PWM1AA / T1O / INT0 / P10
6
19
P22 / RESETB
PWM1AB / INT1 / P11
7
18
P21 / XOUT
PWM1BA / BUZ / INT2 / P12
8
17
P20 / XIN
11
12
13
14
15
16
P15 / PWM1CB / AN8
P34 / SS1
P35 / ACK1
P36 / TxD1 / AN10
P37 / RxD1 / AN11
P16 / INT3 / T3O / PWM3 / AN9
P13 / PWM1BB
10
P14 / PWM1CA
9
Figure 3-1 Z51F0811 32 QFN Pin assignment
PS029602-0212
PRELIMINARY
17
Z51F0811
Product Specification
INT6 / P32
1
28 P31 / INT5
INT7 / P33
2
27 P30 / INT4
SXIN / AC- / AN4 / P04
3
26 P03 / RxD0 / MISO0 / EC2 / AN3
SXOUT / AC+ / AN5 / P05
4
25 P02 / TxD0 / MOSI0 / T2O / AN2
(DSCL) / ACOUT / AN6 / T0O / SCL / P06
5
24 P01 / ACK0 / SCK0 / AN1
(DSDA) / AN7 / EC0 / SDA / P07
6
VDD
7
PWM1AA / T1O / INT0 / P10
8
PWM1AB / INT1 / P11
9
1
1
8
0
F
1
5
Z
PWM1BA / BUZ / INT2 / P12 10
23 P00 / SS0 / AN0 / AVref
22 VSS
21 P22 / RESETB
20 P21 / XOUT
19 P20 / XIN
PWM1BB / P13 11
18 P16 / INT3 / T3O / PWM3 / AN9
PWM1CA / P14 12
17 P37 / RxD1 / AN11
AN8 / PWM1CB / P15 13
16 P36 / TxD1 / AN10
SS1 / P34 14
15 P35 / ACK1
Figure 3-2 Z51F0811 28 TSSOP Pin assignment
PS029602-0212
PRELIMINARY
18
Z51F0811
Product Specification
SXIN / AC- / AN4 / P04
1
20 P03 / RxD0 / MISO0 / EC2 / AN3
SXOUT / AC+ / AN5 / P05
2
19 P02 / TxD0 / MOSI0 / T2O / AN2
(DSCL) / ACOUT / AN6 / T0O / SCL / P06
3
18 P01 / ACK0 / SCK0 / AN1
(DSDA) / AN7 / EC0 / SDA / P07
4
VDD
5
PWM1AA / T1O / INT0 / P10
6
PWM1AB / INT1 / P11
7
8
PWM1BB / P13
9
1
1
8
0
F
1
5
Z
PWM1BA / BUZ / INT2 / P12
17 P00 / SS0 / AN0 / AVref
16 VSS
15 P22 / RESETB
14 P21 / XOUT
13 P20 / XIN
12 P16 / INT3 / T3O / PWM3 / AN9
11 P15 / PWM1CB / AN8
PWM1CA / P14 10
Figure 3-3 Z51F0811 20 TSSOP Pin assignment
PS029602-0212
PRELIMINARY
19
Z51F0811
Product Specification
SXIN / AC- / AN4 / P04
1
16 P03 / RxD0 / MISO0 / EC2 / AN3
SXOUT / AC+ / AN5 / P05
2
15 P02 / TxD0 / MOSI0 / T2O / AN2
(DSCL) / ACOUT / AN6 / T0O / SCL / P06
3
(DSDA) / AN7 / EC0 / SDA / P07
4
VDD
5
PWM1AA / T1O / INT0 / P10
6
PWM1AB / INT1 / P11
7
PWM1BA / BUZ / INT2 / P12
8
14 P01 / ACK0 / SCK0 / AN1
13 P00 / SS0 / AN0 / AVref
12 VSS
11 P22 / RESETB
1
1
8
0
F
1
5
Z
10 P21 / XOUT
9 P20 / XIN
Figure 3-4 Z51F0811 16 TSSOP Pin assignment
PS029602-0212
PRELIMINARY
20
Z51F0811
Product Specification
4. Package Diagram
Figure 4-1 32 pin QFN package
PS029602-0212
PRELIMINARY
21
Z51F0811
Product Specification
Figure 4-2 28 pin TSSOP package
PS029602-0212
PRELIMINARY
22
Z51F0811
Product Specification
Figure 4-3 20 pin TSSOP package
PS029602-0212
PRELIMINARY
23
Z51F0811
Product Specification
Figure 4-4 16 pin TSSOP package
PS029602-0212
PRELIMINARY
24
Z51F0811
Product Specification
5. Pin Description
Table 5-1 Normal pin description
PIN
Name
I/O
Function
P00
Port P0
P01
8-Bit I/O Port
@RESET
Avref / AN0 / SS0
AN1 / SCK0 / ACK0
Can be set in input or output mode in 1-bit units
P02
AN2 / T2O / MOSI0 / TxD0
Internal pull-up register can be used via software
when this port is used as input port
P03
I/O
Shared with
P04
Open Drain enable register can be used via
software when this port is used as output port
P05
AN0~AN7 can be selected by ADCM register
AN3 / EC2 / MISO0 / RxD0
Input
SXIN / AC- / AN4
SXOUT / AC+ / AN5
P06
DSCL / ACOUT/ AN6/ T0O / SCL
P07
DSDA / AN7/ EC0 / SDA
P10
Port P1
P11
7-Bit I/O Port
PWM1AB / INT1
Can be set in input or output mode in 1-bit units
P12
P13
PWM1AA / T1O / INT0
I/O
Internal pull-up register can be used via software
when this port is used as input port
PWM1BA / BUZ / INT2
Input
PWM1BB
P14
Open Drain enable register can be used via
software when this port is used as output port
PWM1CA
P15
AN8, AN9 can be selected by ADCM register
AN8 / PWM1CB
AN9 / PWM3 / T3O / INT3
P16
P20
Port P2
P21
7-Bit I/O Port
XOUT
Can be set in input or output mode in 1-bit units
P22
P23
XIN
I/O
Internal pull-up register can be used via software
when this port is used as input port
RESETB
Input
Open Drain enable register can be used via
software when this port is used as output port
P24
P25
AN13
AN14 / (SCL)
AN12, AN13, AN14 can be selected by ADCM
register
P26
AN12
(SDA)
P30
Port P3
INT4
P31
8-Bit I/O Port
INT5
Can be set in input or output mode in 1-bit units
P32
INT6
Internal pull-up register can be used via software
when this port is used as input port
P33
I/O
P34
Open Drain enable register can be used via
software when this port is used as output port
P35
AN10, AN11 can be selected by ADCM register
INT7
Input
SS1
ACK1
P36
AN10 / TxD1
P37
AN11 / RxD1
PS029602-0212
PRELIMINARY
25
Z51F0811
Product Specification
6. Port Structures
6.1 General Purpose I/O Port
LevelShift ( 1.8V to ExtVDD)
LevelShift (ExtVDD to 1.8V)
VDD
PULL-UP
REGISTER
OPEN DRAIN
REGISTER
DATA
REGISTER
VDD
0
PAD
MUX
SUB-FUNC DATA OUTPUT
VDD
1
SUB-FUNC ENABLE
SUB-FUNC DIRECTION
0
MUX
DIRECTION
REGISTER
1
R(400Ω)
0
PORTx INPUT
MUX
1
SUB-FUNC
DATA INPUT
Q
CMOS or
SchmittLevel
Input
D
r
CP
DEBOUNCE
CLK
DEBOUNCE
ENABLE
ANALOG CHANNEL
ENABLE
ANALOG INPUT
ANALOG INPUT
(without Resistor)
Figure
Figure 6-1
6-1 General
General Purpose
Purpose I/O
I/O Port
Port
PS029602-0212
PRELIMINARY
26
Z51F0811
Product Specification
6.2 External Interrupt I/O Port
LevelShift ( 1.8V to ExtVDD)
LevelShift (ExtVDD to 1.8V)
VDD
PULL-UP
REGISTER
OPEN DRAIN
REGISTER
VDD
DATA
REGISTER
VDD
0
PAD
MUX
SUB-FUNC DATA OUTPUT
1
SUB-FUNC ENABLE
SUB-FUNC DIRECTION
0
MUX
DIRECTION
REGISTER
1
R(400Ω)
0
VDD
MUX
EXTERNAL
INTERRUPT
1
INTERRUPT
ENABLE
EDGE
REG
D
Q
r
POLARITY
REG
CP
FLAG
CLEAR
0
PORTx INPUT
MUX
1
SUB-FUNC
DATA INPUT
Q
CMOS or
SchmittLevel
Input
D
r
CP
DEBOUNCE
CLK
DEBOUNCE
ENABLE
ANALOG CHANNEL
ENABLE
ANALOG INPUT
Figure
Figure 6-2
6-2 External
External Interrupt
Interrupt I/O
I/O Port
Port
PS029602-0212
PRELIMINARY
27
Z51F0811
Product Specification
7. Electrical Characteristics
7.1 Absolute Maximum Ratings
Table 7-1 Absolute Maximum Rationgs
Parameter
Supply Voltage
Normal Voltage Pin
Symbol
Rating
Unit
VDD
-0.3~+6.5
V
VSS
-0.3~+0.3
V
VI
-0.3~VDD+0.3
V
VO
-0.3~VDD+0.3
V
IOH
10
mA
∑IOH
80
mA
IOL
20
mA
∑IOL
160
mA
PT
600
mW
TSTG
-45~+125
℃
Total Power Dissipation
Storage Temperature
Note) Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the
device. This is a stress rating only and functional operation of the device at any other conditions beyond those
indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect device reliability.
7.2 Recommended Operating Conditions
Table 7-2 Recommended Operation Conditions
Parameter
Supply Voltage
Symbol
VDD
Condition
MIN
fXIN=1~12MHz
4.5
fXIN=1~8MHz
fSUB=32.768KHz
Operating Temperature
Operating Frequency
PS029602-0212
1.8
TYP
MAX
Unit
-
5.5
V
TOPR
VDD=1.8~5.5V
-40
-
85
℃
FOPR
fXIN
1
-
12
MHz
fSUB
-
32.768
-
KHz
Internal RC-OSC
7.76
8.24
MHz
Internal Ring-OSC
-
PRELIMINARY
1
MHz
28
Z51F0811
Product Specification
7.3 A/D Converter Characteristics
Table 7-3 A/D Converter Characteristics
Parameter
(TA=-40℃ ~ +85℃, VDD=AVDD=2.7V ~ 5.5V, VSS=0V)
Symbol
Condition
MIN
TYP
-
-
Resolution
MAX
Unit
12
-
bits
-
±3
lsb
-
-
±2
lsb
-
-
±2
lsb
-
±3
lsb
-
±3
lsb
60
-
cycle
Total Accuracy
Integral Linear Error
INL
Differential Linearity
Error
DLE
Zero Offset Error
ZOE
Full Scale Error
FSE
Conversion Time
tCON
AVDD=VDD=5.12V
fXIN=4MHz
12bit conversion
-
max 3MHz
Analog Input Voltage
VAN
-
VSS
-
AVDD=VDD
V
Analog Power Voltage
AVDD
-
-
*AVDD=VDD
-
V
Analog Reference
Voltage
AVREF
-
2.7
-
5.5
V
AVSS
-
-
VSS
-
V
AVDD=VDD=5.12V
-
-
10
uA
-
1
3
mA
-
-
1
uA
Analog Ground Voltage
Analog Input Leakage
Current
ADC Operating Current
IDD
SIDD
AVDD=VDD=5.12V
7.4 Analog Comparator Characteristics
Table 7-4 Analog Comparator Characteristics
Parameter
Input Leakage Current
Symbol
IL
Condition
MIN
TYP
MAX
Unit
VDDEXT=5V,
Vin=1/2VDDEXT
-50
-
50
nA
10
-
40
±mV
Input Offset Voltage
Voffset
VDDEXT=5V,
Vin=1/2VDD
Operating Current
IOP
COMP_EN=H
-
1
-
mA
Power Down Current
IPD
COMP_EN=L
-
1
-
uA
Response Time
VRT
CL= 50pF, VDDEXT=5V
-
-
500
nS
PS029602-0212
PRELIMINARY
29
Z51F0811
Product Specification
7.5 Voltage Dropout Converter Characteristics
Table 7-5 Voltage Dropout Converter Characteristics
Parameter
Symbol
Condition
MIN
TYP
MAX
Unit
Operating Voltage
-
1.8
-
5.5
V
Operating Temperature
-
-40
-
+85
℃
Regulation Voltage
-
1.62
1.8
1.98
V
Drop-out Voltage
-
-
-
0.02
V
RUN/IDLE
-
20
-
mA
SUB-ACTIVE
-
1
-
mA
STOP1
-
50
-
uA
STOP2
-
10
-
uA
IDD1
RUN/IDLE
-
-
1
mA
Current Drivability
Operating Current
Drivability Transition Time
IDD2
SUB-ACTIVE
-
-
0.1
mA
SIDD1
STOP1
-
-
5
uA
SIDD2
STOP2
-
-
0.1
uA
TRAN1
SUB to RUN
-
-
1
uS
TRAN2
STOP to RUN
-
-
200
uS
Note) -STOP1: WDT running - STOP2: WDT disable
PS029602-0212
PRELIMINARY
30
Z51F0811
Product Specification
7.6 Power-On Reset Characteristics
Table 7-6 Power-On Reset Characteristics
Parameter
Symbol
Condition
MIN
TYP
MAX
Unit
Operating Voltage
-
VSS
-
5.5
V
Operating Temperature
-
-40
-
+85
℃
RESET Release Level
-
1.3
1.4
1.5
V
IDD
-
-
-
10
uA
SIDD
-
-
-
1
uA
Condition
MIN
TYP
MAX
Unit
Operating Voltage
-
VSS
-
5.5
V
Operating Temperature
-
-40
-
+85
℃
4.2V
-
4.0
-
4.4
V
3.6V
-
3.4
-
3.8
V
2.5V
-
2.3
-
2.7
V
1.6V
-
1.4
-
1.8
V
-
-
-
-
mV
Operating Current
7.7 Brown Out Detector Characteristics
Table 7-7 Brown Out Detector Characteristics
Parameter
Detection Level
Symbol
Hysteresis
Operating Current
PS029602-0212
IDD
-
-
-
50
uA
SIDD
-
-
-
1
uA
PRELIMINARY
31
Z51F0811
Product Specification
7.8 Internal RC Oscillator Characteristics
Table 7-8 Internal RC Oscillator Characteristics
Parameter
Condition
MIN
TYP
MAX
Unit
Operating Voltage
-
1.8
-
5.5
V
Operating Temperature
-
-40
-
+85
℃
Frequency
-
7.76
8.24
MHz
Stabilization Time
-
-
-
10
mS
IDD
-
-
-
-
uA
SIDD
-
-
-
1
uA
Condition
MIN
TYP
MAX
Unit
Operating Voltage
-
1.8
-
5.5
V
Operating Temperature
-
-40
-
+85
℃
Operating Current
Symbol
7.9 Ring-Oscillator Characteristics
Table 7-9 Ring-Oscillator Characteristics
Parameter
Symbol
Frequency
-
-
1
-
MHz
Stabilization Time
-
-
-
-
mS
IDD
-
-
-
-
uA
SIDD
-
-
-
1
uA
Parameter
Symbol
Condition
Min.
Typ.
Max.
Unit
PLL current
IPLL
-
-
1.5
TBD
mA
Input clock frequency
fxin
-
2
-
16
MHz
Output clock frequency
fout
-
6.25
-
128
MHz
Output clock duty
-
-
40
-
60
%
Setting time
tD
-
-
1
-
mS
Accuracy
-
-
-
2
-
%
Operating Current
7.10 PLL Characteristics
Table 7-10 PLL Characteristics
( TA = 0℃ ~ +70℃, VDD18 = 1.6V ~ 2.0V, VSS = 0V )
PS029602-0212
PRELIMINARY
32
Z51F0811
Product Specification
7.11 DC Characteristics
Table 7-11 DC Characteristics
Parameter
Input Low Voltage
Input High Voltage
Symbol
Condition
MIN
TYP
MAX
Unit
VIL1
P2[2]
-0.5
-
0.2VDD
V
VIL2
All others PAD
-0.5
-
0.2VDD
V
VIH1
P2[2]
0.8VDD
-
VDD
V
VIH2
All others PAD
0.7VDD
-
VDD
V
Output Low Voltage
VOL1
ALL I/O (IOL=20mA, VDD=4.5V)
-
-
1
V
Output High Voltage
VOH1
ALL I/O (IOH=-8.57mA, VDD=4.5V)
3.5
-
-
V
Input High Leakage
Current
IIH
ALL PAD
-
-
1
uA
Input Low Leakage
Current
IIL
ALL PAD
-1
-
-
uA
Pull-Up Resister
Power Supply Current
RPU
ALL PAD
20
-
50
kΩ
IDD1
Run Mode, fXIN=12MHz @5V
-
*2.6
10
mA
IDD2
Sleep Mode, fXIN=12MHz @5V
-
*1.5
5
mA
IDD3
Sub Active Mode, fSUBXIN=32.768KHz @5V
-
*71
500
uA
IDD4
STOP1 Mode, WDT Active @5V (BOD
enable)
-
*45
200
uA
IDD5
STOP1 Mode, WDT Active @5V (BOD
disable)
-
*20
100
uA
IDD6
STOP2 Mode, WDT Disable @5V (BOD
enable)
-
*27
100
uA
IDD7
STOP2 Mode, WDT Disable @5V (BOD
disable)
-
*1
7 (room
temp)
uA
(VDD =2.7~5.5V, VSS =0V, fXIN=10.0MHz, TA=-40~+85℃)
Note) - STOP1: WDT running, STOP2: WDT disable.
- (*) typical test condition : VDD=5V, Internal RC-OSC=8MHz, ROOM TEMP, all PORT output LOW,
Timer0 Active, 1PORT toggling.
PS029602-0212
PRELIMINARY
33
Z51F0811
Product Specification
7.12 AC Characteristics
(VDD=5.0V±10%, VSS=0V, TA=-40~+85℃)
Table 7-12 AC Characteristics
Parameter
Operating Frequency
System Clock Cycle Time
Symbol
PIN
MIN
TYP
MAX
Unit
fMCP
XIN
1
-
10
MHz
tSYS
-
100
-
1000
ns
Oscillation Stabilization Time (8MHz)
tMST1
XIN, XOUT
-
-
10
ms
External Clock “H” or “L” Pulse Width
tCPW
XIN
90
-
-
ns
External Clock Transition Time
tRCP,tFCP
XIN
-
-
10
ns
tIW
INT0~INTx
2
-
-
tSYS
External Interrupt Transition Time
tFI,tRI
INT0~INTx
1
us
nRESET Input Pulse “L” Width
tRST
nRESET
8
-
-
tSYS
External Counter Input “H” or “L” Pulse
Width
tECW
EC0~ECx
2
-
-
tSYS
tREC,tFEC
EC0~ECx
-
-
20
ns
External Interrupt Input Width
Event Counter Transition Time
1/fMCP
tCPW
tCPW
0.9VDD
XIN
0.1VDD
tRCP
tFCP
tIW
INT0
INT1
INT2
INTx
tIW
0.8VDD
0.2VDD
tRI
tFI
tRST
nRESET
0.2VDD
tECW
tECW
EC0
0.8VDD
ECx
0.2VDD
tREC
tFEC
Figure 7-1 AC Timing
PS029602-0212
PRELIMINARY
34
Z51F0811
Product Specification
7.13 SPI Characteristics
Table 7-13 SPI Characteristics
Parameter
Symbol
PIN
MIN
TYP
MAX
Output Clock Pulse Period
tSCK
SCK
-
SPI
clock
mode
-
Input Clock Pulse Period
tSCK
SCK
2• tSYS
-
-
ns
Input Clock “H” or “L” Pulse Width
tSCKL, tSCKH
SCK
50%
duty
-
ns
Input Clock Pulse Transition Time
tFSCK,tRSCK
SCK
-
-
30
ns
Output Clock “H” or “L” Pulse
Width
tSCKL, tSCKH
SCK
tSYS-30
-
-
ns
Output Clock Pulse Transition
Time
tFSCK,tRSCK
SCK
-
-
30
ns
First Output Clock Delays Time
Unit
ns
tFOD
OUTPUT
tDS
OUTPUT
-
-
100
ns
tFSIN,tRSIN
INPUT
-
-
30
ns
Input Setup Time
tDIS
INPUT
100
-
ns
Input Hold Time
tDIH
INPUT
tSYS+70
-
-
ns
Output Clock Delay Time
Input Pulse Transition Time
(VDD=5.0V±10%, VSS=0V, TA=-40~+85℃)
/SS
(Output/Input)
tFOD
tSCK
0.8VDD
SCK
(CPOL=0)
(Output/Input)
0.2VDD
tSCKL
tSCKH
SCK
(CPOL=1)
(Output/Input)
tDIS
MISO/MOSI
(Data Input)
tFSCK
tDIH
MSB
tRSCK
LSB
tRSIN
tFSIN
tDS
MOSI/MISO
(Data Output)
MSB
LSB
Figure 7-2 SPI Timing
PS029602-0212
PRELIMINARY
35
Z51F0811
Product Specification
7.14 Typical Characteristics
These graphs and tables provided in this section are for design guidance only and are not tested or
guaranteed. In some graphs or tables the data presented are outside specified operating range (e.g.
outside specified VDD range). This is for information only and devices are guaranteed to operate
properly only within the specified range.
The data presented in this section is a statistical summary of data collected on units from different
lots over a period of time. “Typical” represents the mean of the distribution while “max” or “min”
represents (mean + 3σ) and (mean - 3σ) respectively where σ is standard deviation.
Figure 7-3 8MHz Internal OSC Freq.(OSC_HOT: 85℃)
PS029602-0212
PRELIMINARY
36
Z51F0811
Product Specification
8. Memory
The Z51F0811 addresses two separate address memory stores: Program memory and Data
memory. The logical separation of Program and Data memory allows Data memory to be assessed by
8-bit addresses, which can be more quickly stored and manipulated by 8-bit CPU. Nevertheless, 16bit Data memory addresses can also be generated through the DPTR register.
Program memory can only be read, not written to. There can be up to 64K bytes of Program memory.
In the Z51F0811 Flash version of these devices the 8K bytes of Program memory are provided onchip. Data memory can be read and written to up to 256 bytes internal memory (DATA) including the
stack area.
8.1 Program Memory
A 16-bit program counter is capable of addressing up to 64K bytes, but this device has just 8K bytes
program memory space.
Figure 8-1 shows a map of the lower part of the program memory. After reset, the CPU begins
execution from location 0000H. Each interrupt is assigned a fixed location in program memory. The
interrupt causes the CPU to jump to that location, where it commences execution of the service
routine. External interrupt 0, for example, is assigned to location 0003H. If external interrupt 0 is going
to be used, its service routine must begin at location 0003H. If the interrupt is not going to be used, its
service location is available as general purpose program memory. If an interrupt service routine is
short enough (as is often the case in control applications), it can reside entirely within that 8 byte
interval. Longer service routines can use a jump instruction to skip over subsequent interrupt locations,
if other interrupts are in use.
PS029602-0212
PRELIMINARY
37
Z51F0811
Product Specification
FFFFH
1FFFH
8KBytes
0000H
Figure 8-1 Program memory
-
User Function Mode: 8KBytes Included Interrupt Vector Region
-
Non-volatile and reprogramming memory: Flash memory based on EEPROM cell
PS029602-0212
PRELIMINARY
38
Z51F0811
Product Specification
8.2 Data Memory
Figure 8-2 shows the internal Data memory space available.
FFH
FFH
Upper
128 Bytes
Special Function
Registers
Internal RAM
128 Bytes
80H
(Indirect
Addressing)
7FH
Lower
(Direct Addressing)
80H
128 Bytes
Internal RAM
(Direct or Indirect
Addressing)
00H
Figure 8-2 Data memory map
The internal memory space is divided into three blocks, which are generally referred to as the lower
128, upper 128, and SFR space.
Internal Data memory addresses are always one byte wide, which implies an address space of only
256 bytes. However, the addressing modes for internal RAM can in fact accommodate 384 bytes,
using a simple trick. Direct addresses higher than 7FH access one memory space and indirect
addresses higher than 7FH access a different memory space. Thus Figure 8-2 shows the upper 128
and SFR space occupying the same block of addresses, 80H through FFH, although they are
physically separate entities.
The lower 128 bytes of RAM are present in all 8051 devices as mapped in Figure 8-3. The lowest 32
bytes are grouped into 4 banks of 8 registers. Program instructions call out these registers as R0
through R7. Two bits in the Program Status Word select which register bank is in use. This allows
more efficient used of code space, since register instructions are shorter than instructions that use
direct addressing.
The next 16 bytes above the register banks form a block of bit-addressable memory space. The
8051 instruction set includes a wide selection of single-bit instructions, and the 128 bits in this area
can be directly addressed by these instructions. The bit addresses in this area are 00H through 7FH.
All of the bytes in the lower 128 can be accessed by either direct or indirect addressing. The upper
128 bytes RAM can only be accessed by indirect addressing. These spaces are used for user RAM
and stack pointer.
PS029602-0212
PRELIMINARY
39
Z51F0811
Product Specification
7F 7E 7D 7C 7B 7A 79 78
77 76 75 74 73 72 71 70
7FH
6F 6E 6D 6C 6B 6A 69 68
67 66 65 64 63 62 61 60
5F 5E 5D 5C 5B 5A 59 58
57 56 55 54 53 52 51 50
General purpose
register
80 bytes
4F 4E 4D 4C 4B 4A 49 48
47 46 45 44 43 42 41 40
3F 3E 3D 3C 3B 3A 39 38
37 36 35 34 33 32 31 30
2F 2E 2D 2C 2B 2A 29 28
30H
2FH
27 26 25 24 23 22 21 20
1F 1E 1D 1C 1B 1A 19 18
16 bytes
20H
1FH
8 bytes
8 bytes
8 bytes
17 16 15 14 13 12 11 10
Bit addressable
(128bits)
18H
17H
10H
0FH
08H
07H
8 bytes
0F 0E 0D 0C 0B 0A 09 08
Register bank 3
(8 bytes)
Register bank 2
(8 bytes)
07 06 05 04 03 02 01 00
R7
Register bank 1
(8 bytes)
R6
Register bank 0
(8 bytes)
R4
00H
R5
R3
R2
R1
R0
Figure 8-3 Lower 128 bytes RAM
PS029602-0212
PRELIMINARY
40
Z51F0811
Product Specification
8.3 EEPROM Data Memory
Z51F0811 has 512 bytes EEPROM Data memory. This area has no relation with RAM/Flash. It can
read and write through SFR with 8-bit unit.
For more information about EEPROM Data memory, see chapter 15.
FFFFH
31FFH
Data EEPROM
512 Bytes
3000H
2FFFH
XSFR
2F00H
00FFH
XSRAM
256 Bytes
0000H
Figure 8-4 XDATA memory area
PS029602-0212
PRELIMINARY
41
Z51F0811
Product Specification
8.4 SFR Map
8.4.1 SFR Map Summary
Table 8-1 SFR Map Summary
0H/8H
1H/9H
2H/AH
3H/BH
4H/CH
5H/DH
6H/EH
7H/FH
TEST_REG
B
TEST_REG
A
2F58H
-
FUSE_PKG
FUSE_CAL2
FUSE_CAL1
FUSE_CAL0
FUSE_CON
F
2F50H
PSR0
PSR1
-
-
-
-
-
-
2F48H
-
-
-
-
-
-
-
-
2F40H
-
-
-
-
-
-
-
-
2F38H
-
-
-
-
-
-
-
-
2F30H
-
-
-
-
-
-
-
-
2F28H
-
-
-
-
-
-
-
-
2F20H
-
-
-
-
-
-
-
-
2F18H
P0DB
P1DB
P2DB
P3DB
-
-
-
-
2F10H
-
-
-
-
-
-
-
-
2F08H
-
-
-
-
P0OD
P1OD
P2OD
P3OD
2F00H
P0PU
P1PU
P2PU
P3PU
-
-
-
-
34
F8H
IP1
ACCSR
UCTRL11
UCTRL12
UCTRL13
USTAT1
UBAUD1
UDATA1
F0H
B
-
FEARL
FEARM
FEARH
FEDR
FETR
-
E8H
-
-
FEMR
FECR
FESR
FETCR
-
-
E0H
ACC
-
UCTRL1
UCTRL2
UCTRL3
USTAT
UBAUD
UDATA
D8H
-
-
I2CMR
I2CSR
I2CSCLLR
I2CSCLHR
I2CSDHR
I2CDR
D0H
PSW
-
SPICR
SPIDR
SPISR
T4H
I2CSAR1
I2CSAR
T3CR
T3DR
/ PWM3PR
T3 / PWM3DR
/ CDR3
PWM3HR
T4CR
T4L
T2CR
T2 / T2DR
/ CDR2
C8H
-
-
C0H
-
-
T2DLYB
B8H
IP
-
T1DLYC
T1ISR
T1IMSK
T1BDR
T1CDR
T1PHR
T1PCR2
T1PCR3
T1DLYA
T1CR
T1DR /T1PPR
T1 / T1ADR
/ CDR1
T1PCR
B0H
-
-
T0CR
T0 / T0DR
/ CDR0
A8H
IE
IE1
IE2
IE3
IE4
IE5
PCI0
TMISR
A0H
-
P3IO
EO
EIENAB
EIFLAG
EIEDGE
EIPOLA
EIBOTH
98H
P3
P2IO
ADCM
ADCM2
/ ADCRH
ADCRL
WTMR
WTR / WTCR
BUZCR
90H
P2
P1IO
-
-
-
-
-
BUZDR
PCON
88H
P1
P0IO
SCCR
BCCR
BITR
WDTMR
WDTR
/ WDTCR
80H
P0
SP
DPL
DPH
-
PLLCR
BODR
Note: 1) The registers of which lower 3-bit address are 000 are bit-addressable (except for XSFR)
8.4.2 Compiler Compatible SFR
ACC (Accumulator) : E0H
PS029602-0212
PRELIMINARY
42
Z51F0811
Product Specification
7
6
5
4
3
2
1
R/W
R/W
R/W
0
ACC
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
ACC
Accumulator
B (B Register) : F0H
7
6
5
4
3
2
1
R/W
R/W
R/W
0
B
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
B
B Register
SP (Stack Pointer) : 81H
7
6
5
4
3
2
1
R/W
R/W
R/W
0
SP
R/W
R/W
R/W
R/W
R/W
Initial value : 07H
SP
Stack Pointer
DPL (Data Pointer Low Byte) : 82H
7
6
5
4
3
2
1
R/W
R/W
R/W
0
DPL
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
DPL
Data Pointer Low Byte
DPH (Data Pointer High Byte) : 83H
7
6
5
4
R/W
R/W
R/W
R/W
3
2
1
R/W
R/W
R/W
0
DPH
R/W
Initial value : 00H
DPH
PS029602-0212
Data Pointer High Byte
PRELIMINARY
43
Z51F0811
Product Specification
PSW (Program Status Word) : D0H
7
6
5
4
3
2
1
0
CY
AC
F0
RS1
RS0
OV
F1
P
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
CY
Carry Flag
AC
Auxiliary Carry Flag
F0
General Purpose User-Definable Flag
RS1
Register Bank Select bit 1
RS0
Register Bank Select bit 0
OV
Overflow Flag
F1
User-Definable Flag
P
Parity Flag. Set/cleared by hardware each instruction cycle to
indicate an odd/even number of ‘1’ bits in the accumulator
EO (Extended Operation Register) : A2H
7
6
5
4
3
2
1
0
DPSEL.0
-
-
-
TRAP_EN
-
DPSEL.2
DPSEL.1
R
R
R
R/W
R
R/W
R/W
R/W
Initial value : 00H
TRAP_EN
DPSEL[2:0]
PS029602-0212
Select the instruction
0
Select MOVC @(DPTR++), A
1
Select Software TRAP instruction
Select Banked Data Point Register
DPSEL2
DPSEL1
DPSEL0
0
0
0
DPTR0
0
0
1
DPTR1
0
1
0
DPTR2
0
1
1
DPTR3
1
0
0
DPTR4
1
0
1
DPTR5
1
1
0
DPTR6
1
1
1
DPTR7
PRELIMINARY
44
Z51F0811
Product Specification
9. I/O Ports
9.1 I/O Ports
The Z51F0811 has four I/O ports (P0, P1, P2 and P3). Each port can be easily configured by
software as I/O pin, internal pull up and open drain pin to meet various system configurations and
design requirements. Also P0 includes function that can generate interrupt according to change of
state of the pin.
9.2 Port Register
9.2.1 Data Register (Px)
Data Register is a bidirectional I/O port. If ports are configured as output ports, data can be written to
the corresponding bit of the Px. If ports are configured as input ports, the data can be read from the
corresponding bit of the Px.
9.2.2 Direction Register (PxIO)
Each I/O pin can independently used as an input or an output through the PxIO register. Bits cleared
in this read/write register will select the corresponding pin in Px to become an input, setting a bit sets
the pin to output. All bits are cleared by a system reset.
9.2.3 Pull-up Resistor Selection Register (PxPU)
The on-chip pull-up resistor can be connected to them in 1-bit units with a pull-up resistor selection
register (PxPU). The pull-up register selection controls the pull-up resister enable/disable of each port.
When the corresponding bit is 1, the pull-up resister of the pin is enabled. When 0, the pull-up resister
is disabled. All bits are cleared by a system reset. (Only port pull-up resistor selection have default ON
state for unused pins in 32-pin package for 16, 20, 28-pin package).
9.2.4 Open-drain Selection Register (PxOD)
There is internally open-drain selection register (PxOD) in P0, P1, P2 and P3. The open-drain
selection register controls the open-drain enable/disable of each port. Ports become push-pull by a
system reset.
9.2.5 Debounce Enable Register (PxDB)
P0, P1, P2 and P3 support debounce function. Debounce time of each ports has about 5us, but if
P2[2] uses external reset function, it has about 7us debounce time. (except P2[2], other port
initialization state is OFF)
9.2.6 Pin Change Interrupt Enable Register (PCI0)
The P0 can support Pin Change Interrupt function. Pin Change Interrupts PCI will trigger if any
enabled P0[7:0] pin toggles. The PCI0 Register control which pins contribute to the pin change
interrupts.
PS029602-0212
PRELIMINARY
45
Z51F0811
Product Specification
9.2.7 Port Selection Register (PSRx)
PSRx registers prevent the input leakage current when ports are connected to analog inputs. If the
bit of PSRx is ‘1’, the dynamic current path of the schmitt OR gate of the port is cut off and the digital
input of the corresponding port is always ‘1’.
9.2.8 Register Map
Table 9-1 Register Map
Name
P0
Address
Dir
80H
Default
R/W
Description
00H
P0 Data Register
P0IO
89H
R/W
00H
P0 Direction Register
P0PU
2F00H
R/W
00H
P0 Pull-up Resistor Selection Register
P0OD
2F0CH
R/W
00H
P0 Open-drain Selection Register
P0DB
2F18H
R/W
00H
P0 Debounce Enable Register
PCI0
AEH
R/W
00H
P0 Pin Change Interrupt Enable Register
P1
88H
R/W
00H
P1 Data Register
P1IO
91H
R/W
00H
P1 Direction Register
P1PU
2F01H
R/W
00H
P1 Pull-up Resistor Selection Register
P1OD
2F0DH
R/W
00H
P1 Open-drain Selection Register
P1DB
2F19H
R/W
00H
P1 Debounce Enable Register
P2
90H
R/W
00H
P2 Data Register
P2IO
99H
R/W
00H
P2 Direction Register
P2PU
2F02H
R/W
00H
P2 Pull-up Resistor Selection Register
P2OD
2F0EH
R/W
00H
P2 Open-drain Selection Register
P2DB
2F1AH
R/W
00H
P2 Debounce Enable Register
P3
98H
R/W
00H
P3 Data Register
P3IO
A1H
R/W
00H
P3 Direction Register
P3PU
2F03H
R/W
00H
P3 Pull-up Resistor Selection Register
P3OD
2F0FH
R/W
00H
P3 Open-drain Selection Register
P3DB
2F1BH
R/W
00H
P3 Debounce Enable Register
PSR0
2F50H
R/W
00H
Port Selection Register 0
PSR1
2F51H
R/W
00H
Port Selection Register 1,2,3
9.3 Px Port
9.3.1 Px Port Description
Px is 8-bit I/O port. Px control registers consist of Data register (Px), direction register (PxIO),
debounce enable register (PxDB), pull-up register selection register (PxPU), open-drain selection
register (PxOD), pin change interrupt register (PCI0)
9.3.2 Register description for Px
Px (Px Data Register) : 80H, 88H, 90H, 98H
7
6
5
4
3
2
1
0
Px7
Px6
Px5
Px4
Px3
Px2
Px1
Px0
PS029602-0212
PRELIMINARY
46
Z51F0811
Product Specification
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
Px[7:0]
I/O Data
PxIO (Px Direction Register) : 89H, 91H, 99H, A1H
7
6
5
4
3
2
1
0
Px7IO
Px6IO
Px5IO
Px4IO
Px3IO
Px2IO
Px1IO
Px0IO
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
PxIO[7:0]
Px data I/O direction.
0
Input
1
Output
PxPU (Px Pull-up Resistor Selection Register) : 2F00H ~ 2F03H
7
6
5
4
3
2
1
0
Px7PU
Px6PU
Px5PU
Px4PU
Px3PU
Px2PU
Px1PU
Px0PU
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
PxPU[7:0]
Configure pull-up resistor of Px port
0
Disable
1
Enable
PxOD (Px Open-drain Selection Register) : 2F0CH ~ 2F0FH
7
6
5
4
3
2
1
0
Px7OD
Px6OD
Px5OD
Px4OD
Px3OD
Px2OD
Px1OD
Px0OD
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
PxOD[7:0]
Configure open-drain of Px port
0
Disable
1
Enable
PxDB (Px Debounce Enable Register) : 2F18H ~ 2F1BH
7
6
5
4
3
2
1
0
Px7DB
Px6DB
Px5DB
Px4DB
Px3DB
Px2DB
Px1DB
Px0DB
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
PxDB[7:0]
Configure debounce of Px port
0
Disable
1
Enable
PCI0 (P0 Pin Change Interrupt Enable Register) : AEH
7
6
5
4
3
2
1
0
PCI07
PCI06
PCI05
PCI04
PCI03
PCI02
PCI01
PCI00
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
PS029602-0212
PRELIMINARY
47
Z51F0811
Product Specification
PCI0[7:0]
Configure Pin Change Interrupt of P0 port
0
Disable
1
Enable
PSR0 (P0 Port Selection Register) : 2F50H
7
6
5
4
3
2
1
0
PSR07
PSR06
PSR05
PSR04
PSR03
PSR02
PSR01
PSR00
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
PSR0[7:0]
P07~P00 port selection register
0
Disable analog channel AN[7:0] (default)
1
Enable analog channel AN[7:0]
PSR1 (Port Selection Register 1, 2, 3) : 2F51H
7
6
5
4
3
2
1
0
PSR17
PSR16
PSR15
PSR14
PSR13
PSR12
PSR11
PSR10
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
PSR1[7]
PSR1[6:0]
I2C ports selection register
0
P0[7:6] for I2C (default)
1
P2[6:5] for I2C
P25,P24,P23,P37,P36,P16,P15 port selection register
0
1
Disable analog channel AN[14:8] (default)
Enable analog channel AN[14:8]
9.4 Port RESET Noise Canceller
The Figure 13-21 is the Noise canceller diagram for Noise cancel of Pore RESET. It has the Noise
cancel value of about 5us (@VDD=5V) to input of Port Reset.
t < TRNC
t < TRNC
A
t > TRNC
t > TRNC
t > TRNC
A’
Figure 9-1 Port Reset noise canceller time diagram
PS029602-0212
PRELIMINARY
48
Z51F0811
Product Specification
10. Interrupt Controller
10.1 Overview
The Z51F0811 supports up to 32 interrupt sources. The interrupts have separate enable register bits
associated with them, allowing software control. They can also have four levels of priority assigned to
them. The interrupt controller has following features:
- receive the request from 32 interrupt source
- 8 group priority
- 4 priority levels
- Multi Interrupt possibility
- If the requests of different priority levels are received simultaneously, the request of higher
priority level is serviced
- Each interrupt source can control by EA bit and each IEx bit
- Interrupt latency: 5~8 machine cycles in single interrupt system
The maskable interrupts are enabled through six of interrupt enable registers (IE, IE1, IE2, IE3, IE4,
IE5). Bits of IE, IE1, IE2, IE3, IE4, IE5 register each individually enable/disable a particular interrupt
source. Overall control is provided by bit 7 of IE (EA). When EA is set to ‘0’, all interrupts are disabled:
when EA is set to ‘1’, interrupts are individually enabled or disabled through the other bits of the
interrupt enable registers. The Z51F0811 supports a four-level priority scheme. Each maskable
interrupt is individually assigned to one of four priority levels by writing to IP or IP1.
Interrupt default mode is level-trigger basically but if needed, it is able to change edge-trigger mode.
Table 10-1 shows the Interrupt Group Priority Level that is available for sharing interrupt priority.
Priority sets two bit which is to IP and IP1 register about group. Interrupt service routine services
higher priority. If two requests of different priority levels are received simultaneously, the request of
higher priority level is serviced. If the request of same or lower priority level is received, that request is
not serviced.
Table 10-1 Interrupt Group Priority Level
Interrupt Group
Highest
Lowest
0 (Bit0)
Interrupt0
Interrupt8
Interrupt16
Interrupt24
1 (Bit1)
Interrupt1
Interrupt9
Interrupt17
Interrupt25
2 (Bit2)
Interrupt2
Interrupt10
Interrupt18
Interrupt26
3 (Bit3)
Interrupt3
Interrupt11
Interrupt19
Interrupt27
4 (Bit4)
Interrupt4
Interrupt12
Interrupt20
Interrupt28
5 (Bit5)
Interrupt5
Interrupt13
Interrupt21
Interrupt29
6 (Bit6)
Interrupt6
Interrupt14
Interrupt22
Interrupt30
7 (Bit7)
Interrupt7
Interrupt15
Interrupt23
Interrupt31
Highest
Lowest
10.2 External Interrupt
The external interrupt on INT0, INT1, INT2, INT3, INT4, INT5, INT6 and INT7 pins receive various
interrupt request depending on the EIEDGE (External Interrupt Edge register) and EIPOLA (External
PS029602-0212
PRELIMINARY
49
Z51F0811
Product Specification
Interrupt Polarity register) and EIBOTH(External Interrupt Both Edge register) as shown in Figure 10-1.
Also each external interrupt source has control setting bits. The EIFLAG (External interrupt flag
register) register provides the status of external interrupts.
INT0 Pin
FLAG0
INT0 Interrupt
INT1 Pin
FLAG1
INT1 Interrupt
.
.
.
.
.
.
3
INT6 Pin
FLAG6
INT30 Interrupt
FLAG7
INT31 Interrupt
3
INT7 Pin
(Analog
Comparator )
3
3
[0xA5] External Interrupt Edge Register
EIBOTH, EIEDGE, EIPOLA
[0xA6] External Interrupt Polarity Register
[0xA7] External Interrupt Both Edge Enable Register
Figure 10-1 External Interrupt Description
PS029602-0212
PRELIMINARY
50
Z51F0811
Product Specification
10.3 Block Diagram
EIEDGE[A5H]
EIPOLA[A6H]
EIBOTH[A7H]
IE0[A8H]
IP0[B8H]
IP1[F8H]
0
EIFLAG.0 [A 4H]
0
0
FLAG0
0
1
INT0
EIFLAG .1 [A4H]
Priority High
1
1
FLAG1
INT1
INT2
2
2
FLAG2
2
3
EIFLAG.3 [A4H ]
INT3
1
2
EIFLAG .2 [A4H]
3
FLAG3
3
3
4
4
PCI(P0)
INT5
4
4
5
5
5
5
IE1[A9H]
6
USTAT0.5 [E5 H]
UART0 Rx
6
6
7
USTAT0.6[E6H ]
UART0 Tx
7
7
TXC
8
8
TCIR
8
9
I2CMR.7 [DAH]
I2C
IIF
Release
Stop/Sleep
9
9
9
USTAT1 .5 [FHH]
UART1 Rx
7
8
SPISR.7 [D4H]
SPI
6
RXC
10
10
RXC1
10
10
USTAT1.6 [FDH ]
UART1 Tx
11
11
TXC1
11
11
...
...
...
...
...
EA(IE.7[A8H])
IE5[ADH]
EIFLAG.6 [A4H ]
INT6
30
30
30
EIFLAG.7 [A4H ]
INT7
(Analog Comparator )
30
FLAG6
31
31
31
FLAG7
31
Priority Low
Figure 10-2 Block Diagram of Interrupt
PS029602-0212
PRELIMINARY
51
Z51F0811
Product Specification
10.4 Interrupt Vector Table
The interrupt controller supports 32 interrupt sources as shown in the Table 10-2 below. When
interrupt becomes service, long call instruction (LCALL) is executed in the vector address. Interrupt
request 32 has a decided priority order.
Table 10-2 Interrupt Vector Address Table
Interrupt Source
Symbol
Hardware Reset
External Interrupt 0
External Interrupt 1
External Interrupt 2
External Interrupt 3
Pin Change Interrupt (P0)
Reserved
USART0 Rx
USART0Tx
SPI0
2
IC
USART1 Rx
USART1 Tx
T0
T1
T2
T3
T4
EEPROM
ADC
Comparator
WT
WDT
BIT
Reserved
Reserved
Reserved
Reserved
Reserved
External Interrupt 4
External Interrupt 5
External Interrupt 6
External Interrupt 7
RESETB
INT0
INT1
INT2
INT3
INT4
INT5
INT6
INT7
INT8
INT9
INT10
INT11
INT12
INT13
INT14
INT15
INT16
INT17
INT18
INT19
INT20
INT21
INT22
INT23
INT24
INT25
INT26
INT27
INT28
INT29
INT30
INT31
Interrupt
Enable Bit
0
IE0.0
IE0.1
IE0.2
IE0.3
IE0.4
IE1.0
IE1.1
IE1.2
IE1.3
IE1.4
IE1.5
IE2.0
IE2.1
IE2.2
IE2.3
IE2.4
IE2.5
IE3.0
IE3.1
IE3.2
IE3.3
IE3.4
IE4.4
IE4.5
IE5.0
IE5.1
Priority
Mask
Vector Address
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
Non-Maskable
Maskable
Maskable
Maskable
Maskable
Maskable
Maskable
Maskable
Maskable
Maskable
Maskable
Maskable
Maskable
Maskable
Maskable
Maskable
Maskable
Maskable
Maskable
Maskable
Maskable
Maskable
Maskable
Maskable
Maskable
Maskable
Maskable
0000H
0003H
000BH
0013H
001BH
0023H
002BH
0033H
003BH
0043H
004BH
0053H
005BH
0063H
006BH
0073H
007BH
0083H
008BH
0093H
009BH
00A3H
00ABH
00B3H
00BBH
00C3H
00CBH
00D3H
00DBH
00E3H
00EBH
00F3H
00FBH
For maskable interrupt execution, first EA bit must set ‘1’ and specific interrupt source must set ‘1’ by
writing a ‘1’ to associated bit in the IEx. If interrupt request is received, specific interrupt request flag
set ‘1’. And it remains ‘1’ until CPU accepts interrupt. After that, interrupt request flag will be cleared
automatically.
10.5 Interrupt Sequence
An interrupt request is held until the interrupt is accepted or the interrupt latch is cleared to ‘0’ by a
reset or an instruction. Interrupt acceptance always generates at last cycle of the instruction. So
instead of fetching the current instruction, CPU executes internally LCALL instruction and saves the
PC stack. For the interrupt service routine, the interrupt controller gives the address of LJMP
instruction to CPU. After finishing the current instruction, at the next instruction to go interrupt service
routine needs 5~8 machine cycle and the interrupt service task is terminated upon execution of an
interrupt return instruction [RETI]. After generating interrupt, to go to interrupt service routine, the
following process is progressed
PS029602-0212
PRELIMINARY
52
Z51F0811
Product Specification
1
IE.EA Flag 1
IEx.y 1
2
Program Counter low Byte
SP SP + 1
M(SP) (PCL)
Saves PC value in order to continue
process again after executing ISR
3
Program Counter high Byte
SP SP + 1
M(SP) (PCH)
EA = 0
4
Interrupt Vector Address occurrence
(Interrupt Vector Address)
5
ISR(Interrupt Service Routine) move, execute
6
Return from ISR
RETI
7
EA = 1
Program Counter high Byte recover
(PCL) (SP-1)
8
Program Counter low Byte recovery
(PCL) (SP-1)
9
Main Program execution
Figure 10-3 Interrupt Vector Address Table
PS029602-0212
PRELIMINARY
53
Z51F0811
Product Specification
10.6 Effective Timing after Controlling Interrupt bit
Interrupt Enable Register
command
Next Instruction
Setting both EA bit and individual interrupt
enable bit INTnE makes the pending interrupt
active after executing the next instruction.
Next Instruction
Figure 10-4 Interrupt Enable Register effective Timing
PS029602-0212
PRELIMINARY
54
Z51F0811
Product Specification
10.7 Multi Interrupt
If two requests of different priority levels are received simultaneously, the request of higher priority
level is serviced. If requests of the interrupt are received at the same time simultaneously, an interrupt
polling sequence determines by hardware which request is serviced. However, multiple processing
through software for special features is possible.
Main Program
Service
INT1 ISR
INT0 ISR
Enable INT0
Disable others
SETB EA
Occur
INT1 Interrupt
Occur
INT0 Interrupt
Enable INT0
Enable others
RETI
RETI
Figure 10-5 Execution of Multi Interrupt
Following example is shown to service INT0 routine during INT1 routine in Figure 10-6. In this
example, INT0 interrupt priority is higher than INT1 interrupt priority. If some interrupt is lower than
INT1 priority, it can’t service its interrupt routine.
Example) Software Multi Interrupt:
INT1:
MOV
IE, #01H
; Enable INT0 only
MOV
IE1, #00H
; Disable others
SETB
EA
; Enable global interrupt (necessary for multi interrupt)
MOV
IE, #0FFH
; Enable all Interrupts
MOV
IE1, #0FFH
:
RETI
PS029602-0212
PRELIMINARY
55
Z51F0811
Product Specification
10.8 Interrupt Enable Accept Timing
Max. 4 Machine Cycle
4 Machine Cycle
System
Clock
Interrupt
goes
Active
Interrupt
Latched
Interrupt Processing
: LCALL & LJMP
Interrupt Routine
Figure 10-6 Interrupt Response Timing Diagram
10.9 Interrupt Service Routine Address
Basic Interval Timer
Vector Table Address
Basic Interval Timer
Service Routine Address
00B3H
01H
0125H
0EH
00B4H
25H
0126H
2EH
Figure 10-7 Correspondence between vector Table address and the entry address of ISP
10.10 Saving/Restore General-Purpose Registers
INTxx : PUSH
PUSH
PUSH
PUSH
PUSH
·
·
PSW
DPL
DPH
B
ACC
Main Task
Interrupt
Service Task
Saving
Register
Interrupt_Processing:
∙
∙
POP
POP
POP
POP
POP
RETI
Restoring
Register
ACC
B
DPH
DPL
PSW
Figure 10-8 Saving/Restore Process Diagram & Sample Source
PS029602-0212
PRELIMINARY
56
Z51F0811
Product Specification
10.11 Interrupt Timing
Interrupt sampled here
CLP2
CLP1
CLP2
C1P1
C1P2
C2P1
C2P2
SCLK
INT_SRC
INTR_ACK
LAST_CYC
INTR_LCALL
INT_VEC
8-Bit interrupt Vector
{8’h00, INT_VEC}
PROGA
Figure 10-9 Timing chart of Interrupt Acceptance and Interrupt Return Instruction
Interrupt source sampled at last cycle of the command. When sampling interrupt source, it is decided
to low 8-bit of interrupt vector. M8051W core makes interrupt acknowledge at first cycle of command,
executes long call to jump interrupt routine as INT_VEC.
Note) command cycle C?P?: L=Last cycle, 1=1st cycle or 1st phase, 2=2nd cycle or 2nd phase
PS029602-0212
PRELIMINARY
57
Z51F0811
Product Specification
10.12 Interrupt Register Overview
10.12.1 Interrupt Enable Register (IE, IE1, IE2, IE3, IE4, IE5)
Interrupt enable register consists of Global interrupt control bit (EA) and peripheral interrupt control
bits. Totally 32 peripheral are able to control interrupt.
10.12.2 Interrupt Priority Register (IP, IP1)
The 32 interrupt divides 8 groups which have each 4 interrupt sources. A group can decide 4 levels
interrupt priority using interrupt priority register. Level 3 is the high priority, while level 0 is the low
priority. Initially, IP, IP1 reset value is ‘0’. At that initialization, low interrupt number has a higher
priority than high interrupt number. If decided the priority, low interrupt number has a higher priority
than high interrupt number in that group.
10.12.3 External Interrupt Flag Register (EIFLAG)
The external interrupt flag register is set to ‘1’ when the external interrupt generating condition is
satisfied. The flag is cleared when the interrupt routine is executed. Alternatively, the flag can be
cleared by writing a ‘0’ to it.
10.12.4 External Interrupt Edge Register (EIEDGE)
The External interrupt edge register determines which type of edge or level sensitive interrupt.
Initially, default value is level. For level, write ‘0’ to related bit. For edge, write ‘1’ to related bit.
10.12.5 External Interrupt Polarity Register (EIPOLA)
According to EIEDGE register, the external interrupt polarity (EIPOLA) register has a different
meaning. If EIEDGE is level type, EIPOLA is able to have Low/High level value. If EIEGDE is edge
type, EIPOLA is able to have rising/falling edge value.
10.12.6 External Interrupt Enable Register (EIENAB)
When the external interrupt enable register is written to ‘1’, the corresponding external pin interrupt is
enabled. The EIEDGE and EIPOLA register defines whether the external interrupt is activated on
rising or falling edge or level sensed.
10.12.7 External Interrupt Both Edge Enable Register (EIBOTH)
When the external interrupt both edge enable register is written to ‘1’, the corresponding external pin
interrupt is enabled by both edges. Initially, default value is disabled.
PS029602-0212
PRELIMINARY
58
Z51F0811
Product Specification
10.12.8 Register Map
Table 10-3 Register Map
Name
Address
Dir
Default
Description
IE
A8H
R/W
00H
Interrupt Enable Register
IE1
A9H
R/W
00H
Interrupt Enable Register 1
IE2
AAH
R/W
00H
Interrupt Enable Register 2
IE3
ABH
R/W
00H
Interrupt Enable Register 3
IE4
ACH
R/W
00H
Interrupt Enable Register 4
IE5
ADH
R/W
00H
Interrupt Enable Register 5
IP
B8H
R/W
00H
Interrupt Priority Register
IP1
F8H
R/W
00H
Interrupt Priority Register 1
EIENAB
A3H
R/W
00H
External Interrupt Enable Register
EIFLAG
A4H
R/W
00H
External Interrupt Flag Register
EIEDGE
A5H
R/W
00H
External Interrupt Edge Register
EIPOLA
A6H
R/W
00H
External Interrupt Polarity Register
EIBOTH
A7H
R/W
00H
External Interrupt Both Edge Enable Register
10.13 Interrupt Register Description
The Interrupt Register is used for controlling interrupt functions. Also it has External interrupt control
registers. The interrupt register consists of Interrupt Enable Register (IE), Interrupt Enable Register 1
(IE1), Interrupt Enable Register 2 (IE2), Interrupt Enable Register 3 (IE3), Interrupt Enable Register 4
(IE4) and Interrupt Enable Register 5 (IE5). For external interrupt, it consists of External Interrupt Flag
Register (EIFLAG), External Interrupt Edge Register (EIEDGE), External Interrupt Polarity Register
(EIPOLA), External Interrupt Enable Register (EIENAB) and External Interrupt Both Edge Enable
Register(EIBOTH).
10.13.1 Register description for Interrupt
IE (Interrupt Enable Register) : A8H
7
6
5
4
3
2
1
0
EA
-
INT5E
INT4E
INT3E
INT2E
INT1E
INT0E
R/W
-
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
EA
INT5E
INT4E
INT3E
Enable or disable all interrupt bits
0
All Interrupt disable
1
All Interrupt enable
Reserved
0
Disable
1
Enable
Enable or disable Pin Change Interrupt 0 (Port 0)
0
Disable
1
Enable
Enable or disable External Interrupt 3
0
PS029602-0212
Disable
PRELIMINARY
59
Z51F0811
Product Specification
1
INT2E
INT1E
INT0E
Enable
Enable or disable External Interrupt 2
0
Disable
1
Enable
Enable or disable External Interrupt 1
0
Disable
1
Enable
Enable or disable External Interrupt 0
0
Disable
1
Enable
IE1 (Interrupt Enable Register 1) : A9H
7
6
5
4
3
2
1
0
-
-
INT11E
INT10E
INT9E
INT8E
INT7E
INT6E
-
-
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
INT11E
INT10E
INT9E
INT8E
INT7E
INT6E
Enable or disable USART1 Tx Interrupt
0
Disable
1
Enable
Enable or disable USART1 Rx Interrupt
0
Disable
1
Enable
2
Enable or disable I C Interrupt
0
Disable
1
Enable
Enable or disable SPI0 Interrupt
0
Disable
1
Enable
Enable or disable USART0 Tx Interrupt
0
Disable
1
Enable
Enable or disable USART0 Rx Interrupt
0
Disable
1
Enable
IE2 (Interrupt Enable Register 2) : AAH
7
6
5
4
3
2
1
0
-
-
INT17E
INT16E
INT15E
INT14E
INT13E
INT12E
-
-
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
INT17E
INT16E
INT15E
PS029602-0212
Enable or disable EEPROM Interrupt
0
Disable
1
Enable
Enable or disable Timer 4 Interrupt
0
Disable
1
Enable
Enable or disable Timer 3 Interrupt
PRELIMINARY
60
Z51F0811
Product Specification
INT14E
INT13E
INT12E
0
Disable
1
Enable
Enable or disable Timer 2 Interrupt
0
Disable
1
Enable
Enable or disable Timer 1 Interrupt
0
Disable
1
Enable
Enable or disable Timer 0 Interrupt
0
Disable
1
Enable
IE3 (Interrupt Enable Register 3) : ABH
7
6
5
4
3
2
1
0
-
-
INT23E
INT22E
INT21E
INT20E
INT19E
INT18E
R
R
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
INT23E
INT22E
INT21E
INT20E
INT19E
INT18E
Reserved
0
Disable
1
Enable
Enable or disable BIT Interrupt
0
Disable
1
Enable
Enable or disable WDT Interrupt
0
Disable
1
Enable
Enable or disable WT Interrupt
0
Disable
1
Enable
Enable or disable Analog Comparator Interrupt
0
Disable
1
Enable
Enable or disable ADC Interrupt
0
Disable
1
Enable
IE4 (Interrupt Enable Register 4) : ACH
7
6
5
4
3
2
1
0
-
-
INT29E
INT28E
INT27E
INT26E
INT25E
INT24E
R
R
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
INT29E
INT28E
PS029602-0212
Enable or disable External Interrupt 5
0
Disable
1
Enable
Enable or disable External Interrupt 4
0
Disable
1
Enable
PRELIMINARY
61
Z51F0811
Product Specification
INT27E
INT26E
INT25E
INT24E
Reserved
0
Disable
1
Enable
Reserved
0
Disable
1
Enable
Reserved
0
Disable
1
Enable
Reserved
0
Disable
1
Enable
IE5 (Interrupt Enable Register 5) : ADH
7
6
5
4
3
2
1
0
-
-
INT35E
INT34E
INT33E
INT32E
INT31E
INT30E
R
R
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
INT35E
INT34E
INT33E
INT32E
INT31E
INT30E
PS029602-0212
Reserved
0
Disable
1
Enable
Reserved
0
Disable
1
Enable
Reserved
0
Disable
1
Enable
Reserved
0
Disable
1
Enable
Enable or disable External Interrupt 7
0
Disable
1
Enable
Enable or disable External Interrupt 6
0
Disable
1
enable
PRELIMINARY
62
Z51F0811
Product Specification
IP (Interrupt Priority Register) : B8H
7
6
5
4
3
2
1
0
IP7
IP6
IP5
IP4
IP3
IP2
IP1
IP0
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
IP1 (Interrupt Priority Register 1) : F8H
7
6
5
4
3
IP17
IP16
R/W
R/W
2
1
IP15
IP14
R/W
R/W
0
IP13
IP12
IP11
IP10
R/W
R/W
R/W
R/W
Initial value : 00H
IP[7:0], IP1[7:0] Select Interrupt Group Priority
IP1x
IPx
Description
0
0
level 0 (lowest)
0
1
level 1
1
0
level 2
1
1
level 3 (highest)
EIFLAG (External Interrupt Flag Register) : A4H
7
6
5
4
3
2
1
0
FLAG7
FLAG6
FLAG5
FLAG4
FLAG3
FLAG2
FLAG1
FLAG0
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
FLAG[7:0]
If External Interrupt is occurred, the flag becomes ‘1’. The flag can
be cleared by writing a ‘0’ to bit
0
External Interrupt not occurred
1
External Interrupt occurred
EIEDGE (External Interrupt Edge Register) : A5H
7
6
5
4
3
2
1
0
EDGE7
EDGE6
EDGE5
EDGE4
EDGE3
EDGE2
EDGE1
EDGE0
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
EDGE[7:0]
Determines which type of edge or level sensitive interrupt may occ
ur.
0
Level (default)
1
Edge
EIPOLA (External Interrupt Polarity Register) : A6H
7
6
5
4
3
2
1
0
POLA7
POLA6
POLA5
POLA4
POLA3
POLA2
POLA1
POLA0
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
POLA[7:0]
PS029602-0212
According to EIEDGE, External interrupt polarity register has a
different means. If EIEDGE is level type, external interrupt polarity is
able to have Low/High level value. If EIEGDE is edge type, external
interrupt polarity is able to have rising/ falling edge value.
PRELIMINARY
63
Z51F0811
Product Specification
Level case:
0
When High level, Interrupt occurred (default)
1
When Low level, Interrupt occurred
Edge case:
0
When Rising edge, Interrupt occurred (default)
1
When Falling edge, Interrupt occurred
EIENAB (External Interrupt Enable Register) : A3H
7
6
5
4
3
2
1
0
ENAB7
ENAB6
ENAB5
ENAB4
ENAB3
ENAB2
ENAB1
ENAB0
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
ENAB[7:0]
Control External Interrupt
0
Disable (default)
1
Enable
EIBOTH (External Interrupt Both Edge Enable Register) : A7H
7
6
5
4
3
2
1
0
BOTH7
BOTH6
BOTH 5
BOTH 4
BOTH 3
BOTH 2
BOTH 1
BOTH 0
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
BOTH[7:0]
PS029602-0212
Determines which type of interrupt may occur, EIBOTH or
EIEDGE+EIPOLA. if EIBOTH is enable, EIEDGE and EIPOLA
register value don’t matter.
0
Disable (default)
1
Enable
PRELIMINARY
64
Z51F0811
Product Specification
11. Peripheral Hardware
11.1 Clock Generator
11.1.1 Overview
As shown in Figure 11-1, the clock generator produces the basic clock pulses which provide the
system clock to be supplied to the CPU and the peripheral hardware. It contains main-frequency clock
oscillator. The system clock operation can be easily obtained by attaching a crystal between the XIN
and XOUT pin, respectively. The system clock can also be obtained from the external oscillator. In
this case, it is necessary to put the external clock signal into the XIN pin and open the XOUT pin. The
default system clock is INT-RC Oscillator and the default division rate is one. In order to stabilize
system internally, use 1MHz RING oscillator for BIT, WDT and ports de-bounce.
- Calibrated Internal RC Oscillator (8 MHz)
. INT-RC OSC/1 (Default system clock)
. INT-RC OSC/2 (4 MHz)
. INT-RC OSC/4 (2 MHz)
. INT-RC OSC/8 (1 MHz)
- Crystal Oscillator (1~16 MHz)
- Sub-Clock Crystal Oscillator (32.768 KHz)
11.1.2 Block Diagram
PDOWN
XIN
XOUT
SUBXIN
SUBXOUT
Main
OSC
fXIN
SUB
OSC
fINTRC
WT
DCLK
fSUB
1/1
1/2
DIV
1/4
INT-RC
1/8
OSC
fRING
System
ClockGen.
Clock
Change
(8MHz)
System Clock
Masking Control
PDOWN
STOP1
RING-OSC
DIV/8
(1MHz)
SCLK
(Core, System,
Peripherals)
BIT
Overflow
BIT
WDT
Figure 11-1 Clock Generator Block Diagram
PS029602-0212
PRELIMINARY
65
Z51F0811
Product Specification
11.1.3 Register Map
Table 11-1 Register Map
Name
SCCR
Address
Dir
8AH
Default
R/W
Description
04H
System and Clock Control Register
11.1.4 Clock Generator Register description
The Clock Generation Register uses clock control for system operation. The clock generation
consists of System and Clock register.
11.1.5 Register description for Clock Generator
SCCR (System and Clock Control Register) : 8AH
7
6
5
4
3
2
1
0
STOP1
DIV1
DIV0
CBYS
ISTOP
XSTOP
CS1
CS0
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 04H
STOP1
DIV[1:0]
CBYS
ISTOP
XSTOP
PS029602-0212
Control the STOP Mode
Note) when PCON=0x03, It is applied. But when PCON=0x01, don’t
set this bit.
0
STOP2 Mode (at PCON=0x03) (default)
1
STOP1 Mode (at PCON=0x03)
When using fINTRC as system clock, determine division rate.
Note) when using fINTRC as system clock, only division rate come
into effect.
Note) To change by software, CBYS set to ‘1’
DIV1
DIV0
description
0
0
fINTRC/1 (8MHz)
0
1
fINTRC/2 (4MHz)
1
0
fINTRC/4 (2MHz)
1
1
fINTRC/8 (1MHz)
Control the scheme of clock change. If this bit set to ‘0’, clock
change is controlled by hardware. But if this set to ‘1’, clock change
is controlled by software. Ex) when setting CS[1:0], if CBYS bit set
to ‘0’, it is not changed right now, CPU goes to STOP mode and
then when wake-up, it applies to clock change.
Note) when clear this bit, keep other bits in SCCR.
0
Clock changed by hardware during stop mode (default)
1
Clock changed by software
Control the operation of INT-RC Oscillation
Note) when CBYS=’1’, It is applied
0
RC-Oscillation enable (default)
1
RC-Oscillation disable
Control the operation of X-Tal Oscillation
Note1) when CBYS=’1’, It is applied
Note2) if XINENA bit in FUSE_CONF to ‘0’, XSTOP is fixed to ‘1’
0
X-Tal Oscillation enable
1
X-Tal Oscillation disable (default)
PRELIMINARY
66
Z51F0811
Product Specification
CS[1:0]
Determine System Clock
Note) by CBYS bit, reflection point is decided
CS1
PS029602-0212
CS0
Description
0
0
fINTRC INTRC (8 MHz)
0
1
fXIN Main Clock (1~16 MHz)
1
0
fSUB (32.768 KHz)
1
1
fRING (125 KHz)
PRELIMINARY
67
Z51F0811
Product Specification
11.2 BIT
11.2.1 Overview
The Z51F0811 has one 8-bit Basic Interval Timer that is free-run and can’t stop. Block diagram is
shown in Figure 11-2. In addition, the Basic Interval Timer generates the time base for watchdog timer
counting. It also provides a basic interval timer interrupt (BITF).
The Z51F0811 has these Basic Interval Timer (BIT) features:
- During Power On, BIT gives a stable clock generation time
- On exiting Stop mode, BIT gives a stable clock generation time
- As clock function, time interrupt occurrence
11.2.2 Block Diagram
RING-OSC
(1MHz)
÷8
BIT Interrupt Generator
÷ 32
BIT_CLK
BIT Interrupt Flag
BITR (8-bit COUNT)
※ 1MHz ÷ 8 ÷ 32 ≒ 3.91KHz
BIT Out Generator
BIT_OUT (WDT clock source)
※ BCK[2:0] = 001b
BIT_CLK
BITR 0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
BIT_Int_Flag
BIT_Out
Figure 11-2 BIT Block Diagram
11.2.3 Register Map
Table 11-2 Register Map
Name
Address
Dir
Default
Description
BCCR
8BH
R/W
05H
BIT Clock Control Register
BITR
8CH
R
00H
Basic Interval Timer Register
PS029602-0212
PRELIMINARY
68
Z51F0811
Product Specification
11.2.4 Bit Interval Timer Register description
The Bit Interval Timer Register consists of BIT Clock control register (BCCR) and Basic Interval
Timer register (BITR). If BCLR bit set to ‘1’, BITR becomes ‘0’ and then counts up. After 1 machine
cycle, BCLR bit is cleared as ‘0’ automatically.
11.2.5 Register description for Bit Interval Timer
BCCR (BIT Clock Control Register) : 8BH
7
6
5
4
3
2
1
0
BITF
-
-
-
BCLR
BCK2
BCK1
BCK0
R/W
R
R
R
R/W
R/W
R/W
R/W
Initial value : 05H
When BIT Interrupt occurs, this bit becomes ‘1’. For clearing bit, write ‘0’
to this bit.
BITF
BCLR
0
no generation
1
generation
If BCLR Bit is written to ‘1’, BIT Counter is cleared as ‘0’
BCK[2:0]
0
Free Running
1
Clear Counter
Select BIT overflow period (BIT Clock ≒3.9 KHz)
BCK2
BCK1
BCK0
0
0
0
0.512msec (BIT Clock * 2)
0
0
1
1.024msec
0
1
0
2.048msec
0
1
1
4.096msec
1
0
0
8.192msec
1
0
1
16.384msec (default)
1
1
0
32.768msec
1
1
1
65.536msec
BITR (Basic Interval Timer Register) : 8CH
7
6
5
4
3
2
1
0
BIT7
BIT6
BIT5
BIT4
BIT3
BIT2
BIT1
BIT0
R
R
R
R
R
R
R
R
Initial value : 00H
BIT[7:0]
PS029602-0212
BIT Counter
PRELIMINARY
69
Z51F0811
Product Specification
11.3 WDT
11.3.1 Overview
The watchdog timer rapidly detects the CPU malfunction such as endless looping caused by noise or
the like, and resumes the CPU to the normal state. The watchdog timer signal for detecting
malfunction can be selected either a reset CPU or an interrupt request. When the watchdog timer is
not being used for malfunction detection, it can be used as a timer to generate an interrupt at fixed
intervals. It is possible to use free running 8-bit timer mode (WDTRSON=’0’) or watch dog timer mode
(WDTRSON=’1’) as setting WDTMR[6] bit. If writing WDTMR[5] to ‘1’, WDT counter value is cleared
and counts up. After 1 machine cycle, this bit has ‘0’ automatically. The watchdog timer consists of 8bit binary counter and the watchdog timer data register. When the value of 8-bit binary counter is
equal to the 8 bits of WDTR, the interrupt request flag is generated. This can be used as Watchdog
timer interrupt or reset the CPU in accordance with the bit WDTRSON.
The clock source of Watch Dog Timer is BIT overflow output. The interval of watchdog timer interrupt
is decided by BIT overflow period and WDTR set value. The equation is as below
WDT Interrupt Interval = (BIT Interrupt Interval) X (WDTR Value+1)
11.3.2 Block Diagram
Watchdog Timer
Counter Register
Clear
BIT Overflow
WDTEN
To Reset
Circuit
WDTCR
[8EH]
WDTIFR
Watchdog Timer
Register
Clear
INT_ACK
WDTIF
WDTR
[8EH]
WDTCL
WDTRSON
WDTMR
Figure 11-3 WDT Block Diagram
11.3.3 Register Map
Table 11-3 Register Map
Name
Address
Dir
Default
Description
WDTR
8EH
W
FFH
Watch Dog Timer Register
WDTCR
8EH
R
00H
Watch Dog Timer Counter Register
WDTMR
8DH
R/W
00H
Watch Dog Timer Mode Register
PS029602-0212
PRELIMINARY
70
Z51F0811
Product Specification
11.3.4 Watch Dog Timer Register description
The Watch dog timer (WDT) Register consists of Watch Dog Timer Register (WDTR), Watch Dog
Timer Counter Register (WDTCR) and Watch Dog Timer Mode Register (WDTMR).
11.3.5 Register description for Watch Dog Timer
WDTR (Watch Dog Timer Register: Write Case) : 8EH
7
6
5
4
3
2
1
0
WDTR7
WDTR6
WDTR5
WDTR4
WDTR3
WDTR2
WDTR1
WDTR0
W
W
W
W
W
W
W
W
Initial value : FFH
WDTR[7:0]
Set a period
WDT Interrupt Interval=(BIT Interrupt Interval) x(WDTR Value+1)
Note) To guarantee proper operation, the data should be greater than 01H.
WDTCR (Watch Dog Timer Counter Register: Read Case) : 8EH
7
6
5
4
3
2
1
0
WDTCR7
WDTCR6
WDTCR5
WDTCR4
WDTCR3
WDTCR2
WDTCR1
WDTCR0
R
R
R
R
R
R
R
R
Initial value : 00H
WDTCR[7:0]
WDT Counter
WDTMR (Watch Dog Timer Mode Register) : 8DH
7
6
5
4
3
2
1
0
WDTEN
WDTRSON
WDTCL
-
-
-
-
WDTIFR
R/W
R/W
R/W
-
-
-
-
R/W
Initial value : 00H
WDTEN
WDTRSON
WDTCL
WDTIFR
PS029602-0212
Control WDT operation
0
disable
1
enable
Control WDT Reset operation
0
Free Running 8-bit timer
1
Watch Dog Timer Reset ON
Clear WDT Counter
0
Free Run
1
Clear WDT Counter (auto clear after 1 Cycle)
When WDT Interrupt occurs, this bit becomes ‘1’. For clearing bit, write
‘0’ to this bit or auto clear by INT_ACK signal.
0
WDT Interrupt no generation
1
WDT Interrupt generation
PRELIMINARY
71
Z51F0811
Product Specification
11.3.6 WDT Interrupt Timing Waveform
Source Clock
BIT Overflow
WDTCR[7:0]
0
1
2
3
0
1
2
3
0
1
2
Counter Clear
WDTR[7:0]
n
3
WDTCL
Occur
WDTIF
Interrupt
WDTR 0000_0011b
WDTRESETB
Match
Detect
RESET
Figure 11-4 WDT Interrupt Timing Waveform
PS029602-0212
PRELIMINARY
72
Z51F0811
Product Specification
11.4 WT
11.4.1 Overview
The watch timer has the function for RTC (Real Time Clock) operation. It is generally used for RTC
design. The internal structure of the watch timer consists of the clock source select circuit, timer
counter circuit, output select circuit and watch timer mode register. To operate the watch timer,
determine the input clock source, output interval and set WTEN to ‘1’ in watch timer mode register
(WTMR). It is able to execute simultaneously or individually. To stop or reset WT, clear the WTEN bit
in WTMR register. Even if CPU is STOP mode, sub clock is able to be alive so WT can continue the
operation. The watch timer counter circuits may be composed of 21-bit counter which is low 14-bit
with binary counter and high 7-bit with auto reload counter in order to raise resolution. In WTR, it can
control WT clear and set Interval value at write time, and it can read 7-bit WT counter value at read
time.
11.4.2 Block Diagram
fSUB
(32.768kHz)
P
r
e
s
c
a
l
e
r
fx
fWCK / 214
14Bit
Binary Counter
fWCK
÷64
MUX
÷128
Timer Counter
(7bit auto reload counter)
÷256
fWCK / 214 x (7bit WTR Value +1)
7
fWCK/214
fWCK/213 MUX
WTIFR
WTIF
fWCK/211
Clear
WTMR
WTEN
-
-
WTIFR
WTIN1
WTIN0 WTCK1 WTCK0
2
INT_ACK
WTR
WTR Write
WTCL
WTR6
WTR5
WTR4
WTR2
WTR2
WTR1
WTR0
WTCR
WTR Read
-
WTCR6 WTCR5 WTCR4 WTCR2 WTCR2 WTCR1 WTCR0
Figure 11-5 Watch Timer Block Diagram
11.4.3 Register Map
Table 11-4 Register Map
Name
Address
Dir
Default
Description
WTMR
9DH
R/W
00H
Watch Timer Mode Register
WTR
9EH
W
7FH
Watch Timer Register
WTCR
9EH
R
00H
Watch Timer Counter Register
PS029602-0212
PRELIMINARY
73
Z51F0811
Product Specification
11.4.4 Watch Timer Register description
The watch timer register (WT) consists of Watch Timer Mode Register (WTMR), Watch Timer
Counter Register (WTCR) and Watch Timer Register (WTR). As WTMR is 6-bit writable/readable
register, WTMR can control the clock source (WTCK), interrupt interval (WTIN) and function
enable/disable (WTEN). Also there is WT interrupt flag bit (WTIFR).
11.4.5 Register description for Watch Timer
WTMR (Watch Timer Mode Register) : 9DH
7
6
5
4
3
2
1
0
WTEN
-
-
WTIFR
WTIN1
WTIN0
WTCK1
WTCK0
R/W
-
-
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
WTEN
WTIFR
WTIN[1:0]
WTCK[1:0]
Control Watch Timer
0
disable
1
enable
When WT Interrupt occurs, this bit becomes ‘1’. For clearing bit, write ‘0’
to this bit or auto clear by INT_ACK signal.
0
WT Interrupt no generation
1
WT Interrupt generation
Determine interrupt interval
WTIN1
WTIN0
description
0
0
fwck/2048
0
1
fwck/8192
1
0
fwck/16384
1
1
fwck/16384 x (7bit WT Value)
Determine Source Clock
WTCK1
WTCK0
description
0
0
fsub
0
1
fx/256
1
0
fx/128
1
1
fx/64
Remark: fx– Main system clock oscillation frequency
fsub- Sub clock oscillation frequency
fwck- selected Watch Timer clock
PS029602-0212
PRELIMINARY
74
Z51F0811
Product Specification
WTR (Watch Timer Register: Write Case) : 9EH
7
6
5
4
3
2
1
0
WTCL
WTR6
WTR5
WTR4
WTR3
WTR2
WTR1
WTR0
W
W
W
W
W
W
W
W
Initial value : 7FH
WTCL
Clear WT Counter
WTR[6:0]
0
Free Run
1
Clear WT Counter (auto clear after 1 Cycle)
Set WT period
WT Interrupt Interval=(fwck/2^14) x(7bit WT Value+1)
Note) To guarantee proper operation, it is greater than 01H to write WTR.
WTCR (Watch Timer Counter Register: Read Case) : 9EH
7
6
5
4
3
2
1
0
WTCR 6
WTCR5
WTCR4
WTCR3
WTCR2
WTCR 1
WTCR0
R
R
R
R
R
R
-
R
Initial value : 00H
WTCR[6:0]
PS029602-0212
WT Counter
PRELIMINARY
75
Z51F0811
Product Specification
11.5 Timer/PWM
11.5.1 8-bit Timer/Event Counter 0, 1
11.5.1.1 Overview
Timer 0 and timer 1 can be used either two 8-bit timer/counter or one 16-bit timer/counter with
combine them. Each 8-bit timer/event counter module has multiplexer, 8-bit timer data register, 8-bit
counter register, mode register, input capture register, comparator. For PWM, it has PWM register
(T1PPR, T1ADR, T1BDR, T1CDR, T1PCR, T1PCR2, T1PCR3, T1PHR, T1DLYA, T1DLYB, T1DLYC,
T1ISR, T1IMSK).
It has seven operating modes:
-
8-bit timer/counter mode
-
8-bit capture mode
-
8-bit compare output mode
-
16-bit timer/counter mode
-
16-bit capture mode
-
16-bit compare output mode
-
PWM mode
Note> TxDR must be set to higher than 0x03 for guaranteeing operation.
The timer/counter can be clocked by an internal or an external clock source (external EC0). The
clock source is selected by clock select logic which is controlled by the clock select (T0CK[2:0],
T1CK[3:0]). Also the timer/PWM/event counter 1 can use more clock sources than timer/event counter
0.
- TIMER0 clock source: fX/2, 4, 8, 32, 128, 512, 2048, EC0
- TIMER1 clock source: fX/1, 2, 4, 8, 16, 32, 64, 128, 256, 512, 1024, 2048, 4096, 8192, 16384, T0CK
In the capture mode, by INT0, INT1, the data is captured into Input Capture Register. The timer 0
outputs the compare result to T0 port in 8/16-bit mode. Also the timer 1 outputs the result to T1 port in
the timer mode and the PWM wave form to PWMA, PWMAB(bar), PWMB, PWMBB, PWMC, PWMCB
Port(6-channel) in the PWM mode.
Table 11-5 Timer 0,1 operating modes
16 Bit
CAP0
CAP1
PWM1E
T0CK[2:0]
T1CK[3:0]
T0/1_PE
Timer 0
Timer 1
0
0
0
0
XXX
XXXX
00
8 Bit Timer
8 Bit Timer
0
0
1
0
111
XXXX
00
8 Bit Event Counter
8 Bit Capture
0
1
0
0
XXX
XXXX
01
8 Bit Capture
8 Bit Compare Output
0
0
0
1
XXX
XXXX
11
8 Bit Timer/Counter
10 Bit PWM
1
0
0
0
XXX
1111
00
16 Bit Timer
1
0
0
0
111
1111
00
16 Bit Event Counter
1
1
1
0
XXX
1111
00
16 Bit Capture
1
0
0
0
XXX
1111
01
16 Bit Compare Output
PS029602-0212
PRELIMINARY
76
Z51F0811
Product Specification
11.5.1.2 8 Bit Timer/Counter Mode
The 8-bit Timer/Counter Mode is selected by control registers as shown in Figure 11-6.
T0CR
T1CR
T0PE
CAP0
T0CK2
T0CK1
T0CK0
T0CN
T0ST
1
X
0
X
X
X
X
X
16BIT
CAP1
T1CN
T1ST
T1CK3
T1CK2
T1CK1
T1CK0
0
0
X
X
X
X
X
X
EC0
T0CN
fx
ADDRESS : B4H
INITIAL VALUE : 0000_0000B
T0ST
÷2
P
r
e
s
c
a
l
e
r
ADDRESS : B2H
INITIAL VALUE : 0000_0000B
T0EN
8-bit Timer0 Counter
÷4
÷8
Clear
MUX
T0(8Bit)
÷32
÷128
[B3H]
÷512
T0IF
÷2048
[B3H]
Timer0
Interrupt
Comparator
3
T0DR(8Bit)
T0CK[2:0]
F/F
P06/T0
PIN
8-bit Timer0 Data Register
T0PE
T1CN
T1ST
8-bit Timer1 Counter
÷2
÷4
Clear
MUX
T1(8Bit)
OVRMSK
[B6H]
÷16384
T1IF
4
T1CK[3:0]
[B5H]
Timer1
Interrupt
Comparator
T1DR(8Bit)
F/F
P10/T1
PIN
8-bit Timer1 Data Register
T1PE
Figure 11-6 8 Bit Timer/Event Counter 0, 1 Block Diagram
The two 8-bit timers have each counter and data register. The counter register is increased by
internal or external clock input. The timer 0 can use the input clock with one of 2, 4, 8, 32, 128, 512,
2048 prescaler division rates (T0CK[2:0]). The timer 1 can use the input clock with one of 1, 2, 8 ~
16384 and timer 0 overflow clock (T1CK[3:0]). When the value of T0,1 value and the value of T0DR,
T1DR are respectively identical in Timer 0, 1, the interrupt of TimerP 0, 1 occurs. The external clock
(EC0) counts up the timer at the rising edge. If EC0 is selected from T0CK[2:0], EC0 port becomes
input port. The timer 1 can’t use the external EC0 clock.
PS029602-0212
PRELIMINARY
77
Z51F0811
Product Specification
Match with T0DR/T1DR
n
T0DR/T1DR
Value
n-1
n-2
Count Pulse Period
PCP
6
Up-count
5
4
3
2
1
0
TIME
Interrupt Period
= PCP x (n+1)
Timer 0, 1
(T0IF, T1IF)
Interrupt
Occur
Interrupt
Occur
Interrupt
Occur
Interrupt
Figure 11-7 Timer/Event Counter 0, 1 Example
T0DR/T1DR
Value
Disable
Enable
Clear&Start
STOP
Up-count
TIME
Timer 0, 1
(T0IF, T1IF)
Interrupt
T0ST, T1ST
Start&Stop
Occur
Interrupt
Occur
Interrupt
T0ST,T1ST = 1
T0ST,T1ST = 1
T0ST,T1ST = 0
T0CN, T1CN
Control count
T0CN,T1CN = 1
T0CN,T1CN = 1
T0CN,T1CN = 0
Figure 11-8 Timer/Event Counter0, 1 Count Operation
11.5.1.3 16 Bit Timer/Counter Mode
The timer register is being run with all 16 bits. A 16-bit timer/counter register T0, T1 are incremented
from 0003H to FFFFH until it matches T0DR, T1DR and then resets to 0000H. The match output
PS029602-0212
PRELIMINARY
78
Z51F0811
Product Specification
generates the Timer 0 interrupt (No timer 1 interrupt). The clock source is selected from T0CK[2:0]
and T1CK[3:0] must set 1111b and 16BIT bit must set to ‘1’. The timer 0 is LSB 8-bit, the timer 1 is
MSB 8-bit. T0DR must not be 0x00 ( 0x01~0xFF). The 16-bit mode selection is shown as Figure 11-9.
T0CR
T1CR
T0PE
CAP0
T0CK2
T0CK1
T0CK0
T0CN
T0ST
1
X
0
X
X
X
X
X
16BIT
CAP1
T1CN
T1ST
T1CK3
T1CK2
T1CK1
T1CK0
1
0
X
X
1
1
1
1
EC0
T0CN
÷2
fx
P
r
e
s
c
a
l
e
r
ADDRESS : B2H
INITIAL VALUE : 0000_0000B
T0EN
ADDRESS : B4H
INITIAL VALUE : 0000_0000B
T0ST
16-bit Counter
÷4
÷8
T0
(8Bit)
MUX
÷32
÷128
T1
(8Bit)
Clear
[B6H]
[B3H]
÷512
T0IF
÷2048
[B3H]
3
T0DR
(8Bit)
T0CK[2:0]
Timer0
Interrupt
Comparator
T1DR
(8Bit)
[B5H]
F/F
P06/T0
PIN
16-bit Data Register
Figure 11-9 16-bit Timer/Counter for Time 0, 1
11.5.1.4 8-Bit Capture Mode
The timer 0, 1 capture mode is set by CAP0, CAP1 as ‘1’. The clock source can use the
internal/external clock. Basically, it has the same function of the 8-bit timer/counter mode and the
interrupt occurs at T0, T1 and T0DR, T1DR matching time, respectively. The capture result is loaded
into CDR0, CDR1. The T0, T1 value is automatically cleared by hardware and restarts counter.
This timer interrupt in capture mode is very useful when the pulse width of captured signal is wider
than the maximum period of timer.
As the EIEDGE and EIPOLA register setting, the external interrupt INT1, INT0 function is chosen.
The CDR0, T0 and T0DR are in same address. In the capture mode, reading operation reads the
CDR0, not T0DR because path is opened to the CDR0. The CDR1 has the same function.
PS029602-0212
PRELIMINARY
79
Z51F0811
Product Specification
T0CR
T1CR
T0PE
CAP0
T0CK2
T0CK1
T0CK0
T0CN
T0ST
1
0
1
X
X
X
X
X
16BIT
CAP1
T1CN
T1ST
T1CK3
T1CK2
T1CK1
T1CK0
0
1
X
X
X
X
X
X
EC0
T0CN
fx
ADDRESS : B4H
INITIAL VALUE : 0000_0000B
T0ST
÷2
P
r
e
s
c
a
l
e
r
ADDRESS : B2H
INITIAL VALUE : 0000_0000B
T0EN
8-bit Timer0 Counter
÷4
÷8
Clear
MUX
T0(8Bit)
÷32
÷128
Timer0
Interrupt
[B3H]
Clear
÷512
T0IF
÷2048
[B3H]
3
Comparator
CDR0
(8Bit)
T0CK[2:0]
T0DR
(8Bit)
[B3H]
EIEDGE.0
8-bit Timer0 Data Register
INT0
INT0
Interrupt
INT0IF
T1CN
T1ST
8-bit Timer1 Counter
÷2
÷4
Clear
T1(8Bit)
MUX
÷8
Timer1
Interrupt
[B6H]
Clear
T1IF
4
T1CK[3:0]
[B6H]
CDR1
(8Bit)
EIEDGE.1
Comparator
T1DR
(8Bit)
[B5H]
8-bit Timer1 Data Register
INT1
INT1IF
INT1
Interrupt
Figure 11-10 8-bit Capture Mode for Timer 0, 1
PS029602-0212
PRELIMINARY
80
Z51F0811
Product Specification
CDR0, CDR1 Load
n
T0/T1 Value
n-1
n-2
Count Pulse Period
PCP
6
Up-count
5
4
3
2
1
0
TIME
Ext. INT0,1 PIN
Interrupt
Request
(INT0F,INT1F)
Interrupt Interval Period
Figure 11-11 Input Capture Mode Operation of Timer 0, 1
FFH
FFH
XXH
T0, T1
YYH
00H
00H
00H
00H
00H
Interrupt
Request
(T0IF,T1IF)
Ext. INT0,1 PIN
Interrupt
Request
(INT0F,INT1F)
Interrupt Interval Period = FFH+01H+FFH +01H+YYH+01H
Figure 11-12 Express Timer Overflow in Capture Mode
PS029602-0212
PRELIMINARY
81
Z51F0811
Product Specification
11.5.1.5 16 Bit Capture Mode
The 16-bit capture mode is the same operation as 8-bit capture mode, except that the timer register
uses 16 bits.
The clock source is selected from T0CK[2:0] and T1CK[3:0] must set 1111b and 16BIT bit must set
to ‘1’. The 16-bit mode setting is shown as Figure 11-13.
T0CR
T1CR
T0EN
T0PE
CAP0
T0CK2
T0CK1
T0CK0
T0CN
T0ST
1
X
1
X
X
X
X
X
16BIT
CAP1
T1CN
T1ST
T1CK3
T1CK2
T1CK1
T1CK0
1
1
X
X
1
1
1
1
EC0
T0CN
fx
ADDRESS : B4H
INITIAL VALUE : 0000_0000B
T0ST
÷2
P
r
e
s
c
a
l
e
r
ADDRESS : B2H
INITIAL VALUE : 0000_0000B
8-bit Timer0, 1 Counter
[B6H:B3H]
÷4
÷8
Clear
MUX
T1(8Bit) MSB
T0(8Bit) LSB
÷32
÷128
Timer0
Interrupt
Clear
÷512
T0IF
÷2048
[B6H:B3H]
3
Comparator
CDR1(8Bit)
+CDR0(8Bit)
T0CK[2:0]
T1DR(8Bit)
+T0DR(8Bit)
[B5H:B3H]
EIEDGE.0
8-bit Timer0, 1 Data Register
INT0
INT0IF
INT0
Interrupt
Figure 11-13 16-bit Capture Mode of Timer 0, 1
PS029602-0212
PRELIMINARY
82
Z51F0811
Product Specification
11.5.1.6 PWM Mode
The timer 1 has a high speed PWM (pulse Width Modulation) function. In PWM mode, the 6-channel
pins output up to 10-bit resolution PWM output. This pin should be configured as a PWM output by set
PWM1E to ‘1’. The period of the PWM output is determined by the T1PPR (PWM period register) +
T1PHR[1:0], T1xDR (each channel PWM duty register) + T1PHR[7:2].
PWM Period = [ T1PHR[1:0]T1PPR ] X Source Clock
PWM Duty(A-ch) = [ T1PHR[7:6] T1ADR ] X Source Clock
Note> T1PPR must be set to higher than T1PDR for guaranteeing operation.
Table 11-6 PWM Frequency vs. Resolution at 8 Mhz
Resolution
Frequency
T1CK[3:0]=0001 (250ns)
T1CK[3:0]=0010 (500ns)
T1CK[3:0]=0100 (2us)
10 Bit
3.9KHz
1.95KHz
0.49KHz
9 Bit
7.8KHz
3.9KHz
0.98KHz
8 Bit
15.6KHz
7.8KHz
1.95KHz
7 Bit
31.2KHz
15.6KHz
3.91KHz
The POLx bit of T1PCR3 register decides the polarity of duty cycle. If the duty value is set same to
the period value, the PWM output is determined by the bit POLx (1: High, 0: Low). And if the duty
value is set to "00H", the PWM output is determined by the bit POLx (1: Low, 0: High).
PS029602-0212
PRELIMINARY
83
Z51F0811
Product Specification
T1CR
T1PCR
16BIT
CAP1
T1CN
T1ST
T1CK3
T1CK2
T1CK1
T1CK0
0
0
X
X
X
X
X
X
PHLT
UPDT
UALL
X
X
X
X
X
X
PAOE
PABOE
PBOE
PBBOE
PCOE
PCOE
PWM1E ESYNC BMOD
1
T1PCR2
T1PCR3
T1PHR
X
FORCA FORC6
NOPS1 NOPS0
X
1
X
X
X
X
X
X
T1_PE
POLA
POLB
POLC
POCO
N
HCKE
-
PLLPD
B
X
X
X
X
X
X
X
X
ADR9
ADR8
BDR9
BDR8
CDR9
CDR8
PPR9
PPR8
X
X
X
X
X
X
X
X
ADDRESS : B4H
INITIAL VALUE : 0000_0000B
ADDRESS : B7H
INITIAL VALUE : 0000_0000B
ADDRESS : BDH
INITIAL VALUE : 0000_0000B
ADDRESS : BEH
INITIAL VALUE : 0000_00-0B
ADDRESS : BCH
INITIAL VALUE : 0000_0000B
8-bit Timer1 PWM Period Register
÷1
÷2
T1PPR
(8 Bit)
T1PHR[1:0]
÷4
÷8
[B5H]
÷16
fx
MUX
PLL
P
r
e
s
c
a
l
e
r
T1ST
÷32
T1CN
÷64
Comparator
÷128
÷256
÷512
MUX
2 Bit
÷1024
8-bit Timer1
Counter + 2-bit
÷2048
HCKE
PWMAO
Clear
T1
(8 Bit)
[B6H]
÷4096
÷8192
PWM
Output
Control
PWM
Delay
Control
A-Ch
A-Ch
PWM
Output
Control
PWM
Delay
Control
B-Ch
B-Ch
PWM
Output
Control
PWM
Delay
Control
C-Ch
C-Ch
/PWMAO
Comparator
÷16384
T1ADR
(8 Bit)
T0 Clock
Source
PWMBO
[B6H]
4
T1PHR[7:6]
T1CK[3:0]
/PWMBO
Comparator
T1BDR
(8 Bit)
[BCH]
T1PHR[5:4]
PWMCO
/PWMCO
Comparator
T1CDR
(8 Bit)
[BBH]
T1PHR[3:2]
Figure 11-14 PWM Mode (Force 6-ch)
PS029602-0212
PRELIMINARY
84
Z51F0811
Product Specification
T1CR
T1PCR
16BIT
CAP1
T1CN
T1ST
T1CK3
T1CK2
T1CK1
T1CK0
0
0
X
X
X
X
X
X
PHLT
UPDT
UALL
X
X
X
X
X
X
PAOE
PABOE
PBOE
PBBOE
PCOE
PCOE
PWM1E ESYNC BMOD
1
T1PCR2
T1PCR3
T1PHR
X
FORCA FORC6
NOPS1 NOPS0
1
X
X
X
X
X
X
X
T1_PE
POLA
POLB
POLC
POCO
N
HCKE
-
PLLPD
B
X
X
X
X
X
X
X
X
ADR9
ADR8
BDR9
BDR8
CDR9
CDR8
PPR9
PPR8
X
X
X
X
X
X
X
X
ADDRESS : B4H
INITIAL VALUE : 0000_0000B
ADDRESS : B7H
INITIAL VALUE : 0000_0000B
ADDRESS : BDH
INITIAL VALUE : 0000_0000B
ADDRESS : BEH
INITIAL VALUE : 0000_00-0B
ADDRESS : BCH
INITIAL VALUE : 0000_0000B
8-bit Timer1 PWM Period Register
÷1
÷2
T1PPR
(8 Bit)
T1PHR[1:0]
÷4
÷8
[B5H]
÷16
fx
PLL
MUX
P
r
e
s
c
a
l
e
r
T1ST
÷32
T1CN
÷64
Comparator
÷128
÷256
÷512
MUX
2 Bit
÷1024
T1
(8 Bit)
[B6H]
8-bit Timer1
Counter + 2-bit
÷2048
Clear
÷4096
HCKE
÷8192
PWMAO
PWM
Output
Control
PWM
Delay
Control
A-Ch
A-Ch
PWM
Output
Control
PWM
Delay
Control
B-Ch
B-Ch
PWM
Output
Control
PWM
Delay
Control
C-Ch
C-Ch
/PWMAO
Comparator
÷16384
T1ADR
(8 Bit)
T0 Clock
Source
PWMBO
[B6H]
4
T1PHR[7:6]
T1CK[3:0]
/PWMBO
PWMCO
/PWMCO
Figure 11-15 PWM Mode (Force All-Ch)
PS029602-0212
PRELIMINARY
85
Z51F0811
Product Specification
Source Clock
(fx)
T1
00
01
02
03
04
7F
80
81
82
3FF
00
01
02
P10/PWM
POLA = 1
P10/PWM
POLA = 0
Duty Cycle(1+80H)X250ns = 32.25us
Period Cycle(1+3FFH)X250ns = 256us 3.9kHz
T1CR[1:0] = 00H(fXIN)
T1PHR = 03H
T1PPR = FFH
T1ADR = 80H
PPR9
PPR8
T1PPR(8 Bit)
1
1
FFH
ADR9
ADR8
T1ADR(8 Bit)
0
0
80H
Figure 11-16 Example of PWM at 4MHz
T1CR[1:0] = 10H(2us)
T1PHR = 00H
T1PPR = 0EH
T1ADR = 05H
Write 0AH to T1PPR
Source Clock
(fx)
T1
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 00 01 02 03 04 05 06 07 08 09 0A 00 01 02 03 04 05 06
P10/PWM
POLA = 1
Duty Cycle
(1+05H)X2us = 12us
Duty Cycle
(1+05H)X2us = 12us
Period Cycle
(1+0EH)X2us = 32us 31.25kHz
Duty Cycle
(1+05H)X2us = 12us
Period Cycle
(1+0AH)X2us = 22us 45.5kHz
Figure 11-17 Example of Changing the Period in Absolute Duty Cycle at 4Mhz
Update period & duty register value at once
The period and duty of PWM comes to move from temporary registers to PPR (PWM Period Register)
and PDR (PWM Duty Register) when always period match occurs. If you want that the period and
duty is immediately changed, the UPDT bit in the T1PCR register must set to ‘1’. It should be noted
that it needs the 3 cycle of timer clock for data transfer in the internal clock synchronization circuit. So
the update data is written before 3 cycle of timer clock to get the right output waveform.
Phase correction & Frequency correction
PS029602-0212
PRELIMINARY
86
Z51F0811
Product Specification
On operating PWM, it is possible that it is changed the phase and the frequency by using BMOD bit
(back-to-back mode) in T1PCR register. (Figure 11-18, Figure 11-19, Figure 11-20 referred)
In the back-to-back mode, the counter of PWM repeats up/down count. In fact, the effective duty and
period becomes twofold of the register set values. (Figure 11-18, Figure 11-19 referred)
MAX
MAX
00H
00H
Duty, Period
Update
MAX
MAX
00H
00H
T1
00H
Normal PWM mode
Output
Duty
Period
MAX
MAX
Duty, Period
Update
MAX
T1
00H
00H
Back-to-Back mode
Output
00H
Duty
Duty
Period
Period
Non Back-to-Back mode
Back-to-Back mode
Figure 11-18 Example of PWM Output Waveform
T1CR[1:0] = 10H(2us)
T1PHR = 00H
T1PPR = 0BH
T1ADR = 05H
Duty match
detect
Start down Counter
Duty match
detect
Start up Counter
Source Clock
(fX)
T1
00 01 02 03 04 05 06 07 08 09 0A 0B 0B 0A 09 08 07 06 05 04 03 02 01 00 00 01 02 03 04 05 06 07 08
P10/PWM
POLA = 1
Duty Cycle
(1+05H)X2us = 12us
Duty Cycle
Duty Cycle
(1+05H)X2us = 12us (1+05H)X2us = 12us
Period Cycle
(1+0BH)X2us = 26us 38.46kHz
Period Cycle
(1+0BH)X2us = 26us 38.46kHz
Figure 11-19 Example of PWM waveform in Back-to-Back mode at 4Mhz
PS029602-0212
PRELIMINARY
87
Z51F0811
Product Specification
Duty, Period Update
MAX
MAX
MAX
T1
00H
00H
Back-to-Back
mode
00H
Duty1
Duty2
Period1
Duty3
Period2
Period3
Interrupt Timing
Overflow INT.
Overflow INT.
Bottom INT.
Overflow INT.
Figure 11-20 Example of Phase Correction and Frequency correction of PWM
External Sync
If using ESYNC bit of T1PCR register, it is possible to synchronize the output of PWM from external
signal.
If ESYNC bit sets to ‘1’, the external signal moves to PWM module through the BLNKB pin (P16). If
BLNKB signal is low, immediately PWM output becomes a reset value, and internal counter becomes
reset. If BLNKB signal returns to ‘1’, the counter is started again and PWM output is normally
generated. (Figure 11-21 referred)
PWM Halt
If using PHLT bit of T1PCR register, it is possible to stop PWM operation by the software. During
PHLT bit being ‘1’, PWM output becomes a reset value, and internal counter becomes reset as 0.
Without changing PWM setting, temporarily it is able to stop PWM. In case of T1CN, when stopping
counter, PWM output pin remains before states. But if PHLT bit sets to ‘1’, PWM output pin has reset
value.
T1PHR = 80H(EYNC=1)
T1PPR = 2AH
T1ADR = 12H
BLNKB “0”
PWM STOP
BLNKB “1”
PWM Restart
Source Clock
(fx)
T1
P10/PWM
POLA = 1
00 01 02
12 13 14
2A 00 01 02
00 00 00 01 02 03
12 13 14 00
12 13 14
2A 00 01 02
Counter
Stop
BLNKB
ESYNC = 1
PS029602-0212
PRELIMINARY
88
Z51F0811
Product Specification
Figure 11-21 Example of PWM External Synchronization with BLNKB Input
FORCE Drive ALL ch with A-ch mode
If FORCA bit sets to ‘1’, it is possible to enable or disable all PWM output pins through PWM outputs
which occur from A-ch duty counter. It is noted that the inversion outputs of A, B, C channel have the
same A-ch output waveform. According to POLA/B/C, it is able to control the inversion of outputs.
T1PCR2
FORCA FORC6
1
X
PAOE
PABOE
PBOE
PBBOE
PCOE
PCOE
X
X
X
X
X
X
ADDRESS : BDH
INITIAL VALUE : 0000_0000B
PWMA
PAOE
PWMOA
PABOE
/PWMOA
PBOE
PWMOB
PBBOE
/PWMOB
※C-ch operation is the same with channel A and B waveform
Figure 11-22 Example of Force Drive All-ch with A-ch
PS029602-0212
PRELIMINARY
89
Z51F0811
Product Specification
FORCE 6-Ch Drive
If FORC6 bit sets to ‘1’, it is possible to enable or disable PWM output pin and inversion output pin
generated through the duty counter of each channel. The inversion output is the reverse phase of the
PWM output. A A/AB output of the A-channel duty register, a B/BB output of the B-channel duty
register, a C/CB output of the C-channel duty register are controlled respectively. If the UALL bit is set
to ‘1’, it is updated B/C channel duty at the same time, when it is written by a A-channel duty register.
T1PCR2
FORCA FORC6
X
1
PAOE
PABOE
PBOE
PBBOE
PCOE
PCOE
X
X
X
X
X
X
ADDRESS : BDH
INITIAL VALUE : 0000_0000B
PWMA
PAOE
PWMOA
PABOE
/PWMOA
PWMB
PBOE
PWMOB
PBBOE
/PWMOB
※C-ch operation is the same with channel A and B waveform
Figure 11-23 Example of Force Drive 6-ch Mode
PS029602-0212
PRELIMINARY
90
Z51F0811
Product Specification
T1CR
T1PCR
16BIT
CAP1
T1CN
T1ST
T1CK3
T1CK2
T1CK1
T1CK0
0
0
X
X
X
X
X
X
PHLT
UPDT
UALL
X
X
X
X
X
X
PAOE
PABOE
PBOE
PBBOE
PCOE
PCOE
PWM1E ESYNC BMOD
X
T1PCR2
T1PCR3
X
FORCA FORC6
NOPS1 NOPS0
X
X
X
X
X
X
X
X
T1_PE
POLA
POLB
POLC
POCO
N
HCKE
-
PLLPD
B
X
X
X
X
X
X
X
X
PWM1E
T1_PE
0
1
1
1
1
1
1
1
1
1
X
X
X
X
FORCA
FORC6
X
0
0
1
1
1
1
POCON
X
0
1
0
0
1
1
P1xE
P1xBE
X
X
X
0
1
0
1
ADDRESS : B4H
INITIAL VALUE : 0000_0000B
ADDRESS : B7H
INITIAL VALUE : 0000_0000B
ADDRESS : BDH
INITIAL VALUE : 0000_0000B
ADDRESS : BEH
INITIAL VALUE : 0000_00-0B
Port Control
T1 (timer1) output enable
All 6 PWM outputs enable
GPIO get control, when PWM stop*
Corresponding PWM output “0”
Corresponding PWM outputs enable
GPIO get control for disabled channels
Corresponding PWM outputs enable
* PWM stop condition : when ESYNC = “1”, BLANKB can stop PWM1 or PHLT bit was set(“1”)
When POCON was set “1”, ports direction of the disabled PWM channels would be controlled by GPIO registers. So if user
set GPIO direction register as input mode for corresponding pins, disabled PWM pins would be input mode.
The port is fixed as the output at the Timer mode. But at the PWM mode, using POCON bit , when PWM output port does not
work, it can change the state of output port to input (high-Z) state. It is determined from the port control register to select in/out
signal. If using FORCE mode, it can only change the wanted channel direction of the 6-channel outputs. In the FORCE mode,
the channel direction of the disabled output is determined by each port control register bit, regardless of the PWM stop.
Figure 11-24 PWM Port control
PWM output Delay
If using the PDLYA, PDLYB, PDLYC register, it can delay PWM output based on the rising edge. At
that time, it does not change the falling edge, so the duty is reduced as the time delay. In POLA/B/C
setting to ‘0’, the delay is applied to the falling edge. In POLA/B/C setting to ‘1’, the delay is applied to
the rising edge. It can produce a pair of Non-overlapping clock. The each channel is able to have 4-bit
delay. As it can select the clock up to 1/8 divided clock using NOPS1, NOPS0, the delay of its
maximum 128 timer clock cycle is produced.
PS029602-0212
PRELIMINARY
91
Z51F0811
Product Specification
T1PCR2
T1PCR3
T1DLYA
FORCA FORC6
PAOE
PABOE
PBOE
PBBOE PCOE
PCOE
X
1
X
X
X
X
X
X
T1_PE
POLA
POLB
POLC
POCO
N
HCKE
-
PLLPD
B
X
1
X
X
X
X
X
X
DLYA3 DLYA2 DLYA1 DLYA0 DLYAB3 DLYAB2 DLYAB1 DLYAB0
0
0
0
0
0
PAOE
PABOE
PBOE
0
0
ADDRESS : BDH
INITIAL VALUE : 0000_0000B
ADDRESS : BEH
INITIAL VALUE : 0000_00-0B
ADDRESS : BFH
INITIAL VALUE : 0000_0000B
0
PWMA
PWMAO
/PWMAO
T1PCR2
T1PCR3
T1DLYA
FORCA FORC6
PBBOE PCOE
PCOE
X
1
X
X
X
X
X
X
T1_PE
POLA
POLB
POLC
POCO
N
HCKE
-
PLLPD
B
X
1
X
X
X
X
X
X
DLYA3 DLYA2 DLYA1 DLYA0 DLYAB3 DLYAB2 DLYAB1 DLYAB0
0
0
1
0
0
PAOE
PABOE
PBOE
1
0
ADDRESS : BDH
INITIAL VALUE : 0000_0000B
ADDRESS : BEH
INITIAL VALUE : 0000_00-0B
ADDRESS : BFH
INITIAL VALUE : 0000_0000B
0
PWMA
DLYA = 02H
PWMAO
/PWMAO
DLYAB = 04H
T1PCR2
T1PCR3
T1DLYA
FORCA FORC6
PBBOE PCOE
PCOE
X
1
X
X
X
X
X
X
T1_PE
POLA
POLB
POLC
POCO
N
HCKE
-
PLLPD
B
X
0
X
X
X
X
X
X
DLYA3 DLYA2 DLYA1 DLYA0 DLYAB3 DLYAB2 DLYAB1 DLYAB0
0
0
1
0
0
1
0
ADDRESS : BDH
INITIAL VALUE : 0000_0000B
ADDRESS : BEH
INITIAL VALUE : 0000_00-0B
ADDRESS : BFH
INITIAL VALUE : 0000_0000B
0
PWMA
DLYA = 02H
PWMAO
/PWMAO
DLYAB = 04H
※B-ch and C-ch operation is the same with channel A waveform
Figure 11-25 Example of PWM Delay
PS029602-0212
PRELIMINARY
92
Z51F0811
Product Specification
11.5.1.7 8-Bit (16 Bit) Compare Output Mode
If the T1 (T0+T1) value and the T1DR (T0DR+T1DR) value are matched, T1/PWM1A port outputs.
The output is 50:50 of duty square wave, the frequency is following
f
COMP
Oscillator Frequency
2 Prescaler Value (TDR 1)
To export the compare output as T1/PWM1A, the T1_PE bit in the T1PCR3 register must set to ‘1’.
11.5.1.8 Register Map
Table 11-7 Register Map
Name
Address
Dir
Default
Description
T0CR
B2H
R/W
00H
Timer 0 Mode Control Register
T0
B3H
R
00H
Timer 0 Register
T0DR
B3H
W
FFH
Timer 0 Data Register
CDR0
B3H
R
00H
Capture 0 Data Register
T1CR
B4H
R/W
00H
Timer 1 Mode Control Register
T1DR
B5H
W
FFH
Timer 1 Data Register
T1PPR
B5H
W
FFH
Timer 1 PWM Period Register
T1
B6H
R
00H
Timer 1 Register
T1ADR
B6H
R/W
7FH
Timer 1 PWM 1A Duty Register
CDR1
B6H
R
00H
Capture 1 Data Register
T1PCR
B7H
R/W
00H
Timer 1 PWM Control Register
T1BDR
BAH
R/W
7FH
Timer 1 PWM 1B Duty Register
T1CDR
BBH
R/W
7FH
Timer 1 PWM 1C Duty Register
T1PHR
BCH
R/W
00H
Timer 1 PWM High Register
T1PCR2
BDH
R/W
00H
Timer 1 PWM Control Register 2
T1PCR3
BEH
R/W
00H
Timer 1 PWM Control Register 3
T1DLYA
BFH
R/W
00H
PWM1 Non-Overlap Delay Register ch. A/AB
T1DLYB
C2H
R/W
00H
PWM1 Non-Overlap Delay Register ch. B/BB
T1DLYC
C3H
R/W
00H
PWM1 Non-Overlap Delay Register ch. C/CB
T1ISR
C4H
R/W
00H
Timer 1 Interrupt Status Register
T1IMSK
C5H
R/W
00H
Timer 1 Interrupt Mask Register
PLLCR
85H
R/W
42H
Timer1 PLL Control Register
11.5.1.9 Timer/Counter 0, 1 Register description
The Timer/Counter 0,1 register consists of Timer 0 Mode Control Register (T0CR), Timer 0 Register
(T0), Timer 0 Data Register (T0DR), Capture 0 Data Register (CDR0), Timer 1 Mode Control Register
(T1CR), Timer 1 Data Register (T1DR), Timer 1 PWM Period Register (T1PPR), Timer 1 Register
(T1), Timer 1 PWM 1A Duty Register (T1ADR), Capture 1 Data Register (CDR1), Timer 1 PWM
Control Register (T1PCR), Timer 1 PWM 1B Duty Register (T1BDR), Timer 1 PWM 1C Duty Register
PS029602-0212
PRELIMINARY
93
Z51F0811
Product Specification
(T1CDR), Timer 1 PWM High Register (T1PHR), Timer 1 PWM Control Register 2 (T1PCR2), Timer 1
PWM Control Register 3 (T1PCR3), PWM1 Non-Overlap Delay Register ch. A/AB (T1DLYA), PWM1
Non-Overlap Delay Register ch. B/BB (T1DLYB), PWM1 Non-Overlap Delay Register ch. C/CB
(T1DLYC), Timer 1 Interrupt Status Register (T1ISR), Timer 1 Interrupt Mask Register (T1IMSK) and
PLL Control Register (PLLCR)
11.5.1.10 Register description for Timer/Counter 0, 1
T0CR (Timer 0 Mode Control Register) : B2H
7
6
5
4
3
2
1
0
T0EN
T0_PE
CAP0
T0CK2
T0CK1
T0CK0
T0CN
T0ST
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
T0EN
Control Timer 0
T0_PE
CAP0
0
Timer 0 disable
1
Timer 0 enable
Control Timer 0 Output port
0
Timer 0 Output disable
1
Timer 0 Output enable
Control Timer 0 operation mode
T0CK[2:0]
0
Timer/Counter mode
1
Capture mode
Select Timer 0 clock source. Fx is main system clock frequency
T0CK2
T0CN
T0CK1
T0CK0
description
0
0
0
fx/2
0
0
1
fx/4
0
1
0
fx/8
0
1
1
fx/32
1
0
0
fx/128
1
0
1
fx/512
1
1
0
fx/2048
1
1
1
External Clock (EC0)
Control Timer 0 Count pause/continue
T0ST
0
Temporary count stop
1
Continue count
Control Timer 0 start/stop
0
Counter stop
1
Clear counter and start
T0 (Timer 0 Register: Read Case) : B3H
7
6
5
4
3
2
1
0
T07
T06
T05
T04
T03
T02
T01
T00
R
R
R
R
R
R
R
R
Initial value : 00H
T0[7:0]
PS029602-0212
T0 Counter
PRELIMINARY
94
Z51F0811
Product Specification
T0DR (Timer 0 Data Register: Write Case) : B3H
7
6
5
4
3
2
1
0
T0D7
T0D6
T0D5
T0D4
T0D3
T0D2
T0D1
T0D0
W
W
W
W
W
W
W
W
Initial value : FFH
T0D[7:0]
T0 Compare
CDR0 (Capture 0 Data Register: Read Case, Capture mode only) : B3H
7
6
5
4
3
2
1
0
CDR07
CDR06
CDR05
CDR04
CDR03
CDR02
CDR01
CDR00
R
R
R
R
R
R
R
R
Initial value : 00H
CDR0[7:0]
T0 Capture
T1CR (Timer 1 Mode Count Register) : B4H
7
6
5
4
3
2
1
0
16BIT
CAP1
T1CN
T1ST
T1CK3
T1CK2
T1CK1
T1CK0
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
16BIT
CAP1
T1CN
T1ST
T1CK[3:0]
PS029602-0212
Select Timer 1 8/16Bit
0
8 Bit
1
16 Bit
Control Timer 1 operation mode
0
Timer/Counter mode
1
Capture mode
Control Timer 1 Count pause/continue
0
Temporary count stop
1
Continue count
Control Timer 1 start/stop
0
Counter stop
1
Clear counter and start
Select Timer 1 clock source. Fx is main system clock frequency
T1CK3
T1CK2
T1CK1
T1CK0
description
0
0
0
0
fx
0
0
0
1
fx/2
0
0
1
0
fx/4
0
0
1
1
fx/8
0
1
0
0
fx/16
0
1
0
1
fx/32
0
1
1
0
fx/64
0
1
1
1
fx/128
1
0
0
0
fx/256
1
0
0
1
fx/512
1
0
1
0
fx/1024
1
0
1
1
fx/2048
1
1
0
0
fx/4096
PRELIMINARY
95
Z51F0811
Product Specification
1
1
0
1
fx/8192
1
1
1
0
fx/16384
1
1
1
1
Using Timer 0 Clock
Note) If you want to use “Using Timer 0 Clock”, you can set T0EN bit in T0CR
T1DR (Timer 1 Data Register: Write Case) : B5H
7
6
5
4
3
2
1
0
T1D7
T1D6
T1D5
T1D4
T1D3
T1D2
T1D1
T1D0
W
W
W
W
W
W
W
W
Initial value : FFH
T1D[7:0]
T1 Compare
T1PPR (Timer 1 PWM Period Register: Write Case PWM mode only) : B5H
7
6
5
4
3
2
1
0
T1PP7
T1PP6
T1PP5
T1PP4
T1PP3
T1PP2
T1PP1
T1PP0
W
W
W
W
W
W
W
W
Initial value : FFH
T1PP[7:0]
T1 PWM period
T1 (Timer 1 Register: Read Case) : B6H
7
6
5
4
3
2
1
0
T17
T16
T15
T14
T13
T12
T11
T10
R
R
R
R
R
R
R
R
Initial value : 00H
T1[7:0]
T1 Counter period
T1ADR (Timer 1 PWM 1A Duty Register PWM mode only) : B6H
7
6
5
4
3
2
1
0
PAD7
PAD6
PAD5
PAD4
PAD3
PAD2
PAD1
PAD0
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 7FH
T1ADR[7:0]
T1 PWM Duty
Note) only write, when PWM1E ‘1’
CDR1 (Capture 1 Data Register: Read Case, Capture mode only) : B6H
7
6
5
4
3
2
1
0
CDR17
CDR16
CDR15
CDR14
CDR13
CDR12
CDR11
CDR10
R
R
R
R
R
R
R
R
Initial value : 00H
CDR1[7:0]
T1 Capture
T1PCR (Timer 1 PWM Control Register) : B7H
7
6
5
4
3
2
1
0
PWM1E
ESYNC
BMOD
PHLT
UPDT
UALL
NOPS1
NOPS0
PS029602-0212
PRELIMINARY
96
Z51F0811
Product Specification
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
PWM1E
ESYNC
BMOD
PHLT
UPDT
UALL
NOPS1[1:0]
PS029602-0212
Control PWM
0
PWM disable
1
PWM enable
Select the operation of External Sync Mode
0
External Sync Mode disable
1
External Sync Mode enable (using with BLNKB(P16))
Control Back-To-Back Mode operation
0
BtB mode disable (only up count)
1
BtB mode enable (Up/Down count)
Control PWM
0
PWM running
1
PWM stop
Determine the update time of PPR, PDR
0
Update at period match
1
Update at any time (after 3 timer clock, update)
Control update all duty register
0
Write duty register separately
1
Write all duty registers (via A duty)
Select on-Overlap prescaler
Note) fpwm: PWM operation clock frequency
NOPS1
NOPS0
description
0
0
fpwm
0
1
fpwm/2
1
0
fpwm/4
1
1
fpwm/8
PRELIMINARY
97
Z51F0811
Product Specification
T1BDR (Timer 1 PWM 1B Duty Register) : BAH
7
6
5
4
3
2
1
0
PBD7
PBD6
PBD5
PBD4
PBD3
PBD2
PBD1
PBD0
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 7FH
T1BDR[7:0]
PWM 1B ch Duty
Note) only write, when PWM1E ‘1’
T1CDR (Timer 1 PWM 1C Duty Register) : BBH
7
6
5
4
3
2
1
0
PCD7
PCD6
PCD5
PCD4
PCD3
PCD2
PCD1
PCD0
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 7FH
T1CDR[7:0]
PWM 1C ch Duty
Note) only write, when PWM1E ‘1’
T1PHR (Timer 1 PWM High Register) : BCH
7
6
5
4
3
2
1
0
ADR9
ADR8
BDR9
BDR8
CDR9
CDR8
PPR9
PPR8
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
ADR[9:8]
PWM 1A High (Bit [9:8])
BDR[9:8]
PWM 1B High (Bit [9:8])
CDR[9:8]
PWM 1C High (Bit [9:8])
PPR[9:8]
PERIOD High (Bit [9:8])
PERIOD:
DUTY A:
DUTY B:
DUTY C:
PPR9
ADR9
BDR9
CDR9
PPR8
ADR8
BDR8
CDR8
T1PPR[7:0]
P1ADR[7:0]
P1BDR[7:0]
P1CDR[7:0]
T1PCR2 (Timer 1 PWM Control Register 2) : BDH
7
6
5
4
3
2
1
0
FORCA
FORC6
PAOE
PABOE
PBOE
PBBOE
PCOE
PCBOE
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
FORCA
FORC6
PAOE/
PABOE
PBOE/
PBBOE
PS029602-0212
Control Force Drive A Channel mode
0
Force Drive A Channel mode disable
1
Force Drive A Channel mode enable
Control Force 6 Channel mode
Note) PAOE~PCBOE is effective when FORC6 sets to ‘1’
0
Force 6 Channel mode disable
1
Force 6 Channel mode enable
Select Channel A/AB operation
0
P1A (or P1AB) output disable
1
P1A (or P1AB) output enable
Select Channel B/BB operation
0
P1B (or P1BB) output disable
1
P1B (or P1BB) output enable
PRELIMINARY
98
Z51F0811
Product Specification
PCOE/
PCBOE
Select Channel C/CB operation
0
P1C (or P1CB) output disable
1
P1C (or P1CB) output enable
T1PCR3 (Timer 1 PWM Control Register 3) : BEH
7
6
5
4
3
2
1
0
T1_PE
POLA
POLB
POLC
POCON
HCKE
-
PLLPDB
R/W
R/W
R/W
R/W
R/W
R/W
-
R/W
Initial value : 00H
T1_PE
POLA
Control Timer1/PWM1 Output port
0
T1, PWM1 Output operation disable
1
T1, PWM1 Output operation enable
Configure PWM A-ch polarity
POLB
0
Negative (Duty Match time, Clear)
1
Positive (Duty Match time, Set)
Configure PWM B-ch polarity
POLC
0
Negative (Duty Match time, Clear)
1
Positive (Duty Match time, Set)
Configure PWM C-ch polarity
POCON
HCKE
0
Negative (Duty Match time, Clear)
1
Positive (Duty Match time, Set)
Control PWM output operation
0
PWM output control disable
1
PWM output control enable
Select High frequency
Note) fCK is system frequency, Fout is PLL output frequency
PLLPDB
0
High frequency disable
1
High frequency enable (Fout > 3* fCK)
Control PLL power Down mode
0
PLL disable (power down mode)
1
PLL enable (for stable, needs 1ms wait)
T1DLYA (PWM1 Non-Overlap Delay Register for channel A/AB) : BFH
7
6
5
4
3
2
1
0
DLYA3
DLYA2
DLYA1
DLYA0
DLYAB3
DLYAB2
DLYAB1
DLYAB0
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
DLYA[3:0]
DLYAB[3:0]
PS029602-0212
PWM A channel Output Delay (Rising edge only)
PWM AB channel Output Delay (Rising edge only)
PRELIMINARY
99
Z51F0811
Product Specification
T1DLYB (PWM1 Non-Overlap Delay Register for channel B/BB) : C2H
7
6
5
4
3
2
1
0
DLYB3
DLYB2
DLYB1
DLYB0
DLYBB3
DLYBB2
DLYBB1
DLYBB0
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
DLYB[3:0]
DLYBB[3:0]
PWM B channel Output Delay (Rising edge only)
PWM BB channel Output Delay (Rising edge only)
T1DLYC (PWM1 Non-Overlap Delay Register for channel C/CB) : C3H
7
6
5
4
3
2
1
0
DLYC3
DLYC2
DLYC1
DLYC0
DLYCB3
DLYCB2
DLYCB1
DLYCB0
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
DLYC[3:0]
DLYCB[3:0]
PWM C channel Output Delay (Rising edge only)
PWM CB channel Output Delay (Rising edge only)
T1ISR (Timer 1 Interrupt Status Register) : C4H
7
6
5
4
3
2
1
0
IOVR
IBTM
ICMA
ICMB
ICMC
ICAP
-
-
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
IOVR
IBTM
ICMA
ICMB
ICMC
ICAP
Overflow (match with T1DR in Timer mode or T1PPR in PWM mode)
interrupt status
Note) for clear, write ‘1’ to this bit
0
Overflow no occurrence
1
Overflow occurrence
Timer Bottom (goto zero) interrupt status in PWM Back-to-Back mode
Note) for clear, write ‘1’ to this bit
0
Timer Bottom no occurrence
1
Timer Bottom occurrence
PWM A-ch Duty Match interrupt status
Note) for clear, write ‘1’ to this bit
0
PWM A-ch Duty Match no occurrence
1
PWM A-ch Duty Match occurrence
PWM B-ch Duty Match interrupt status
Note) for clear, write ‘1’ to this bit
0
PWM B-ch Duty Match no occurrence
1
PWM B-ch Duty Match occurrence
PWM C-ch Duty Match interrupt status
Note) for clear, write ‘1’ to this bit
0
PWM C-ch Duty Match no occurrence
1
PWM C-ch Duty Match occurrence
Timer Capture event interrupt status
Note) for clear, write ‘1’ to this bit
0
Timer Capture event no occurrence
1
Timer Capture event occurrence
T1MSK (Timer 1 Interrupt Mask Register) : C5H
PS029602-0212
PRELIMINARY
100
Z51F0811
Product Specification
7
6
5
4
3
2
1
0
OVRMSK
BTMMSK
CMAMSK
CMBMSK
CMCMSK
CAPMSK
-
-
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
OVRMSK
BTMMSK
CMAMSK
CMBMSK
CMCMSK
CAPMSK
PS029602-0212
Control Overflow interrupt
0
Overflow interrupt disable
1
Overflow interrupt enable
Control Timer Bottom interrupt
0
Timer Bottom interrupt disable
1
Timer Bottom interrupt enable
Control Timer Compare Match (or PWM A-ch Match) interrupt
0
Timer Compare Match (or PWM A-ch Match) interrupt disable
1
Timer Compare Match (or PWM A-ch Match) interrupt enable
Control PWM B-ch Match interrupt
0
PWM B-ch Match interrupt disable
1
PWM B-ch Match interrupt enable
Control PWM C-ch Match interrupt
0
PWM C-ch Match interrupt disable
1
PWM C-ch Match interrupt enable
Control Timer Capture event interrupt
0
Timer Capture event interrupt disable
1
Timer Capture event interrupt enable
PRELIMINARY
101
Z51F0811
Product Specification
PLLCR (PLL Control Register) : 85H
7
6
5
4
3
2
1
0
-
PLLCT6
PLLCT5
PLLCT4
PLLCT3
PLLCT2
PLLCT1
PLLCT0
-
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 42H
PLLCT[6:5]
PLLCT[4]
PLLCT[3:1]
PLLCT[0]
Pre Scaler (divider) Control
PLLCT6
PLLCT5
description
0
0
Div 1
0
1
Div 2
1
0
Div 4
1
1
Div 8
Feedback Control
0
Div 64
1
Div 50
Post Scaler (divider) Control (FOUT=fvco/M)
PLLCT3
PLLCT2
PLLCT1
description
0
0
0
M=1
0
0
1
M=2
0
1
0
M=4
0
1
1
M=5
1
0
0
M=6
1
0
1
M=8
1
1
0
M=10
1
1
1
M=16
PLL enable (this bit should enable before 1ms for using PLL)
0
PLL disable
1
PLL enable
Note) FVCOIN value must be 2 MHz for desire FOUT.
To change PLL frequency during the operation, PLL must be disabled before XPLLCT change
FVCOIN
FXIN
Pre Scaler
Phase Locked
Loop
VCO
2
Post Scaler
FOUT
3
PLLCT[6:5]
Feedback
Divider
fvco
PLLCT[3:1]
PLLCT[4]
FVCOIN = 2MHz (to be fixed) = FXIN / Pre-Divide
FVCO = FVCOIN * Feedback-Divider = 100 MHz or 128 MHz
FOUT = FVCO / Post-Divider
PS029602-0212
PRELIMINARY
102
Z51F0811
Product Specification
11.5.2 8-bit Timer/Event Counter 2, 3
11.5.2.1 Overview
Timer 2 and timer 3 can be used either two 8-bit timer/counter or one 16-bit timer/counter with
combine them. Each 8-bit timer/event counter module has multiplexer, 8-bit timer data register, 8-bit
counter register, mode register, input capture register, comparator. For PWM, it has PWM register
(T3PPR, T3PDR, T3PWHR).
It has seven operating modes:
-
8 Bit Timer/Counter Mode
-
8 Bit Capture Mode
-
8 Bit Compare Output Mode
-
16 Bit Timer/Counter Mode
-
16 Bit Capture Mode
-
16 Bit Compare Output Mode
-
PWM Mode
The timer/counter can be clocked by an internal or external clock source (external EC2). The clock
source is selected by clock select logic which is controlled by the clock select (T2CK[2:0], T3CK[1:0]).
- TIMER2 clock source : fX/1, 2, 4, 64, 256, 1024, 4096, EC2
- TIMER3 clock source : fX/1, 2, 16, T2CK
In the capture mode, by INT2, INT3, the data is captured into Input Capture Register. The Timer 2
outputs the compare result to T2 port in 8/16-bit mode. Also the timer 3 outputs the result T3 port in
the timer mode and the PWM waveform to PWM3 in the PWM mode.
Table 11-8 Operating Modes of Timer
16 Bit
CAP2
CAP3
PWM3E
T2CK[2:0]
T3CK[1:0]
T2/3_PE
Timer 2
Timer 3
0
0
0
0
XXX
XX
00
8 Bit Timer
8 Bit Timer
0
0
1
0
111
XX
00
8 Bit Event Counter
8 Bit Capture
0
1
0
0
XXX
XX
01
8 Bit Capture
8 Bit Compare Output
0
0
0
1
XXX
XX
11
8 Bit Timer/Counter
10 Bit PWM
1
0
0
0
XXX
11
00
16 Bit Timer
1
0
0
0
111
11
00
16 Bit Event Counter
1
1
1
0
XXX
11
00
16 Bit Capture
1
0
0
0
XXX
11
01
16 Bit Compare Output
PS029602-0212
PRELIMINARY
103
Z51F0811
Product Specification
11.5.2.2 8-Bit Timer/Counter Mode
The 8-bit Timer/Counter Mode is selected by control registers as shown in Figure 11-26.
T2CR
T3CR
T2EN
T2PE
CAP2
T2CK2
T2CK1
T2CK0
T2CN
T2ST
1
X
0
X
X
X
X
X
POL3
16BIT
PWM3E
CAP3
T3CK1
T3CK0
T3CN
T3ST
X
0
0
0
X
X
X
X
EC2
T2CN
÷2
fx
P
r
e
s
c
a
l
e
r
ADDRESS : C6H
INITIAL VALUE : 0000_0000B
ADDRESS : CAH
INITIAL VALUE : 0000_0000B
T0ST
8-bit Timer2 Counter
÷4
÷16
Clear
MUX
T2(8Bit)
÷64
÷256
[C7H]
÷1024
T2IF
÷4096
[C7H]
Timer2
Interrupt
Comparator
3
T2DR(8Bit)
T2CK[2:0]
F/F
P02/T2
8-bit Timer2 Data Register
T3CN
T3ST
8-bit Timer3 Counter
÷1
÷2
Clear
MUX
T3(8Bit)
÷16
[CCH]
T3IF
2
T1CK[1:0]
[CBH]
Timer3
Interrupt
Comparator
T3DR(8Bit)
F/F
P16/T3
8-bit Timer3 Data Register
Figure 11-26 8 Bit Timer/Event Counter2, 3 Block Diagram
The two 8-bit timers have each counter and data register. The counter register is increased by
internal or external clock input. The timer 2 can use the input clock with 2, 4, 16, 64, 256, 1024, 4096
prescaler division rates (T2CK[2:0]). The timer 3 can use the input clock with 1, 2, 16 and timer 2
overflow clock (T3CK[1:0]). When the value of T2, 3value and the value of T2DR, T3DR are
respectively identical in Timer 2, 3, the interrupt of timer T2, 3 occurs. The external clock (EC2) counts
up the timer at the rising edge. If EC2 is selected from T2CK[2:0], EC2 port becomes input port. The
timer 3 can’t use the external EC clock.
PS029602-0212
PRELIMINARY
104
Z51F0811
Product Specification
Match with T2DR/T3DR
n
T2DR/T3DR
Value
n-1
n-2
Count Pulse Period
PCP
6
Up-count
5
4
3
2
1
0
TIME
Interrupt Period
= PCP x (n+1)
Timer 2, 3
(T2IF, T3IF)
Interrupt
Occur
Interrupt
Occur
Interrupt
Occur
Interrupt
Figure 11-27 Timer/Event Counter2, 3 Example
T2DR/T3DR
Value
Disable
Enable
Clear&Start
STOP
Up-count
TIME
Timer 2, 3
(T2IF, T3IF)
Interrupt
T2ST, T3ST
Start&Stop
Occur
Interrupt
Occur
Interrupt
T2ST,T3ST = 1
T2ST,T3ST = 1
T2ST,T3ST = 0
T2CN, T3CN
Control count
T2CN,T3CN = 1
T2CN,T3CN = 1
T2CN,T3CN = 0
Figure 11-28 Operation Example of Timer/Event Counter2, 3
11.5.2.3 16-Bit Timer/Counter Mode
The timer register is being run with all 16bits. A 16-bit timer/counter register T2, T3 are incremented
from 0003H to FFFFH until it matches T2DR, T3DR and then resets to 0000H. the match output
PS029602-0212
PRELIMINARY
105
Z51F0811
Product Specification
generates the Timer 2 interrupt ( no timer 3 interrupt). The clock source is selected from T2CK[2:0]
and T3CK[1:0] must set 11b and 16BIT bit must set to ‘1’. The timer 2 is LSB 8-bit, the timer 3 is MSB
8-bit. T2DR must not be 0x00(0x01~0xFF). The 16-bit mode setting is shown as Figure 11-29.
T2CR
T3CR
T2EN
T2PE
CAP2
T2CK2
T2CK1
T2CK0
T2CN
T2ST
1
X
0
X
X
X
X
X
POL3
16BIT
PWM3E
CAP3
T3CK1
T3CK0
T3CN
T3ST
X
1
0
0
1
1
X
X
EC2
T2CN
fx
ADDRESS : CAH
INITIAL VALUE : 0000_0000B
T2ST
÷2
P
r
e
s
c
a
l
e
r
ADDRESS : C6H
INITIAL VALUE : 0000_0000B
16-bit Counter
÷4
÷16
T2
(8Bit)
MUX
÷64
÷256
[C7H]
T3
(8Bit)
Clear
[CCH]
÷1024
T2IF
÷4096
[C7H]
3
T2DR
(8Bit)
T2CK[2:0]
Timer2
Interrupt
Comparator
T3DR
(8Bit)
[CBH]
F/F
P02/T2
PIN
16-bit Data Register
Figure 11-29 16 Bit Timer/Event Counter2, 3 Block Diagram
11.5.2.4 8-Bit Capture Mode
The timer 2, 3 capture mode is set by CAP2, CAP3 as ‘1’. The clock source can use the
internal/external clock. Basically, it has the same function of the 8-bit timer/counter mode and the
interrupt occurs at T 2, 3 and T2DR, T3DR matching time, respectively. The capture result is loaded
into CDR2, CDR3. The T2, T3 value is automatically cleared by hardware and restarts counter.
This timer interrupt in capture mode is very useful when the pulse width of captured signal is wider
than the maximum period of timer.
As the EIEDGE and EIPOLA register setting, the external interrupt INT2, INT3 function is chosen.
The CDR2, T2 and T2DR are in same address. In the capture mode, reading operation is read the
CDR2, not T2DR because path is opened to the CDR2. The CDR3 has the same function.
PS029602-0212
PRELIMINARY
106
Z51F0811
Product Specification
T2CR
T3CR
T2EN
T2PE
CAP2
T2CK2
T2CK1
T2CK0
T2CN
T2ST
1
X
1
X
X
X
X
X
POL3
16BIT
PWM3E
CAP3
T3CK1
T3CK0
T3CN
T3ST
X
0
0
1
X
X
X
X
EC2
T2CN
fx
ADDRESS : CAH
INITIAL VALUE : 0000_0000B
T2ST
÷2
P
r
e
s
c
a
l
e
r
ADDRESS : C6H
INITIAL VALUE : 0000_0000B
8-bit Timer2 Counter
÷4
÷16
Clear
MUX
T2(8Bit)
÷64
÷256
Timer2
Interrupt
[C7H]
Clear
÷1024
T2IF
÷4096
[C7H] Comparator
[C7H]
3
CDR2
(8Bit)
T2CK[2:0]
T2DR
(8Bit)
EIEDGE.2
8-bit Timer2 Data Register
INT2
INT2
Interrupt
INT2IF
T3CN
T3ST
8-bit Timer3 Counter
÷1
÷2
Clear
T3(8Bit)
MUX
÷16
Timer3
Interrupt
[CCH]
Clear
T3IF
2
T3CK[1:0]
[CCH]
CDR3
(8Bit)
[CBH] Comparator
T3DR
(8Bit)
EIEDGE.3
8-bit Timer3 Data Register
INT3
INT3IF
INT3
Interrupt
Figure 11-30 8-bit Capture Mode for Timer2, 3
PS029602-0212
PRELIMINARY
107
Z51F0811
Product Specification
CDR2, CDR3 Load
n
T2/T3 Value
n-1
n-2
Count Pulse Period
PCP
6
Up-count
5
4
3
2
1
0
TIME
Ext. INT2,3 PIN
Interrupt
Request
(INT2F,INT3F)
Interrupt Interval Period
Figure 11-31 Input Capture Mode Operation of Timer 2, 3
FFH
FFH
XXH
T2, T3
YYH
00H
00H
00H
00H
00H
Interrupt
Request
(T2IF,T3IF)
Ext. INT2,3 PIN
Interrupt
Request
(INT2F,INT3F)
Interrupt Interval Period = FFH+01H+FFH+01H+YYH +01H
Figure 11-32 Express Timer Overflow in Capture Mode
11.5.2.5 16-Bit Capture Mode
The 16-bit capture mode is the same operation as 8-bit capture mode, except that the timer register
uses 16 bits.
PS029602-0212
PRELIMINARY
108
Z51F0811
Product Specification
The clock source is selected from T2CK[2:0] and T3CK[1:0] must set 11b and 16BIT2 bit must set to
‘1’. The 16-bit mode setting is shown as Figure 11-33.
T2CR
T3CR
T2EN
T2PE
CAP2
T2CK2
T2CK1
T2CK0
T2CN
T2ST
1
X
1
X
X
X
X
X
POL3
16BIT
PWM3E
CAP3
T3CK1
T3CK0
T3CN
T3ST
X
1
0
1
1
1
X
X
EC2
T2CN
fx
ADDRESS : CAH
INITIAL VALUE : 0000_0000B
T2ST
÷2
P
r
e
s
c
a
l
e
r
ADDRESS : C6H
INITIAL VALUE : 0000_0000B
16-bit Counter
[CCH:C7H]
÷4
÷16
MUX
T3(8Bit) MSB
T2(8Bit) LSB
Clear
÷64
÷256
Timer2
Interrupt
Clear
÷1024
T2IF
÷4096
Comparator
3
CDR3(8Bit)
+CDR2(8BIT)
T2CK[2:0]
T3DR(8Bit)
+T2DR(8Bit)
EIEDGE.2
[CCH:C7H]
16-bit Data Register
INT2
[CBH:C7H]
INT2IF
INT2
Interrupt
Figure 11-33 16-bit Capture Mode of Timer 2, 3
11.5.2.6 PWM Mode
The timer 3 has a PWM (pulse Width Modulation) function. In PWM mode, the T3/PWM3 output pin
outputs up to 10-bit resolution PWM output. This pin should be configured as a PWM output by set
T3_PE to ‘1’. The period of the PWM output is determined by the T3PPR (PWM period register) +
T3PWHR[3:2] + T3PWHR[1:0]
PWM Period = [ T3PWHR[3:2]T3PPR ] X Source Clock
PWM Duty = [ T3PWHR[1:0] T3PDR ] X Source Clock
Table 11-9 PWM Frequency vs. Resolution at 8 Mhz
Resolution
Frequency
T3CK[1:0]=00 (125ns)
T3CK[1:0]=01 (250ns)
T3CK[1:0]=10 (2us)
10 Bit
7.8KHz
3.9KHz
0.49KHz
9 Bit
15.6KHz
7.8KHz
0.98KHz
8 Bit
31.2KHz
15.6KHz
1.95KHz
PS029602-0212
PRELIMINARY
109
Z51F0811
Product Specification
7 Bit
62.4KHz
31.2KHz
3.91KHz
The POL bit of T3CR register decides the polarity of duty cycle. If the duty value is set same to the
period value, the PWM output is determined by the bit POL (1: High, 0: Low). And if the duty value is
set to "00H", the PWM output is determined by the bit POL (1: Low, 0: High). If duty value and period
value are equal, PWM output is not retain high or low but toggle.
T3CR
T3PWHR
POL3
16BIT
PWM3E
CAP3
T3CK1
T3CK0
T3CN
T3ST
X
0
1
0
X
X
X
X
T3_PE
-
-
-
1
-
-
-
ADDRESS : CAH
INITIAL VALUE : 0000_0000B
ADDRESS : CDH
INITIAL VALUE : 0---_0000B
PW3H3 PW3H2 PW3H1 PW3H0
X
X
X
Period High
X
Duty High
8-bit Timer3 PWM Period Register
T3PPR
(8 Bit)
T3PHR[3:2]
T3_PE
[CBH]
T3ST
fx
P
r
e
s
c
a
l
e
r
S
T3CN
÷1
Q
PWM3
Comparator
÷2
MUX
÷16
2 Bit
8-bit Timer3
Counter + 2-bit
T3
(8 Bit)
Clear
[CCH]
R
POL
2
T3CK[1:0]
Comparator
T2 Clock
Source
Slave
T3PDR
(8 Bit)
[CCH]
T3PWHR[1:0]
Master
T3PDR
(8 Bit)
[CCH]
Figure 11-34 PWM Mode
PS029602-0212
PRELIMINARY
110
Z51F0811
Product Specification
Source Clock
(fX)
T3
00
01
02
03
04
7F
80
81
82
3FF
00
01
02
T3/PWM3
POL = 1
T3/PWM3
POL = 0
Duty Cycle(1+80H)X250ns = 32.25us
Period Cycle(1+3FFH)X250ns = 256us 3.9kHz
T3CR[1:0] = 00H(fXIN)
T3PWHR = 03H
T3PPR = FFH
T3PDR = 80H
PW3H3
PW3H2
T3PPR(8 Bit)
1
1
FFH
PW3H1
PW3H0
T3PDR(8 Bit)
0
0
80H
Figure 11-35 Example of PWM at 4MHz
T3CR[1:0] = 10H(2us)
T3PWHR = 00H
T3PPR = 0EH
T3PDR = 05H
Write 0AH to T3PPR
Source Clock
(fX)
T3
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 00 01 02 03 04 05 06 07 08 09 0A 00 01 02 03 04 05 06
T3/PWM
POL = 1
Duty Cycle
(1+05H)X2us = 12us
Duty Cycle
(1+05H)X2us = 12us
Period Cycle
(1+0EH)X2us = 32us 31.25kHz
Duty Cycle
(1+05H)X2us = 12us
Period Cycle
(1+0AH)X2us = 22us 45.5kHz
Figure 11-36 Example of Changing the Period in Absolute Duty Cycle at 4Mhz
11.5.2.7 8-Bit (16-Bit) Compare Output Mode
If the T3 (T2+T3) value and the T3DR (T2DR+T3DR) value are matched, T3/PWM3 port outputs.
The output is 50:50 of duty square wave, the frequency is following
f
COMP
Oscillator Frequency
2 Prescaler Value (TDR 1)
To export the compare output as T3/PWM3, the T3_PE bit in the T3PWHR register must set to ‘1’.
PS029602-0212
PRELIMINARY
111
Z51F0811
Product Specification
11.5.2.8 Register Map
Table 11-10 Register Map
Name
Address
Dir
Default
Description
T2CR
C6
R/W
00H
Timer 2 Mode Control Register
T2
C7
R
00H
Timer 2 Register
T2DR
C7
W
FFH
Timer 2 Data Register
CDR2
C7
R
00H
Capture 2 Data Register
T3CR
CA
R/W
00H
Timer 3 Mode Control Register
T3DR
CB
W
FFH
Timer 3 Data Register
T3PPR
CB
W
FFH
Timer 3 PWM Period Register
T3
CC
R
00H
Timer 3 Register
T3PDR
CC
R/W
00H
Timer 3 PWM Duty Register
CDR3
CC
R
00H
Capture 3 Data Register
T3PWHR
CD
W
00H
Timer 3 PWM High Register
11.5.2.9 Timer/Counter 2, 3 Register description
The Timer/Counter 2, 3 Register consists of Timer 2 Mode Control Register (T2CR), Timer 2
Register (T2), Timer 2 Data Register (T2DR), Capture 2 Data Register (CDR2), Timer 3 Mode Control
Register (T3CR), Timer 3 Data Register (T3DR), Timer 3 PWM Period Register (T3PPR), Timer 3
Register (T3), Timer 3 PWM Duty Register (T3PPR), Capture 3 Data Register (CDR3) and Timer 3
PWM High Register (T3PWHR).
PS029602-0212
PRELIMINARY
112
Z51F0811
Product Specification
11.5.2.10 Register description for Timer/Counter 2, 3
T2CR (Timer 2 Mode Control Register) : C6H
7
6
5
4
3
2
1
0
T2EN
T2_PE
CAP2
T2CK2
T2CK1
T2CK0
T2CN
T2ST
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
T2EN
Control Timer 2
T2_PE
CAP2
0
Timer 2 disable
1
Timer 2 enable
Control Timer 2 Output port
0
Timer 2 Output disable
1
Timer 2 Output enable
Control Timer 2 operation mode
T2CK[2:0]
0
Timer/Counter mode
1
Capture mode
Select Timer 2 clock source. Fx is main system clock frequency
T2CK2
0
T2CN
T2CK1
0
T2CK0
Description
0
fx/2
0
0
1
fx/4
0
1
0
fx/16
0
1
1
fx/64
1
0
0
fx/256
1
0
1
fx/1024
1
1
0
fx/4096
1
1
1
External Clock (EC2)
Control Timer 2 Count pause/continue
T2ST
0
Temporary count stop
1
Continue count
Control Timer 2 start/stop
0
Counter stop
1
Clear counter and start
T2 (Timer 2 Register: Read Case) : C7H
7
6
5
4
3
2
1
0
T27
T26
T25
T24
T23
T22
T21
T20
R
R
R
R
R
R
R
R
Initial value : 00H
T2[7:0]
PS029602-0212
T2 Counter data
PRELIMINARY
113
Z51F0811
Product Specification
T2DR (Timer 2 Data Register: Write Case) : C7H
7
6
5
4
3
2
1
0
T2D7
T2D6
T2D5
T2D4
T2D3
T2D2
T2D1
T2D0
W
W
W
W
W
W
W
W
Initial value : FFH
T2D[7:0]
T2 Compare data
CDR2 (Capture 2 Data Register: Read Case) : C7H
7
6
5
4
3
2
1
0
CDR27
CDR26
CDR25
CDR24
CDR23
CDR22
CDR21
CDR20
R
R
R
R
R
R
R
R
Initial value : 00H
CDR2[7:0]
T2 Capture data
T3CR (Timer 3 Mode Count Register) : CAH
7
6
5
4
3
2
1
0
POL
16BIT
PWM3E
CAP3
T3CK1
T3CK0
T3CN
T3ST
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
POL
16BIT
PWM3E
CAP3
T3CK[1:0]
Configure PWM polarity
0
Negative (Duty Match: Clear)
1
Positive (Duty Match: Set)
Select Timer 1 8/16Bit
0
8 Bit
1
16 Bit
Control PWM enable
0
PWM disable
1
PWM enable
Control Timer 3 mode
0
Timer/Counter mode
1
Capture mode
Select clock source of Timer 3. Fx is the frequency of main system.
T3CK1
T3CK0
Description
0
0
fx
0
1
fx/2
1
0
fx/16
1
1
Use Timer 2 Clock
Note) If you want to use “Using Timer 2 Clock”, you can set T2EN bit in T2CR
T3CN
T3ST
Control Timer 3 Count pause/continue
0
Temporary count stop
1
Continue count
Control Timer 3 start/stop
0
Counter stop
1
Clear counter and start
T3DR (Timer 3 Data Register: Write Case) : CBH
PS029602-0212
PRELIMINARY
114
Z51F0811
Product Specification
7
6
5
4
3
2
1
0
T3D7
T3D6
T3D5
T3D4
T3D3
T3D2
T3D1
T3D0
W
W
W
W
W
W
W
W
Initial value : FFH
T3D[7:0]
T3 Compare data
T3PPR (Timer 3 PWM Period Register: Write Case PWM mode only) : CBH
7
6
5
4
3
2
1
0
T3PP7
T3PP6
T3PP5
T3PP4
T3PP3
T3PP2
T3PP1
T3PP0
W
W
W
W
W
W
W
W
Initial value : FFH
T3PP[7:0]
T3 PWM Period data
T3 (Timer 3 Register: Read Case) : CCH
7
6
5
4
3
2
1
0
T37
T36
T35
T34
T33
T32
T31
T30
R
R
R
R
R
R
R
R
Initial value : 00H
T3[7:0]
T3 Counter Period data
T3PDR (Timer 3 PWM Duty Register) : CCH
7
6
5
4
3
2
1
0
T3PD7
T3PD6
T3PD5
T3PD4
T3PD3
T3PD2
T3PD1
T3PD0
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
T3PD[7:0]
T3 PWM Duty data
Note) only write, when PWM3E ‘1’
CDR3 (Capture 3 Data Register: Read Case) : CCH
7
6
5
4
3
2
1
0
CDR37
CDR36
CDR35
CDR34
CDR33
CDR32
CDR31
CDR30
R
R
R
R
R
R
R
R
Initial value : 00H
CDR3[7:0]
T3 Capture data
T3PWHR (Timer 3 PWM High Register) : CDH
7
6
5
4
3
2
1
0
T3_PE
-
-
-
PW3H3
PW3H2
PW3H1
PW3H0
W
-
-
-
W
W
W
W
Initial value : 00H
T3_PE
PW3H[3:2]
PS029602-0212
Control Timer 3 Output port operation
Note) only writable Bit. Be careful
0
Timer 3 Output disable
1
Timer 3 Output enable
PWM period High value (Bit [9:8])
PRELIMINARY
115
Z51F0811
Product Specification
PW3H[1:0]
PWM duty High value (Bit [9:8])
PERIOD:
DUTY:
PS029602-0212
PW3H3
PW3H1
PW3H2
PW3H0
T3PPR[7:0]
T3PDR[7:0]
PRELIMINARY
116
Z51F0811
Product Specification
11.5.3 16-Bit Timer 4
11.5.3.1 Overview
The 16-bit timer 4 consists of Multiplexer, Timer Data Register High/Low, Timer Register High/Low,
Timer Mode Control Register. It is able to use internal 16-bit timer/ counter without a port output
function.
The 16-bit timer 4 is able to use the divided clock of the main clock selected from pre-scalar output.
11.5.3.2 16 Bit Timer/Counter Mode
T4CR
fX
T4EN
P
R
E
S
C
A
L
E
R
-
CAP4
T4CK2
T4CK1
÷2
÷4
÷8
÷ 16
÷ 64
÷ 256
÷ 1024
÷ 2048
T4CK0
T4CN
T4ST
ADDRESS : CEH
INITIAL VALUE : 0-00_0000 b
T4ST
T4EN
16-bit Counter
MUX
T4H(8-bit)
T4L(8-bit)
clear
T4IF
comparator
CDR4H(8-bit)
3
EIEDGE[4]
CDR4L(8-bit)
16-bit Capture Register
T4CK[2:0]
T4DRH(8-bit)
T4DRL(8-bit)
16-bit Timer Data Register
INT4IF
INT4
Timer4
Interrupt
INT4
Interrupt
Figure 11-37 Timer4 16-bit Mode Block Diagram
PS029602-0212
PRELIMINARY
117
Z51F0811
Product Specification
11.5.3.3 Register Map
Table 11-11 Register Map
Name
Address
Dir
Default
Description
T4CR
0xCE
R/W
00H
Timer 4 Mode Control Register
T4L
0xCF
R
00H
Timer 4 Low Register
T4LDR
0xCF
W
FFH
Timer 4 Low Data Register
LCDR4
0xCF
R
00H
Low Capture 4 Data Register
T4H
0xD5
R
00H
Timer 4 High Register
T4HDR
0xD5
R/W
00H
Timer 4 High Data Register
HCDR4
0xD5
R
00H
High Capture 4 Data Register
11.5.3.4 Timer 4 Register description
The timer 4 register consists of Timer 4 Mode Control Register (T4CR), Timer 4 Low Register (T4L),
Timer 4 Low Data Register (T4LDR), Low Capture 4 Data Register (LCDR4), Timer 4 High Register
(T4H), Timer 4 High Data Register (T4HDR), High Capture 4 Data Register (HCDR4).
11.5.3.5 Register description for Timer 4
T4CR (Timer 4 Mode Control Register) : CEH
7
6
5
4
3
2
1
0
T4EN
-
CAP4
T4CK2
T4CK1
T4CK0
T4CN
T4ST
R/W
-
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
T4EN
CAP4
T4CK[2:0]
Control Timer 4 operation
0
Timer 4 disable
1
Timer 4 enable
Control Timer 4 mode
0
Timer/Counter mode
1
Capture mode
Select Timer 4 clock source. fx is main system clock frequency
T4CK2
T4CN
T4ST
PS029602-0212
T4CK0
Description
0
0
T4CK1
0
fx/2
0
0
1
fx/4
0
1
0
fx/8
0
1
1
fx/16
1
0
0
fx/64
1
0
1
fx/256
1
1
0
fx/1024
1
1
1
fx/2048
Control Timer 4 Count pause/continue
0
Temporary count stop
1
Continue count
Control Timer 4 start/stop
PRELIMINARY
118
Z51F0811
Product Specification
0
Counter stop
1
Clear Counter and start
T4L (Timer 4 Low Register: Read Case) : CFH
7
6
5
4
3
2
1
0
T4L7
T4L6
T4L5
T4L4
T4L3
T4L2
T4L1
T4L0
R
R
R
R
R
R
R
R
Initial value : 00H
T4L[7:0]
T4L Counter
T4LDR (Timer 4 Low Data Register: Write Case) : CFH
7
6
5
4
3
2
1
0
T4LD7
T4LD6
T4LD5
T4LD4
T4LD3
T4LD2
T4LD1
T4LD0
W
W
W
W
W
W
W
W
Initial value : FFH
T4LD[7:0]
T4L Compare
LCDR4 (Low Capture 4 Data Register: Read Case) : CFH
7
6
5
4
3
2
1
0
LCDR47
LCDR46
LCDR45
LCDR44
LCDR43
LCDR42
LCDR41
LCDR40
R
R
R
R
R
R
R
R
Initial value : 00H
LCDR4[7:0]
T4L Capture data
T4H (Timer 4 High Register: Read Case) : D5H
7
6
5
4
3
2
1
0
T4H7
T4H6
T4H5
T4H4
T4H3
T4H2
T4H1
T4H0
R
R
R
R
R
R
R
R
Initial value : 00H
T4H[7:0]
T4H Counter Period
T4HDR (Timer 4 High Data Register: Write Case) : D5H
7
6
5
4
3
2
1
0
T4HD7
T4HD6
T4HD5
T4HD4
T4HD3
T4HD2
T4HD1
T4HD0
W
W
W
W
W
W
W
W
Initial value : FFH
T4HD[7:0]
T4H Compare
HDR4 (High Capture 4 Data Register: Read Case) : D5H
7
6
5
4
3
2
1
0
HCDR47
HCDR46
HCDR45
HCDR44
HCDR43
HCDR42
HCDR41
HCDR40
R
R
R
R
R
R
R
R
Initial value : 00H
PS029602-0212
PRELIMINARY
119
Z51F0811
Product Specification
HCDR4[7:0]
PS029602-0212
T4H Capture data
PRELIMINARY
120
Z51F0811
Product Specification
11.5.4 Timer Interrupt Status Register (TMISR)
11.5.4.1 Register description for TMISR
TMISR (Timer Interrupt Status Register) : D5H
7
6
5
4
3
2
1
0
-
-
TMIF5
TMIF4
TMIF3
TMIF2
TMIF1
TMIF0
-
-
R
R
R
R
R
R
Initial value : 00H
TMIF5
TMIF4
TMIF3
TMIF2
TMIF1
TMIF0
Timer 5 Interrupt Flag
0
No Timer 5 interrupt
1
Timer 5 interrupt occurred, write “1” to clear interrupt flag
Timer 4 Interrupt Flag
0
No Timer 4 interrupt
1
Timer 4 interrupt occurred, write “1” to clear interrupt flag
Timer 3 Interrupt Flag
0
No Timer 3 interrupt
1
Timer 3 interrupt occurred, write “1” to clear interrupt flag
Timer 2 Interrupt Flag
0
No Timer 2 interrupt
1
Timer 2 interrupt occurred, write “1” to clear interrupt flag
Timer 1 Interrupt Flag
0
No Timer 1 interrupt
1
Timer 1 interrupt occurred, write “1” to clear interrupt flag
Timer 0 Interrupt Flag
0
No Timer 0 interrupt
1
Timer 0 interrupt occurred, write “1” to clear interrupt flag
Note) The Timer Interrupt Status Register contains interrupt information of each timers. Even if user disabled
timer interrupt at IE2, user could check timer interrupt condition from this register.
PS029602-0212
PRELIMINARY
121
Z51F0811
Product Specification
11.6 Buzzer Driver
11.6.1 Overview
The Buzzer consists of 8 Bit Counter and BUZDR (Buzzer Data Register), BUZCR (Buzzer Control
Register). The Square Wave (61.035Hz~125 KHz, @8MHz) gets out of P12/BUZ pin. BUZDR (Buzzer
Data Register) controls the Buzzer frequency (look at the following expression). In the BUZCR
(Buzzer Control Register), BUCK[1:0] selects source clock divided from prescaler.
f BUZ (Hz)
Oscillator Frequency
2 Prescaler Ratio (BUZDR 1)
Table 11-12 Buzzer Frequency at 8MHz
Buzzer Frequency (kHz)
BUZDR[7:0]
BUZCR[2:1]=00
BUZCR[2:1]=01
BUZCR[2:1]=10
BUZCR[2:1]=11
0000_0000
125kHz
62.5kHz
31.25kHz
15.625kHz
0000_0001
62.5kHz
31.25kHz
15.625kHz
7.812kHz
…
…
…
…
…
1111_1101
492.126Hz
246.063Hz
123.031Hz
61.515Hz
1111_1110
490.196Hz
245.098Hz
122.549Hz
61.274Hz
1111_1111
488.281Hz
244.141Hz
122.07Hz
61.035Hz
11.6.2 Block Diagram
8-bit Up-counter
÷32
fx
Pre
scaler
÷64
÷128
Overflow
Counter
MUX
BUZCR[0]
÷256
F/F
BUZCR[2:1]
Selection Input
Clock
BUZO PIN
2
Counter
Writing to BUZDR
RESET
Buzzer Control Register
[9FH]
BUZCR
BUZDR
Buzzer Data Register
[8FH]
Figure 11-38 Buzzer Driver Block Diagram
PS029602-0212
PRELIMINARY
122
Z51F0811
Product Specification
11.6.3 Register Map
Table 11-13 Register Map
Name
Address
Dir
Default
Description
BUZDR
8FH
R/W
FFH
Buzzer Data Register
BUZCR
9FH
R/W
00H
Buzzer Control Register
11.6.4 Buzzer Driver Register description
Buzzer Driver consists of Buzzer Data Register (BUZDR), Buzzer Control Register (BUZCR).
11.6.5 Register description for Buzzer Driver
BUZDR (Buzzer Data Register) : 8FH
7
6
5
4
3
2
1
0
BUZDR7
BUZDR6
BUZDR5
BUZDR4
BUZDR3
BUZDR2
BUZDR1
BUZDR0
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : FFH
BUZDR[7:0]
This bits control the Buzzer frequency
Its resolution is 00H ~ FFH
BUZCR (Buzzer Control Register) : 9FH
7
6
5
4
3
2
1
0
-
-
-
-
-
BUCK1
BUCK0
BUZEN
-
-
-
-
-
R/W
R/W
R/W
Initial value : 00H
BUCK[1:0]
BUZEN
Buzzer Driver Source Clock Selection
BUCK1
BUCK0
Source Clock
0
0
fx/32
0
1
fx/64
1
0
fx/128
1
1
fx/256
Buzzer Driver Operation Control
0
Buzzer Driver disable
1
Buzzer Driver enable
Note) fx: Main system clock oscillation frequency
PS029602-0212
PRELIMINARY
123
Z51F0811
Product Specification
11.7 USART
11.7.1 Overview
The Universal Synchronous and Asynchronous serial Receiver and Transmitter (USART) is a highly
flexible serial communication device. The main features are listed below.
- Full Duplex Operation (Independent Serial Receive and Transmit Registers)
- Asynchronous or Synchronous Operation
- Master or Slave Clocked Synchronous and SPI Operation
- Supports all four SPI Modes of Operation (Mode 0, 1, 2, 3)
- LSB First or MSB First Data Transfer @SPI mode
- High Resolution Baud Rate Generator
- Supports Serial Frames with 5,6,7,8, or 9 Data Bits and 1 or 2 Stop Bits
- Odd or Even Parity Generation and Parity Check Supported by Hardware
- Data OverRun Detection
- Framing Error Detection
- Digital Low Pass Filter
- Three Separate Interrupts on TX Complete, TX Data Register Empty and RX Complete
- Double Speed Asynchronous Communication Mode
USART has three main parts of Clock Generator, Transmitter and Receiver. The Clock Generation
logic consists of synchronization logic for external clock input used by synchronous or SPI slave
operation, and the baud rate generator for asynchronous or master (synchronous or SPI) operation.
The Transmitter consists of a single write buffer, a serial shift register, parity generator and control
logic for handling different serial frame formats. The write buffer allows a continuous transfer of data
without any delay between frames. The receiver is the most complex part of the USART module due
to its clock and data recovery units. The recovery unit is used for asynchronous data reception. In
addition to the recovery unit, the Receiver includes a parity checker, a shift register, a two level
receive FIFO (UDATAx) and control logic. The Receiver supports the same frame formats as the
Transmitter and can detect Frame Error, Data OverRun and Parity Errors.
PS029602-0212
PRELIMINARY
124
Z51F0811
Product Specification
11.7.2 Block Diagram
UBAUD
SCLK
Baud Rate Generator
Master
Clock Sync
Logic
XCK
Control
XCK
UMSEL[1:0]
RXC
RXD/
MISO
M
U
X
M
U
X
Rx Interrupt
Rx
Control
Clock
Recovery
Data
Recovery
Receive Shift Register
(RXSR)
DOR/PE/FE
Checker
UDATA[0]
(Rx)
M
U
X
UMSEL1&UMSEL0
Master
Stop bit
Generator
D
E
P
TXD/
MOSI
D
E
P
UMSEL0
Transmit Shift Register
(TXSR)
M
U
X
B
u
s
L
i
n
e
Parity
Generator
M
U
X
Tx
Control
UDATA[1]
(Rx)
UPM0
I
n
t
e
r
n
a
l
UPM1
UDATA(Tx)
SS
Control
SS
TXC
Tx Interrupt
UMSEL1 UMSEL0
UPM1
UPM0
UCTRLx2
UDRIE
RXCIE
WAKEIE
TXE
RXE
USARTEN
U2X
ADDRESS : E3H, FBH
INITIAL VALUE : 0000_0000B
UCTRLx3
MASTER LOOPS DISXCK
SPISS
-
USBS
TX8
RX8
ADDRESS : E4H, FCH
INITIAL VALUE : 0000_-000B
UDRE
WAKE
SOFTRST
DOR
FE
PE
ADDRESS : E5H., FDH
INITIAL VALUE : 1000_0000B
USTATx
TXCIE
TXC
RXC
USIZE2 USIZE1 USIZE0 UCPOL
ADDRESS : E2H , FAH
INITIAL VALUE : 0000_0000B
UCTRLx1
Figure 11-39 USART Block Diagram
PS029602-0212
PRELIMINARY
125
Z51F0811
Product Specification
11.7.3 Clock Generation
UBAUD
U2X
fSCLK
Prescaling
Up-Counter
(UBAUD+1)
/8
/2
SCLK
M
U
X
M
U
X
txclk
MASTER
Sync Register
Edge
Detector
M
U
X
UMSEL0
UCPOL
XCK
/2
M
U
X
rxclk
Figure 11-40 Clock Generation Block Diagram
The Clock generation logic generates the base clock for the Transmitter and Receiver. The USART
supports four modes of clock operation and those are Normal Asynchronous, Double Speed
Asynchronous, Master Synchronous and Slave Synchronous. The clock generation scheme for
Master SPI and Slave SPI mode is the same as Master Synchronous and Slave Synchronous
operation mode. The UMSELn bit in UCTRLx1 register selects between asynchronous and
synchronous operation. Asynchronous Double Speed mode is controlled by the U2X bit in the
UCTRLx2 register. The MASTER bit in UCTRLx2 register controls whether the clock source is internal
(Master mode, output port) or external (Slave mode, input port). The XCK pin is only active when the
USART operates in Synchronous or SPI mode.
Table below contains equations for calculating the baud rate (in bps).
Table 11-14 Equations for Calculating Baud Rate Register Setting
Operating Mode
Equation for Calculating Baud Rate
Asynchronous Normal Mode (U2X=0)
Baud Rate
fSCLK
16 UBAUDx
1
Asynchronous Double Speed Mode (U2X=1)
Baud Rate
fSCLK
8 UBAUDx
1
Synchronous or SPI Master Mode
Baud Rate
fSCLK
2 UBAUDx
1
PS029602-0212
PRELIMINARY
126
Z51F0811
Product Specification
11.7.4 External Clock (XCK)
External clocking is used by the synchronous or spi slave modes of operation.
External clock input from the XCK pin is sampled by a synchronization logic to remove meta-stability.
The output from the synchronization logic must then pass through an edge detector before it can be
used by the Transmitter and Receiver. This process introduces a two CPU clock period delay and
therefore the maximum frequency of the external XCK pin is limited by the following equation.
fXCK
fSCLK
4
where fXCK is the frequency of XCK and fSCLK is the frequency of main system clock (SCLK).
11.7.5 Synchronous mode Operation
When synchronous or spi mode is used, the XCK pin will be used as either clock input (slave) or
clock output (master). The dependency between the clock edges and data sampling or data change is
the same. The basic principle is that data input on RXD (MISO in spi mode) pin is sampled at the
opposite XCK clock edge of the edge in the data output on TXD (MOSI in spi mode) pin is changed.
The UCPOL bit in UCTRLx1 register selects which XCK clock edge is used for data sampling and
which is used for data change. As shown in the figure below, when UCPOL is zero the data will be
changed at rising XCK edge and sampled at falling XCK edge.
UCPOL = 1
XCK
TXD/RXD
Sample
UCPOL = 0
XCK
TXD/RXD
Sample
Figure 11-41 Synchronous Mode XCKn Timing
PS029602-0212
PRELIMINARY
127
Z51F0811
Product Specification
11.7.6 Data format
A serial frame is defined to be one character of data bits with synchronization bits (start and stop
bits), and optionally a parity bit for error checking.
The USART supports all 30 combinations of the following as valid frame formats.
- 1 start bit
- 5, 6, 7, 8 or 9 data bits
- no, even or odd parity bit
- 1 or 2 stop bits
A frame starts with the start bit followed by the least significant data bit (LSB). Then the next data bits,
up to a total of nine, are succeeding, ending with the most significant bit (MSB). If enabled the parity
bit is inserted after the data bits, before the stop bits. A high to low transition on data pin is considered
as start bit. When a complete frame is transmitted, it can be directly followed by a new frame, or the
communication line can be set to an idle state. The idle means high state of data pin. The next figure
shows the possible combinations of the frame formats. Bits inside brackets are optional.
1 data frame
Idle
St
D0
D1
D2
D3
D4
[D5]
[D6]
[D7]
[D8]
[P]
Sp1
[Sp2]
Idle / St
Character bits
Figure 11-42 frame format
1 data frame consists of the following bits
•
Idle
No communication on communication line (TxD/RxD)
•
St
Start bit (Low)
•
Dn
Data bits (0~8)
•
Parity bit ------------ Even parity, Odd parity, No parity
•
Stop bit(s) ---------- 1 bit or 2 bits
The frame format used by the USART is set by the USIZE[2:0], UPM[1:0] and USBS bits in
UCTRLx1 register. The Transmitter and Receiver use the same setting.
PS029602-0212
PRELIMINARY
128
Z51F0811
Product Specification
11.7.7 Parity bit
The parity bit is calculated by doing an exclusive-or of all the data bits. If odd parity is used, the result
of the exclusive-or is inverted. The parity bit is located between the MSB and first stop bit of a serial
frame.
Peven = Dn-1 ^ … ^ D3 ^ D2 ^ D1 ^ D0 ^ 0
Podd = Dn-1 ^ … ^ D3 ^ D2 ^ D1 ^ D0 ^ 1
Peven : Parity bit using even parity
Podd : Parity bit using odd parity
Dn
: Data bit n of the character
11.7.8 USART Transmitter
The USART Transmitter is enabled by setting the TXE bit in UCTRLx1 register. When the
Transmitter is enabled, the normal port operation of the TXD pin is overridden by the serial output pin
of USART. The baud-rate, operation mode and frame format must be setup once before doing any
transmissions. If synchronous or spi operation is used, the clock on the XCK pin will be overridden
and used as transmission clock. If USART operates in spi mode, SS pin is used as SS input pin in
slave mode or can be configured as SS output pin in master mode. This can be done by setting
SPISS bit in UCTRLx3 register.
11.7.8.1 Sending Tx data
A data transmission is initiated by loading the transmit buffer (UDATAx register I/O location) with the
data to be transmitted. The data written in transmit buffer is moved to the shift register when the shift
register is ready to send a new frame. The shift register is loaded with the new data if it is in idle state
or immediately after the last stop bit of the previous frame is transmitted. When the shift register is
loaded with new data, it will transfer one complete frame at the settings of control registers. If the 9-bit
characters are used in asynchronous or synchronous operation mode (USIZE[2:0]=7), the ninth bit
must be written to the TX8 bit in UCTRLx3 register before loading transmit buffer (UDATA register).
11.7.8.2 Transmitter flag and interrupt
The USART Transmitter has 2 flags which indicate its state. One is USART Data Register Empty
(UDRE) and the other is Transmit Complete (TXC). Both flags can be interrupt sources.
UDRE flag indicates whether the transmit buffer is ready to be loaded with new data. This bit is set
when the transmit buffer is empty and cleared when the transmit buffer contains data to be
transmitted that has not yet been moved into the shift register. And also this flag can be cleared by
writing ‘0’ to this bit position. Writing ‘1’ to this bit position is prevented.
When the Data Register Empty Interrupt Enable (UDRIE) bit in UCTRL2 register is set and the Global
Interrupt is enabled, USART Data Register Empty Interrupt is generated while UDRE flag is set.
The Transmit Complete (TXC) flag bit is set when the entire frame in the transmit shift register has
been shifted out and there are no more data in the transmit buffer. The TXC flag is automatically
cleared when the Transmit Complete Interrupt service routine is executed, or it can be cleared by
writing ‘0’ to TXC bit in USTAT register.
PS029602-0212
PRELIMINARY
129
Z51F0811
Product Specification
When the Transmit Complete Interrupt Enable (TXCIE) bit in UCTRL2 register is set and the Global
Interrupt is enabled, USART Transmit Complete Interrupt is generated while TXC flag is set.
11.7.8.3 Parity Generator
The Parity Generator calculates the parity bit for the sending serial frame data. When parity bit is
enabled (UPM[1]=1), the transmitter control logic inserts the parity bit between the MSB and the first
stop bit of the sending frame.
11.7.8.4 Disabling Transmitter
Disabling the Transmitter by clearing the TXE bit will not become effective until ongoing transmission
is completed. When the Transmitter is disabled, the TXD pin is used as normal General Purpose I/O
(GPIO) or primary function pin.
11.7.9 USART Receiver
The USART Receiver is enabled by setting the RXE bit in the UCTRLx1 register. When the Receiver
is enabled, the normal pin operation of the RXD pin is overridden by the USART as the serial input pin
of the Receiver. The baud-rate, mode of operation and frame format must be set before serial
reception. If synchronous or spi operation is used, the clock on the XCK pin will be used as transfer
clock. If USART operates in spi mode, SS pin is used as SS input pin in slave mode or can be
configured as SS output pin in master mode. This can be done by setting SPISS bit in UCTRLx3
register.
11.7.9.1 Receiving Rx data
When USART is in synchronous or asynchronous operation mode, the Receiver starts data
reception when it detects a valid start bit (LOW) on RXD pin. Each bit after start bit is sampled at predefined baud-rate (asynchronous) or sampling edge of XCK (synchronous), and shifted into the
receive shift register until the first stop bit of a frame is received. Even if there’s 2nd stop bit in the
frame, the 2nd stop bit is ignored by the Receiver. That is, receiving the first stop bit means that a
complete serial frame is present in the receiver shift register and contents of the shift register are to
be moved into the receive buffer. The receive buffer is read by reading the UDATAx register.
If 9-bit characters are used (USIZE[2:0] = 7) the ninth bit is stored in the RX8 bit position in the
UCTRLx3 register. The 9th bit must be read from the RX8 bit before reading the low 8 bits from the
UDATAx register. Likewise, the error flags FE, DOR, PE must be read before reading the data from
UDATAx register. This is because the error flags are stored in the same FIFO position of the receive
buffer.
11.7.9.2 Receiver flag and interrupt
The USART Receiver has one flag that indicates the Receiver state.
The Receive Complete (RXC) flag indicates whether there are unread data present in the receive
buffer. This flag is set when there are unread data in the receive buffer and cleared when the receive
PS029602-0212
PRELIMINARY
130
Z51F0811
Product Specification
buffer is empty. If the Receiver is disabled (RXE=0), the receiver buffer is flushed and the RXC flag is
cleared.
When the Receive Complete Interrupt Enable (RXCIE) bit in the UCTRLx2 register is set and Global
Interrupt is enabled, the USART Receiver Complete Interrupt is generated while RXC flag is set.
The USART Receiver has three error flags which are Frame Error (FE), Data OverRun (DOR) and
Parity Error (PE). These error flags can be read from the USTATx register. As data received are
stored in the 2-level receive buffer, these error flags are also stored in the same position of receive
buffer. So, before reading received data from UDATAx register, read the USTATx register first which
contains error flags.
The Frame Error (FE) flag indicates the state of the first stop bit. The FE flag is zero when the stop
bit was correctly detected as one, and the FE flag is one when the stop bit was incorrect, ie detected
as zero. This flag can be used for detecting out-of-sync conditions between data frames.
The Data OverRun (DOR) flag indicates data loss due to a receive buffer full condition. A DOR
occurs when the receive buffer is full, and another new data is present in the receive shift register
which are to be stored into the receive buffer. After the DOR flag is set, all the incoming data are lost.
To prevent data loss or clear this flag, read the receive buffer.
The Parity Error (PE) flag indicates that the frame in the receive buffer had a Parity Error when
received. If Parity Check function is not enabled (UPM[1]=0), the PE bit is always read zero.
Note) The error flags related to receive operation are not used when USART is in SPI mode.
11.7.9.3 Parity Checker
If Parity Bit is enabled (UPM[1]=1), the Parity Checker calculates the parity of the data bits in
incoming frame and compares the result with the parity bit from the received serial frame.
11.7.9.4 Disabling Receiver
In contrast to Transmitter, disabling the Receiver by clearing RXE bit makes the Receiver inactive
immediately. When the Receiver is disabled the Receiver flushes the receive buffer and the remaining
data in the buffer is all reset. The RXD pin is not overridden the function of USART, so RXD pin
becomes normal GPIO or primary function pin.
11.7.9.5 Asynchronous Data Reception
To receive asynchronous data frame, the USART includes a clock and data recovery unit. The Clock
Recovery logic is used for synchronizing the internally generated baud-rate clock to the incoming
asynchronous serial frame on the RXD pin.
The Data recovery logic samples and low pass filters the incoming bits, and this removes the noise
of RXD pin.
The next figure illustrates the sampling process of the start bit of an incoming frame. The sampling
rate is 16 times the baud-rate for normal mode, and 8 times the baud rate for Double Speed mode
(U2X=1). The horizontal arrows show the synchronization variation due to the asynchronous sampling
process. Note that larger time variation is shown when using the Double Speed mode.
PS029602-0212
PRELIMINARY
131
Z51F0811
Product Specification
START
RxD
IDLE
BIT0
Sample
(U2X = 0)
0
0
1
2
3
4
5
6
8
7
9
10
11
12
13
14
15
16
1
2
3
Sample
(U2X = 1)
0
1
2
4
3
5
6
7
8
1
2
Figure 11-43 Start Bit Sampling
When the Receiver is enabled (RXE=1), the clock recovery logic tries to find a high to low transition
on the RXD line, the start bit condition. After detecting high to low transition on RXD line, the clock
recovery logic uses samples 8,9, and 10 for Normal mode, and samples 4, 5, and 6 for Double Speed
mode to decide if a valid start bit is received. If more than 2 samples have logical low level, it is
considered that a valid start bit is detected and the internally generated clock is synchronized to the
incoming data frame. And the data recovery can begin. The synchronization process is repeated for
each start bit.
As described above, when the Receiver clock is synchronized to the start bit, the data recovery can
begin. Data recovery process is almost similar to the clock recovery process. The data recovery logic
samples 16 times for each incoming bits for Normal mode and 8 times for Double Speed mode. And
uses sample 8, 9, and 10 to decide data value for Normal mode, samples 4, 5, and 6 for Double
Speed mode. If more than 2 samples have low levels, the received bit is considered to a logic 0 and
more than 2 samples have high levels, the received bit is considered to a logic 1. The data recovery
process is then repeated until a complete frame is received including the first stop bit. The decided bit
value is stored in the receive shift register in order. Note that the Receiver only uses the first stop bit
of a frame. Internally, after receiving the first stop bit, the Receiver is in idle state and waiting to find
start bit.
BIT n
RxD
Sample
(U2X = 0)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
Sample
(U2X = 1)
1
2
3
4
5
6
7
8
1
Figure 11-44 Sampling of Data and Parity Bit
The process for detecting stop bit is like clock and data recovery process. That is, if 2 or more
samples of 3 center values have high level, correct stop bit is detected, else a Frame Error flag is set.
After deciding first stop bit whether a valid stop bit is received or not, the Receiver goes idle state and
monitors the RXD line to check a valid high to low transition is detected (start bit detection).
STOP 1
RxD
(A)
(B)
(C)
Sample
(U2X = 0)
1
2
3
PS029602-0212
Sample
4
5
6
7
8
9
10
11
12
13
PRELIMINARY
132
(U2X = 1)
1
2
3
4
5
6
7
Z51F0811
Product Specification
11.7.10 SPI Mode
The USART can be set to operate in industrial standard SPI compliant mode. The SPI mode has the
following features.
-
Full duplex, three-wire synchronous data transfer
-
Master or Slave operation
-
Supports all four SPI modes of operation (mode0, 1, 2, and 3)
-
Selectable LSB first or MSB first data transfer
-
Double buffered transmit and receive
-
Programmable transmit bit rate
When SPI mode is enabled (UMSEL[1:0]=3), the Slave Select (SS) pin becomes active low input in
slave mode operation, or can be output in master mode operation if SPISS bit is set.
Note that during SPI mode of operation, the pin RXD is renamed as MISO and TXD is renamed as
MOSI for compatibility to other SPI devices.
11.7.10.1 SPI Clock formats and timing
To accommodate a wide variety of synchronous serial peripherals from different manufacturers, the
USART has a clock polarity bit (UCPOL) and a clock phase control bit (UCPHA) to select one of four
clock formats for data transfers. UCPOL selectively insert an inverter in series with the clock. UCPHA
chooses between two different clock phase relationships between the clock and data. Note that
UCPHA and UCPOL bits in UCTRLx1 register have different meanings according to the UMSEL[1:0]
bits which decides the operating mode of USART.
Table below shows four combinations of UCPOL and UCPHA for SPI mode 0, 1, 2, and 3.
PS029602-0212
PRELIMINARY
133
Z51F0811
Product Specification
Table 11-15 CPOL Funtionality
SPI Mode
UCPOL
UCPHA
Leading Edge
Trailing Edge
0
0
0
Sample (Rising)
Setup (Falling)
1
0
1
Setup (Rising)
Sample (Falling)
2
1
0
Sample (Falling)
Setup (Rising)
3
1
1
Setup (Falling)
Sample (Rising)
BIT7
BIT0
BIT6
BIT1
XCK
(UCPOL=0)
XCK
(UCPOL=1)
SAMPLE
MOSI
MSB First
LSB First
…
…
BIT2
BIT5
BIT1
BIT6
BIT0
BIT7
MISO
/SS OUT
(MASTER)
/SS IN
(SLAVE)
Figure 11-46 SPI Clock Formats when UCPHA=0
When UCPHA=0, the slave begins to drive its MISO output with the first data bit value when SS goes
to active low. The first XCK edge causes both the master and the slave to sample the data bit value
on their MISO and MOSI inputs, respectively. At the second XCK edge, the USART shifts the second
data bit value out to the MOSI and MISO outputs of the master and slave, respectively. Unlike the
case of UCPHA=1, when UCPHA=0, the slave’s SS input must go to its inactive high level between
transfers. This is because the slave can prepare the first data bit when it detects falling edge of SS
input.
PS029602-0212
PRELIMINARY
134
Z51F0811
Product Specification
XCK
(UCPOL=0)
XCK
(UCPOL=1)
SAMPLE
MOSI
MSB First
LSB First
BIT7
BIT0
BIT6
BIT1
…
…
BIT2
BIT5
BIT1
BIT6
BIT0
BIT7
MISO
/SS OUT
(MASTER)
/SS IN
(SLAVE)
Figure 11-47 SPI Clock Formats when UCPHA=1
When UCPHA=1, the slave begins to drive its MISO output when SS goes active low, but the data
is not defined until the first XCK edge. The first XCK edge shifts the first bit of data from the shifter
onto the MOSI output of the master and the MISO output of the slave. The next XCK edge causes
both the master and slave to sample the data bit value on their MISO and MOSI inputs, respectively.
At the third XCK edge, the USART shifts the second data bit value out to the MOSI and MISO output
of the master and slave respectively. When UCPHA=1, the slave’s SS input is not required to go to its
inactive high level between transfers.
Because the SPI logic reuses the USART resources, SPI mode of operation is similar to that of
synchronous or asynchronous operation. An SPI transfer is initiated by checking for the USART Data
Register Empty flag (UDRE=1) and then writing a byte of data to the UDATA Register. In master
mode of operation, even if transmission is not enabled (TXE=0), writing data to the UDATA register is
necessary because the clock XCK is generated from transmitter block.
PS029602-0212
PRELIMINARY
135
Z51F0811
Product Specification
11.7.11 Register Map
Table 11-16 Register Map
Name
Address
Dir
Default
Description
UCTRL01
E2H
R/W
00H
USART Control 1 Register 0
UCTRL02
E3H
R/W
00H
USART Control 2 Register 0
UCTRL03
E4H
R/W
00H
USART Control 3 Register 0
USTAT0
E5H
R
80H
USART Status Register 0
UBAUD0
E6H
R/W
FFH
USART Baud Rate Generation Register 0
UDATA0
E7H
R/W
FFH
USART Data Register 0
UCTRL11
FAH
R/W
00H
USART Control 1 Register 1
UCTRL12
FBH
R/W
00H
USART Control 2 Register 1
UCTRL13
FCH
R/W
00H
USART Control 3 Register 1
USTAT1
FDH
R
80H
USART Status Register 1
UBAUD1
FEH
R/W
FFH
USART Baud Rate Generation Register 1
UDATA1
FFH
R/W
FFH
USART Data Register 2
11.7.12 USART Register description
USART module consists of USART Control 1 Register (UCTRLx1), USART Control 2 Register
(UCTRLx2), USART Control 3 Register (UCTRLx3), USART Status Register (USTATx), USART Data
Register (UDATAx), and USART Baud Rate Generation Register (UBAUDx).
PS029602-0212
PRELIMINARY
136
Z51F0811
Product Specification
11.7.13 Register description for USART
UCTRLx1 (USART Control 1 Register) E2H, FAH
7
6
5
4
3
UMSEL1
UMSEL0
UPM1
UPM0
USIZE2
R/W
R/W
R/W
R/W
R/W
2
1
USIZE1
USIZE0
UDORD
UCPHA
R/W
R/W
0
UCPOL
R/W
Initial value : 00H
UMSEL[1:0]
Selects operation mode of USART
UMSEL1
UMSEL0
Operating Mode
0
0
Asynchronous Mode (Normal Uart)
0
1
Synchronous Mode (Synchronous Uart)
1
0
Reserved
1
1
SPI Mode
UPM[1:0]
Selects Parity Generation and Check methods
UPM1
USIZE[2:0]
UDORD
UCPOL
UCPHA
PS029602-0212
UPM0
Parity mode
0
0
No Parity
0
1
Reserved
1
0
Even Parity
1
1
Odd Parity
When in asynchronous or synchronous mode of operation, selects the
length of data bits in frame.
USIZE2
USIZE1
USIZE0
Data length
0
0
0
5 bit
0
0
1
6 bit
0
1
0
7 bit
0
1
1
8 bit
1
0
0
Reserved
1
0
1
Reserved
1
1
0
Reserved
1
1
1
9 bit
This bit is in the same bit position with USIZE1. In SPI mode, when set to
one the MSB of the data byte is transmitted first. When set to zero the
LSB of the data byte is transmitted first.
0
LSB First
1
MSB First
Selects polarity of XCK in synchronous or spi mode
0
TXD change @Rising Edge, RXD change @Falling Edge
1
TXD change @ Falling Edge, RXD change @ Rising Edge
This bit is in the same bit position with USIZE0. In SPI mode, along
with UCPOL bit, selects one of two clock formats for different kinds of
synchronous serial peripherals. Leading edge means first XCK edge
and trailing edge means 2nd or last clock edge of XCK in one XCK
pulse. And Sample means detecting of incoming receive bit, Setup
means preparing transmit data.
UCPOL
UCPHA
Leading Edge
Trailing Edge
0
0
Sample (Rising)
Setup (Falling)
0
1
Setup (Rising)
Sample (Falling)
1
0
Sample (Falling)
Setup (Rising)
1
1
Setup (Falling)
Sample (Rising)
PRELIMINARY
137
Z51F0811
Product Specification
UCTRL2 (USART Control 2 Register) E3H, FBH
7
6
5
4
3
2
1
0
UDRIE
TXCIE
RXCIE
WAKEIE
TXE
RXE
USARTEN
U2X
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
UDRIE
TXCIE
RXCIE
WAKEIE
TXE
Interrupt enable bit for USART Data Register Empty.
0
Interrupt from UDRE is inhibited (use polling)
1
When UDRE is set, request an interrupt
Interrupt enable bit for Transmit Complete.
0
Interrupt from TXC is inhibited (use polling)
1
When TXC is set, request an interrupt
Interrupt enable bit for Receive Complete
0
Interrupt from RXC is inhibited (use polling)
1
When RXC is set, request an interrupt
Interrupt enable bit for Asynchronous Wake in STOP mode. When
device is in stop mode, if RXD goes to LOW level an interrupt can be
requested to wake-up system.
0
Interrupt from Wake is inhibited
1
When WAKE is set, request an interrupt
Enables the transmitter unit.
RXE
0
Transmitter is disabled
1
Transmitter is enabled
Enables the receiver unit.
USARTEN
0
Receiver is disabled
1
Receiver is enabled
Activate USART module by supplying clock.
0
USART is disabled (clock is halted)
1
USART is enabled
This bit only has effect for the asynchronous operation and selects
receiver sampling rate.
U2X
0
Normal asynchronous operation
1
Double Speed asynchronous operation
UCTRL3 (USART Control 3 Register) E4H, FCH
7
6
5
4
3
2
1
0
MASTER
LOOPS
DISXCK
SPISS
-
R/W
R/W
R/W
R/W
-
USBS
TX8
RX8
R/W
R/W
R/W
Initial value : 00H
MASTER
LOOPS
DISXCK
Selects master or slave in SPI or Synchronous mode operation and
controls the direction of XCK pin.
0
Slave mode operation and XCK is input pin.
1
Master mode operation and XCK is output pin
Controls the Loop Back mode of USART, for test mode
0
Normal operation
1
Loop Back mode
In Synchronous mode of operation, selects the waveform of XCK output.
0
PS029602-0212
XCK is free-running while USART is enabled in synchronous
master mode.
PRELIMINARY
138
Z51F0811
Product Specification
1
SPISS
XCK is active while any frame is on transferring.
Controls the functionality of SS pin in master SPI mode.
0
SS pin is normal GPIO or other primary function
1
SS output to other slave device
Selects the length of stop bit in Asynchronous or Synchronous mode of
operation.
USBS
0
1 Stop Bit
1
2 Stop Bit
The ninth bit of data frame in Asynchronous or Synchronous mode of
operation. Write this bit first before loading the UDATA register.
TX8
RX8
th
0
MSB (9 bit) to be transmitted is ‘0’
1
MSB (9 bit) to be transmitted is ‘1’
th
The ninth bit of data frame in Asynchronous or Synchronous mode of
operation. Read this bit first before reading the receive buffer.
0
MSB (9th bit) received is ‘0’
1
MSB (9 bit) received is ‘1’
th
USTAT (USART Status Register) E5H
7
6
5
4
3
2
1
0
UDRE
TXC
RXC
WAKE
SOFTRST
DOR
FE
PE
R/W
R/W
R/W
R/W
R/W
R
R
R
Initial value : 80H
UDRE
TXC
RXC
WAKE
SOFTRST
DOR
PS029602-0212
The UDRE flag indicates if the transmit buffer (UDATA) is ready to be
loaded with new data. If UDRE is ‘1’, it means the transmit buffer is
empty and can hold one or two new data. This flag can generate an
UDRE interrupt. Writing ‘0’ to this bit position will clear UDRE flag.
0
Transmit buffer is not empty.
1
Transmit buffer is empty.
This flag is set when the entire frame in the transmit shift register has
been shifted out and there is no new data currently present in the
transmit buffer. This flag is automatically cleared when the interrupt
service routine of a TXC interrupt is executed. It is also cleared by writing
‘0’ to this bit position. This flag can generate a TXC interrupt.
0
Transmission is ongoing.
1
Transmit buffer is empty and the data in transmit shift register
are shifted out completely.
This flag is set when there are unread data in the receive buffer and
cleared when all the data in the receive buffer are read. The RXC flag
can be used to generate a RXC interrupt.
0
There is no data unread in the receive buffer
1
There are more than 1 data in the receive buffer
This flag is set when the RX pin is detected low while the CPU is in stop
mode. This flag can be used to generate a WAKE interrupt. This bit is set
NOTE
only when in asynchronous mode of operation.
0
No WAKE interrupt is generated.
1
WAKE interrupt is generated.
This is an internal reset and only has effect on USART. Writing ‘1’ to this
bit initializes the internal logic of USART and is auto cleared.
0
No operation
1
Reset USART
This bit is set if a Data OverRun occurs. While this bit is set, the
incoming data frame is ignored. This flag is valid until the receive buffer
PRELIMINARY
139
Z51F0811
Product Specification
is read.
0
No Data OverRun
1
Data OverRun detected
This bit is set if the first stop bit of next character in the receive buffer is
detected as ‘0’. This bit is valid until the receive buffer is read.
FE
0
No Frame Error
1
Frame Error detected
This bit is set if the next character in the receive buffer has a Parity Error
when received while Parity Checking is enabled. This bit is valid until the
receive buffer is read.
PE
0
No Parity Error
1
Parity Error detected
NOTE
When the WAKE function of USART is used as a release source from STOP mode, it is required to clear this
bit in the RX interrupt service routine. Else the device will not wake-up from STOP mode again by the change of
RX pin.
UBAUD (USART Baud-Rate Generation Register) E6H, FEH
7
6
5
4
3
2
1
0
UBAUD7
UBAUD6
UBAUD5
UBAUD4
UBAUD3
UBAUD2
UBAUD1
UBAUD0
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : FFH
UBAUD [7:0]
The value in this register is used to generate internal baud rate in
asynchronous mode or to generate XCK clock in synchronous or spi
mode. To prevent malfunction, do not write ‘0’ in asynchronous
mode, and do not write ‘0’ or ‘1’ in synchronous or spi mode.
UDATA (USART Data Register) E7H, FFH
7
6
5
4
3
2
1
0
UDATA7
UDATA6
UDATA5
UDATA4
UDATA3
UDATA2
UDATA1
UDATA0
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : FFH
UDATA [7:0]
PS029602-0212
The USART Transmit Buffer and Receive Buffer share the same I/O
address with this DATA register. The Transmit Data Buffer is the
destination for data written to the UDATA register. Reading the
UDATA register returns the contents of the Receive Buffer.
Write this register only when the UDRE flag is set. In spi or
synchronous master mode, write this register even if TX is not
enabled to generate clock, XCK.
PRELIMINARY
140
Z51F0811
Product Specification
11.7.14 Baud Rate setting (example)
Table 11-17 Examples of UBAUD Settings for Commonly Used Oscillator Frequencies
fOSC=1.00MHz
Baud
Rate
U2X=0
fOSC=1.8432MHz
U2X=1
U2X=0
fOSC=2.00MHz
U2X=1
U2X=0
U2X=1
UBAUD
ERROR
UBAUD
ERROR
UBAUD
ERROR
UBAUD
ERROR
UBAUD
ERROR
UBAUD
2400
25
0.2%
51
0.2%
47
0.0%
95
0.0%
51
0.2%
103
ERROR
0.2%
4800
12
0.2%
25
0.2%
23
0.0%
47
0.0%
25
0.2%
51
0.2%
9600
6
-7.0%
12
0.2%
11
0.0%
23
0.0%
12
0.2%
25
0.2%
14.4K
3
8.5%
8
-3.5%
7
0.0%
15
0.0%
8
-3.5%
16
2.1%
19.2K
2
8.5%
6
-7.0%
5
0.0%
11
0.0%
6
-7.0%
12
0.2%
28.8K
1
8.5%
3
8.5%
3
0.0%
7
0.0%
3
8.5%
8
-3.5%
38.4K
1
-18.6%
2
8.5%
2
0.0%
5
0.0%
2
8.5%
6
-7.0%
57.6K
-
-
1
8.5%
1
-25.0%
3
0.0%
1
8.5%
3
8.5%
76.8K
-
-
1
-18.6%
1
0.0%
2
0.0%
1
-18.6%
2
8.5%
115.2
K
-
-
-
-
-
-
1
0.0%
-
-
1
8.5%
230.4
K
-
-
-
-
-
-
-
-
-
-
-
-
fOSC=3.6864MHz
Baud
Rate
U2X=0
fOSC=4.00MHz
U2X=1
U2X=0
fOSC=7.3728MHz
U2X=1
U2X=0
U2X=1
UBAUD
ERROR
UBAUD
ERROR
UBAUD
ERROR
UBAUD
ERROR
UBAUD
ERROR
UBAUD
2400
95
0.0%
191
0.0%
103
0.2%
207
0.2%
191
0.0%
-
ERROR
-
4800
47
0.0%
95
0.0%
51
0.2%
103
0.2%
95
0.0%
191
0.0%
9600
23
0.0%
47
0.0%
25
0.2%
51
0.2%
47
0.0%
95
0.0%
14.4K
15
0.0%
31
0.0%
16
2.1%
34
-0.8%
31
0.0%
63
0.0%
19.2K
11
0.0%
23
0.0%
12
0.2%
25
0.2%
23
0.0%
47
0.0%
28.8K
7
0.0%
15
0.0%
8
-3.5%
16
2.1%
15
0.0%
31
0.0%
38.4K
5
0.0%
11
0.0%
6
-7.0%
12
0.2%
11
0.0%
23
0.0%
57.6K
3
0.0%
7
0.0%
3
8.5%
8
-3.5%
7
0.0%
15
0.0%
76.8K
2
0.0%
5
0.0%
2
8.5%
6
-7.0%
5
0.0%
11
0.0%
115.2K
1
0.0%
3
0.0%
1
8.5%
3
8.5%
3
0.0%
7
0.0%
230.4K
-
-
1
0.0%
-
-
1
8.5%
1
0.0%
3
0.0%
250K
-
-
1
-7.8%
-
-
1
0.0%
1
-7.8%
3
-7.8%
0.5M
-
-
-
-
-
-
-
-
-
-
1
-7.8%
fOSC=8.00MHz
Baud
Rate
U2X=0
fOSC=11.0592MHz
U2X=1
U2X=0
fOSC=14.7456MHz
U2X=1
U2X=0
U2X=1
UBAUD
ERROR
UBAUD
ERROR
UBAUD
ERROR
UBAUD
ERROR
UBAUD
ERROR
UBAUD
2400
207
0.2%
-
-
-
-
-
-
-
-
-
ERROR
-
4800
103
0.2%
207
0.2%
143
0.0%
-
-
191
0.0%
-
-
9600
51
0.2%
103
0.2%
71
0.0%
143
0.0%
95
0.0%
191
0.0%
14.4K
34
-0.8%
68
0.6%
47
0.0%
95
0.0%
63
0.0%
127
0.0%
19.2K
25
0.2%
51
0.2%
35
0.0%
71
0.0%
47
0.0%
95
0.0%
28.8K
16
2.1%
34
-0.8%
23
0.0%
47
0.0%
31
0.0%
63
0.0%
38.4K
12
0.2%
25
0.2%
17
0.0%
35
0.0%
23
0.0%
47
0.0%
57.6K
8
-3.5%
16
2.1%
11
0.0%
23
0.0%
15
0.0%
31
0.0%
76.8K
6
-7.0%
12
0.2%
8
0.0%
17
0.0%
11
0.0%
23
0.0%
115.2K
3
8.5%
8
-3.5%
5
0.0%
11
0.0%
7
0.0%
15
0.0%
230.4K
1
8.5%
3
8.5%
2
0.0%
5
0.0%
3
0.0%
7
0.0%
250K
1
0.0%
3
0.0%
2
-7.8%
5
-7.8%
3
-7.8%
6
5.3%
0.5M
-
-
1
0.0%
-
-
2
-7.8%
1
-7.8%
3
-7.8%
1M
-
-
-
-
-
-
-
-
-
-
1
-7.8%
PS029602-0212
PRELIMINARY
141
Z51F0811
Product Specification
11.8 SPI
11.8.1 Overview
There is Serial Peripheral Interface (SPI) one channel in Z51F0811. The SPI allows synchronous
serial data transfer between the external serial devices. It can do Full-duplex communication by 4-wire
(MOSI, MISO, SCK, SS), support Master/Slave mode, can select serial clock (SCK) polarity, phase
and whether LSB first data transfer or MSB first data transfer.
11.8.2 Block Diagram
÷2
fSCLK
P
r
e
s
c
a
l
e
r
SPIEN
÷4
÷8
÷16
0
MUX
1
MUX
÷32
÷64
Edge
Detector
SPI Control
Circuit
WCOL
÷128
CPOL
CPHA
TCIR
MS
3
Clear
SPICR[2:0]
MS
INT_ACK
SCK
Control
SCK
SPI
Interrupt
FLSB
MISO
(MOSI)
0
MUX
1
MOSI
(MISO)
TWOPIN
0
MUX
1
8bit Shift
Register
MS
FLSB
0
MUX
1
SPIDR
(8Bit)
DEP
SS
SS
Control
8
PxDA[x]
MS
PxIO[x]
Internal Bus Line
SPICR
SPIEN
SPISR
TCIR
FLSB
MS
WCOL SS_HIGH
CPOL
CPHA
-
TWOPIN
DSCR
SCR1
SCR0
SSENA TXENA RXENA
ADDRESS : D2H
INITIAL VALUE : 0000_0000B
ADDRESS : D4H
INITIAL VALUE : 00--_-000B
Figure 11-48 SPI Block Diagram
PS029602-0212
PRELIMINARY
142
Z51F0811
Product Specification
11.8.3 Data Transmit / Receive Operation
User can use SPI for serial data communication by following step
1. Select SPI operation mode(master/slave, polarity, phase) by control register SPICR.
2. When the SPI is configured as a Master, it selects a Slave by SS signal (active low).
When the SPI is configured as a Slave, it is selected by SS signal incoming from Master
3. When the user writes a byte to the data register SPIDR, SPI will start an operation.
4. In this time, if the SPI is configured as a Master, serial clock will come out of SCK pin. And Master
shifts the eight bits into the Slave (transmit), Slave shifts the eight bits into the Master at the same
time (receive). If the SPI is configured as a Slave, serial clock will come into SCK pin. And Slave
shifts the eight bits into the Master (transmit), Master shifts the eight bits into the Slave at the same
time (receive).
5. When transmit/receive is done, TCIR (Transmit Complete or Interrupt Request) bit will be set. If the
SPI interrupt is enabled, an interrupt is requested. And TCIR bit is cleared by hardware when
executing the corresponding interrupt. If SPI interrupt is disable, TCIR bit is cleared when user read
the status register SPISR, and then access (read/write) the data register SPIDR.
Note) If you want to use both transmit and receive, set the TXENA, RXENA bit of SPISR, and if user
want to use only either transmit or receive, clear the TXENA or RXENA. In this case, user can use
disabled pin by GPIO freely.
11.8.4 SS pin function
1. When the SPI is configured as a Slave, the SS pin is always input. If LOW signal come into SS pin,
the SPI logic is active. And if ‘HIGH’ signal come into SS pin, the SPI logic is stop. In this time, SPI
logic will be reset, and invalidated any received data.
2. When the SPI is configured as a Master, the user can select the direction of the SS pin by port
direction register (PxIO[x]). If the SS pin is configured as an output, user can use general GPIO
output mode. If the SS pin is configured as an input, ‘HIGH’ signal must come into SS pin to
guarantee Master operation. If ‘LOW’ signal come into SS pin, the SPI logic interprets this as
another master selecting the SPI as a slave and starting to send data to it. To avoid bus contention,
MS bit of SPICR will be cleared and the SPI becomes a Slave and then, TCIR bit of SPISR will be
set, and if the SPI interrupt is enabled, an interrupt is requested.
Note)
- When the SS pin is configured as an output at Master mode, SS pin’s output value is defined by
user’s software (PxDA[x]). Before SPICR setting, the direction of SS pin must be defined
- If you don’t need to use SS pin, clear the SSENA bit of SPISR. So, you can use disabled pin by
GPIO freely. In this case, SS signal is driven by ‘HIGH’ or ‘LOW’ internally. In other words, master is
‘HIGH’, salve is ‘LOW’
- When SS pin is configured as input(master or slave), if ‘HIGH’ signal come into SS pin, this flag bit
will be set at the SS rising time. And you can clear it by writing ‘0’.
PS029602-0212
PRELIMINARY
143
Z51F0811
Product Specification
11.8.5 Timing Waveform
SCK
(CPOL=0)
SCK
(CPOL=1)
MISO/MOSI
(Output)
D0
D1
D2
D3
D4
D5
D6
D7
MOSI/MISO
(Input)
D0
D1
D2
D3
D4
D5
D6
D7
SS
TCIR
SS_HIGH
Figure 11-49 SPI Transmit/Receive Timing Diagram at CPHA = 0
SCK
(CPOL=0)
SCK
(CPOL=1)
MISO/MOSI
(Output)
D0
D1
D2
D3
D4
D5
D6
D7
MOSI/MISO
(Input)
D0
D1
D2
D3
D4
D5
D6
D7
SS
TCIR
SS_HIGH
Figure 11-50 SPI Transmit/Receive Timing Diagram at CPHA = 1
11.8.6 Register Map
Table 11-18 Register Map
Name
SPICR
Address
D2H
Dir
R/W
Default
0H
Description
SPI Control Register
SPIDR
D3H
R/W
0H
SPI Data Register
SPISR
D4H
R/W
0H
SPI Status Register
11.8.7 SPI Register description
The SPI Register consists of SPI Control Register (SPICR), SPI Status Register (SPISR) and SPI
Data Register (SPIDR)
PS029602-0212
PRELIMINARY
144
Z51F0811
Product Specification
11.8.8 Register description for SPI
SPICR (SPI Control Register) : D2H
7
6
5
4
3
2
1
0
SPIEN
FLSB
MS
CPOL
CPHA
DSCR
SCR1
SCR0
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
SPIEN
FLSB
MS
CPOL
CPHA
DSCR
SCR[2:0]
PS029602-0212
This bit controls the SPI operation
0
SPI Disable
1
SPI Enable
This bit selects the data transmission sequence
0
MSB First
1
LSB First
This bit selects whether Master or Slave mode
0
Slave mode
1
Master mode
These two bits control the serial clock (SCK) mode
Clock Polarity (CPOL) bit determine SCK’s value at idle mode
Clock Phase (CPHA) bit determine if data is sampled on the leading
or trailing edge of SCK. Refer to Figure 11-49, Figure 11-50
CPOL
CPHA
Leading Edge
Trailing Edge
0
0
Sample (Rising)
Setup (Falling)
0
1
Setup (Rising)
Sample (Falling)
1
0
Sample (Falling)
Setup (Rising)
1
1
Setup (Falling)
Sample (Rising)
These three bits select the SCK rate of the device configured as a
Master. When DSCR bit is written one, SCK will be doubled in Master
mode.
fx– Main system clock oscillation frequency.
DSCR
SCR1
SCR0
SCK frequency
0
0
0
fx/4
0
0
1
fx/16
0
1
0
fx/64
0
1
1
fx/128
1
0
0
fx/2
1
0
1
fx/8
1
1
0
fx/32
1
1
1
fx/64
PRELIMINARY
145
Z51F0811
Product Specification
SPIDR (SPI Data Register) : D3H
7
6
5
4
3
2
1
0
SPIDR7
SPIDR6
SPIDR5
SPIDR4
SPIDR3
SPIDR2
SPIDR1
SPIDR0
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
SPIDR [7:0]
SPI data register.
Although you only use reception, user must write any data in here
to start the SPI operation.
SPISR (SPI Status Register) : D4H
7
6
5
4
3
2
1
0
TCIR
WCOL
SS_HIGH
-
TWOPIN
SSENA
TXENA
RXENA
R
R
R/W
-
R/W
R/W
R/W
R/W
Initial value : 00H
TCIR
When a serial data transmission is complete, the TCIR bit is set. If the
SPI interrupt is enabled, an interrupt is requested. And TCIR bit is
cleared by hardware when executing the corresponding interrupt. If SPI
interrupt is disable, TCIR bit is cleared when user read the status register
SPISR, and then access (read/write) the data register SPIDR.
0
1
WCOL
SS_HIGH
TWOPIN
SSENA
TXENA
RXENA
Interrupt cleared
Transmission Complete and Interrupt Requested
This bit is set if the data register SPIDR is written during a data transfer.
This bit is cleared when user read the status register SPISR, and then
access (read/write) the data register SPIDR.
0
No collision
1
Write Collision
When SS pin is configured as input(master or slave), if ‘HIGH’ signal
come into SS pin, this flag bit will be set at the SS rising time. And you
can clear it by writing ‘0’.
You can write only zero.
0
Flag is cleared
1
Flag is set
This bit controls the 2 pin operation.
In master mode,
0
Disable
1
Enable
This bit controls the SS pin operation
0
Disable
1
Enable
This bit controls a data transfer operation
0
Disable
1
Enable
This bit controls a data reception operation
0
Disable
1
Enable
Note that if the MS is set to ‘0’, when TWOPIN is set to ‘0’, port 03 is set to MISO and if the MS is
set to ‘0’, when TWOPIN is set to ‘1’, port 02 is set to MOSI. But if the MS is set to ‘1’, when TWOPIN
is set to ‘0’, port 03 is set to MOSI and if the MS is set to ‘1’, when TWOPIN is set to ‘1’, port 02 is set
to MISO.
PS029602-0212
PRELIMINARY
146
Z51F0811
Product Specification
11.9 I2C
11.9.1 Overview
The I2C is one of industrial standard serial communication protocols, and which uses 2 bus lines
Serial Data Line (SDA) and Serial Clock Line (SCL) to exchange data. Because both SDA and SCL
lines are open-drain output, each line needs pull-up resistor. The features are as shown below.
-
Compatible with I2C bus standard
-
Multi-master operation
-
Up to 400 KHz data transfer speed
-
7 bit address
-
Support two slave addresses
-
Both master and slave operation
-
Bus busy detection
11.9.2 Block Diagram
Slave Addr. Register
(I2CSAR)
Debounce
enable
SDA
Noise
Canceller
(debounce)
1
Slave Addr. Register1
(I2CSAR1)
SDAIN
0
SDAOUT
F/F
8-bit Shift Register
(SHFTR)
SDA
Out Controller
Data Out Register
(I2CDR)
Debounce
enable
SCL High Period Register
(I2CSCLHR)
SCLIN
SCL
Noise
Canceller
(debounce)
SCL
Out Controller
1
0
SCL Low Period Register
(I2CSCLLR)
I
n
t
e
r
n
a
l
B
u
s
L
i
n
e
SDA Hold Time Register
(I2CDAHR)
SCLOUT
Figure 11-51 I2C Block Diagram
PS029602-0212
PRELIMINARY
147
Z51F0811
Product Specification
2
11.9.3 I C Bit Transfer
The data on the SDA line must be stable during HIGH period of the clock, SCL. The HIGH or LOW
state of the data line can only change when the clock signal on the SCL line is LOW. The exceptions
are START(S), repeated START(Sr) and STOP(P) condition where data line changes when clock line
is high.
SDA
SCL
Data line Stable:
Data valid
exept S, Sr, P
Change of Data
allowed
2
Figure 11-52 Bit Transfer on the I C-Bus
11.9.4 Start / Repeated Start / Stop
One master can issue a START (S) condition to notice other devices connected to the SCL, SDA
lines that it will use the bus. A STOP (P) condition is generated by the master to release the bus lines
so that other devices can use it.
A high to low transition on the SDA line while SCL is high defines a START (S) condition.
A low to high transition on the SDA line while SCL is high defines a STOP (P) condition.
START and STOP conditions are always generated by the master. The bus is considered to be
busy after START condition. The bus is considered to be free again after STOP condition, ie, the bus
is busy between START and STOP condition. If a repeated START condition (Sr) is generated
instead of STOP condition, the bus stays busy. So, the START and repeated START conditions are
functionally identical.
SDA
SCL
S
P
START Condition
STOP Condition
Figure 11-53 START and STOP Condition
11.9.5 Data Transfer
Every byte put on the SDA line must be 8-bits long. The number of bytes that can be transmitted
per transfer is unlimited. Each byte has to be followed by an acknowledge bit. Data is transferred with
PS029602-0212
PRELIMINARY
148
Z51F0811
Product Specification
the most significant bit (MSB) first. If a slave can’t receive or transmit another complete byte of data
until it has performed some other function, it can hold the clock line SCL LOW to force the master into
a wait state. Data transfer then continues when the slave is ready for another byte of data and
releases clock line SCL.
P
SDA
MSB
Acknowledgement
Signal form Slave
Byte Complete,
Interrupt within Device
SCL
S
or
Sr
1
9
Acknowledgement
Signal form Slave
Sr
Clock line held low while
interrupts are served.
1
ACK
9
Sr
or
P
ACK
START or Repeated
START Condition
STOP or Repeated
START Condition
Figure 11-54 STOP or Repeated START Condition
11.9.6 Acknowledge
The acknowledge related clock pulse is generated by the master. The transmitter releases the SDA
line (HIGH) during the acknowledge clock pulse. The receiver must pull down the SDA line during the
acknowledge clock pulse so that it remains stable LOW during the HIGH period of this clock pulse.
When a slave is addressed by a master (Address Packet), and if it is unable to receive or transmit
because it’s performing some real time function, the data line must be left HIGH by the slave. And
also, when a slave addressed by a master is unable to receive more data bits, the slave receiver must
release the SDA line (Data Packet). The master can then generate either a STOP condition to abort
the transfer, or a repeated START condition to start a new transfer.
If a master receiver is involved in a transfer, it must signal the end of data to the slave transmitter by
not generating an acknowledge on the last byte that was clocked out of the slave. The slave
transmitter must release the data line to allow the master to generate a STOP or repeated START
condition.
Data Output
By Transmitter
NACK
Data Output
By Receiver
ACK
1
SCL From MASTER
2
8
9
Clock pulse for ACK
2
Figure 11-55 Acknowledge on the I C-Bus
PS029602-0212
PRELIMINARY
149
Z51F0811
Product Specification
11.9.7 Synchronization / Arbitration
Clock synchronization is performed using the wired-AND connection of I2C interfaces to the SCL
line. This means that a HIGH to LOW transition on the SCL line will cause the devices concerned to
start counting off their LOW period and it will hold the SCL line in that state until the clock HIGH state
is reached. However the LOW to HIGH transition of this clock may not change the state of the SCL
line if another clock is still within its LOW period. In this way, a synchronized SCL clock is generated
with its LOW period determined by the device with the longest clock LOW period, and its HIGH period
determined by the one with the shortest clock HIGH period.
A master may start a transfer only if the bus is free. Two or more masters may generate a START
condition. Arbitration takes place on the SDA line, while the SCL line is at the HIGH level, in such a
way that the master which transmits a HIGH level, while another master is transmitting a LOW level
will switch off its DATA output state because the level on the bus doesn’t correspond to its own level.
Arbitration continues for many bits until a winning master gets the ownership of I2C bus. Its first stage
is comparison of the address bits.
Wait High
Counting
Start High
Counting
Fast Device
SCLOUT
High Counter
Reset
Slow Device
SCLOUT
SCL
Figure 11-56 Clock Synchronization during Arbitration Procedure
Arbitration Process
not adaped
Device 1 loses
Arbitration
Device1 outputs
High
Device1
DataOut
Device2
DataOut
SDA on BUS
SCL on BUS
S
Figure 11-57 Arbitration Procedure of Two Masters
PS029602-0212
PRELIMINARY
150
Z51F0811
Product Specification
11.9.8 Operation
The I2C is byte-oriented and interrupt based. Interrupts are issued after all bus events except for a
transmission of a START condition. Because the I2C is interrupt based, the application software is
free to carry on other operations during a I2C byte transfer.
Note that when a I2C interrupt is generated, IIF flag in I2CMR register is set, it is cleared by writing
an arbitrary value to I2CSR. When I2C interrupt occurs, the SCL line is hold LOW until writing any
value to I2CSR. When the IIF flag is set, the I2CSR contains a value indicating the current state of the
I2C bus. According to the value in I2CSR, software can decide what to do next.
I2C can operate in 4 modes by configuring master/slave, transmitter/receiver. The operating mode
is configured by a winning master. A more detailed explanation follows below.
11.9.8.1 Master Transmitter
To operate I2C in master transmitter, follow the recommended steps below.
1. Enable I2C by setting IICEN bit in I2CMR. This provides main clock to the peripheral.
2. Load SLA+W into the I2CDR where SLA is address of slave device and W is transfer
direction from the viewpoint of the master. For master transmitter, W is ‘0’. Note that I2CDR is
used for both address and data.
3. Configure baud rate by writing desired value to both I2CSCLLR and I2CSCLHR for the Low
and High period of SCL line.
4. Configure the I2CSDAHR to decide when SDA changes value from falling edge of SCL. If
SDA should change in the middle of SCL LOW period, load half the value of I2CSCLLR to the
I2CSDAHR.
5. Set the START bit in I2CMR. This transmits a START condition. And also configure how to
handle interrupt and ACK signal. When the START bit is set, 8-bit data in I2CDR is
transmitted out according to the baud-rate.
6. This is ACK signal processing stage for address packet transmitted by master. When 7-bit
address and 1-bit transfer direction is transmitted to target slave device, the master can know
whether the slave acknowledged or not in the 9th high period of SCL. If the master gains bus
mastership, I2C generates GCALL interrupt regardless of the reception of ACK from the slave
device. When I2C loses bus mastership during arbitration process, the MLOST bit in I2CSR is
set, and I2C waits in idle state or can be operate as an addressed slave. To operate as a
slave when the MLSOT bit in I2CSR is set, the ACKEN bit in I2CMR must be set and the
received 7-bit address must equal to the SLA bits in I2CSAR. In this case I2C operates as a
slave transmitter or a slave receiver (go to appropriate section). In this stage, I2C holds the
SCL LOW. This is because to decide whether I2C continues serial transfer or stops
communication. The following steps continue assuming that I2C does not lose mastership
during first data transfer.
I2C (Master) can choose one of the following cases regardless of the reception of ACK signal
from slave.
1) Master receives ACK signal from slave, so continues data transfer because slave can
receive more data from master. In this case, load data to transmit to I2CDR.
2) Master stops data transfer even if it receives ACK signal from slave. In this case, set the
STOP bit in I2CMR.
3) Master transmits repeated START condition with not checking ACK signal. In this case,
load SLA+R/W into the I2CDR and set START bit in I2CMR.
After doing one of the actions above, write arbitrary value to I2CSR to release SCL line. In
case of 1), move to step 7. In case of 2), move to step 9 to handle STOP interrupt. In case of
3), move to step 6 after transmitting the data in I2CDR and if transfer direction bit is ‘1’ go to
master receiver section.
PS029602-0212
PRELIMINARY
151
Z51F0811
Product Specification
7. 1-Byte of data is being transmitted. During data transfer, bus arbitration continues.
8. This is ACK signal processing stage for data packet transmitted by master. I2C holds the SCL
LOW. When I2C loses bus mastership while transmitting data arbitrating other masters, the
MLOST bit in I2CSR is set. If then, I2C waits in idle state. When the data in I2CDR is
transmitted completely, I2C generates TEND interrupt.
I2C can choose one of the following cases regardless of the reception of ACK signal from
slave.
1) Master receives ACK signal from slave, so continues data transfer because slave can
receive more data from master. In this case, load data to transmit to I2CDR.
2) Master stops data transfer even if it receives ACK signal from slave. In this case, set the
STOP bit in I2CMR.
3) Master transmits repeated START condition with not checking ACK signal. In this case,
load SLA+R/W into the I2CDR and set the START bit in I2CMR.
After doing one of the actions above, write arbitrary value to I2CSR to release SCL line. In
case of 1), move to step 7. In case of 2), move to step 9 to handle STOP interrupt. In case of
3), move to step 6 after transmitting the data in I2CDR, and if transfer direction bit is ‘1’ go to
master receiver section.
9. This is the final step for master transmitter function of I2C, handling STOP interrupt. The
STOP bit indicates that data transfer between master and slave is over. To clear I2CSR, write
arbitrary value to I2CSR. After this, I2C enters idle state.
PS029602-0212
PRELIMINARY
152
Z51F0811
Product Specification
The next figure depicts above process for master transmitter operation of I2C.
Master
Receiver
S or Sr
SLA+R
SLA+W
0x86
ACK
0x87
DATA
Rs
Lost?
0x47
N
LOST
LOST&
0x0F
0x1D 0x1F
Slave Receiver (0x1D)
or Transmitter (0x1F)
0x22
STOP
LOST
Cont?
0x0E
P
0x0E
Y
Y
P
LOST
0x46
ACK
STOP
Y
STOP
N
0x22
N
Other master continues
Y
From master to slave /
Master command or Data Write
0x0F
From slave to master
STOP
0x22
P
0xxx
Value of Status Register
ACK
Interrupt, SCL line is held low
P
Interrupt after stop command
LOST&
Arbitration lost as master and
addressed as slave
Figure 11-58 Formats and States in the Master Transmitter Mode
PS029602-0212
PRELIMINARY
153
Z51F0811
Product Specification
11.9.8.2 Master Receiver
To operate I2C in master receiver, follow the recommended steps below.
1. Enable I2C by setting IICEN bit in I2CMR. This provides main clock to the peripheral.
2. Load SLA+R into the I2CDR where SLA is address of slave device and R is transfer direction
from the viewpoint of the master. For master receiver, R is ‘1’. Note that I2CDR is used for
both address and data.
3. Configure baud rate by writing desired value to both I2CSCLLR and I2CSCLHR for the Low
and High period of SCL line.
4. Configure the I2CSDAHR to decide when SDA changes value from falling edge of SCL. If
SDA should change in the middle of SCL LOW period, load half the value of I2CSCLLR to the
I2CSDAHR.
5. Set the START bit in I2CMR. This transmits a START condition. And also configure how to
handle interrupt and ACK signal. When the START bit is set, 8-bit data in I2CDR is
transmitted out according to the baud-rate.
6. This is ACK signal processing stage for address packet transmitted by master. When 7-bit
address and 1-bit transfer direction is transmitted to target slave device, the master can know
th
whether the slave acknowledged or not in the 9 high period of SCL. If the master gains bus
2
mastership, I C generates GCALL interrupt regardless of the reception of ACK from the slave
device. When I2C loses bus mastership during arbitration process, the MLOST bit in I2CSR is
2
set, and I C waits in idle state or can be operate as an addressed slave. To operate as a
slave when the MLSOT bit in I2CSR is set, the ACKEN bit in I2CMR must be set and the
received 7-bit address must equal to the SLA bits in I2CSAR. In this case I2C operates as a
2
slave transmitter or a slave receiver (go to appropriate section). In this stage, I C holds the
2
SCL LOW. This is because to decide whether I C continues serial transfer or stops
communication. The following steps continue assuming that I2C does not lose mastership
during first data transfer.
I2C (Master) can choose one of the following cases according to the reception of ACK signal
from slave.
1) Master receives ACK signal from slave, so continues data transfer because slave can
prepare and transmit more data to master. Configure ACKEN bit in I2CMR to decide whether
I2C ACKnowledges the next data to be received or not.
2) Master stops data transfer because it receives no ACK signal from slave. In this case, set
the STOP bit in I2CMR.
3) Master transmits repeated START condition due to no ACK signal from slave. In this case,
load SLA+R/W into the I2CDR and set START bit in I2CMR.
After doing one of the actions above, write arbitrary value to I2CSR to release SCL line. In
case of 1), move to step 7. In case of 2), move to step 9 to handle STOP interrupt. In case of
3), move to step 6 after transmitting the data in I2CDR and if transfer direction bit is ‘0’ go to
master transmitter section.
7. 1-Byte of data is being received.
8. This is ACK signal processing stage for data packet transmitted by slave. I2C holds the SCL
LOW. When 1-Byte of data is received completely, I2C generates TEND interrupt.
I2C can choose one of the following cases according to the RXACK flag in I2CSR.
1) Master continues receiving data from slave. To do this, set ACKEN bit in I2CMR to
ACKnowledge the next data to be received.
2) Master wants to terminate data transfer when it receives next data by not generating ACK
signal. This can be done by clearing ACKEN bit in I2CMR.
3) Because no ACK signal is detected, master terminates data transfer. In this case, set the
STOP bit in I2CMR.
4) No ACK signal is detected, and master transmits repeated START condition. In this case,
PS029602-0212
PRELIMINARY
154
Z51F0811
Product Specification
load SLA+R/W into the I2CDR and set the START bit in I2CMR.
After doing one of the actions above, write arbitrary value to I2CSR to release SCL line. In
case of 1) and 2), move to step 7. In case of 3), move to step 9 to handle STOP interrupt. In
case of 4), move to step 6 after transmitting the data in I2CDR, and if transfer direction bit is
‘0’ go to master transmitter section.
9. This is the final step for master receiver function of I2C, handling STOP interrupt. The STOP
bit indicates that data transfer between master and slave is over. To clear I2CSR, write
arbitrary value to I2CSR. After this, I2C enters idle state.
The processes described above for master receiver operation of I2C can be depicted as the following
figure.
Master
Transmitter
S or Sr
SLA+W
SLA+R
0x84
ACK
0x85
DATA
0x20
N
STOP
P
0x0C
Y
LOST
Rs
LOST
LOST&
0x0D
0x1D 0x1F
Slave Receiver (0x1D)
or Transmitter (0x1F)
0x44
Sr
0x44
ACK
0x45
Y
N
0x20
STOP
0x0C
LOST
0xxx
P
Other master continues
From master to slave /
Master command or Data Write
ACK
From slave to master
ACK
Interrupt, SCL line is held low
Value of Status Register
P
Interrupt after stop command
LOST&
Arbitration lost as master and
addressed as slave
Figure 11-59 Formats and States in the Master Receiver Mode
PS029602-0212
PRELIMINARY
155
Z51F0811
Product Specification
11.9.8.3 Slave Transmitter
To operate I2C in slave transmitter, follow the recommended steps below.
1. If the main operating clock (SCLK) of the system is slower than that of SCL, load value 0x00
into I2CSDAHR to make SDA change within one system clock period from the falling edge of
SCL. Note that the hold time of SDA is calculated by SDAH x period of SCLK where SDAH is
multiple of number of SCLK coming from I2CSDAHR. When the hold time of SDA is longer
than the period of SCLK, I2C (slave) cannot transmit serial data properly.
2. Enable I2C by setting IICEN bit and INTEN bit in I2CMR. This provides main clock to the
peripheral.
3. When a START condition is detected, I2C receives one byte of data and compares it with SLA
bits in I2CSAR. If the GCALLEN bit in I2CSAR is enabled, I2C compares the received data
with value 0x00, the general call address.
4. If the received address does not equal to SLA bits in I2CSAR, I2C enters idle state ie, waits
for another START condition. Else if the address equals to SLA bits and the ACKEN bit is
enabled, I2C generates SSEL interrupt and the SCL line is held LOW. Note that even if the
address equals to SLA bits, when the ACKEN bit is disabled, I2C enters idle state. When
SSEL interrupt occurs, load transmit data to I2CDR and write arbitrary value to I2CSR to
release SCL line.
5. 1-Byte of data is being transmitted.
2
6. In this step, I C generates TEND interrupt and holds the SCL line LOW regardless of the
reception of ACK signal from master. Slave can select one of the following cases.
2
1) No ACK signal is detected and I C waits STOP or repeated START condition.
2) ACK signal from master is detected. Load data to transmit into I2CDR.
After doing one of the actions above, write arbitrary value to I2CSR to release SCL line. In
case of 1) move to step 7 to terminate communication. In case of 2) move to step 5. In either
case, a repeated START condition can be detected. For that case, move step 4.
7. This is the final step for slave transmitter function of I2C, handling STOP interrupt. The STOP
bit indicates that data transfer between master and slave is over. To clear I2CSR, write
arbitrary value to I2CSR. After this, I2C enters idle state.
PS029602-0212
PRELIMINARY
156
Z51F0811
Product Specification
The next figure shows flow chart for handling slave transmitter function of I2C.
IDLE
S or Sr
SLA+R
GCALL
0x97
0x1F
ACK
LOST&
Y
0x17
DATA
0x22
Y
0x47
ACK
Y
N
STOP
P
0x46
IDLE
From master to slave /
Master command or Data Write
From slave to master
0xxx
Value of Status Register
ACK
Interrupt, SCL line is held low
P
Interrupt after stop command
LOST&
Arbitration lost as master and
addressed as slave
GCALL
General Call Address
Figure 11-60 Formats and States in the Slave Transmitter Mode
PS029602-0212
PRELIMINARY
157
Z51F0811
Product Specification
11.9.8.4 Slave Receiver
To operate I2C in slave receiver, follow the recommended steps below.
1. If the main operating clock (SCLK) of the system is slower than that of SCL, load value 0x00
into I2CSDAHR to make SDA change within one system clock period from the falling edge of
SCL. Note that the hold time of SDA is calculated by SDAH x period of SCLK where SDAH is
multiple of number of SCLK coming from I2CSDAHR. When the hold time of SDA is longer
than the period of SCLK, I2C (slave) cannot transmit serial data properly.
2. Enable I2C by setting IICEN bit and INTEN bit in I2CMR. This provides main clock to the
peripheral.
3. When a START condition is detected, I2C receives one byte of data and compares it with SLA
bits in I2CSAR. If the GCALLEN bit in I2CSAR is enabled, I2C compares the received data
with value 0x00, the general call address.
4. If the received address does not equal to SLA bits in I2CSAR, I2C enters idle state ie, waits
for another START condition. Else if the address equals to SLA bits and the ACKEN bit is
enabled, I2C generates SSEL interrupt and the SCL line is held LOW. Note that even if the
address equals to SLA bits, when the ACKEN bit is disabled, I2C enters idle state. When
SSEL interrupt occurs and I2C is ready to receive data, write arbitrary value to I2CSR to
release SCL line.
5. 1-Byte of data is being received.
2
6. In this step, I C generates TEND interrupt and holds the SCL line LOW regardless of the
reception of ACK signal from master. Slave can select one of the following cases.
2
1) No ACK signal is detected (ACKEN=0) and I C waits STOP or repeated START condition.
2) ACK signal is detected (ACKEN=1) and I2C can continue to receive data from master.
After doing one of the actions above, write arbitrary value to I2CSR to release SCL line. In
case of 1) move to step 7 to terminate communication. In case of 2) move to step 5. In either
case, a repeated START condition can be detected. For that case, move step 4.
7. This is the final step for slave receiver function of I2C, handling STOP interrupt. The STOP bit
indicates that data transfer between master and slave is over. To clear I2CSR, write arbitrary
value to I2CSR. After this, I2C enters idle state.
The process can be depicted as following figure when I2C operates in slave receiver mode.
PS029602-0212
PRELIMINARY
158
Z51F0811
Product Specification
IDLE
S or Sr
SLA+W
GCALL
0x95
0x1D
ACK
LOST&
N
Y
0x15
DATA
0x20
Y
0x45
ACK
N
STOP
P
0x44
Y
IDLE
From master to slave /
Master command or Data Write
From slave to master
0xxx
Value of Status Register
ACK
Interrupt, SCL line is held low
P
Interrupt after stop command
LOST&
Arbitration lost as master and
addressed as slave
GCALL
General Call Address
Figure 11-61 Formats and States in the Slave Receiver Mode
11.9.9 Register Map
Name
Address
Dir
Default
Description
2
I2CMR
DAH
R/W
00H
I C Mode Control Register
I2CSR
DBH
R
00H
I C Status Register
I2CSCLLR
DCH
R/W
3FH
SCL Low Period Register
2
I2CSCLHR
DDH
R/W
3FH
SCL High Period Register
I2CSDAHR
DEH
R/W
01H
SDA Hold Time Register
I2CDR
DFH
R/W
FFH
I2C Data Register
I2CSAR
D7H
R/W
00H
I C Slave Address Register
I2CSAR1
D6H
R/W
00H
I2C Slave Address Register 1
PS029602-0212
2
PRELIMINARY
159
Z51F0811
Product Specification
2
11.9.10 I C Register description
I2C Registers are composed of I2C Mode Control Register (I2CMR), I2C Status Register (I2CSR),
SCL Low Period Register (I2CSCLLR), SCL High Period Register (I2CSCLHR), SDA Hold Time
Register (I2CSDAHR), I2C Data Register (I2CDR), and I2C Slave Address Register (I2CSAR).
11.9.11 Register description for I2C
I2CMR (I2C Mode Control Register) : DAH
7
6
5
4
3
2
1
0
IIF
IICEN
RESET
INTEN
ACKEN
MASTER
STOP
START
R/W
R/W
R/W
R/W
R/W
R
R/W
R/W
Initial value : 00H
IIF
IICEN
RESET
INTEN
ACKEN
MASTER
This is interrupt flag bit.
0
No interrupt is generated or interrupt is cleared
1
An interrupt is generated
Enable I2C Function Block (by providing clock)
2
0
I C is inactive
1
I C is active
2
2
Initialize internal registers of I C.
0
No operation
1
Initialize I2C, auto cleared
Enable interrupt generation of I2C.
0
Disable interrupt, operates in polling mode
1
Enable interrupt
Controls ACK signal generation at ninth SCL period.
Note) ACK signal is output (SDA=0) for the following 3 cases.
When received address packet equals to SLA bits in I2CSAR
When received address packet equals to value 0x00 with GCALL
enabled
2
When I C operates as a receiver (master or slave)
0
No ACK signal is generated (SDA=1)
1
ACK signal is generated (SDA=0)
Represent operating mode of I2C
I2C is in slave mode
0
I2C is in master mode
1
STOP
2
When I C is master, generates STOP condition.
0
No operation
1
START
PS029602-0212
STOP condition is to be generated
2
When I C is master, generates START condition.
0
No operation
1
START or repeated START condition is to be generated
PRELIMINARY
160
Z51F0811
Product Specification
2
I2CSR (I C Status Register) : DBH
7
6
5
4
3
2
1
0
GCALL
TEND
STOP
SSEL
MLOST
BUSY
TMODE
RXACK
R
R
R
R
R
R
R
R
Initial value : 00H
GCALL
This bit has different meaning depending on whether I2C is master or
slave. Note 1)
2
When I C is a master, this bit represents whether it received AACK
(Address ACK) from slave.
2
When I C is a slave, this bit is used to indicate general call.
0
TEND
STOP
SSEL
MLOST
BUSY
TMODE
RXACK
No AACK is received (Master mode)
1
AACK is received (Master mode)
0
Received address is not general call address (Slave mode)
1
General call address is detected (Slave mode)
This bit is set when 1-Byte of data is transferred completely. Note 1)
0
1 byte of data is not completely transferred
1
1 byte of data is completely transferred
This bit is set when STOP condition is detected. Note 1)
0
No STOP condition is detected
1
STOP condition is detected
This bit is set when I2C is addressed by other master. Note 1)
2
0
I C is not selected as slave
1
I C is addressed by other master and acts as a slave
2
This bit represents the result of bus arbitration in master mode. Note 1)
0
I2C maintains bus mastership
1
I2C has lost bus mastership during arbitration process
This bit reflects bus status.
2
0
I C bus is idle, so any master can issue a START condition
1
I C bus is busy
2
This bit is used to indicate whether I2C is transmitter or receiver.
0
I2C is a receiver
1
I2C is a transmitter
This bit shows the state of ACK signal.
0
No ACK is received
1
ACK is generated at ninth SCL period
Note 1) These bits can be source of interrupt.
When an I2C interrupt occurs except for STOP interrupt, the SCL line is hold LOW. To release SCL,
write arbitrary value to I2CSR. When I2CSR is written, the TEND, STOP, SSEL, LOST, RXACK bits
are cleared.
PS029602-0212
PRELIMINARY
161
Z51F0811
Product Specification
I2CSCLLR (SCL Low Period Register) : DCH
7
6
5
4
3
2
1
0
SCLL7
SCLL6
SCLL5
SCLL4
SCLL3
SCLL2
SCLL1
SCLL0
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 3FH
SCLL[7:0]
This register defines the LOW period of SCL when I2C operates in
master mode. The base clock is SCLK, the system clock, and the
period is calculated by the formula : tSCLK (4 SCLL + 1) where
tSCLK is the period of SCLK.
I2CSCLHR (SCL High Period Register) : DDH
7
6
5
4
3
2
1
0
SCLH7
SCLH6
SCLH5
SCLH4
SCLH3
SCLH2
SCLH1
SCLH0
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 3FH
SCLH[7:0]
This register defines the HIGH period of SCL when I2C operates in
master mode. The base clock is SCLK, the system clock, and the
period is calculated by the formula : tSCLK (4 SCLH + 3) where
tSCLK is the period of SCLK.
So, the operating frequency of I2C in master mode (fI2C) is calculated by the following equation.
1
fI2C
tSCLK
4 SCLL SCLH
4
I2CSDAHR (SDA Hold Time Register) : DEH
7
6
5
4
3
2
1
0
SDAH7
SDAH6
SDAH5
SDAH4
SDAH3
SDAH2
SDAH1
SDAH0
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 01H
SDAH[7:0]
This register is used to control SDA output timing from the falling
edge of SCL. Note that SDA is changed after tSCLK SDAH. In
master mode, load half the value of SCLL to this register to make
SDA change in the middle of SCL. In slave mode, configure this
register regarding the frequency of SCL from master. The SDA is
changed after tSCLK (SDAH + 1). So, to insure normal operation in
slave mode, the value tSCLK (SDAH + 1) must be smaller than the
period of SCL.
I2CDR (I2C Data Register) : DFH
7
6
5
4
3
2
1
0
ICD7
ICD6
ICD5
ICD4
ICD3
ICD2
ICD1
ICD0
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : FFH
ICD[7:0]
PS029602-0212
2
When I C is configured as a transmitter, load this register with data
to be transmitted. When I2C is a receiver, the received data is stored
into this register.
PRELIMINARY
162
Z51F0811
Product Specification
2
I2CSAR (I C Slave Address Register) : D7H
7
6
5
4
3
2
1
0
SLA7
SLA6
SLA5
SLA4
SLA3
SLA2
SLA1
GCALLEN
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
SLA[7:1]
These bits configure the slave address of this I2C module when I2C
operates in slave mode.
GCALLEN
This bit decides whether I C allows general call address or not
2
when I C operates in slave mode.
2
0
Ignore general call address
1
Allow general call address
I2CSAR1 (I2C Slave Address Register 1) : D6H
7
6
5
4
3
2
1
0
SLA7
SLA6
SLA5
SLA4
SLA3
SLA2
SLA1
GCALLEN
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
PS029602-0212
2
2
SLA[7:1]
These bits configure the slave address of this I C module when I C
operates in slave mode.
GCALLEN
This bit decides whether I C allows general call address or not
when I2C operates in slave mode.
2
0
Ignore general call address
1
Allow general call address
PRELIMINARY
163
Z51F0811
Product Specification
11.10 12-Bit A/D Converter
11.10.1 Overview
The analog-to-digital converter (A/D) allows conversion of an analog input signal to a corresponding
12-bit digital value. The A/D module has tenth analog inputs. The output of the multiplex is the input
into the converter, which generates the result via successive approximation. The A/D module has four
registers which are the control register ADCM (A/D Converter Mode Register), ADCM2 (A/D
Converter Mode Register 2) and A/D result register ADCHR (A/D Converter Result High Register) and
ADCLR (A/D Converter Result Low Register). It is selected for the corresponding channel to be
converted by setting ADSEL[3:0]. To executing A/D conversion, ADST bit sets to ‘1’. The register
ADCHR and ADCLR contains the results of the A/D conversion. When the conversion is completed,
the result is loaded into the ADCHR and ADCLR, the A/D conversion status bit AFLAG is set to ‘1’,
and the A/D interrupt is set. For processing A/D conversion, AFLAG bit is read as ‘0’. If using STBY
(power down) bit, the ADC is disabled. Also internal timer, external generating event, comparator, the
trigger of timer1pwm and etc. can start ADC regardless of interrupt occurrence.
ADC Conversion Time = ADCLK * 60 cycles
After STBY bit is reset (ADC power enable) and it is restarted, during some cycle, ADC conversion
value may have an inaccurate value.
11.10.2 Block Diagram
÷2
SCLK
Pre
scaler
÷4
MUX
÷8
÷32
12bit A/D Converter Data Register
2
CKSEL[1:0]
ADCRH[7:0]
(8bit)
ADCLK
ADCRL[7:4]
(4bit)
ADST
VDD18C
[9BH]
AN14
AN13
Clear
[9CH]
AFLAG
12
AN12
Successive
Approximation
Circuit
MUX
ADIF
ADC
Interrupt
Comparator
AN1
AN0
4
ADS[3:0]
ADST
Resistor Ladder
Circuit
AN0
Figure 11-62 ADC Block Diagram
PS029602-0212
Analog
Input
PRELIMINARY
AN0 ~ AN14
164
Z51F0811
Product Specification
Analog
Power
Input
AVDD
22uF
Figure 11-64 A/D Power(AVDD) Pin Connecting
Capacitor
11.10.3 ADC Operation
Align bit set “0”
ADCO11
ADCO10
ADCO9
ADCO8
ADCO7
ADCO6
ADCO5
ADCO4
ADCRH7 ADCRH6 ADCRH5 ADCRH4 ADCRH3 ADCRH2 ADCRH1 ADCRH0
ADCO3
ADCO2
ADCO1
ADCO0
ADCRL7
ADCRL6
ADCRL5
ADCRL4
ADCRL[7:4]
ADCRH[7:0]
ADCRL[3:0] bits are “0”
Align bit set “1”
ADCO11
ADCO10
ADCO9
ADCO8
ADCRH3 ADCRH2 ADCRH1 ADCRH0
ADCRH[4:0]
ADCRH[7:4] bits are “0”
ADCO7
ADCO6
ADCO5
ADCO4
ADCO3
ADCO2
ADCO1
ADCO0
ADCRL7
ADCRL6
ADCRL5
ADCRL4
ADCRL3
ADCRL2
ADCRL1
ADCRL0
ADCRL[7:0]
Figure 11-65 ADC Operation for Align bit
PS029602-0212
PRELIMINARY
165
Z51F0811
Product Specification
SET ADCM2
Select ADC Clock & Data Align Bit.
SET ADCM
ADC enable & Select AN Input Channel.
Converting START
Start ADC Conversion.
N
If Conversion is completed, AFLG is set “1” and ADC
interrupt is occurred.
AFLAG = 1?
Y
After Conversion is completed, read ADCRH and ADCRL.
READ ADCRH/L
ADC END
Figure 11-66 Converter Operation Flow
11.10.4 Register Map
Name
Address
Dir
Default
Description
ADCM
9AH
R/W
8FH
A/D Converter Mode Register
ADCRH
9BH
R
-
A/D Converter Result High Register
ADCRL
9CH
R
-
A/D Converter Result Low Register
ADCM2
9BH
R/W
8FH
A/D Converter Mode 2 Register
11.10.5 ADC Register description
The ADC Register consists of A/D Converter Mode Register (ADCM), A/D Converter Result High
Register (ADCRH), A/D Converter Result Low Register (ADCRL), A/D Converter Mode 2 Register
(ADCM2).
Note) when STBY bit is set to ‘1’, ADCM2 can be read. If ADC enables, it is possible only to write
ADCM2.When reading, ADCRH is read.
PS029602-0212
PRELIMINARY
166
Z51F0811
Product Specification
11.10.6 Register description for ADC
ADCM (A/D Converter Mode Register) : 9AH
7
6
5
4
3
2
1
0
STBY
ADST
REFSEL
AFLAG
ADSEL3
ADSEL2
ADSEL1
ADSEL0
R/W
R/W
R/W
R
R/W
R/W
R/W
R/W
Initial value : 8FH
STBY
ADST
REFSEL
AFLAG
ADSEL[3:0]
PS029602-0212
Control operation of A/D standby (power down)
0
ADC module enable
1
ADC module disable (power down)
Control A/D Conversion stop/start.
0
ADC Conversion Stop
1
ADC Conversion Start
A/D Converter reference selection
0
Internal Reference (VDD)
1
External Reference(AVREF, AN0 disable)
A/D Converter operation state
0
During A/D Conversion
1
A/D Conversion finished
A/D Converter input selection
ADSEL3
ADSEL2 ADSEL1 ADSEL0 Description
0
0
0
0
Channel0(AN0)
0
0
0
1
Channel1(AN1)
0
0
1
0
Channel2(AN2)
0
0
1
1
Channel3(AN3)
0
1
0
0
Channel4(AN4)
0
1
0
1
Channel5(AN5)
0
1
1
0
Channel6(AN6)
0
1
1
1
Channel7(AN7)
1
0
0
0
Channel8(AN8)
1
0
0
1
Channel9(AN9)
1
0
1
0
Channel10(AN10)
1
0
1
1
Channel11(AN11)
1
1
0
0
Channel12(AN12)
1
1
0
1
Channel13(AN13)
1
1
1
0
Channel14(AN14)
1
1
1
1
Channel15(VDD18)
PRELIMINARY
167
Z51F0811
Product Specification
ADCRH (A/D Converter Result High Register) : 9BH
7
6
5
4
ADDM11
ADDM10
ADDM9
ADDM8
R
R
R
3
2
1
0
ADDM7
ADDM6
ADDM5
ADDM4
ADDL11
ADDL10
ADDL9
ADDL8
R
R
R
R
R
Initial value : xxH
ADDM[11:4]
MSB align, A/D Converter High result (8-bit)
ADDL[11:8]
LSB align, A/D Converter High result (4-bit)
ADCRL (A/D Converter Result Low Register) : 9CH
7
6
5
4
ADDM3
ADDM2
ADDM1
ADDM0
3
2
1
0
ADDL7
ADDL6
ADDL5
R
R
R
ADDL4
ADDL3
ADDL2
ADDL1
ADDL0
R
R
R
R
R
Initial value : xxH
PS029602-0212
ADDM[3:0]
MSB align, A/D Converter Low result (4-bit)
ADDL[7:0]
LSB align, A/D Converter Low result (8-bit)
PRELIMINARY
168
Z51F0811
Product Specification
ADCM2 (A/D Converter Mode Register) : 9BH
7
6
5
4
3
2
1
0
EXTRG
TSEL2
TSEL1
R/W
R/W
R/W
TSEL0
-
ALIGN
CKSEL1
CKSEL0
R/W
R/W
R/W
R/W
R/W
Initial value : 01H
EXTRG
TSEL[2:0]
ALIGN
CKSEL[1:0]
A/D external Trigger
0
External Trigger disable
1
External Trigger enable
A/D Trigger Source selection
TSEL2
TSEL1
TSEL0
Description
0
0
0
Ext. Interrupt 0
0
0
1
Analog Comparator Low to High Transition
0
1
0
Analog Comparator High to Low Transition
0
1
1
Timer1PWM overflow event
1
0
0
Timer1PWM A-ch event compare match
1
0
1
Timer1PWM B-ch event compare match
1
1
0
Timer1PWM C-ch event compare match
1
1
1
Timer3(PWM) interrupt
A/D Converter data align selection.
0
MSB align (ADCRH[7:0], ADCRL[7:4])
1
LSB align (ADCRH[3:0], ADCRL[7:0])
A/D Converter Clock selection
CKSEL1
CKSEL0
ADC Clock
ADC VDD
0
0
fx/2
Test Only
0
1
fx/4
3V~5V
1
0
fx/8
2.7V~3V
1
1
fx/32
2.4V~2.7V
Note) 1. fx : system clock
2. ADC clock have to be used 3MHz under
PS029602-0212
PRELIMINARY
169
Z51F0811
Product Specification
11.11 Analog Comparator
11.11.1 Overview
The Analog Comparator compares the input values on the positive pin AC+ and the negative pin AC-.
When the voltage on the positive pin AC+ is higher than the voltage on the negative pin AC-, the
Analog Comparator output, ACOUT, is set.
11.11.2 Block Diagram
ACBG
ACIE
ACE
B/G Vref
MUX
Analog
Comparator
Interrupt
Interrupt
Select
ACComparator
ACISM[1:0]
AC+
ACIF
Other functions
MUX
P06
ACOUT
ACO_OUTEN
P33
MUX
INT7 (External
Interrupt 7)
ACE
Figure 11-67 Analog Comparator Block Diagram
11.11.3 IN/OUT signal description
ACE : This enables Analog Comparator. When ACE is ‘0’, the output of Comparator goes LOW.
BGR : Band Gap Reference Voltage
ACBG : This selects (-) input source between BGR and AC-. When ACBG is ‘1’, the (-) input to AC is
BGR.
AC- : This can be (-) input to the AC, and comes directly from external analog pad.
AC+ : This can be (+) input to the AC, and comes directly from external analog pad.
AMUXENB : This selects (+) input source between multiplexed output of ADC and AN5. AMUXENB is
the inverted signal of AMUXEN bit in ADCM2 register. When AMUXENB is ‘0’, the (+) input to AC
comes from ADC module which is selected by ADSEL[3:0], the channel selection bits in ADCM
register.
ACOUT : This is the output of Comparator.
ACO_OUTEN : Analog Comparator output port Enable.
PS029602-0212
PRELIMINARY
170
Z51F0811
Product Specification
11.11.4 Register Map
Table 11-19 Register Map
Name
ACCSR
Address
E9
Dir
R/W
Default
00H
Description
Analog Comparator Control & Status Register
11.11.5 Analog Comparator Register description
Analog Comparator Register has one control register, Analog Comparator Control & Status Register
(ACCSR). Note that AMUXENB is the inverted signal of AMUXEN bit which comes from ADC’s
ADCM2 register
PS029602-0212
PRELIMINARY
171
Z51F0811
Product Specification
11.11.6 Register description for Analog Comparator
ACCSR (Analog Comparator Control & Status Register) : F9H
7
6
5
4
3
2
1
0
ACE
ACBG
ACO
ACIF
ACIE
ACO_OUTEN
ACISM1
ACISM0
R/W
R/W
R
R
R/W
R/W
R/W
R/W
Initial value : 00H
ACE
ACBG
ACO
ACIF
ACIE
ACO_OUTEN
ACISM[1:0]
PS029602-0212
Enable Analog Comparator (AC).
0
Disable AC (power down)
1
Enable AC
Select (-) input source of AC, Band Gap Reference Voltage or AN4.
0
(-) input is from AN4
1
(-) input is from Band Gap Reference Voltage
This bit represents the value of ACOUT (Output of Analog Comparator).
ACO bit is sampled by SCLK, system clock, twice. When ACE is ‘0’, this
bit is also cleared.
0
Comparator output is LOW
1
Comparator output is HIGH
This bit is set when an Analog Comparator Interrupt is generated
according to the ACISM[1:0] bits. This bit is cleared when Analog
Comparator Interrupt is executed or ‘0’ is written to this bit field.
0
No interrupt generated or cleared
1
Interrupt generated
Enable Analog Comparator Interrupt.
0
Disable Interrupt, Polling mode operation
1
Enable Interrupt
Analog Comparator output port Enable
0
Disable
1
Enable
Select Interrupt Mode of Analog Comparator.
ACISM1
ACISM0
Description
0
0
Reserved
0
1
Interrupt on falling edge of ACOUT
1
0
Interrupt on rising edge of ACOUT
1
1
Interrupt on both edge of ACOUT
PRELIMINARY
172
Z51F0811
Product Specification
12. Power Down Operation
12.1 Overview
The Z51F0811 has three power-down modes to minimize the power consumption of the device. In
power down mode, power consumption is reduced considerably. The device provides three kinds of
power saving functions, IDLE, STOP1 and STOP2 mode. In three modes, program is stopped.
12.2 Peripheral Operation in IDLE/STOP Mode
Table 12-1 Peripheral Operation during Power Down Mode.
Peripheral
IDLE Mode
STOP1 Mode
STOP2 Mode
CPU
ALL CPU Operation
are Disable
ALL CPU Operation are Disable
ALL CPU Operation are Disable
RAM
Retain
Retain
Retain
Basic Interval
Timer
Operates
Continuously
Operates Continuously
Stop
Watch Dog
Timer
Operates
Continuously
Operates Continuously
Stop
Watch Timer
Operates
Continuously
Stop (Only operate in sub clock mode)
Stop (Only operate in sub clock mode)
TimerP0~4
Operates
Continuously
Halted (Only when the Event Counter
Mode is Enable, Timer operates
Normally)
Halted (Only when the Event Counter
Mode is Enable, Timer operates
Normally)
ADC
Operates
Continuously
Stop
Stop
BUZ
Operates
Continuously
Stop
Stop
SPI/SCI
Operates
Continuously
Only operate with external clock
Only operate with external clock
Operates
Continuously
Stop
Stop
Internal OSC
(8MHz)
Oscillation
Stop
Stop
Main OSC
(1~12MHz)
Oscillation
Stop
Stop
Sub OSC
(32.768kHz)
Oscillation
Oscillation
Oscillation
Internal
RCOSC
(125kHz)
Oscillation
Oscillation
Stop
I/O Port
Retain
Retain
Retain
Control
Register
Retain
Retain
Retain
Address Data
Bus
Retain
Retain
Retain
By RESET, all
Interrupts
By RESET, Timer Interrupt (EC0, EC2),
SIO (External clock), External Interrupt,
2
UART by ACK PCI, I C (slave mode),
WT (sub clock),WDT, BIT
By RESET, Timer Interrupt (EC0, EC2),
SIO (External clock), External Interrupt,
2
UART by ACK PCI, I C (slave mode),
WT (sub clock)
2
IC
Release
Method
PS029602-0212
PRELIMINARY
173
Z51F0811
Product Specification
12.3 IDLE mode
The power control register is set to ‘01h’ to enter the IDLE Mode. In this mode, the internal oscillation
circuits remain active. Oscillation continues and peripherals are operated normally but CPU stops. It is
released by reset or interrupt. To be released by interrupt, interrupt should be enabled before IDLE
mode. If using reset, because the device becomes initialized state, the registers have reset value.
OSC
CPU Clock
External
Interrupt
Release
Normal Operation
Stand-by Mode
Normal Operation
Figure 12-1 IDLE Mode Release Timing by External Interrupt
OSC
CPU Clock
RESETB
Release
Set PCON
to 01
BIT Counter
m-2
m-1
m
n
0
64 TOSC
0
0
1
FD
FE
FF
0
1
Clear & Start
TST = 65.5ms @ 8Mhz
Normal Operation
SLEEP Mode
Normal Operation
TOSC = 1/fOSC
fOSC = 8MHz
PRD[2:0] in BCCR = 111B
BCK[2:0] in BCCR = 111B
Figure 12-2 IDLE Mode Release Timing by /RESET
(Ex) MOV PCON, #0000_0001b
(PCON)
; setting of IDLE mode : set the bit of STOP and IDLE Control register
12.4 STOP mode
The power control register is set to ‘03h’ to enter the STOP Mode. In the stop mode, the main
oscillator, system clock and peripheral clock is stopped, but watch timer continue to operate. With the
clock frozen, all functions are stopped, but the on-chip RAM and control registers are held.
PS029602-0212
PRELIMINARY
174
Z51F0811
Product Specification
The source for exit from STOP mode is hardware reset and interrupts. The reset re-defines all the
control registers.
When exit from STOP mode, enough oscillation stabilization time is required to normal operation.
Figure 12-3 shows the timing diagram. When released from STOP mode, the Basic interval timer is
activated on wake-up. Therefore, before STOP instruction, user must be set its relevant prescaler
divide ratio to have long enough time (more than 20msec). this guarantees that oscillator has started
and stabilized.
OSC
CPU Clock
Release
External
Interrupt
STOP Command
n
BIT Counter
n+1
n+2
n+3
0
1
2
FE
FF
0
1
Clear & Start
64 TOSC
TST > 20ms by Software
Normal Operation
STOP Mode
TOSC = 1/fOSC
PRD[2:0] in BCCR = 111B
Normal Operation
Before executing STOP command, BCCR must be set properly
by software to get stability time is to be longer than 20ms.
Figure 12-3 STOP Mode Release Timing by External Interrupt
OSC
CPU Clock
RESETB
Release
STOP Command
BIT Counter
m-2
m-1
m
n
0
1
2
FE
FF
0
1
Clear & Start
64 TOSC
TST = 65.5ms @ 8MHz
Normal Operation
STOP Mode
Normal Operation
TOSC = 1/fOSC
PRD[2:0] in BCCR = 111B
Figure 12-4 STOP Mode Release Timing by /RESET
12.5 Release Operation of STOP1, 2 Mode
After STOP1, 2 mode is released, the operation begins according to content of related interrupt
register just before STOP1, 2 mode start (Figure 12-5). Interrupt Enable Flag of All (EA) of IE should
be set to `1`. Released by only interrupt which each interrupt enable flag = `1`, and jump to the
relevant interrupt service routine.
PS029602-0212
PRELIMINARY
175
Z51F0811
Product Specification
SET SCCR.7
SET PCON[1:0]
SET IEx.b
STOP1, 2 Mode
Interrupt Request
Corresponding Interrupt
Enable Bit(IE, IE1, IE2, IE3)
N
IEX.b==1 ?
Y
STOP1, 2 Mode
Release
Interrupt Service
Routine
Nest Instruction
Figure 12-5 STOP1, 2 Mode Release Flow
PS029602-0212
PRELIMINARY
176
Z51F0811
Product Specification
12.5.1 Register Map
Table 12-2 Register Map
Name
PCON
Address
Dir
87H
Default
R/W
Description
00H
Power Control Register
12.5.2 Power Down Operation Register description
The Power Down Operation Register consists of the Power Control Register (PCON).
12.5.3 Register description for Power Down Operation
PCON (Power Control Register) : 87H
7
6
5
4
3
2
1
0
bit 7
bit 6
bit5
bit 4
bit3
bit2
bit 1
bit0
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
IDLE Mode
01H
IDLE mode enable
STOP1, 2 Mode
03H
STOP1, 2 mode enable
Note)
1.
To enter IDLE mode, PCON must be set to ‘01H’.
2.
To STOP1,2 mode, PCON must be set to ‘03H’.
(In STOP1,2 mode, PCON register is cleared automatically by interrupt or reset)
3.
When PCON is set to ‘03H’, if SCCR[7] is set to ‘1’, it enters the STOP1 mode. if SCCR[7] is cleared to
‘0’, it enters the STOP2 mode
4.
The different thing in STOP 1,2 is only clock operation of internal 125kHz-OSC during STOP mode
operating.
PS029602-0212
PRELIMINARY
177
Z51F0811
Product Specification
13. RESET
13.1 Overview
The Z51F0811 has reset by external RESETB pin. The following is the hardware setting value.
Table 13-1 Reset state
On Chip Hardware
Initial Value
Program Counter (PC)
0000h
Accumulator
00h
Stack Pointer (SP)
07h
Peripheral Clock
On
Control Register
Peripheral Registers refer
Brown-Out Detector
Enable
13.2 Reset source
The Z51F0811 has five types of reset generation procedures. The following is the reset sources.
- External RESETB
- Power ON RESET (POR)
- WDT Overflow Reset (In the case of WDTEN = `1`)
- BOD Reset (In the case of BODEN = `1 `)
- OCD Reset
13.3 Block Diagram
Ext RESET
Disable by FUSE
RESET Noise
Canceller
BOD_OUT
BOD Enable
RESET Noise
Canceller
S
POR RST
WDT RST
WDT RSTEN
Q
Internal
Reset
R
IFBIT
(BIT Overflow)
OCD RST
OCD RSTEN
Figure 13-1 RESET Block Diagram
PS029602-0212
PRELIMINARY
178
Z51F0811
Product Specification
13.4 RESET Noise Canceller
The Figure 13-2 is the Noise canceller diagram for Noise cancel of RESET. It has the Noise cancel
value of about 7us (@VDD=5V) to the low input of System Reset.
t < TRNC
t < TRNC
A
t > TRNC
t > TRNC
t > TRNC
A’
Figure 13-2 Reset noise canceller time diagram
13.5 Power ON RESET
When rising device power, the POR (Power ON Reset) have a function to reset the device. If using
POR, it executes the device RESET function instead of the RESET IC or the RESET circuits. And
External RESET PIN is able to use as Normal I/O pin.
Fast VDD Rise Time
VDD
nPOR
(Internal Signal)
BIT Overflows
BIT Starts
Internal RESETb
Oscillation
Figure 13-3 Fast VDD rising time
PS029602-0212
PRELIMINARY
179
Z51F0811
Product Specification
Slow VDD Rise Time, max 0.02v/ms
VPOR=1.4V (Typ)
VDD
nPOR
(Internal Signal)
BIT Overflows
BIT Starts
Internal RESETb
Oscillation
Figure 13-4 Internal RESET Release Timing On Power-Up
Counting for config read start after POR is released
VDD
Internal nPOR
PAD RESETB (R20)
“H”
BOD_RESETB
Ext_reset have not an effect on counter value for config read
BIT (for Config)
BIT (for Reset)
Config Read
00 01 02 03 04 05 06 .. ..
00 01 02 03
00
.. 2F 30
01 02 .. ..
F1
.. 3F 40 00 01 02 03
250us X 30h = about 12ms
250us X 40h = about 16ms
RESET_SYSB
INT-OSC (128KHz)
INT-OSC 128KHz/32
INT-OSC 128KHz / 32 = 4KHz (250us)
Figure 13-5 Configuration timing when Power-on
PS029602-0212
PRELIMINARY
180
Z51F0811
Product Specification
:VDD Input
:Internal OSC
⑥
④
Reset Release
Config Read
②
POR
①
③
⑦
⑤
Figure 13-6 Boot Process Waveform
Table 13-2 Boot Process Description
Process
Description
①
-No Operation
②
-1st POR level Detection
Remarks
-about 1.4V ~ 1.5V
-Internal OSC (125KHz) ON
- (INT-OSC125KHz/32) 30h Delay section (=12ms)
③
-VDD input voltage must rise over than flash operating
voltage for Config read
-Slew Rate
0.025V/ms
-about 1.5V ~ 1.6V
④
- Config read point
⑤
- Rising section to Reset Release Level
-Config Value is determined by
Writing Option
-16ms point after POR or Ext_reset
release
- Reset Release section (BIT overflow)
⑥
i) after16ms, after External Reset Release (External reset)
- BIT is used for Peripheral stability
ii) 16ms point after POR (POR only)
⑦
-Normal operation
PS029602-0212
PRELIMINARY
181
Z51F0811
Product Specification
13.6 External RESETB Input
The External RESETB is the input to a Schmitt trigger. A reset in accomplished by holding the reset
pin low for at least 7us over, within the operating voltage range and oscillation stable, it is applied, and
the internal state is initialized. After reset state becomes ‘1’, it needs the stabilization time with 16ms
and after the stable state, the internal RESET becomes ‘1’. The Reset process step needs 5 oscillator
clocks. And the program execution starts at the vector address stored at address 0000H.
1
2
3
4
5
OSC
RESETB
Release
Internal
RESETB
Release
ADDRESS
BUS
?
CORE
BUS
?
?
Stabilization Time
TST = 16ms
00
?
?
02
01
02
?
?
?
?
RESET Process
Step
Main Program
Figure 13-7 Timing Diagram after RESET
PRESCALER COUNT START
VDD
OSC START TIMING
Figure 13-8 Oscillator generating waveform example
Note) as shown Figure 13-8, the stable generating time is not included in the start-up time.
PS029602-0212
PRELIMINARY
182
Z51F0811
Product Specification
13.7 Brown Out Detector Processor
The Z51F0811 has an On-chip Brown-out detection circuit for monitoring the VDD level during
operation by comparing it to a fixed trigger level. The trigger level for the BOD can be selected by
BODLS[1:0] bit to be 1.6V, 2.5V, 3.6V or 4.2V. In the STOP mode, this will contribute significantly to
the total current consumption. So to minimize the current consumption, the BODEN bit is set to off by
software.
STOP_MODE
External VDD
BODLS[1:0]
Brown Out
Detector
(BOD)
1
RESET_BODB
MUX
D
BODEN
DEBOUNCE
CLK
Q
0
CP
r
CPU
Write
SCLK
(System CLK)
D
Q
BODRF
(BOD Reset Flag)
CP
r
nPOR
Figure 13-9 Block Diagram of BOD
VDD
VBODMAX
VBODMIN
16ms
Internal
RESETB
VDD
VBODMAX
VBODMIN
t < 16ms
16ms
Internal
RESETB
Figure 13-10 Internal Reset at the power fail situation
PS029602-0212
PRELIMINARY
183
Z51F0811
Product Specification
“H”
VDD
“H”
Internal nPOR
“H”
PAD RESETB (R20)
BOD_RESETB
BIT (for Config)
00 01 02 .. ..
F1
BIT (for Reset)
F1
..
01 02 ..
00
.. 2F 30
.. 3F 40 00 01 02 03
250us X 30h = about 12ms
Config Read
250us X 40h = about 16ms
RESET_SYSB
Main OSC Off
INT-OSC (128KHz)
INT-OSC 128KHz/32
INT-OSC 128KHz / 32 = 4KHz (250us)
Figure 13-11 Configuration timing when BOD RESET
13.7.1 Register Map
Table 13-3 Register Map
Name
BODR
Address
Dir
86H
Default
R/W
Description
81H
BOD Control Register
13.7.2 Reset Operation Register description
Reset control Register consists of the BOD Control Register (BODR).
13.7.3 Register description for Reset Operation
BODR (BOD Control Register) : 86H
7
6
5
4
3
2
1
0
PORF
EXTRF
WDTRF
OCDRF
BODRF
BODLS[1]
BODLS[0]
BODEN
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 81H
PORF
PS029602-0212
Power-On Reset flag bit. The bit is reset by writing ‘0’ to this bit.
PRELIMINARY
184
Z51F0811
Product Specification
EXTRF
WDTRF
OCDRF
BODRF
BODLS[1:0]
BODEN
PS029602-0212
0
No detection
1
Detection
External Reset flag bit. The bit is reset by writing ‘0’ to this bit or by Power
ON reset.
0
No detection
1
Detection
Watch Dog Reset flag bit. The bit is reset by writing ‘0’ to this bit or by
Power ON reset.
0
No detection
1
Detection
On-Chip Debug Reset flag bit. The bit is reset by writing ‘0’ to this bit or by
Power ON reset.
0
No detection
1
Detection
Brown-Out Reset flag bit. The bit is reset by writing ‘0’ to this bit or by
Power ON reset.
0
No detection
1
Detection
BOD level Voltage
BODLS1
BODLS0
Description
0
0
1.6V
0
1
2.5V
1
0
3.6V
1
1
4.2V
BOD operation
0
BOD disable
1
BOD enable
PRELIMINARY
185
Z51F0811
Product Specification
14. On-chip Debug System
14.1 Overview
14.1.1 Description
On-chip debug System (OCD) of Z51F0811 can be used for programming the non-volatile memories
and on-chip debugging. Detailed descriptions for programming via the OCD interface can be found in
the following chapter.
Figure 14-1 shows a block diagram of the OCD interface and the On-chip Debug system.
14.1.2 Feature
• Two-wire external interface: 1-wire serial clock input, 1-wire bi-directional serial data bus
• Debugger Access to:
− All Internal Peripheral Units
− Internal data RAM
− Program Counter
− Flash and Data EEPROM Memories
• Extensive On-chip Debug Support for Break Conditions, Including
− Break Instruction
− Single Step Break
− Program Memory Break Points on Single Address
− Programming of Flash, EEPROM, Fuses, and Lock Bits through the two-wire Interface
− On-chip Debugging Supported by Dr.Choice
®
• Operating frequency
Supports the maximum frequency of the target MCU
PS029602-0212
PRELIMINARY
186
Z51F0811
Product Specification
Target MCU internal circuit
Format
converter
DSCL
USB
DSDA
DBG
Control
BDC
DBG Register
CPU
Address
Internal data bus
User I/O
Code memory
-SRAM
-Flash
-EEPROM
Data memory
Peripheral
Figure 14-1 Block Diagram of On-chip Debug System
14.2 Two-pin external interface
14.2.1 Basic transmission packet
• 10-bit packet transmission using two-pin interface.
• 1-packet consists of 8-bit data, 1-bit parity and 1-bit acknowledge.
• Parity is even of ‘1’ for 8-bit data in transmitter.
• Receiver generates acknowledge bit as ‘0’ when transmission for 8-bit data and its parity has no
error.
• When transmitter has no acknowledge (Acknowledge bit is ‘1’ at tenth clock), error process is
executed in transmitter.
• When acknowledge error is generated, host PC makes stop condition and transmits command
which has error again.
• Background debugger command is composed of a bundle of packet.
• Star condition and stop condition notify the start and the stop of background debugger command
respectively.
PS029602-0212
PRELIMINARY
187
Z51F0811
Product Specification
Figure 14-2 10-bit transmission packet
14.2.2 Packet transmission timing
14.2.2.1 Data transfer
DSDA
LSB
acknowledgement
signal from receiver
LSB
acknowledgement
signal from receiver
DSCL
St
1
10
1
ACK
10
Sp
ACK
STOP
START
Figure 14-3 Data transfer on the twin bus
PS029602-0212
PRELIMINARY
188
Z51F0811
Product Specification
14.2.2.2 Bit transfer
DSDA
DSCL
data line
stable:
data valid
except Start and Stop
change
of data
allowed
Figure 14-4 Bit transfer on the serial bus
14.2.2.3 Start and stop condition
DSDA
DSDA
DSCL
DSCL
St
Sp
START condition
STOP condition
Figure 14-5 Start and stop condition
14.2.2.4 Acknowledge bit
Data output
by transmitter
no acknowledge
Data output
By receiver
acknowledge
DSCL from
master
1
2
9
10
clock pulse for acknowledgement
Figure 14-6 Acknowledge on the serial bus
PS029602-0212
PRELIMINARY
189
Z51F0811
Product Specification
Acknowledge bit
transmission
Minimum 500ns
Acknowledge bit
transmission
wait HIGH
start HIGH
Host PC
DSCL OUT
Start wait
Target Device
DSCL OUT
minimum 1 T SCLK
for next byte
transmission
Maximum 5 T SCLK
DSCL
Internal Operation
Figure 14-7 Clock synchronization during wait procedure
14.2.3 Connection of transmission
Two-pin interface connection uses open-drain (wire-AND bidirectional I/O).
VDD
pull -up
resistors
Rp
Rp
DSDA(Debugger Serial Data Line)
DSCL(Debugger Serial Clock Line)
VDD
DSCL
OUT
DSCL
IN
DSDA
OUT
DSDA
IN
VDD
DSCL
OUT
DSDA
OUT
DSDA
IN
DSCL
IN
Target Device(Slave)
Host Machine(Master)
Current source for DSCL to fast 0 to 1 transition in high speed mode
Figure 14-8 Connection of transmission
PS029602-0212
PRELIMINARY
190
Z51F0811
Product Specification
15. Memory Programming
15.1 Overview
15.1.1 Description
Z51F0811 incorporates flash and data EEPROM memory to which a program can be written, erased,
and overwritten while mounted on the board. Also, data EEPROM can be programmed or erased in
user program. Flash area can be programmed in only OCD or parallel ROM mode.
Serial ISP modes and byte-parallel ROM writer mode are supported.
15.1.2 Features
•
Flash Size : 8Kbytes
•
Single power supply program and erase
•
Command interface for fast program and erase operation
•
Up to 10,000 program/erase cycles at typical voltage and temperature for flash memory
•
Up to 100,000 program/erase cycles at typical voltage and temperature for data EEPROM
memory
•
Security feature
15.2 Flash and EEPROM Control and status register
Registers to control Flash and Data EEPROM are Mode Register (FEMR), Control Register (FECR),
Status Register (FESR), Time Control Register (FETCR), Address Low Register (FEARL), Address
Middle Register (FEARM), address High Register (FEARH) and Data Register (FEDR). They are
mapped to SFR area and can be accessed only in programming mode.
15.2.1 Register Map
Table 15-1 Register Map
Name
Address
Dir
Default
Description
FEMR
EAH
R/W
00H
Flash and EEPROM Mode Register
FECR
EBH
R/W
03H
Flash and EEPROM Control Register
FESR
ECH
R/W
80H
Flash and EEPROM Status Register
FETCR
EDH
R/W
00H
Flash and EEPROM Time Control Register
FEARL
F2H
R/W
00H
Flash and EEPROM Address Low Register
FEARM
F3H
R/W
00H
Flash and EEPROM Address Middle Register
FEARH
F4H
R/W
00H
Flash and EEPROM Address High Register
FEDR
F5H
R/W
00H
Flash and EEPROM Data Register
PS029602-0212
PRELIMINARY
191
Z51F0811
Product Specification
15.2.2 Register description for Flash and EEPROM
FEMR (Flash and EEPROM Mode Register) : EAH
7
6
5
4
3
2
1
0
FSEL
ESEL
PGM
ERASE
PBUFF
OTPE
VFY
FEEN
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
FSEL
ESEL
PGM
ERASE
PBUFF
OTPE
VFY
Select flash memory.
0
Deselect flash memory
1
Select flash memory
Select data EEPROM
0
Deselect data EEPROM
1
Select data EEPROM
Enable program or program verify mode with VFY
0
Disable program or program verify mode
1
Enable program or program verify mode
Enable erase or erase verify mode with VFY
0
Disable erase or erase verify mode
1
Enable erase or erase verify mode
Select page buffer
0
Deselect page buffer
1
Select page buffer
Select OTP area instead of program memory
0
Deselect OTP area
1
Select OTP area
Set program or erase verify mode with PGM or ERASE
Program Verify: PGM=1, VFY=1
Erase Verify: ERASE=1, VFY=1
FEEN
PS029602-0212
Enable program and erase of Flash and data EEPROM. When inactive, it
is possible to read as normal mode
0
Disable program and erase
1
Enable program and erase
PRELIMINARY
192
Z51F0811
Product Specification
FECR (Flash and EEPROM Control Register) : EBH
7
6
5
4
3
2
1
0
AEF
AEE
EXIT1
EXIT0
WRITE
READ
nFERST
nPBRST
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 03H
AEF
AEE
EXIT[1:0]
WRITE
READ
Enable flash bulk erase mode
0
Disable bulk erase mode of Flash memory
1
Enable bulk erase mode of Flash memory
Enable data EEPROM bulk erase mode
0
Disable bulk erase mode of data EEPROM
1
Enable bulk erase mode of data EEPROM
Exit from program mode. It is cleared automatically after 1 clock
EXIT1
EXIT0
Description
0
0
Don’t exit from program mode
0
1
Don’t exit from program mode
1
0
Don’t exit from program mode
1
1
Exit from program mode
Start to program or erase of Flash and data EEPROM. It is cleared
automatically after 1 clock
0
No operation
1
Start to program or erase of Flash and data EEPROM
Start auto-verify of Flash or data EEPROM. It is cleared automatically
after 1 clock
0
No operation
1
Start auto-verify of Flash or data EEPROM
nFERST
Reset Flash or data EEPROM control logic. It is cleared automatically
after 1 clock
0
No operation
1
Reset Flash or data EEPROM control logic.
nPBRST
Reset page buffer with PBUFF. It is cleared automatically after 1 clock
PBUFF
nPBRST
Description
0
0
Page buffer reset
1
0
Write checksum reset
WRITE and READ bits can be used in program, erase and verify mode with FEAR registers. Read or writes for
memory cell or page buffer uses read and write enable signals from memory controller. Indirect address mode
with FEAR is only allowed to program, erase and verify
PS029602-0212
PRELIMINARY
193
Z51F0811
Product Specification
FESR (Flash and EEPROM Status Register) : ECH
7
6
PEVBSY
VFYGOOD
R
R/W
5
4
3
2
1
0
-
-
ROMINT
WMODE
EMODE
VMODE
R
R
R/W
R
R
R
Initial value : 80H
PEVBSY
VFYGOOD
ROMINT
Operation status flag. It is cleared automatically when operation starts.
Operations are program, erase or verification
0
Busy (Operation processing)
1
Complete Operation
Auto-verification result flag.
0
Auto-verification fails
1
Auto-verification successes
Flash and Data EEPROM interrupt request flag. Auto-cleared when
program/erase/verify starts. Active in program/erase/verify completion
0
No interrupt request.
1
Interrupt request.
WMODE
Write mode flag
EMODE
Erase mode flag
VMODE
Verify mode flag
FEARL (Flash and EEPROM address low Register) : F2H
7
6
5
4
3
2
1
0
ARL7
ARL6
ARL5
ARL4
ARL3
ARL2
ARL1
ARL0
W
W
W
W
W
W
W
W
Initial value : 00H
ARL[7:0]
Flash and EEPROM address low
FEARM (Flash and EEPROM address middle Register) : F3H
7
6
5
4
3
2
1
0
ARM7
ARM6
ARM5
ARM4
ARM3
ARM2
ARM1
ARM0
W
W
W
W
W
W
W
W
Initial value : 00H
ARM[7:0]
Flash and EEPROM address middle
FEARH (Flash and EEPROM address high Register) : F4H
7
6
5
4
3
2
1
0
ARH7
ARH6
ARH5
ARH4
ARH3
ARH2
ARH1
ARH0
W
W
W
W
W
W
W
W
Initial value : 00H
ARH[7:0]
Flash and EEPROM address high
FEAR registers are used for program, erase and auto-verify. In program and erase mode, it is page
address and ignored the same least significant bits as the number of bits of page address. In autoverify mode, address increases automatically by one.
FEARs are write-only register. Reading these registers returns 24-bit checksum result
PS029602-0212
PRELIMINARY
194
Z51F0811
Product Specification
FEDR (Flash and EEPROM data control Register) : F5H
7
6
5
4
3
2
1
0
FEDR7
FEDR6
FEDR5
FEDR4
FEDR3
FEDR2
FEDR1
FEDR0
W
W
W
W
W
W
W
W
Initial value : 00H
FEDR[7:0]
Flash and EEPROM data
Data register. In no program/erase/verify mode, READ/WRITE of FECR read or write data from
EEPROM or Flash to this register or from this register to Flash or EEPROM.
The sequence of writing data to this register is used for EEPROM program entry. The mode entrance
sequence is to write 0xA5 and 0x5A to it in order.
FETCR (Flash and EEPROM Time control Register) : EDH
7
6
5
4
3
2
1
0
TCR7
TCR6
TCR5
TCR4
TCR3
TCR2
TCR1
TCR0
R/W
R/W
R/W
R/W
R/W
R/W
R/W
R/W
Initial value : 00H
TCR[7:0]
Flash and EEPROM Time control
Program and erase time is controlled by setting FETCR register. Program and erase timer uses 10bit counter. It increases by one at each divided system clock frequency(=SCLK/128). It is cleared
when program or erase starts. Timer stops when 10-bit counter is same to FETCR. PEVBSY is
cleared when program, erase or verify starts and set when program, erase or verify stops.
Max program/erase time at 12Mhz system clock : (255+1) * 2 * (83.3ns * 128) = 5.459ms
In the case of 10% of error rate of counter source clock, program or erase time is 5.0~5.9ms
* * Program/erase time calculation
for page write or erase, Tpe = (TCON+1) * 2 * (SCLK * 128)
for bulk erase, Tbe = (TCON+1) * 4 * (SCLK * 128)
Table 15-2 Program/erase Time
program/erase Time
Min
Typ
Max
Unit
2.4
2.5
2.6
ms
※ Recommended program/erase time at 12Mhz (FETCR = 75h)
PS029602-0212
PRELIMINARY
195
Z51F0811
Product Specification
15.3 Memory map
15.3.1 Flash Memory Map
Program memory uses 8-Kbyte of Flash memory. It is read by byte and written by byte or page. One
page is 32-byte
FFFFh
P
R
O
G
R
A
M
F
E
A
R
pgm/ers/vfy
Flash
MUX
C
O
U
N
T
E
R
1FFFh
8KBytes
0000h
Figure 15-1 Flash Memory Map
15
14
13
12
11
10
9
8
7
6
5
PAGE ADDRESS
4
3
2
1
0
WORD ADDRESS
Program Memory
0xFFFF
Page 2048
0x1F
Page 2047
0x00
Page 1
0x0000
Page 0
* Page buffer size: 32Bytes
Figure 15-2 Address configuration of Flash memory
PS029602-0212
PRELIMINARY
196
Z51F0811
Product Specification
15.3.2 Data EEPROM Memory Map
Data EEPROM memory uses 512-byte of EEPROM. It is read by byte and written by byte or page.
One page is 16-byte. It is mapped to external data memory of 8051
FFFFh
pgm/ers/vfy
D
P
T
R
F
E
A
R
L
XDATA Memory
MUX
31FFh
Data EEPROM
(512Bytes)
30FFh
0000h
Figure 15-3 Data EEPROM memory map
15
14
13
12
11
10
9
8
7
6
PAGE ADDRESS
5
4
3
2
1
0
WORD ADDRESS
Data Memory
0xFFFF
0xF
Page 4096
Page 4095
0x0
Page 1
0x0000
*Page buffer size: 16Bytes
Page 0
Figure 15-4 Address configuration of data EEPROM
PS029602-0212
PRELIMINARY
197
Z51F0811
Product Specification
15.4 Serial In-System Program Mode
Serial in-system program uses the interface of debugger which uses two wires. Refer to chapter 14
in details about debugger
15.4.1 Flash operation
Configuration (This Configuration is just used for follow description)
7
6
5
4
3
2
1
0
-
FEMR[4] &[1]
FEMR[5] & [1]
-
-
FEMR[2]
FECR[6]
FECR[7]
-
ERASE&VFY
PGM&VFY
-
-
OTPE
AEE
AEF
Master Reset
Page Buffer Reset
Page Buffer Load(0X00H)
Page Buffer Reset
Page Buffer Load
In the case of OTP
OTPE flag Set
In the case of OTP
OTPE flag Set
Erase
Erase Latency(500us)
Program
Page Buffer Reset
Pgm Latency(500us)
Configuration Reg. setting
Page Buffer Reset
Cell Read
Configuration Reg. setting
No
Pass/Fail?
Cell Read
Yes
Configuration Reg. Clear
Pass/Fail?
Figure 15-5 The sequence of page program and erase of Flash memory
PS029602-0212
PRELIMINARY
198
Z51F0811
Product Specification
Master Reset
Page Buffer Reset
Page Buffer Load
Configuration Reg. Set
Erase
Erase Latency(500us)
Page Buffer Reset
Configuration Reg. clear
Reg. setting
Cell Read
Pass/Fail?
Figure 15-6 The sequence of bulk erase of Flash memory
15.4.1.1 Flash Read
Step 1. Enter OCD(=ISP) mode.
Step 2. Set ENBDM bit of BCR.
Step 3. Enable debug and Request debug mode.
Step 4. Read data from Flash.
15.4.1.2 Enable program mode
Step 1. Enter OCD(=ISP) mode.1
Step 2. Set ENBDM bit of BCR.
Step 3. Enable debug and Request debug mode.
Step 4. Enter program/erase mode sequence.2
(1) Write 0xAA to 0xF555.
PS029602-0212
PRELIMINARY
199
Z51F0811
Product Specification
(2) Write 0x55 to 0xFAAA.
(3) Write 0xA5 to 0xF555.
1
Refer to how to enter ISP mode..
2
Command sequence to activate Flash write/erase mode. It is composed of sequentially writing data
of Flash memory.
15.4.1.3 Flash write mode
Step 1. Enable program mode.
Step 2. Reset page buffer. FEMR: 1000_0001 FECR:0000_0010
Step 3. Select page buffer. FEMR:1000_1001
Step 4. Write data to page buffer.(Address automatically increases by twin.)
Step 5. Set write mode. FEMR:1010_0001
Step 6. Set page address. FEARH:FEARM:FEARL=20’hx_xxxx
Step 7. Set FETCR.
Step 8. Start program. FECR:0000_1011
Step 9. Insert one NOP operation
Step 10. Read FESR until PEVBSY is 1.
Step 11. Repeat step2 to step 8 until all pages are written.
15.4.1.4 Flash page erase mode
Step 1. Enable program mode.
Step 2. Reset page buffer. FEMR: 1000_0001 FECR:0000_0010
Step 3. Select page buffer. FEMR:1000_1001
Step 4. Write ‘h00 to page buffer. (Data value is not important.)
Step 5. Set erase mode. FEMR:1001_0001
Step 6. Set page address. FEARH:FEARM:FEARL=20’hx_xxxx
Step 7. Set FETCR.
Step 8. Start erase. FECR:0000_1011
Step 9. Insert one NOP operation
Step 10. Read FESR until PEVBSY is 1.
Step 11. Repeat step2 to step 8 until all pages are erased.
15.4.1.5 Flash bulk erase mode
Step 1. Enable program mode.
Step 2. Reset page buffer. FEMR: 1000_0001 FECR:0000_0010
Step 3. Select page buffer. FEMR:1000_1001
Step 4. Write ‘h00 to page buffer. (Data value is not important.)
Step 5. Set erase mode. FEMR:1001_0001.
(Only main cell area is erased. For bulk erase including OTP area, select OTP area.(set FEMR
to 1000_1101.)
Step 6. Set FETCR
PS029602-0212
PRELIMINARY
200
Z51F0811
Product Specification
Step 7. Start bulk erase. FECR:1000_1011
Step 8. Insert one NOP operation
Step 9. Read FESR until PEVBSY is 1.
15.4.1.6 Flash OTP area read mode
Step 1. Enter OCD(=ISP) mode.
Step 2. Set ENBDM bit of BCR.
Step 3. Enable debug and Request debug mode.
Step 4. Select OTP area. FEMR:1000_0101
Step 5. Read data from Flash.
15.4.1.7 Flash OTP area write mode
Step 1. Enable program mode.
Step 2. Reset page buffer. FEMR: 1000_0001 FECR:0000_0010
Step 3. Select page buffer. FEMR:1000_1001
Step 4. Write data to page buffer.(Address automatically increases by twin.)
Step 5. Set write mode and select OTP area. FEMR:1010_0101
Step 6. Set page address. FEARH:FEARM:FEARL=20’hx_xxxx
Step 7. Set FETCR.
Step 8. Start program. FECR:0000_1011
Step 9. Insert one NOP operation
Step 10. Read FESR until PEVBSY is 1.
15.4.1.8 Flash OTP area erase mode
Step 1. Enable program mode.
Step 2. Reset page buffer. FEMR: 1000_0001 FECR:0000_0010
Step 3. Select page buffer. FEMR:1000_1001
Step 4. Write ‘h00 to page buffer. (Data value is not important.)
Step 5. Set erase mode and select OTP area. FEMR:1001_0101
Step 6. Set page address. FEARH:FEARM:FEARL=20’hx_xxxx
Step 7. Set FETCR.
Step 8. Start erase. FECR:0000_1011
Step 9. Insert one NOP operation
Step 10. Read FESR until PEVBSY is 1.
15.4.1.9 Flash program verify mode
Step 1. Enable program mode.
Step 2. Set program verify mode. FEMR:1010_0011
Step 3. Read data from Flash.
PS029602-0212
PRELIMINARY
201
Z51F0811
Product Specification
15.4.1.10 OTP program verify mode
Step 1. Enable program mode.
Step 2. Set program verify mode. FEMR:1010_0111
Step 3. Read data from Flash.
15.4.1.11 Flash erase verify mode
Step 1. Enable program mode.
Step 2. Set erase verify mode. FEMR:1001_0011
Step 3. Read data from Flash.
15.4.1.12 Flash page buffer read
Step 1. Enable program mode.
Step 2. Select page buffer. FEMR:1000_1001
Step 3. Read data from Flash.
15.4.2 Data EEPROM operation
Program and erase operation of Data EEPROM are executed by direct and indirect address mode.
Direct address mode uses external data area of 8051. Indirect address mode uses address register of
SFR area..
15.4.2.1 Data EEPROM Read
Step 1. Enter OCD(=ISP) mode.
Step 2. Set ENBDM bit of BCR.
Step 3. Enable debug and Request debug mode.
Step 4. Read data from Data EEPROM.
15.4.2.2 Enable program mode
Step 1. Enter OCD(=ISP) mode.1
Step 2. Set ENBDM bit of BCR.
Step 3. Enable debug and Request debug mode.
Step 4. Enter program/erase mode sequence.
2
(1) Write 0xA5 to FEDR.
(2) Write 0x5A to FEDR.
1
Refer to how to enter ISP mode..
2
Command sequence to activate data EEPROM write/erase mode. It is composed of sequentially
writing to data register(FEDR)
PS029602-0212
PRELIMINARY
202
Z51F0811
Product Specification
15.4.2.3 EEPROM write mode
Step 1. Enable program mode.
Step 2. Reset page buffer. FEMR: 0100_0001 FECR:0000_0010
Step 3. Select page buffer. FEMR:0100_1001
Step 4. Write data to page buffer.(Address automatically increases by twin.)
Step 5. Set write mode. FEMR:0110_0001
Step 6. Set page address. FEARH:FEARM:FEARL=20’hx_xxxx
Step 7. Set FETCR.
Step 8. Start program. FECR:0000_1011
Step 9. Insert one NOP operation
Step 10. Read FESR until PEVBSY is 1.
Step 11. Repeat step2 to step 8 until all pages are written.
15.4.2.4 EEPROM page erase mode
Step 1. Enable program mode.
Step 2. Reset page buffer. FEMR: 0100_0001 FECR:0000_0010
Step 3. Select page buffer. FEMR:0100_1001
Step 4. Write ‘h00 to page buffer. (Data value is not important.)
Step 5. Set erase mode. FEMR:0101_0001
Step 6. Set page address. FEARH:FEARM:FEARL=20’hx_xxxx
Step 7. Set FETCR.
Step 8. Start erase. FECR:0000_1011
Step 9. Insert one NOP operation
Step 10. Read FESR until PEVBSY is 1.
Step 11. Repeat step2 to step 8 until all pages are erased.
15.4.2.5 EEPROM bulk erase mode
Step 1. Enable program mode.
Step 2. Reset page buffer. FEMR: 0100_0001 FECR:0000_0010
Step 3. Select page buffer. FEMR:0100_1001
Step 4. Write ‘h00 to page buffer. (Data value is not important.)
Step 5. Set erase mode. FEMR:0101_0001.
Step 6. Set FETCR
Step 7. Start bulk erase. FECR:0100_1011
Step 8. Insert one NOP operation
Step 9. Read FESR until PEVBSY is 1.
15.4.2.6 Data EEPROM program verify mode
Step 1. Enable program mode.
Step 2. Set program verify mode. FEMR:0110_0011
Step 3. Read data from Flash.
PS029602-0212
PRELIMINARY
203
Z51F0811
Product Specification
15.4.2.7 Data EEPROM erase verify mode
Step 1. Enable program mode.
Step 2. Set erase verify mode. FEMR:0101_0011
Step 3. Read data from Flash.
15.4.2.8 Data EEPROM page buffer read
Step 1. Enable program mode.
Step 2. Select page buffer. FEMR:0100_1001
Step 3. Read data from Flash.
PS029602-0212
PRELIMINARY
204
Z51F0811
Product Specification
15.4.3 Summary of Flash and Data EEPROM Program/Erase Mode
Table 15-3 Operation Mode
Operation mode
Description
Flash read
Read cell by byte.
F
Flash write
Write cell by bytes or page.
L
Flash page erase
Erase cell by page.
A
Flash bulk erase
Erase the whole cells.
S
Flash program verify
Read cell in verify mode after programming.
H
Flash erase verify
Read cell in verify mode after erase.
Flash page buffer load
Load data to page buffer.
Data EEPROM read
Read cell by byte.
Data EEPROM write
Write cell by bytes or page.
Data EEPROM page erase
Erase cell by page.
Data EEPROM bulk erase
Erase the whole cells.
Data EEPROM program verify
Read cell in verify mode after programming.
Data EEPROM erase verify
Read cell in verify mode after erase.
Data EEPROM page buffer load
Load data to page buffer.
E
E
P
R
O
M
PS029602-0212
PRELIMINARY
205
Z51F0811
Product Specification
15.5 Parallel Mode
15.5.1 Overview
Parallel program mode transfers address and data by byte. 3-byte address can be entered by one
from the lease significant byte of address. If only LSB is changed, only one byte can be transferred.
And if the second byte is changed, the first and second byte can be transferred. Upper 4-bit of the
most significant byte selects memory to be accessed. Table 15-4 shows memory type to be
accessible by parallel mode. Address auto-increment is supported when read or write data without
address.
The erase and program sequence of Flash and data EEPROM is identical to that of ISP mode
except the entrance of parallel mode . Refer to Table 15-5 for the entrance method for parallel mode.
RESETB
PDATA[7:0]
nRD
nWR
nALE
Figure 15-7 Pin diagram for parallel programming
Table 15-4 The selection of memory type by ADDRH[7:4]
ADDRH[7:4]
Memory Type
0
0
0
0
Program Memory
0
0
0
1
External Memory
0
0
1
0
SFR
PS029602-0212
PRELIMINARY
206
Z51F0811
Product Specification
15.5.2 Parallel Mode instruction format
Table 15-5 Parallel mode instruction format
Instruction
n-byte data read
with 3-byte
address
n-byte data write
with 3-byte
address
n-byte data read
with 2-byte
address
n-byte data write
with 2-byte
address
n-byte data read
with 1-byte
address
n-byte data write
with 1-byte
address
PS029602-0212
Signal
Instruction Sequence
nALE
L
nWR
L
H
L
H
L
H
H
H
H
H
H
H
H
H
nRD
H
H
H
H
H
H
L
H
L
H
L
H
L
H
PDATA
ADDRL
ADDRM
ADDRH
DATA0
DATA1
---
DATAn
nALE
L
L
L
H
H
H
H
nWR
L
H
L
H
L
H
L
H
L
H
L
H
L
H
nRD
H
H
H
H
H
H
H
H
H
H
H
H
H
H
PDATA
ADDRL
ADDRM
ADDRH
DATA0
DATA1
---
DATAn
nALE
L
L
H
H
H
H
H
nWR
L
H
L
H
H
H
H
H
H
H
H
H
H
H
nRD
H
H
H
H
L
H
L
H
L
H
L
H
L
H
PDATA
ADDRL
ADDRM
DATA0
DATA1
DATA2
---
DATAn
nALE
L
L
H
H
H
H
H
nWR
L
H
L
H
L
H
L
H
L
H
L
H
L
H
nRD
H
H
H
H
H
H
H
H
H
H
H
H
H
H
PDATA
ADDRL
ADDRM
DATA0
DATA1
DATA2
---
DATAn
nALE
L
H
H
H
H
H
H
nWR
L
H
H
H
L
H
L
H
L
H
L
H
L
H
nRD
H
H
L
H
H
H
H
H
H
H
H
H
H
H
PDATA
ADDRL
DATA0
DATA1
DATA2
DATA3
---
DATAn
nALE
L
H
H
H
H
H
H
nWR
L
H
L
H
L
H
L
H
L
H
L
H
L
H
nRD
H
H
H
H
H
H
H
H
H
H
H
H
H
H
PDATA
ADDRL
L
L
DATA0
H
DATA1
PRELIMINARY
H
DATA2
H
DATA3
---
H
DATAn
207
Z51F0811
Product Specification
15.5.3 Parallel Mode timing diagram
1 - byte read with 3 -byte address
Write
AL
Write
AM
1- byte read with 2 -byte address
Write
AH
Read
Data Out
T ARS
Write
AL
Write
AM
2- byte read with 1-byte address
Read
Data Out
T ARH
Write
AL
T AWS
Read
Data Out
Read
Data Out
T AWH
nALE
nWR
T OA
address auto- increment
nRD
T AS
PDATA
T RL
T AH
AL(00H)
AM(F0H)
AH(00H)
DO
AL(00H)
Read @0F000H
AM(A0H)
DO
AL(01H)
Read @0A000H
T RH
DO
DO
Read @0A001H
Read @0A002H
Figure 15-8 Parallel Byte Read Timing of Program Memory
1 - byte write with 3 - byte address
Write
AL
Write
AM
Write
AH
1- byte write with 2 - byte address
Write
Data
T AWS
Write
AL
Write
AM
2- byte write with 1 - byte address
Write
Data
Write
AL
Read
Data Out
Write
Data
T AWH
nALE
address auto- increment
-
nWR
nRD
PDATA
T WE
T AS
T WH
T AH
AL(00H)
T DS
AM(F0H)
AH(00H)
T DH
DI(00H)
AL(00H)
Write 0x00 @0x0F000
AM(A0H
DI(01H)
Write 0x01 @0x0A000H
AL(01H)
DI(02H)
Write 0x02 @0x0A001
DI(03H)
Write 0x03 @0x0A002
Figure 15-9 Parallel Byte Write Timing of Program Memory
15.6 Mode entrance method of ISP and byte-parallel mode
15.6.1 Mode entrance method for ISP
TARGET MODE
DSDA
DSCL
DSDA
OCD(ISP)
‘hC
‘hC
‘hC
PS029602-0212
PRELIMINARY
208
Z51F0811
Product Specification
Release from worst 1.7V
Power on reset
Low period required during more 10us
nTEST
DSCL
DSDA
RESET_SYSB
Figure 15-10 ISP mode
15.6.2 Mode entrance of Byte-parallel
TARGET MODE
P0[3:0]
P0[3:0]
P0[3:0]
Byte-Parallel Mode
4‘h5
4‘hA
4‘h5
Release from worst 1.7V
Power on reset
Low period required during more 10us
nTEST
DSDA
Sample P0[3:0] at the falling edge of DSDA
R0[3:0]
‘h5
‘hA
‘h5
RESET_SYSB
Figure 15-11 Byte-parallel mode
PS029602-0212
PRELIMINARY
209
Z51F0811
Product Specification
15.7 Security
Z51F0811 provides Lock bits which can be left unprogrammed (“0”) or can be programmed (“1”) to
obtain the additional features listed in Table 15-6. The Lock bits can be erased to “0” with only the
bulk erase command and a value of more than 0x80 at FETCR.
Table 15-6 Security policy using lock-bits
USER MODE
LOCK
MODE
LOC
KE
Flash
LOC
KF
R
W
ISP/PMODE
DATA
EEPROM
P
E
B
E
R
W
P
E
OTP
B
E
R
W
P
E
DATA
EEPROM
Flash
B
E
R
W
P
E
B
E
OTP
R
W
P
E
B
E
R
W
P
E
B
E
O
0
0
O
O
O
X
O
O
O
O
X
X
X
X
O
O
O
O
O
O
O
O
O
O
O
0
1
O
O
O
X
O
O
O
O
X
X
X
X
X
X
X
O
O
O
O
O
O
X
X
O
1
0
O
O
O
X
O
O
O
O
X
X
X
X
O
◇
◇
◇
X
X
X
O
O
◇
◇
◇
1
1
O
O
O
X
O
O
O
O
X
X
X
X
X
X
X
◇
X
X
X
O
O
X
X
◇
•
LOCKF: Lock bit of Flash memory
•
LOCKE: Lock bit of data EEPROM
•
R: Read
•
W: Write
•
PE: Page erase
•
BE: Bulk Erase
•
O: Operation is possible.
•
X: Operation is impossible.
•
◇: When LOCKE is programmed, each operation can be done after data EEPROM is erased
with the bulk erase command.
PS029602-0212
PRELIMINARY
210
Z51F0811
Product Specification
16. Configure option
16.1 Configure option Control Register
FUSE_CONF (Pseudo-Configure Data) : 2F5DH
7
6
5
4
3
2
1
0
BSIZE1
BSIZE0
SXINEN
XINENA
RSTDIS
LOCKB
LOCKE
LOCKF
R
R
R
R
R
R
R
R
Initial value : 00H
BSIZE
SXINEN
XINENA
RSTDIS
LOCKB
LOCKE
LOCKF
PS029602-0212
Boot Area Hard Lock Size Bit
00
0100H~01FFH (default)
01
0100H~03FFH
10
0100H~07FFH
11
0100H~0FFFH
External Sub Oscillator Enable Bit
0
Sub OSC disable (default)
1
Sub OSC Enable
External Main Oscillator Enable Bit
0
Main OSC disable (default)
1
Main OSC Enable
External RESETB disable Bit
0
External RESET enable
1
External RESET disable
Boot Area Hard LOCK(protection) Bit
0
Hard LOCK Disable
1
Hard LOCK Enable
DATA memory LOCK bit
0
LOCK Disable
1
LOCK Enable
CODE memory LOCK bit
0
LOCK Disable
1
LOCK Enable
PRELIMINARY
211
Z51F0811
Product Specification
17. APPENDIX
A. Instruction Table
Instructions are either 1, 2 or 3 bytes long as listed in the ‘Bytes’ column below.
Each instruction takes either 1, 2 or 4 machine cycles to execute as listed in the following table. 1
machine cycle comprises 2 system clock cycles.
Mnemonic
ADD A,Rn
ADD A,dir
ADD A,@Ri
ADD A,#data
ADDC A,Rn
ADDC A,dir
ADDC A,@Ri
ADDC A,#data
SUBB A,Rn
SUBB A,dir
SUBB A,@Ri
SUBB A,#data
INC A
INC Rn
INC dir
INC @Ri
DEC A
DEC Rn
DEC dir
DEC @Ri
INC DPTR
MUL AB
DIV AB
DA A
Mnemonic
ANL A,Rn
ANL A,dir
ANL A,@Ri
ANL A,#data
ANL dir,A
ANL dir,#data
ORL A,Rn
ORL A,dir
ORL A,@Ri
ORL A,#data
ORL dir,A
ORL dir,#data
XRL A,Rn
XRL A,dir
PS029602-0212
ARITHMETIC
Description
Add register to A
Add direct byte to A
Add indirect memory to A
Add immediate to A
Add register to A with carry
Add direct byte to A with carry
Add indirect memory to A with carry
Add immediate to A with carry
Subtract register from A with borrow
Subtract direct byte from A with borrow
Subtract indirect memory from A with borrow
Subtract immediate from A with borrow
Increment A
Increment register
Increment direct byte
Increment indirect memory
Decrement A
Decrement register
Decrement direct byte
Decrement indirect memory
Increment data pointer
Multiply A by B
Divide A by B
Decimal Adjust A
LOGICAL
Description
AND register to A
AND direct byte to A
AND indirect memory to A
AND immediate to A
AND A to direct byte
AND immediate to direct byte
OR register to A
OR direct byte to A
OR indirect memory to A
OR immediate to A
OR A to direct byte
OR immediate to direct byte
Exclusive-OR register to A
Exclusive-OR direct byte to A
PRELIMINARY
Bytes
1
2
1
2
1
2
1
2
1
2
1
2
1
1
2
1
1
1
2
1
1
1
1
1
Cycles
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
4
4
1
Hex code
Bytes
1
2
1
2
2
3
1
2
1
2
2
3
1
2
Cycles
1
1
1
1
1
2
1
1
1
1
1
2
1
1
Hex code
28-2F
25
26-27
24
38-3F
35
36-37
34
98-9F
95
96-97
94
04
08-0F
05
06-07
14
18-1F
15
16-17
A3
A4
84
D4
58-5F
55
56-57
54
52
53
48-4F
45
46-47
44
42
43
68-6F
65
212
Z51F0811
Product Specification
XRL A, @Ri
XRL A,#data
XRL dir,A
XRL dir,#data
CLR A
CPL A
SWAP A
RL A
RLC A
RR A
RRC A
Mnemonic
MOV A,Rn
MOV A,dir
MOV A,@Ri
MOV A,#data
MOV Rn,A
MOV Rn,dir
MOV Rn,#data
MOV dir,A
MOV dir,Rn
MOV dir,dir
MOV dir,@Ri
MOV dir,#data
MOV @Ri,A
MOV @Ri,dir
MOV @Ri,#data
MOV DPTR,#data
MOVC A,@A+DPTR
MOVC A,@A+PC
MOVX A,@Ri
MOVX A,@DPTR
MOVX @Ri,A
MOVX @DPTR,A
PUSH dir
POP dir
XCH A,Rn
XCH A,dir
XCH A,@Ri
XCHD A,@Ri
Mnemonic
CLR C
CLR bit
SETB C
SETB bit
CPL C
CPL bit
ANL C,bit
PS029602-0212
Exclusive-OR indirect memory to A
Exclusive-OR immediate to A
Exclusive-OR A to direct byte
Exclusive-OR immediate to direct byte
Clear A
Complement A
Swap Nibbles of A
Rotate A left
Rotate A left through carry
Rotate A right
Rotate A right through carry
DATA TRANSFER
Description
Move register to A
Move direct byte to A
Move indirect memory to A
Move immediate to A
Move A to register
Move direct byte to register
Move immediate to register
Move A to direct byte
Move register to direct byte
Move direct byte to direct byte
Move indirect memory to direct byte
Move immediate to direct byte
Move A to indirect memory
Move direct byte to indirect memory
Move immediate to indirect memory
Move immediate to data pointer
Move code byte relative DPTR to A
Move code byte relative PC to A
Move external data(A8) to A
Move external data(A16) to A
Move A to external data(A8)
Move A to external data(A16)
Push direct byte onto stack
Pop direct byte from stack
Exchange A and register
Exchange A and direct byte
Exchange A and indirect memory
Exchange A and indirect memory nibble
BOOLEAN
Description
Clear carry
Clear direct bit
Set carry
Set direct bit
Complement carry
Complement direct bit
AND direct bit to carry
PRELIMINARY
1
2
2
3
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
66-67
64
62
63
E4
F4
C4
23
33
03
13
Bytes
1
2
1
2
1
2
2
2
2
3
2
3
1
2
2
3
1
1
1
1
1
1
2
2
1
2
1
1
Cycles
1
1
1
1
1
2
1
1
2
2
2
2
1
2
1
2
2
2
2
2
2
2
2
2
1
1
1
1
Hex code
E8-EF
E5
E6-E7
74
F8-FF
A8-AF
78-7F
F5
88-8F
85
86-87
75
F6-F7
A6-A7
76-77
90
93
83
E2-E3
E0
F2-F3
F0
C0
D0
C8-CF
C5
C6-C7
D6-D7
Bytes
1
2
1
2
1
2
2
Cycles
1
1
1
1
1
1
2
Hex code
C3
C2
D3
D2
B3
B2
82
213
Z51F0811
Product Specification
ANL C,/bit
ORL C,bit
ORL C,/bit
MOV C,bit
MOV bit,C
AND direct bit inverse to carry
OR direct bit to carry
OR direct bit inverse to carry
Move direct bit to carry
Move carry to direct bit
BRANCHING
Description
Mnemonic
ACALL addr 11
LCALL addr 16
RET
RETI
AJMP addr 11
LJMP addr 16
SJMP rel
JC rel
JNC rel
JB bit,rel
JNB bit,rel
JBC bit,rel
JMP @A+DPTR
JZ rel
JNZ rel
CJNE A,dir,rel
CJNE A,#d,rel
CJNE Rn,#d,rel
CJNE @Ri,#d,rel
DJNZ Rn,rel
DJNZ dir,rel
Absolute jump to subroutine
Long jump to subroutine
Return from subroutine
Return from interrupt
Absolute jump unconditional
Long jump unconditional
Short jump (relative address)
Jump on carry = 1
Jump on carry = 0
Jump on direct bit = 1
Jump on direct bit = 0
Jump on direct bit = 1 and clear
Jump indirect relative DPTR
Jump on accumulator = 0
Jump on accumulator ≠ 0
Compare A,direct jne relative
Compare A,immediate jne relative
Compare register, immediate jne relative
Compare indirect, immediate jne relative
Decrement register, jnz relative
Decrement direct byte, jnz relative
MISCELLANEOUS
Description
Mnemonic
NOP
No operation
Mnemonic
MOVC @(DPTR++),A
TRAP
2
2
2
2
2
2
2
2
1
2
B0
72
A0
A2
92
Bytes
2
3
1
1
2
3
2
2
2
3
3
3
1
2
2
3
3
3
3
3
3
Cycles
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Hex code
Bytes
1
Cycles
1
Hex code
ADDITIONAL INSTRUCTIONS (selected through EO[7:4])
Description
Bytes
M8051W/M8051EW-specific instruction supporting
1
software download into program memory
1
Software break command
11→F1
12
22
32
01→E1
02
80
40
50
20
30
10
73
60
70
B5
B4
B8-BF
B6-B7
D8-DF
D5
00
Cycles
Hex code
2
A5
1
A5
In the above table, an entry such as E8-EF indicates a continuous block of hex opcodes used for 8
different registers, the register numbers of which are defined by the lowest three bits of the
corresponding code. Non-continuous blocks of codes, shown as 11→F1 (for example), are used for
absolute jumps and calls, with the top 3 bits of the code being used to store the top three bits of the
destination address.
The CJNE instructions use the abbreviation #d for immediate data; other instructions use #data.s
B. Instructions on how to use the input port.
Error occur status
PS029602-0212
PRELIMINARY
214
Z51F0811
Product Specification
Using compare jump instructions with input port, it could cause error due to the timing conflict
inside the MCU.
Compare jump Instructions which cause potential error used with input port condition:
JB
bit, rel ; jump on direct bit=1
JNB
bit, rel ; jump on direct bit=0
JBC
bit, rel ; jump on direct bit=1 and clear
CJNE A, dir, rel
; compare A, direct jne relative
DJNZ dir, rel ; decrement direct byte, jnz relative
It is only related with Input port. Internal parameters, SFRs and output bit ports don’t cause an
y error by using compare jump instructions.
If input signal is fixed, there is no error in using compare jump instructions.
Error status example
zzz:
while(1){
if (P00==1){ P10=1; }
JNB
080.0, xxx ; it possible to be error
SETB
088.0
SJMP
yyy
xxx:
CLR
088.0
yyy:
MOV
C,088.1
else { P10=0; }
CPL
C
P11^=1;
MOV
088.1,C
SJMP
zzz
}
MOV
unsigned char ret_bit_err(void)
JB
{
MOV
return !P00;
R7, #000
080.0, xxx ; it possible to be error
R7, #001
xxx: RET
}
Preventative measures (2 cases)
Do not use input bit port for bit operation but for byte operation. Using byte operation instead
of bit operation will not cause any error in using compare jump instructions for input port.
zzz:
MOV
JNB
while(1){
xxx:
if ((P0&0x01)==0x01){ P10=1; }
yyy:
else { P10=0; }
P11^=1;
}
PS029602-0212
A, 080
0E0.0, xxx
SETB
088.0
SJMP
yyy
CLR
MOV
088.0
C,088.1
CPL
C
MOV
088.1,C
SJMP
zzz
PRELIMINARY
; read as byte
; compare
215
Z51F0811
Product Specification
zzz: MOV
parameter
C,080.0 ; input port use internal
MOV
JB
bit tt;
while(1){
; move
020.0, xxx
; compare
SETB
088.0
SJMP
yyy
tt=P00;
xxx:
CLR
088.0
if (tt==0){ P10=1;}
yyy:
MOV
C,088.1
else { P10=0;}
CPL
C
P11^=1;
MOV
088.1,C
SJMP
zzz
}
020.0, C
If you use input bit port for compare jump instruction, you have to copy the input port as intern
al parameter or carry bit and then use compare jump instruction.
PS029602-0212
PRELIMINARY
216
Z51F0811
Product Specification
217
Customer Support
To share comments, get your technical questions answered, or report issues you may be
experiencing with our products, please visit Zilog’s Technical Support page at
http://support.zilog.com.
To learn more about this product, find additional documentation, or to discover other facets about Zilog product offerings, please visit the Zilog Knowledge Base or consider participating in the Zilog Forum.
This publication is subject to replacement by a later edition. To determine whether a later
edition exists, please visit the Zilog website at http://www.zilog.com.
PS029602-0212
PRELIMINARY
Customer Support
工商网监
湘ICP备2023018690号
