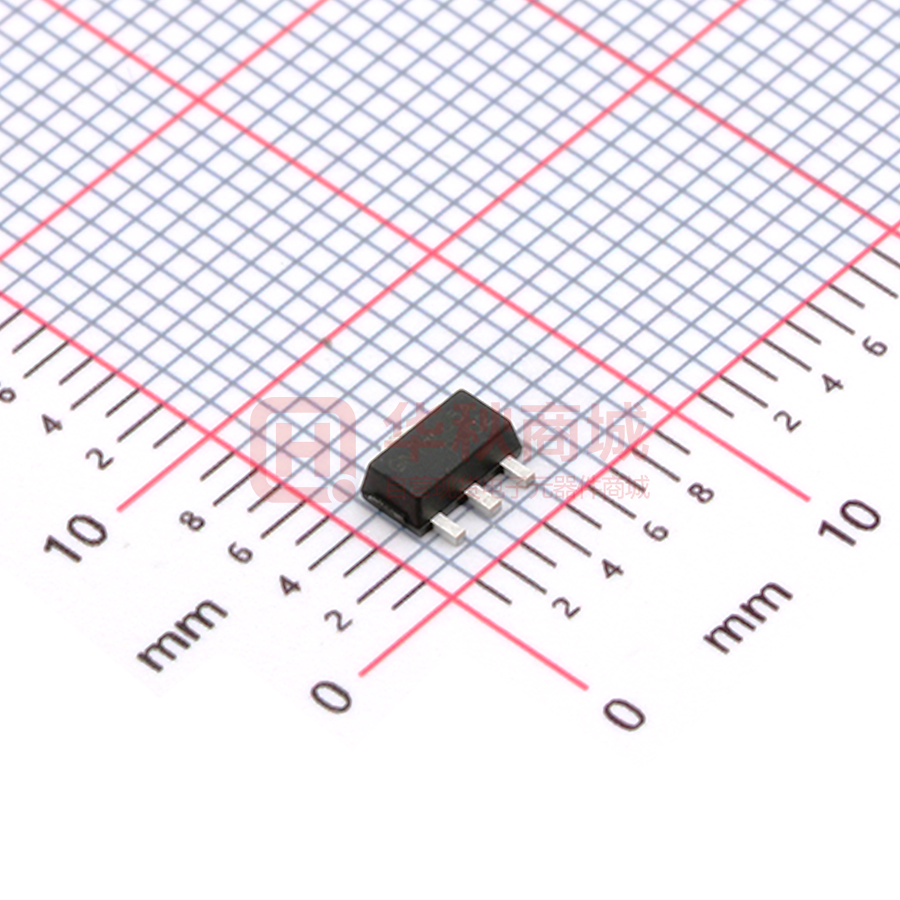

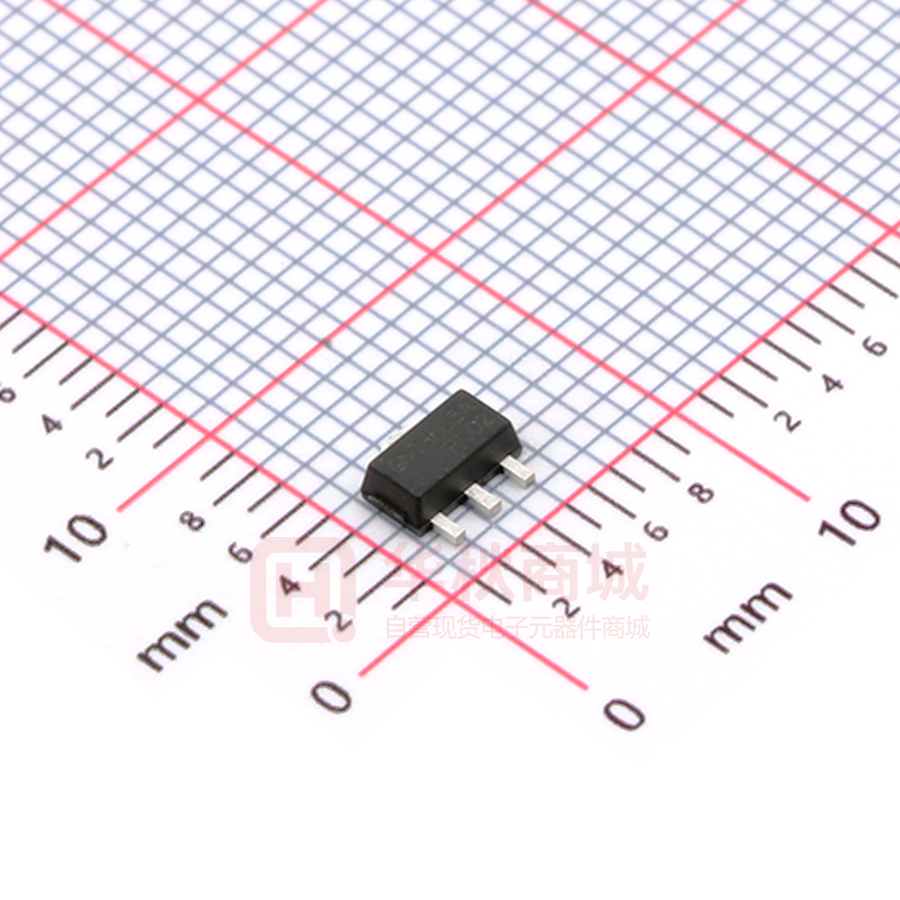

GN78L05ASR

旌芯半导体科技(上海)有限公司 GN Semiconductor (Shanghai) Co., Ltd. GN78L05ASR 3-Terminal Voltage Regulator Features  Input voltage:up to 30V  Output:5V  Output current up to 100 mA, internal thermal SOT-89 overload protection and short-circuit limiting. 1. OUT 2. GND 3. IN Maximum Ratings Ratings at TA = 25℃ ambient temperature unless otherwise specified. Parameter Symbols Value Units Input Voltage VI 30 V Output Current IO 100 mA Junction Temperature TJ 150 ℃ TOPR -40～125 ℃ Power Dissipation PD 500 mW Storage Temperature Range TSTG -55～150 ℃ Operating Temperature Range Electrical Characteristics Ratings at TA = 25℃ ambient temperature unless otherwise specified. Parameter Symbols Test Conditions Min Typ Max Unit 4.80 5.0 5.2 V IO=1mA to 40mA VI=7V to 20V 4.75 5.0 5.25 V IO=1mA to 70mA VI=10V 4.75 5.0 5.25 V Io＝40mA Output Voltage Line Regulation VO Vo △ VO Load Regulation △ Ripple Rejection RR Output Noise Voltage eN Dropout Voltage VD Quiescent Current IQ Quiescent Current Change △ IQ TJ=25℃ VI=7V to 20V TJ=25℃ 32 150 mV VI=8V to 20V TJ=25℃ 26 100 mV IO=1mA to 100mA TJ=25℃ 15 60 mV IO=1mA to 40 mA TJ=25℃ 8 30 mV VI=8V to 18V 49 dB =f 10Hz~100KHz TJ=25℃ 42 μV TJ=25℃ 1.7 V TJ=25℃ 3.8 TJ=25℃ f=120Hz 41 6 mA TJ=125℃ 5.5 mA VI=8V to 20V 1.5 mA IO=1mA to 40mA 0.1 mA 中国(上海)自由贸易试验区芳春路400号1幢3层 http://www.gnsemic.com 电话:021-34125778 1/3 旌芯半导体科技(上海)有限公司 GN Semiconductor (Shanghai) Co., Ltd. GN78L05ASR 3-Terminal Voltage Regulator Ratings and Characteristic Curves - - Vo -VI VI Vo 8.0 2.5 TJ IO =70mA vout =5.0v 2.0 (V) (V) 6.0 VI Vo - - 4.0 IO = 100mA IO = 40mA 2.0 0 0 1.5 Vo IO =1.0mA IO = 40mA 1.0 IO = 1.0mA 0.5 2.0 4.0 6.0 8.0 0 10 0 25 50 75 VI - ( V ) TJ - (℃) IQ - TA IQ -VI 4.2 100 125 5.0 4.0 4.0 (mA) 3.0 - IQ 3.6 3.4 IQ (mA) 3.8 2.0 3.2 1.0 3.0 VI =10V IO=40mA 0 0 25 IO =40mA 0 50 75 100 125 0 5.0 15 20 25 30 35 40 VI - (V ) TA - ( ℃ ) Vi 10 1 3 Vo GN78L05ASR C1 0.33 µF 2 中国(上海)自由贸易试验区芳春路400号1幢3层 http://www.gnsemic.com 电话:021-34125778 C2 0.1 µF 2/3 旌芯半导体科技(上海)有限公司 GN Semiconductor (Shanghai) Co., Ltd. GN78L05ASR 3-Terminal Voltage Regulator Package Outline SOT-89 Dimensions in mm Ordering Information Device GN78L05ASR Package Shipping SOT-89 1,000/ Tape & Reel (7 inches) 中国(上海)自由贸易试验区芳春路400号1幢3层 http://www.gnsemic.com 电话:021-34125778 3/3
