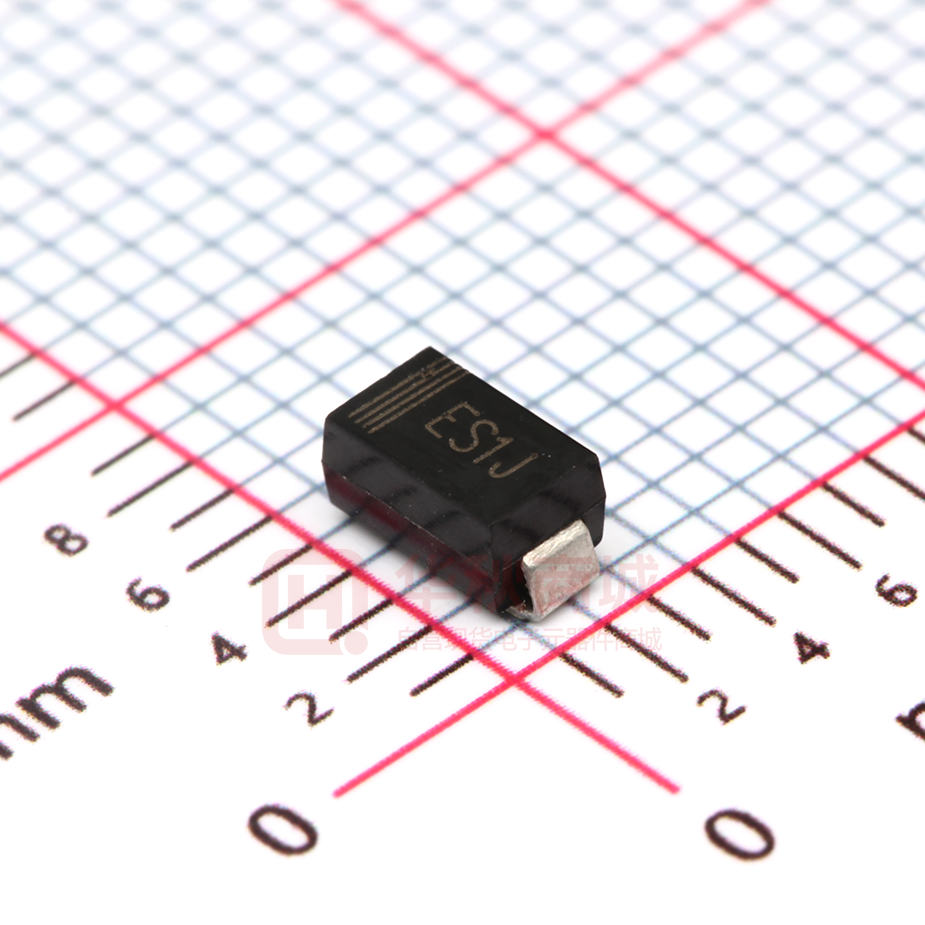

ES1A-ES1K
1.0A Surface Mount Super Fast Rectifier
Features
•
•
•
•
Low profile surface mounted package
Glass passivated junction
Ultra fast recovery time for high efficiency
Plastic package has underwriters laboratory
flammability classification 94V-0
• High temperature soldering: 250 °C /10 seconds at terminals
• RoHS compliant
SMA
Maximum Ratings (T Ambient=25ºC unless noted)
Symbol
VRRM
VRMS
VDC
IAV
Description
Maximum Repetitive
Peak Reverse
Voltage
Maximum RMS
Voltage
Maximum DC
Blocking Voltage
Maximum Average
Forward Rectified
Current
IFSM
Peak Forward Surge
Current
TJ,TSTG
Operating Junction
and Storage
Temperature Range
ES1A
ES1B
ES1D
ES1F
ES1G
ES1J
ES1K
Unit
50
100
200
300
400
600
800
V
35
70
140
210
280
420
560
V
50
100
200
300
400
600
800
V
1.0
30
-55 to 150
Note: Single phase half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
www.slkormicro.com
1
25
Conditions
A
TL=110°C
A
8.3ms single half sinewave superimposed on
rated load (JEDEC
Method)
°C
ES1A-ES1K
Electrical Characteristics (T Ambient=25ºC unless noted)
Symbol
Description
Trr
Maximum
Instantaneous
Forward Voltage
Maximum DC
Reverse Current at
Rated DC Blocking
Voltage
Typical Reverse
Recovery Time
CJ
VF
IR
Rθ-JA
ES1A
ES1B
ES1D
ES1F
0.95
ES1G
ES1J
ES1K
Unit
1.7
2.2
V
1.25
Conditions
IF=1.0 A
5
TA=25 °C
µA
50
TA=125 °C
35
nS
Typical Junction
Capacitance
10
pF
Maximum Thermal
Resistance
34
° C/W
IF=0.5A, IR=1.0A,
Irr=0.25A
Measured at 1.0 MHZ
and Applied Vr = 4.0
volts.
Mounted on 0.2" x
0.2" (5mmx5mm)
copper pad area
Note: Single phase half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Fig.1- Forward Current Derating Curve
Fig.2- Max. Non-Repetitive Forward Surge Current
IFSM Peak Forward Surge Current (A)
IAV Average Forward Rectified Current (A)
Typical Characteristics Curves
ES1K
Number of Cycles at 60Hz
Ambient Temperature (° C)
www.slkormicro.com
ES1A-- ES1J
2
ES1A-ES1K
Fig.4- Junction Capacitance
Junction Capacitance (pF)
Instantaneous Reverse Current (µA)
Fig.3- Typical Reverse Characteristics
Percentage of Peak Reverse Voltage (%)
Reverse Voltage (V)
Dimensions in inch (mm)
DO-214AC
(SMA)
www.slkormicro.com
3
