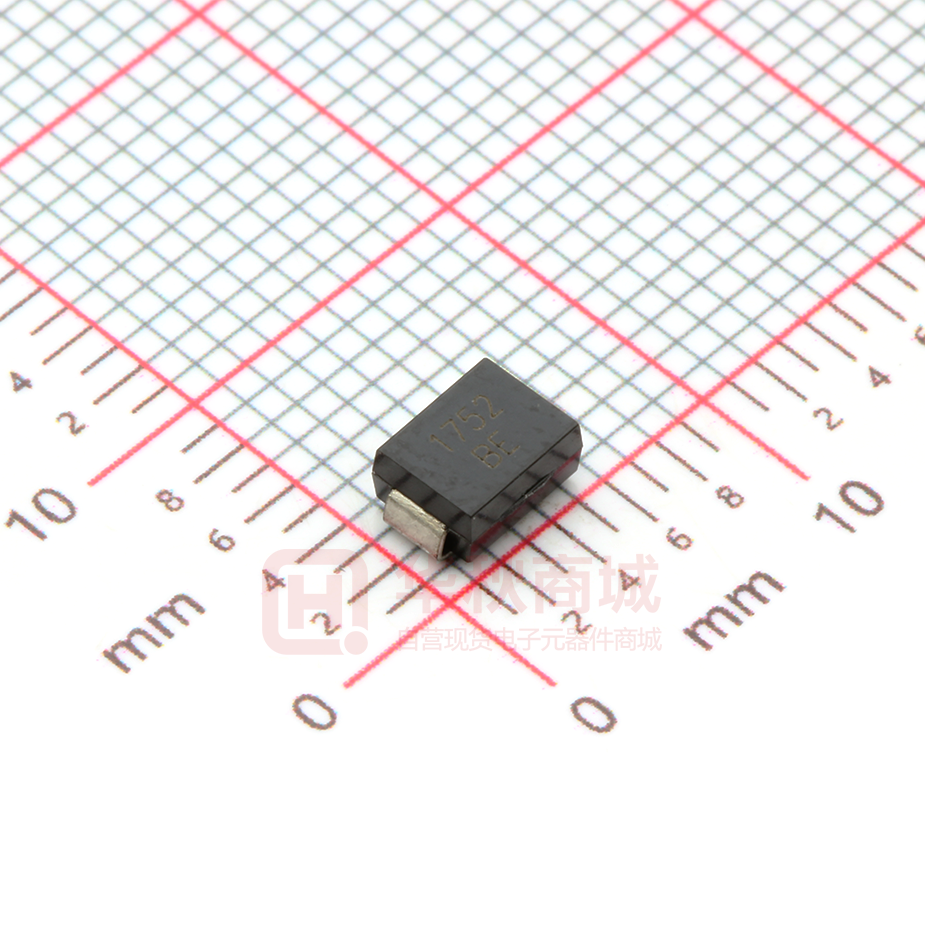

SMBJ15CA

SMBJ15CA

  • 厂商:

    HQ(华秋商城)

  • 封装:

    SMB(DO-214AA)

  • 描述:

    TVS二极管 Vr=15V Ippm=24.6A 600W 双向

  • 数据手册
  • 价格&库存
SMBJ15CA 数据手册
Transient Voltage Suppression Diodes Surface Mount – 600W > SMBJ series SMBJ Series RoHS Pb e3 Description Uni-directional Bi-directional The SMBJ is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. Features Agency Approvals AGENCY AGENCY FILE NUMBER E230531 Maximum Ratings and Thermal Characteristics (TA=25OC unless otherwise noted) Parameter Symbol Value Unit Peak Pulse Power Dissipation at TA=25ºC by 10/1000µs Waveform (Fig.2)(Note 1), (Note 2), (Note 5) PPPM 600 W Power Dissipation on Infinite Heat Sink at TL=50OC PD 5.0 W Peak Forward Surge Current, 8.3ms Single Half Sine Wave (Note 3) IFSM 100 A Maximum Instantaneous Forward Voltage at 50A for Unidirectional Only (Note 4) VF 3.5/5.0 V Operating Temperature Range TJ -65 to 150 °C Storage Temperature Range TSTG -65 to 175 °C Typical Thermal Resistance Junction to Lead RθJL 20 °C/W Typical Thermal Resistance Junction to Ambient RθJA 100 °C/W • 600W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles):0.01% • Excellent clamping capability • Low incremental surge resistance • Typical IR less than 1μA when VBR min>12V • For surface mounted applications to optimize board space • Low profile package • Typical failure mode is a short circuit condition for current events exceeding component rating • Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c • IEC-61000-4-2 ESD 30kV(Air), 30kV (Contact) • EFT protection of data lines in accordance with IEC 61000-4-4 • Built-in strain relief • Fast response time: typically less than 1.0ps from 0V to BV min • High temperature to reflow soldering guaranteed: 260°C/40sec • VBR @ TJ= VBR@25°C x (1+αT x (TJ - 25)) (αT:Temperature Coefficient, typical value is 0.1%) • Plastic package is flammability rated V-0 per UL-94 • Meet MSL level1, per J-STD-020, lead-frame maximun peak of 260°C • Matte tin lead–free plated • Halogen free and RoHS compliant • Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD609A.01) Notes: 1. Non-repetitive current pulse , per Fig. 4 and derated above TJ (initial) =25OC per Fig. 3. 2. Mounted on copper pad area of 0.2x0.2” (5.0 x 5.0mm) to each terminal. 3. Measured on 8.3ms single half sine wave or equivalent square wave for unidirectional device only, duty cycle=4 per minute maximum. 4. VF < 3.5V for single die parts and VF< 5.0V for stacked-die parts. 5. The PPPM of stacked-die parts is 800W; please contact Littelfuse for details on the stacked-die components. Applications TVS devices are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications. ® Functional Diagram Additional Infomarion Bi-directional Cathode Datasheet Anode Uni-directional © 2017 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 06/07/17 Resources Samples Transient Voltage Suppression Diodes Surface Mount – 600W > SMBJ series Electrical Characteristics (T =25°C unless otherwise noted) A Part Number (Uni) Part Number (Bi) SMBJ5.0A SMBJ6.0A SMBJ6.5A SMBJ7.0A SMBJ7.5A SMBJ8.0A SMBJ8.5A SMBJ9.0A SMBJ10A SMBJ11A SMBJ12A SMBJ13A SMBJ14A SMBJ15A SMBJ16A SMBJ17A SMBJ18A SMBJ20A SMBJ22A SMBJ24A SMBJ26A SMBJ28A SMBJ30A SMBJ33A SMBJ36A SMBJ40A SMBJ43A SMBJ45A SMBJ48A SMBJ51A SMBJ54A SMBJ58A SMBJ60A SMBJ64A SMBJ70A SMBJ75A SMBJ78A SMBJ85A SMBJ90A SMBJ100A SMBJ110A SMBJ120A SMBJ130A SMBJ150A SMBJ160A SMBJ170A SMBJ180A SMBJ188A SMBJ200A SMBJ220A SMBJ250A SMBJ300A* SMBJ350A* SMBJ400A* SMBJ440A* Marking SMBJ5.0CA SMBJ6.0CA SMBJ6.5CA SMBJ7.0CA SMBJ7.5CA SMBJ8.0CA SMBJ8.5CA SMBJ9.0CA SMBJ10CA SMBJ11CA SMBJ12CA SMBJ13CA SMBJ14CA SMBJ15CA SMBJ16CA SMBJ17CA SMBJ18CA SMBJ20CA SMBJ22CA SMBJ24CA SMBJ26CA SMBJ28CA SMBJ30CA SMBJ33CA SMBJ36CA SMBJ40CA SMBJ43CA SMBJ45CA SMBJ48CA SMBJ51CA SMBJ54CA UNI KE KG KK KM KP KR KT KV KX KZ LE LG LK LM LP LR LT LV LX LZ ME MG MK MM MP MR MT MV MX MZ NE BI AE AG AK AM AP AR AT AV AX AZ BE BG BK BM BP BR BT BV BX BZ CE CG CK CM CP CR CT CV CX CZ DE SMBJ58CA SMBJ60CA SMBJ64CA SMBJ70CA SMBJ75CA SMBJ78CA SMBJ85CA SMBJ90CA SMBJ100CA SMBJ110CA SMBJ120CA SMBJ130CA SMBJ150CA SMBJ160CA SMBJ170CA SMBJ180CA SMBJ188CA SMBJ200CA SMBJ220CA SMBJ250CA SMBJ300CA* SMBJ350CA* SMBJ400CA* SMBJ440CA* NG NK NM NP NR NT NV NX NZ PE PG PK PM PP PR PT PB PV PX PZ QE QG QK QM DG DK DM DP DR DT DV DX DZ EE EG EK EM EP ER ET EB EV EX EZ FE FG FK FM Reverse Stand off Voltage VR (Volts) Breakdown Voltage VBR (Volts) @ IT 5.0 6.0 6.5 7.0 7.5 8.0 8.5 9.0 10.0 11.0 12.0 13.0 14.0 15.0 16.0 17.0 18.0 20.0 22.0 24.0 26.0 28.0 30.0 33.0 36.0 40.0 43.0 45.0 48.0 51.0 54.0 MIN 6.40 6.67 7.22 7.78 8.33 8.89 9.44 10.00 11.10 12.20 13.30 14.40 15.60 16.70 17.80 18.90 20.00 22.20 24.40 26.70 28.90 31.10 33.30 36.70 40.00 44.40 47.80 50.00 53.30 56.70 60.00 58.0 60.0 64.0 70.0 75.0 78.0 85.0 90.0 100.0 110.0 120.0 130.0 150.0 160.0 170.0 180.0 188.0 200.0 220.0 250.0 300.0 350.0 400.0 440.0 64.40 66.70 71.10 77.80 83.30 86.70 94.40 100.00 111.00 122.00 133.00 144.00 167.00 178.00 189.00 201.00 209.00 224.00 246.00 279.00 335.00 391.00 447.00 492.00 Test Current IT MAX 7.00 7.37 7.98 8.60 9.21 9.83 10.40 11.10 12.30 13.50 14.70 15.90 17.20 18.50 19.70 20.90 22.10 24.50 26.90 29.50 31.90 34.40 36.80 40.60 44.20 49.10 52.80 55.30 58.90 62.70 (mA) 10 10 10 10 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 66.30 71.20 73.70 78.60 86.00 92.10 95.80 104.00 111.00 123.00 135.00 147.00 159.00 185.00 197.00 209.00 222.00 231.00 247.00 272.00 309.00 371.00 432.00 494.00 543.00 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 Maximum Maximum Clamping Peak Voltage VC Pulse Current @ Ipp Ipp (A) at (V) at 10/1000 10/1000 9.2 65.3 10.3 58.3 11.2 53.6 12.0 50.0 12.9 46.6 13.6 44.2 14.4 41.7 15.4 39.0 17.0 35.3 18.2 33.0 19.9 30.2 21.5 28.0 23.2 25.9 24.4 24.6 26.0 23.1 27.6 21.8 29.2 20.6 32.4 18.6 35.5 16.9 38.9 15.5 42.1 14.3 45.4 13.3 48.4 12.4 53.3 11.3 58.1 10.4 64.5 9.3 69.4 8.7 72.7 8.3 77.4 7.8 82.4 7.3 87.1 93.6 96.8 103.0 113.0 121.0 126.0 137.0 146.0 162.0 177.0 193.0 209.0 243.0 259.0 275.0 292.0 304.0 324.0 356.0 405.0 486.0 567.0 648.0 713.0 For bidirectional type having VR of 10 volts and less, the IR limit is double. Components marked with “*” use stacked-die, therefore they have a higher surge capability (typical 1.8*IPP). 6.9 6.5 6.2 5.9 5.3 5.0 4.8 4.4 4.1 3.7 3.4 3.1 2.9 2.5 2.3 2.2 2.1 2.0 1.9 1.7 1.5 1.3 1.1 0.9 0.9 Maximum Agency Maximum Reverse Temperature Recognition Leakage IR coefficient of @ VR VBR (%/C) (µA) 800 0.041 X 800 0.046 X 500 0.052 X 200 0.058 X 100 0.061 X 50 0.064 X 20 0.066 X 10 0.069 X 5 0.071 X 1 0.074 X 1 0.075 X 1 0.076 X 1 0.08 X 1 0.083 X 1 0.084 X 1 0.085 X 1 0.088 X 1 0.091 X 1 0.092 X 1 0.092 X 1 0.093 X 1 0.094 X 1 0.096 X 1 0.097 X 1 0.098 X 1 0.099 X 1 0.1 X 1 0.101 X 1 0.101 X 1 0.101 X 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0.102 0.103 0.103 0.104 0.105 0.106 0.106 0.106 0.107 0.107 0.107 0.108 0.108 0.108 0.108 0.108 0.108 0.11 0.11 0.11 0.11 0.112 0.112 0.112 0.112 X X X X X X X X X X X X X X X X X X X X X © 2017 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 06/07/17 Transient Voltage Suppression Diodes Surface Mount – 600W > SMBJ series I-V Curve Characteristics Bi-directional Uni-directional Ipp Vc VBR VR V IR VF IT IT IR Vc VBR VR IR IT Ipp Ipp PPPM VR VBR VC IR VF V VR VBR Vc Peak Pulse Power Dissipation -- Max power dissipation Stand-off Voltage -- Maximum voltage that can be applied to the TVS without operation Breakdown Voltage -- Maximum voltage that flows though the TVS at a specified test current (IT) Clamping Voltage -- Peak voltage measured across the TVS at a specified IPPM (peak impulse current) Reverse Leakage Current -- Current measured at VR Forward Voltage Drop for Uni-directional Ratings and Characteristic Curves (T =25°C unless otherwise noted) A Figure 1 - TVS Transients Clamping Waveform Figure 2 - Peak Pulse Power Rating Voltage Transients PPPM-Peak Pulse Power (kW) 100 Voltage or Current Voltage Across TVS Current Through TVS Time TJ initial = TAMB stacked-die, 800W at 10/1000µs, 25°C 10 1 0.1 0.001 Single die,600W at 10/1000µs, 25°C 0.01 0.1 1 10 td-Pulse Width (ms) continues on next page. © 2017 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 06/07/17 Transient Voltage Suppression Diodes Surface Mount – 600W > SMBJ series Ratings and Characteristic Curves (T =25°C unless otherwise noted) (Continued) A Figure 3 - Peak Pulse Power Derating Curve Figure 4 - Pulse Waveform 150 IPPM- Peak Pulse Current, % IRSM Peak Pulse Power (PPP) or Current (IPP) Derating in Percentage % 100 80 60 40 20 0 0 25 50 75 100 125 150 TJ - Initial Junction Temperature (ºC) tr=10µsec TJ=25°C Pulse Width(td) is defined as the point where the peak current decays to 50% of IPPM Peak Value IPPM 100 Half Value IPPM IPPM ( ) 2 50 0 175 10/1000µsec. Waveform as defined by R.E.A td 1.0 0 2.0 3.0 4.0 t-Time (ms) Figure 5 - Typical Junction Capacitance Figure 6 - Typical Transient Thermal Impedance Transient Thermal Impedance (°C/W) 1000 100 10 1 0.1 0.001 0.01 0.1 1 10 100 1000 TP - Pulse Duration (s) Figure 7 - Maximum Non-Repetitive Peak Forward Surge Current Uni-Directional Only Figure 8 - Peak Forward Voltage Drop vs Peak Forward Current (Typical Values) 100.0 Single die 100 IF - Peak Forward Current(A) IFSM - Peak Forward Surge Current (A) 120 80 60 40 Stacked-die 10.0 1.0 20 0 1 10 Number of Cycles at 60 Hz 100 0.1 0.0 1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 VF - Peak Forward Voltage(V) © 2017 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 06/07/17 Transient Voltage Suppression Diodes Surface Mount – 600W > SMBJ series Soldering Parameters Lead–free assembly Pre Heat - Temperature Min (Ts(min)) 150°C - Temperature Max (Ts(max)) 200°C - Time (min to max) (ts) 60 – 180 secs Ramp-up TL Average ramp up rate (Liquidus Temp (TA) to peak 3°C/second max TS(max) to TA - Ramp-up Rate 3°C/second max Reflow - Temperature (TA) (Liquidus) 217°C - Time (min to max) (ts) 60 – 150 seconds tL 260 Time within 5°C of actual peak Temperature (tp) 20 – 40 seconds Ramp-down Rate 6°C/second max Time 25°C to peak Temperature (TP) 8 minutes Max. Do not exceed 260°C Critical Zone TL to TP Ts(max) Ramp-down Ts(min) ts Preheat 25˚C Peak Temperature (TP) +0/-5 tp TP Temperature (T) Reflow Condition t 25˚C to Peak Time (t) °C Environmental Specifications High Temp. Storage JESD22-A103 HTRB JESD22-A108 Temperature Cycling JESD22-A104 Physical Specifications Weight 0.003 ounce, 0.093 grams Case JEDEC DO214AA. Molded plastic body over glass passivated junction MSL JEDEC-J-STD-020, Level 1 Polarity Color band denotes cathode except Bidirectional H3TRB JESD22-A101 Terminal Matte Tin-plated leads, Solderable per JESD22-B102 RSH JESD22-A111 Dimensions DO-214AA (SMB J-Bend) Cathode Band (for Uni-directional products only) C A B H D F E G J K L I Solder Pads (all dimensions in mm) © 2017 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 06/07/17 Dimensions Inches Millimeters Min Max Min Max A 0.076 B 0.160 0.086 1.930 2.200 0.187 4.060 4.750 C 0.130 0.155 3.300 3.940 D 0.078 0.103 1.990 2.610 E 0.030 0.060 0.760 1.520 F - 0.008 - 0.203 G 0.205 0.220 5.210 5.590 H 0.006 0.012 0.152 0.305 I 0.089 - 2.260 - J 0.085 - 2.160 - K - 0.107 - 2.740 L 0.085 - 2.160 - Transient Voltage Suppression Diodes Surface Mount – 600W > SMBJ series Part Numbering System Part Marking System SMBJ XXX C A 5% VBR VOLTAGE TOLERANCE F Cathode Band BI-DIRECTIONAL XX VR VOLTAGE YMXXX SERIES (for uni-directional products only) Littelfuse Logo Marking Code Trace Code Marking Y:Year Code M: Month Code XXX: Lot Code Packaging Part number Component Package SMBJxxxXX DO-214AA Packaging Option Quantity 3000 Packaging Specification Tape & Reel - 12mm tape/13” reel EIA STD RS-481 Tape and Reel Specification 0.157 (4.0) 0.47 (12.0) Cathode 0.315 (8.0) 0.059 DIA (1.5) Cover tape 13.0 (330) 0.80 (20.2) Arbor Hole Dia. 0.49 (12.5) Dimensions are in inches (and millimeters). Direction of Feed Disclaimer Notice - Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability of and test each product selected for their own applications. Littelfuse products are not designed for, and may not be used in, all applications. Read complete Disclaimer Notice at www.littelfuse.com/disclaimer-electronics. © 2017 Littelfuse, Inc. Specifications are subject to change without notice. Revised: 06/07/17
