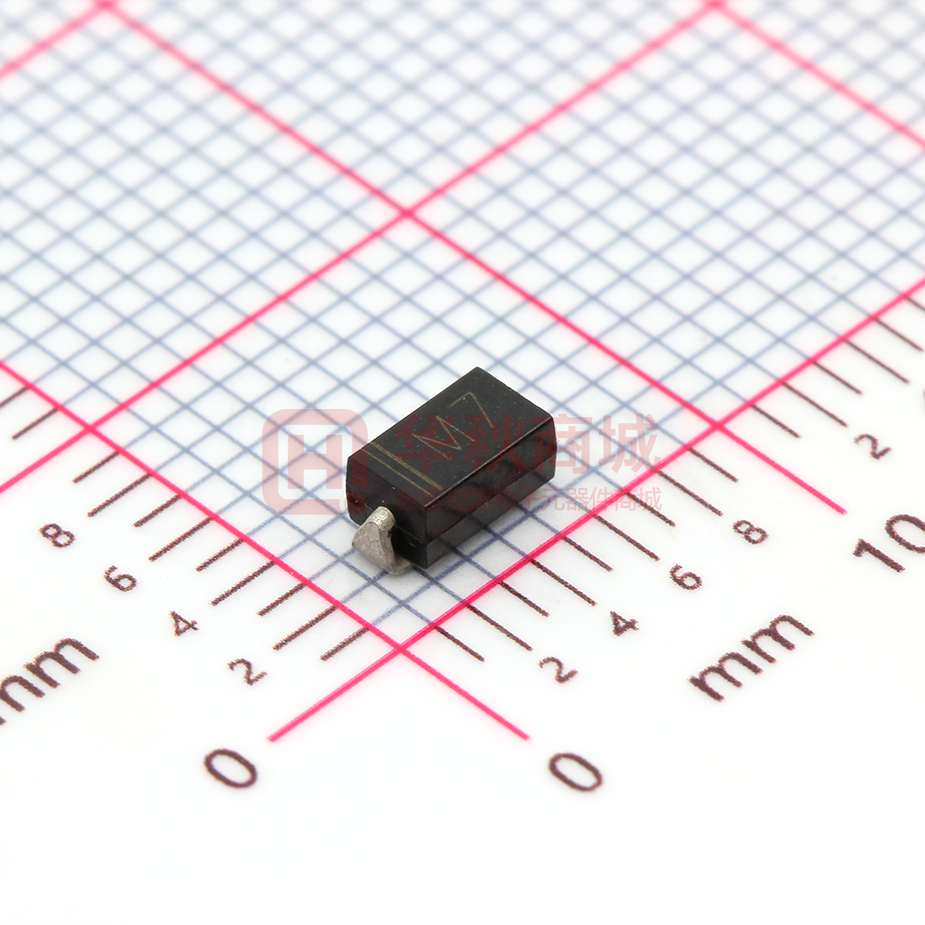

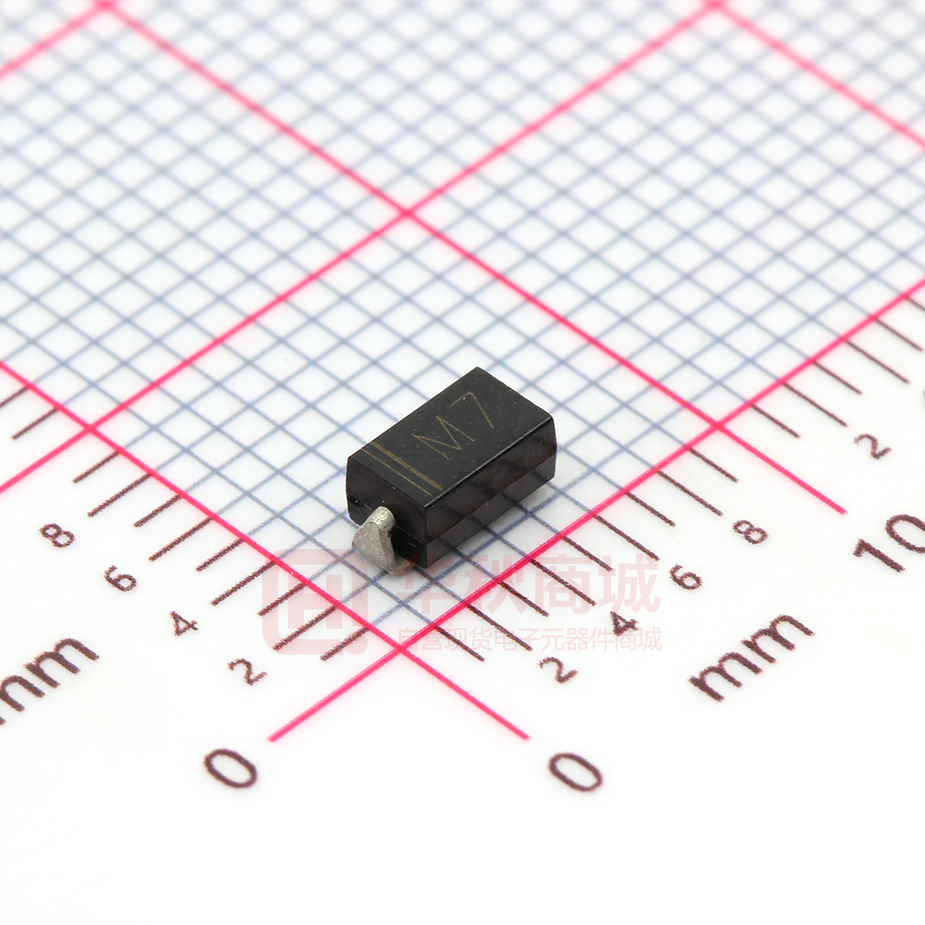

M7

Plastic-Encapsulate Diodes 1.0 AMP. Surface Mount Rectifiers M1---M7 FEATURES For surface mounted application Low forward voltage drop 52 0 32 High current capability Easy pick and place 7 4.50 High surge current capability Plastic material used carries Underwriters Laboratory Classification 94V-0 260oC / 10 seconds at terminals MECHANICAL DATA Case: Molded plastic DO-214AC DO-214AC (SMA) Terminals: Pure tin plated, lead free solderable per J-STD-002B and JESD22-B102D. Polarity: Indicated by cathode band Packaging: 12mm tapeper EIA STD RS-481 Weight: 0.064 gram MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 OC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. Symbols M1 M2 M3 M4 M5 M6 M7 Unit Maximum Repetitive Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000 V Maximum RMS Voltage VRMS 35 70 140 280 420 560 700 V Maximum DC Blocking Voltage VDC 50 100 200 400 600 800 1000 V Parameter Maximum Average Forward Rectified Current at I(A) 1 A IFSM 30 A VF 1.1 V TL =100 OC Peak Forward Surge Current 8.3ms Single Half Sine-wave Superimposed on Rated Load (JEDEC method) Maximum Instantaneous Forward Voltage at 1 A Maximum DC Reverse Current at Rated DC Blocking Voltage Typical Junction Capacitance 1) TA = 25 OC TA = 125 C Maximum Thermal Resistance 2) Operating and Storage Temperature Range 5 IR O µA 200 CJ 15 RθJL 30 TJ, TS - 50 to + 150 pF O C/W O C 1) Measured at 1MHz and applied reverse voltage of 4 V 2) 8 mm2 (0.013 mm thick) land areas GUANGDONG HOTTECH INDUSTRIAL CO., LTD Page:P2-P1 Plastic-Encapsulate Diodes M1---M7 Typical Characteristics 2.0 1.0 25 50 75 100 125 150175 LEAD TEMPERATURE .o C PEAK FORWARD SURGE CURRENT, AMPERES AVERAGE FORWARD CURRENT, AMPERES 30 SINGLE PHASE HALF WAVE 60Hz RESISTIVE OR INDUCTIVE LOAD P.C.B MOUNTED ON 0.315x0.315"(8.0x8.0mm) COPPER PAD AREAS 25 15 10 5 1 INSTANTANEOUS FORWARD CURRENT, MICROAMPERES INSTANTANEOUS REVERSE CURRENT, MICROAMPERES 10 Tj =125o C Tj =75o C Tj =25o C 0.01 0.001 0 20 40 60 5 10 20 50 100 Fig. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 100 0.1 2 NUMBER OF CYCLES AT 60 Hz Fig. 1-FORWARD CURRENT DERATING CURVE 1 8.3ms Single Half Sine Wave (JEDEC Method) 20 80 100 120 140 PERCENT OF PEAK REVERSE VOLTAGE, % 100 50 20 10 5 2 1 0.5 0.2 0.1 0.05 0.02 0.01 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 INSTANTANEOUS FORWARD VOLTAGE , VOLTS Fig. 4-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS Fig. 3-TYPICAL REVERSE CHARACTERISTICS 500 200 100 50 Units Mounted On 20in2 (5.4mm 2 )+0.5mil inches(0.013mm) Thick Copper Land Areas CAPACITANCE. pF THERMAL IMPEDANCE (oC/W) 1000 20 10 5 2 1 0.01 0.1 1 10 Tj =25 oC f=1.0MHz Vsig=50mVp-p 50 20 10 5 2 1 0 1.0 10 100 1000 100 REVERSE VOLTAGE VOLTS Fig. 5-TRANSIENT THERMAL IMPEDANCE GUANGDONG HOTTECH 100 REVERSE VOLTAGE VOLTS Fig. 6-TYPICAL JUNCTION CAPACITANCE INDUSTRIAL CO., LTD Page:P2-P2
