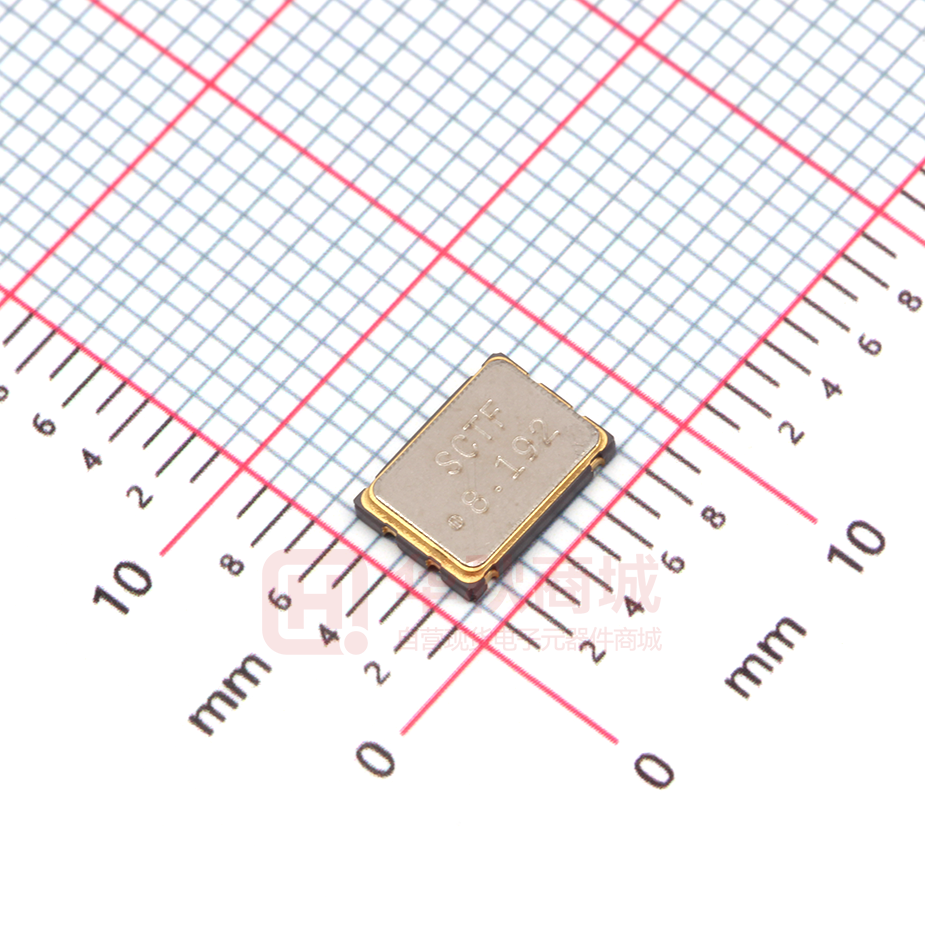

S7D8.192000A20F30T

5x7 SMD OSCILLATOR(HCOMS/TTL) FEATURE ●　 ●　 ●　 ● ● ●　 ●　 ●　 ● CMOS compatible logic levels. Pin-compatible with standard 7.0×5.0mm packages. High precision characteristic covering up to high frequency range. Low jitter and tight stability with fundamental or overtone Design. Low power standby mode. Output Tri-state funtion. Embossed taping specification. Reflow soldering. Pb-free and RoHS/Green compliant. APPLICATIONS ● Ideally suited designed for discdrives,NB,Networking, GPS/Navigation,BlusTooth,Ethernet,ADSL,VDSL,Fiber channel hand-held electronic products. Pb Free ●Electrical Specifications 电气参数 ±20ppm to ±50ppm 输入电压 Supply Voltage 5.0V or 3.3V ±10％ ※(See Notes) 工作温度范围 Operating Temperature Range -20℃ - +70℃ / -40℃ - +85℃ 储存温度范围 Storage Temperature Range -40℃ - +85℃/-55℃ - +125℃ 占空比 Symmetry（Duty Cycle） 40/60 Standard 输出 Output Load 15pF Hcmos 消耗电流 Current Consumption（15pf only） 1.000Mhz - 35.999Mhz=25mA max (5.0V) 5.08 36.000Mhz - 69.999Mhz=60mA max 1.000Mhz - 35.999Mhz=20mA max ( 1.8V 2.5V 2.85V 3.3V) 36.000Mhz - 69.999Mhz=40mA max 1 2 4 3 1.4 70.000Mhz - 150.000Mhz=80mA max Current Consumption（15pf only） 20 4.2 32.768KHz, 1.000 Mhz to 150.000 MHz Frequency Stability 1.8 Frequency Range 总频差 For Fundamental 1.2 频率范围 UNIT(单位):mm(毫米) 7±0.15 5±0.15 ５ｘ７ｍｍ　ＳＭＤ　ＯＳＣＩＬＬＡＴＯＲ　 1.4 MAX Ｈｏｌｄｅｒ　Ｔｙｐｅ 2.6 型号 ●Mechanical Dimensions　外型尺寸 2 5.08 70.000Mhz - 150.000Mhz=60mA max 上升/下降时间 Rise/Fall Time 5 nS max For Third Overtone 7±0.15 1.4 MAX 5±0.15 ※Notes:The supply voltage 1.8V,2.5V,2.85V also can be made by customer. Frequency Counter +Vs A 5.08 1 2 4 3 1.2 ●Test Circuit（测试电路） Power Supply 1 2 1.8 Oscillator 4 3 +Vs 4.2 2.6 1.4 Oscilloscope 2 5.08 V 0.1μF 15pF * suggested solder pad layout PIN FUNCTION 1 N/C or Tri-state 2 Ground 3 Output 4 Vdd The above specifications are standard for SCTF product If you have special requirement please Contact SCTF sales with your enquiries Tel:0086-0755-86097430,0086-0755-86097250 The above specifications are standard for HLX product Fax:0086-0755-86097259 If you have special requirement please Contact HLX sales with your en E-mail:sales@ sctf-crystal.com http://www.sctf-crystal.com Tel:0086-25-85238320,0086-25-85320830(Direct) Fax:0086-25-85315213,85301856
