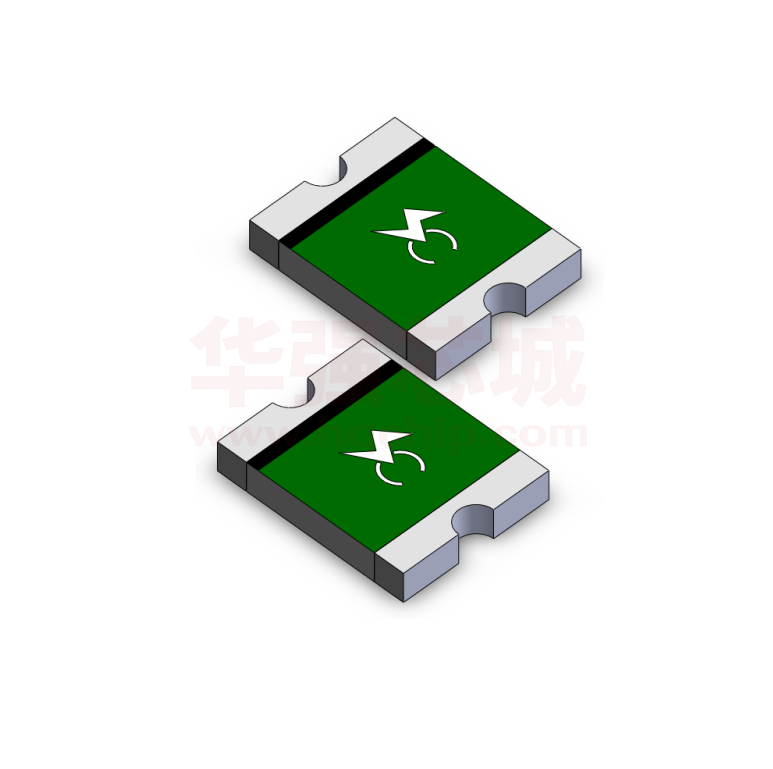

SCF010-1812R

Surface Mount Resettable PTCs SCF1812 Series Description The SCF1812 Series PTC provides surface mount over-current protection for applications where space is at a premium and resettable protection is desired. Features u u u u u RoHS compliant, Lead-Free and Halogen-Free Fast time-to-trip Compact design saves board space Low resistance Low-profile Applications u u u u u u u u PC motherboard - plug and play protection Mobile phones - battery and port protection Game console port protection USB peripherals Disk drive PDAS / digital cameras Power ports General electronics Electrical Parameters Part Number Hold Current Trip Current I hold (A) I trip (A) Rated Voltage Max Current Typical Power Maximum Time To Trip V max (Vdc) I max (A) P dtyp. (W) Current (A) Time (Sec.) R min (Ω) R 1max (Ω) Resistance SCF010-1812 0.10 0.30 60 100 0.8 8.0 0.020 1.600 15.00 SCF010-1812R 0.10 0.30 60 100 0.8 8.0 0.020 1.600 15.00 SCF014-1812 0.14 0.30 60 100 0.8 8.0 0.008 1.200 6.500 SCF014-1812R 0.14 0.30 60 100 0.8 8.0 0.008 1.200 6.500 SCF020-1812 0.20 0.40 30 100 0.8 8.0 0.020 0.800 5.000 SCF020-1812R 0.20 0.40 30 100 0.8 8.0 0.020 0.800 5.000 SCF020-60-1812R 0.20 0.40 60 40 0.8 8.0 0.020 0.800 5.000 SCF030-1812R 0.30 0.60 30 100 0.8 8.0 0.100 0.200 1.750 SCF035-1812 0.35 0.70 16 100 0.8 8.0 0.100 0.320 1.500 SCF035-1812R 0.35 0.70 16 100 0.8 8.0 0.100 0.320 1.500 SCF035-30-1812R 0.35 0.70 30 100 0.8 8.0 0.100 0.320 1.500 SCF050-1812 0.50 1.00 16 100 0.8 8.0 0.150 0.150 1.000 SCF050-1812R 0.50 1.00 16 100 0.8 8.0 0.150 0.150 1.000 SCF050-30-1812R 0.50 1.00 30 100 0.8 8.0 0.150 0.150 1.000 SCF075-1812 0.75 1.50 16 100 0.8 8.0 0.200 0.110 0.450 SCF075-1812R 0.75 1.50 16 100 0.8 8.0 0.200 0.110 0.450 SCF075-24-1812R 0.75 1.50 24 40 1.0 8.0 0.200 0.110 0.290 SCF075-33-1812R 0.75 1.50 33 40 1.0 8.0 0.200 0.110 0.400 SCF110-1812 1.10 2.20 8 100 0.8 8.0 0.300 0.040 0.210 SCF110-1812R 1.10 2.20 8 100 0.8 8.0 0.300 0.040 0.210 SCF110-16-1812 1.10 2.20 16 100 0.8 8.0 0.500 0.040 0.180 SCF110-16-1812R 1.10 2.20 16 100 0.8 8.0 0.500 0.040 0.180 SCF110-24-1812R 1.10 2.20 24 100 1.0 8.0 0.500 0.060 0.200 SCF110-33-1812R 1.10 2.20 33 100 0.8 8.0 0.500 0.060 0.200 SOCAY Electronics Corp., Ltd. Revision September 12, 2016 www.socay.com 1/6 @ SOCAY Electronics Corp., Ltd. 2016 Specifications are subject to change without notice. Please refer to www.socay.com for current information. Surface Mount Resettable PTCs SCF1812 Series Electrical Parameters (Continue) SCF125-1812 1.25 2.50 6 100 0.8 8.0 0.400 0.050 0.140 SCF125-1812R 1.25 2.50 6 100 0.8 8.0 0.400 0.050 0.140 SCF125-16-1812R 1.25 2.50 16 100 0.8 8.0 0.400 0.050 0.140 SCF150-1812 1.50 3.00 8 100 0.8 8.0 0.500 0.040 0.110 SCF150-1812R 1.50 3.00 8 100 0.8 8.0 0.500 0.040 0.110 SCF150-12-1812R 1.50 3.00 12 100 1.0 8.0 0.500 0.040 0.110 SCF150-24-1812R 1.50 3.00 24 100 1.0 8.0 1.500 0.040 0.120 SCF160-1812 1.60 3.20 8 100 0.8 8.0 0.500 0.030 0.100 SCF160-1812R 1.60 3.20 8 100 0.8 8.0 0.500 0.030 0.100 SCF160-12-1812R 1.60 3.20 12 100 1.0 8.0 1.000 0.030 0.100 SCF160-16-1812R 1.60 3.20 16 100 1.0 8.0 1.000 0.030 0.100 SCF190-1812R 1.90 4.90 6 100 1.0 8.0 5.000 0.003 0.025 SCF200-1812R 2.00 3.50 8 100 1.0 8.0 2.000 0.020 0.070 SCF200-16-1812R 2.00 3.50 16 100 1.0 8.0 5.000 0.020 0.085 SCF260-1812R 2.60 5.00 8 100 1.0 8.0 2.500 0.015 0.047 SCF260-13-1812R 2.60 5.00 13.2 100 1.3 8.0 5.000 0.015 0.050 SCF260-16-1812R 2.60 5.00 16 100 1.3 8.0 5.000 0.015 0.050 SCF300-1812R 3.00 5.00 6 100 1.0 8.0 4.000 0.012 0.040 I hold= Hold current: maximum current device will pass without tripping in 23°C still air. I trip= Trip current: minimum current at which the device will trip in 23°C still air. V max= Maximum voltage device can withstand without damage at rated current (Imax) I max= Maximum fault current device can withstand without damage at rated voltage (Vmax) Pdtyp.= Power dissipated from device when in the tripped state at 23°C still air. R min= Minimum resistance of device in initial (un-soldered) state. R 1max= Maximum resistance of device at 23°C measured one hour after tripping. Caution: Operation beyond the specified rating may result in damage and possible arcing and flame. Temperature Rerating Chart – I hold (A) 5Average Time Current Curves Temperature Derating Curve A B Ambient (°C) Fault Current (A) A = SCF010-1812 /SCF010-1812R B = SCF014-1812 /SCF014-1812R C = SCF020-1812 /SCF020-1812R /SCF020-60-1812R D = SCF030-1812R E = SCF035-1812 /SCF035-1812R /SCF035-30-1812R F = SCF050-1812 /SCF050-1812R /SCF050-30-1812R G = SCF075-1812 /SCF075-1812R /SCF075-24-1812R /SCF075-33-1812R H = SCF110-1812 /SCF110-1812R /SCF110-16-1812 /SCF110-16-1812R /SCF110-24-1812R /SCF110-33-1812R I = SCF125-1812 /SCF125-1812R /SCF125-16-1812R J = SCF150-1812 /SCF150-1812R /SCF150-12-1812R /SCF150-24-1812R K = SCF160-1812 /SCF160-1812R /SCF160-12-1812R /SCF160-16-1812R L = SCF200-1812R /SCF200-16-1812R M = SCF190-1812R /SCF260-1812R /SCF260-13-1812R /SCF260-16-1812R N = SCF300-1812R A = SCF075-1812，SCF075-1812R， SCF075-24-1812R，SCF075-33-1812R， SCF110-1812，SCF110-1812R， SCF110-16-1812，SCF110-16-1812R， SCF110-24-1812R，SCF110-33-1812R， SCF125-1812，SCF125-1812R， SCF125-16-1812R，SCF150-1812， SCF150-1812R，SCF150-12-1812R， SCF150-24-1812R，SCF160-1812， SCF160-1812R，SCF160-12-1812R， SCF160-16-1812R，SCF190-1812R， SCF200-1812R，SCF200-16-1812R， SCF260-1812R，SCF260-13-1812R， SCF260-16-1812R，SCF300-1812R。 SOCAY Electronics Corp., Ltd. Revision September 12, 2016 Temperature B = SCF010-1812，SCF010-1812R， SCF014-1812，SCF014-1812R， SCF020-1812，SCF020-1812R， SCF020-60-1812R，SCF030-1812R， SCF035-1812，SCF035-1812R， SCF035-30-1812R，SCF050-1812， SCF050-1812R，SCF050-30-1812R。 www.socay.com 2/6 @ SOCAY Electronics Corp., Ltd. 2016 Specifications are subject to change without notice. Please refer to www.socay.com for current information. Surface Mount Resettable PTCs SCF1812 Series Material Specifications Terminal pad material Pure Tin Soldering Characteristics Meets EIA specification RS 186-9E, ANSI/J-std-002 Category 3 Soldering Parameters TP Critical Zone TL to TP Ramp-up TL Temperature TS(max) Ramp-down TS(min) Preheat 25 Time to peak temperature (t 25℃ to peak) Time Profile Feature Pb-Free Assembly Average Ramp-Up Rate (TS max to TP) Preheat : Temperature Min (TSmin) Temperature Max (TSmax) Time (TSmin to TSmax) Time maintained above: Temperature(TL) Time (TL) 3°C/second max. Peak/Classification Temperature(TP): Time within 5°C of actual peak: Temperature 260°C Ramp-down Rate: 6°C/ second max. Time 25°C to Peak Temperature 8 minutes max. 150°C 200°C 60-180 seconds 217°C 60-150 seconds 20-40 seconds Note: All temperatures refer to of the package, measured on the package body surface. Solder reflow Caution: Due to “Lead Free” nature, Temperature and Dwelling time for the soldering zone is higher than those for Regular. This may cause damage to other components. 1. Recommended max past thickness > 0.25mm. 2. Devices can be cleaned using standard methods and aqueous solvent. 3. Rework use standard industry practices. 4. Storage Environment : < 30℃/ 60%RH 1. If reflow temperatures exceed the recommended profile, devices may not meet the performance requirements. 2. Devices are not designed to be wave soldered to the bottom side of the board. Part Numbering Part Marking F XXX SCF XXX – XX– 1812R F110 Hold Current Logo Device Size Code Rated Voltage F Hold Current F XXX XX 110 16 Hold Current /Rated Voltage Socay Product Code Logo Example Pad Layouts Unit: mm The dimension in the table below provide the recommended pad layout for each SCF1812 device 1812 Series SOCAY Electronics Corp., Ltd. Revision September 12, 2016 A B C Nominal Nominal Nominal 3.45 1.78 3.50 Device www.socay.com 3/6 @ SOCAY Electronics Corp., Ltd. 2016 Specifications are subject to change without notice. Please refer to www.socay.com for current information. Surface Mount Resettable PTCs SCF1812 Series Dimensions (Unit: mm) Figure1 Figure2 A Part Number B C D E Figure Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. SCF010-1812 Figure1 4.37 4.73 3.07 3.41 0.60 0.90 0.30 0.95 0.25 0.65 SCF010-1812R Figure2 4.37 4.73 3.07 3.41 0.60 0.90 0.30 0.95 0.25 0.65 SCF014-1812 Figure1 4.37 4.73 3.07 3.41 0.60 0.90 0.30 0.95 0.25 0.65 SCF014-1812R Figure2 4.37 4.73 3.07 3.41 0.60 0.90 0.30 0.95 0.25 0.65 SCF020-1812 Figure1 4.37 4.73 3.07 3.41 0.60 0.90 0.30 0.95 0.25 0.65 SCF020-1812R Figure2 4.37 4.73 3.07 3.41 0.60 0.90 0.30 0.95 0.25 0.65 SCF020-60-1812R Figure2 4.37 4.73 3.07 3.41 0.60 0.90 0.30 0.95 0.25 0.65 SCF030-1812R Figure2 4.37 4.73 3.07 3.41 0.40 0.70 0.30 0.95 0.25 0.65 SCF035-1812 Figure1 4.37 4.73 3.07 3.41 0.40 0.70 0.30 0.95 0.25 0.65 SCF035-1812R Figure2 4.37 4.73 3.07 3.41 0.40 0.70 0.30 0.95 0.25 0.65 SCF035-30-1812R Figure2 4.37 4.73 3.07 3.41 0.40 0.70 0.30 0.95 0.25 0.65 SCF050-1812 Figure1 4.37 4.73 3.07 3.41 0.35 0.65 0.30 0.95 0.25 0.65 SCF050-1812R Figure2 4.37 4.73 3.07 3.41 0.35 0.65 0.30 0.95 0.25 0.65 SCF050-30-1812R Figure2 4.37 4.73 3.07 3.41 0.45 0.75 0.30 0.95 0.25 0.65 SCF075-1812 Figure1 4.37 4.73 3.07 3.41 0.35 0.65 0.30 0.95 0.25 0.65 SCF075-1812R Figure2 4.37 4.73 3.07 3.41 0.35 0.65 0.30 0.95 0.25 0.65 SCF075-24-1812R Figure2 4.37 4.73 3.07 3.41 0.80 1.55 0.25 0.95 0.25 0.65 SCF075-33-1812R Figure2 4.37 4.73 3.07 3.41 0.80 1.55 0.25 0.95 0.25 0.65 SCF110-1812 Figure1 4.37 4.73 3.07 3.41 0.25 0.55 0.30 0.95 0.25 0.65 SCF110-1812R Figure2 4.37 4.73 3.07 3.41 0.25 0.55 0.30 0.95 0.25 0.65 SCF110-16-1812 Figure1 4.37 4.73 3.07 3.41 0.25 0.90 0.30 0.95 0.25 0.65 SCF110-16-1812R Figure2 4.37 4.73 3.07 3.41 0.25 0.90 0.30 0.95 0.25 0.65 SCF110-24-1812R Figure2 4.37 4.73 3.07 3.41 0.80 1.30 0.25 0.95 0.25 0.65 SCF110-33-1812R Figure2 4.37 4.73 3.07 3.41 0.80 1.30 0.25 0.95 0.25 0.65 SCF125-1812 Figure1 4.37 4.73 3.07 3.41 0.25 0.55 0.30 0.95 0.25 0.65 SCF125-1812R Figure2 4.37 4.73 3.07 3.41 0.25 0.55 0.30 0.95 0.25 0.65 SCF125-16-1812R Figure2 4.37 4.73 3.07 3.41 0.50 1.00 0.30 0.95 0.25 0.65 SCF150-1812 Figure1 4.37 4.73 3.07 3.41 0.25 0.55 0.30 0.95 0.25 0.65 SCF150-1812R Figure2 4.37 4.73 3.07 3.41 0.25 0.55 0.30 0.95 0.25 0.65 SCF150-12-1812R Figure2 4.37 4.73 3.07 3.41 0.60 1.10 0.25 0.95 0.25 0.65 SCF150-24-1812R Figure2 4.37 4.73 3.07 3.41 0.60 1.55 0.25 0.95 0.25 0.65 SCF160-1812 Figure1 4.37 4.73 3.07 3.41 0.25 0.90 0.30 0.95 0.25 0.65 SCF160-1812R Figure2 4.37 4.73 3.07 3.41 0.25 0.90 0.30 0.95 0.25 0.65 SCF160-12-1812R Figure2 4.37 4.73 3.07 3.41 0.60 1.35 0.25 0.95 0.25 0.65 SCF160-16-1812R Figure2 4.37 4.73 3.07 3.41 0.60 1.35 0.25 0.95 0.25 0.65 SCF190-1812R Figure2 4.37 4.73 3.07 3.41 0.30 0.70 0.25 0.95 0.25 0.65 SOCAY Electronics Corp., Ltd. Revision September 12, 2016 www.socay.com 4/6 @ SOCAY Electronics Corp., Ltd. 2016 Specifications are subject to change without notice. Please refer to www.socay.com for current information. Surface Mount Resettable PTCs SCF1812 Series Dimensions (Unit: mm) (Continue) SCF200-1812R Figure2 4.37 4.73 3.07 3.41 0.55 1.20 0.25 0.95 0.25 0.65 SCF200-16-1812R Figure2 4.37 4.73 3.07 3.41 0.60 1.55 0.25 0.95 0.25 0.65 SCF260-1812R Figure2 4.37 4.73 3.07 3.41 0.55 1.20 0.25 0.95 0.25 0.65 SCF260-13-1812R Figure2 4.37 4.73 3.07 3.41 0.80 1.55 0.25 0.95 0.25 0.65 SCF260-16-1812R Figure2 4.37 4.73 3.07 3.41 0.80 1.55 0.25 0.95 0.25 0.65 SCF300-1812R Figure2 4.37 4.73 3.07 3.41 0.80 1.55 0.25 0.95 0.25 0.65 Packaging Packaging Option Quantity Packaging Option Quantity SCF010-1812 Part Number Tape & Reel -12mm/7″tape 2000 SCF110-16-1812R Part Number Tape & Reel -12mm/7″tape 2000 SCF010-1812R Tape & Reel -12mm/7″tape 2000 SCF110-24-1812R Tape & Reel -12mm/7″tape 1500 SCF014-1812 Tape & Reel -12mm/7″tape 2000 SCF110-33-1812R Tape & Reel -12mm/7″tape 1500 SCF014-1812R Tape & Reel -12mm/7″tape 2000 SCF125-1812 Tape & Reel -12mm/7″tape 2000 SCF020-1812 Tape & Reel -12mm/7″tape 2000 SCF125-1812R Tape & Reel -12mm/7″tape 2000 SCF020-1812R Tape & Reel -12mm/7″tape 2000 SCF125-16-1812R Tape & Reel -12mm/7″tape 1500 SCF020-60-1812R Tape & Reel -12mm/7″tape 2000 SCF150-1812 Tape & Reel -12mm/7″tape 2000 SCF030-1812R Tape & Reel -12mm/7″tape 2000 SCF150-1812R Tape & Reel -12mm/7″tape 2000 SCF035-1812 Tape & Reel -12mm/7″tape 2000 SCF150-12-1812R Tape & Reel -12mm/7″tape 2000 SCF035-1812R Tape & Reel -12mm/7″tape 2000 SCF150-24-1812R Tape & Reel -12mm/7″tape 2000 SCF035-30-1812R Tape & Reel -12mm/7″tape 2000 SCF160-1812 Tape & Reel -12mm/7″tape 2000 SCF050-1812 Tape & Reel -12mm/7″tape 2000 SCF160-1812R Tape & Reel -12mm/7″tape 2000 SCF050-1812R Tape & Reel -12mm/7″tape 2000 SCF160-12-1812R Tape & Reel -12mm/7″tape 2000 SCF050-30-1812R Tape & Reel -12mm/7″tape 2000 SCF160-16-1812R Tape & Reel -12mm/7″tape 2000 SCF075-1812 Tape & Reel -12mm/7″tape 2000 SCF190-1812R Tape & Reel -12mm/7″tape 2000 SCF075-1812R Tape & Reel -12mm/7″tape 2000 SCF200-1812R Tape & Reel -12mm/7″tape 2000 SCF075-24-1812R Tape & Reel -12mm/7″tape 1500 SCF200-16-1812R Tape & Reel -12mm/7″tape 1500 SCF075-33-1812R Tape & Reel -12mm/7″tape 1500 SCF260-1812R Tape & Reel -12mm/7″tape 2000 SCF110-1812 Tape & Reel -12mm/7″tape 2000 SCF260-13-1812R Tape & Reel -12mm/7″tape 1500 SCF110-1812R Tape & Reel -12mm/7″tape 2000 SCF260-16-1812R Tape & Reel -12mm/7″tape 1500 SCF110-16-1812 Tape & Reel -12mm/7″tape 2000 SCF300-1812R Tape & Reel -12mm/7″tape 1500 SOCAY Electronics Corp., Ltd. Revision September 12, 2016 www.socay.com 5/6 @ SOCAY Electronics Corp., Ltd. 2016 Specifications are subject to change without notice. Please refer to www.socay.com for current information. Surface Mount Resettable PTCs SCF1812 Series Tape and Reel Specifications 7.0 (177.8) 0.157 (4.0) Diameter 0.472 (12.0) 0.36 (9.2) 0.315 (8.0) Cover tape 0.49 (12.4) Direction of Feed Dimensions are in inches (and millimeters) Warning u Operation beyond the specified maximum ratings or improper use may result in damage and possible electrical arcing and/or flame. u PPTC device are intended for occasional over-current protection. Application for repeated over-current condition and/or prolonged trip are not anticipated. u Avoid contact of PPTC device with chemical solvent. Prolonged contact will damage the device performance. SOCAY Electronics Corp., Ltd. Revision September 12, 2016 www.socay.com 6/6 @ SOCAY Electronics Corp., Ltd. 2016 Specifications are subject to change without notice. Please refer to www.socay.com for current information.
