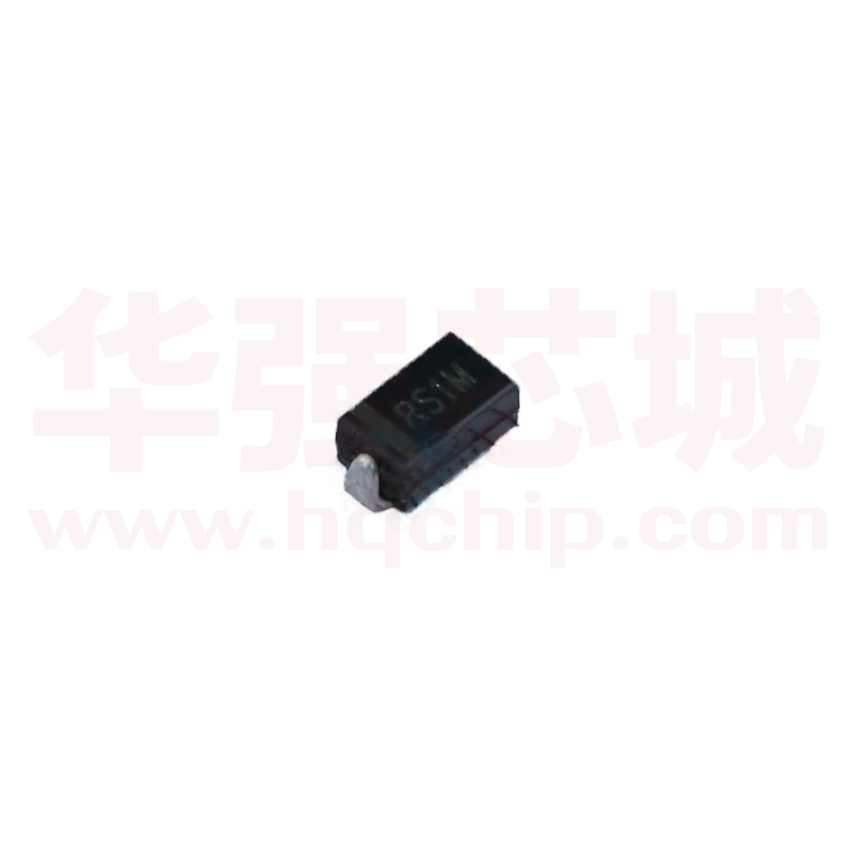

RS1AD THRU RS1MD
SURFACE MOUNT FAST RECOVERY RECTIFIERS
Reverse Voltage - 50 to 1000 V
Forward Current - 1 A
Features
• High current capability
• High surge current capability
• High reliability
• Low reverse current
• Fast switching for high efficiency
Mechanical Data
• Case: SMA (DO-214AC) molded plastic
• Mounting position: Any
• Lead: Lead formed for surface mount
• Polarity: Color band denotes cathode end
H
C
E
T
M
E
Absolute Maximum Ratings and Characteristics
istics
stics
Ratings at 25°C ambient temperature unless otherwise
erwise
wise specified. Single phase, half wave,
wave, 60H
60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
ols RS1AD RS1BD
Symbols
S1BD R
RS1DD RS1GD RS1JD RS1KD RS1MD Units
Parameter
Maximum Recurrent Peak Reverse
everse Voltage
VRRM
50
100
200
400
600
800
1000
V
Maximum RMS Voltage
tage
age
VRMS
35
70
140
280
420
560
700
V
Maximum DC
C Blocking
Blockin Voltage
VDC
50
100
200
400
600
800
1000
V
Maximum
imum
mum Average Forward Current at TL = 90
0 °C
IF(AV)
1
A
Peak Forward Surge Current 8.3 ms Single
Sing Half
Load (JEDEC
Sine-wave Superimposed on Rated L
method)
IFSM
30
A
VF
1.3
V
S
Maximum Forward
ward Volt
Voltage at 1 A
Maximum
ximum DC R
ximum
Reverse Current
ted DC Blocking Voltage
at Rated
at TA = 25°C
at TA = 100°C
Maximum Reverse Recovery Time 1)
Typical Junction Capacitance
Typical Thermal Resistance
Operating and Storage Temperature Range
1)
trr
2)
3)
5
IR
μA
50
150
250
500
ns
CJ
15
pF
RșJA
50
°C/W
Tj ,Tstg
- 65 to + 150
ഒ
Reverse recovery test conditions IF = 0.5 A, IR = 1 A, Irr = 0.25 A.
2)
Measured at 1 MHz and applied reverse voltage of 4 V.
3)
P.C.B. mounted with 0.2 X 0.2”(5 X 5 mm) copper pad areas.
SEMTECH ELECTRONICS LTD.
®
Dated : 09/12/2014 GD Rev:03
RS1AD THRU RS1MD
H
C
E
T
M
E
S
SEMTECH ELECTRONICS LTD.
®
Dated : 09/12/2014 GD Rev:03
