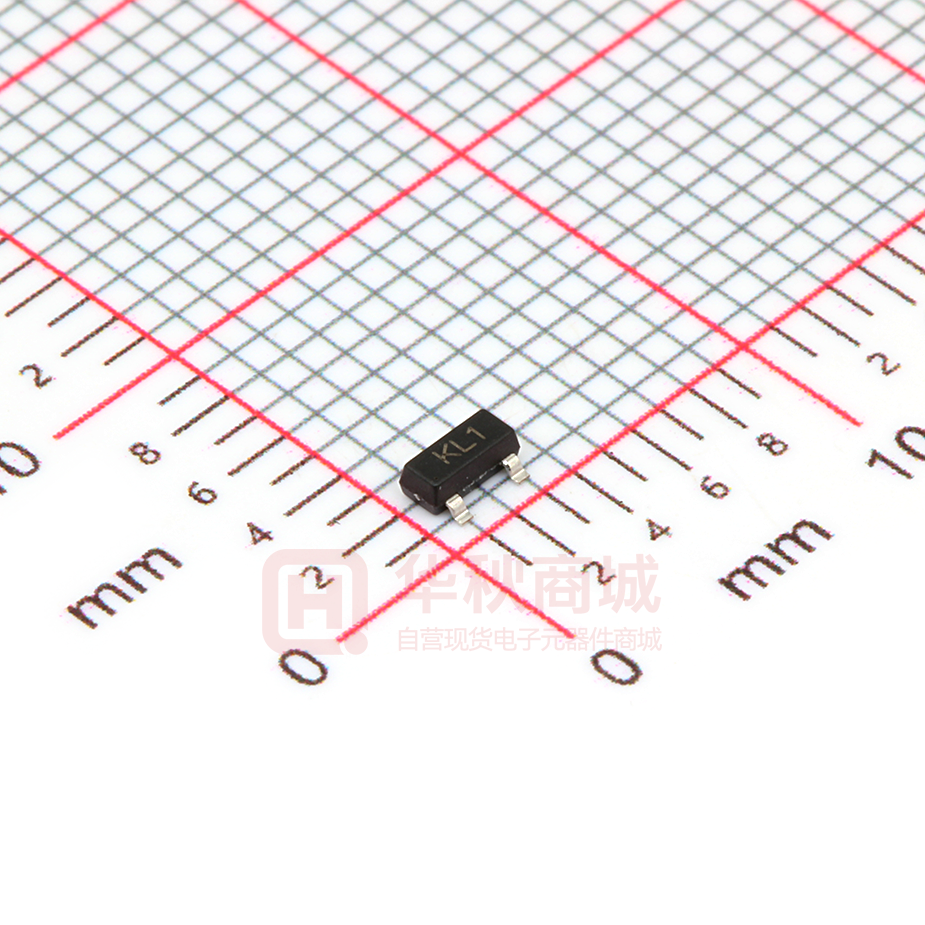

BAT54

DongGuan Tongke Electronic Co.,LTD SOT-23 Plastic-Encapsulate Diodes BAT54/A/C/S SCHOTTKY DIODES SOT-23 FEATURES z Extremely Fast Switching Speed BAT54 BAT54A BAT54C BAT54S Maximum Ratings @TA=25℃ Parameter Symbol Peak Repetitive Peak reverse voltage VRRM Working Peak Reverse Voltage VRWM DC Blocking Voltage Limits Unit 30 V VR Forward Continuous Current IFM 200 mA Power Dissipation PD 200 mW TSTG -55-150 ℃ Storage temperature Electrical Characteristics @TA=25℃ Parameter Reverse Breakdown Voltage Symbol Min. V (BR)R 30 Typ. Max. Unit Conditions V IR=100μA VF1 0.24 V IF=0.1mA VF2 0.32 V IF=1mA VF3 0.40 V IF=10mA VF4 0.50 V IF=30mA VF5 1 V IF=100mA Reverse current IR 2 μA VR=25V Diode Capacitance CD 10 pF VR=1V,f=1MHz Reverse Recovery Time trr 5 nS Forward voltage 1 IF=IR=10mA Irr=0.1XIR,RL=100Ω www.tongke888.com 400-6922-883 DongGuan Tongke Electronic Co.,LTD BAT54/A/C/S 2 www.tongke888.com 400-6922-883
