Plastic-Encapsulate Transistors
SWITCHING DIODE
BAS21/A/C/S
FEATURES
• Fast Switching Speed
• Surface Mount Package Ideally Suited for Automatic Insertion
• For General Purpose Switching Applications
• High Conductance
MARKING

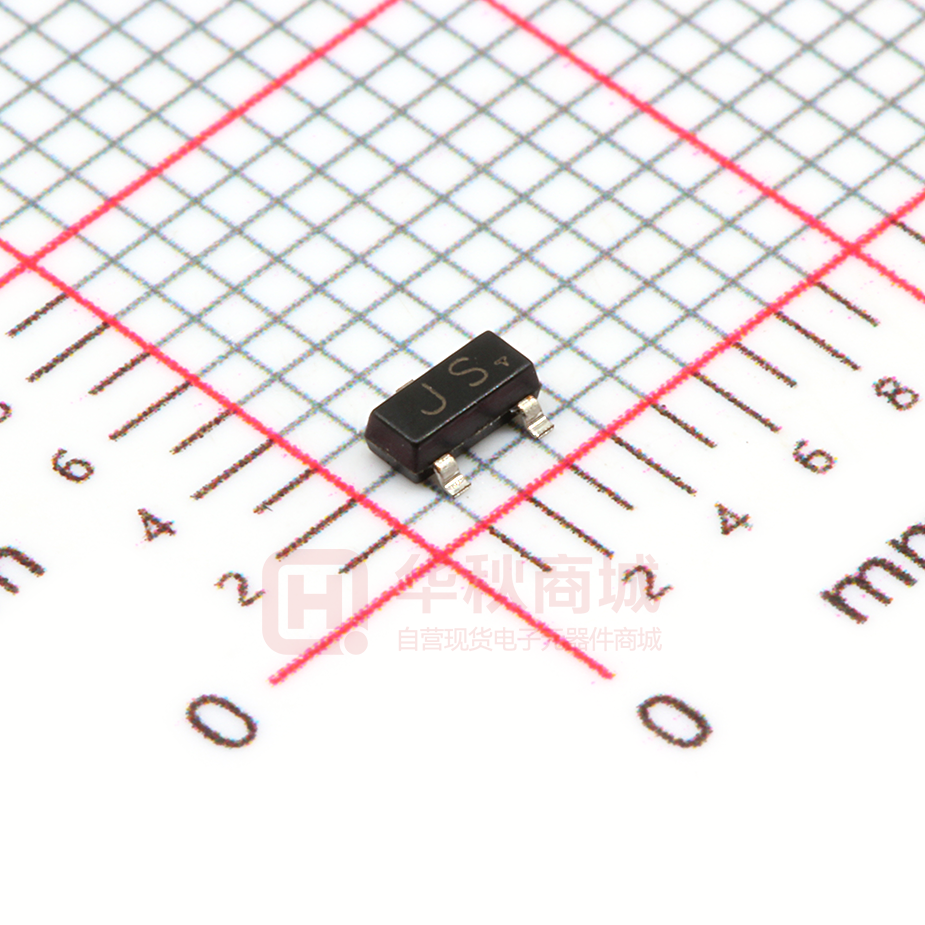

SOT-23
BAS21: JS
BAS21A: JS2
MAXIMUM RATINGS (TA=25
BAS21C:JS3
BAS21S: JS4
unless otherwise noted)
Parameter
Symbol
Repetitive peak reverse voltage
VRRM
Working peak reverse voltage
VRWM
Limit
Unit
250
V
DC blocking voltage
VR
Forward continuous current
IFM
400
mA
Average rectified output current
IO
200
mA
Non-repetitive peak forward surge current
@ t = 1.0µs
IFSM
2.5
A
0.5
@ t = 1.0s
Repetitive peak forward surge current
Power dissipation
Thermal resistance junction to ambient
Junction temperature
Storage temperature range
IFRM
625
mA
PD
225
mW
RθJA
55
/W
TJ
150
TSTG
-55~+150
Electrical Ratings @TA=25
Parameter
Symbol
Test
V(BR)
IR= 100µA
Reverse voltage leakage current
IR
VR=200V
0.1
Forward voltage
VF
IF=100mA
1000
IF=200mA
1250
Diode capacitance
CD
VR=0V, f=1MHz
5
pF
Reveres recovery time
trr
IF=IR=30mA,Irr=0.1×IR,RL=100Ω
50
ns
Reverse breakdown voltage
GUANGDONG HOTTECH
conditions
INDUSTRIAL CO., LTD
Min
Max
250
Unit
V
µA
mV
Page:P2-P1
Plastic-Encapsulate Transistors
BAS21/A/C/S Typical Characteristics
C
REVERSE CURRENT IR
C
o
T=
a 2
5
FORWARD CURRENT
10
1
0.1
0.01
0.0
0.4
0.8
1.2
FORWARD VOLTAGE
1.6
VF
Characteristics
o
Ta=100 C
100
10
o
Ta=25 C
1
2.0
0
40
(V)
80
120
REVERSE VOLTAGE
160
VR
200
(V)
Power Derating Curve
Capacitance Characteristics
1.6
Reverse
1000
o
T=
a 1
00
IF
(mA)
100
Characteristics
(nA)
Forward
1000
300
1.2
1.0
0.8
0.6
(mW)
1.4
250
PD
f=1MHz
200
POWER DISSIPATION
CAPACITANCE BETWEEN TERMINALS
CT (pF)
Ta=25℃
0
4
8
12
REVERSE VOLTAGE
16
VR
(V)
GUANGDONG HOTTECH
20
150
100
50
0
0
25
50
75
100
AMBIENT TEMPERATURE
INDUSTRIAL CO., LTD
125
Ta
150
(℃)
Page:P2-P2
