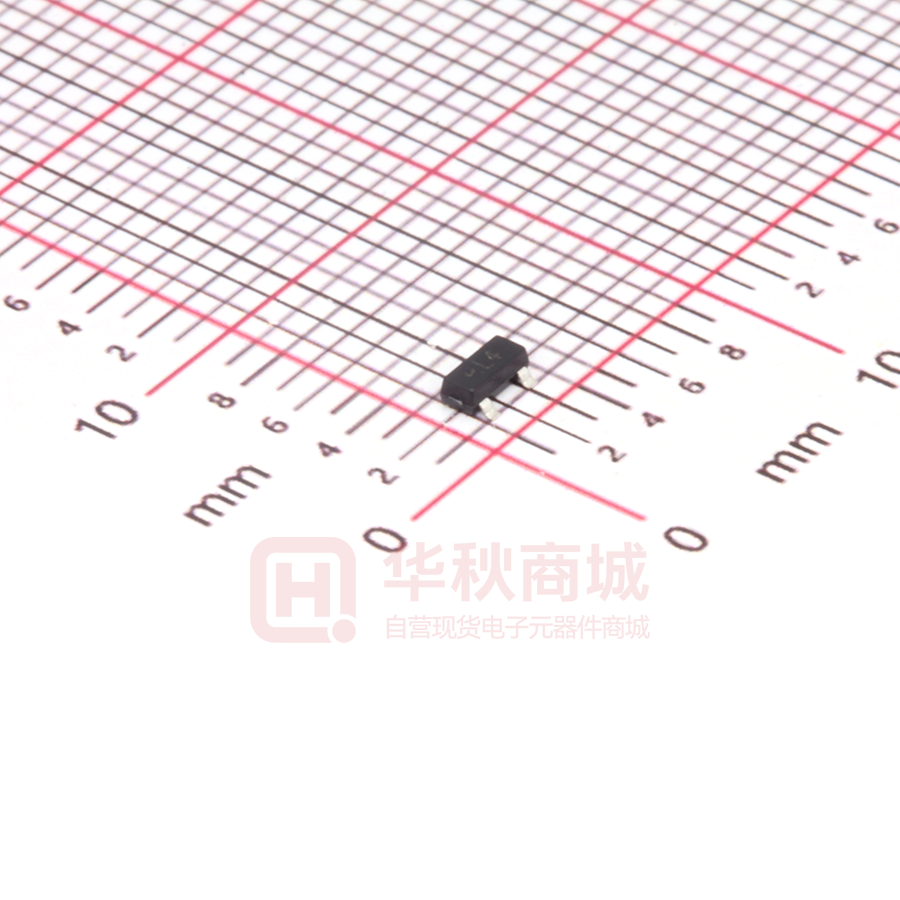

BAT54

Plastic- Encapsulate Diodes SCHOTTKY DIODES BAT54/A/C/S FEATURES Extremely Fast Switching Speed MARKING: SOT-23 BAT54 KL1 BAT54A KL 2 MAXIMUM RATINGS (TA=25 BAT54S BAT54C KL 3 KL4 unless otherwise noted) Parameter Symbol Limits Unit 30 V Peak Repetitive Peak reverse voltage VRRM Working Peak Reverse Voltage VRWM DC Blocking VR IFM 200 mA Power Dissipation PD 200 mW Storage temperature TSTG Voltage Forward Continuous Current ELECTRICAL CHARACTERISTICS (Tamb=25 -55-150 unless otherwise specified) Parameter Symbol Min. Reverse Breakdown Voltage V(BR)R 30 Typ. Max. Unit Conditions V IR=100μA VF1 0.24 V IF=0.1mA VF2 0.32 V IF=1mA VF3 0.40 V IF=10mA VF4 0.50 V IF=30mA VF5 1 V IF=100mA Reverse current IR 2 μA VR=25V Diode Capacitance CD 10 pF VR=1V,f=1MHz Reverse Recovery Time trr Forward voltage GUANGDONG HOTTECH 5 nS INDUSTRIAL CO., LTD IF=IR=10mA Irr=0.1XIR,RL=100Ω Page:P2-P1 Plastic- Encapsulate Diodes BAT54/A/C/S Typical Characteristics GUANGDONG HOTTECH INDUSTRIAL CO., LTD Page:P2-P2
