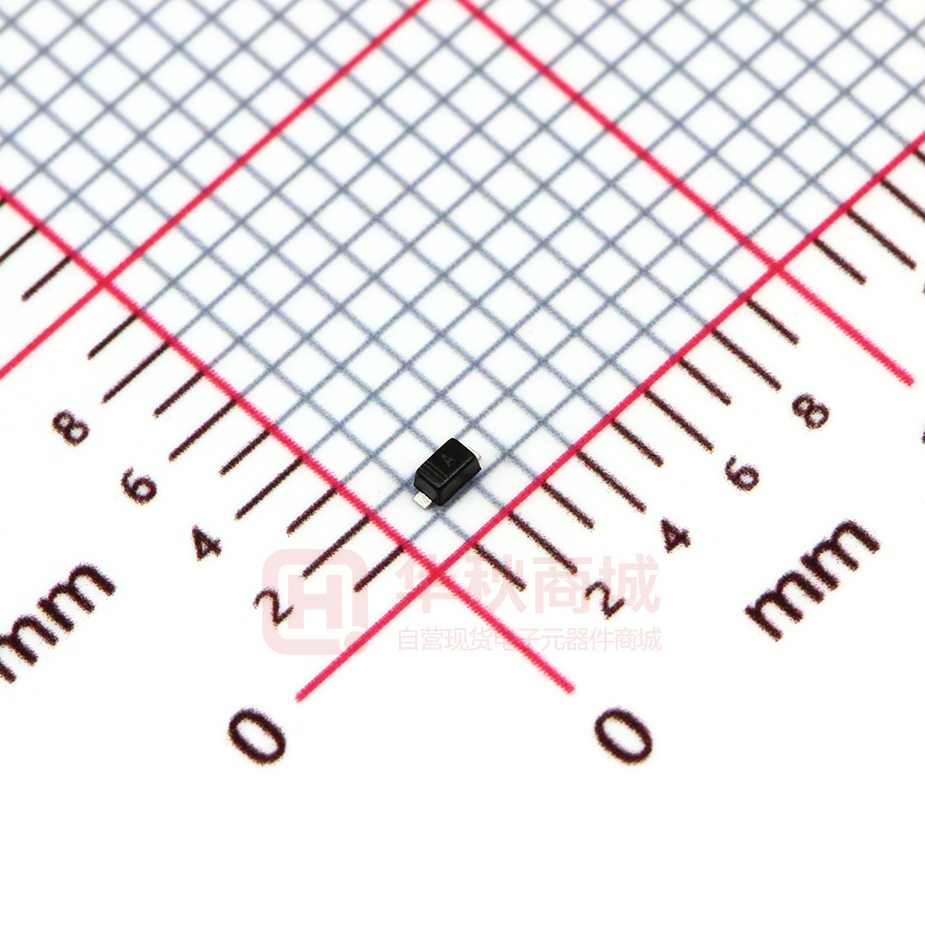

1N4148WT

Plastic-Encapsulate Diodes HIGH SPEED SWITCHING DIODE 1N4148WT FEATURES Small surface mounting type + High Speed High reliability with high surge current handing capability - MARKING: A SOD-523 Maximum Ratings and Electrical Characteristics, Single Diode @TA=25 Parameter Symbol Limits Unit Peak reverse voltage VR 90 V DC reverse voltage VMR 80 V Peak forward current IF 225 mA Mean rectifying current IM O 100 mA Isurge 500 mA Junction temperature Tj 125 Storage temperature Tstg -55~+125 Surge current (1s) ELECTRICAL CHARACTERISTICS (Tamb=25 Parameter Symbol unless otherwise specified) Min. Typ. Max. Unit Conditions Forward voltage VF 1.2 V IF=100mA Reverse current IR 0.1 μA VR=80V Capacitance between terminals CT 3.0 pF VR=0.5V, f=1MHZ Reverse recovery time trr 4 ns VR=6V,IF=10mA,RL=100Ω GUANGDONG HOTTECH INDUSTRIAL CO., LTD Page:P3 -P1 Plastic-Encapsulate Diodes 1N4148WT Typical Characteristics GUANGDONG HOTTECH INDUSTRIAL CO., LTD Page:P3 -P2 SOD-523 Package Outline Dimensions Symbol A A1 b c D E E1 E2 L θ Dimensions In Millimeters Min Max 0.510 0.770 0.500 0.700 0.250 0.350 0.080 0.150 0.750 0.850 1.100 1.300 1.500 1.700 0.200 REF 0.010 0.070 7° REF GUANGDONG HOTTECH Dimensions In Inches Min Max 0.020 0.031 0.020 0.028 0.010 0.014 0.003 0.006 0.030 0.033 0.043 0.051 0.059 0.067 0.008 REF 0.001 0.003 7° REF INDUSTRIAL CO., LTD Page:P3-P3
