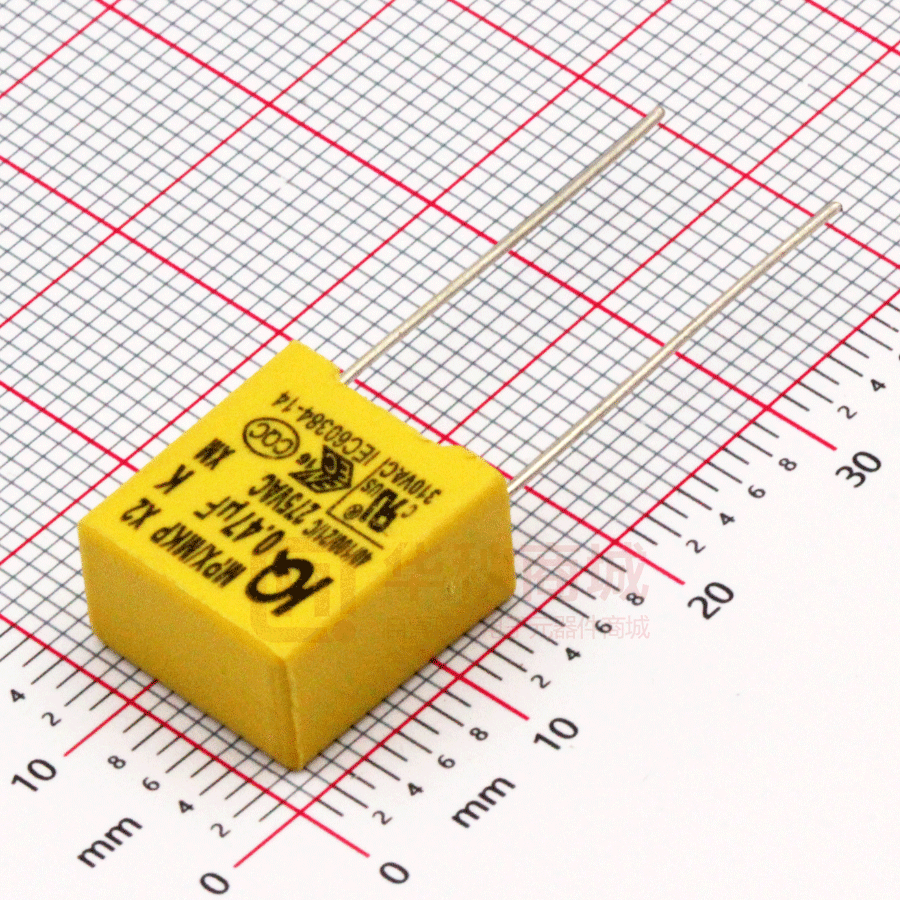

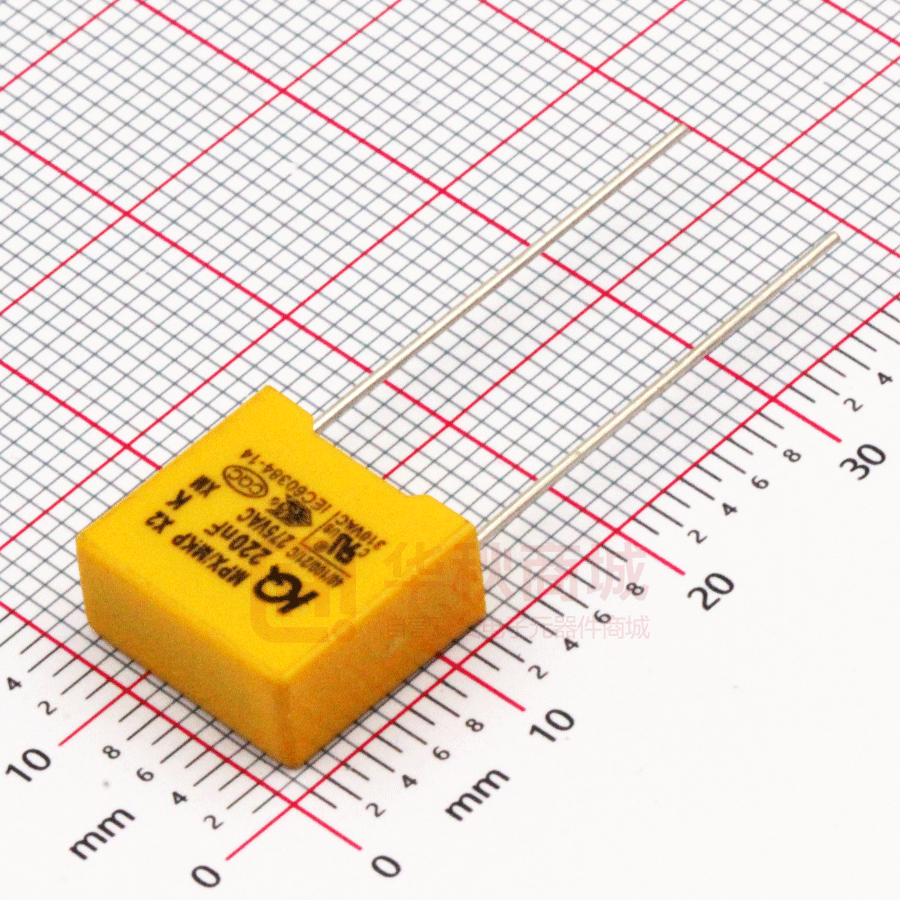

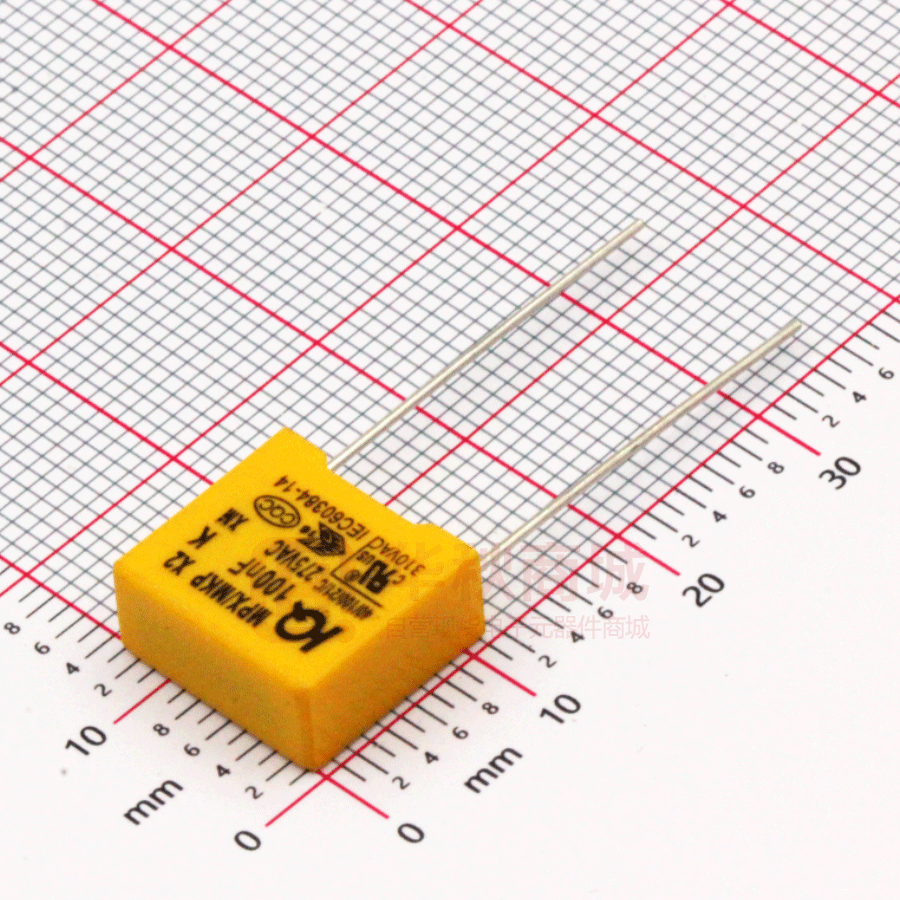

275VAC 474J P10

规 格 承 认 书 SPECIFICATION FOR APPROVAL 产 品 名 称: Product Name: 产 品 型 号: Product Type: 产 品 编 码: Product Code: 客 户 名 称: Customers Name: 客 户 编 码: Customers Code: 日 期: Issue Date: 金属化聚丙烯膜介质抗干扰电容器 Metallized polypropylene film dielectric anti-interference capacitor MKP-X2 MKP-X2 深圳华秋电子有限公司 2019.07.31 2019.07.31 浙江七星电子股份有限公司 Zhejiang Qixing Electronics Corp ., Ltd. 地址：中国浙江省长兴县煤山镇发展大道 50 号 No. 50, Development Avenue，Meishan Town, Changxing County, Zhejiang Province , P.R.China Tel：0572-6295698 Fax：0572-6295700 MKP-X2 MKP-X2 MKP-X2 金属化聚丙烯薄膜介质抗干扰电容器 Metallized polypropylene film dielectric anti-interference capacitor ■电容器外形图 Capacitor contour map ■ ● ● ● 特点 高温金属化聚丙烯膜做介质 抗 2500V 雷电脉冲冲击 符合 94-V0 阻燃要求 ■主要用途 ●用于跨电源线抗干扰电路中 ●降压限流电路中 ■ ● ● ● Features High temperature metallized polypropylene film as medium Resistance to lightning impulse of 2500V Meet the fire retardant requirement of 94-v0 ■The main purpose ●Used in cross - wire anti - interference circuit ●In the voltage reducing and current limiting circuit ■ 技术要求 Technical requirements 引用标准 Reference criteria GB/T 14472〔IEC 60384-14〕 气候类别 Climate category 40/110/56 阻燃等级 Flame retardant grade 工作温度范围 额定电压 Ur Operating temperature range Rated voltage B -40℃~+110℃ 275VAC; 310VAC f=50/60Hz 电容量范围 Electricity capacity range 8200pF~10μF 电容量偏差 Capacitance deviation ±5%〔J〕,±10%〔K〕,±20%〔M〕 耐电压 Voltage resistance 损耗角正切值 Loss angle tangent 绝缘电阻 Insulation resistance 极间 Between terminals 极壳 1000V 〔DC〕2S Between terminals to case 1500V 60S tgδ≤0.0010（+20℃±5℃,1kHz） CN < 0.47μF tgδ≤0.0020（+20℃±5℃,1kHz） CN≥0.47μF tgδ≤0.0020（+20℃±5℃,10kHz） CN < 0.47μF tgδ≤0.0040（+20℃±5℃,10kHz） CN≥0.47μF R≥15000MΩ， CN≤0.33μF RCN≥5000S， CN＞0.33μF （20℃，100V, 1min） ■安全认证 Approvals Mark Specification IEC60384-14 EN/IEC 60384-14 UL 60384-14 and CAN/CSA –E60384-14 1 File Number CQC18001200754 Types:MPX/MKP,X2 File No.: 40049209 AC 275V,X2, 0.0082F to 10F File No.: E350995 310VAC 0.0082F to 10F MKP-X2 275VAC/305VAC〔P=7.5〕 电容器外形尺寸 Capacitor dimensions Φd T H W P 电容量 CAP 275VAC/305VAC〔P=10〕 电容量 电容器代码 Part number CAP 电容器外形尺寸 Capacitor dimensions Φd T H W P 电容器代码 Part number 0.0082 4 9 10 7.5 0.6 X2-0275A822K7A** 0.01 4 9 13 10 0.6 X2-0275A103K10** 0.01 4 9 10 7.5 0.6 X2-0275A103K7A** 0.012 4 9 13 10 0.6 X2-0275A123 K10** 0.012 4 9 10 7.5 0.6 X2-0275A123K7A** 0.015 4 9 13 10 0.6 X2-0275A153 K10** 0.015 4 9 10 7.5 0.6 X2-0275A153K7A** 0.018 4 9 13 10 0.6 X2-0275A183 K10** 0.018 4 9 10 7.5 0.6 X2-0275A183K7A** 0.022 4 9 13 10 0.6 X2-0275A223 K10** 0.022 4 9 10 7.5 0.6 X2-0275A223K7A** 0.027 4 9 13 10 0.6 X2-0275A273 K10** 0.027 4 9 10 7.5 0.6 X2-0275A273K7A** 0.033 4 9 13 10 0.6 X2-0275A333 K10** 0.033 5 11 10 7.5 0.6 X2-0275A333K7A** 0.039 5 11 13 10 0.6 X2-0275A393 K10** 0.039 5 11 10 7.5 0.6 X2-0275A393K7A** 0.047 5 11 13 10 0.6 X2-0275A473 K10** 0.047 5 11 10 7.5 0.6 X2-0275A473K7A** 0.056 6 12 13 10 0.6 X2-0275A563 K10** 0.056 6 12 10 7.5 0.6 X2-0275A563K7A** 0.068 6 12 13 10 0.6 X2-0275A683 K10** 0.068 6 12 10 7.5 0.6 X2-0275A683K7A** 0.1 6 12 13 10 0.6 X2-0275A104 K10** 0.12 7 13 13 10 0.6 X2-0275A124 K10** 0.15 8 14 13 10 0.6 X2-0275A154 K10** 0.18 8 14 13 10 0.6 X2-0275A184 K10** 0.22 8 14 13 10 0.6 X2-0275A224 K10** 275VAC/305VAC〔P=15〕 电容器外形尺寸 Capacitor dimensions 电容量 CAP T H W P Φd 275VAC/305VAC〔P=22.5〕 电容器外形尺寸 Capacitor dimensions 电容量 电容器代码 Part number CAP T H W P Φd 电容器代码 Part number 0.012 5 11 18 15 0.6 X2-0275A123K15** 0.15 6 15 26.5 22.5 0.8 X2-0275A154K22** 0.015 5 11 18 15 0.6 X2-0275A153 K15** 0.18 6 15 26.5 22.5 0.8 X2-0275A184 K22** 0.018 5 11 18 15 0.6 X2-0275A183 K15** 0.22 6 15 26.5 22.5 0.8 X2-0275A224 K22** 0.022 5 11 18 15 0.6 X2-0275A223 K15** 0.27 6 15 26.5 22.5 0.8 X2-0275A274 K22** 0.027 5 11 18 15 0.6 X2-0275A273 K15** 0.33 6 15 26.5 22.5 0.8 X2-0275A334 K22** 0.033 5 11 18 15 0.6 X2-0275A333 K15** 0.39 6 15 26.5 22.5 0.8 X2-0275A394 K22** 0.047 5 11 18 15 0.6 X2-0275A473 K15** 0.47 7 16 26.5 22.5 0.8 X2-0275A474 K22** 0.056 5 11 18 15 0.6 X2-0275A563 K15** 0.56 7 16 26.5 22.5 0.8 X2-0275A564 K22** 0.068 5 11 18 15 0.6 X2-0275A683 K15** 0.68 8.5 17 26.5 22.5 0.8 X2-0275A684 K22** 0.082 5 11 18 15 0.6 X2-0275A823 K15** 0.82 10 18.5 26.5 22.5 0.8 X2-0275A824 K22** 0.1 5 11 18 15 0.6 X2-0275A104 K15** 1.0 10 18.5 26.5 22.5 0.8 X2-0275A105 K22** 0.12 5 11 18 15 0.6 X2-0275A124 K15** 1.2 11 20 26.5 22.5 0.8 X2-0275A125 K22** 0.15 5 11 18 15 0.6 X2-0275A154 K15** 1.5 12 22 26.5 22.5 0.8 X2-0275A155 K22** 0.18 6 12 18 15 0.6 X2-0275A184 K15** 1.8 15.5 24.5 26.5 22.5 0.8 X2-0275A185 K22** 0.22 7.5 13.5 18 15 0.6 X2-0275A224 K15** 2.2 14.5 29.5 26.5 22.5 0.8 X2-0275A225 K22** 0.27 8.5 14.5 18 15 0.6 X2-0275A274 K15** 0.33 9 15 18 15 0.8 X2-0275A334 K15** 0.39 9 15 18 15 0.8 X2-0275A394 K15** 0.47 10 16 18 15 0.8 X2-0275A474 K15** 0.56 10 16 18 15 0.8 X2-0275A564 K15** 0.68 11 19 18 15 0.8 X2-0275A684 K15** 0.82 11 19 18 15 0.8 X2-0275A824K15** 2 MKP-X2 275VAC/305VAC〔P=27.5〕 电容量 CAP 电容器外形尺寸 Capacitor dimensions 275VAC/305VAC〔P=37.5〕 电容 电容器代码 Part number T H W P Φd 0.39 9 18 32 27.5 0.8 X2-0275A394K27** 0.47 9 18 32 27.5 0.8 0.56 9 18 32 27.5 0.68 9 18 32 0.82 9 18 1.0 9 1.2 量 CAP 电容器外形尺寸 Capacitor dimensions 电容器代码 Part number T H W P Φd 1.5 11 22 41.5 37.5 1.0 X2-0275A155K37** X2-0275A474 K27** 1.8 11 22 41.5 37.5 1.0 X2-0275A185K37** 0.8 X2-0275A564 K27** 2.2 13 24 41.5 37.5 1.0 X2-0275A225K37** 27.5 0.8 X2-0275A684 K27** 2.7 13 24 41.5 37.5 1.0 X2-0275A275K37** 32 27.5 0.8 X2-0275A824 K27** 3.3 14 28 41.5 37.5 1.0 X2-0275A335K37** 18 32 27.5 0.8 X2-0275A105 K27** 3.9 16 30 41.5 37.5 1.0 X2-0275A395K37** 11 20 32 27.5 0.8 X2-0275A125 K27** 4.7 16 30 41.5 37.5 1.0 X2-0275A475K37** 1.5 11 20 32 27.5 0.8 X2-0275A155 K27** 5.6 18.5 33.5 41.5 37.5 1.0 X2-0275A565K37** 1.8 13 22 32 27.5 0.8 X2-0275A185 K27** 6.8 18.5 33.5 41.5 37.5 1.0 X2-0275A685K37** 2.2 13 25 32 27.5 0.8 X2-0275A225 K27** 8.2 22 37 41.5 37.5 1.0 X2-0275A825K37** 10 26 41 41.5 37.5 1.0 X2-0275A106K37** 3 MKP-X2 ■承认规格登记表 Size and specification ●尺寸（mm）（T*H*W） W---宽度 Breadth(W±0.5) H---高度 Height(H±0.5) T---厚度 Thickness(T±0.5) P----引线距 Lead from（P±0.5） L---引线长 Lead long(L±2.0) ●.规格 Specification: 客户料号 七星料号 规格型号 尺寸 Size 线径 脚长 备注 Customer NO Spec NO Specification T*H*W*P Line Length Note -- X2-0275A104K 10WLBY** X2-275VAC104K 6*12*13*10 0.6 24 - 2 -- X2-0275A224K 10WLBY** X2-275VAC224K 6*12*13*10 0.6 24 - 3 -- X2-0275A474K 10WLBY** X2-275VAC474K 8*14*13*10 0.6 24 - 序号 NO 1 4 MKP-X2 ■电容器编码说明 Capacitor coding specification ● 20 位电容器代码如下：The code of the 20-bit capacitor at the center is as follows: 引线间距 Lead spacing 标称电容量 Multiplier 额定工作电压 7A=7.5mm 引线形状 引线 822=0.0082μF 10=10mm 长度 103=0.01μF 15=15mm Lead the shape Vol tage 0250 250V 104= 0.1μF 22=22.5mm K=成型 C=3.5 0275 275V 105= 1.0μF 27=27.5mm H=直编 Y=24 0310 310V 106 = 10μF 37=37.5mm Q=成型编带 A,B,C X21 2 0275 3 电容器系列代码 Capacitor series cod X2-=MKP-X2 4 5 6 A 7 8 104 9 10 额度频率 Line frequency K 壳式 box P X 2 11 12 10 13 14 W S B 15 16 17 电容量允许偏差 Tolerance 外壳颜色 The shell color 18 引线直径 Wire diameter V J=±5% Y=灰色 A=0.5mm 交流 A C 50/60 Hz A G=±10% W=黄色 B=0.6mm H=±20% X=蓝色 C=0.8mm 电容器 Capacitor 金属化 metallization K 直流 D C 电容器型号 TYPE M Lead long C=黑色 聚炳烯膜介质 Polypropylene film media 跨电源线 Across the power cord 类别 category 5 19 20 内部特 征代码 Internal feature code MKP-X2 ■特性曲线图 Characteristic curve 电容量随温度变化的曲线﹝1KHz﹞ Is the temperature curve of the capacitance 电容量随频率变化的曲线 Capacitance may vary in frequency 损耗角正切值随温度变化的曲线﹝1KHz﹞ The curve of the tangent of loss Angle with temperature 损耗角正切值随频率变化的曲线 Curve of the change of the tangent value of the loss angle with frequency 绝缘电阻随温度变化的曲线﹝1KHz﹞ The curve of insulation resistance to temperature 6 MKP-X2 ■性能及测试方法 Performance and test methods No 项目 Item 性能与判据 Performance and criteria 1 电容量允许偏差 Capacitance tolerance ±5%〔J〕,±10%〔K〕,±20%〔M〕 2 损耗角的正切 Tangent of the loss angle tgδ≤0.0010〔1KHz〕 tgδ≤0.0020〔10KHz〕 3 耐电压 Dielectric strength 无飞弧或击穿 There shall be no breakdown or flashover 4 绝缘电阻 Insulation resistance 5 可焊性 Solder ability 初始测量 Initial measurement 引线抗拉强度强度 Terminal strength R≥15000MΩ, Cn≤0.33μF IR≥5000S Cn＞0.33μF Tin plating is good, and the surface infiltration area of lead wire is more than 90%镀锡良好,引线表面浸润 面积≥90% 测试方法 Test method (IEC60384-2) 典型测量频率：1KHz Typical measuring frequency: 1KHz 极间 Between terminals 1000V〔DC〕2sec 极壳 Between terminals to case 1500V 60S 充电电压 Ur=100V Charging voltage 100v 环境温度 20℃，测量时间 60S 锡炉温度 Soldre temperature 245℃±5℃ 浸渍时间 Immersion time 2.S±0.5S 电容量与损耗 Capacitance & tgδ 〔10KHz〕 外观无可见损伤 There shall be no visible damage 6 拉力试验 Tension Ual: 拉力 Pull： φd=0.5mm 5N φd=0.6mm 10N 弯曲试验 bend Ub: 弯力 The qull of bend φd=0.5mm 2.5N φd=0.6mm 5N 端子应向每个方向弯曲 2 次 The terminals shall be bent 2times in each direction 锡炉温度 Soldre temperature 耐焊接热 Resistance to solder heat 无可见损伤 There shall be no visible damage 260℃±5℃ 浸渍时间 Immersion time 10.S±1S 初始测量 Initial measurement ΔC/C≤±5% 相对于初始值 Relative to the initial value. tgδ≤0.0020〔10KHz〕 电容量与损耗 Capacitance & tgδ〔10KHz〕 温度快速变化 Rapid change of temperature 外观无可见损伤 There shall be no visible damage 最后的测量 Final measurement 7 7 Θa= -40℃ Θb= +110℃ 持续的时间= 30 分钟 5 个周期, 5cycles, Duration:=30min MKP-X2 振动 Vibration 外观无可见损伤 There shall be no visible damage 碰撞 Bump 外观无可见损伤 There shall be no visible damage 最后的测量 Final measurement 初始测量 Initial measurement +1050 C 持续 16 小时 +1050 C lasts for 16 hours 试验 Db, 严酷度 b,第一次循环 Test Db,Severity:b,the first cycle 0 -40 C 持续 2h -400C lasts for 2 hours Dry heat 循环湿热 Damp heat ,Cyclic 寒冷 Cold 低气压 气候顺序 Low air pressure Climate sequence 在试验最后 1 分钟施加 Ur 时，不 得有永久性击穿或飞弧及外壳有 害变形 There shall be no permanent down ,flashover or other harmful deformation when applying Ur at the last 1minute 循环湿热 Damp heat ,Cyclic 最后的测量 Final measurement 9 稳态湿热 Damp heat steady state Bump times: 4000 Acceleration: 390m/S2 Duration of pulse: 6ms ΔC/C≤±10% 相对于初始值 Relative to the initial value. tgδ≤0.0020〔10KHz〕 IR≥50% 规定值 of the rated value 电容量与损耗 Capacitance & tgδ〔10KHz〕 干热 8 频率:10 ~ 500HZ 振幅 0.75mm 或加速度 98m/S2 三 个方向每个方向各 2h 共 6h Ferequance10~500HZ Amplitude0.75m;Acceleration98m/S2 Amplitude 3 direction 2h per direction Duration 6h 碰撞次数: 4000 次 加速度: 390m/S2 脉冲持持续时间 : 6ms 外观无可见损伤 There shall be no evidence of deformation ΔC/C≤±10% 相对于初始值 Relative to the initial value. tgδ≤0.0020〔10KHz〕 IR≥50% 规定值 of the rated value 外观无可见损伤，标志清晰 There shall be no evidence of deformation And the marking shall be legible ΔC/C≤±5% 相对于初始值 Relative to the initial 8 150 C~350 C 大气压 8.5kpa 持续 1 小时 The pressure of 150 C~350 C air is 8.5kpa for 1 hour 试验 Db，严酷度:b，其余循环 试验结束后，施加 Ur 1 分钟 Test Db,Severity:b,the other cycles, Applying Ur for 1minute after the test finished 试验温度: 40 ± 2℃ 相对湿度: 93 ± 2% RH 试验时间: 56 天 Temperature: 40 ± 2℃ Humidity: 93 ± 2% RH Duration:56days value. tgδ≤0.0015〔10KHz〕 IR≥50% 规定值 of the rated value 10 11 脉冲试验 Impulse test 耐久性 Endurance 12 阻燃性试验 Flame retardant test 13 自燃性试验 Spontaneous combustion test 电容器无永久性击穿 或飞弧 外观无可见损伤，标志清晰 There shall be no evidence of deformation And the marking shall be legible ΔC/C≤±10% 相对于初始值 Relative to the initial value. tgδ≤0.0020〔10KHz〕 IR≥50% 规定值 of the rated value MKP-X2 加脉冲次数：24 max 峰值电压：2500v Pulse rate 24 max Peak voltage 2500v 试验温度： +110℃±2℃ 施加电压: 1.25×UR 每小时电压升至 1000v, 持续时间 0.1S 试验时间：1000 h Temperature: +110℃±2℃ Voltage: 1.25×UR The voltage rises to 1000v per hour Duration 0.1s Duration:1000h 火焰高度： 12±1 (mm) 离开火焰后，任一电容器继续 在试验的电容器下辅垫棉纸，每个试 燃烧的时间不超过 30 秒,且燃烧的 验样品在火焰上暴露一次。 滴落物不应引燃在其下辅设的棉 在火焰上暴露时间见下表 Flame height: 12 + 1 (mm) 纸. After leaving the flame, any Each test sample was exposed once to capacitor shall continue to burn for the flame under the test capacitor pad no more than 30 seconds, and the cotton paper. dripping shall not ignite the cotton Exposure time to the flame is shown below paper provided under it. 3 10S 250＜V(mm )≤500 3 20S 500＜V(mm )≤1750 3 30S 1750＜V(mm ) 样品用未处理过的纯棉布缠绕 至少一层但不能多于两层，每一样品 应能承受贮能电容器放电 20 次；每 两次放电之间的间隔应为 5S。 缠绕在电容器上的纱布应不被火焰 燃烧。 The sample shall be wrapped with 缠绕在电容器上的纱布应不被火 unprocessed pure cotton cloth in at 焰燃烧。 least one layer but not more than two layers, each sample shall be able to Gauze wound around capacitor withstand 20 discharge of storage should not be burned by flame. capacitors; The interval between each discharge should be 5S. Gauze wound around capacitor should not be burned by flame. 贮能电容器充电电压 Ui=2.5KV 0%~+7% Storage capacitor charging voltage Ui= 2.5kv 0%~+7% ■ 产品编带尺寸 Product tape size ● 外形图 The contour map 9 MKP-X2 ● 编带尺寸表 Taping Dimensions 名 称 电容器间距 Taping pitch 送带孔距离 Feed hole pitch 电容器与带孔位置 capacitor and hole location 引线直径 Wire diameter 引 出 线 成型间距 电容器侧面倾斜 The capacitor slopes sideways 载体纸带宽度 Carrier tape width 热熔胶带纸宽度 Hold down tape width 送带孔位置 Hold position 胶带纸位置 Hold down tape sition 引线至孔中心高度 Height of component from tape center 送带孔直径 Feed hole dia 编带总厚度 Tape thickness 引线剪断高度 Height of lead shearing 代 号 标准尺寸（mm） 允许误差（mm） P 12.7 ±1.0 Po 12.7 ±0.3 P1 P2 3.85 6.35 ±0.7 ±1.3 φd 0.5/0.6 ±0.05 F 5.0 +0.6 -0.2 ΔT 0 ±2.0 W 18.0 +1.0 -0.5 W0 12.0 ±0.5 W1 9.0 +0.75 -0.5 W2 0～3.0 / Ho 16.0 ±0.5 Do φ4.0 ±0.3 t 0.7 ±0.2 L ≤11 / ● 径向编带包装箱尺寸 Box sizes for Ammo-pack 10 MKP-X2 A=48±3; B=260±3; C=330±3 ■ 波峰焊接 Wave soldering 电容器的内部温度必须 保持如下: 聚 酯: 预热温度+ 125°C 聚丙烯: 预热温度+ 100°C 单波峰焊接 焊接浴温度: T=260°C 停留时间: 5 秒 双波峰焊接 焊接浴温度:T=260°C 停留时间: 5 秒 由于不同的焊接工艺和 热量要求图形仅作为推荐 Internal temperature of the capacitor must be kept as follows: Polyester: preheating: T max. T 125° C Polypropylene: preheating: T max. T 100° C Single wave soldering Soldering bath temperature: T 260 ° C Dwell time: t 5 sec Double wave soldering Soldering bath temperature: T 260 ° C Dwell time: St 5 sec Due to different soldering processes and heat requirements the graphs are to be regarded as a recommendation only. 双波焊接的典型温度/时间图 Typical temperature/time graph for double wave soldering 11
