HND-4216 SPEC V1.0
规格书
Specification
HND-4216
品名
Model name
PROPRIETARY
Huaneng Electronic co.,Ltd.
CONFIDENTIAL
Huaneng Electronic co.,Ltd.
Version #
Spec V1.0
制作日期
Date
2020-4-10
准备
Prepared
Yang shu yin
Acoustic specialist,R&D Dept.
审核
Approved
Zhang chang hua
Executive Manager,R&D Dept.
江苏华能电子有限公司
Components Operating Div.
Huaneng Electronic co., Ltd.
HND-4216 SPEC V1.0
1.适用范围:本规范适用于HND-4216蜂鸣器。
This specifications apply the HND-4216 buzzer.
2.基本规格/General specification
项目/Item
规格/Spec
条件/Condition
1
额定电压
Rated voltage
12VDC
2
工作电压
Operation voltage
3~24VAC
3
声压
Sound Pressure Level=SPL
Min 90dB
4
振荡频率
Oscillation frequency
2800±500Hz
5
响应时间
Response time
Max 50mS
最低工作电压
Lowest operation voltage
6
工作温度范围
Range of operation temperature
-20~+80℃
声压 ≥85dB
SPL ≥85dB
7
保存温度范围
Range of preservation temperature
-30~+85℃
8
引线强度
Terminal strength
10N
拉负荷方向的终端轴
Pull load on the direction of the
terminal axis
9
外部尺寸
Externals size
Φ41.8*16
参阅附图
Refer to the attached drawing
10
重量
Mass
12g
测试环境:标准状态,标准驱动电路,
额定电压
测试距离:0.1m
Standard State,Standard Drive Circuit.
Rated voltage,Distance at 0.1m
☆标准状态:常温(15~35℃),湿度(25~85%相对湿度),空气压力(860~1060hpa)
在假设的情况判断,测试是-基本状态下进行。
Standard State:Ordinary Temp(15~35℃),Humidity(25~85%RH),Air pressure(860~1060hPa)
In case of doubtful judgment,the test is re-performed under Basic State.
☆基本情况:温度。(20±2℃),湿度(60~70%相对湿度),空气压力(860~1060hpa)
Basic State: Temp.(20±2℃),Humidity(60~70%RH),Air pressure(860~1060hPa)
/
/
3.可靠性规范/Reliability specification
HND-4216 SPEC V1.0
项目/Item
试验条件/Test condition
判断标准/Criteria
1
高温保存试验
High
temperature
Preservation
+85℃环境下放置24小时
Exposure to +85℃ for 24 hrs.
2
低温保存试验
Low
temperature
preservation
-20℃环境下放置24小时
Exposure to -40℃ for 24 hrs.
经过测试,符合规格,
没有任何不合格的外
观和性能
After the test the
part shall meet
specificati
-ons without any
degra.
3
高温试验
High
temperature
Shock
4
低温试验
Low
temperature
Shock
5
常温寿命试验
Ordinary
Temp.Life
常温(25℃±10℃)电压12VDC连续测试48小时
Driving the sounder at 12VDC for 48hrs in the room
temperature(25℃±10℃)
6
高温寿命试验
High
Temp.Life
高温(+85℃)电压12VDC连续测试2小时
Driving the sounder at 12VDC for 2hrs in the low
temperature(+85℃)
7
低温寿命试验
Low
Temp.Life
低温(-20℃)电压12VDC连续测试2小时
Driving the sounder at 12VDC for 2hrs in the low
temperature(-20℃)
8
端子拉力试验
Lead
strength
10N的拉力在端子上拉10±1秒
Pull load on the direction of the terminal axis for
10±1 sec.
9
跌落试验
Free drop
70cm高自由掉落到厚40mm的木板上,每个方向一次
Free drop,70cm height, on wood boad (t40mm)
X,Y,Z 3Direction 1time each, total 3times.
端子可焊性试
验
Solderabilit
y
260±5℃焊接温度。时间:5±0.5sec。
1
0
Soldering into solderbath:Solder Temp.260±5℃
Soaking Time:5±0.5sec
排除弯曲的针
Exclude bending of
Pin
端子95%必须覆盖着焊料
95% surface of lead
pins must be covered
with fresh solder and
no soldering holes
Should be found
引用规
格
HND-4216
江苏华能电子有限公司
HUANENG Electronic Co,Ltd

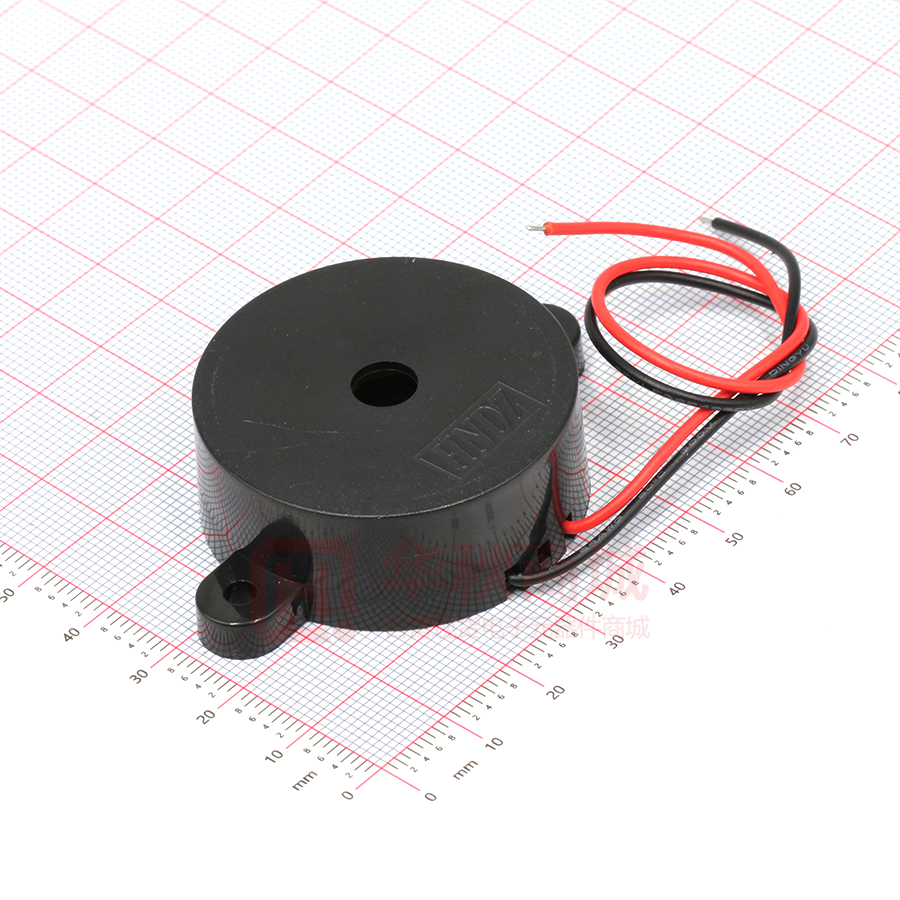

产品特征图
