SMD Power Inductors
-YNR4018 Series
■ Features
● Low profile construction and miniature size.
● Magnetic shielded construction.
● High current saturation.
● Operating temperature:-40℃ ~ +125℃.
● RoHS compliant
■ Applications
● For small DC/DC converter(HDD,DVC,DSC,PDA,LCD display etc.).
● Car navigation systems,telecom base stations.
● VR,AR,LED lighting.
■ Product Identification
⑴ :Type
⑵ :Dimensions
⑶ :Inductance value
⑷ :Inductance Tolerance;N=±30%,M=±20%,K=±10%
■ Shapes and Dimensions (Unit:mm)
TYPE
A
B
C Max.
D
E Ref.
F Ref.
G Ref.
YNR4018
4.0±0.2
4.0±0.2
1.80
0.95±0.2
3.70
1.10
1.90
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-1-
SMD Power Inductors
-YNR4018 Series
■ YNR4018 Series
Part Number
Inductance
DC Resistance (Ω)
Heat Rating
Saturation
(uH) @100KHz
Typ.
Max.
Current (A)
Current (A)
YNR4018-R22□
0.22
0.010
0.013
5.50
6.30
YNR4018-R47□
0.47
0.014
0.018
4.00
4.30
YNR4018-R68□
0.68
0.020
0.026
3.30
4.90
YNR4018-1R0□
1.00
0.025
0.033
2.00
4.80
YNR4018-1R2□
1.20
0.025
0.033
2.00
3.40
YNR4018-1R5□
1.50
0.030
0.039
1.80
3.35
YNR4018-1R8□
1.80
0.034
0.044
2.00
3.00
YNR4018-2R2□
2.20
0.045
0.059
1.65
2.70
YNR4018-3R3□
3.30
0.070
0.091
1.23
2.45
YNR4018-3R6□
3.60
0.090
0.117
1.20
2.50
YNR4018-4R7□
4.70
0.090
0.117
1.20
1.70
YNR4018-5R6□
5.60
0.107
0.139
1.50
1.60
YNR4018-6R8□
6.80
0.110
0.143
1.06
1.45
YNR4018-8R2□
8.20
0.170
0.221
1.40
1.40

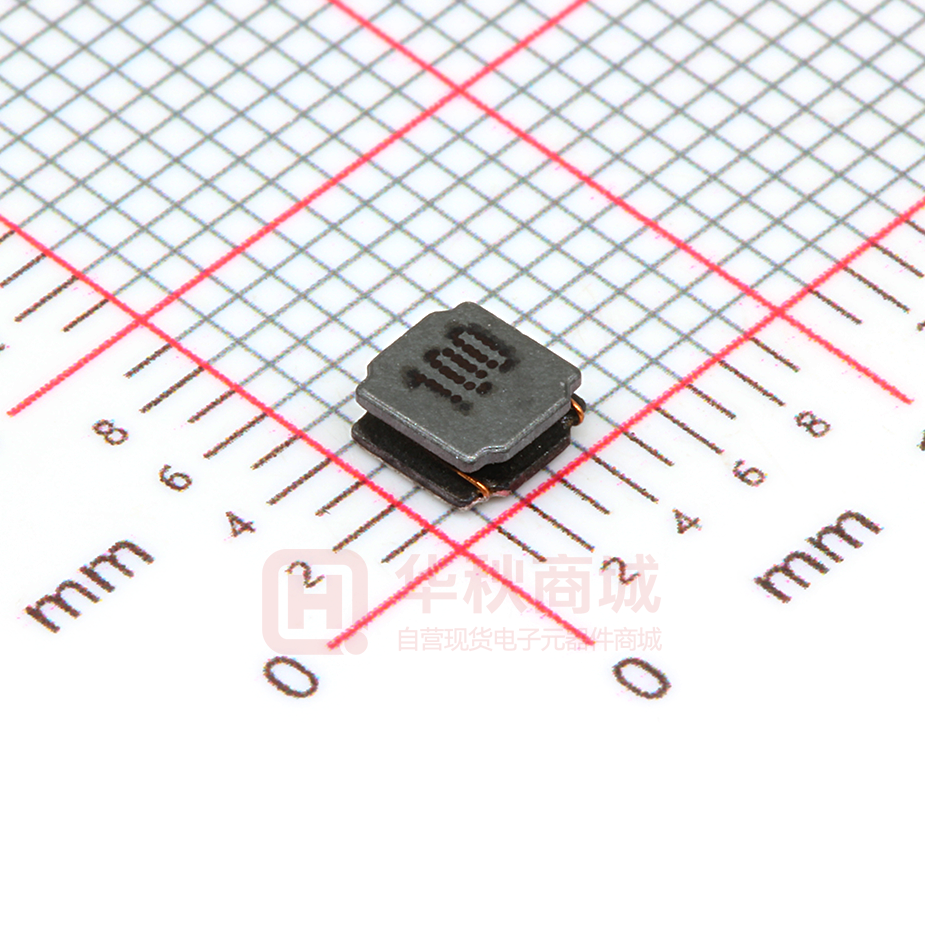

YNR4018-100□
10.0
0.180
0.234
0.84
1.30

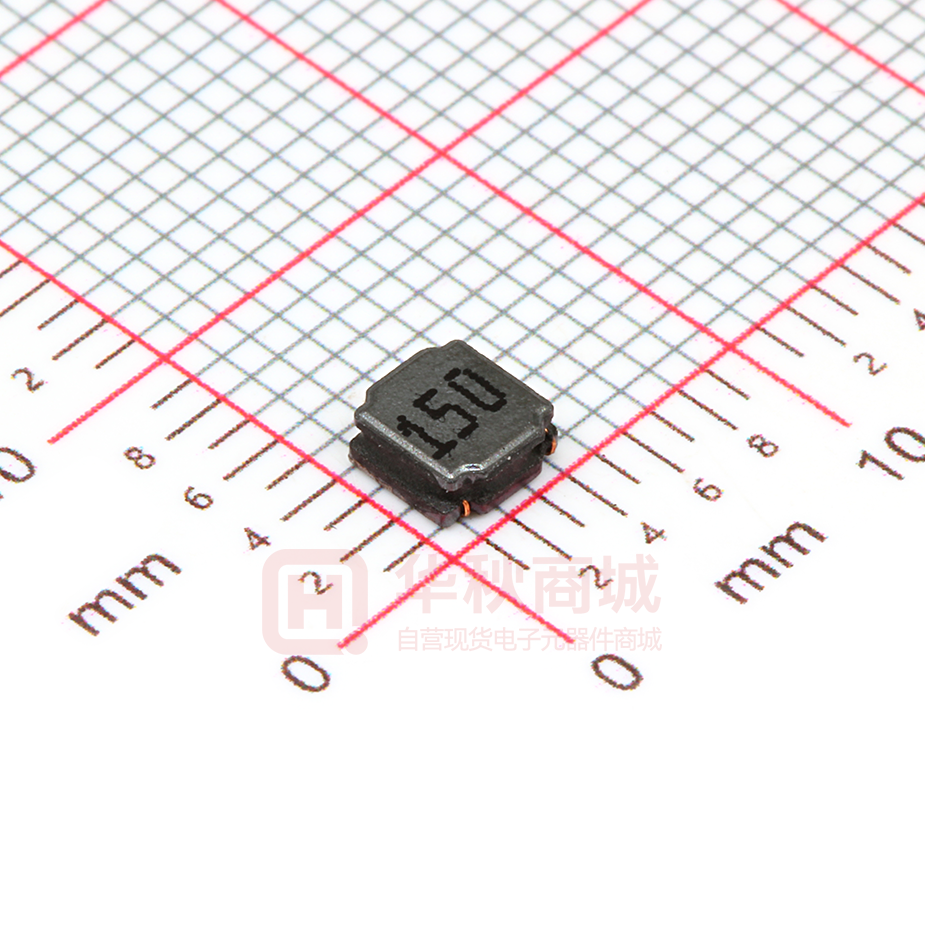

YNR4018-150□
15.0
0.250
0.325
0.65
0.94

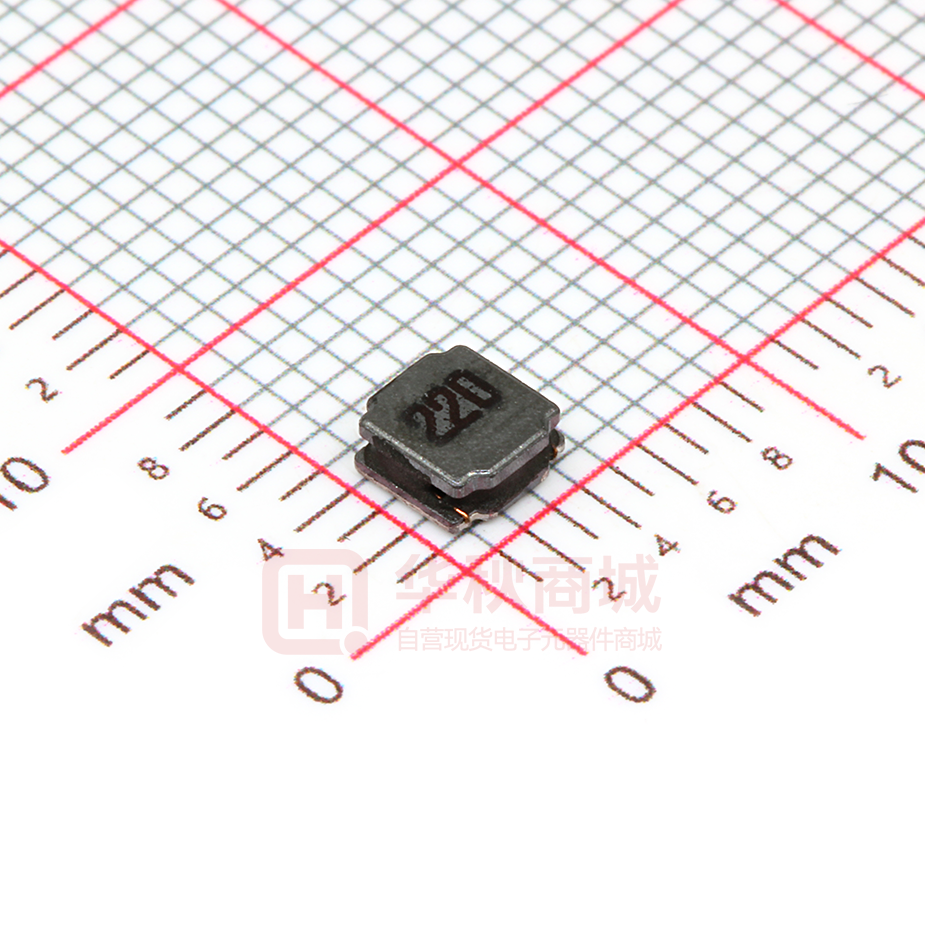

YNR4018-220□
22.0
0.360
0.468
0.59
0.80
YNR4018-270□
27.0
0.470
0.611
0.52
0.47
YNR4018-330□
33.0
0.530
0.689
0.49
0.56
YNR4018-470□
47.0
0.650
0.845
0.42
0.57
YNR4018-560□
56.0
1.000
1.300
0.32
0.61
YNR4018-680□
68.0
1.000
1.300
0.32
0.47
YNR4018-101□
100
1.750
2.275
0.25
0.40
YNR4018-151□
150
2.500
3.250
0.22
0.31
YNR4018-221□
220
4.000
5.200
0.17
0.27
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-2-
SMD Power Inductors
-YNR4018 Series
※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃)
※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at
20℃)
※ The rated current is the DC current value that satisfies both of current value saturation current value and
temperature rise current value.
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-3-
SMD Power Inductors
-YNR4018 Series
■ Taping Dimensions(Unit:mm)
TYPE
Chip
Thickness
W
A
B
D
P
K Max
T Max
MPQ
YNR4018
1.80
12.0
4.30
4.30
5.50
8.00
2.10
0.35
3000
■ Reel Dimensions(Unit:mm)
TYPE
W
W1
A
B
C
D
YNR4018
330±2.0
12.8±1.50
13.0±0.50
21.0±0.80
2.0±0.50
100 Min
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-4-
SMD Power Inductors
-YNR4018 Series
■ Direction of rolling
■ Cover tape peel off condition
Cover tape peel force shall be 0.1N to 1.3N.
Reference peel speed 300±10mm/min.
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-5-
