SMD Power Inductors
-YNR5020 Series
■ Features
● Low profile construction and miniature size.
● Magnetic shielded construction.
● High current saturation.
● Operating temperature:-40℃ ~ +125℃.
● RoHS compliant
■ Applications
● For small DC/DC converter(HDD,DVC,DSC,PDA,LCD display etc.).
● Car navigation systems,telecom base stations.
● VR,AR,LED lighting.
■ Product Identification
⑴ :Type
⑵ :Dimensions
⑶ :Inductance value
⑷ :Inductance Tolerance;N=±30%,M=±20%,K=±10%
■ Shapes and Dimensions (Unit:mm)
TYPE
A
B
C Max.
D
E Ref.
F Ref.
G Ref.
YNR5020
5.0±0.2
5.0±0.2
2.00
1.25±0.2
4.70
1.40
2.30
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-1-
SMD Power Inductors
-YNR5020 Series
■ YNR5020 Series
Part Number
Inductance
DC Resistance (Ω)
Heat Rating
Saturation
(uH) @100KHz
Typ.
Max.
Current (A)
Current (A)
YNR5020-R22□
0.22
0.009
0.011
5.30
9.00
YNR5020-R24□
0.24
0.009
0.011
4.60
8.00
YNR5020-R47□
0.47
0.013
0.017
4.60
6.15
YNR5020-R56□
0.56
0.017
0.022
3.80
8.50
YNR5020-R68□
0.68
0.017
0.022
4.00
5.50
YNR5020-R75□
0.75
0.017
0.022
4.00
5.50
YNR5020-1R0□
1.00
0.020
0.026
3.80
4.10
YNR5020-1R5□
1.50
0.026
0.034
3.20
4.10
YNR5020-2R2□
2.20
0.032
0.042
2.90
3.20
YNR5020-2R7□
2.70
0.038
0.049
2.70
2.90
YNR5020-3R0□
3.00
0.038
0.049
2.70
2.55
YNR5020-3R3□
3.30
0.043
0.056
2.50
2.55
YNR5020-3R9□
3.90
0.043
0.056
2.50
2.30
YNR5020-4R7□
4.70
0.057
0.074
2.20
2.50
YNR5020-5R1□
5.10
0.064
0.083
2.05
2.25
YNR5020-5R6□
5.60
0.064
0.083
2.05
2.30
YNR5020-6R8□
6.80
0.083
0.108
1.80
2.05
YNR5020-7R5□
7.50
0.090
0.117
1.75
1.85
YNR5020-8R2□
8.20
0.098
0.127
1.65
1.85
YNR5020-9R1□
9.10
0.110
0.143
1.55
1.70
YNR5020-100□
10.0
0.110
0.143
1.55
1.70
YNR5020-120□
12.0
0.140
0.182
1.40
1.50
YNR5020-150□
15.0
0.165
0.215
1.25
1.35
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-2-
SMD Power Inductors
-YNR5020 Series
■ YNR5020 Series
Part Number
Inductance
DC Resistance (Ω)
Heat Rating
Saturation
(uH) @100KHz
Typ.
Max.
Current (A)
Current (A)
YNR5020-180□
18.0
0.200
0.260
1.15
1.25
YNR5020-220□
22.0
0.226
0.294
1.10
1.15
YNR5020-330□
33.0
0.390
0.507
0.90
0.92
YNR5020-470□
47.0
0.523
0.680
0.77
0.77
YNR5020-560□
56.0
0.630
0.819
0.70
0.77
YNR5020-620□
62.0
0.630
0.819
0.70
0.60
YNR5020-680□
68.0
0.740
0.962
0.64
0.65
YNR5020-820□
82.0
0.965
1.158
0.50
0.65

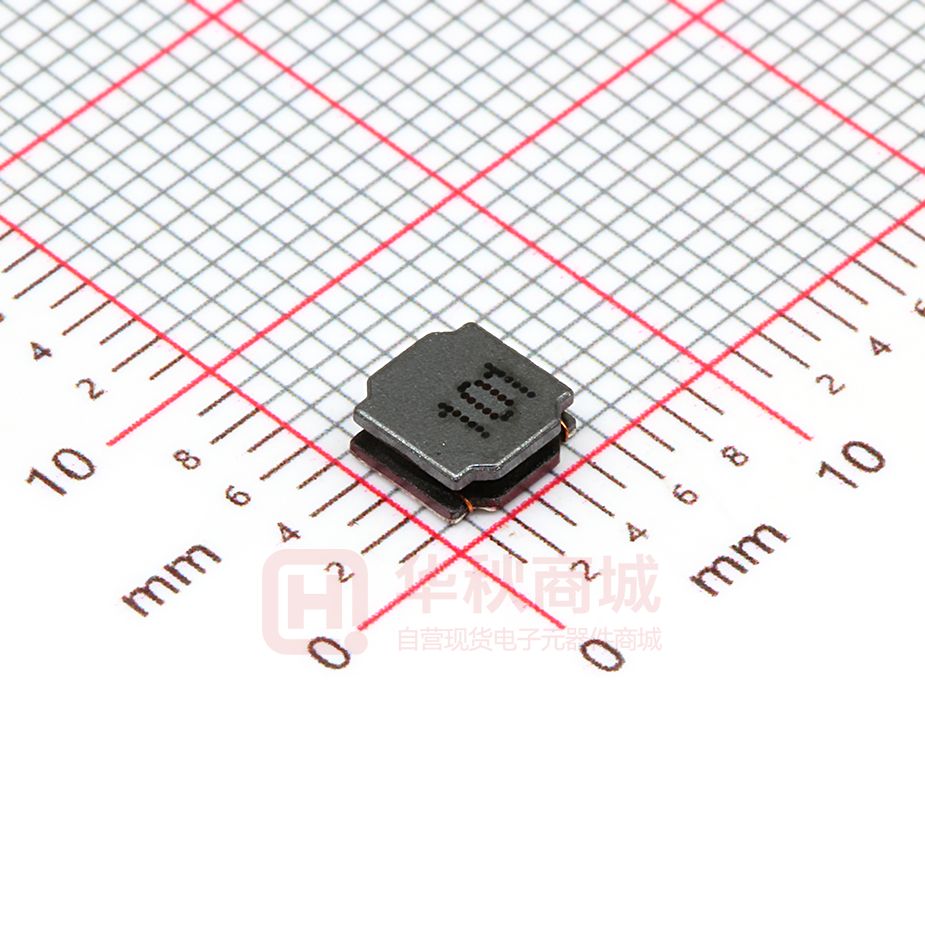

YNR5020-101□
100
1.100
1.430
0.53
0.53

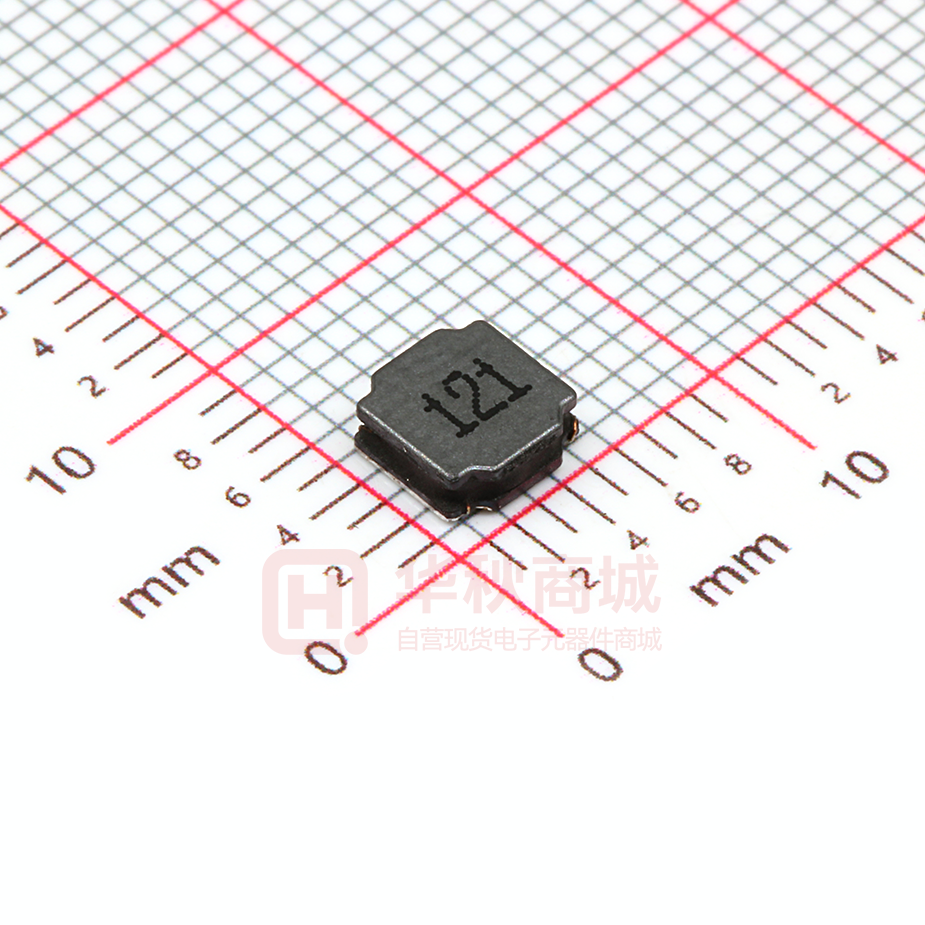

YNR5020-121□
120
1.350
1.755
0.40
0.42

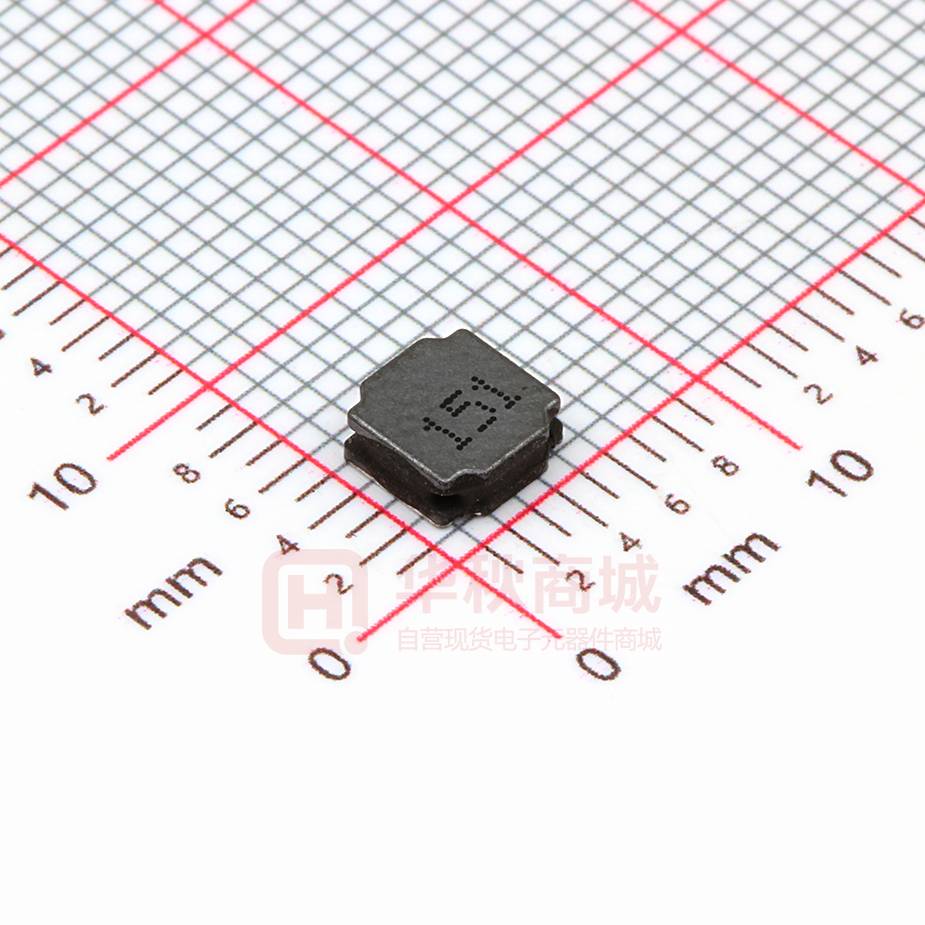

YNR5020-151□
150
2.150
2.795
0.35
0.40
YNR5020-201□
200
2.000
2.600
0.30
0.30
YNR5020-221□
220
2.380
3.094
0.30
0.30
YNR5020-561□
560
6.970
9.061
0.20
0.24
※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃)
※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at
20℃)
※ The rated current is the DC current value that satisfies both of current value saturation current value and
temperature rise current value.
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-3-
SMD Power Inductors
-YNR5020 Series
■ Taping Dimensions(Unit:mm)
TYPE
Chip
Thickness
W
A
B
D
P
K Max
T Max
MPQ
YNR5020
2.00
12.0
5.40
5.40
5.50
8.00
2.20
0.35
3000
■ Reel Dimensions(Unit:mm)
TYPE
W
W1
A
B
C
D
YNR5020
330±2.0
12.8±1.50
13.0±0.50
21.0±0.80
2.0±0.50
100 Min
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-4-
SMD Power Inductors
-YNR5020 Series
■ Direction of rolling
■ Cover tape peel off condition
Cover tape peel force shall be 0.1N to 1.3N.
Reference peel speed 300±10mm/min.
