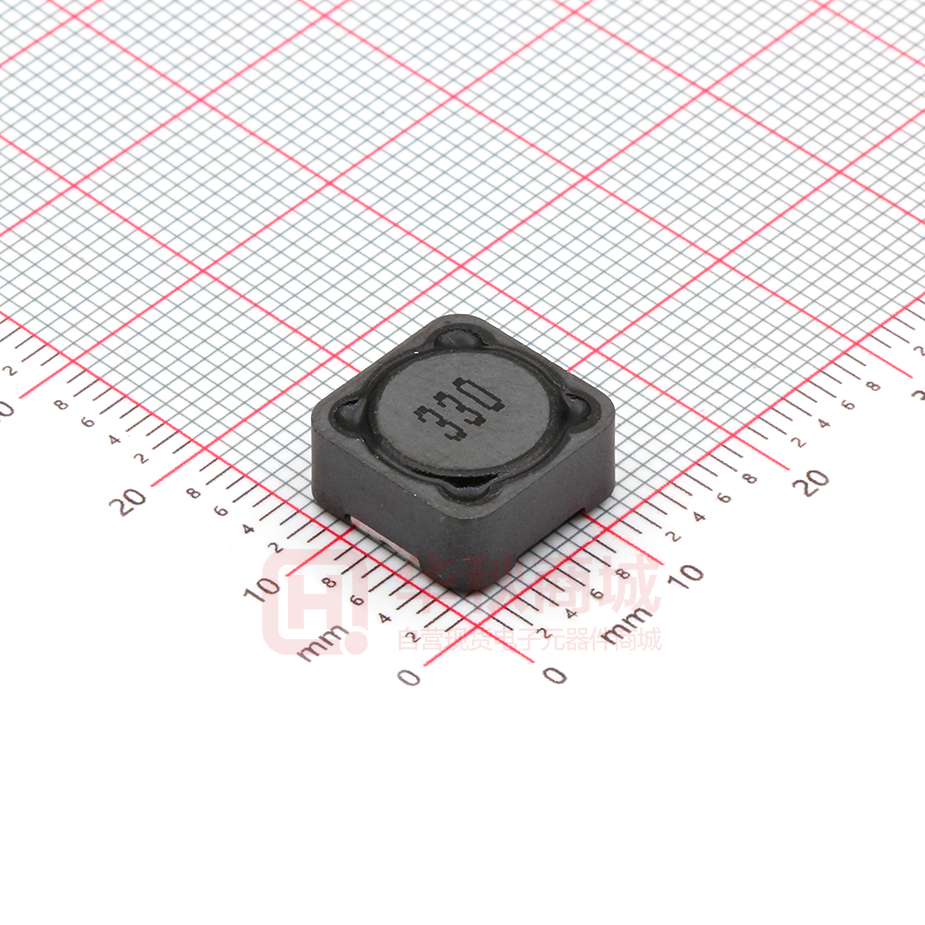

SMD Power Inductors
-YPRH1205 Series
■ Features
● High current type.
● Ferrite bobbin core and compact size.
● Low core loss for high frequency power application.
● Large terminal surface for good PCB bonding.
● Operating temperature:-40℃ ~ +125℃.
■ Applications
● Portable communication equipment.
● Notebook PC,digital camera,LCD television set.
● Power supply for VTR,OA equipment.
● DC/DC converters.
■ Product Identification
⑴ :Type
⑵ :Dimensions
⑶ :Inductance value
⑷ :Inductance Tolerance;N=±30%,M=±20%,K=±10%
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-1-
SMD Power Inductors
-YPRH1205 Series
■ Shapes and Dimensions (Unit:mm)
TYPE
A
B
C max
D
E
F Ref.
G Ref.
H Ref.
YPRH1205
12.0±0.5
12.0±0.5
6.0
7.60±0.2
5.0
2.8
7.0
5.4
■ YPRH1205 Series
Part Number
Inductance
(uH)
L Test Frequency
Max.DC Resistance
MAX.Rated Current
(KHz)
(Ω)
(A)
YPRH1205-1R0□
1.00
100
0.012
8.00
YPRH1205-1R3□
1.30
100
0.012
8.00
YPRH1205-1R5□
1.50
100
0.013
7.70
YPRH1205-1R8□
1.80
100
0.014
7.40
YPRH1205-2R1□
2.10
100
0.014
7.00
YPRH1205-2R2□
2.20
100
0.015
7.00
YPRH1205-2R5□
2.50
100
0.017
6.40
YPRH1205-3R0□
3.00
100
0.018
5.80
YPRH1205-3R3□
3.30
100
0.019
5.40
YPRH1205-4R4□
4.40
100
0.020
5.00
YPRH1205-4R7□
4.70
100
0.020
4.80
YPRH1205-5R6□
5.60
100
0.021
4.40
YPRH1205-6R8□
6.80
100
0.022
4.30
YPRH1205-7R5□
7.50
100
0.024
4.20
YPRH1205-7R7□
7.70
100
0.024
4.20
YPRH1205-8R2□
8.20
100
0.025
4.10
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-2-
SMD Power Inductors
-YPRH1205 Series
Part Number
Inductance
(uH)
L Test Frequency
Max.DC Resistance
MAX.Rated Current
(KHz)
(Ω)
(A)
YPRH1205-100□
10.0
100
0.025
4.00
YPRH1205-120□
12.0
100
0.027
3.50
YPRH1205-150□
15.0
100
0.030
3.30
YPRH1205-180□
18.0
100
0.034
3.00
YPRH1205-220□
22.0
100
0.036
2.80
YPRH1205-270□
27.0
100
0.051
2.30
YPRH1205-330□
33.0
100
0.060
2.10
YPRH1205-390□
39.0
100
0.068
2.00
YPRH1205-470□
47.0
100
0.075
1.80
YPRH1205-560□
56.0
100
0.110
1.70
YPRH1205-680□
68.0
100
0.120
1.50
YPRH1205-820□
82.0
100
0.140
1.40
YPRH1205-101□
100
100
0.160
1.30
YPRH1205-121□
120
100
0.170
1.10
YPRH1205-151□
150
100
0.230
1.00
YPRH1205-181□
180
100
0.290
0.90
YPRH1205-221□
220
100
0.400
0.80
YPRH1205-271□
270
100
0.460
0.75
YPRH1205-331□
330
100
0.510
0.68
YPRH1205-391□
390
100
0.690
0.65
YPRH1205-471□
470
100
0.770
0.58
YPRH1205-561□
560
100
0.860
0.54
YPRH1205-681□
680
100
1.200
0.48
YPRH1205-821□
820
100
1.340
0.43
YPRH1205-102□
1000
100
1.530
0.40
YPRH1205-103□
10000
100
18.000
0.06
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-3-
SMD Power Inductors
-YPRH1205 Series
※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃)
※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at
20℃)
※ The rated current is the DC current value that satisfies both of current value saturation current value and
temperature rise current value.
■ Taping Dimensions(Unit:mm)
TYPE
MPQ
W
A
B
C
D
E
P
K
T
YPRH1205
500
24±0.3
12.6±0.1
12.6±0.1
10.75
11.5±0.1
6.1±0.1
16±0.1
6.3 Ref
0.4±0.05
■ Reel Dimensions(Unit:mm)
TYPE
W
W1
W2
W3
A
B
C
D
YPRH1205
330±2.00
24.4±1.50
30.40 Max
23.90 Min
13.0±0.50
21.0±0.80
2.0±0.50
100 Min
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-4-
SMD Power Inductors
-YPRH1205 Series
■ Direction of rolling
■ Cover tape peel off condition
Cover tape peel force shall be 0.1N to 1.3N.
Reference peel speed 300±10mm/min.
