SMD Power Inductors
-YSPI0420 Series
■ Features
● Molding Inductor.
● Low Profile,Low Temp.
● Large Current(Over 15A).
● Customize For Different Need.
● Operating temperature:-40℃ ~ +125℃.
■ Applications
● General Electronic.
● Video Device,TV,TFT.
● Power Module for PC.
● NB/Lap Top Computer.
● Server,VGA Card/Module.
■ Product Identification
⑴ :Type
⑵ :Dimensions
⑶ :Inductance value
⑷ :Inductance Tolerance:N=±30%,M=±20%,K=±10%
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-1-
SMD Power Inductors
-YSPI0420 Series
■ 尺寸(单位:mm)
TYPE
A
B
C Max.
D
E Ref.
F Ref.
G Ref.
H Ref.
YSPI0420
4.4±0.5
4.2±0.3
2.0
1.0±0.3
1.5±0.5
2.3
4.9
2.1
■ YSPI0420 Series
DC Resistance (mΩ)
Heat Rating
Saturation
(uH) @100KHz
Typ.
Max.
Current (A)
Current (A)
YSPI0420-R10□
0.10
5.5
8.0
12.0
25.0
YSPI0420-R22□
0.22
6.3
12.0
10.0
14.0
YSPI0420-R33□
0.33
8.0
10.0
8.5
12.5

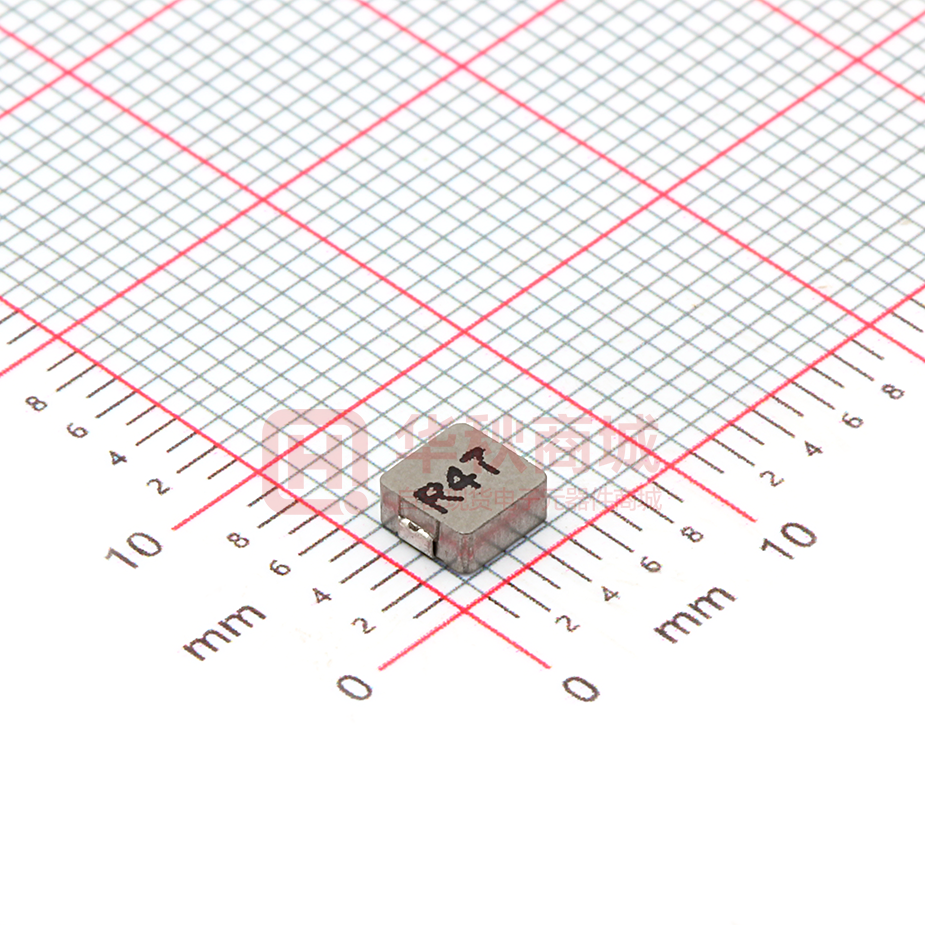

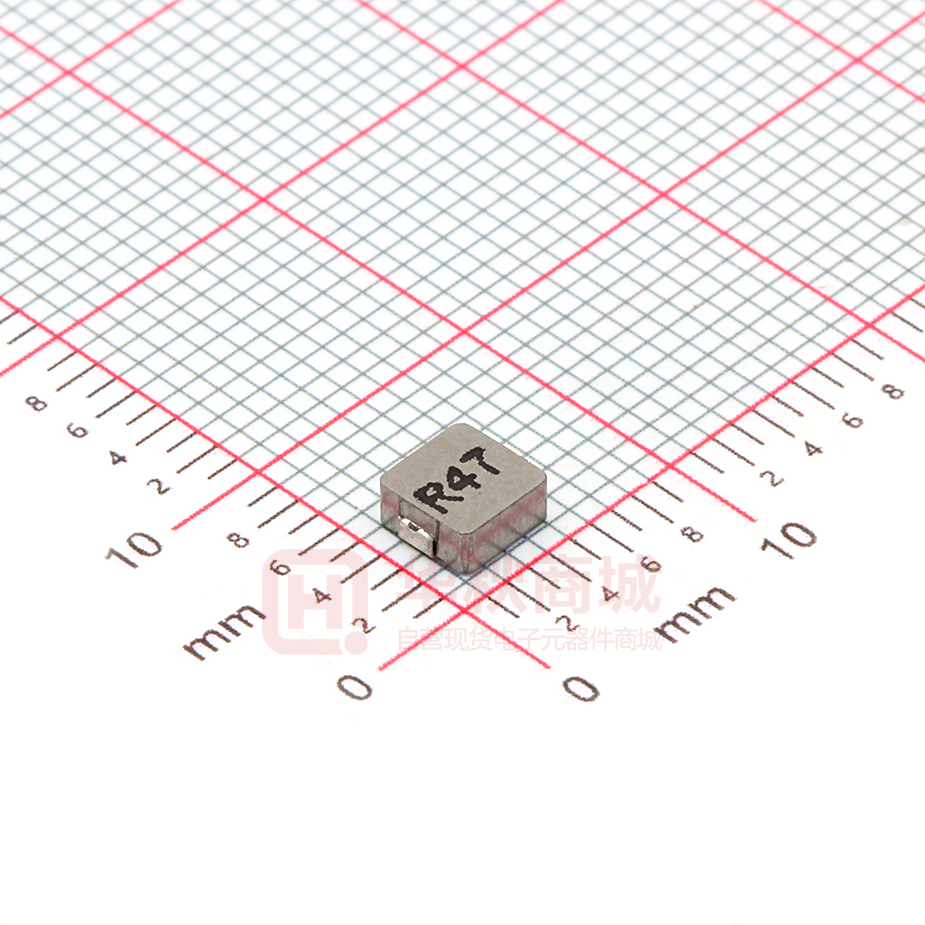

YSPI0420-R47□
0.47
11.0
14.0
7.0
9.5
YSPI0420-R56□
0.56
13.0
20.0
6.5
9.0

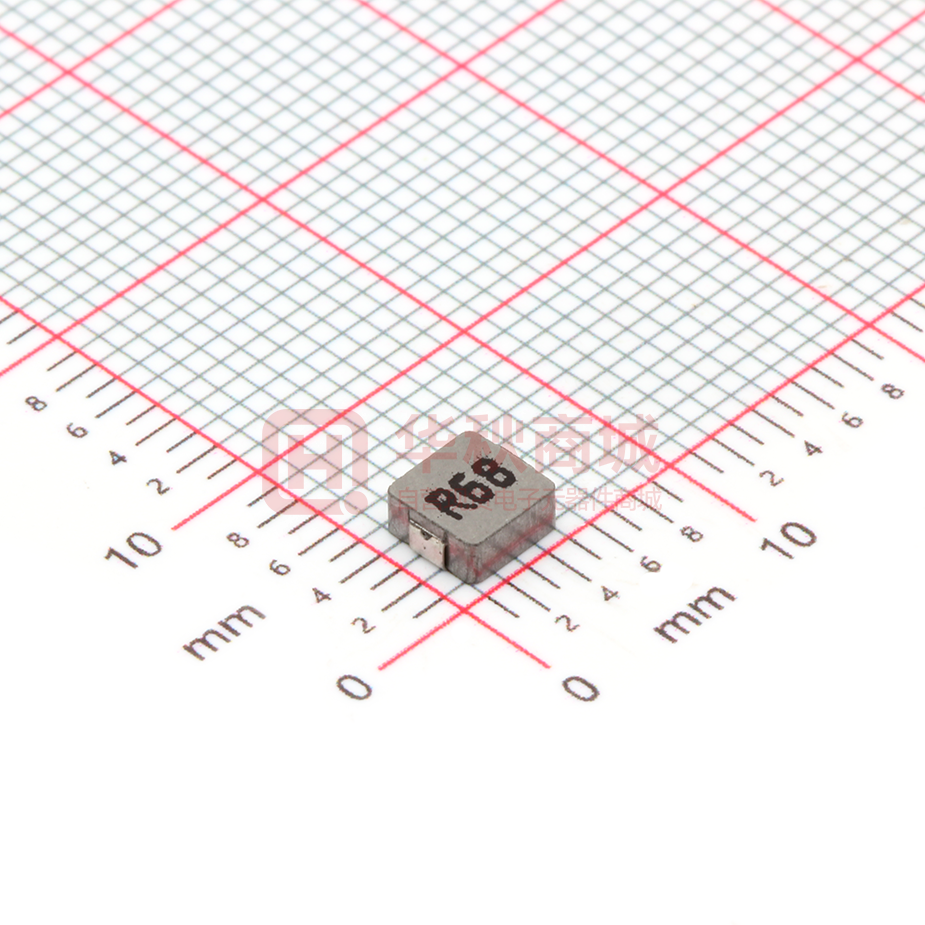

YSPI0420-R68□
0.68
16.0
21.0
5.2
8.0
YSPI0420-1R0□
1.00
21.0
28.0
4.5
7.0
YSPI0420-1R2□
1.20
23.0
32.0
4.0
7.0
YSPI0420-1R5□
1.50
28.0
38.0
4.0
7.0
YSPI0420-2R2□
2.20
42.0
52.0
3.0
5.0
YSPI0420-3R3□
3.30
60.0
79.0
2.5
4.0
YSPI0420-4R7□
4.70
118
150
2.2
3.0
YSPI0420-6R8□
6.80
130
170
2.0
2.5
YSPI0420-8R2□
8.20
188
258
2.0
2.5
YSPI0420-100□
10.0
225
294
1.6
2.0
YSPI0420-220□
22.0
470
500
1.2
1.4
Part Number
Inductance
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-2-
SMD Power Inductors
-YSPI0420 Series
※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃)
※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at
20℃)
※ The rated current is the DC current value that satisfies both of current value saturation current value and
temperature rise current value.
■ Taping Dimensions(Unit:mm)
TYPE
W
A
B
C
D
E
P
K Ref
T
MPQ
YSPI0420
12±0.3
4.3±0.1
5.10±0.1
4.75
5.5±0.1
2.1±0.1
8±0.1
2.2
0.30±0.05
3000
■ Reel Dimensions(Unit:mm)
TYPE
W
W1
W2
W3
A
B
C
D
YSPI0420
330±2.0
12.4±1.50
18.4MAX
11.9Min
13.0±0.50
21.0±0.80
2.0±0.50
100 Min
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-3-
SMD Power Inductors
-YSPI0420 Series
■ Direction of rolling
■ Cover tape peel off condition
Cover tape peel force shall be 0.1N to 1.3N.
Reference peel speed 300±10mm/min.
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-4-
