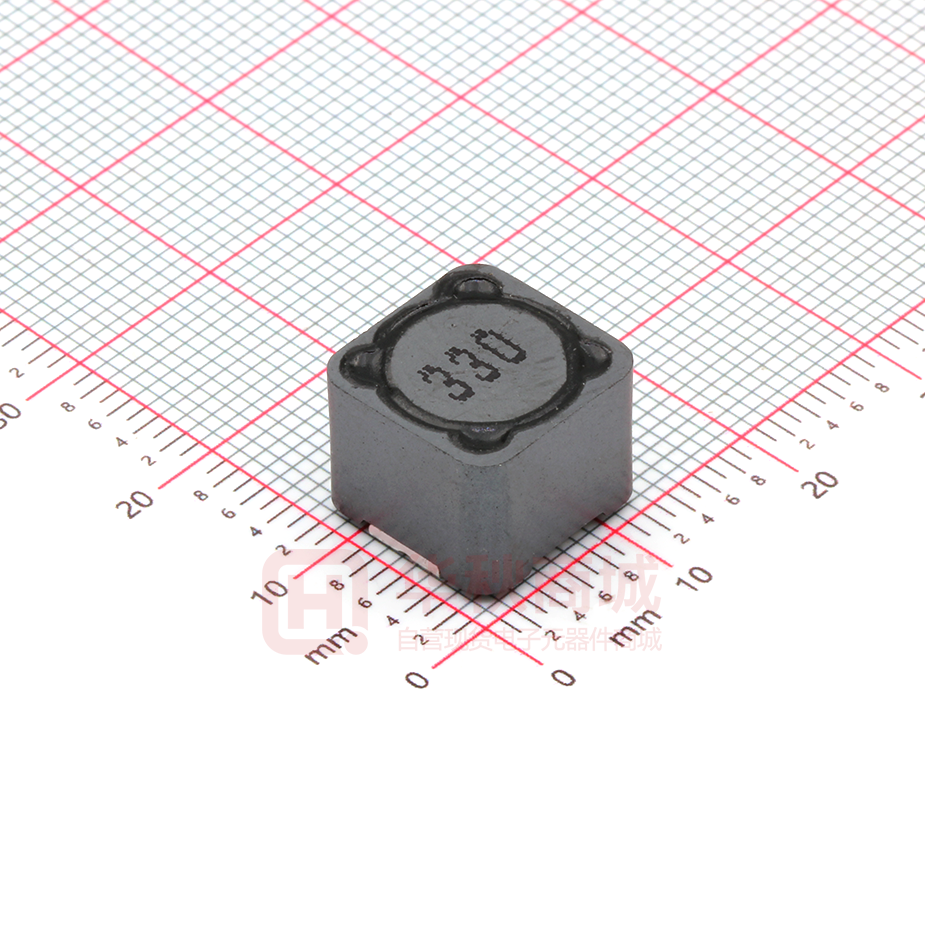

SMD Power Inductors
-YPRH1209 Series
■ Features
● High current type.
● Ferrite bobbin core and compact size.
● Low core loss for high frequency power application.
● Large terminal surface for good PCB bonding.
● Operating temperature:-40℃ ~ +125℃.
■ Applications
● Portable communication equipment.
● Notebook PC,digital camera,LCD television set.
● Power supply for VTR,OA equipment.
● DC/DC converters.
■ Product Identification
⑴ :Type
⑵ :Dimensions
⑶ :Inductance value
⑷ :Inductance Tolerance;N=±30%,M=±20%,K=±10%
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-1-
SMD Power Inductors
-YPRH1209 Series
■ Shapes and Dimensions (Unit:mm)
TYPE
A
B
C max
D
E
F Ref.
G Ref.
H Ref.
YPRH1209
12.0±0.5
12.0±0.5
10.0
7.60±0.2
5.0
2.8
7.0
5.4
■ YPRH1209 Series
Part Number
Inductance
(uH)
L Test Frequency
Max.DC Resistance
MAX.Rated Current
(KHz)
(Ω)
(A)
YPRH1209-1R0□
1.00
100
0.006
19.90
YPRH1209-1R8□
1.80
100
0.007
13.40
YPRH1209-2R5□
2.50
100
0.008
12.16
YPRH1209-3R5□
3.50
100
0.010
12.00
YPRH1209-4R7□
4.70
100
0.011
10.08
YPRH1209-6R8□
6.80
100
0.013
8.56
YPRH1209-7R5□
7.50
100
0.014
8.48
YPRH1209-100□
10.0
100
0.018
7.12
YPRH1209-120□
12.0
100
0.019
7.04
YPRH1209-150□
15.0
100
0.026
5.84
YPRH1209-180□
18.0
100
0.028
5.48
YPRH1209-220□
22.0
100
0.029
5.12
YPRH1209-270□
27.0
100
0.042
4.68
YPRH1209-330□
33.0
100
0.053
4.25
YPRH1209-390□
39.0
100
0.058
3.92
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-2-
SMD Power Inductors
-YPRH1209 Series
Part Number
Inductance
(uH)
L Test Frequency
Max.DC Resistance
MAX.Rated Current
(KHz)
(Ω)
(A)
YPRH1209-470□
47.0
100
0.063
3.60
YPRH1209-560□
56.0
100
0.068
2.85
YPRH1209-680□
68.0
100
0.093
2.76
YPRH1209-820□
82.0
100
0.099
2.62
YPRH1209-101□
100
100
0.126
2.31
YPRH1209-121□
120
100
0.154
2.05
YPRH1209-151□
150
100
0.174
1.80
YPRH1209-181□
180
100
0.191
1.66
YPRH1209-221□
220
100
0.246
1.64
YPRH1209-271□
270
100
0.314
1.46
YPRH1209-331□
330
100
0.386
1.28
YPRH1209-391□
390
100
0.428
1.17
YPRH1209-471□
470
100
0.471
1.06
YPRH1209-561□
560
100
0.650
1.01
YPRH1209-681□
680
100
0.730
0.83
YPRH1209-821□
820
100
0.824
0.81
YPRH1209-102□
1000
100
1.220
0.70
YPRH1209-122□
1200
100
1.330
0.64
YPRH1209-152□
1500
100
1.990
0.56
YPRH1209-182□
1800
100
2.180
0.48
YPRH1209-222□
2200
100
2.580
0.43
※ The saturation current value is the DC current value having inductance decrease down to 30%.(at 20℃)
※ The temperature rise current value is the DC current value having temperature increase up to 40℃. (at 20℃)
※ The rated current is the DC current value that satisfies both of current value saturation current value and
temperature rise current value.
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-3-
SMD Power Inductors
-YPRH1209 Series
■ Taping Dimensions(Unit:mm)
TYPE
MPQ
W
A
B
C
D
E
P
K
YPRH1209
400
24±0.3
12.6±0.1
12.6±0.1
10.75
11.5±0.1
8.2±0.1
20±0.1
10 Ref
T
0.4±0.05
■ Reel Dimensions(Unit:mm)
TYPE
W
W1
W2
W3
A
B
C
D
YPRH1209
330±2.00
24.4±1.50
30.40 Max
23.90 Min
13.0±0.50
21.0±0.80
2.0±0.50
100 Min
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Fax:0755-27803897
-4-
SMD Power Inductors
-YPRH1209 Series
■ Direction of rolling
■ Cover tape peel off condition
Cover tape peel force shall be 0.1N to 1.3N.
Reference peel speed 300±10mm/min.
