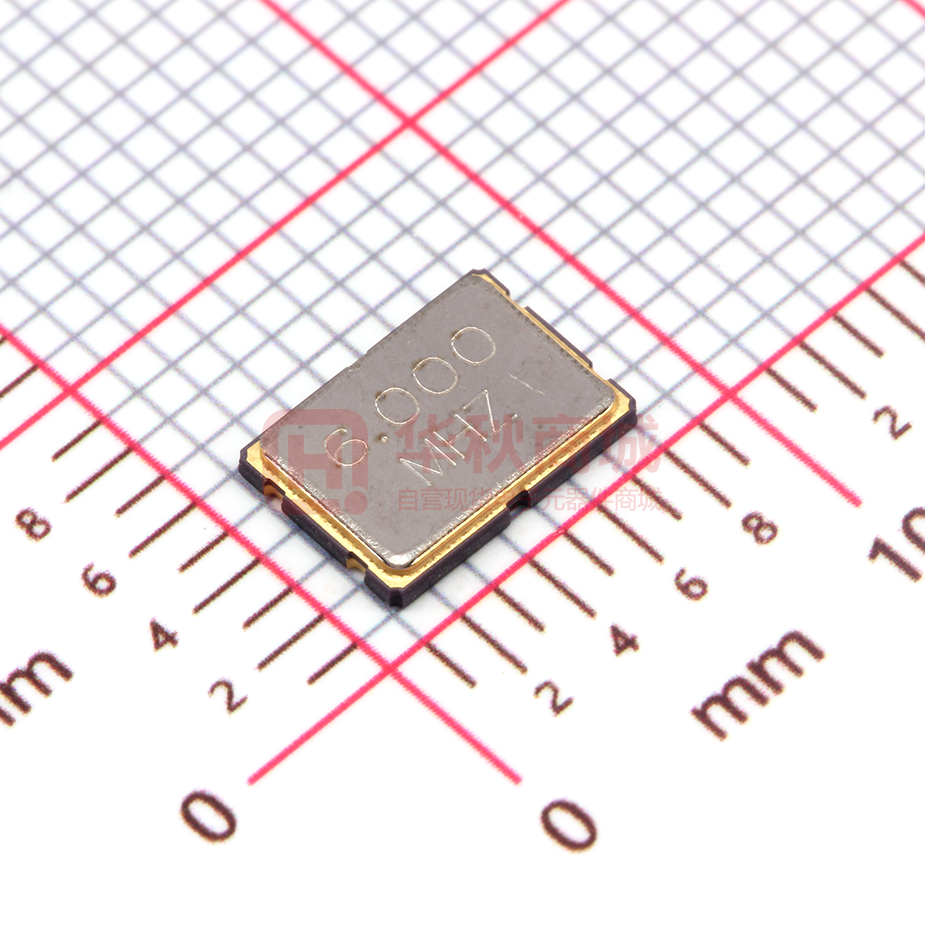

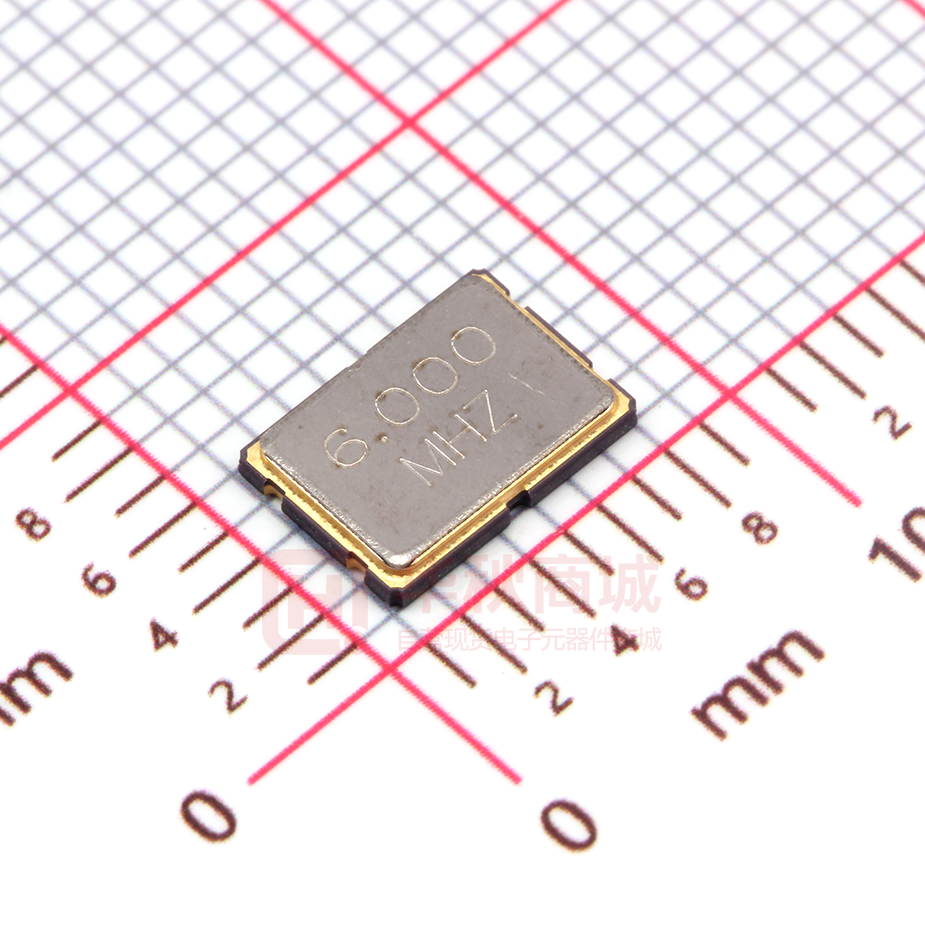

TXM6.000M4705LDCE-O00T 数据手册
序号Serial No.2019010966
TAE雅晶
致TO:
日期Date:2019-01-09
深圳华强聚丰电子科技有限公司
QUARTZ CRYSTAL UNITS
产品ITEM:
石英晶体谐振器
型号TYPE:
SMD-7050_4PIN_SEAM (TXM6.000M4705LDCE-O00T)
标称频率NOMINAL FREQUENCY: 6.000MHz /20PF +/-20PPM
请收到我们的规格书后,签字回传。
Please confirm you received this specification,sign and fax it to us.
接收确认RECEIVING CONFIRMATION
日期DATA
接收RECEIVED
浙江雅晶电子有限公司
ZheJiang ABEL Electron Co.,Ltd.
浙江省台州经济开发区经一路655号
655 JingYi RD. Economic Developing Zone TaiZhou,ZheJiang,China
电话/Tel:0086-576-89025257/89025258/18305768201
传真/Fax:0086-576-88501859
Post Code:318000
URL:www.taecn.com
Email: market@taecn.com
tae@taecn.com
拟制Prepared by:
应金会
批准Confirmed by:
王琴飞
ABEL ELECTRON
SURFACE MOUNTABLE CRYSTAL UNITS(SMD Package) 表面贴装石英晶體諧振器
浙江雅晶電子有限公司
T-7050
RoHS Compliant Standard
Features 特性
Nominal Frequency 标称频率:6.000MHz
Suited for portable devices with low current consumption
適合於低功耗的便攜設備
For a clock source in electronic equipments 適用於电子設備的時鐘源
Item
Model
T7050
Frequency Range
标称频率
6.000MHz
Frequency Tolerance
調整頻差
±20ppm Max
±30ppm Max
–40~+85℃
–40~+85℃
100Ω Max
20pF
7.0pF Max
100μw Max
±5ppm/year Max
500Mohm/Min
Freq. Tol. Over Temp.
溫度頻差
Operating Temp. Range
工作溫度範圍
Storage Temp. Range
保存溫度範圍
Series Resistance
諧振電阻
Load Capacitance
負載電容
Shunt Capacitance
靜態電容
Drive Level
激勵電平
Aging
老化率
Insulation Resistance
絕緣阻抗
Conditions
at 25℃
–40~+85℃
DC100V±15V
OUTLINE DIMENSIONS (unit:mm)
Recommended land pattern
MARKING
AREA
#2 and #4 are connected to the cover.(please connect to ground)
http://www.taecn.com
ABEL ELECTRON
可靠性Reliability(Mechanical and Environmental Endurance)
序号 项目
NO ITEM
1
2
3
4
5
6
7
跌落
Drop
浙江雅晶电子有限公司
条件
CONDITIONS
合格标准
BASIS OF VERDICT
100cm高处自由跌落到3cm厚硬木板上,3次
△FL≤±5ppm
High:100cm;Thickness:3cm;3 times
△RS≤5Ωor±15%
(whichever is larger)
频率 Frequency: 10~2000Hz;加速度幅度 Acceleration: 100
m/s2
振 △FL≤±5ppm
振动
Vibration 动方向 Direction: X, Y, Z
△RS≤5Ωor±15%
(Whichever is Larger)
振动时间 Duration: 每个方向30分钟 30 min/direction.
循环次数 Times: 12次
-55℃~+125℃,1000个循环
最大转换时间:5分钟;停留时间:5分钟
热冲击
△FL≤±10ppm
Thermal shock
-55℃~+125℃,For 1000 cycles
△RS≤5Ωor±20%
Maximum conversion time: 5 minutes;Remain time:5 minutes
(Whichever is Larger)
湿热
温度:85℃;湿度:85%;时间:1000小时
△FL≤±10ppm
Humidity
Temp:85℃;Humidity:85%;Times:1000h
△RS≤5Ωor±20%
(Whichever is Larger)
低温
Cold resistance
温度:-40℃;时间:1000小时
△FL≤±10ppm
Temp:-40℃;Times:1000h
高温:65℃(10小时,含升温),低温:25℃(2小时,含降
温),湿度90%,循环10次,每循环24小时
High-Temperature: 65℃±2℃ (10 hours, including
湿度抗性
Humidity
heating),
resistance
Low-Temperature: 25℃±2℃ (2 hours, including
cooling),
Humidity: 90%, for 10 cycles (24 hours/cycle)
峰值 Peak: 100g's
持续时间 Duration: 6ms
机械冲击 Mechanical 波形 Waveform: 半正弦波 Half-sine
变化速度 Velocity Change: 12.3 ft / sec
shock
振动方向 Direction: +X, -X, +Y, -Y, +Z, -Z
每个方向各3次 3 times/direction
△RS≤5Ωor±20%
(Whichever is Larger)
△FL≤±10ppm
△RS≤5Ωor±20%
(Whichever is Larger)
△FL≤±5ppm
△RS≤5Ωor±15%
(Whichever is Larger)
ABEL ELECTRON
可靠性Reliability(Mechanical and Environmental Endurance)
序号 项目
NO ITEM
条件
CONDITIONS
浙江雅晶电子有限公司
合格标准
BASIS OF VERDICT
△FL≤±5ppm
8
回流焊
Reflow
△RS≤5Ωor±15%
(Whichever is Larger)
No Rusty
9
引脚拉力(SMD型)
Pin pull
按照要求分别提供1.8kg的切向推力(60秒)以及1.8kg的垂直拉
力(60秒)
In
电极不断裂
accordance with the requirements,offering 1.8kg
tangential thrust (60 seconds), and 1.8kg vertical pull No Rupture Observed
(60 seconds)respectively.
10
老化
温度:85℃;时间:1000小时
△FL≤±10ppm
Aging
Temp:85℃;Times:1000h
△RS≤5Ωor±10%
(Whichever is Larger)
可焊性 solderability
温度:235℃±5℃;时间:2秒
Temperature: 235℃±5℃; Time: 2sec
浸锡率≥95%
Solder Coverage≥95%
11
备注 可靠性项目中的4、5、6、10,需在试验结束后24±2小时进行测试。
