WPE1261KP1-R
Integrated in
OVP&OCP products
provider
1-Line Bi-directional TVS Diode
Description
Mechanical Characteristics
The WPE1261KP1-R is a 12V bi-directional TVS diode,

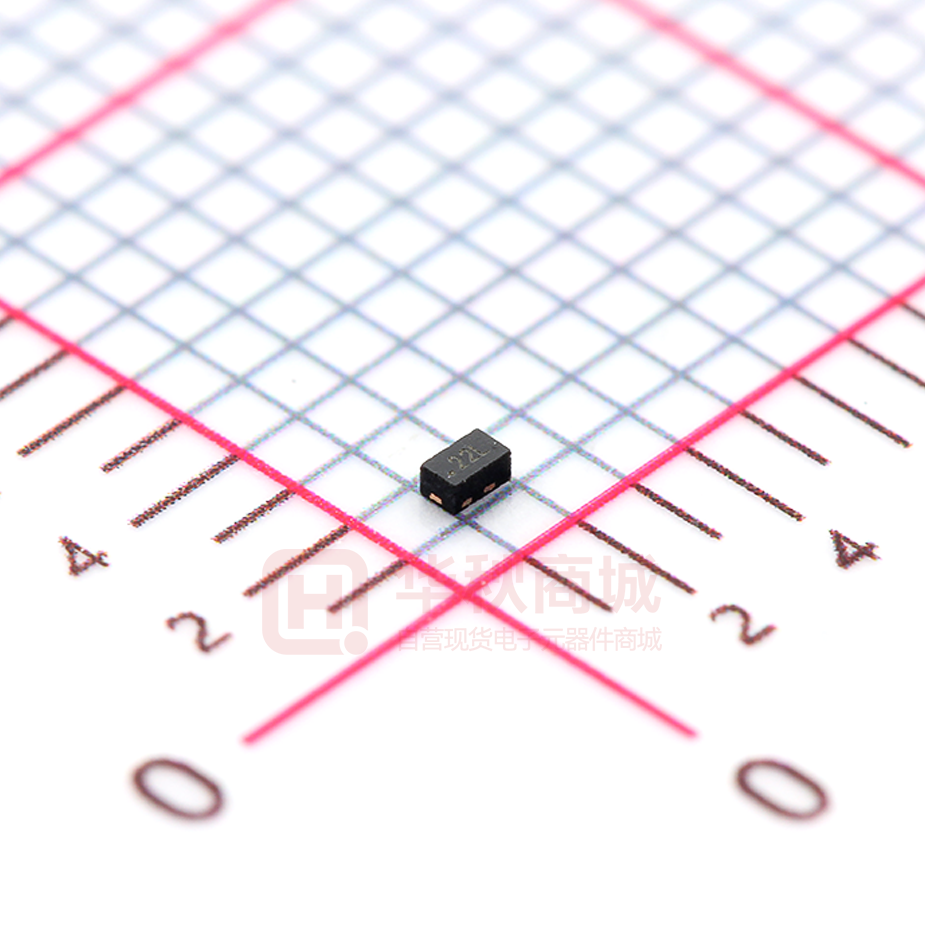

Package: DFN1006-2 (1.0×0.6×0.5mm)
Lead Finish: NiPdAu
this device an ideal solution for protecting voltage
Case Material: “Green” Molding Compound.
sensitive data and power line. The WPE1261KP1-R
Moisture Sensitivity: Level 3 per J-STD-020
complies with the IEC 61000-4-2 (ESD) standard with ±30
kV air and ±30 kV contact discharge. It is assembled into
Terminal Connections: See Diagram Below
Marking Information: See Below
utilizing leading monolithic silicon technology to provide
fast response time and low ESD clamping voltage, making
an ultra-small 1.0x0.6x0.5mm lead-free DFN package. The
small size and high ESD surge protection make
WPE1261KP1-R an ideal choice to protect cell phone,
Applications
digital cameras, audio play- ers and many other portable
applications.
Features
Cellular Handsets and Accessories
Personal Digital Assistants
Ultra small package: 1.0x0.6x0.5mm
Notebooks
Protects one data or power line
Portable Instrumentation
Ultra low leakage: nA level
Working voltage: 12V
Digital Cameras
Low clamping voltage
Peripherals
2-pin leadless package
Audio Players
Complies with following standards:
– IEC 61000-4-2 (ESD) immunity test
Marking Information
Air discharge: ±30kV
Contact discharge: ±30kV
– IEC61000-4-5 (Lightning) 5A (8/20µs)
RoHS Compliant
Dimensions & Symbol(Unit: mm Max)
Details marking code reference specification of approval
Ordering Information
Part Number
WPE1261KP1-R
Rev.A_Aug,2016
-1-
Packaging
10000/Tape & Reel
Reel Size
7 inch
www.wpmtek.com
WPE1261KP1-R
Integrated in
OVP&OCP products
provider
1-Line Bi-directional TVS Diode
Absolute Maximum Ratings (TA=25ºC, RH=45%-75%, unless otherwise noted)
Parameter
Symbol
Value
Unit
Peak Pulse Power (8/20µs)
Ppk
100
W
Peak Pulse Current (8/20µs)
Ipp
5
A
ESD per IEC 61000−4−2 (Air)
±30
VESD
ESD per IEC 61000−4−2 (Contact)
Operating Temperature Range
Storage Temperature Range
kV
±30
TJ
−55 to +125
°C
Tstg
−55 to +150
°C
Electrical Characteristics (TA=25℃)
Parameter
Reverse Working Voltage
Breakdown Voltage
Symbol
Min
Typ
VRWM
VBR
Max
Unit
12
V
13.3
Test Condition
V
IT = 1mA
Reverse Leakage Current
IR
0.2
µA
VRWM = 12V
Clamping Voltage
VC
16
V
IPP = 1A (8 x 20µs pulse)
Clamping Voltage
VC
20
V
IPP = 5A (8 x 20µs pulse)
Junction Capacitance
CJ
10
pF
VR = 0V, f = 1MHz
Rev.A_Aug,2016
7.5
-2-
www.wpmtek.com
WPE1261KP1-R
Integrated in
OVP&OCP products
provider
1-Line Bi-directional TVS Diode
Typical Performance Characteristics (TA=25°C unless otherwise Specified)
Junction Capacitance vs. Reverse Voltage
Peak Pulse Power vs. Pulse Time
Clamping Voltage vs. Peak Pulse Current
Power Derating Curve
ESD Clamping Voltage
8 X 20μs Pulse Waveform
Rev.A_Aug,2016
8 kV Contact per IEC61000−4−2
-3-
www.wpmtek.com
WPE1261KP1-R
Integrated in
OVP&OCP products
provider
1-Line Bi-directional TVS Diode
Soldering Parameters
Pb-Free assembly
(see FIG.2)
Reflow Condition
Pre Heat
-Temperature Min (Ts(min))
+150℃
-Temperature Max(Ts(max))
+200℃
-Time (Min to Max) (ts)
60-180 secs.
Average ramp up rate (Liquid us Temp (TL) to peak)
3℃/sec. Max
Ts(max) to TL - Ramp-up Rate
3℃/sec. Max
Reflow
-Temperature(TL) (Liquid us)
+217℃
-Temperature(tL)
60-150 secs.
Peak Temp (Tp)
+260(+0/-5)℃
Time within 5℃ of actual Peak Temp (tp)
30 secs. Max
Ramp-down Rate
6℃/sec. Max
Time 25℃ to Peak Temp (TP)
8 min. Max
Do not exceed
+260℃
Rev.A_Aug,2016
-4-
www.wpmtek.com
WPE1261KP1-R
Integrated in
OVP&OCP products
provider
1-Line Bi-directional TVS Diode
Package Mechanical Data
DIMENSIONS
A
MILLIMETERS
MIN
NOM
MAX
0.45
0.50
0.55
INCHES
MIN
NOM
0.018
0.020
MAX
0.022
A1
0.00
0.02
0.05
0.000
0.001
0.002
b
0.45
0.50
0.55
0.018
0.020
0.022
c
0.12
0.15
0.18
0.005
0.006
0.007
D
0.95
1.00
1.05
0.037
0.039
0.041
SYM
e
0.65 BSC
0.026 BSC
E
0.55
0.60
0.65
0.022
0.024
0.026
L
0.20
0.25
0.30
0.008
0.010
0.012
h
0.07
0.12
0.17
0.003
0.005
0.007
Suggested Land Pattern
DIMENSIONS
SYM
MILLIMETERS
INCHES
X
0.60
0.024
Y1
0.50
0.020
Y2
0.30
0.012
Y3
0.80
0.032
Z
1.30
0.052
Contact Information
WPMTEK Incorporated Limited
Room 207,2nd Floor,Block 3,Minxing lndustry Park,Minzhi
Longhua New District,Shenzhen
TEL:86755-29308003
FAX:86755-23739900
wpmtek Incorporated Limited (WPM) reserves the right to make changes to the product specification and data in this document without notice. WPM
makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does WPM assume any liability
arising from the application or use of any products or circuits, and specifically dis- claims any and all liability, including without limitation special,
consequential or incidental damages.
Rev.A_Aug,2016
-5-
www.wpmtek.com
