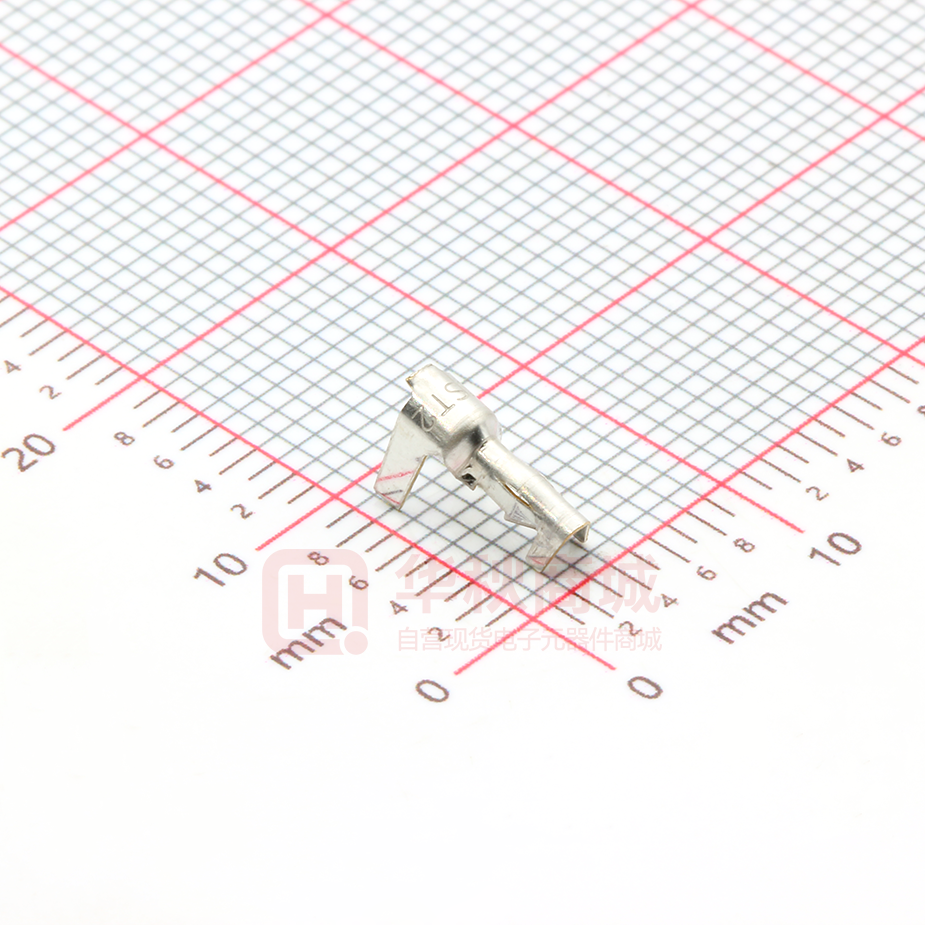

SIN-21T-1.8S

SIN TERMINAL Single-circuit/Board-in Crimp style terminals Specifications ––––––––––––––––––– • Current rating: Depends on applicable wires • Temperature range: -25˚C to +85˚C (including temperature rise in applying electrical current) • Applicable wire: AWG #30 to #10 It is time consuming to directly solder the many wires that are required on densely packed printed circuit boards. The SIN terminal is crimped to a wire, inserted into a hole in a printed circuit board, then soldered. Solderability is enhanced because solder does not enter the wire, thus ensuring a safe and secure connection. This terminal is ideal for permanent connection of jumper wires onto a printed circuit board or for connection to external circuits. * Refer to "General Instruction and Notice when using Terminals and Connectors" at the end of this catalog. * Contact JST for details. * Compliant with RoHS. Standards –––––––––––––––––––––– 0 Recognized E60389 1 Certified LR20812 Assembly layout SIN-001T-1.2B SIN-21T-1.8 SIN-002T-1.0 approx.3 approx.9.5 approx.7 SIN-002T-1.2N SIN-002T-1.0S SIN41T-2.4S SIN-01T-1.8N SIN- 21T-1.8S SIN-61T-2.6S SIN-81T-3.6S SIN-91T-4.7S approx.7 SIN-01T-1.8 SIN- 01T-1.2 approx.6 SIN-001T-1.2 approx.3.5 SIN-002T-1.0S SIN- 21T-1.8S approx.4 SIN-41T-2.4S SIN-61T-2.6S approx.4.7 SIN-81T-3.6S SIN-91T-4.7S 1 SIN TERMINAL Terminal Shape A Shape B Shape C L Shape L L L Model No. Shape D Applicable wire mm2 AWG＃ Insulation O.D. L(mm) (mm) (mm) Shape E Shape F L Shape G L Applicable PCB Thickness(mm) Hole diameter(mm)  1.0 ±0.05 Q'ty/ reel L Material and Finish 28∼26 0.8∼1.3 SIN-002T-1.0 0.08∼0.13 A 6.0 3.3  1.2 ±0.05 9,000 28∼26 0.9∼1.4 SIN-002T-1.2N 0.08∼0.13 +0.1 10.0 3.55 1.8 0 7,000 C 26∼20 1.2∼2.5 1.6 SIN-01T-1.8 0.13∼0.5   10.0 3.5  1.2 ±0.05 11,000 30∼24 0.9∼1.5 0.05∼0.22 SIN-001T-1.2B D +0.1 12.6 3.6  1.8 0 3,000 22∼18 1.7∼3.8 0.30∼0.83 SIN-21T-1.8 7.0 3.5  1.0 ±0.05 13,000 Brass, tin-plated (reflow treatment) E 1.2∼1.6 28∼26 0.8∼1.3 0.08∼0.13 SIN-002T-1.0S +0.1 7.6 4.1  1.8 0 4,500 22∼18 1.5∼3.0 0.30∼0.83 *SIN-21T-1.8S 8.3 4.3  2.4 ±0.05 3,000 18,16 2.8∼3.4 0.83∼1.31 *SIN-41T-2.4S 1.6 F +0.1 8.3 4.3  2.5 0 3,000 14 3.4∼3.8 2.0 *SIN-61T-2.6S 9.2 4.5  3.55 ±0.05 2,000 12 4.0∼4.2 3.3 *SIN-81T-3.6S 9.4 4.7  4.7 ±0.05 2,000 G 1.6 12,10 4.0∼4.9 3.3∼5.5 *SIN-91T-4.7S 9.1 3.05 7,500 30∼26 0.8∼1.4 0.05∼0.15 SIN-001T-1.2 （1.20） B 1.2 9.1 3.05 5,000 Brass, copper-undercoated, tin-plated 24∼20 1.5∼2.3 0.2 ∼0.5 SIN-01T-1.2 +0.1 10.0 3.55  1.8 0 7,000 C 26∼20 1.2∼2.5 1.6 0.13∼0.5 SIN-01T-1.8N RoHS compliance Note: 1. The SIN-01T-1.8N terminal requires less force for insertion into a PC board. 2. * marked terminals are for the use of larger wires (Wire conductors are to be soldered). Contact JST for the details of regarding specifications. 3. Hole dimensions may differ according to the type of PC board and piercing method. 5.8 Contact Crimping machine Crimp applicator SIN-002T-1.0 SIN-001T-1.2 SIN-01T-1.2 AP-K2N SIN-01T-1.8(N) SIN-001T-1.2B SIN-002T-1.2N Note: *Strip-crimp applicator 2 Applicator Dies Crimp applicator with dies MKS-L MK/SIN-002-10 APLMK SIN002-10 *MKS-SC SC/SIN-002-10 APLSC SIN002-10 MKS-L MK/SIN-001-12 APLMK SIN001-12 *MKS-SC SC/SIN-001-12 APLSC SIN001-12 MKS-L MK/SIN-01-12 APLMK SIN01-12 *MKS-SC SC/SIN-01-12 APLSC SIN01-12 MKS-L MK/SIN-01-18 APLMK SIN01-18 *MKS-SC SC/SIN-01-18 APLSC SIN01-18 MKS-L *MKS-SC MKS-L *MKS-SC MK/SIN-001-12B APLMK SIN001-12B SC/SIN-001-12B APLSC SIN001-12B MK/SIN-002-12N APLMK SIN002-12N SC/SIN-002-12N APLSC SIN002-12N 3.1 Contact Crimping machine Crimp applicator MKS-L SIN-21T-1.8 −− MKS-L-IN SIN-002T-1.0S SIN-21T-1.8S SIN-41T-2.4S SIN-61T-2.6S SIN-81T-3.6S SIN-91T-4.7S 9,000 MK/SIN-21-18 −− Crimp applicator with dies APLMK SIN21-18 −− MK/SIN-002-10S APLMK SIN002-10S −− −− MKS-L-SIN MK/SIN-21-18S APLMK SIN21-18S *MKS-SC AP-K2N Applicator Dies −− SC/SIN-21-18S APLSC SIN21-18S MKS-L-SIN MK/SIN-41-24S APLMK SIN41-24S −− −− MKS-L-SIN MK/SIN-61-26S −− −− MKS-L-SIN3 MK/SIN-81-36S −− MKS-L-SIN3 −− −− MK/SIN-91-47S −− −− APLMK SIN61-26S −− APLMK SIN81-36S −− APLMK SIN91-47S −−
