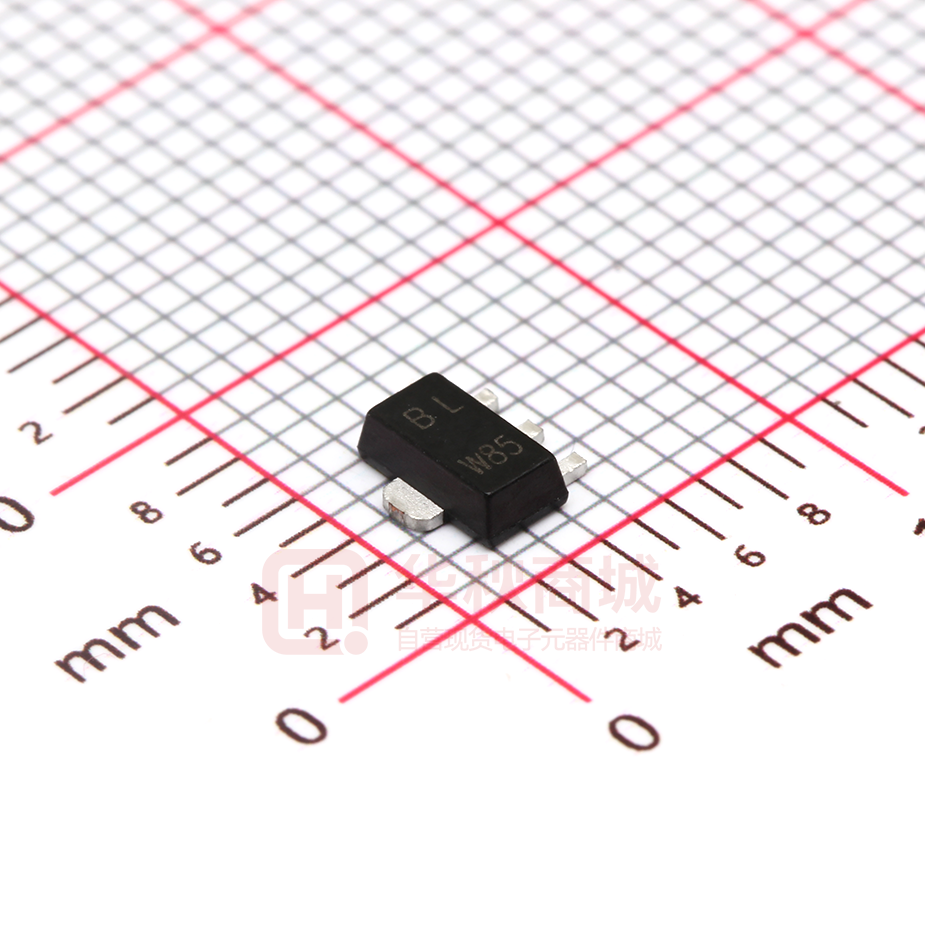

BCX56-16

BCX51/BCX2/BCX53 NPN Silicon AF Transistors FEATURES z For AF driver and output stages z High collector current z Low collector-emitter saturation voltage z Complementary types: BCX51…BCX53(PNP) Pb Lead-free SOT-89 ORDERING INFORMATION Type No. BCX54 BCX54-10 BCX54-16 BCX55 BCX55-10 BCX55-16 BCX56 BCX56-10 BCX56-16 Marking Package Code BA BC BD BE BG BM BH BK BL SOT-89 SOT-89 SOT-89 SOT-89 SOT-89 SOT-89 SOT-89 SOT-89 SOT-89 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Collector-Base Voltage VCBO Collector-Emitter Voltage VCEO Value Unit BCX54 BCX55 BCX56 45 60 100 V BCX54 BCX55 BCX56 45 60 80 V VEBO Emitter-Base Voltage 5 V IC DC Collector Current 1 A ICM Peak Collector Current 1.5 A IB Base current 100 mA IBM Peak base current 200 mA Ptot Total power dissipation,TS=130℃ 500 mW Tj,Tstg Junction and Storage Temperature -65 to +150 ℃ www.slkormicro.com 1 BCX51/BCX2/BCX53 ELECTRICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified Parameter Symbol Test conditions IC=100μA IB=0 Collector-base breakdown voltage V(BR)CBO IC=10mA IB=0 Collector-emitter breakdown voltage V(BR)CEO Emitter-base breakdown voltage V(BR)EBO Collector cut-off current DC current gain MIN MAX UNIT BCX54 BCX55 BCX56 45 60 100 V BCX54 BCX55 BCX56 45 60 80 V 5 V IE=10μA IC=0 VCB=30V IE=0 100 nA VCB=30V IE=0,TA=150℃ 20 μA ICBO hFE VCE=2V IC=5mA 25 VCE=2V IC=150mA BCX54…56 40 250 63 100 160 250 VCE=2V IC=150mA VCE=2V IC=500mA -10 -16 25 Collector-emitter saturation voltage VCE(sat) IC=500mA IB=50mA 0.5 V Base-emitter voltage VBE IC=500mA ,VCE=2V 1 V Transition frequency fT VCE=10V, IC=50mA, f=20MHz www.slkormicro.com 2 100 MHz BCX51/BCX2/BCX53 TYPICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified www.slkormicro.com 3 BCX51/BCX2/BCX53 www.slkormicro.com 4 BCX51/BCX2/BCX53 PACKAGE OUTLINE Plastic surface mounted package SOT-89 SOT-89 A C H B K Min Max A 4.30 4.70 B 2.25 2.65 C 1.50 Typical D 0.40 Typical E L E Dim F D H J J F 0.90 1.50 0.90 2.20 45° 1.00 1.00 1.50 PACKAGE 1.50 Unit:mm INFORMATION Device Package Shipping BCX54/BCX55/BCX56 SOT-89 1000/Tape&Reel www.slkormicro.com 1.60 0.48 Typical 1.60 1.80 0.40 Typical L 0.90 1.10 K 3.95 4.35 All Dimensions in mm SOLDERING FOOTPRINT 45° 1.40 5
