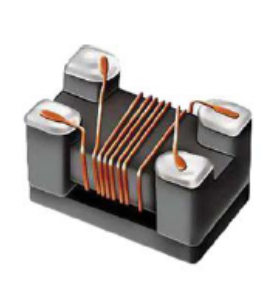

SMD Common Mode Choke
-YLM1210 Series
■ Features
● This filter is characterized by small size, highly effective in noise suppression.
● High common mode impedance at noise band and low differential mode
impedance at signal band.Due to the low differential mode impedance with
high coupling factor,there is almost no distortion on high speed transmission
of high resolution video signals.
■ Applications
● YLM Series is suited for use on the USB2.0 line and IEEE1394 line of Notebook
PC,LVDS lines of PC,LCD Monitor, PCI express,small digital AV equipment
such as digital Camera and Free disk,MP3 player and Serial-ATA.
■ Product Identification
⑴ :Type
⑵ :Dimensions
⑶ :Identification Code
⑷ :Impedance
⑸ :Taping
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Mob:(86)13682526134
-1-
SMD Common Mode Choke
-YLM1210 Series
■ Shapes and Dimensions (Unit:mm)
TYPE
A
B
C
D
YLM1210
1.2±0.2
1.0±0.2
0.8±0.1
0.35±0.1
F
E
0.35±0.1 0.35±0.1
G
H
I
J
0.30
1.00
0.50
1.55
■ YLM1210 Series
Common mode
Part Number
DC Resistance
Rated Current
Rated Volt.
IR(MΩ)
(Ω) Max.
(mA) max.
(Vdc)max.
min.
Impedance
(Ω) @100MHz
YLM1210□-600T
60±25%
0.30
250
50
10
YLM1210□-900T
90±25%
0.30
250
50
10
YLM1210□-121T
120±25%
0.35
250
50
10
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Mob:(86)13682526134
-2-
SMD Common Mode Choke
-YLM1210 Series
■ Recommended soldering temp.Graph
■ Mechanical reliability
■ Endurance Reliability
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Mob:(86)13682526134
-3-
SMD Common Mode Choke
-YLM1210 Series
■ Taping Dimensions(Unit:mm)
TYPE
W
A
B
D
P
K
T
MPQ
YLM1210
8.0±0.2
1.10±0.1
2.35±0.1
3.5±0.05
4.0±0.1
0.95±0.1
0.15±0.05
3000
■ Reel Dimensions(Unit:mm)
TYPE
W
W1
A
B
C
D
YLM1210
178±2.0
9.00±0.50
4.3±0.20
5.0±0.10
3.0±0.10
60±2.0
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Mob:(86)13682526134
-4-
SMD Common Mode Choke
-YLM1210 Series
■ Direction of rolling
■ Cover tape peel off condition
Cover tape peel force shall be 0.1N to 1.3N.
Reference peel speed 300±10mm/min.
深圳市益嘉源电子有限公司
http://www.yjycoin.com
Tel:0755-27803896
Mob:(86)13682526134
-5-
