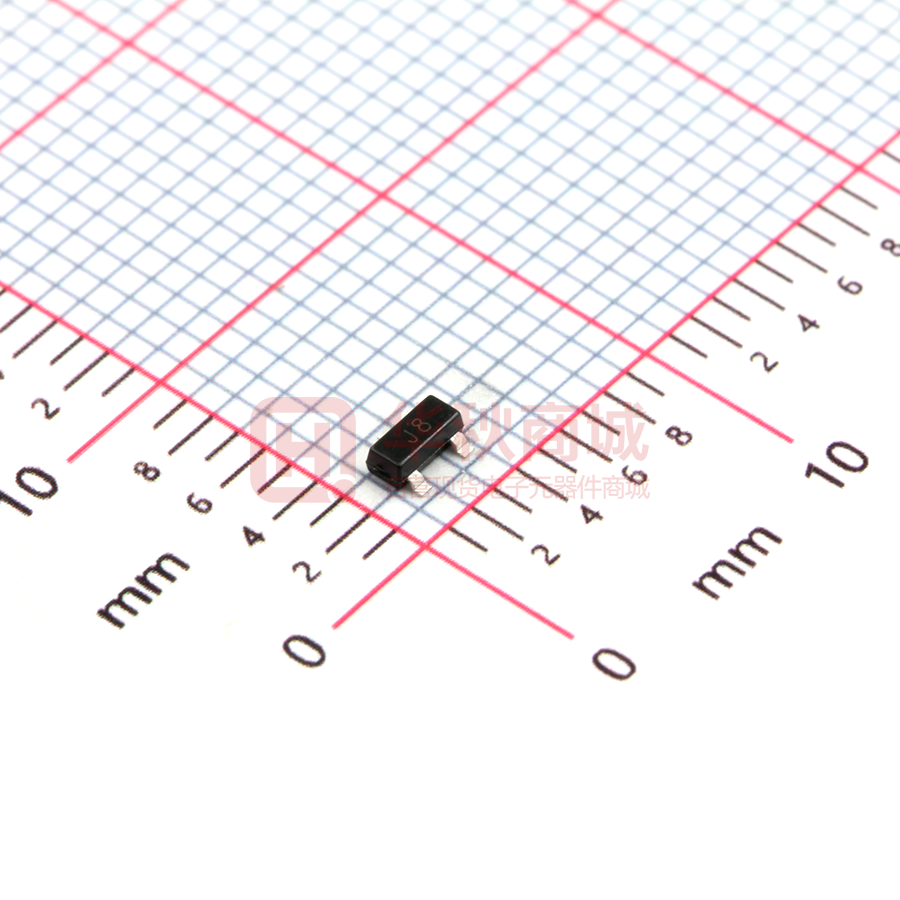

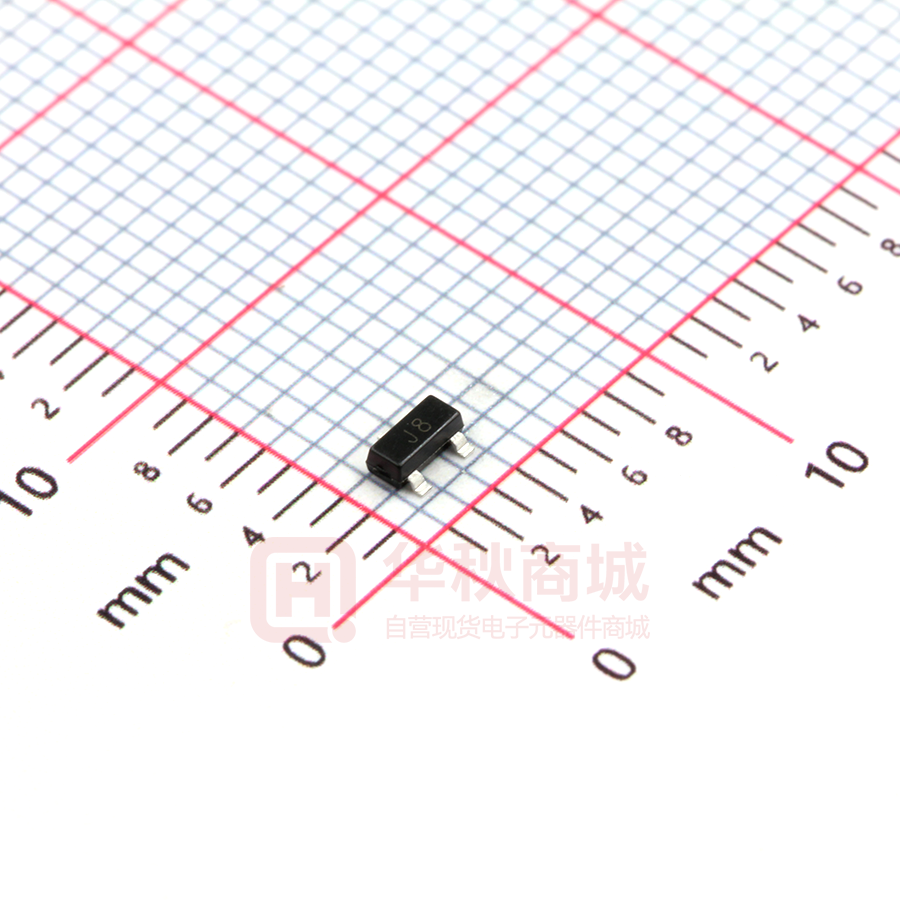

S9018

TRANSISTOR (NPN) FEATURES AM/FM Amplifier, Local Oscillator of FM/VHF Tuner SOT-23 High Current Gain Bandwidth Product fT=1.1 GHz (Typ) 1．BASE 2．EMITTER 3．COLLECTOR MARKING：J8 MAXIMUM RATINGS (TA=25℃ unless otherwise noted) Symbol Parameter Value Units VCBO Collector-Base Voltage 30 V VCEO Collector-Emitter Voltage 15 V VEBO Emitter-Base Voltage 5 V IC Collector Current -Continuous 50 mA PC Collector Power Dissipation 200 mW Tj Junction Temperature 150 ℃ Tstg Storage Temperature -55-150 ℃ ELECTRICAL CHARACTERISTICS (Tamb=25℃ unless otherwise specified) Parameter Symbol Test conditions MIN TYP MAX UNIT Collector-base breakdown voltage V(BR)CBO IC= 100µA, IE=0 30 V Collector-emitter breakdown voltage V(BR)CEO IC= 1mA, IB=0 15 V Emitter-base breakdown voltage V(BR)EBO IE=100µA, IC=0 5 V Collector cut-off current ICBO VCB=12V, IE=0 0.05 µA Collector cut-off current ICEO VCE=12V, IB=0 0.1 µA Emitter cut-off current IEBO VEB= 3V, IC=0 0.1 µA hFE(1) VCE=5V, IC= 1mA Collector-emitter saturation voltage VCE(sat) IC=10mA, IB= 1mA 0.5 V Base-emitter saturation voltage VBE(sat) IC=10mA, IB= 1mA 1.4 V DC current gain 105 195 VCE=5V, IC= 5mA Transition frequency fT f=400MHz 600 1 of 3 Copyright © All right reserved： Heyuan China Base Electronics Technology Co., Ltd. MHz Typical Characteristics S9018 2 of 3 Copyright © All right reserved： Heyuan China Base Electronics Technology Co., Ltd. PACKAGE OUTLINE Plastic surface mounted package; 3 leads SOT-23 3 of 3 Copyright © All right reserved: Heyuan China Base Electronics Technology Co., Ltd.
