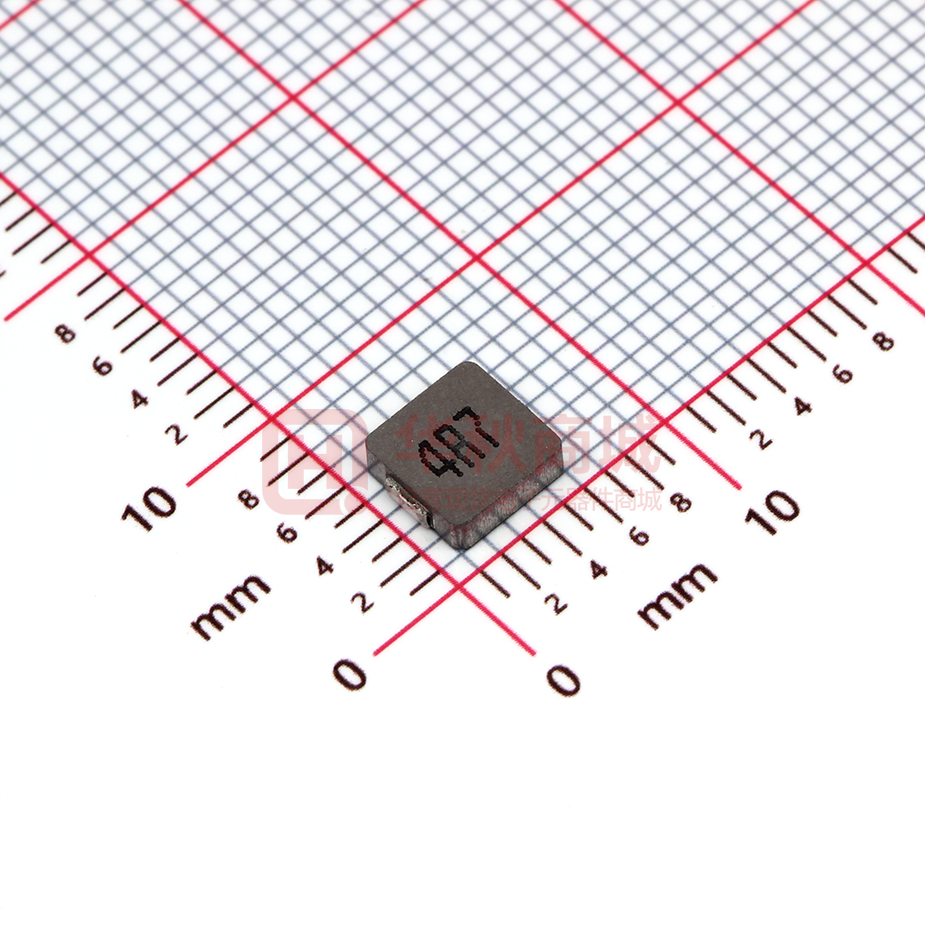

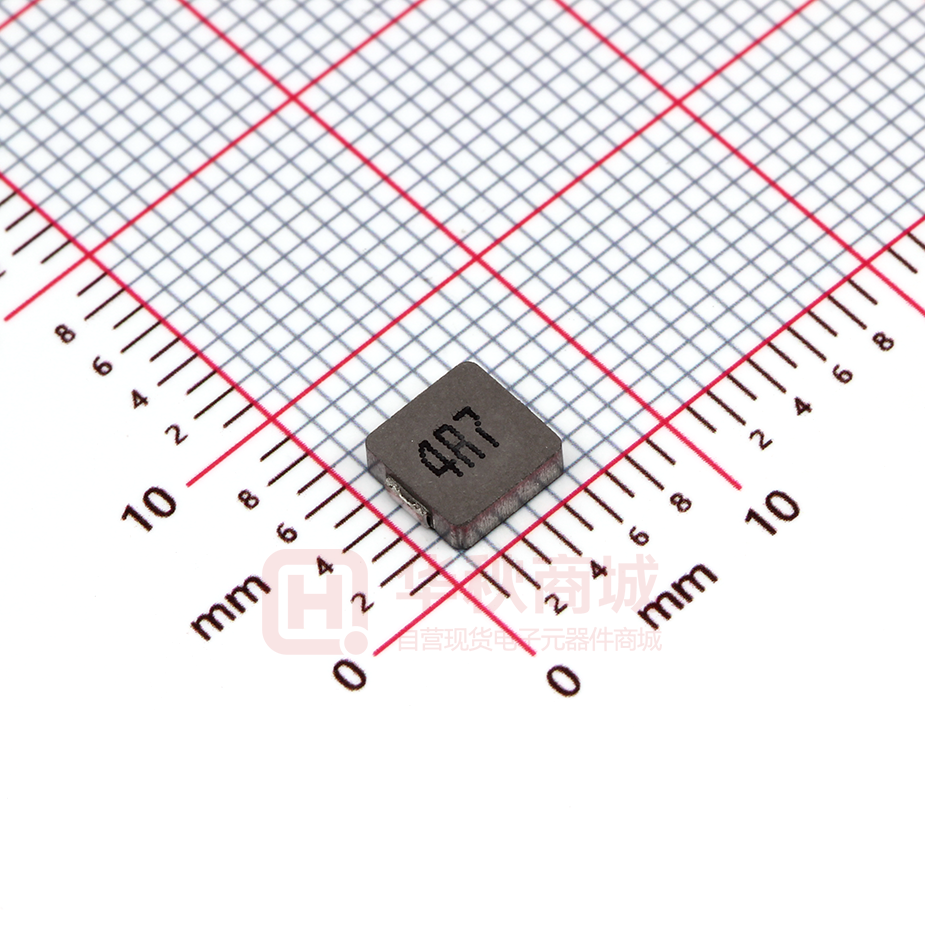

KSH5020-4R7M

Wire Wound SMD Power Inductor-KSH Series Features      Magnetically Shielded construction High performance (Isat) realized by metal dust core Ultra low buzz noise, due to composite construction 100% lead (Pb) free meet RoHS standard Operating temperature: -40℃ to +125℃ Application    DC/DC converters for high current power supplies Battery powered devices Portable power like PAD/Notebook/Desktop/Sever application Product Identification KSH 4012 1R5 M ② ④ 1 ① ② ③ ④ ③ Series name Size: 4.2×4.4×1.0mm Inductance: 1.5μH Tolerance: ±20% SHAPE AND DIMENSIONS Unit: Series A B KSH4012 4.2±0.25 4.4±0.35 KSH4020 4.2±0.25 KSH5020 D E H Typ. F Typ. G Typ. 1.0±0.2 0.8±0.3 2.0±0.3 5.5 2.2 2.5 4.4±0.35 1.8±0.2 0.8±0.3 2.0±0.3 5.5 2.2 2.5 5.2±0.2 5.4±0.35 1.6±0.2 1.20±0.2 2.2±0.3 6.0 2.2 2.5 KSH5030 5.2±0.2 5.4±0.35 2.8±0.2 1.20±0.2 2.2±0.3 6.0 2.2 2.5 KSH7018 6.6±0.2 7.0±0.3 1.6±0.2 1.6±0.3 3.0±0.3 8.4 3.7 3.5 KSH7020 6.6±0.2 7.0±0.3 1.8±0.2 1.6±0.3 3.0±0.3 8.4 3.7 3.5 KSH7024 6.6±0.2 7.0±0.3 2.2±0.2 1.6±0.3 3.0±0.3 8.4 3.7 3.5 KSH7030 6.6±0.2 7.0±0.3 2.8±0.2 1.6±0.3 3.0±0.3 8.4 3.7 3.5 KSH7040 6.6±0.2 7.0±0.3 3.8±0.2 1.6±0.3 3.0±0.3 8.4 3.7 3.5 KSH7050 6.6±0.2 7.0±0.3 4.8±0.2 1.6±0.3 3.0±0.3 8.4 3.7 3.5 Konen Elektronik (shenzhen) Co.,Ltd www.konen-elek.com C mm 1 Tel: +86 755 2733 7940 sales@konen-elek.com Wire Wound SMD Power Inductor-KSH Series KSH8040 8.8±0.4 8.2±0.3 3.8±0.2 1.4±0.3 5.0±0.3 9.5 4.0 5.5 KSH1030 10.0±0.3 11.5 Max 2.8±0.2 2.0±0.5 3.0±0.3 13.6 5.4 4.1 KSH1040 10.0±0.3 11.0±0.5 3.8±0.2 2.0±0.5 3.0±0.5 13.6 5.4 4.1 KSH1050 10.0±0.3 11.5 Max 4.8±0.2 2.0±0.5 3.0±0.5 13.6 5.4 4.1 KSH1340 12.8±0.5 13.45±0.35 4.0 Max 2.0±0.5 See Remarks 14.5 8.0 5.5 KSH1350 12.6±0.3 13.45±0.35 4.8±0.2 2.0±0.5 See Remarks 14.5 8.0 5.5 KSH1360 12.6±0.3 13.45±0.35 5.8±0.2 2.0±0.5 See Remarks 14.5 8.0 5.5 KSH1365 12.6±0.3 13.45±0.35 6.5 Max 2.0±0.5 5.0±0.3 14.5 8.0 5.5 KSH1707 17.15Max 17.15±0.35 6.7±0.3 2.5±0.5 12.0±0.3 18.2 11.2 12.8 Note: Series KSH1340 KSH1350 KSH1360 E(mm) Dimensions 3.85±0.5 R22/R47 5.0±0.3 R68/R82/1R0/1R5/2R2/3R3/4R7/6R8/100/150/220 3.85±0.5 R22/R36/R50/R68/R82/1R0/1R5/2R2 5.0±0.3 3R3/4R7/6R8/100/150/220/330/470 3.85±0.5 1R5/2R2 5.0±0.3 3R3/4R7/5R6/6R8/8R2/100/120/150/180/220/270/330/470/680/101/121/151 SPECIFICATIONS KSH4012M Series Part Number Inductance DC Resistance @100KHZ,1V Max. Saturation Current*3 Max. Typ. Heat Rating Current*4 Max. Typ. Units μH mΩ A A Symbol L DCR Isat Irms KSH4012-R15M 0.15±20% 9 12.00 15.00 6.80 7.50 KSH4012-R22M 0.22±20% 11 8.80 11.00 6.50 7.00 KSH4012-R33M 0.33±20% 19 6.70 8.40 5.70 6.50 KSH4012-R47M 0.47±20% 21 5.40 6.80 5.20 6.00 KSH4012-R68M 0.68±20% 36 4.80 6.00 4.20 4.70 KSH4012-1R0M 1.0±20% 47 4.40 5.50 3.80 4.50 KSH4012-1R5M 1.5±20% 75 3.20 4.00 2.70 3.25 KSH4012-2R2M 2.2±20% 83.5 2.40 3.00 2.20 2.75 KSH4012-3R3M 3.3±20% 160 2.38 2.7 1.77 2.00 KSH4012-4R7M 4.7±20% 195 1.80 2.20 1.45 1.80 Konen Elektronik (shenzhen) Co.,Ltd www.konen-elek.com 2 Tel: +86 755 2733 7940 sales@konen-elek.com Wire Wound SMD Power Inductor-KSH Series SPECIFICATIONS KSH4020M Series Inductance DC Resistance @100KHZ,1V Max. Units μH mΩ A A Symbol L DCR Isat Irms KSH4020-R10M 0.10±20% 4 17.60 22.00 11.20 13.00 KSH4020-R22M 0.22±20% 6.6 10.00 12.50 8.20 9.50 KSH4020-R33M 0.33±20% 11 9.60 12.00 8.60 10.00 KSH4020-R47M 0.47±20% 14 7.60 9.50 6.65 7.50 KSH4020-R56M 0.56±20% 16 7.20 9.00 6.10 7.00 KSH4020-R68M 0.68±20% 18 6.40 8.00 6.15 7.00 KSH4020-1R0M 1.0±20% 27 5.60 7.00 5.40 6.00 KSH4020-1R2M 1.2±20% 27 5.20 6.50 5.40 6.00 KSH4020-1R5M 1.5±20% 46 4.40 5.50 4.30 5.00 KSH4020-2R2M 2.2±20% 58 4.00 5.00 3.80 4.50 KSH4020-3R3M 3.3±20% 87 2.80 3.50 2.80 3.30 KSH4020-4R7M 4.7±20% 105 2.40 3.00 2.20 2.80 KSH4020-6R8M 6.8±20% 175 2.00 2.50 1.90 2.40 KSH4020-100M 10±20% 282 1.60 2.00 1.30 1.60 KSH4020-220M 22±20% 363 1.12 1.40 0.90 1.20 Part Number Saturation Current *3 Max. Heat Rating Current*4 Typ. Max. Typ. KSH5020M Series Part Number Inductance DC Resistance @100KHZ,1V Max. Saturation Current *3 Max. Typ. Heat Rating Current*4 Max. Typ. Units μH mΩ A A Symbol L DCR Isat Irms KSH5020-R47M 0.47±20% 9 9.60 12.00 9.50 10.50 KSH5020-R56M 0.56±20% 10 8.80 11.00 8.20 9.50 KSH5020-1R0M 1.0±20% 17 7.20 9.00 7.20 8.00 KSH5020-1R5M 1.5±20% 26 6.40 8.00 6.60 7.50 KSH5020-2R2M 2.2±20% 35 4.80 6.00 4.20 5.00 KSH5020-3R3M 3.3±20% 58 3.84 4.80 3.80 4.50 KSH5020-4R7M 4.7±20% 85 3.20 4.00 3.00 3.50 KSH5020-6R8M 6.8±20% 120 2.72 3.40 2.40 2.80 KSH5020-100M 10±20% 155 2.00 2.50 2.20 2.50 Konen Elektronik (shenzhen) Co.,Ltd www.konen-elek.com 3 Tel: +86 755 2733 7940 sales@konen-elek.com Wire Wound SMD Power Inductor-KSH Series SPECIFICATIONS KSH5030M Series Part Number Inductance DC Resistance Saturation Current *3 @100KHZ,1V Max. Units μH mΩ A A Symbol L DCR Isat Irms KSH5030-R10M 0.10±20% 3.0 24.00 30.00 23.00 25.00 KSH5030-R20M 0.20±20% 3.9 16.00 20.00 13.00 14.00 KSH5030-R33M 0.33±20% 5.5 14.40 18.00 13.10 14.00 KSH5030-R47M 0.47±20% 8.5 12.00 15.00 10.00 11.00 KSH5030-R68M 0.68±20% 12 9.20 11.50 8.20 9.00 KSH5030-R82M 0.82±20% 10.4 9.20 10.50 9.0 10.5 KSH5030-1R0M 1.0±20% 14 8.00 10.00 7.80 8.50 KSH5030-1R2M 1.2±20% 16 7.60 9.50 7.85 8.50 KSH5030-1R5M 1.5±20% 25 7.20 9.00 7.60 8.20 KSH5030-2R2M 2.2±20% 29 5.60 7.00 6.40 7.00 KSH5030-3R3M 3.3±20% 38 4.80 6.00 5.50 5.50 KSH5030-4R7M 4.7±20% 60 3.68 4.60 4.00 4.50 KSH5030-6R8M 6.8±20% 90 2.88 3.60 2.90 3.50 KSH5030-100M 10±20% 125 2.80 3.50 2.80 3.20 KSH5030-150M 15±20% 170 2.00 2.20 1.60 1.80 Max. Heat Rating Current*4 Typ. Max. Typ. KSH7018M Series Heat Rating Current*4 Part Number Inductance DC Resistance @100KHZ,1V Max. Saturation Current *3 Max. Typ. Max. Typ. Units μH mΩ A A Symbol L DCR Isat Irms KSH7018-R10M 0.10±20% 2.3 30.40 38.00 23.00 25.00 KSH7018-R22M 0.22±20% 3.5 19.20 24.00 20.00 22.00 KSH7018-R47M 0.47±20% 8.4 14.40 18.00 10.00 11.50 KSH7018-R68M 0.68±20% 12 13.20 16.50 8.40 9.50 KSH7018-1R0M 1.0±20% 16 9.60 12.00 7.60 8.50 KSH7018-1R5M 1.5±20% 26 7.36 9.20 7.10 8.00 KSH7018-2R2M 2.2±20% 35 6.40 8.00 6.20 7.00 KSH7018-3R3M 3.3±20% 50 4.80 6.00 3.80 4.50 KSH7018-4R7M 4.7±20% 62 4.00 5.00 3.50 4.00 Konen Elektronik (shenzhen) Co.,Ltd www.konen-elek.com 4 Tel: +86 755 2733 7940 sales@konen-elek.com Wire Wound SMD Power Inductor-KSH Series KSH7018-6R8M 6.8±20% 110 3.60 4.50 2.40 3.00 KSH7018-8R2M 8.2±20% 135 2.90 3.60 2.10 2.40 KSH7018-100M 10±20% 155 3.20 4.00 1.95 2.30 KSH7018-220M 22±20% 350 1.84 2.30 1.40 1.80 KSH7020M Series Heat Rating Current*4 Part Number Inductance DC Resistance Saturation Current *3 @100KHZ,1V Max. Units μH mΩ A A Symbol L DCR Isat Irms KSH7020-1R5M 1.5±20% 18 10 12 7.0 8.0 KSH7020-4R7M 4.7±20% 60 - 5.5 - 4.3 KSH7020-100M 10±20% 145 - 4.0 - 2.8 Max. Typ. Max. Typ. KSH7024M Series Part Number Inductance DC Resistance @100KHZ,1V Max. Saturation Current *3 Max. Typ. Heat Rating Current*4 Max. Typ. Units μH mΩ A A Symbol L DCR Isat Irms KSH7024-R22M 0.22±20% 3 24.00 30.00 19.00 21.00 KSH7024-R33M 0.33±20% 4.1 19.60 24.50 16.00 18.00 KSH7024-R47M 0.47±20% 5.1 16.00 20.00 13.50 15.00 KSH7024-R56M 0.56±20% 6.5 13.60 17.00 11.50 13.00 KSH7024-R68M 0.68±20% 7 12.80 16.00 10.50 12.00 KSH7024-1R0M 1.0±20% 13.5 12.00 15.00 8.00 9.00 KSH7024-1R5M 1.5±20% 20 10.80 13.50 7.00 8.20 KSH7024-2R2M 2.2±20% 28 8.00 10.00 6.20 7.00 KSH7024-3R3M 3.3±20% 39 6.40 8.00 4.80 5.50 KSH7024-4R7M 4.7±20% 50 5.20 6.50 4.30 5.00 KSH7024-6R8M 6.8±20% 70 4.80 6.00 3.20 4.00 KSH7024-100M 10±20% 101 3.20 4.00 2.40 3.10 KSH7024-150M 15±20% 160 2.64 3.30 2.00 2.50 KSH7024-220M 22±20% 230 2.00 2.50 1.60 2.00 Konen Elektronik (shenzhen) Co.,Ltd www.konen-elek.com 5 Tel: +86 755 2733 7940 sales@konen-elek.com Wire Wound SMD Power Inductor-KSH Series SPECIFICATIONS KSH7030M Series Part Number Inductance DC Resistance @100KHZ,1V Max. Units μH mΩ A A Symbol L DCR Isat Irms KSH7030-R22M 0.22±20% 3 27.20 34.00 21.00 24.00 KSH7030-R24M 0.24±20% 3.1 22.40 28.00 18.40 23.00 0.24±20% 1.19±7% 30.00 35.00 26.00 30.00 KSH7030-R33M 0.33±20% 3.5 20.00 25.00 19.00 21.00 KSH7030-R47M 0.47±20% 4.1 16.00 20.00 16.50 18.00 KSH7030-R56M 0.56±20% 4.5 14.40 18.00 15.00 16.50 KSH7030-R68M 0.68±20% 5.3 13.60 17.00 14.50 16.00 KSH7030-R82M 0.82±20% 6.0 12.80 16.00 12.50 14.00 KSH7030-1R0M 1.0±20% 7.4 12.00 15.00 10.50 12.00 KSH7030-1R5M 1.5±20% 12.1 9.60 12.00 10.50 12.00 1.5±20% 11 14.00 - 10.5 KSH7030-1R8M 1.8±20% 15 14.0 15.5 8.7 9.5 KSH7030-2R2M 2.2±20% 15 8.00 10.00 8.50 9.50 KSH7030-3R3M 3.3±20% 22 7.60 9.50 7.50 8.50 KSH7030-4R7M 4.7±20% 33 7.20 9.00 5.00 6.00 KSH7030-5R6M 5.6±20% 42 5.20 6.50 4.80 5.50 KSH7030-6R8M 6.8±20% 48 4.80 6.00 4.20 5.00 KSH7030-8R2M 8.2±20% 60 4.40 5.50 4.20 5.00 KSH7030-100M 10±20% 68 4.40 5.50 3.80 4.50 KSH7030-150M 15±20% 113 3.20 4.00 2.30 3.00 KSH7030-220M 22±20% 170 2.40 3.00 2.00 2.50 KSH7030-330M 33±20% 270 2.00 2.50 1.60 2.00 33±20% 210 2.00 2.50 1.70 2.2 47±20% 385 1.60 2.00 1.20 1.50 KSH7030-R24MY02 KSH7030-1R5MB01 KSH7030-330MB01 KSH7030-470M Konen Elektronik (shenzhen) Co.,Ltd www.konen-elek.com Saturation Current *3 Max. Typ. - 6 Heat Rating Current*4 Max. Typ. Tel: +86 755 2733 7940 sales@konen-elek.com Wire Wound SMD Power Inductor-KSH Series SPECIFICATIONS KSH7040M Series Part Number Inductance DC Resistance Saturation Current *3 Max. Typ. Heat Rating Current*4 @100KHZ,1V Max. Max. Typ. Units μH mΩ A A Symbol L DCR Isat Irms KSH7040-R68M 0.68±20% 4.8 / 19.0 / 17.0 KSH7040-1R0M 1.0±20% 6.6 / 16.0 / 13.5 KSH7040-1R5M 1.5±20% 10 / 12.5 / 12.4 KSH7040-2R2M 2.2±20% 14 8.80 11.0 7.80 10.0 KSH7040-3R3M 3.3±20% 20 / 9.5 / 8.5 KSH7040-4R7M 4.7±20% 30 7.20 9.0 6.00 6.50 KSH7040-6R8M 6.8±20% 45 / 6.5 / 5.5 KSH7040-100M 10±20% 65 / 6.0 / 4.8 Inductance DC Resistance @100KHZ,1V Max. Units μH mΩ A A Symbol L DCR Isat Irms KSH7050-R47M 0.47±20% 3.9 16.80 21.0 17.0 20.00 KSH7050-R68M 0.68±20% 4.5 14.40 18.0 14.5 16.50 KSH7050-1R0M 1.0±20% 6.6 12.80 16.0 10.0 12.00 KSH7050-1R5M 1.5±20% 10 10.40 13.0 8.2 9.50 KSH7050-2R2M 2.2±20% 12.5 8.80 11.0 8.0 9.00 KSH7050-3R3M 3.3±20% 22 8.00 10.0 7.6 8.50 KSH7050-4R7M 4.7±20% 29 6.40 8.0 5.0 6.00 KSH7050-6R8M 6.8±20% 41 5.04 6.3 4.0 5.80 KSH7050-8R2M 8.2±20% 48 4.40 5.5 4.8 5.50 KSH7050-100M 10±20% 60 4.24 5.30 3.8 4.50 KSH7050-150M 15±20% 90 3.20 4.0 2.60 3.10 KSH7050-220M 22±20% 140 2.80 3.50 2.00 2.60 KSH7050-330M 33±20% 190 2.40 3.0 1.80 2.30 KSH7050-470M 47±20% 230 2.08 2.6 1.50 2.00 KSH7050M Series Part Number Konen Elektronik (shenzhen) Co.,Ltd www.konen-elek.com Saturation Current *3 Max. 7 Typ. Heat Rating Current*4 Max. Typ. Tel: +86 755 2733 7940 sales@konen-elek.com Wire Wound SMD Power Inductor-KSH Series SPECIFICATIONS KSH8040M Series Part Number Inductance DC Resistance Saturation Current *3 @100KHZ,1V Max. Units μH mΩ A A Symbol L DCR Isat Irms KSH8040-R22M 0.22±20% 1.8 55.0 60 30.0 36.0 KSH8040-R33M 0.33±20% 2. 40.0 45 25.0 30.0 KSH8040-R47M 0.47±20% 2.8 36.0 42 25.0 28.0 KSH8040-R56M 0.56±20% 3.2 23.0 26 22.0 24.0 KSH8040-R68M 0.68±20% 3.8 22.0 24 21.0 23.0 KSH8040-R82M 0.82±20% 4.4 19.0 21 19.0 21.0 KSH8040-1R0M 1.0±20% 4.62 17.0 19 17.0 19.0 KSH8040-1R5M 1.5±20% 7.6 15.0 17 15.0 17.0 KSH8040-1R8M 1.8±20% 11.0 13.5 15 12.5 15.0 KSH8040-2R2M 2.2±20% 11.4 12.0 14 12.0 14.0 KSH8040-3R3M 3.3±20% 15.0 11.0 12.5 10.0 12.0 KSH8040-4R7M 4.7±20% 26.5 10.5 11.5 8.5 9.5 KSH8040-5R6M 5.6±20% 30.0 10.0 11.0 8.0 9.0 KSH8040-6R8M 6.8±20% 36.8 8.0 9.0 7.0 8.0 KSH8040-8R2M 8.2±20% 46.0 7.7 8.7 6.0 7.0 KSH8040-100M 10±20% 59.0 7.0 8.0 5.5 6.5 KSH8040-150M 15±20% 71.0 4.9 5.5 4.8 5.4 KSH8040-220M 22±20% 113.0 4.5 5.0 4.2 4.8 KSH8040-330M 33±20% 156.0 3.3 3.5 3.0 3.5 KSH8040-470M 47±20% 225.0 2.9 3.1 2.5 2.9 Inductance DC Resistance @100KHZ,1V Max. Units μH mΩ A A Symbol L DCR Isat Irms KSH1030-R22M 0.22±20% 1.2 44.24 50.00 29.20 33.00 KSH1030-R33M 0.33±20% 1.6 28.30 32.00 20.35 23.00 KSH1030-R36M 0.36±20% 1.6 24.80 28.00 20.35 23.00 KSH1030-R47M 0.47±20% 2.5 23.00 26.00 19.47 22.00 KSH1030-R82M 0.82±20% 3.7 20.35 23.00 15.93 18.00 Max. Typ. Heat Rating Current*4 Max. Typ. KSH1030M Series Part Number Konen Elektronik (shenzhen) Co.,Ltd www.konen-elek.com Saturation Current *3 Max. 8 Typ. Heat Rating Current*4 Max. Typ. Tel: +86 755 2733 7940 sales@konen-elek.com Wire Wound SMD Power Inductor-KSH Series KSH1030-1R0M 1.0±20% 6.0 18.58 21.00 13.27 15.00 KSH1030-1R5M 1.5±20% 7.5 17.69 20.00 11.50 13.00 KSH1030-2R2M 2.2±20% 9.0 12.38 14.00 9.73 11.00 KSH1030-3R3M 3.3±20% 16.0 10.61 12.00 7.96 9.00 KSH1030-4R7M 4.7±20% 22.5 8.84 10.00 6.19 7.00 KSH1030-8R2M 8.2±20% 45.0 6.20 7.00 4.42 5.00 KSH1030-100M 10±20% 55.0 5.75 6.50 3.98 4.50 KSH1030-330M 33±20% 160.0 3.53 4.00 2.30 2.60 KSH1040M Series Part Number Inductance DC Resistance @100KHZ,1V Units μH Symbol L KSH1040-R13M 0.13±20% KSH1040-R15M 0.15±20% KSH1040-R19M Max. Saturation Current *3 Max. mΩ DCR Max. Typ. A A Isat Irms 63.00 92.00 63.00 72.00 0.65 60.00 75.00 40.00 45.00 0.19±20% 0.95 80.00 90.00 35.00 40.00 KSH1040-R22M 0.22±20% 1 48.00 60.00 30.00 35.00 KSH1040-R30M 0.30±20% 1.1 36.00 45.00 30.00 35.00 KSH1040-R36M 0.36±20% 1.2 36.00 45.00 25.00 30.00 KSH1040-R45M 0.45±20% 1.5 34.00 43.00 25.00 30.00 KSH1040-R47M 0.47±20% 1.7 32.00 40.00 25.00 30.00 KSH1040-R56M 0.56±20% 1.8 26.40 33.00 20.00 25.00 KSH1040-R68M 0.68±20% 2.4 24.00 30.00 19.00 23.00 KSH1040-R80M 0.80±20% 2.7 23.20 29.00 19.00 23.00 KSH1040-1R0M 1.0±20% 3.3 22.40 28.00 16.00 19.00 KSH1040-1R5M 1.5±20% 4.2 19.20 24.00 14.00 16.00 KSH1040-2R2M 2.2±20% 7 13.20 16.50 10.00 12.00 KSH1040-3R3M 3.3±20% 11.8 12.80 16.00 9.50 11.00 KSH1040-4R7M 4.7±20% 20 10.40 13.00 7.50 9.00 KSH1040-6R8M 6.8±20% 25 9.60 12.00 7.00 8.50 KSH1040-8R2M 8.2±20% 27 7.20 9.00 6.80 8.00 KSH1040-100M 10±20% 30 6.80 8.50 6.90 7.80 KSH1040-150M 15±20% 45 5.60 7.00 5.60 6.50 KSH1040-220M 22±20% 66 4.40 5.50 4.20 5.00 Konen Elektronik (shenzhen) Co.,Ltd www.konen-elek.com 0.52（±5%） Typ. Heat Rating Current*4 9 Tel: +86 755 2733 7940 sales@konen-elek.com Wire Wound SMD Power Inductor-KSH Series SPECIFICATIONS KSH1050M Series Part Number Inductance DC Resistance Saturation Current *3 @100KHZ,1V Max. Units μH mΩ A A Symbol L DCR Isat Irms KSH1050-R22M 0.22±20% 0.8 57.5 65 32.5 37 KSH1050-R68M 0.68±20% 1.95 34 37 21 23 KSH1050-1R0M 1.0±20% 3.0 28.0 30 20.3 23 KSH1050-1R5M 1.5±20% 3.8 22.0 25 18.5 21 KSH1050-2R2M 2.2±20% 6.0 16.8 19 13.2 15 KSH1050-3R3M 3.3±20% 10 14.0 16 11.5 13 KSH1050-4R7M 4.7±20% 14 13.2 15 9.7 11 KSH1050-5R6M 5.6±20% 17 12.3 14 8.5 9.5 KSH1050-6R8M 6.8±20% 18.5 12.3 14 8.0 9.0 KSH1050-100M 10±20% 28 8.8 10 7.0 8.0 KSH1050-150M 15±20% 42 6.5 7.5 5.7 6.5 KSH1050-220M 22±20% 50 5.3 6.0 5.0 5.5 KSH1050-330M 33±20% 86 4.6 5.2 4.2 4.8 KSH1050-470M 47±20% 127 4.0 4.5 3.2 3.7 KSH1050-101M 100±20% 290 2.5 2.8 1.8 2.1 Max. Typ. Heat Rating Current*4 Max. Typ. KSH1340M Series Part Number Inductance DC Resistance @100KHZ,1V Max. Units μH mΩ A A Symbol L DCR Isat Irms KSH1340-R22M 0.22±20% 0.9 40.00 50.00 38.00 42.00 KSH1340-R47M 0.47±20% 2.0 38.40 48.00 29.00 33.00 KSH1340-R68M 0.68±20% 3.5 37.60 47.00 24.00 28.00 KSH1340-R82M 0.82±20% 4.5 32.00 40.00 24.00 28.00 KSH1340-1R0M 1.0±20% 7.5 28.00 35.00 20.00 24.00 KSH1340-1R5M 1.5±20% 9.5 24.40 30.50 17.00 20.00 KSH1340-2R2M 2.2±20% 11.5 20.80 26.00 15.00 18.00 KSH1340-3R3M 3.3±20% 13.0 16.80 21.00 13.00 15.00 KSH1340-4R7M 4.7±20% 14.5 14.40 18.00 11.00 13.00 KSH1340-6R8M 6.8±20% 20.0 11.20 14.00 8.00 9.00 Konen Elektronik (shenzhen) Co.,Ltd www.konen-elek.com Saturation Current *3 Max. 10 Typ. Heat Rating Current*4 Max. Typ. Tel: +86 755 2733 7940 sales@konen-elek.com Wire Wound SMD Power Inductor-KSH Series KSH1340-100M 10±20% 25.0 8.00 10.00 7.00 8.00 KSH1340-150M 15±20% 39.0 6.00 7.50 5.80 6.50 KSH1340-220M 22±20% 51.0 4.80 6.00 3.80 4.50 Inductance DC Resistance @100KHZ,1V Max. Units μH mΩ A A Symbol L DCR Isat Irms KSH1350-R22M 0.22±20% 0.7 60.00 75.00 45.00 50.00 KSH1350-R36M 0.36±20% 0.85 40.00 50.00 37.00 42.00 KSH1350-R50M 0.50±20% 1.15 38.40 48.00 33.00 38.00 KSH1350-R68M 0.68±20% 1.55 36.80 46.00 29.00 33.00 KSH1350-R82M 0.82±20% 1.67 31.20 39.00 26.00 30.00 KSH1350-1R0M 1.0±20% 2.2 28.00 35.00 22.00 26.00 KSH1350-1R5M 1.5±20% 3.2 26.40 33.00 19.00 23.00 KSH1350-2R2M 2.2±20% 5.0 19.20 24.00 13.00 15.00 KSH1350-3R3M 3.3±20% 7 17.60 22.00 12.00 14.00 KSH1350-4R7M 4.7±20% 9 16.00 20.00 11.00 13.00 KSH1350-6R8M 6.8±20% 18 12.80 16.00 10.00 12.00 KSH1350-100M 10±20% 22 9.60 12.00 8.00 9.00 KSH1350-150M 15±20% 30 8.00 10.00 7.00 8.00 KSH1350-220M 22±20% 58 5.20 6.50 3.80 4.50 KSH1350-330M 33±20% 84 4.80 6.00 2.80 3.50 KSH1350-470M 47±20% 130 4.00 5.00 2.60 3.00 KSH1350M Series Part Number Saturation Current *3 Max. Typ. Heat Rating Current*4 Max. Typ. KSH1360M Series Part Number Inductance DC Resistance @100KHZ,1V Max. Units μH mΩ A A Symbol L DCR Isat Irms KSH1360-1R5M 1.5±20% 2.9 27 30 23 27 KSH1360-2R2M 2.2±20% 4.2 24 28 18 22 KSH1360-3R3M 3.3±20% 6.8 21 25 14 17 KSH1360-4R7M 4.7±20% 9 19.20 24.00 12.00 15.00 KSH1360-5R6M 5.6±20% 11 18.00 22.50 11.00 13.00 KSH1360-6R8M 6.8±20% 13.5 15.20 19.00 10.00 12.00 KSH1360-8R2M 8.2±20% 16 10.80 13.50 9.00 11.00 Konen Elektronik (shenzhen) Co.,Ltd www.konen-elek.com Saturation Current *3 Max. 11 Typ. Heat Rating Current*4 Max. Typ. Tel: +86 755 2733 7940 sales@konen-elek.com Wire Wound SMD Power Inductor-KSH Series KSH1360-100M 10±20% 20.7 11.10 12.50 8.50 10.00 KSH1360-120M 12±20% 23 8.00 10.00 7.80 9.00 KSH1360-150M 15±20% 29 7.20 9.00 7.50 8.50 KSH1360-180M 18±20% 35 6.40 8.00 6.50 7.50 KSH1360-220M 22±20% 39.5 6.00 7.50 6.00 7.00 KSH1360-270M 27±20% 56 5.20 6.50 5.00 6.00 KSH1360-330M 33±20% 75 4.80 6.00 4.80 5.50 KSH1360-470M 47±20% 90 4.40 5.50 4.20 5.00 KSH1360-680M 68±20% 140 3.60 4.50 3.20 4.00 KSH1360-101M 100±20% 200 2.80 3.50 2.50 3.00 KSH1360-121M 120±20% 235 2.56 3.20 1.70 2.00 150±20% 350 2.16 2.70 1.20 1.50 KSH1360-151M KSH1365M Series Part Number Inductance DC Resistance Saturation Current *3 @100KHZ,1V Max. Units μH mΩ A A Symbol L DCR Isat Irms KSH1365-4R7M 4.7±20% 8.5 - 24 - 16 KSH1365-5R6M 5.6±20% 10.5 - 22.5 - 14 KSH1365-6R8M 6.8±20% 12 - 19 - 13 KSH1365-8R2M 8.2±20% 14 - 16 - 12 KSH1365-100M 10±20% 16.5 - 15 - 11 KSH1365-150M 15±20% 26 - 11 - 9.5 KSH1365-220M 22±20% 36 - 9 - 8 KSH1365-330M 33±20% 65 - 8 - 6.5 KSH1365-470M 47±20% 70 - 6.8 - 5.5 KSH1365-680M 68±20% 120 - 5.2 - 4.8 KSH1365-820M 82±20% 135 - 4.5 - 4.0 KSH1365-101M 100±20% 170 - 4.0 - 3.5 Inductance DC Resistance @100KHZ,1V Max. Units μH mΩ A A Symbol L DCR Isat Irms KSH1707-2R2M 2.2±20% 2.5 - 34 - 29 KSH1707-3R3M 3.3±20% 3.95 - 30 - 24 Max. Typ. Heat Rating Current*4 Max. Typ. KSH1707M Series Part Number Konen Elektronik (shenzhen) Co.,Ltd www.konen-elek.com Saturation Current *3 Max. 12 Typ. Heat Rating Current*4 Max. Typ. Tel: +86 755 2733 7940 sales@konen-elek.com Wire Wound SMD Power Inductor-KSH Series KSH1707-4R7M 4.7±20% 4.75 - 24 - 21 KSH1707-6R8M 6.8±20% 7.5 - 22 - 17 KSH1707-8R2M 8.2±20% 8.7 - 20 - 13 KSH1707-100M 10±20% 9.9 - 19 - 12 KSH1707-150M 15±20% 17 - 14.5 - 11 KSH1707-220M 22±20% 23 - 11.5 - 8.5 KSH1707-330M 33±20% 37 - 10 - 8.0 KSH1707-470M 47±20% 47 - 7.5 - 6.0 KSH1707-680M 68±20% 85 - 6.5 - 5.2 KSH1707-101M 100±20% 130 - 5.0 - 3.7 Notes:  All test data is referenced to 20°C ambient;  Rated current: Isat or Irms, whichever is smaller;  Isat(Typ): DC current at which the inductance drops approximate 30% from its value without current;  Isat(Max): DC current at which the inductance drops approximate 20% from its value without current;  Irms(Typ): DC current that causes the temperature rise (△T =40°C) from 20°C ambient;  Irms(Max): DC current that causes the temperature rise (△T =20°C) from 20°C ambient. Absolute maximum voltage 30VDC PACKAGING INFORMATION  Tape Dimension(Unit: mm) Remark: (KSH4012- KSH1365)- Fig.6.1-1/2  Reel and Taping Dimensions (Unit: mm) Fig.6 .1-3 Konen Elektronik (shenzhen) Co.,Ltd www.konen-elek.com 13 Tel: +86 755 2733 7940 sales@konen-elek.com Wire Wound SMD Power Inductor-KSH Series PACKAGING INFORMATION  Reel and Taping Dimensions (Unit: mm) Reel dimensions (mm) Type A N C KSH4012 330±2.0 100±2.0 13±1.0 KSH4020 330±2.0 100±2.0 13±1.0 KSH5020 330±2.0 100±2.0 13±1.0 KSH5030 330±2.0 100±2.0 13±1.0 KSH7018 330±2.0 100±2.0 13±1.0 KSH7020 330±2.0 100±2.0 13±1.0 KSH7024 330±2.0 100±2.0 13±1.0 KSH7030 330±2.0 100±2.0 13±1.0 KSH7040 330±2.0 97±0.5 KSH7050 330±2.0 100±2.0 13±1.0 KSH8040 330±2.0 97±0.5 KSH1030 330±2.0 100±2.0 13±1.0 KSH1040 330±2.0 100±2.0 13±1.0 KSH1340 12.4± 2.0 12.4± 2.0 12.4± 2.0 16.4± 2.0 16.4± 2.0 16.4± 2.0 16.4± 2.0 0.2 2.0 16.4± 2.0 13.2± 24.4± 0.2 2.0 330±2.0 100±2.0 13±1.0 KSH1350 330±2.0 100±2.0 13±1.0 KSH1360 330±2.0 100±2.0 13±1.0 KSH1365 330±2.0 97±0.5 Konen Elektronik (shenzhen) Co.,Ltd www.konen-elek.com 2.0 16.8± 330±2.0 100±2.0 13±1.0 330±2.0 97±0.5 12.4± 13.2± KSH1050 KSH1707 W 13±0.2 13±0.2 24.4± 2.0 24.4± 2.0 24.4± 2.0 24.4± 2.0 24.4± 2.0 24.4± 2.0 24.0± 0.5 24.4± 2.0 Tape dimensions (mm) W0 P P0 12±0.3 8±0.1 4±0.1 12±0.3 8±0.1 4±0.1 12±0.3 8±0.1 4±0.1 12±0.3 8±0.1 4±0.1 16±0.3 12±0.1 4±0.1 16±0.3 12±0.1 4±0.1 16±0.3 12±0.1 4±0.1 16±0.3 12±0.1 4±0.1 16±0.3 12±0.1 4±0.1 16±0.3 12±0.1 4±0.1 24±0.3 16±0.1 4±0.1 24±0.3 16±0.1 4±0.1 24±0.3 16±0.1 4±0.1 24±0.3 16±0.1 4±0.1 24±0.3 16±0.1 4±0.1 24±0.3 16±0.1 4±0.1 24±0.3 16±0.1 4±0.1 24±0.3 16±0.1 4±0.1 32±0.3 14 24±0.1 4±0.1 H T A0 1.5± 0.30± 0.05 0.05 2.3± 0.35± 0.05 0.05 2.1± 0.35± 0.05 0.05 3.3± 0.35± 0.05 0.05 2.1± 0.35± 0.05 0.05 2.2±0.1 0.35± 0.05 B0 4.4±0.1 4.9±0.1 4.4±0.1 4.9±0.1 5.4±0.1 5.9±0.1 5.4±0.1 5.9±0.1 6.9±0.1 7.5±0.1 6.9±0.1 7.5±0.1 2.7± 0.35± 0.05 0.05 3.3± 0.35± 0.05 0.05 4.2± 0.35± 0.10 0.05 5.2± 0.4± 0.10 0.05 4.4± 0.35± 0.10 0.05 3.3± 0.35± 10.4± 11.6± 0.10 0.05 0.1 0.1 4.3± 0.35± 10.4± 11.5± 6.9±0.1 7.5±0.1 6.9±0.1 7.5±0.1 6.9±0.1 7.5±0.1 6.9±0.1 7.5±0.1 8.9±0.1 10.1± 0.1 0.10 0.05 0.1 0.1 4.3± 0.5± 13.4± 14.4± 0.10 0.05 0.1 0.1 5.4± 0.5± 10.4± 11.6± 0.10 0.05 0.1 0.1 5.3± 0.5± 13.2± 14.4± 0.10 0.05 0.1 0.1 6.3± 0.5± 13.2± 14.4± 0.10 0.05 0.1 0.1 6.8± 0.5± 13.1± 14.0± 0.10 0.05 0.1 0.1 7.3± 0.5± 17.5± 18.1± 0.10 0.05 0.1 0.1 Tel: +86 755 2733 7940 sales@konen-elek.com Wire Wound SMD Power Inductor-KSH Series PACKAGING INFORMATION  Packaging Quantity Type Standard Quantity Type Standard Quantity (pcs/reel) (pcs/reel) KSH4012 3000 KSH7030 1500 KSH4020 3000 KSH7040 1000 KSH5020 2000 KSH7050 1000 KSH5030 2000 KSH1040 500 KSH7018 1500 KSH1340 500 KSH7020 1500 KSH1350 500 KSH7024 1500 KSH1360 500 KSH1365 500 KSH1707 200 KSH1030 800 KSH1050 500 KSH8040 800 Konen Elektronik (shenzhen) Co.,Ltd www.konen-elek.com 15 Tel: +86 755 2733 7940 sales@konen-elek.com
