TC58NVG0S3HTA00

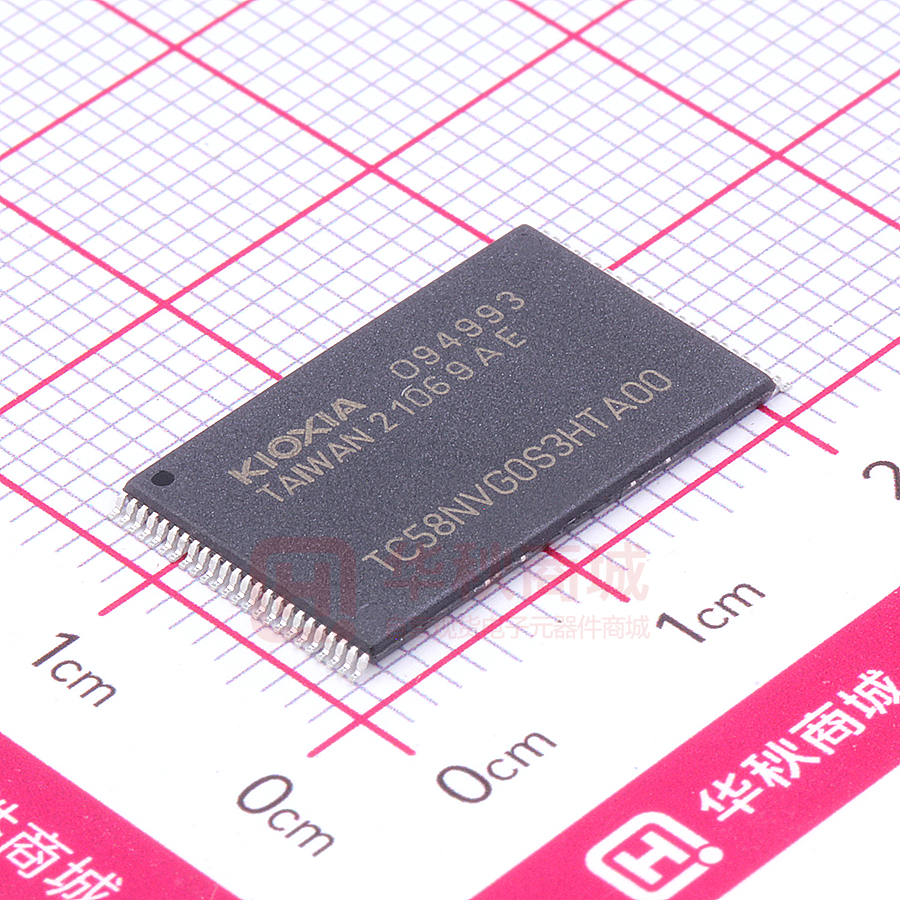

TC58NVG0S3HTA00 MOS DIGITAL INTEGRATED CIRCUIT SILICON GATE CMOS 1G BIT (128M  8 BIT) CMOS NAND E2PROM DESCRIPTION The TC58NVG0S3HTA00 is a single 3.3V 1Gbit (1,140,850,688bits) NAND Electrically Erasable and Programmable Read-Only Memory (NAND E2PROM) organized as (2048  128) bytes  64 pages  1024 blocks. The device has a 2176-byte static registers which allow program and read data to be transferred between the register and the memory cell array in 2176-byte increments. The Erase operation is implemented in a single block unit (128 Kbytes  8 Kbytes: 2176 bytes  64 pages). The TC58NVG0S3HTA00 is a serial-type memory device which utilizes the I/O pins for both address and data input/output as well as for command inputs. The Erase and Program operations are automatically executed, making the device most suitable for applications such as solid-state file storage, voice recording, image file memory for still cameras and other systems which require high-density non-volatile memory data storage. FEATURES  Organization Memory cell array Register Page size Block size x8 2176  64K  8 2176  8 2176 bytes (128K  8K) bytes  Modes Read, Reset, Auto Page Program, Auto Block Erase, Status Read, Page Copy  Mode control Serial input/output Command control  Number of valid blocks Min 1004 blocks Max 1024 blocks  Power supply VCC  2.7V to 3.6V  Access time Cell array to register Read Cycle Time 25 s max 25 ns min (CL=50pF)  Program/Erase time Auto Page Program Auto Block Erase 300 s/page typ. 2.5 ms/block typ.  Operating current Read (25 ns cycle) Program (avg.) Erase (avg.) Standby 30 mA max. 30 mA max 30 mA max 50 A max  Package TSOP I 48-P-1220-0.50  8 bit ECC for each 512Byte is required. © 2012-2019 KIOXIA Corporation (Weight: 0.53 g typ.) 1 2019-10-01C TC58NVG0S3HTA00 PIN ASSIGNMENT (TOP VIEW) TC58NVG0S3HTA00 8 8 NC NC NC NC NC NC -------RY/BY -------RE -------CE NC NC VCC VSS NC NC CLE ALE -------WE -------WP NC NC NC NC NC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 NC NC NC NC I/O8 I/O7 I/O6 I/O5 NC NC NC VCC VSS NC NC NC I/O4 I/O3 I/O2 I/O1 NC NC NC NC PIN NAMES I/O1 to I/O8 -------- CE -------- WE -------- Chip enable Write enable RE Read enable CLE Command latch enable ALE Address latch enable -------- WP -------- RY / BY © 2012-2019 KIOXIA Corporation I/O port Write protect Ready/Busy VCC Power supply VSS Ground NC No Connection 2 2019-10-01C TC58NVG0S3HTA00 BLOCK DIAGRAM VCC VSS Status register Address register I/O1 Column buffer I/O Control circuit to Column decoder I/O8 Command register Data register Sense amp Row address buffer decoder CE CLE ALE Logic control -------- WE Control circuit -------- RE -------- WP Row address decoder -------- Memory cell array -------- RY / BY -------- RY / BY HV generator ABSOLUTE MAXIMUM RATINGS SYMBOL RATING VALUE UNIT VCC Power Supply Voltage 0.6 to 4.6 V VIN Input Voltage 0.6 to 4.6 V VI/O Input / Output Voltage PD Power Dissipation TSTG Storage Temperature TOPR Operating Temperature 0.6 to VCC  0.3 ( 4.6 V) V 0.3 W 55 to 150 °C 0 to 70 °C Note: Avoid locations where the device may be exposed to water (wet, rain, dew condensation, etc.) CAPACITANCE *(Ta  25°C, f  1 MHz) SYMBOL PARAMETER CONDITION MIN MAX UNIT CIN Input VIN  0 V  10 pF COUT Output VOUT  0 V  10 pF * This parameter is periodically sampled and is not tested for every device. © 2012-2019 KIOXIA Corporation 3 2019-10-01C TC58NVG0S3HTA00 VALID BLOCKS SYMBOL NVB NOTE: PARAMETER Number of Valid Blocks MIN TYP. MAX UNIT 1004  1024 Blocks The device occasionally contains unusable blocks. Refer to Application Note (13) toward the end of this document. The first block (Block 0) is guaranteed to be a valid block at the time of shipment. The specification for the minimum number of valid blocks is applicable over lifetime. DC OPERATING CONDITIONS SYMBOL PARAMETER MIN TYP. MAX UNIT 2.7  3.6 V VCC Power Supply Voltage VIH High Level Input Voltage VCC x 0.8  VCC  0.3 V VIL Low Level Input Voltage 0.3*  VCC x 0.2 V 2 V (pulse width lower than 20 ns) * DC CHARACTERISTICS (Ta  0 to 70°C, VCC  2.7 to 3.6V) SYMBOL PARAMETER CONDITION MIN TYP. MAX UNIT IIL Input Leakage Current VIN  0 V to VCC   10 A ILO Output Leakage Current VOUT  0 V to VCC   10 A ICCO1 Serial Read Current CE  VIL, IOUT  0 mA, tRC  25 ns   30 mA ICCO2 Programming Current    30 mA ICCO3 Erasing Current    30 mA ICCS Standby Current CE  VCC  0.2 V, WP  0 V/VCC   50 A VOH High Level Output Voltage IOH  0.1 mA VCC – 0.2   V VOL Low Level Output Voltage IOL  0.1 mA   0.2 V IOL -------(RY / BY) Output Current of RY / BY pin VOL  0.2 V  4  mA © 2012-2019 KIOXIA Corporation -------- -------- -------- -------- 4 2019-10-01C TC58NVG0S3HTA00 AC CHARACTERISTICS AND OPERATING CONDITIONS (Ta  0 to 70°C, VCC  2.7 to 3.6V) SYMBOL MIN MAX UNIT CLE Setup Time 12  ns CLE Hold Time 5  ns 20  ns CE Hold Time 5  ns tWP Write Pulse Width 12  ns tALS ALE Setup Time 12  ns tALH ALE Hold Time 5  ns tDS Data Setup Time 12  ns tDH Data Hold Time 5  ns tWC Write Cycle Time 25  ns 10  ns 100  ns 20  ns tCLS tCLH tCS tCH tWH tWW tRR PARAMETER -------- CE Setup Time -------- -------- WE High Hold Time -------- -------- WP High to WE Low -------- Ready to RE Falling Edge -------- tRW Ready to WE Falling Edge 20  ns tRP Read Pulse Width 12  ns Read Cycle Time 25  ns  20 ns  25 ns 10  ns 10  ns 25  ns 5  ns  60 ns  20 ns 0  ns 10  ns 0  ns 30  ns 30  ns 60  ns tRC tREA tCEA tCLR tAR tRHOH tRLOH tRHZ tCHZ tCSD tREH tIR tRHW tWHC tWHR -------- RE Access Time -------- CE Access Time -------- CLE Low to RE Low -------- ALE Low to RE Low -------- RE High to Output Hold Time -------- RE Low to Output Hold Time -------- RE High to Output High Impedance -------- CE High to Output High Impedance -------- CE High to ALE or CLE Don’t Care -------- RE High Hold Time -------- Output-High-Impedance-to-RE Falling Edge -------- -------- -------- -------- -------- -------- RE High to WE Low WE High to CE Low WE High to RE Low -------- tWB WE High to Busy  100 ns tRST Device Reset Time (Ready/Read/Program/Erase)  5/5/10/500 s *1: tCLS and tALS cannot be shorter than tWP *2: tCS should be longer than tWP + 8ns. © 2012-2019 KIOXIA Corporation 5 2019-10-01C TC58NVG0S3HTA00 AC TEST CONDITIONS CONDITION PARAMETER VCC: 2.7 to 3.6V VCC  0.2 V, 0.2 V Input level Input pulse rise and fall time 3 ns Input comparison level VCC / 2 Output data comparison level VCC / 2 CL (50 pF)  1 TTL Output load Note: -------- Busy to ready time depends on the pull-up resistor tied to the RY / BY pin. (Refer to Application Note (9) toward the end of this document) PROGRAMMING / ERASING / READING CHARACTERISTICS (Ta  0 to 70°C, VCC  2.7 to 3.6V) SYMBOL PARAMETER MIN TYP. MAX UNIT tPROG Programming Time  300 700 s tDCBSYW2 Data Cache Busy Time in Write Cache (following 15h)   700 s N Number of Partial Program Cycles in the Same Page   4 tBERASE Block Erasing Time  2.5 5 ms tR Memory Cell Array to Starting Address   25 s tDCBSYR1 Data Cache Busy in Read Cache (following 31h and 3Fh)   25 s tDCBSYR2 Data Cache Busy in Page Copy (following 3Ah)   30 s NOTES (2) (1) (1) Refer to Application Note (12) toward the end of this document. (2) tDCBSYW2 depends on the timing between internal programming time and data in time. Data Output When tREH is long, output buffers are disabled by /RE=High, and the hold time of data output depends on tRHOH (25ns MIN). Under this condition, the waveforms look like Normal Serial Read Mode. When tREH is short, output buffers are not disabled by /RE=High, and the hold time of data output depends on tRLOH (5ns MIN). Under this condition, output buffers are disabled by the rising edge of CLE, ALE, /CE or the falling edge of /WE, and waveforms look like Extended Data Output Mode. © 2012-2019 KIOXIA Corporation 6 2019-10-01C TC58NVG0S3HTA00 TIMING DIAGRAMS Latch Timing Diagram for Command/Address/Data CLE ALE -------CE Setup Time Hold Time -------- WE tDS tDH I/O : VIH or VIL Command Input Cycle Timing Diagram CLE tCLS tCLH tCS tCH -------- CE tWP -------- WE tALS tALH ALE tDS tDH I/O : VIH or VIL © 2012-2019 KIOXIA Corporation 7 2019-10-01C TC58NVG0S3HTA00 Address Input Cycle Timing Diagram tCLS tCLH CLE tCH tCS tWC tCH tCS -------- CE tWP tWH tWP tWH tWP tWH tWP -------- WE tALS tALH ALE tDS I/O tDH tDS CA0 to 7 tDH tDS CA8 to 11 tDH tDS PA0 to 7 tDH PA8 to 15 : VIH or VIL Data Input Cycle Timing Diagram tCLS tCLH CLE tCH tCS tCS tCH -------- CE tALS tALH tWC ALE tWP tWH tWP tWP -------- WE tDS I/O © 2012-2019 KIOXIA Corporation tDH tDS DIN0 tDH DIN1 8 tDS tDH DIN2175 2019-10-01C TC58NVG0S3HTA00 Serial Read Cycle Timing Diagram tRC -------- CE tRP tREH tRP tCHZ tRP -------- RE tRHZ tRHOH tREA tREA tRHZ tRHZ tRHOH tREA tCEA tRHOH tCEA I/O tRR -------- RY / BY : VIH or VIL Status Read Cycle Timing Diagram tCLR CLE tCLS tCLH tCS -------- CE tWP tCH tCEA -------- WE tCHZ tWHC tWHR -------- RE tDS tDH tRHOH tIR tREA I/O tRHZ Status output 70h* -------- RY / BY : VIH or VIL *: 70h represents the hexadecimal number © 2012-2019 KIOXIA Corporation 9 2019-10-01C TC58NVG0S3HTA00 Read Cycle Timing Diagram tCLR CLE tCLS tCLH tCS tCLS tCH tCS tCLH tCH -------- CE tWC -------- WE tALH tALS tALH tALS ALE tR -------- tRC tWB RE tDS tDH I/O tDS tDH tDS tDH tDS tDH tDS tDH CA0 to 7 00h CA8 to 11 PA0 to 7 tDS tDH PA8 to 15 tREA 30h DOUT N DOUT N1 Data out from Col. Add. N Col. Add. N -------- tCEA tRR RY / BY -------- Read Cycle Timing Diagram: When Interrupted by CE tCLR CLE tCLS tCLH tCS tCH tCLS tCS tCLH tCH -------- CE tCSD tWC -------- WE tALH tALS tALH tALS ALE tR -------- tWB RE tDS tDH I/O tRC 00h tDS tDH tDS tDH tDS tDH tDS tDH CA0 to 7 CA8 to 11 PA0 to 7 PA8 to 15 tDS tDH 30h tCHZ tRHZ tRR tCEA tREA D OUT N tRHOH DOUT N1 Data out from Col. Add. N Col. Add. N -------- RY / BY © 2012-2019 KIOXIA Corporation 10 2019-10-01C TC58NVG0S3HTA00 Read Cycle with Data Cache Timing Diagram (1/2) tCLR CLE tCLS tCS tCLH tCLS tCH tCS tCLH tCLS tCH tCS tCLR tCLH tCLS tCH tCS tCLH tCH -------- CE tWC -------- WE tALH tALS tALH tALS tCEA tRW tCEA ALE tR -------- tWB RE tDS tDH I/O tDS tDH tDS tDH tDS tDH tDS tDH CA0 to 7 00h CA8 to 11 Column address N* PA0 to 7 tDCBSYR1 tDCBSYR1 tWB tDS tDH tDS tDH 30h 31h PA8 to 15 tRC Page address M tWB tRR tDS tDH tREA DOUT 0 DOUT 1 31h DOUT tRR tREA DOUT 0 Page address M1 Page address M -------- RY / BY Data out from Col. Add. 0 * The column address will be reset to 0 by the 31h command input. Data out from Col. Add. 0 1 Continues to 1 © 2012-2019 KIOXIA Corporation 11 of next page 2019-10-01C TC58NVG0S3HTA00 Read Cycle with Data Cache Timing Diagram (2/2) tCLR CLE tCLS tCS tCLR tCLH tCLS tCH tCS tCLR tCLH tCLS tCH tCS tCLH tCH -------- CE -------- WE tCEA tCEA tCEA ALE tDCBSYR1 tDCBSYR1 tRC tWB -------- RE tDS tDH I/O DOUT tRC tDCBSYR1 tWB tRR 31h tDS tDH tREA DOUT 0 DOUT 1 DOUT tRC tWB tRR tDS tDH tREA DOUT 0 31h DOUT 1 Page address M2 Page address M  1 DOUT 3Fh tRR tREA DOUT 0 DOUT 1 DOUT Page address M  x -------- RY / BY Data out from Col. Add. 0 Data out from Col. Add. 0 1 Data out from Col. Add. 0 Make sure to terminate the operation with 3Fh command. Continues from 1 © 2012-2019 KIOXIA Corporation of previous page 12 2019-10-01C TC58NVG0S3HTA00 Column Address Change in Read Cycle Timing Diagram (1/2) tCLR CLE tCLS tCLH tCS tCLS tCLH tCH tCH tCS -------- CE tWC tCEA -------- WE tALH tALS tALH tALS ALE tRC tR tWB -------- RE I/O tDS tDH tDS tDH tDS tDH tDS tDH tDS tDH tDS tDH 00h CA0 to 7 CA8 to 11 PA0 to 7 PA8 to 15 30h Column address A Page address P tRR tREA DOUT DOUT A A1 DOUT AN Page address P -------- RY / BY Data out from Column address A 1 Continues from 1 © 2012-2019 KIOXIA Corporation 13 of next page 2019-10-01C TC58NVG0S3HTA00 Column Address Change in Read Cycle Timing Diagram (2/2) tCLR CLE tCLS tCLH tCS tCH tCLS tCLH tCS tCH -------- CE tRHW tCEA tWC -------- WE tALH tALS tALH tALS ALE tWHR tRC -------- RE tDS tDH tDS tDH tDS tDH tDS tDH tREA tIR DOUT AN I/O 05h CA0 to 7 CA8 to 11 E0h DOUT B DOUT B1 DOUT B  N’ Page address P Column address B -------- RY / BY Data out from Column address B 1 Continues from 1 of previous page © 2012-2019 KIOXIA Corporation 14 2019-10-01C TC58NVG0S3HTA00 Data Output Timing Diagram CLE tCLS tCLH tCS tCH -------- CE -------- WE tALH ALE tRC tRP tCHZ tREH tRP tRP tRHZ -------- RE tREA tCEA tRLOH tREA I/O Dout tRR tREA tDS tDH tRLOH Dout tRHOH Dout Command tRHOH -------- RY / BY © 2012-2019 KIOXIA Corporation 15 2019-10-01C TC58NVG0S3HTA00 Auto-Program Operation Timing Diagram tCLS CLE tCLS tCLH tCS tCS -------- CE tCH -------- WE tALH tALH tALS tPROG tALS tWB ALE -------- RE I/O tDS tDS tDS tDH tDS tDH 80h CA0 to 7 tDH tDH CA8 to 11 PA0 to 7 PA8 to 15 DINN DIN N+1 DINM* 10h 70h Status output Column address N -------- RY / BY : Do not input data while data is being output. : VIH or VIL * M: up to 2175 © 2012-2019 KIOXIA Corporation 16 2019-10-01C TC58NVG0S3HTA00 Auto-Program Operation with Data Cache Timing Diagram (1/3) tCLS CLE tCLS tCLH tCS tCS -------- CE tCH -------- WE tALH tALH tDCBSYW2 tALS tWB tALS ALE -------- RE I/O tDS tDS tDS tDH tDS tDH 80h CA0 to 7 tDH CA8 to 11 PA0 to 7 PA8 to 15 DINN Column address N tDH DIN N+1 15h 80h CA0 to 7 DINM* -------- RY / BY 1 : Do not input data while data is being output. : VIH or VIL Continues to 1 of next page * M: up to 2175 © 2012-2019 KIOXIA Corporation 17 2019-10-01C TC58NVG0S3HTA00 Auto-Program Operation with Data Cache Timing Diagram (2/3) tCLS CLE tCLS tCLH tCS tCS -------- CE tCH -------- WE tALH tALH tALS tDCBSYW2 tALS tWB ALE -------- RE tDS tDS tDH tDS tDH 80h CA0 to 7 I/O tDS tDH tDH CA8 to 11 PA0 to 7 PA8 to 15 DINN DIN N+1 Column address N 15h 80h CA0 to 7 DINM* -------- RY / BY Repeat a max of 62 times (in order to program pages 1 to 62 of a block). 1 Continued from 1 2 of previous page : Do not input data while data is being output. : VIH or VIL * M: up to 2175 © 2012-2019 KIOXIA Corporation 18 2019-10-01C TC58NVG0S3HTA00 Auto-Program Operation with Data Cache Timing Diagram (3/3) tCLS CLE tCLS tCLH tCS tCS -------- CE tCH -------- WE tALH tALH tPROG (*1) tALS tALS tWB ALE -------- RE tDS tDH 80h CA0 to 7 I/O tDS tDS tDS tDH tDH tDH CA8 to 11 PA0 to 7 PA8 to 15 DINN DIN N+1 Column address N 10h 70h Status output DINM* -------- RY / BY : Do not input data while data is being output. 2 Continued from : VIH or VIL 2 of previous page * M: up to 2175 (*1) tPROG: Since the last page’s programming by 10h command is initiated after the previous cache program, the tPROG during cache programming is given by the following equation. tPROG  tPROG of the last page  tPROG of the previous page  A A  (command input cycle  address input cycle  data input cycle time of the last page) If “A” exceeds the tPROG of previous page, tPROG of the last page is tPROG max. (Note) Make sure to terminate the operation with 80h-10h command sequence. If the operation is terminated by 80h-15h command sequence, monitor I/O 6 (Ready / Busy) by issuing the Status Read command (70h) and make sure the previous page program operation is completed. If the page program operation is completed, issue FFh reset before the next operation. © 2012-2019 KIOXIA Corporation 19 2019-10-01C TC58NVG0S3HTA00 Auto Block Erase Timing Diagram CLE tCLS tCLH tCS tCLS -------- CE -------- WE tALS tALH tBERASE tWB ALE -------- RE tDS tDH I/O -------- RY / BY 60h PA0 to 7 PA8 to 15 D0h Auto Block Erase Setup command 70h Busy Erase Start command Status output Status Read command : Do not input data while data is being output. : VIH or VIL © 2012-2019 KIOXIA Corporation 20 2019-10-01C TC58NVG0S3HTA00 ID Read Operation Timing Diagram tCLS CLE tCLS tCS tCS tCH tCEA -------- CE tCH -------- WE tALS tALH tALH tAR ALE -------- RE tDH tDS I/O tREA tREA tREA tREA tREA 90h 00h 98h F1h See Table 5 See Table 5 See Table 5 ID Read command Address 00 Maker code Device code 3rd Data 4th Data 5th Data : VIH or VIL © 2012-2019 KIOXIA Corporation 21 2019-10-01C TC58NVG0S3HTA00 PIN FUNCTIONS The device is a serial access memory which utilizes time-sharing input of address information. Command Latch Enable: CLE The CLE input signal is used to control loading of the operation mode command into the internal command register. The command is latched into the command register from the I/O port on the rising edge of the WE signal while CLE is High. -------- Address Latch Enable: ALE The ALE signal is used to control loading address information into the internal address register. Address information is latched into the address register from the I/O port on the rising edge of WE while ALE is High. -------- -------- Chip Enable: CE The device goes into a low-power Standby mode when CE goes High while the device is in Ready state. The CE signal is ignored when the device is in Busy state (RY / BY L), such as during a Program, Erase or Read operation, and will not enter Standby mode even if the CE input goes High. -------- -------- -------- -------- -------- Write Enable: WE The WE signal is used to control the acquisition of data from the I/O port. -------- -------- Read Enable: RE The RE signal controls serial data output. Data is available tREA after the falling edge of RE. The internal column address counter is also incremented (Address = Address + 1) on this falling edge. -------- -------- I/O Port: I/O1 to 8 The I/O1 to 8 pins are used as a port for transferring address, command and input/output data to and from the device. -------- Write Protect: WP The WP signal is used to protect the device from accidental programming or erasing. The internal voltage regulator is reset when WP is Low. This signal is usually used to protect the data during the power-on/off sequence when input signals are invalid. -------- -------- -------- Ready/Busy: RY / BY The RY / BY output signal is used to indicate the operating condition of the device. The RY / BY signal is in Busy state (RY / BY= L) during the Program, Erase and Read operations and will return to Ready state (RY / BY= H) after completion of the operation. The output buffer for this signal is an open drain and has to be pulled up to VCC with an appropriate resistor. If RY / BY signal is not pulled up to VCC (“Open” state), device operation cannot be guaranteed. -------- -------- -------- -------- -------- © 2012-2019 KIOXIA Corporation 22 2019-10-01C TC58NVG0S3HTA00 Schematic Cell Layout and Address Assignment The Program operation works on page units while the Erase operation works on block units. I/O1 Data Cache 2048 128 Page Buffer 2048 128 A page consists of 2176 bytes in which 2048 bytes are used for main memory storage and 128 bytes are for redundancy or for other uses. I/O8 1 page  2176 bytes 1 block  2176 bytes  64 pages  (128K  8K) bytes Capacity  2176 bytes  64 pages  1024 blocks 64 Pages1 block 65536 pages 1024 blocks An address is read in via the I/O port over four consecutive clock cycles, as shown in Table 1. 8I/O 2176 Table 1. Addressing I/O8 I/O7 I/O6 I/O5 I/O4 I/O3 I/O2 I/O1 CA7 CA6 CA5 CA4 CA3 CA2 CA1 CA0 L L L L CA11 CA10 CA9 CA8 Third cycle PA7 PA6 PA5 PA4 PA3 PA2 PA1 PA0 Fourth cycle PA15 PA14 PA13 PA12 PA11 PA10 PA9 PA8 First cycle Second cycle © 2012-2019 KIOXIA Corporation 23 CA0 to CA11: Column address PA0 to PA5: Page address in block PA6 to PA15: Block address 2019-10-01C TC58NVG0S3HTA00 Operation Mode: Logic and Command Tables The operation modes such as Program, Erase, Read and Reset are controlled by command operations shown in Table 3. Address input, command input and data input/output are controlled by the CLE, ALE, CE, WE, RE and WP signals, as shown in Table 2. -------- -------- -------- -------- Table 2. Logic Table -------- RE -------* WP 1 L H * L L H H L H L H * Serial Data Output L L L H During Program (Busy) * * * * * H During Erase (Busy) * * * * * H * * H * * * * * L H (*2) H (*2) * Program, Erase Inhibit * * * * * L Standby * * H * * 0 V/VCC -------- CLE ALE CE Command Input H L Data Input L Address Input -------- WE * During Read (Busy) H: VIH, L: VIL, *: VIH or VIL -------*1: When the WP signal goes Low, Program or Erase is inhibited (Refer to Application Note (10) toward end of this document). -------- -------- -------- *2: If CE is Low during Read Busy, WE and RE must be held High to avoid unintended command/address input to the device or read to the device. Reset or Status Read command can be input during Read Busy. © 2012-2019 KIOXIA Corporation 24 2019-10-01C TC58NVG0S3HTA00 Table 3. Command table (HEX) First Cycle Second Cycle Acceptable while Busy Serial Data Input 80  Read 00 30 Column Address Change in Serial Data Output 05 E0 Read with Data Cache 31  Read Start for Last Page in Read Cycle with Data Cache 3F  Auto Page Program 80 10 Column Address Change in Serial Data Input 85  Auto Page Program with Data Cache 80 15 Read for Page Copy (2) with Data Out 00 3A Auto Program with Data Cache during Page Copy (2) 8C 15 Auto Program for last page during Page Copy (2) 8C 10 Auto Block Erase 60 D0 ID Read 90  Status Read 70   Reset FF   HEX data bit assignment (Example) Serial Data Input: 80h 1 0 0 0 0 0 0 8 7 6 5 4 3 2 I/O1 0 Table 4. Read mode operation states CE WE -------- -------- RE I/O1 to I/O8 Power L L H L Data output Active L L H H High impedance Active CLE ALE Output select L Output Deselect L -------- H: VIH, L: VIL © 2012-2019 KIOXIA Corporation 25 2019-10-01C TC58NVG0S3HTA00 DEVICE OPERATION Read Mode Read mode is set when the "00h" and “30h” commands are issued to the Command register. Between the two commands, a start address for the Read mode needs to be issued. After the initial power on sequence, “00h” command is latched into the internal command register. Then the Read operation after the power on sequence is executed by the setting of only four address cycles and “30h” command. The sequence and the block diagram are shown below (Refer to the timing chart for detail). CLE -------- CE -------- WE ALE -------- RE -------- RY / BY I/O 00h tR Busy Column Address M Page Address N 30h M Data Cache A data transfer operation from the cell array to the Data Cache -------via Page Buffer starts on the rising edge of WE in the 30h command input cycle (after the address information has been latched). The device will be in the Busy state during this transfer period. After the transfer period, the device returns to Ready state. -------Serial data can be output synchronously with the RE clock from the start address designated in the address input cycle. m Page Buffer Select page N M+2 Page Address N Start-address input M M+1 Cell array I/O1 to 8: m  2175 Random Column Address Change in Read Cycle CLE -------- CE -------- WE ALE -------- RE Busy -------- RY / BY tR Col. M I/O 00h 30h Col. M Page N Select page N © 2012-2019 KIOXIA Corporation M1 M2 M3 Page N Start from Col. M Start-address input M M E0h 05h Col. M’ M’ M’1 M’2 M’3 M’4 Page N Start from Col. M’ M’ During the serial data output from the Data Cache, the column address can be changed by inputting a new column address using the 05h and E0h commands. The data is read out in serially starting at the new column address. Random Column Address Change operation can be done multiple times within the same page. 26 2019-10-01C TC58NVG0S3HTA00 Read with Data Cache The device has a Read with Data Cache that enables the high speed read operation shown below. When the block address changes, this sequence has to be started from the beginning. CLE -------- CE -------- WE ALE -------- RE -------- tR RY / BY tDCBSYR1 1 I/O 00h 31h 30h Col. M Page N 2 0 1 Column 0 tDCBSYR1 3 2 3 4 2175 0 2 3 1 2 Page N Page N 1 3 2 3 2175 Page N  2 5 Page N  2 6 7 Page N  1 3 30h 1 Page N  1 Page N  1 4 Cell Array 0 7 Page Address N  2 Page N Page Buffer 3Fh 2175 6 Page Address N  1 Page Address N Data Cache 1 tDCBSYR1 5 Page N  2 -------- -------- 31h & RE clock 31h & RE clock 5 -------- 3Fh & RE clock If the 31h command is issued to the device, the data content of the next page is transferred to the Page Buffer during serial data out from the Data Cache, reducing the tR (Data transfer from memory cell to data register). 1. 2. 3. 4. 5. 6. 7. Normal read. Data is transferred from Page N to Data Cache through Page Buffer. During this time period, the device outputs Busy state for tR max. After the Ready/Busy signal returns to Ready, 31h command is issued and data is transferred to Data Cache from Page Buffer again. This data transfer takes tDCBSYR1 max and the completion of this time period can be detected by Ready/Busy signal. Data of Page N  1 is transferred to Page Buffer from cell while the data of Page N in Data Cache can be read out by /RE clock simultaneously. The 31h command makes data of Page N  1 transfer to Data Cache from Page Buffer after the completion of the transfer from cell to Page Buffer. The device outputs Busy state for tDCBSYR1 max. This Busy period depends on the combination of the internal data transfer time from cell to Page Buffer and the serial data out time. Data of Page N  2 is transferred to Page Buffer from cell while the data of Page N + 1 in Data Cache can be read out by /RE clock simultaneously. The 3Fh command makes the data of Page N  2 transfer to the Data Cache from the Page Buffer after the completion of the transfer from cell to Page Buffer. The device outputs Busy state for tDCBSYR1 max. This Busy period depends on the combination of the internal data transfer time from cell to Page Buffer and the serial data out time. Data of Page N  2 in Data Cache can be read out, but since the 3Fh command does not transfer the data from the memory cell to Page Buffer, the device can accept new command input immediately after the completion of serial data out. © 2012-2019 KIOXIA Corporation 27 2019-10-01C TC58NVG0S3HTA00 Auto Page Program Operation The device carries out an Auto Page Program operation when it receives a "10h" Program command after the address and data have been input. The sequence of command, address and data input is shown below (Refer to the detailed timing chart). CLE -------- CE -------- WE ALE -------- RE -------- RY / BY I/O 80h Din Din Din Col. M Page P Din 10h 10h Status output Data Data input Program The data is transferred (programmed) from the Data Cache via the -------Page Buffer to the selected page on the rising edge of WE following input of the “10h” command. After programming, the programmed data is transferred back to the register to be automatically verified by the device. If the programming does not succeed, the Program/Verify operation is repeated by the device until success is achieved or until the maximum loop number set in the device is reached. Read & verification Selected page Random Column Address Change in Auto Page Program Operation The column address can be changed by the 85h command during the data input sequence of the Auto Page Program operation. Two address input cycles after the 85h command are recognized as a new column address for the data input. After the new data is input to the new column address, the 10h command initiates the actual data program into the selected page automatically. The Random Column Address Change operation can be repeated multiple times within the same page. 80h Din Col. M Din Din Din 85h Din Col. M’ Page N Col. M Din Din Din 10h 70h Status 90h BUSY Col. M’ Data input Program Read & verification Selected page © 2012-2019 KIOXIA Corporation 28 2019-10-01C TC58NVG0S3HTA00 Auto Page Program Operation with Data Cache The device has an Auto Page Program with Data Cache operation enabling the high speed program operation shown below. When the block address changes, this sequence has to be started from the beginning. CLE -------- CE -------- WE ALE -------- RE -------- RY / BY I/O tDCBSYW2 80h Add Add Add Page N Data for Page N Data Cache Page Buffer 1 Din Din Din 15h 1 70h 2 2 80h Add Add Add Add Din Din Page N  1 Status Output 3 tPROG (NOTE) tDCBSYW2 Din 15h 3 70h 4 80h 4 Din Din Page N  P Status Output 5 Data for Page N  1 Add Add Add Add Din 5 70h 10h 6 Status Output Data for Page N  P Data for Page N  1 Data for Page N 3 Cell Array Page N 5 6 Page N  1 Page N  P  1 Page N  P Issuing the 15h command to the device after serial data input initiates the program operation with Data Cache. 1. 2. 3. 4. Data for Page N is input to Data Cache. Data is transferred to the Page Buffer by the 15h command. During the transfer the Ready/Busy signal outputs Busy state (tDCBSYW2). Data is programmed to the selected page while the data for Page N  1 is input to the Data Cache. By the 15h command, the data in the Data Cache is transferred to the Page Buffer after the programming of Page N is completed. The device outputs Busy state from the 15h command until the Data Cache becomes empty. The duration of this period depends on timing between the internal programming of Page N and serial data input for Page N  1 (tDCBSYW2). 5. Data for Page N  P is input to the Data Cache while the data of the Page N  P  1 is being programmed. 6. The programming with Data Cache is terminated by the 10h command. When the device becomes Ready state, it shows that the internal programming of the Page N P is completed. NOTE: Since the last page’s programming by the 10h command is initiated after the previous cache program, the tPROG during cache programming is given by the following: tPROG  tPROG for the last page  tPROG of the previous page  ( command input cycle  address input cycle  data input cycle time of the previous page) © 2012-2019 KIOXIA Corporation 29 2019-10-01C TC58NVG0S3HTA00 Pass/Fail status for each page programmed by the Auto Page Program with Data Cache operation can be detected by the Status Read operation.  I/O1: Pass/Fail of the current page program operation.  I/O2: Pass/Fail of the previous page program operation. The Pass/Fail status on I/O1 and I/O2 are valid under the following conditions.  Status on I/O1: Page Buffer Ready/Busy is Ready. The Page Buffer Ready/Busy is output on I/O6 by Status Read operation or RY / BY pin after the 10h command.  Status on I/O2: Data Cache Read/Busy is Ready. The Data Cache Ready/Busy is output on I/O7 by Status Read operation or RY / BY pin after the 15h command. -------- -------- Example) I/O2=> I/O1=> 80h…15h Invalid Invalid 70h Status Out Page 1 Page 1 Invalid 80h…15h 70h Status Out Page N  2 Invalid Page 1 Page 2 70h Status Out 80h…15h 70h Status Out Page N  1 Page 2 Page N  1 Page N Invalid Invalid 80h…10h 70h Status Out 70h Status Out Page N -------- RY / BY pin Data Cache Busy Page Buffer Busy Page 1 Page 2 Page N  1 Page N If the Page Buffer Busy returns to Ready before the next 80h command input and Status Read is done during this Ready period, the Status Read provides the Pass/Fail result for Page 2 on I/O1 and the Pass/Fail result for Page1 on I/O2. © 2012-2019 KIOXIA Corporation 30 2019-10-01C TC58NVG0S3HTA00 Page Copy (2) By using Page Copy (2), data in a page can be copied to another page after the data has been read out. When the block address changes (increments) this sequence has to be started from the beginning. Command input 00 2 Address input Data output 30 Address CA0 to CA11, PA0 to PA15 (Page N) -------- RY / BY 3 8C Col = 0 start 1 Address input Data input Address CA0 to CA11, PA0 to PA15 (Page M) 15 When changing data, changed data is input. 4 Data for Page N 3A Address CA0 to CA11, PA0 to PA15 (Page N+P1) tDCBSYW2 tR 1 Address input 00 2 Data for Page N 3 Data for Page M Data output Col = 0 start 5 tDCBSYR2 4 5 A A Data for Page N + P1 Data Cache Page Buffer Cell Array Page M Page N + P1 Page N Page Copy (2) operation is as follows. 1. Data for Page N is transferred to the Data Cache. 2. Data for Page N is read out. 3. Address for Page M is input. If the data needs to be changed, changed data is input. 4. Data Cache for Page M is transferred to the Page Buffer. 5. After the Ready state, Data for Page N  P1 is output from the Data Cache while the data of Page M is being programmed. © 2012-2019 KIOXIA Corporation 31 2019-10-01C TC58NVG0S3HTA00 Command input A 6 Address input 8C Address CA0 to CA11, PA0 to PA15 (Page M+R1) -------- RY / BY 15 Data input Address input 00 When changing data, changed data is input. 7 3A Data output Address CA0 to CA11, PA0 to PA15 (Page N+P2) Col = 0 start 8 00 Address input 3A Address CA0 to CA11, PA0 to PA15 (Page N+Pn) Data output B Col = 0 start 9 A B tDCBSYW2 6 Data for Page M  R1 7 Data for Page M  R1 tDCBSYR2 8 tDCBSYR2 9 Data for Page N  P2 Data for Page N  Pn Data Cache Page Buffer Cell Array Page M  Rn  1 Page M  R1 Page M + Rn  1 Page M Page N  Pn Page N  P1 6. 7. 8. 9. Page N + P2 Address for Page (M  R1) is input. If the data needs to be changed, changed data is input. After programming of page M is completed, Data Cache for Page M  R1 is transferred to the Page Buffer. By the 15h command, the data in the Page Buffer is programmed to Page M  R1. Data for Page N  P2 is transferred to the Data cache. The data in the Page Buffer is programmed to Page M  Rn  1. Data for Page N  Pn is transferred to the Data Cache. © 2012-2019 KIOXIA Corporation 32 2019-10-01C TC58NVG0S3HTA00 Command input B 10 Address input 8C Data input Address CA0 to CA11, PA0 to PA15 (Page M+Rn) -------- 10 70 Status output 11 B RY / BY tPROG (*1) Data Cache 10 Data for Page M  Rn 11 Data for Page M  Rn Page Buffer Page M + Rn Page M  Rn  1 10. Address for Page (M  Rn) is input. If the data needs to be changed, changed data is input. 11. By issuing the 10h command, the data in the Page Buffer is programmed to Page M  Rn. (*1) Since the last page’s programming by the 10h command is initiated after the previous cache program, the tPROG here will be expected as the following: tPROG  tPROG of the last page  tPROG of the previous page  ( command input cycle  address input cycle + data output/input cycle time of the last page) NOTE) Data input is required only if previous data output needs to be altered. If the data has to be changed, locate the desired address with the column and page address input after the 8Ch command, and change only the data that needs be changed. If the data does not have to be changed, data input cycles are not required. -------- Make sure WP is held to High when the Page Copy (2) operation is performed. Also make sure the Page Copy operation is terminated with 8Ch-10h command sequence. © 2012-2019 KIOXIA Corporation 33 2019-10-01C TC58NVG0S3HTA00 Auto Block Erase The Auto Block Erase operation starts on the rising edge of WE after the Erase Start command “D0h” which follows the Erase Setup command “60h”. This two-cycle process for Erase operations acts as an extra layer of protection from accidental erasure of data due to external noise. The device automatically executes the Erase and Verify operations. -------- 60 D0 Block Address input: 2 cycles -------- RY / BY © 2012-2019 KIOXIA Corporation 70 Status Read command Erase Start command I/O Pass Fail Busy 34 2019-10-01C TC58NVG0S3HTA00 ID Read The device contains ID codes which can be used to identify the device type, the manufacturer, and features of the device. The ID codes can be read out under the following timing conditions: CLE tCEA -------- CE -------- WE tAR ALE -------- RE I/O tREA 90h 00h 98h F1h See table 5 ID Read command Address 00 Maker code Device code 3rd Data See table 5 See table 5 4th Data 5th Data Table 5. Code table Description I/O8 I/O7 I/O6 I/O5 I/O4 I/O3 I/O2 I/O1 Hex Data 1st Data Maker Code 1 0 0 1 1 0 0 0 98h 2nd Data Device Code 1 1 1 1 0 0 0 1 F1h 3rd Data Chip Number, Cell Type 1 0 0 0 0 0 0 0 80h 4th Data Page Size, Block Size, 0 0 0 1 0 1 0 1 15h 5th Data District Number 0 1 1 1 0 0 1 0 72h 3rd Data Description Internal Chip Number Cell Type I/O8 I/O6 I/O5 I/O4 I/O3 1 2 4 8 0 0 1 1 2 level cell 4 level cell 8 level cell 16 level cell Reserved © 2012-2019 KIOXIA Corporation I/O7 1 35 0 0 I/O2 I/O1 0 0 1 1 0 1 0 1 0 1 0 1 0 2019-10-01C TC58NVG0S3HTA00 4th Data Description Page Size (without redundant area) 1 KB 2 KB 4 KB 8 KB Block Size (without redundant area) 64 KB 128 KB 256 KB 512 KB I/O Width I/O8 I/O7 I/O6 0 0 1 1 x8 x16 I/O5 I/O4 I/O3 I/O2 I/O1 0 0 1 1 0 1 0 1 I/O2 I/O1 1 0 0 1 0 1 0 1 Reserved 0 0 1 I/O4 I/O3 0 0 1 1 0 1 0 1 5th Data Description District Number I/O8 I/O6 I/O5 1 District 2 Districts 4 Districts 8 Districts Reserved © 2012-2019 KIOXIA Corporation I/O7 0 36 1 1 1 2019-10-01C TC58NVG0S3HTA00 Status Read The device automatically implements the execution and verification of the Program and Erase operations. The Status Read function is used to monitor the Ready/Busy status of the device, determine the result (pass /fail) of a Program or Erase operation, and determine whether the device is in Protect mode. The device status is output via the I/O port using RE after a “70h” command input. The Status Read command can also be used during a Read operation to monitor the Ready/Busy status. The resulting information is outlined in Table 6. -------- Table 6. Status output table Definition Page Program Block Erase Cache Program Read Cache Read Pass/Fail Pass/Fail Invalid Invalid Pass/Fail Invalid I/O1 Chip Status1 Pass: 0 Fail: 1 I/O2 Chip Status 2 Pass: 0 Fail: 1 I/O3 Not Used 0 0 0 I/O4 Not Used 0 0 0 I/O5 Not Used 0 0 0 I/O6 Page Buffer Ready/Busy Ready: 1 Busy: 0 Ready/Busy Ready/Busy Ready/Busy I/O7 Data Cache Ready/Busy Ready: 1 Busy: 0 Ready/Busy Ready/Busy Ready/Busy I/O8 Write Protect Not Protected :1 Not Protected/Protected Not Protected/Protected Not Protected/Protected Protected: 0 The Pass/Fail status on I/O1 and I/O2 is only valid during a Program/Erase operation when the device is in the Ready state. Chip Status 1: During an Auto Page Program or Auto Block Erase operation this bit indicates the Pass/Fail result. During an Auto Page Program with Data Cache operation, this bit shows the Pass/Fail results of the current page program operation and therefore this bit is only valid when I/O6 shows the Ready state. Chip Status 2: This bit shows the Pass/Fail result of the previous page program operation during Auto Page Program with Data Cache. This status is valid when I/O7 shows the Ready State. The status output on I/O6 is the same as that of I/O7 if the command input just before 70h is not 15h or 31h. © 2012-2019 KIOXIA Corporation 37 2019-10-01C TC58NVG0S3HTA00 An application example with multiple devices is shown in the figure below. -------- -------- CE1 CE2 -------- -------- CE3 CEN -------- CEN+1 CLE ALE Device 1 -------- WE -------- Device 2 Device 3 Device N Device N1 RE I/O1 to I/O8 -------RY / BY -------- Busy RY / BY CLE ALE -------- WE -------- CE1 -------- CEN -------- RE I/O 70h 70h Status on Device 1 Status on Device N System Design Note: If the RY / BY pin signals from multiple devices are wired together as shown in the diagram, the Status Read function can be used to determine the status of each individual device. -------- Reset The Reset mode stops all operations. For example, in case of a Program or Erase operation, the internally generated voltage is discharged to 0 volts and the device enters the Wait state. Reset during a Cache Program/Page Copy may not just stop the most recent page program but it may also stop the previous program at a page depending on when the FF reset is input. The response to a “FFh” Reset command input during the various device operations is as follows: When a Reset (FFh) command is input during Program operation 80 10 FF 00 Internal generated voltage -------- RY / BY tRST (max 10 s) © 2012-2019 KIOXIA Corporation 38 2019-10-01C TC58NVG0S3HTA00 When a Reset (FFh) command is input during Erase operation D0 FF 00 Internal generated voltage -------- RY / BY tRST (max 500 s) When a Reset (FFh) command is input during Read operation 00 30 FF 00 -------- RY / BY tRST (max 5 s) When a Reset (FFh) command is input during Ready FF 00 -------- RY / BY tRST (max 5 s) When a Status Read command (70h) is input after a Reset FF 70 I/O status : Pass/Fail  Pass : Ready/Busy  Ready -------- RY / BY When two or more Reset commands are input in succession 10 (1) (2) (3) FF FF FF -------- RY / BY The second © 2012-2019 KIOXIA Corporation FF command is invalid, but the third 39 FF command is valid. 2019-10-01C TC58NVG0S3HTA00 APPLICATION NOTES AND COMMENTS (1) Power-on/off sequence The timing sequence shown in the figure below is necessary for the power-on/off sequence. The device’s internal initialization starts after the power supply reaches an appropriate level during the power-on sequence. During the initialization the device Ready/Busy signal indicates the Busy state as shown in the figure below. In this time period, the acceptable commands are FFh or 70h. The WP signal is useful for protecting against data corruption at power-on/off. -------- VCC 2.7 V 2.5 V -------- ≥ 1ms 0.5 V 0 V -------- 2.7 V 2.5 V 0.5 V Don’t care Don’t care Don’t care -------- CE, WE, RE CLE, ALE VIH VIL -------- WP VIL 1 ms max 1 ms max Operation 100 s max 100 s max Invalid Invalid Invalid -------- RY / BY (2) Power-on Reset The following sequence is necessary because some input signals may not be stable at power-on. Power on FF Reset (3) Prohibition of unspecified commands The operation commands are listed in Table 3. Input of a command other than those specified in Table 3 is prohibited. Stored data may be corrupted if an unknown command is entered during the command cycle. (4) Restriction of commands while in the Busy state During the Busy state, do not input any command except 70h and FFh. © 2012-2019 KIOXIA Corporation 40 2019-10-01C TC58NVG0S3HTA00 (5) Acceptable commands after Serial Data Input command “80h” Once the Serial Data Input command “80h” has been input, do not input any command other than the Column Address Change in Serial Data Input command “85h”, Auto Page Program command “10h”, Auto Page Program with Data Cache Command “15h”, or the Reset command “FFh”. 80 FF -------- WE Address input -------- RY / BY If a command other than “85h”, “10h”, “15h” or “FFh” is input, the Program operation is not performed and the device operation is set to the mode that the input command specifies. 80 XX 10 Mode specified by the command. Programming cannot be executed. Command other than “85h”, “10h”, “15h” or “FFh” (6) Addressing for program operation Within a block, the pages must be programmed consecutively from the LSB (least significant bit) page of the block to the MSB (most significant bit) page of the block. Random page address programming is prohibited. From the LSB page to MSB page DATA IN: Data (1) Data (64) e.g.) Random page program (Prohibition) DATA IN: Data (1) Data register Data (64) Data register Page 0 (1) Page 0 (2) Page 1 (2) Page 1 (32) Page 2 (3) Page 2 (3) Page 31 (32) Page 31 (1) Page 63 (64) Page 63 (64) © 2012-2019 KIOXIA Corporation 41 2019-10-01C TC58NVG0S3HTA00 (7) Status Read during a Read operation 00 Command 00 30 [A] 70 -------- CE -------- WE -------- RY / BY -------- RE Address N Status Read command input Status output Status Read The device status can be read out by inputting the Status Read command “70h” in Read mode. Once the device has been set to Status Read mode by a “70h” command, the device will not return to Read mode unless the Read command “00h” is input during [A]. If the Read command “00h” is input during [A], Status Read mode is reset, and the device returns to Read mode. In this case, data output starts automatically from address N and address input is unnecessary (8) Auto programming failure 80 10 I/O 70 Fail 80 10 Address Data N input Address Data M input 80 10 If the programming result for page address M is Fail, do not try to program the page to address N in another block without the data input sequence. Because the previous input data has been lost in the Data Cache, the same input sequence of 80h command, address and data have to be executed. M N (9) -------- -------- RY / BY: termination for the Ready/Busy pin (RY / BY) -------- A pull-up resistor needs to be used for termination because the RY / BY buffer consists of an open drain circuit. VCC Ready VCC VCC R Device Busy -------- RY / BY tr tf CL VSS 1.5 s tr This data may vary from device to device. We recommend to use this data as a reference for selecting a resistor value. tf 1.0 s 15 ns 10 ns tf tr 0.5 s 0 VCC  3.3 V Ta  25°C CL  50 pF 5 ns 1 K 2 K 3 K 4 K R © 2012-2019 KIOXIA Corporation 42 2019-10-01C TC58NVG0S3HTA00 (10) -------- Note regarding the WP signal -------- The Erase and Program operations are automatically reset when WP goes Low. The operations are enabled and disabled as follows: Enable Programming -------- WE DIN 80 10 -------- WP -------- RY / BY tWW (100 ns MIN) Disable Programming -------- WE DIN 80 10 -------- WP -------- RY / BY tWW (100 ns MIN) Enable Erasing -------- WE DIN 60 D0 -------- WP -------- RY / BY tWW (100 ns MIN) Disable Erasing -------- WE DIN 60 D0 -------- WP -------- RY / BY tWW (100 ns MIN) © 2012-2019 KIOXIA Corporation 43 2019-10-01C TC58NVG0S3HTA00 (11) When five address cycles are input Although the device may read in a fifth address, it is ignored inside the chip. Read operation CLE -------- CE -------- WE ALE I/O 00h 30h Ignored Address input -------- RY / BY Program operation CLE -------- CE -------- WE ALE I/O 80h Address input © 2012-2019 KIOXIA Corporation Ignored 44 Data input 2019-10-01C TC58NVG0S3HTA00 (12) Several programming cycles on the same page (Partial Page Program) Each segment can be programmed individually as follows: 1st programming 2nd programming All 1 s 4th programming Result All 1 s Data Pattern 1 Data Pattern 2 All 1 s All 1 s Data Pattern 1 Data Pattern 2 Data Pattern 4 Data Pattern 4 Number of partial program cycles in the same page must not exceed 4. © 2012-2019 KIOXIA Corporation 45 2019-10-01C TC58NVG0S3HTA00 (13) Invalid blocks (bad blocks) The device occasionally contains unusable blocks. Therefore, the following issues must be recognized: Bad Block Bad Block Please do not perform an erase operation to bad blocks. It may be impossible to recover the bad block’s information if the information is erased. Check if the device has any bad blocks after installation into the system. Refer to the test flow for bad block detection. Bad blocks which are detected by the test flow must be managed as unusable blocks by the system. A bad block does not affect the performance of good blocks because it is isolated from the bit lines by select gates. The number of valid blocks over the device lifetime is as follows: Valid (Good) Block Number MIN TYP. MAX UNIT 1004  1024 Blocks Bad Block Test Flow Regarding invalid blocks, bad block mark is in whole pages. Please read one column of any page in each block. If the data of the column is 00 (Hex), define the block as a bad block. Start Block No  1 Fail Read Check Pass Block No.  Block No.  1 No Bad Block *1 Last Block Yes END *1: No erase operation is allowed to detected bad blocks © 2012-2019 KIOXIA Corporation 46 2019-10-01C TC58NVG0S3HTA00 (14) Failure phenomena for Program, Erase and Read operations The device may fail during a Program or Erase operation. The following possible failure modes should be considered when implementing a highly reliable system. FAILURE MODE DETECTION AND COUNTERMEASURE SEQUENCE Block Erase Failure Status Read after Erase  Block Replacement Page Programming Failure Status Read after Program  Block Replacement Read Bit Error Check the ECC status at host controller and take appropriate measures such as rewrite in consideration of Wear Leveling before uncorrectable ECC error occurs.  ECC: Error Correction Code. 8 bit correction per 512 Bytes is necessary.  Block Replacement Program Error occurs Buffer memory Block A When an error happens in Block A, try to reprogram the data into another Block (Block B) by loading from an external buffer. Then, prevent further system accesses to Block A (by creating a bad block table or by using another appropriate scheme). Block B Erase When an error occurs during an Erase operation, prevent future accesses to this bad block (by creating a table within the system or by using another appropriate scheme). (15) Do not turn off the power before the Write/Erase operation is complete. Avoid using the device when the battery is low. Power shortage and/or power failure before the Write/Erase operation is complete will cause loss of data and/or damage to data. (16) Please refer to KIOXIA soldering temperature profile for details. © 2012-2019 KIOXIA Corporation 47 2019-10-01C TC58NVG0S3HTA00 (17) Reliability Guidance This reliability guidance is intended to provide some guidance related to using NAND Flash with 8 bit ECC for each 512 bytes. NAND Flash memory cells are gradually worn out and the reliability level of memory cells is degraded by repeating Write and Erase operation of ‘0’ data in each block. For detailed reliability data, please refer to the reliability note for each product. Although random bit errors may occur during use, it does not necessarily mean that a block is bad. Generally, a block should be marked as bad when a program status failure or erase status failure is detected. The reliability of NAND Flash memory cells during the actual usage on system level depends on the usage and environmental conditions. KIOXIA adopts the checker pattern data, 0x55 & 0xAA for alternative Write/Erase cycles, for the reliability test. Write/Erase Endurance Write/Erase endurance failures may occur in a cell, page, or block, and are detected by doing a Status Read after either an Auto Page Program or Auto Block Erase operation. The cumulative bad block count will increase along with the number of Write/Erase cycles. Data Retention The data in NAND Flash memory may change after a certain amount of storage time. This is due to charge loss or charge gain. After block erasure and reprogramming, the block may become usable again. Data Retention time is generally influenced by the number of Write/Erase cycles and temperature. Data Retention [Years] Here is a graph plotting the relationship between Write/Erase Endurance and Data Retention. Write/Erase Endurance [Cycles] Read Disturb A Read operation may disturb the data in NAND Flash memory. The data may change due to charge gain. Usually, bit errors occur on other pages in the block, not the page being read. After a large number of read cycles (between block erases), a tiny charge may build up and can cause a cell to be soft programmed to another state. After block erasure and reprogramming, the block may become usable again. Read Disturb capability is generally influenced by the number of Write/Erase cycles. © 2012-2019 KIOXIA Corporation 48 2019-10-01C TC58NVG0S3HTA00 (18) NAND Management NAND Management such as Bad Block Management, ECC treatment and Wear Leveling, but not limited to these treatments, should be recognized and incorporated in the system design. ECC treatment for read data is mandatory against random bit errors, and host should monitor ECC status to take appropriate measures such as rewrite in consideration of Wear Leveling before uncorrectable Error occurs. To realize robust system design generally it is necessary to prevent the concentration of Write/Erase cycles at the specific blocks by adopting Wear Leveling which manages to distribute Write/Erase cycles evenly among NAND Flash memory. And also it is necessary to avoid dummy ‘0’ data write, e.g. ‘0’ data padding, which accelerate block endurance degradation. Continuous Write and Erase cycling with high percentage of '0' bits in data pattern can lead to faster block endurance degradation. Example: NAND cell array with ‘0’ data padding 0 : “0” data cell 1 : “1” data cell 0 0 1 1 0 1 0 1 1 1 0 1 0 0 1 0 0 0 1 0 1 1 0 1 0 1 0 0 1 0 1 0 User data area 1 1 0 1 0 1 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 0 1 0 0 1 0 0 0 1 0 1 1 0 1 0 1 0 0 1 0 1 0 1 1 0 1 0 1 0 1 User data area Remaining area (a) Accelerate block endurance degradation by fixed dummy “0” data write © 2012-2019 KIOXIA Corporation 0 0 1 1 0 1 0 1 49 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 Remaining area (b) “1” data for Remaining area (Recommended) 2019-10-01C TC58NVG0S3HTA00 Package Dimensions Weight: 0.53g (typ.) © 2012-2019 KIOXIA Corporation 50 2019-10-01C TC58NVG0S3HTA00 Revision History Date 2012-02-17 2012-07-06 Rev. 0.10 0.20 2012-08-31 2018-12-14 1.00 1.10 2019-10-01 2.00 © 2012-2019 KIOXIA Corporation Description Initial Release Described ECC bit number: 8, Changed tBERASE, Revised ID Table, Corrected typo. Deleted TENTATIVE/TBD notation. Corrected typo, and described some notes. Removed Soldering Temperature and added note in ABSOLUTE MAXIMUM RATINGS, and added comments in APPLICATION NOTES AND COMMENTS. Removed the word "Recommended" from the title of DC OPERATING CONDITIONS and AC CHARACTERISTICS AND OPERATING CONDITIONS. Renewed Reliability Guidance and added NAND Management. Changed “RESTRICTIONS ON PRODUCT USE”. Rebrand as "KIOXIA" 51 2019-10-01C TC58NVG0S3HTA00 RESTRICTIONS ON PRODUCT USE KIOXIA Corporation and its subsidiaries and affiliates are collectively referred to as “KIOXIA”. Hardware, software and systems described in this document are collectively referred to as “Product”.  KIOXIA reserves the right to make changes to the information in this document and related Product without notice.  This document and any information herein may not be reproduced without prior written permission from KIOXIA. Even with KIOXIA's written permission, reproduction is permissible only if reproduction is without alteration/omission.  Though KIOXIA works continually to improve Product's quality and reliability, Product can malfunction or fail. Customers are responsible for complying with safety standards and for providing adequate designs and safeguards for their hardware, software and systems which minimize risk and avoid situations in which a malfunction or failure of Product could cause loss of human life, bodily injury or damage to property, including data loss or corruption. Before customers use the Product, create designs including the Product, or incorporate the Product into their own applications, customers must also refer to and comply with (a) the latest versions of all relevant KIOXIA information, including without limitation, this document, the specifications, the data sheets and application notes for Product and the precautions and conditions set forth in the "Reliability Information" in KIOXIA Corporation’s website and (b) the instructions for the application with which the Product will be used with or for. Customers are solely responsible for all aspects of their own product design or applications, including but not limited to (a) determining the appropriateness of the use of this Product in such design or applications; (b) evaluating and determining the applicability of any information contained in this document, or in charts, diagrams, programs, algorithms, sample application circuits, or any other referenced documents; and (c) validating all operating parameters for such designs and applications. KIOXIA ASSUMES NO LIABILITY FOR CUSTOMERS' PRODUCT DESIGN OR APPLICATIONS.  PRODUCT IS NEITHER INTENDED NOR WARRANTED FOR USE IN EQUIPMENTS OR SYSTEMS THAT REQUIRE EXTRAORDINARILY HIGH LEVELS OF QUALITY AND/OR RELIABILITY, AND/OR A MALFUNCTION OR FAILURE OF WHICH MAY CAUSE LOSS OF HUMAN LIFE, BODILY INJURY, SERIOUS PROPERTY DAMAGE AND/OR SERIOUS PUBLIC IMPACT ("UNINTENDED USE"). Except for specific applications as expressly stated in this document, Unintended Use includes, without limitation, equipment used in nuclear facilities, equipment used in the aerospace industry, lifesaving and/or life supporting medical equipment, equipment used for automobiles, trains, ships and other transportation, traffic signaling equipment, equipment used to control combustions or explosions, safety devices, elevators and escalators, and devices related to power plant. IF YOU USE PRODUCT FOR UNINTENDED USE, KIOXIA ASSUMES NO LIABILITY FOR PRODUCT. For details, please contact your KIOXIA sales representative or contact us via our website.  Do not disassemble, analyze, reverse-engineer, alter, modify, translate or copy Product, whether in whole or in part.  Product shall not be used for or incorporated into any products or systems whose manufacture, use, or sale is prohibited under any applicable laws or regulations.  The information contained herein is presented only as guidance for Product use. No responsibility is assumed by KIOXIA for any infringement of patents or any other intellectual property rights of third parties that may result from the use of Product. No license to any intellectual property right is granted by this document, whether express or implied, by estoppel or otherwise.  ABSENT A WRITTEN SIGNED AGREEMENT, EXCEPT AS PROVIDED IN THE RELEVANT TERMS AND CONDITIONS OF SALE FOR PRODUCT, AND TO THE MAXIMUM EXTENT ALLOWABLE BY LAW, KIOXIA (1) ASSUMES NO LIABILITY WHATSOEVER, INCLUDING WITHOUT LIMITATION, INDIRECT, CONSEQUENTIAL, SPECIAL, OR INCIDENTAL DAMAGES OR LOSS, INCLUDING WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF OPPORTUNITIES, BUSINESS INTERRUPTION AND LOSS OF DATA, AND (2) DISCLAIMS ANY AND ALL EXPRESS OR IMPLIED WARRANTIES AND CONDITIONS RELATED TO SALE, USE OF PRODUCT, OR INFORMATION, INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, ACCURACY OF INFORMATION, OR NONINFRINGEMENT.  Do not use or otherwise make available Product or related software or technology for any military purposes, including without limitation, for the design, development, use, stockpiling or manufacturing of nuclear, chemical, or biological weapons or missile technology products (mass destruction weapons). Product and related software and technology may be controlled under the applicable export laws and regulations including, without limitation, the Japanese Foreign Exchange and Foreign Trade Law and the U.S. Export Administration Regulations. Export and re-export of Product or related software or technology are strictly prohibited except in compliance with all applicable export laws and regulations.  Please contact your KIOXIA sales representative for details as to environmental matters such as the RoHS compatibility of Product. Please use Product in compliance with all applicable laws and regulations that regulate the inclusion or use of controlled substances, including without limitation, the EU RoHS Directive. KIOXIA ASSUMES NO LIABILITY FOR DAMAGES OR LOSSES OCCURRING AS A RESULT OF NONCOMPLIANCE WITH APPLICABLE LAWS AND REGULATIONS. © 2012-2019 KIOXIA Corporation 52 2019-10-01C
