旭程电子(深圳)有限公司
XC Electronics(ShenZhen)Corp.,Ltd.

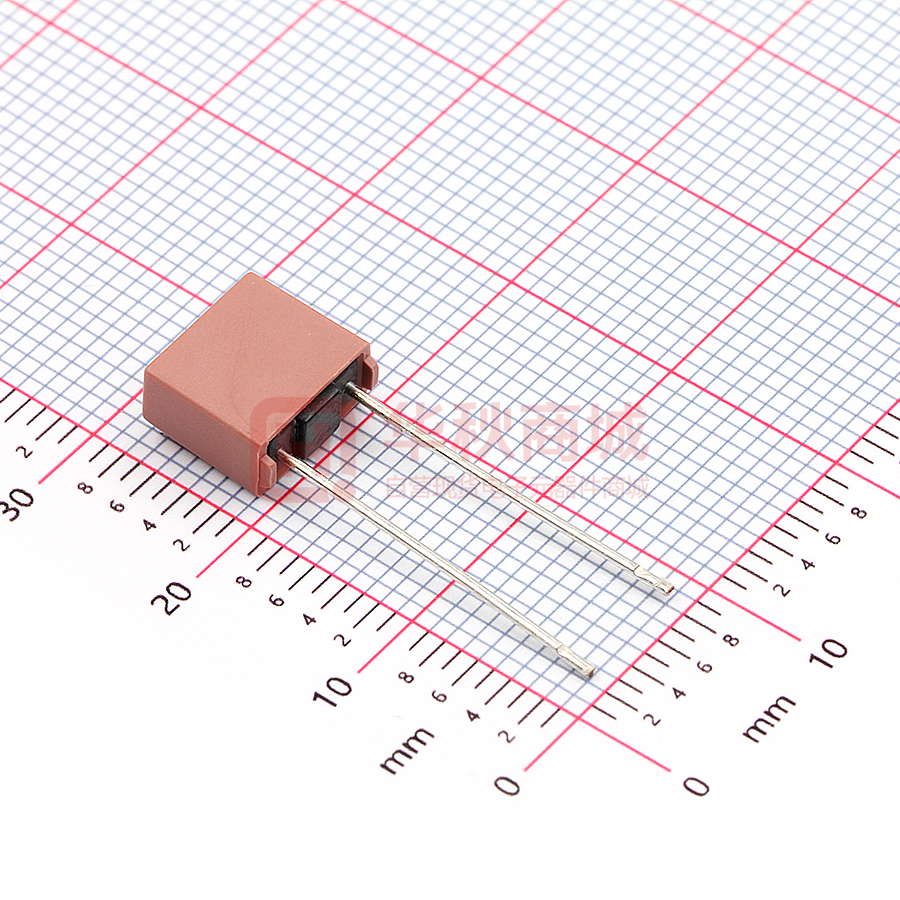

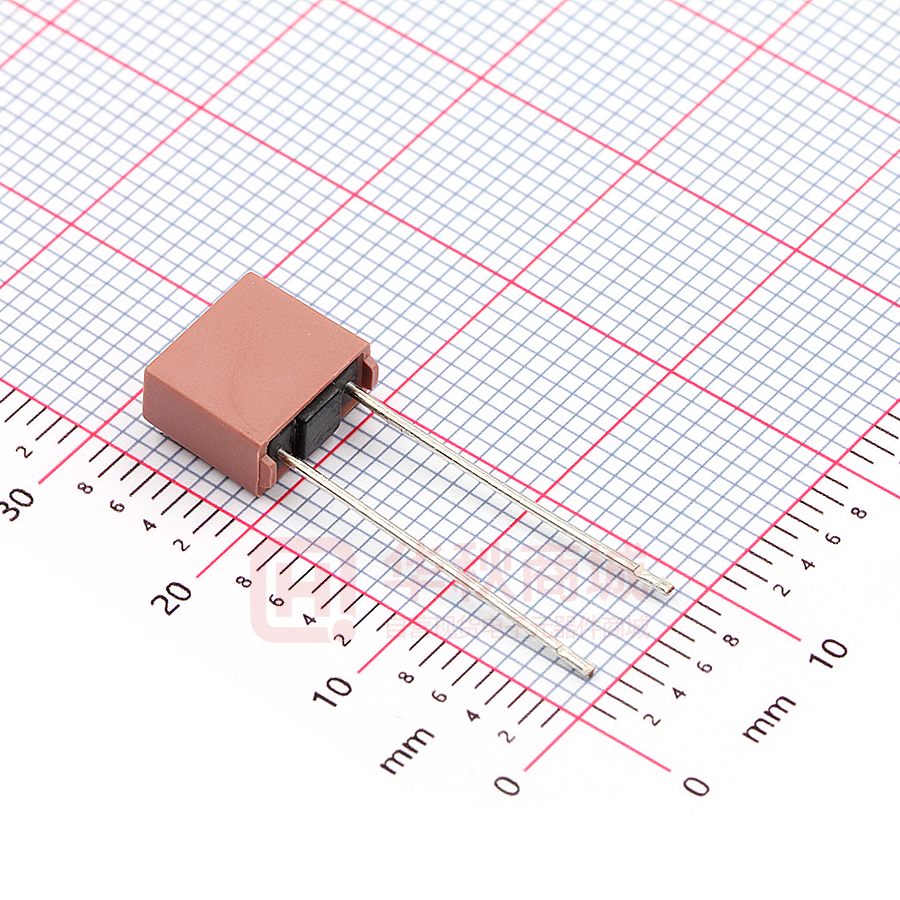

5TE 产 品 规 格 书
5TE Fuses Specification
1.适用范围(Available range):
本保险丝适用于保护家用电器,电子仪器,电源供应器、显示器等。
For protecting instruments, power supply devices and telephone sets etc.
2.型号定义解释(Model meaning)
:
5TE:慢断系列产品 (5TE:Slow Blow Fuses)
3.相关标准(Safety Standards):GB9364 IEC60127
取得认证
Approved file No:
PS
E
CQC
V E
JET
4.尺寸与结构(Size and Structure):
4.1 外形、结构及尺寸(The out view,construction and dimensions):
参考下图 Refer to the following figure.
Φ4.0±0.2
18+1.0
-0.5
胶带
纸带
35±2
5TE产品
12.7±0.2
页次 Page 1 of 8
XCRD-B(Ver.2.0)
旭程电子(深圳)有限公司
XC Electronics(ShenZhen)Corp.,Ltd.
编号
部件
材料
备注
No.
Part Name
Material
Remarks
内芯
塑料
Base
Plastic
外壳
塑料
Cap
Plastic
引脚
镀锡铜线
Lead Wire
stannum plated copper
熔丝
合金
Fuse Element
Alloy
焊锡
锡线(Sn99.3%Cu0.7%)
Solder
Solder wire( Sn99.3%Cu0.7%)
1
○
2
○
3
○
4
○
5
○
RoHS
4.2 型号及标示 (Catalogue No.,and indication)
V
E
C Q C
P
E
S
J E T
5TE T125mA(125mA-6.3A)/250V
型号
额定电压/电流
商标.品名.认证
认证号
Catalogue No.
Rated Voltage/Current
Trademark.Type.Approved mark
Approval No.
5TE series
5TE T125mA(125mA-6.3A)/250V
V E
CQC
P S
E
JET
页次 Page 2 of 8
XCRD-B(Ver.2.0)
旭程电子(深圳)有限公司
XC Electronics(ShenZhen)Corp.,Ltd.
4.3 外壳 (Cap)
外壳无破裂、缺损、脏污等现象。
The cap shall have no defects such as crack, injury and contamination.
4.4 引脚(Lead Wire)
保险管引脚应固定牢固,作如下测试时,保险管引脚不应有松动或损坏:
The fuse-links lead should be firmly attached, At the conclusion of testing, the
fuse-links lead shall remain firmly attached:
1) 拉力测试:固定保险管本体,对引脚施加 10N 的轴向拉力 1min。
Tensile: the force applied shall be 10N
2) 推力测试:固定保险管本体,对引脚施加 2N 的轴向推力 1min。
Thrust: the force applied shall be 2N
3) 弯折测试:距离内芯约 2mm 的地方将引脚弯折 90°一次,并且施加 5N 的
拉力。
Bending: the force applied shall be 5N and the number of bends shall be one。
4.5 外观(Appearances)
1)外壳不能有破裂。
There shall no fragmentation.
2)不能有明显脏污。
Any of remarkable blotch.
3)标识清晰。
Illegibility of marking.
5.电气特性(Electrical performance)
5.1 测试条件(Testing Ambient)
测试条件都应在下列大气条件下进行:
All tests should be carried out under the following conditions:
-温度(Surrounding temperature)
:15℃~35℃;
页次 Page 3 of 8
XCRD-B(Ver.2.0)
旭程电子(深圳)有限公司
XC Electronics(ShenZhen)Corp.,Ltd.
-相对湿度(Relative humidity)
:45%~75%;
-大气压力(Atmosphere pressure)
:8.6x104 Pa~1.06x10
5
5.2 时间/电流特性(Time-Current Characteristic)
电流(In ratio)
型号类别 (Item NO.)
150%
210%
275%
5TE 系列
>1h
