MB1S THRU MB10S
0.8A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
FEATURES:
PINNING
Glass Passivated Chip Junction
Reverse Voltage - 100 to 1000 V
Forward Current - 0.8 A
PIN
DESCRIPTION
1
Input Pin(~)
2
Input Pin(~)
High Surge Current Capability
3
Output Anode(+)
Designed for Surface Mount Application
4
Output Cathode(-)
MECHANICAL DATA
• Case: MBS
• Terminals: Solderable per MIL-STD-750, Method 2026
• A pprox. Weight: 100mg /0.0035oz
3
4
2
1

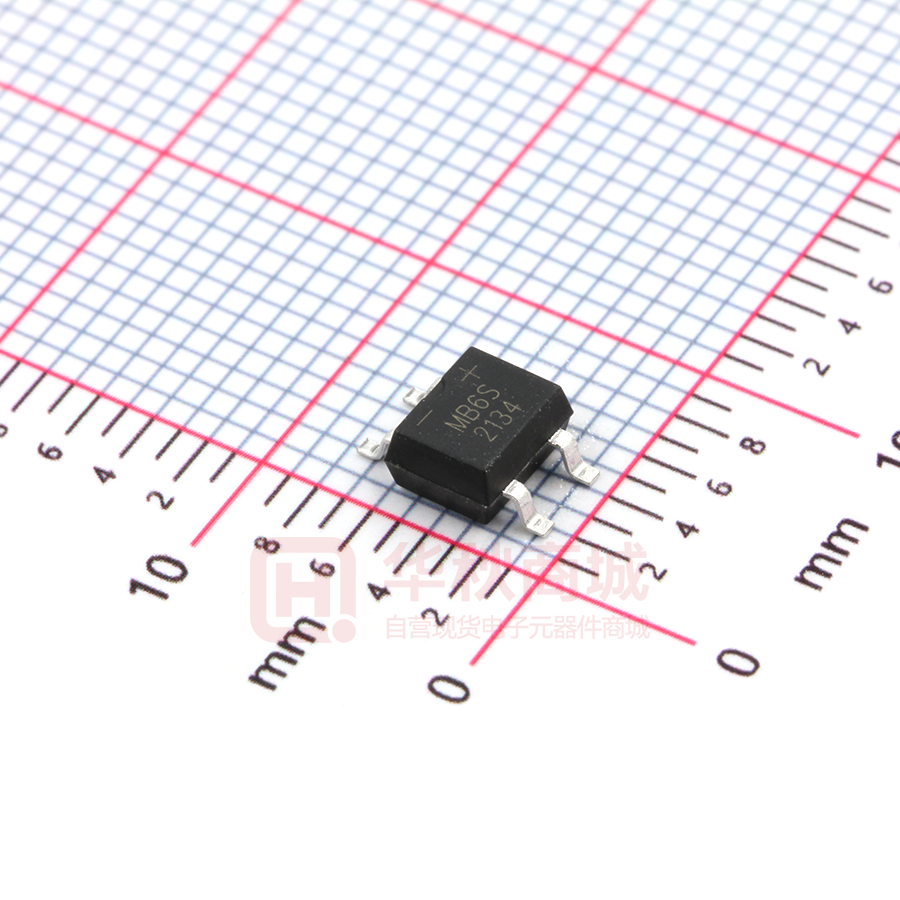

MBS Package
Maximum Ratings and Electrical characteristics
Ratings at 25 °C ambient temperature unless otherwise specified.
Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %.
Symbols
MB1S
MB2S
MB4S
MB6S
MB8S
MB10S
Units
Maximum Repetitive Peak Reverse Voltage
V RRM
100
200
400
600
800
1000
V
Maximum RMS voltage
V RMS
70
140
280
420
560
700
V
Maximum DC Blocking Voltage
V DC
100
200
400
600
800
1000
V
Parameter
Average Rectified Output Current
at T c = 125 °C
Peak Forward Surge Current 8.3 ms Single Half
Sine Wave Superimposed on Rated Load
(JEDEC Method)
Maximum Forward Voltage
Maximum DC Reverse Current
at Rated DC Blocking Voltage
at 0.4 A
at 0.8 A
@ T A =25 °C
@ T A =125 °C
Typical Junction Capacitance(Note1)
Typical Thermal Resistance(Note2)
Operating and Storage Temperature Range
IO
0.8
A
I FSM
30
A
VF
1.0
1.1
V
IR
5
40
μA
Cj
13
pF
RθJA
RθJC
90
32
°C/W
T j , T stg
-55 ~ +150
°C
Note: 1. Measured at 1MHz and applied reverse voltage of 4 V D.C.
2. Mounted on glass epoxy PC board with 4×1.5"×1.5"(3.81×3.81 cm)copper pad.
2016.01
MBS-A-MB1S~MB10S-0.8A1KV
Page 1 of 3
MB1S THRU MB10S
Fig.2 Typical Reverse Characteristics
1.2
1.0
0.8
0.6
0.4
0.2
Resistive or Inductive Load
0.0
25
50
75
100
125
150
175
Instaneous Reverse Current(μ A)
Average Rectified Output Current (A)
Fig.1 Average Rectified Output Current
Derating Curve
100
T J =125°C
10
1.0
T J =25°C
0.1
00
T J =25°C
1.0
0.1
pulse with 300μs
1% duty cycle
0.01
0.0
40
60
80
100
120
140
Fig.4 Typical Junction Capacitance
Junction Capacitance ( pF)
Instaneous Forward Current (A)
Fig.3 Typical Instaneous Forward
Characteristics
10
20
percent of Rated Peak Reverse Voltage (%)
Case Temperature (°C)
100
T J =25°C
10
1
0.5
1.0
1.5
2.0
0.1
1.0
10
100
Reverse Voltage (V)
Instaneous Forward Voltage (V)
Peak Forward Surage Current (A)
Fig.5 Maximum Non-Repetitive Peak
Forward Surage Current
40
30
20
10
8.3 ms Single Half Sine Wave
(JEDEC Method)
00
1
10
100
Number of Cycles
2016.01
www.sdjingdao.com
Page 2 of 3
MB1S THRU MB10S
PACKAGE OUTLINE
Plastic surface mounted package; 4 leads
MBS
A
∠ALL ROUND
C
a
L1
L
d
HE
e
D
e
E
MBS mechanical data
A
C
D
E
HE
d
e
L
L1
a
max
2.6
0.22
5.0
4.1
7.0
2.7
0.7
1.7
1.1
0.2
min
2.2
0.15
4.5
3.6
6.4
2.3
0.5
1.3
0.5
max
102
8.7
197
161
276
106
28
67
43
min
94
5.9
177
142
252
91
20
51
20
UNIT
∠
mm
7°
8
mil
Marking
Type number
6.0
236
2.5
100
0.9
35
2.4
94
2016.01
mm
Unit :
(mil)
JD601144B2
Marking code
MB1S
MB1S
MB2S
MB2S
MB4S
MB4S
MB6S
MB6S
MB8S
MB8S
MB10S
MB10S
Page 3 of 3
