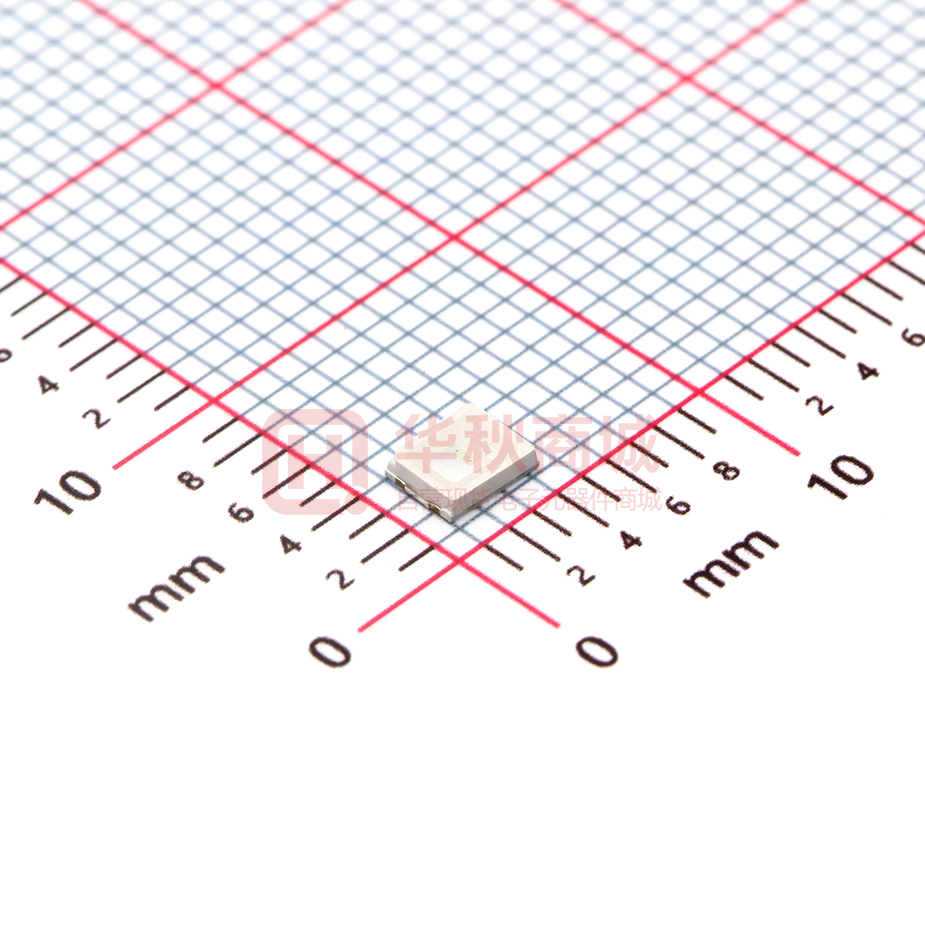

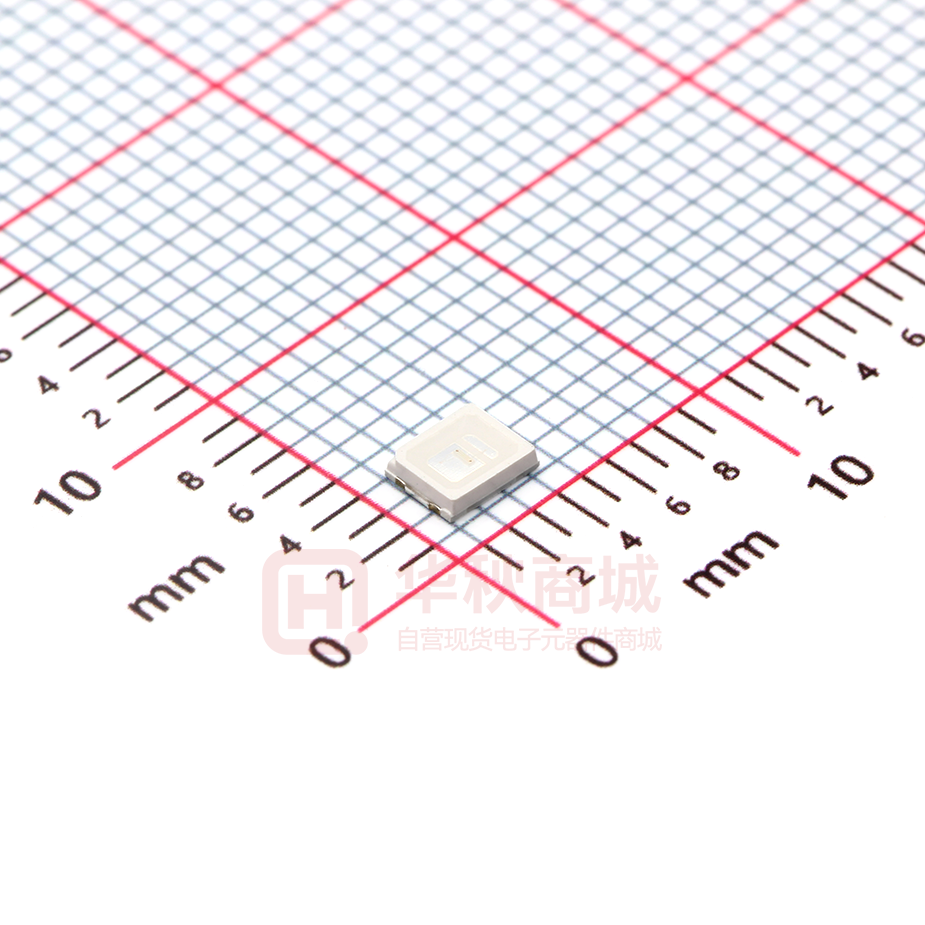

XL-2835UBC-05
Technical Data Sheet
2835蓝0.5W
haracteristics
* 外观尺寸(L/W/H):2.8*3.5*0.8mm
Qutline Dimensions (L / w / h): 2.8x3.5x0.8mm
* 发光颜色及胶体: 高亮度蓝色/白色胶体
Luminous color and colloid: high brightness Blue / White colloid
* 环保工艺符合ROHS要求
*
Environmental protection products Complied With ROHS Directive
EIA规范标准包装
EIA standard packaging
* 适用于SMT贴片自动化生产
Suitable for SMT automatic production
* 适用于红外线回流焊
Suitable for infrared reflow soldering
roduct application
* 医疗设备: 内窥镜、血氧仪
Medical equipment: endoscope、oximeter
* 汽车电子: 背光按键灯、指示灯
Automotive electronics: backlight key light 、 indicator light
* 工业产品: 电子仪表盘、工业设备
Industrial products: electronic instrument panel、 industrial equipment
* 智能家居: 白色家电、数码管LED
Smart home: white appliances, nixie tube LED
* 通讯产品: 手机按键灯、路由器、电视盒
Communication products: mobile phone button lamp, router
1
Catalogue
Electrical Characteristics.........................................................................................................................3
Typical Characteristic Curves.................................................................................................................4
Reliability Test Items And Conditions.....................................................................................................5
Outline Dimensions...................................................................................................................................6
Packaging.....................................................................................................................................................7
Guideline for Soldering............................................................................................................................ 9
Precautions.................................................................................................................................................11
2
Electrical Characteristics
最大绝对额定值
Absolute Maximum Ratings Ta=25℃
参数
Parameter
符号
Symbol
值
Value
单位
Unit
功率耗损Power dissipation
Pd
480
mW
正向电流Forward current
If
150
mA
反向电压Reverse voltage
Vr
5
V
工作温度范围Operating temperature range
Top
-40 ~+85
℃
贮存温度范围Storage temperature range
Tstg
-40~+100
℃
最大脉冲电流Peak pulsing current
Ifp
225
mA
抗静电能力Electrostatic Discharge
ESD
2000(HBM)
V
焊接温度Soldering temperature
Tsol
230~240,≤10s
℃
IFP 条件:脉冲持续时间≦10msec,占空因素≦1/10
NOTE: IFP Conditions: Pulse Width≦10msec. and Duty cycle≦1/10.
电性光电特性
Electrical-optical characteristics at Ta=25℃
项目
Item
测试条件
Test Condition
符号
Symbol
最小值
Min
典型值
Typ
最大值
Max
单位
Unit
正向电压Forward voltage
If=150mA
Vf
3.0
--
3.4
V
光通量 Luminous intensity
If=150mA
Iv
2300
--
3400
MCD
主波长 Main wavelength
If=150mA
λd
457
--
465
nm
半功率角Viewing angle at 50% Iv
If=150mA
2 θ 1/2
--
110
--
Deg
反向电流Reverse current
Vr=5V
Ir
--
--
5
A
NOTE: 1. Tolerance of luminous intensity is ±10%
发光强度公差为±10%
2. Tolerance of forward voltage is ±0.05V
正向电压公差±0.05
3
Typical Characteristics Curves
4
Reliability Test Items And Conditions*1
Criteria For Judging Damage
测试项目
Test project
测试条件
Test conditions
测试周期
Test cycle
样品数量
Sample quantity
允收
Ac/Re
常温老化
Normal temperature aging
Ta=25℃
IF=150mA
1000H
22pcs
0/1
高温老化
High temperature aging
Ta=85℃
IF=150mA
500H
22pcs
0/1
高温存储
High temperature storage
Ta=100℃
1000H
22pcs
0/1
低温存储
Cryogenic storage
Ta=-40℃
1000H
22pcs
0/1
冷热冲击
Thermal Shock
-40℃/30min~
100℃/30min
100 cycles
22pcs
0/1
回流焊
Reflow test
Ta=260℃
T=10s
3 times
22pcs
0/1
高温高湿老化
High temperature and high
humidity aging
85℃/85%RH
IF=150mA
500H
22pcs
0/1
硫化实验
Vulcanization experiment
Ta=85℃
2H
10pcs
0/1
红墨水实验
Red ink experiment
Ta=85℃
2H
22pcs
0/1
静电测试
Antistatic test
2000V HBM
1 times/pcs
10pcs
0/1
5
Package Dimensions
备注(NOTES):
①所有标注尺寸单位为毫米
All dimensions are millimeters;
②公差为0.05毫米
Tolerance is 0.05 mm
6
卷盘包装规格
Reel packing specification
备注(NOTES):
1、无材料部分同样用上封带密封;
No material part is also sealed with sealing tape.
2、材料缺口(负极)方向,与卷带齿孔方向一致;
The direction of material gap (negative pole) is the same as that of the coiling hole.
3、4000pcs/卷
4000 pcs/ Reel.
7
包装
Packaging (1)
3、注意事项 Cautions
1)、LED封装为硅胶,故LED胶体表面较软,用力按压胶体表面会影响LED可靠性,因此应有预防措施避免在封
装的零件上的强大压力,当使用吸嘴时,胶体表面的压力应是恰当的。
The encapsulated material of the LEDs is silicone. Therefore the LEDs have a soft surface on the top of
package. The pressure to the top surface will be influence to the reliability of the LEDs. Precautions should
be taken to avoid the strong pressure on the encapsulated part. So when use the picking up nozzle, the
pressure on the silicone resin should be proper.
2)、SMD吸嘴的外径不应超过LED的尺寸以避免漏气。吸嘴的内径应尽可能大。
吸嘴头建议使用柔软的材料以避免LED硅胶表面划伤或损坏。
The outer diameter of the SMD pickup nozzle should not exceed the size of the LED to
prevent air leaks. The inner diameter of the nozzle should be as large as possible. pliable
material is suggested for the nozzle tip to avoid scratching or damaging the LED surface
during pickup.
8
1
Guideline for Soldering (1)
1.
Hand Soldering
推荐使用功率低于 20W 的烙铁,焊接时烙铁的温度必须保持在 300℃以下,且每个电极只能进行一次焊
接,每次焊接的持续时间不得超过 3 秒。
人手焊接过程中的不慎操作易引起 LED 产品的损坏,应当小心谨慎。
A soldering iron of less than 20W is recommended to be used in Hand Soldering. Please keep the temperature of
the soldering iron under 300℃ while soldering. Each terminal of the LED is to go for less than 3 second and for one
time only.
Be careful because the damage of the product is often started at the time of the hand soldering.
2.
推荐使用以下无铅回流焊接温度图进行。
Reflow Soldering: Use the conditions shown in the under Figure ofPb-Free Reflow Soldering.
· 回流焊接最多只能进行一次。
Reflow soldering should not be done more than once .
· 在回流焊接升温过程中,请不要对 LED 施加任何压力。
Stress on the LEDs should be avoided during heating in soldering process.
· 在焊接完成后,待产品温度下降到室温之后,再进行其他处理。
After soldering, do not deal with the product before its temperature drop down to room temperature.
9
2
Guideline for Soldering (2)
3.
Cleaning
在焊接后推荐使用酒精进行清洗,在温度不高于 30℃的条件下持续 3 分钟, 不高于 50℃的条件下持续 30
秒。使用其他类似溶剂清洗前,请先确认使用的溶剂不会对 LED 的封装和环氧树脂部分造成损伤。
超声波清洗也是有效的方法,一般最大功率不应超过 300W ,否则可能对 LED 造成损伤。请根据具体的
情况预先测试清洗条件是否会对 LED 造成损伤。
It is recommended that alcohol be used as a solvent for cleaning after soldering. Cleaning is to go under 30℃ for
3 minutes or 50℃ for 30 seconds. When using other solvents, it should be confirmed beforehand whether the solvents
will dissolve the package and the resin or not.
Ultrasonic cleaning is also an effective way for cleaning. But the influence of Ultrasonic cleaning on LED
depends on factors such as ultrasonic power. Generally, the ultrasonic power should not be higher than 300W. Before
cleaning, a pretest should be done to confirm whether any damage to LEDs will occur.
此一般指导原则并不适用于所有 PCB 设计和焊接设备的配置。具体工艺受到诸多因素的影响,
请根据特定的PCB设计和焊接设备来确定焊接方案。
Note: This general guideline may not apply to all PCB designs and configurations of all soldering equipment.
The technics in practise is influenced by many factors, it should be specialized base on the PCB designs
and configurations of the soldering equipment..
10
1
Precautions (1)
1.
Storage
· 本产品使用密封防潮抗静电袋包装,并附有干燥剂,未开封的产品有一年的保存时间。
Moisture proof and anti-electrostatic package with moisture absorbent material is used, to keep moisture to a
minimum.
· 开封前,产品须存放在温度不高于 30℃,湿度不高于 60%RH 的环境中。
Before opening the package, the product should be kept at 30℃ or less and humidity less than 60% RH, and be
used within a year.
· 开封后,产品须存放在温度不高于 30℃,湿度不高于 10%RH 的环境中,且应该在 168 小时(7 天) 内使
用完。建议工作环境为温度不高于 30℃,湿度不高于 60%RH。
After opening the package, the product should be stored at 30℃ or less and humidity less than 10%RH, and be
soldered within 168 hours (7 days). It is recommended that the product be operated at the workshop condition of
30℃ or less and humidity less than 60%RH.
· 对于尚未焊接的 LED,如果吸湿剂或包装失效,或者产品没有符合以上有效存储条件,烘焙可以起到一定
的性能恢复效果。烘焙条件: (60±5)℃,持续 24 小时。
If the moisture absorbent material has fade away or the LEDs have exceeded the storage time, baking treatment
should be performed based on the following condition: (60±5)℃ for 24 hours.
2.
Static Electricity
静电和电涌会导致产品特性发生改变,例如正向电压降低等,如果情况严重甚至会损毁产品。所以在使用
时
必须采取有效的防静电措施。
所有相关的设备和机器都应该正确接地,同时必须采取其他防止静电和电涌的措施。
使用防静电手环,防静电垫子,防静电工作服、工作鞋、手套,防静电容器,都是有效的防止静电和电涌
的
措施。
Static electricity or surge voltage damages the LEDs. Damaged LEDs will show some unusual characteristic such
as the forward voltage becomes lower, or the LEDs do not light at the low current. even not light.
All devices, equipment and machinery must be properly grounded. At the same time, it is recommended that wrist
bands or anti-electrostatic gloves, anti-electrostatic containers be used when dealing with the LEDs.
11
2
Precautions (2)
3.
Design Consideration
设计电路时,通过 LED 的电流不能超过规定的最大值,同时,还需使用保护电阻,否则,微小的电压变
化将会引起较大的电流变化,可能导致产品损毁。
建议使用以下(A)电路,该电路能够很好的调节通过每个 LED 的电流; 不推荐使用(B)电路,该电路
在持续的电压驱动下,LED 的正向电压(VF )发生变化,电流会随之而发生变化,可能使某些 LED 承受高于
规定的电流值。
In designing a circuit, the current through each LED must not exceed the absolute maximum rating specified for
each LED. In the meanwhile, resistors for protection should be applied, otherwise slight voltage shift will cause big
current change, burn out may happen.
It is recommended to use Circuit A which regulates the current flowing through each LED rather than Circuit B.
When driving LEDs with a constant voltage in Circuit B, the current through the LEDs may vary due to the variation
in Forward Voltage (VF) of the LEDs. In the worst case, some LED may be subjected to stresses in excess of the
Absolute Maximum Rating.
(A)
(B)
LED 的特性容易因为自身的发热和环境的温度的改变而发生改变。温度的升高会降低 LED 的发光效率、
影响发光颜色等,所以在设计时应充分考虑散热的问题。
Thermal Design is paramount importance because heat generation may result in the Characteristics decline, such as
brightness decreased, Color changed and so on. Please consider the heat generation of the LEDs when making the
system design.
12
Precautions (3)
说明(Note):
1、 焊接时请不要重压 LED 灯(Do not press LED lamp when welding);
2、焊接后温度未回降到常温时请勿扭曲线路板(Do not distort the circuit board when the
temperature does not return to normal temperature after welding);
3、手工焊接时,烙铁温度不高于 300℃,每个焊脚焊接时间不超过 3 秒
(The temperature of the iron should be lower than 300℃ and soldering within 3sec
per solder-pad is to be observed);
13
Precautions (4)
4.
Others
直接用手拿取产品不但会污染封装树脂表面,也可能由于静电等因素导致产品性能的改变。过度的压力也可能直接
影响封装内部的管芯和金线,因此请勿对产品施加过度压力,特别当产品处于高温状态下,例如在回流焊接过程中。
When handling the product, touching the encapsulant with bare hands will not only contaminate its surface, but
also affect on its optical characteristics. Excessive force to the encapsulant might result in catastrophic failure of the
LEDs due to die breakage or wire deformation. For this reason, please do not put excessive stress on LEDs, especially
when the LEDs are heated such as during Reflow Soldering.
LED 的环氧树脂封装部分相当脆弱,请勿用坚硬、尖锐的物体刮、擦封装树脂部分。在用镊子夹取的时
候也应当小心注意。
The epoxy resin of encapsulant is fragile, so please avoid scratch or friction over the epoxy resin surface. While
handling the product with tweezers, do not hold by the epoxy resin, be careful.
不可用在PH
