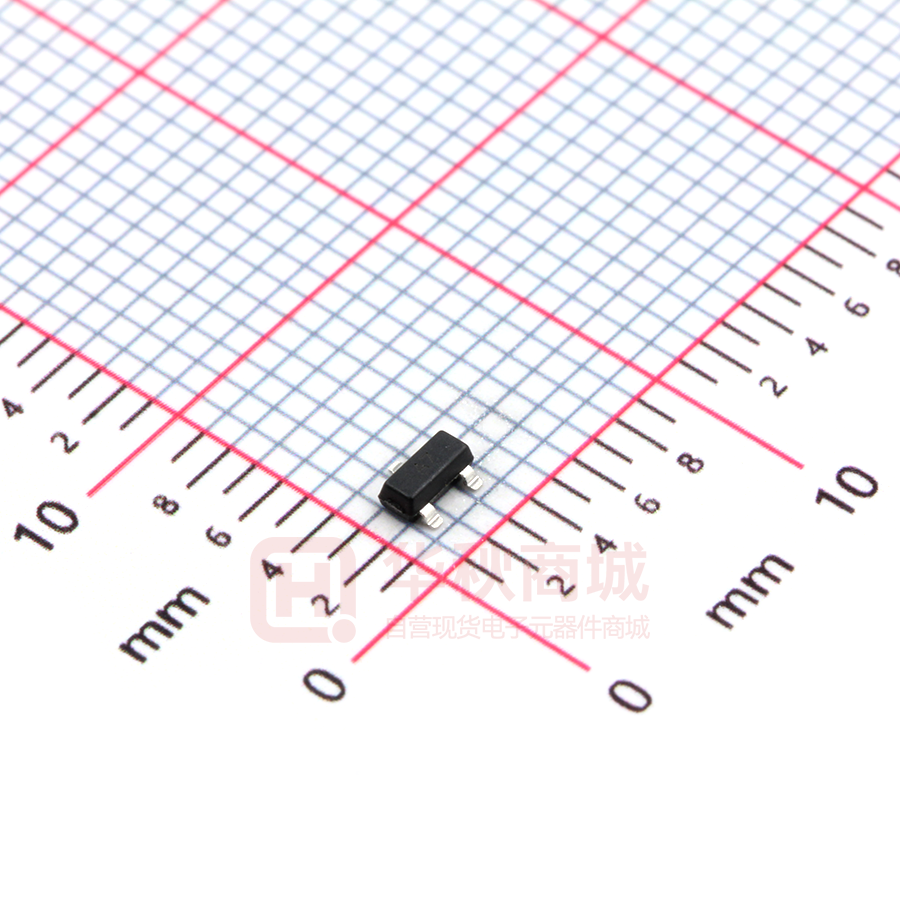

BAV99

山东晶导微电子股份有限公司 BAW56 BAV70 BAV99 Jingdao Microelectronics co.LTD Switching Diodes SOT-23 FEATURES • Fast Switching Speed • For General Purpose Switching Applications • High Conductance 3 3 3 1 3 2 1 2 1 BAW56 2 1 BAV70 2 BAV99 Maximum Ratings @Ta=25℃ Symbol Value Unit Reverse Voltage VR 70 V Forward Current IF 200 mA I FSM 2.0 A PD 225 mW R thJA 556 ℃/W T J, T STG -55 ~ +150 ℃ Parameter Non-Repetitive Peak Forward Surge Current @t=8.3ms Power Dissipation Thermal Resistance Junction to Ambient Operation Junction and Storage Temperature Range Electrical Characteristics @ Ta=25℃ Typ Parameter Symbol Reverse breakdown voltage VR I R =100μA VF1 I F =1 mA 0.715 V VF2 I F =10mA 0.855 V VF3 I F =50mA 1 V VF4 V R =150mA 1.25 V Reverse current IR V R =70V 2.5 uA Capacitance between terminals t rr V R =0, f=1MHz 1.5 pF Reverse recovery time t rr I F = I R = 10mA, Irr=0.1×I R, R L=100Ω 6 ns Forward voltage 2020.10 Test conditions www.sdjingdao.com Min Max Unit V 70 Page 1 of 4 山东晶导微电子股份有限公司 BAW56 BAV70 BAV99 Jingdao Microelectronics co.LTD Fig.2 Reverse Characteristics 1000 250 REVERSE CURRENT I R (nA) POWER DISSIPATION P D (mW) Fig.1 Power Derating Curve 200 150 100 50 T a =100°C 100 T a =25°C 10 0 1 0 25 75 50 100 125 150 0 300 =1 00 °C 100 Ta =2 5°C Ta FORWARD CURRENT I F (mA) Fig.3 Forward Characteristics 1 0.1 0.0 0.2 0.4 0.6 0.8 1.0 1.2 CAPACITANCE BETWEEN TERMINALS C T (pF) AMBIENT TEMPERATURE Ta(℃) 10 Fig.4 40 60 80 Capacitance Characteristics 1.4 T a =25°C f=1MHz 1.3 1.2 1.1 1.0 0 5 10 15 20 REVERSE VOLTAGE V R (V) FORWARD VOLTAGE V F (V) 2020.10 20 REVERSE VOLTAGE V R (V) www.sdjingdao.com Page 2 of 4 山东晶导微电子股份有限公司 BAW56 BAV70 BAV99 Jingdao Microelectronics co.LTD SOT-23 Package Outline Dimensions e ∠ALL ROUND D e A M e E C a L1 L HE SOT-23 mechanical data UNIT mm mil A C D E HE max 1.1 0.15 1.4 3.0 2.6 min 0.9 0.08 1.2 2.8 2.2 e M L1 a ∠ 0.5 1.95 0.55 0.36 0.0 (ref) (ref) 0.3 1.7 0.15 12° max 43 6 55 118 102 20 77 min 35 3 47 110 12 67 87 0.8 (0.031) 0.9 (0.039) 0.95 (0.037) 22 14 0.0 (ref) (ref) 6 Marking The recommended mounting pad size 0.95 (0.037) L Type number Marking code BAW56 A1 BAV70 A4 BAV99 A7 2.0 (0.079) mm Unit ： (inches) 2020.10 201009 Page 3 of 4 山东晶导微电子股份有限公司 Jingdao Microelectronics co.LTD BAW56 BAV70 BAV99 SOT-23 Packing 1.The method of packaging and dimension are shown as below figure. (Dimension in mm) 7 inX8 mm Cover Tape 3,000 pcs per reel Carrier Tape SOT-23 220mm 8 reels per box 24,000 pcs per box 5 boxes per carton 120,000 pcs per carton 105 mm m mm m 210 5m 0m 18 55 180 mm SOT-23 Embossed Carrier Tape SOT-23 Tape Leader and Trailer 2020.10 Page 4 of 4
