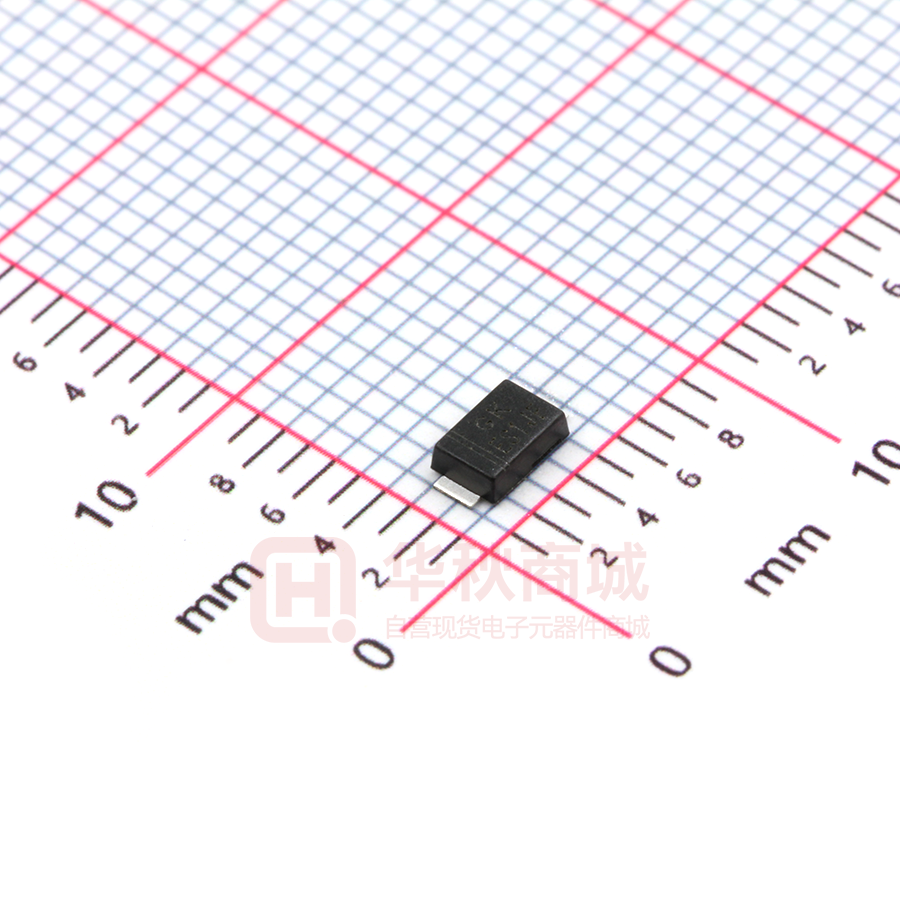

ES1JF

ES1AF ES1JF THRU 1.0 AMP SURFACE MOUNT SUPER FAST RECTIFIERS VOLTAGE RANGE 50 to 600 Volts CURRENT 1.0 Ampere FEATURES * Ideal for surface mount applications * Easy pick and place * Built-in strain relief * Fast switching speed SMAF .146(3.7) .130(3.3) .063(1.6) .051(1.3) MECHANICAL DATA .193(4.9) .173(4.4) * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant * Metallurgically bonded construction * Polarity: Color band denotes cathode end * Mounting position: Any .008(0.20) .005(0.12) .047(1.20) .035(0.90) .106(2.7) .094(2.4) .047(1.2) .031(0.8) Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25 C ambient temperature uniess otherwies specified. Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. TYPE NUMBER Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current ES1AF ES1BF ES1CF ES1DF ES1EF ES1GF ES1JF 50 35 50 100 70 100 150 105 150 at Ta=25 C Peak Forward Surge Current, 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) Maximum Instantaneous Forward Voltage at 1.0A Maximum DC Reverse Current Ta=25 C at Rated DC Blocking Voltage Ta=100 C Maximum Reverse Recovery Time (Note 1) Typical Junction Capacitance (Note 2) Typical Thermal Resistance RqJA (Note 3) Operating and Storage Temperature Range TJ, TSTG 200 140 200 300 210 300 400 280 400 600 420 600 UNITS V V V A 1.0 25 5.0 A V A 500 35 A nS 15 80 -65 +150 pF C/W C 1.25 0.95 1.7 Marking Code NOTES: 1. Reverse Recovery Time test condition: IF=0.5A, IR=1.0A, IRR=0.25A 2. Measured at 1MHz and applied reverse voltage of 4.0V D.C. 3. Thermal Resistance from Junction to Ambient. REV 1.0 2015 JAN PAGE:1/2 RATING AND CHARACTERISTIC CURVES ( ES1AF THRU ES1JF) FIG.2-TYPICAL FORWARD CURRENT DERATING CURVE FIG.1- TEST CIRCUIT DIAGRAM AND REVERSE RECOVERY TIME CHARACTERISTIC trr 10W NONINDUCTIVE ( ) D.U.T. 25Vdc (approx.) | | | | | | | | +0.5A (+) PULSE GENERATOR (NOTE 2) ( ) AVERAGE FORWARD CURRENT,(A) 50W NONINDUCTIVE 0 -0.25A (+) 1W NONINDUCTIVE OSCILLISCOPE (NOTE 1) -1.0A NOTES: 1. Rise Time= 7ns max., Input Impedance= 1 megohm.22pF. 1cm 2. Rise Time= 10ns max., Source Impedance= 50 ohms. 1.2 1.0 0.8 Single Phase 0.6 Half Wave 60Hz Resistive Or Inductive Load 0.4 0.375"(9.5mm) Lead Length 0.2 0 SET TIME BASE FOR 0 25 50 FIG.4-TYPICAL REVERSE CHARACTERISTICS CHARACTERISTICS 50 10 10 ES 1D F REVERSE LEAKAGE CURRENT, ( A) 50 F 1J ES 1E F- ES 1G F F1A ES 1.0 ES INSTANTANEOUS FORWARD CURRENT,(A) FIG.3-TYPICAL FORWARD 3.0 Tj=25 C Pulse Width 300us 1% Duty Cycle 0.1 .01 .4 .6 .8 1.0 1.2 1.4 1.6 100 125 150 175 3.0 1.0 Tj=100 C Tj=25 C 0.1 .01 1.8 0 20 40 60 80 100 120 140 PERCENT OF RATED PEAK REVERSE VOLTAGE,(%) FORWARD VOLTAGE,(V) FIG.6-TYPICAL JUNCTION CAPACITANCE FIG.5-MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT 175 50 JUNCTION CAPACITANCE,(pF) PEAK FORWARD SURGE CURRENT,(A) 75 AMBIENT TEMPERATURE,( C) 50 / 10ns / cm 40 30 Tj=25 C 8.3ms Single Half Sine Wave 20 JEDEC method 10 150 125 100 75 50 25 0 0 1 5 10 NUMBER OF CYCLES AT 60Hz 50 100 .01 .05 .1 .5 1 5 10 50 100 REVERSE VOLTAGE,(V) REV 1.0 2015 JAN PAGE:2/2
