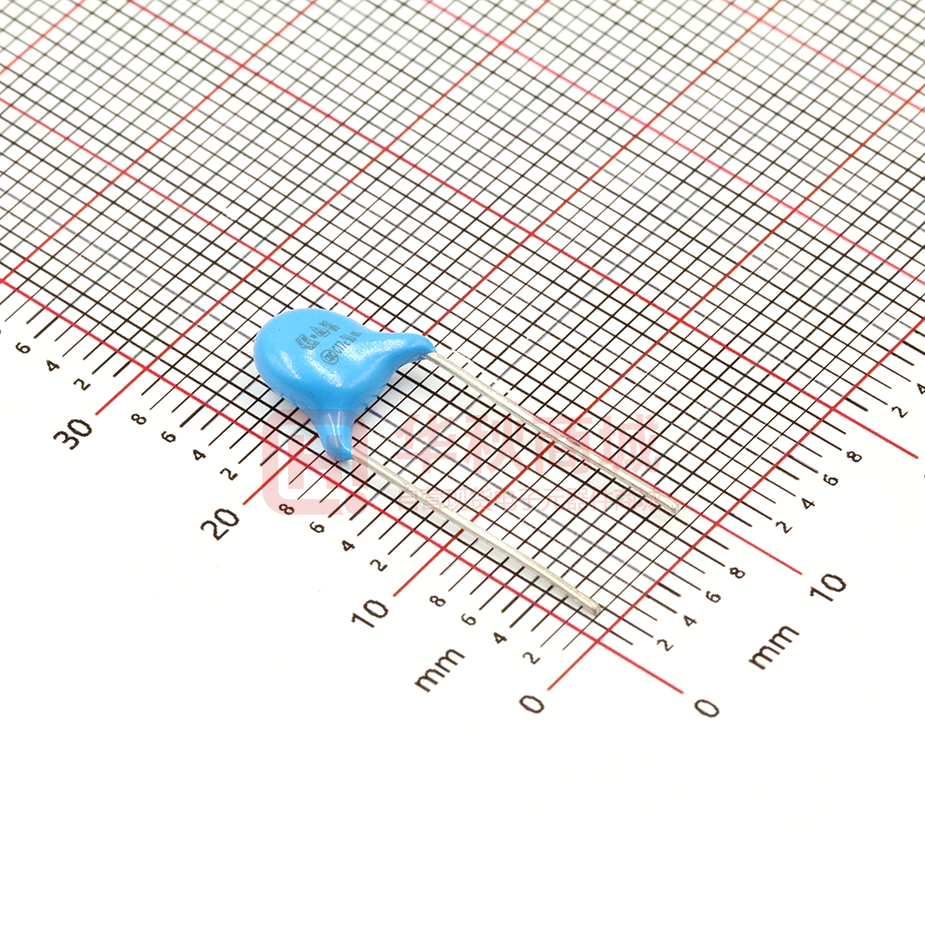

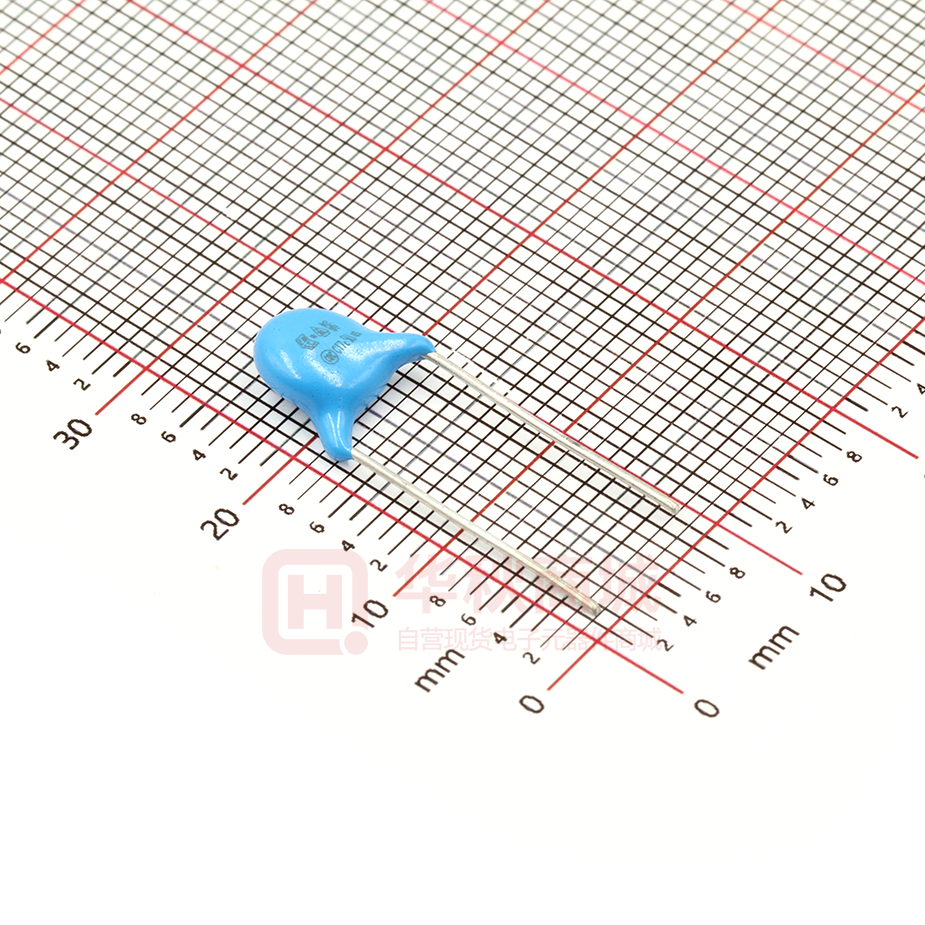

Safety Standard Certified Ceramic Capacitors-CE Series (Class Y2)
Safety Standard Certified Ceramic Capacitors-CE
Series (Class Y2) Data Sheet
Feature
■Wide operating voltage range from 100pF to 10000pF
■Operating Temperature: -40℃~125℃
■Storage Temperature: 15℃~35℃
■Fix capacitors Y2 for electromagetic interference suppression and connection to the supply mains
has high dielectric coefficient ceramic dielectric and flame retardant epoxy resin package
Applications
■ Can be used for power supply noise suppression circuit in cross connection and bypass.It is a
primary and secondary coupling X/Y capacitor used as AC line filter and switching power supply and
AC converter
Applicable Standard
Approval
Organization
Safety Standards
Certificate No.
USA
Canada
UL
CUL
UL60384
E208107
Korea
KTL
K60384-14
SU03031-7001
China
CQC
GB/T 6346.14-2015
CQC07001019906
Germany
VDE
En 60384-14
40025748
Email: info@songtian.cn
Website: http://www.songtian-ste.com
Revision: 2018-04-29
1
Safety Standard Certified Ceramic Capacitors-CE Series (Class Y2)
Approval
Organization
Safety Standards
Certificate No.
EU
ENEC
En 60384-14
40025748
IEC
IEC-CB
IEC 60384-14
US-21745-UL
Part Number Code
G
08
F
Rated
Voltage
G:Y2
Core Diameter
08:8mm
14:14mm
Temperature
Characteristic
B:Y5P
E:Y5U
F:Y5V
Revision: 2018-04-29
1
E
222
Pitch
E:7.5mm
D:10.0mm
M
N0
Tolerance
K:±10%
M:±20%
B
S
Package
B: Bulk
T:Tape
Nominal capacitance
101:100pF
222:2200pF
103:10000pF
Foot Type
1:Long straight
2:Outside Crimped
3:Short Straight
8:Vertical Crimped
0
0
N
0
Inner
Management
Environmental
Standard
0:RoHS
2:RoHS+Halogen-Free
Lead Length
S0~S9:1.0~1.9mm
X0~X9:2.0~2.9mm
A0~A9:3.0~3.9mm
B0~B9:4.0~4.9mm
C0~C9:5.0~5.9mm
D0~D9:6.0~6.9mm
E0~E9:7.0~7.9mm
2
Lead Length
F0~F9:8.0~8.9mm
G0~G9:9.0~9.9mm
H0~H9:10.0~10.9mm
J0~J9:11.0~11.9mm
K0~K9:12.0~12.9mm
L0~L9:13.0~13.9mm
M0~M9:14.0~14.9mm
Email: info@songtian.cn
Lead Length
M0~M9:14.0~14.9mm
N0:16~27.0mm(Bulk)
Crimped Lead Taped
N0:H0=16.5mm
P0:H0=17.0mm
Q0:H0=19.0mm
Straight Lead
Q0:20.0mm
Website: http://www.songtian-ste.com
Safety Standard Certified Ceramic Capacitors-CE Series (Class Y2)
Specifications
Capacitance and Dissipation factor testing condition
Dissipation Factor(tanδ)
25℃、1KHz、1Vrms
≤2.5%
Rated Voltage
250VAC
Withstand Voltage
2500VAC
Insulation Resistance (I.R.)
IR≥10000MΩ
Temperature Characteristic
Y5P、Y5U、Y5V
Dimensions (mm) and Approval
Size (mm)
Part No.
Approval
D Max.
T Max.
F±0.8
d±0.05
CQC
VDE
cUL
(Canada)
KTL
ENEC
Y2-Y5P-101K
7.0
4.0
7.5
0.6
√
√
√
√
√
Y2-Y5P-151K
7.0
4.0
7.5
0.6
√
√
√
√
√
Y2-Y5P-221K
7.0
4.0
7.5
0.6
√
√
√
√
√
Y2-Y5P-331K
7.0
4.0
7.5
0.6
√
√
√
√
√
Y2-Y5P-471K
7.0
4.0
7.5
0.6
√
√
√
√
√
Y2-Y5P-681K
8.5
4.0
7.5
0.6
√
√
√
Y2-Y5U-681M
7.0
4.0
7.5
0.6
√
√
√
Y2-Y5U-102M
7.0
4.0
7.5
0.6
√
√
√
√
√
Y2-Y5U-152M
9.0
4.0
7.5
0.6
√
√
√
√
√
Y2-Y5U-222M
10.0
4.0
7.5
0.6
√
√
√
√
√
Y2-Y5U-332M
12.0
4.0
7.5
0.6
√
√
√
√
√
Y2-Y5U-472M
14.0
4.5
7.5
10.0
0.65
√
√
√
√
√
Y2-Y5U-103M
18.0
4.5
7.5
10.0
0.65
√
√
√
√
√
Y2-Y5V-152M
7.0
4.0
7.5
0.6
√
√
√
√
√
Y2-Y5V-222M
8.0
4.0
7.5
0.6
√
√
√
√
√
Revision: 2018-04-29
3
Email: info@songtian.cn
Website: http://www.songtian-ste.com
Safety Standard Certified Ceramic Capacitors-CE Series (Class Y2)
Size (mm)
Part No.
Approval
D Max.
T Max.
F±0.8
d±0.05
CQC
VDE
cUL
(Canada)
KTL
ENEC
Y2-Y5V-332M
9.0
4.0
7.5
0.6
√
√
√
√
√
Y2-Y5V-472M
10.0
4.0
7.5
0.6
√
√
√
√
√
Y2-Y5V-103M
14.0
4.5
0.65
√
√
√
√
√
Revision: 2018-04-29
7.5
10.0
4
Email: info@songtian.cn
Website: http://www.songtian-ste.com
Safety Standard Certified Ceramic Capacitors-CE Series (Class Y2)
Lead Configuration
Lead Style
Lead Length
L (mm)
Drawing
Long Straight
16.0 min
Coating Lead Length
C (mm)
①C≤2.5mm
(Product diameter﹤12mm)
Height
H (mm)
/
②C≤3.0mm
(Product diameter≥12mm)
Short Straight
①[2.5≤L<6.0]+/-0.5;
②[6.0≤L≤10]+/-1.0
①C≤2.5mm
(Product diameter﹤12mm)
/
②C≤3.0mm
(Product diameter≥12mm)
Outside Crimped
①[2.5≤L<6.0]+/-0.5;
②[6.0≤L≤10]+/-1.0
Not exceed the bend point
5.0mm
Max
Vertical Crimped
①[2.5≤L<6.0]+/-0.5;
②[6.0≤L≤10]+/-1.0
Not exceed the bend point
4.0mm
Max
Revision: 2018-04-29
5
Email: info@songtian.cn
Website: http://www.songtian-ste.com
Safety Standard Certified Ceramic Capacitors-CE Series (Class Y2)
Taping And Dimensions (mm)
Figure
Symbol
P=7.5
P=10.0
Po
12.7±0.3
12.7±0.3
P
25.4±1.0
25.4±1.0
P1
8.95±0.7
7.7±0.7
P2
12.7±1.3
12.7±1.3
F
7.5±0.8
10.0±0.8
Δh
0±2.0
0±2.0
W
18.0 +1.5/-1.0
18.0 +1.5/-1.0
Wo
10.5 Max
10.5 Max
W1
9.0+0.75/-0.5
9.0+0.75/-0.5
W2
3.0 Max
3.0 Max
Do
4.0±0.2
4.0±0.2
H
20+1.5/-1.0
20+1.5/-1.0
16.5&17.0&19.0
16.5&17.0&19.0
Ho
+1.5/-1.0
+1.5/-1.0
Straight
Lead
Crimped
Lead
Straight
Lead
Crimped
Lead
11.0
Max
9.0
Max
11.0
Max
9.0
Max
L
Revision: 2018-04-29
6
t1
0.5±0.2
0.5±0.2
t2
1.7 Max
1.7 Max
Email: info@songtian.cn
Website: http://www.songtian-ste.com
