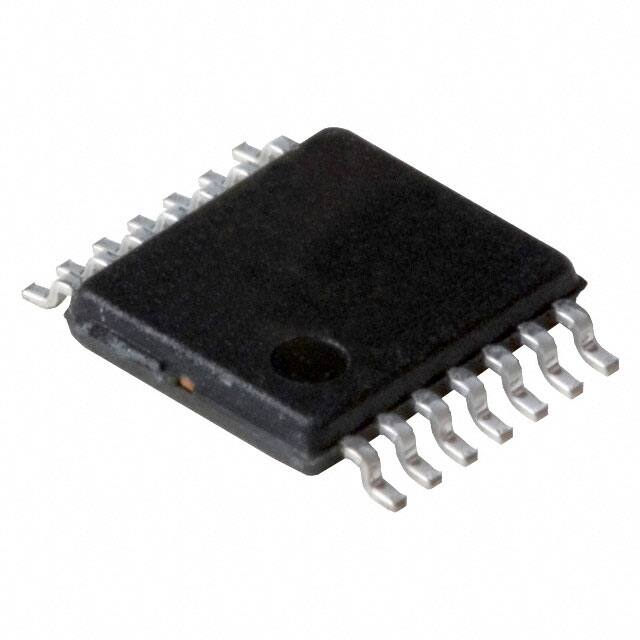

NJM2058V-TE1

NJM2058 QUAD OPERATIONAL AMPLIFIER ■ GENERAL DESCRIPTION The NJM2058 integrated circuit is a quad high-gain operational amplifier internally compensated and constructed on a single silicon chip using an advanced epitaxial process. Each amplifier of the NJM2058 has the same electrical characteristics of the NJM4558. ■ FEATURES ● Operating Voltage ● Package Outline ● Bipolar Technology ■ PACKAGE OUTLINE NJM2058D NJM2058M ( ±4V~±18V ) DIP14,DMP14,SSOP14 NJM2058V ■ PIN CONFIGURATION NJM2058D NJM2058M NJM2058V PIN FUNCTION 1. A OUTPUT 2. A -INPUT 3. A +INPUT + 4. V 5. B +INPUT 6. B -INPUT 7. B OUTPUT 8.C OUTPUT 9. C –INPUT 10.C +INPUT 11.V 12.D +INPUT 13.D –INPUT 14.D OUTPUT ■ EQUIVALENT CIRCUIT ( 1/4 Shown ) Ver.2003-03-19 -1- NJM2058 ■ ABSOLUTE MAXIMUM RATINGS ( Ta=25˚C ) PARAMETER Supply Voltage Differential Input Voltage Input Voltage SYMBOL + V /V VID VIC Power Dissipation PD Operating Temperature Range Storage Temperature Range Topr Tstg RATINGS ± 18 ± 30 ± 15 ( note1 ) ( DIP14 ) 700 ( DMP14 ) 700 ( note2 ) ( SSOP14 ) 300 -40~+85 -40~+125 UNIT V V V mW ˚C ˚C ( note1 ) For supply voltage less than ±15V. the absolute maximum input voltage is equal to the supply voltage. ( note2 ) At on PC board ■ ELECTRICAL CHARACTERISTICS ( Ta=25˚C,V+/V-=±15V ) PARAMETER Input Offset Voltage Input Offset Current Input Bias Current Input Resistance Large signal Voltage Gain Maximum Output Voltage Swing 1 Maximum Output Voltage Swing 2 Input Common Mode Voltage Range Common Mode Rejection Ratio Supply Voltage Rejection Ratio Operating Current Slew Rate Equivalent Input Noise Voltage -2- SYMBOL VIO IIO IB RIN AV VOM1 VOM2 VICM CMR SVR ICC SR VNI TEST CONDITION RS≤10kΩ RL≥2kΩ,VO=±10V RL≥10kΩ RL≥2kΩ RS≤10kΩ RS≤10kΩ RIAA,RS=2.2kΩ,30kHz LPF MIN. 0.3 86 ± 12 ± 10 ± 12 70 76.5 - TYP. 0.5 5 20 1 100 ± 14 ± 13 ± 14 90 90 7 1 1.4 MAX. 6 200 500 11.3 - UNIT mV nA nA MΩ dB V V V dB dB mA V/µs µVrms Ver.2003-03-19 NJM2058 Ver.2003-03-19 -3- NJM2058 ■ TYPICAL CHARACTERISTICS -4- Ver.2003-03-19 NJM2058 ■ TYPICAL CHARACTERISTICS [CAUTION] The specifications on this databook are only given for information , without any guarantee as regards either mistakes or omissions. The application circuits in this databook are described only to show representative usages of the product and not intended for the guarantee or permission of any right including the industrial rights. Ver.2003-03-19 -5-
